| Author |
Message |
Deen Rechner
Samba Member
Joined: August 28, 2016
Posts: 53
Location: Germany
|
 Posted: Sun Mar 26, 2023 10:19 pm Post subject: Shift rod rear |
 |
|

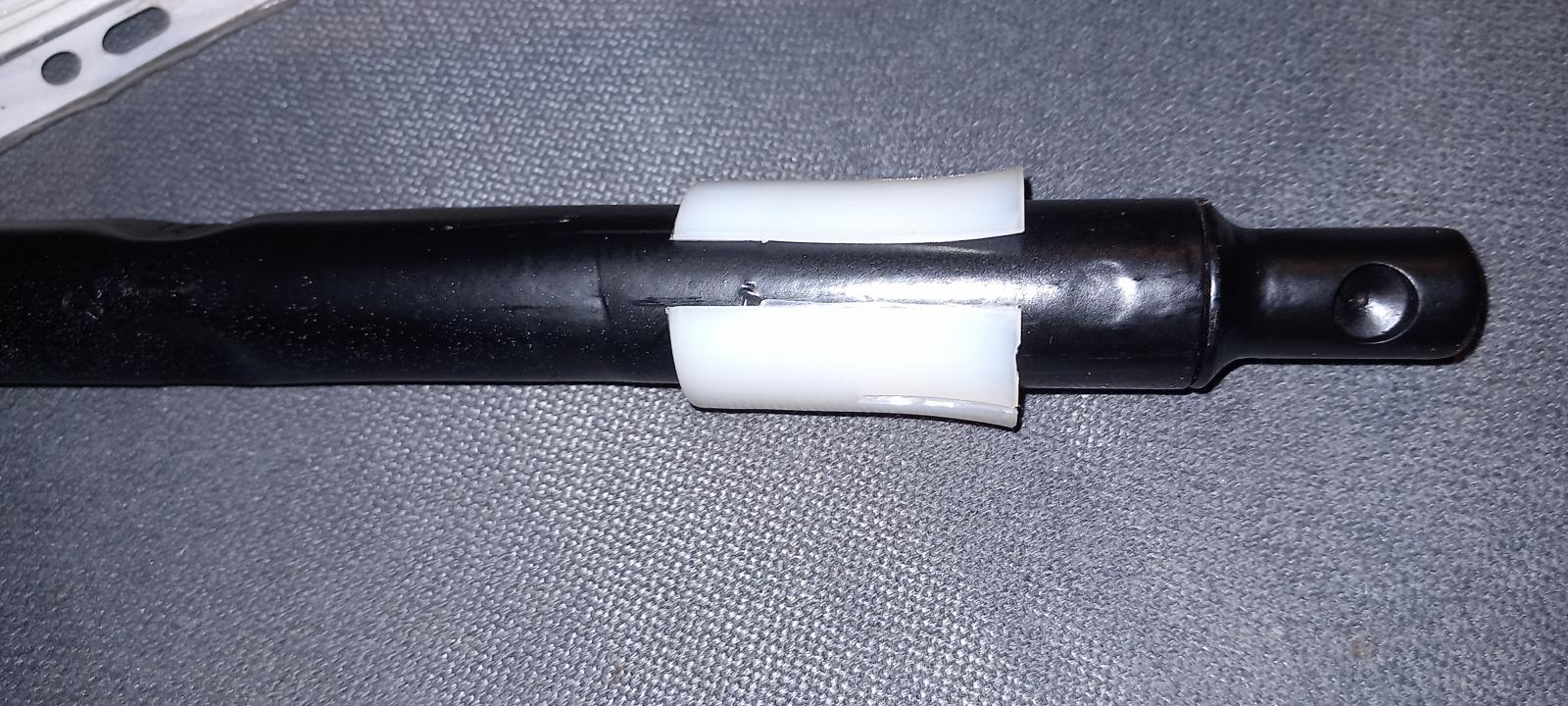

I bouht two rear shift rod bushings for the bus.
They donīt fit into the pipe.
Did I put the bushings on the shift rod rear the wrong way? |
|
| Back to top |
|
 |
Clara
Samba Member
Joined: June 14, 2003
Posts: 12273
|
| Posted: Mon Mar 27, 2023 6:12 am Post subject: Re: shift rod rear |
|
|
| Deen Rechner wrote: |
I bouht two rear shift rod bushings for the bus.
They donīt fit into the pipe.
Did I put the bushings on the shift rod rear the wrong way? |

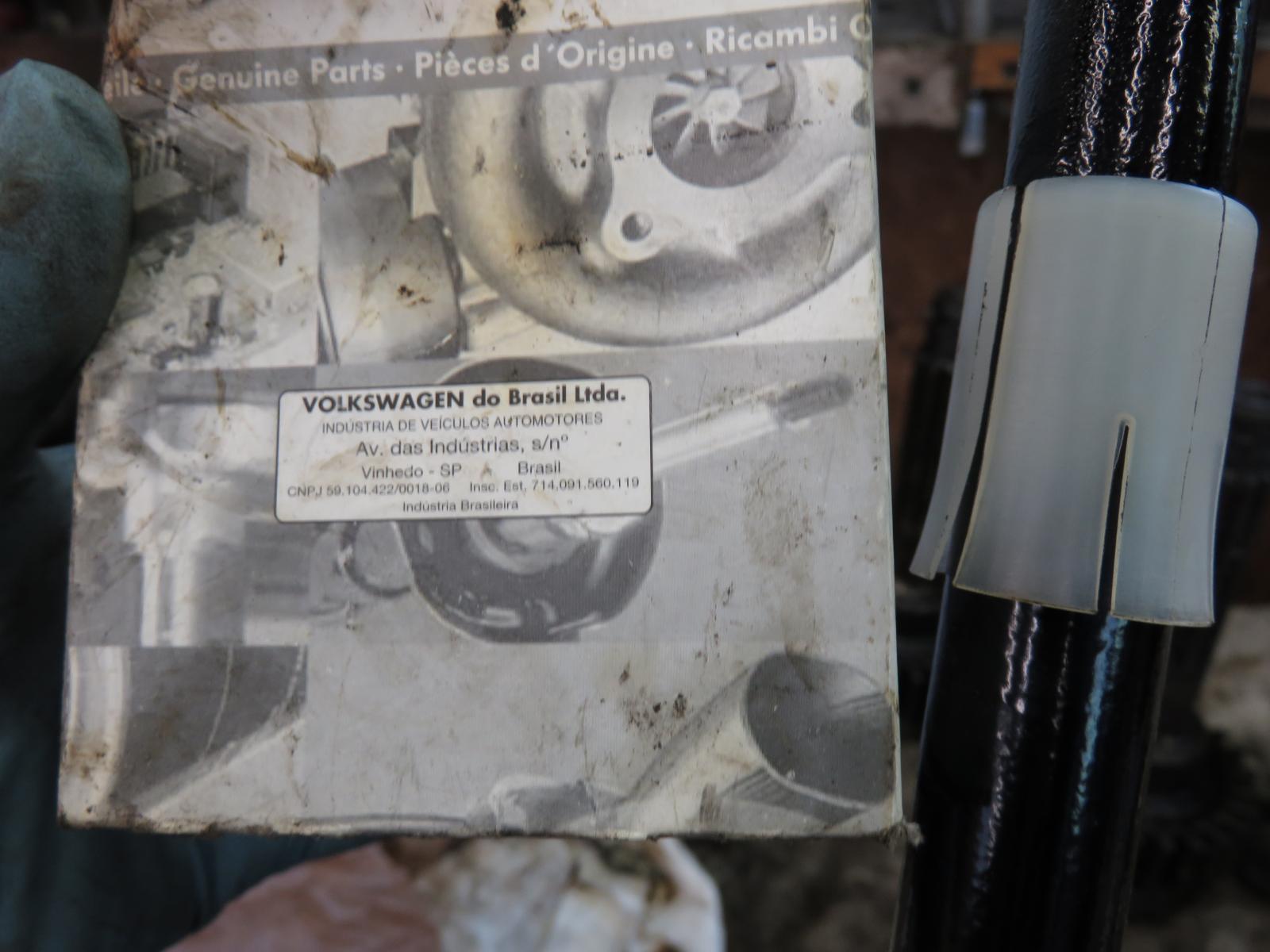

Install the bush so the peg on the inside of the bush fits the hole in the rod.
apply grease liberally as you install it.
Thus:
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
Deen Rechner
Samba Member
Joined: August 28, 2016
Posts: 53
Location: Germany
|
| Posted: Mon Mar 27, 2023 9:36 pm Post subject: Re: shift rod rear |
|
|
I cleaned the guide tube and found a piece of plastic. In the front part, the shift rod rear was stuck.
I had to remove the paint completely in the upper part so that it fits into the guide tube at all. I suspect that there is still a piece of plastic in the pipe and I cannot remove it.
I hope that if I push the second plastic piece on the shift rod and there are no further problems with later shifting.
In which direction do I have to push the plastic piece onto the rear shift rod? Like the piece on the left side of the shift rod or as seen in the photo is the right plastic piece? |
|
| Back to top |
|
|
ted698
Samba Member
Joined: June 17, 2016
Posts: 80
Location: Shropshire, UK
|
| Posted: Tue Mar 28, 2023 6:07 am Post subject: Re: shift rod rear |
|
|
A good few inches down the rod from each end is a drilled shallow hole.
Inside each bush perimeter is a plastic peg.
- slide the bushings down the rod until the inner plastic peg clicks into their holes on the rod. |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 13723
Location: Casa de Oro, California
|
| Posted: Tue Mar 28, 2023 6:24 pm Post subject: Re: shift rod rear |
|
|
| Deen Rechner wrote: |
In which direction do I have to push the plastic piece onto the rear shift rod? Like the piece as seen in the photo is the right plastic piece? |
I think both go like the right one. The rod should be loose with the nylon shuttlecocks supporting it to add tension and anti-rattle. |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12273
|
| Posted: Wed Mar 29, 2023 8:46 am Post subject: Re: shift rod rear |
|
|
| Deen Rechner wrote: |
I cleaned the guide tube and found a piece of plastic. In the front part, the shift rod rear was stuck.
[img]https://www.thesamba.com/vw/gallery/pix/2379490.jpg[/img

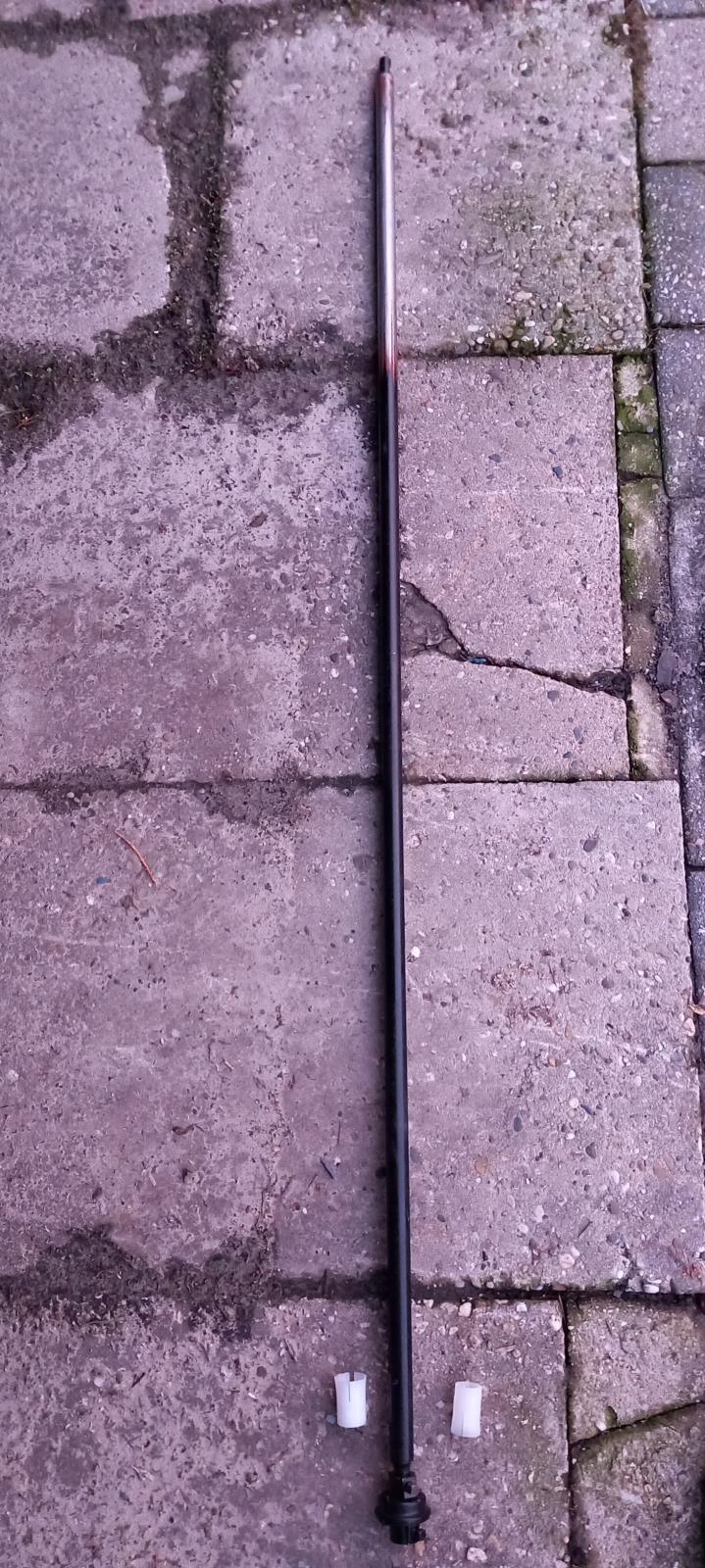

I had to remove the paint completely in the upper part so that it fits into the guide tube at all. I suspect that there is still a piece of plastic in the pipe and I cannot remove it.
[img]https://www.thesamba.com/vw/gallery/pix/2379489.jpg[/img
I hope that if I push the second plastic piece on the shift rod and there are no further problems with later shifting.
In which direction do I have to push the plastic piece onto the rear shift rod? Like the piece on the left side of the shift rod or as seen in the photo is the right plastic piece? |
Clean the guide tube out so there is nothing stuck inside.
I like the inside of the tube to be greasy, not clean. But definitely nothing chunky sticky in there, like an old plastic bush rusted in place maybe?
Grease is good against rust. Rust chews up the plastic bushes. The plastic bushes should slide against grease and smooth metal, not dry rust. For best shifting and plastic bushes lasting.
I have pushed a small greasy rag through the tube to make the tube greasy all the way through, even where the sun dont shine.
Use lots of grease when installing shift rod.
I put bushing like on right.
With new bush, sometimes you have to clean casting flashing so peg fits nicely in hole. Depends on manufacture.
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 13723
Location: Casa de Oro, California
|
| Posted: Fri Mar 31, 2023 10:27 am Post subject: Re: shift rod rear |
|
|
| Deen Rechner wrote: |
I had to remove the paint completely in the upper part so that it fits into the guide tube at all. I suspect that there is still a piece of plastic in the pipe and I cannot remove it.
|
Can you shine a modern super bright focused flashlight at one end and see what's up? |
|
| Back to top |
|
|
Deen Rechner
Samba Member
Joined: August 28, 2016
Posts: 53
Location: Germany
|
| Posted: Sat Apr 01, 2023 12:13 am Post subject: Re: Shift rod rear |
|
|
There is a Rear Shift Rod Bushings inside the pipe.
I canīt get it out. |
|
| Back to top |
|
|
Clara
Samba Member
Joined: June 14, 2003
Posts: 12273
|
| Posted: Sat Apr 01, 2023 7:48 am Post subject: Re: Shift rod rear |
|
|
Try Old Clutch cable spun backwards on a drill
_________________
The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
| Back to top |
|
|
Deen Rechner
Samba Member
Joined: August 28, 2016
Posts: 53
Location: Germany
|
| Posted: Sat Apr 01, 2023 11:31 pm Post subject: Re: Shift rod rear |
|
|

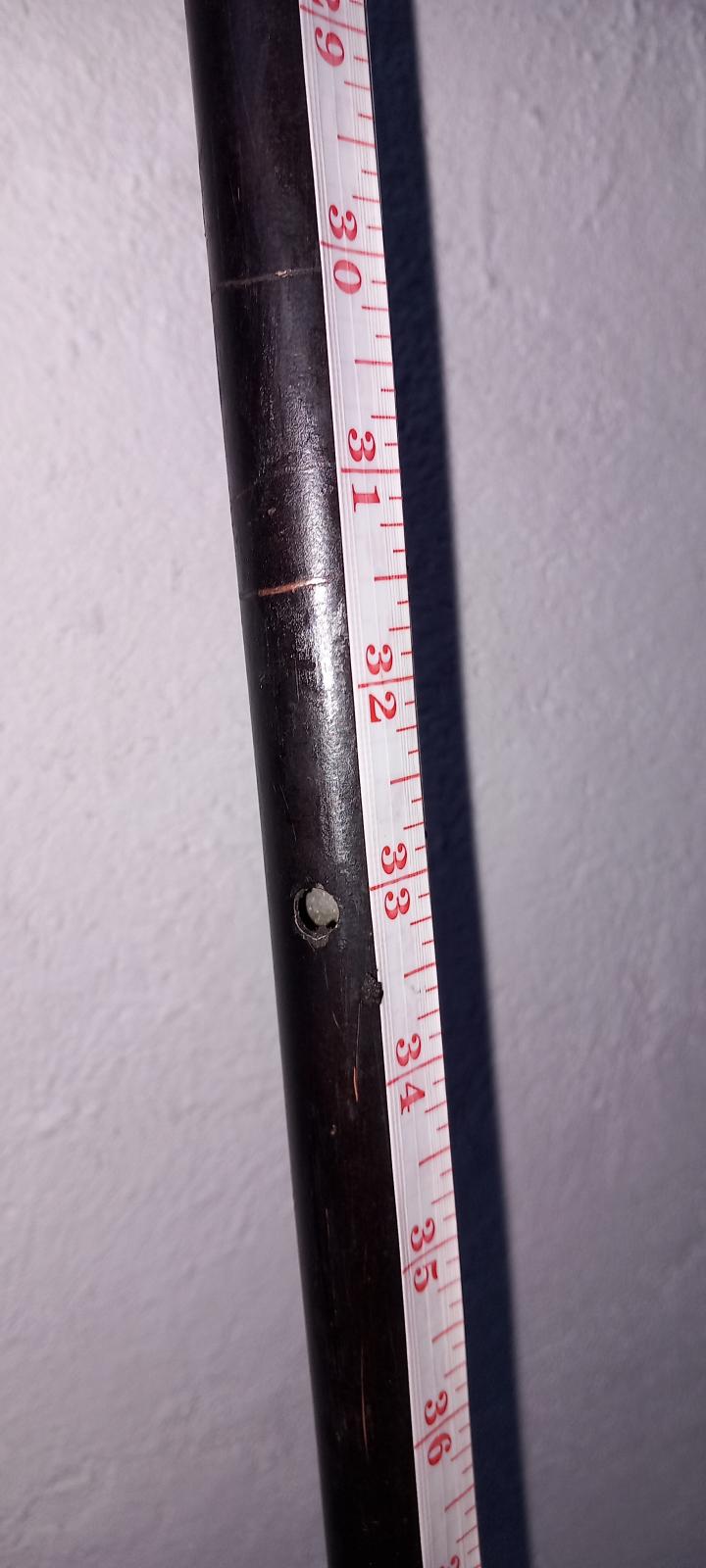

You are right. I looked at the shift rod. There are 2 holes for the plastic bushings.
Is the rear rod with the holes forward or backward to the transmission to be installed?

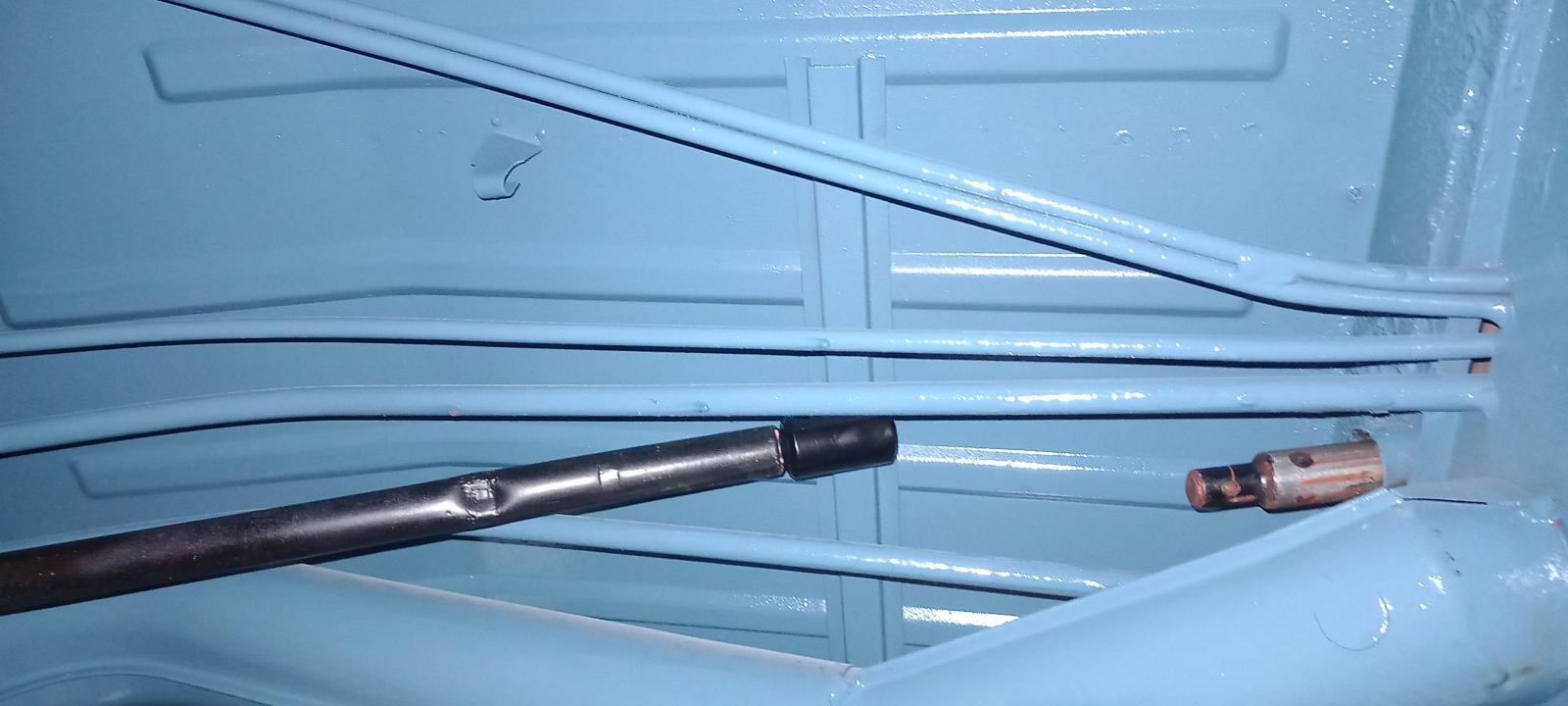

...and now, without the plastic bushings there is an new problem...
Did I do something wrong during assembly? These are the parts that were previously installed in the bus and it had worked.
What is the length of your front and rear shift rods? |
|
