Main Bearing
Forum Index -> Performance/Engines/Transmissions Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
eireann311
Samba Member


Joined: January 15, 2012
Posts: 7

eireann311 is offline

PostPosted: Sat Jul 12, 2025 3:57 pm    Post subject: Main Bearing Reply with quote

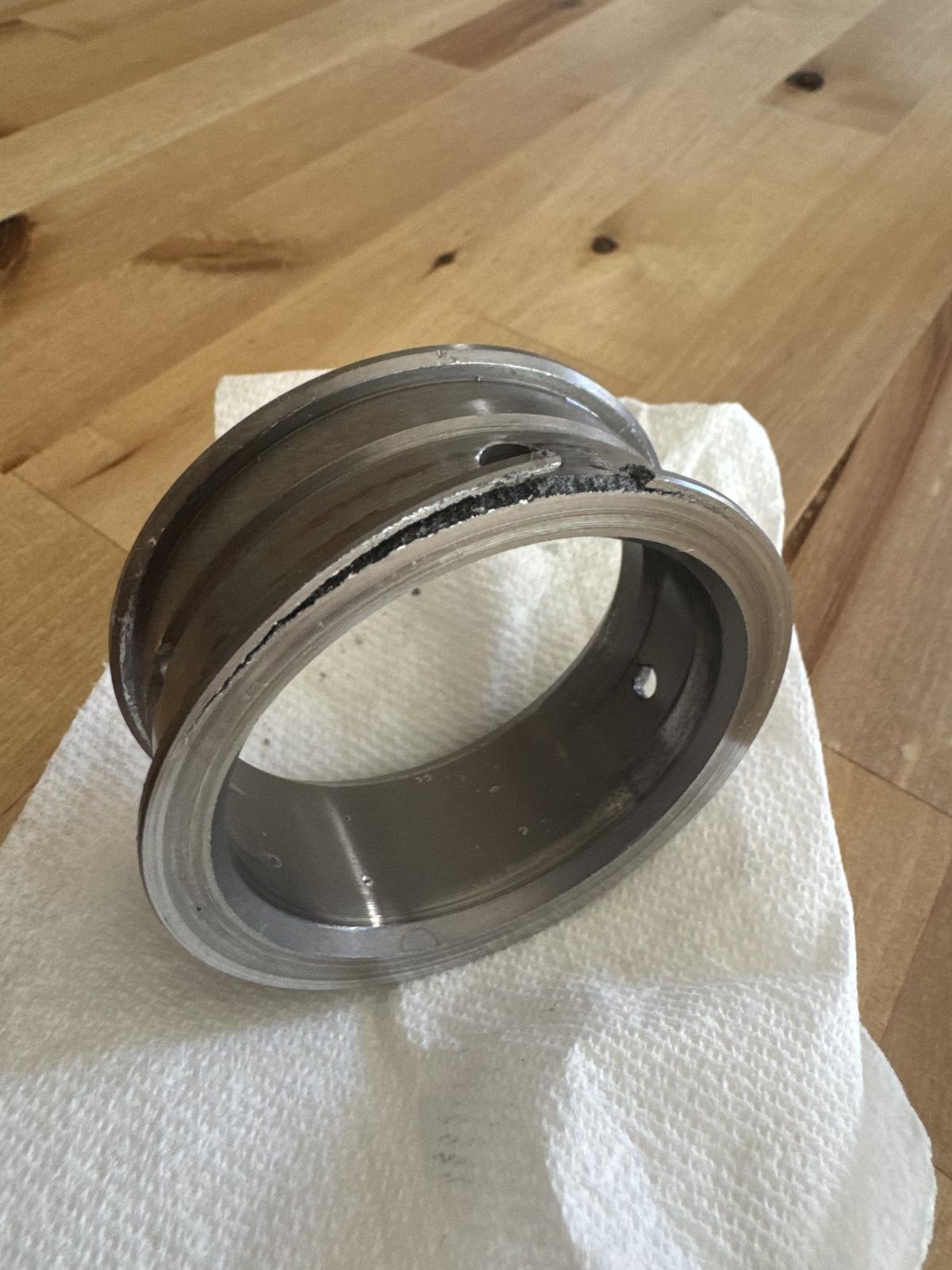

Anyone have any idea how this happens?

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 79424
Location: Sneaking up behind you
Glenn is offline

PostPosted: Sat Jul 12, 2025 4:04 pm    Post subject: Re: Main Bearing Reply with quote

No endplay.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Brian_e Premium Member
Samba Member


Joined: July 28, 2009
Posts: 3961
Location: Rapid City, South Dakota
Brian_e is offline

PostPosted: Sat Jul 12, 2025 4:06 pm    Post subject: Re: Main Bearing Reply with quote

Super loose end play, and no crush left on the bearing? It might have been moving in the case every time you pushed in the clutch, and it finally broke the flange?

Brian
_________________
So more or less the lazier and stupider you want to be, the nicer quality parts you need to buy.
-Modok


www.type-emotorsports.com

Type E Engine Parts and Supplies
https://type-emotorsports.com/collections/engine-parts
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 27652
Location: Colorado Springs
modok is offline

PostPosted: Sat Jul 12, 2025 4:41 pm    Post subject: Re: Main Bearing Reply with quote

Crowbar in a sandbox?

If that's supposed to be the main thrust side of the bearing.....why are the 4 oiling reliefs missing?

oh, well maybe that's why

or

standard width bearing in a case already thrust cut?

Or, it didn't fit the case right, thrust faces look larger than normal, I vaguely recall some kind bearings like that, oz made? or repco?

Anyway, it would have worked if i'd put it in, but such details can be easily overlooked.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mikedjames
Samba Member


Joined: July 02, 2012
Posts: 3301
Location: Hamble, Hampshire, UK
mikedjames is offline

PostPosted: Sun Jul 13, 2025 1:03 am    Post subject: Re: Main Bearing Reply with quote

Heat.
_________________
Ancient vehicles and vessels

1974 VW T2 : Devon Eurovette camper with 1641 DP T1 engine, Progressive carb, full flow oil cooler, EDIS crank timed ignition.
Engine 1: 40k miles (rocker shaft clip fell off), Engine 2: 30k miles (rebuild, dropped valve). Engine 3: a JK Preservation Parts "new" engine, aluminium case: 26k miles: new top end.
Gearbox rebuild 2021 by Bears.

1979 Westerly GK24 24 foot racer/cruiser yacht Forethought of Gosport.
1973 wooden Pacer sailing dinghy
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Brian_e Premium Member
Samba Member


Joined: July 28, 2009
Posts: 3961
Location: Rapid City, South Dakota
Brian_e is offline

PostPosted: Sun Jul 13, 2025 6:55 am    Post subject: Re: Main Bearing Reply with quote

modok wrote:

If that's supposed to be the main thrust side of the bearing.....why are the 4 oiling reliefs missing.


That’s what I thought.
The alignment dowel hole shows that should be the flywheel side, but the oil slots are gone, and the ID chamfer looks big enough to be on the crank side.

Maybe the case wasn’t machined large enough of the extra OD on the flange, and then hammered it in to place, and split the bearing?

Brian
_________________
So more or less the lazier and stupider you want to be, the nicer quality parts you need to buy.
-Modok


www.type-emotorsports.com

Type E Engine Parts and Supplies
https://type-emotorsports.com/collections/engine-parts
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram YouTube Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 79424
Location: Sneaking up behind you
Glenn is offline

PostPosted: Sun Jul 13, 2025 7:14 am    Post subject: Re: Main Bearing Reply with quote

Whatever the case, it's No Bueno.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

Member #1009

#BlueSquare

עַם יִשְׂרָאֵל חַי
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
eireann311
Samba Member


Joined: January 15, 2012
Posts: 7

eireann311 is offline

PostPosted: Sun Jul 13, 2025 8:36 am    Post subject: Re: Main Bearing Reply with quote

Standard case and thrust on the bearing, my guess is I managed to get the end play incorrect which lead to over heating and the end result? Perhaps?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
VW_Jimbo Premium Member
Samba Member


Joined: May 22, 2016
Posts: 11113
Location: Huntington Beach, CA
VW_Jimbo is offline

PostPosted: Sun Jul 13, 2025 9:36 am    Post subject: Re: Main Bearing Reply with quote

eireann311 wrote:
Standard case and thrust on the bearing, my guess is I managed to get the end play incorrect which lead to over heating and the end result? Perhaps?


The bearing’s bearing surface does look a little bit cooked! I bet it expanded and the weakest point gave up the ghost!

What are the punch marks in the bearing surface? Maybe it is the picture or?
_________________
Jimbo

There is never enough time to do it right the first time, but all the time necessary the second time!

TDCTDI wrote:
Basically, a whole bunch of fuckery to achieve a look.


67rustavenger wrote:
GFY's Xevin and VW_Jimbo! Smile
Back to top
View user's profile Send private message Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 27652
Location: Colorado Springs
modok is offline

PostPosted: Sun Jul 13, 2025 2:35 pm    Post subject: Re: Main Bearing Reply with quote

eireann311 wrote:
Standard case and thrust on the bearing, my guess is I managed to get the end play incorrect which lead to over heating and the end result? Perhaps?

What?
I posted everything you need to know and you understood none of it. Laughing
Read harder

Use a NORMAL bearing, or learn what it's supposed to look like so you can make your wrong bearing right.
Where did you get this goofy bearing? Does it have a name?

If you want to know HOW MANY oiling reliefs a thrust bearing should have, it would be at least three, but maybe as many as six, nobody really knows, but zero is the wrong answer for sure. Berg built engines ofen have oiling reliefs on the other side of the bearing too, and..... that's not a bad idea.
