 Posted: Mon Aug 11, 2025 4:32 pm Post subject: fuel gauge connectors on back of Dash |
 |
|
I am having fuel gauge issues on my 70 Bay Window Bus.
I removed the dash panel and the connectors on the back are loose and flopping around.

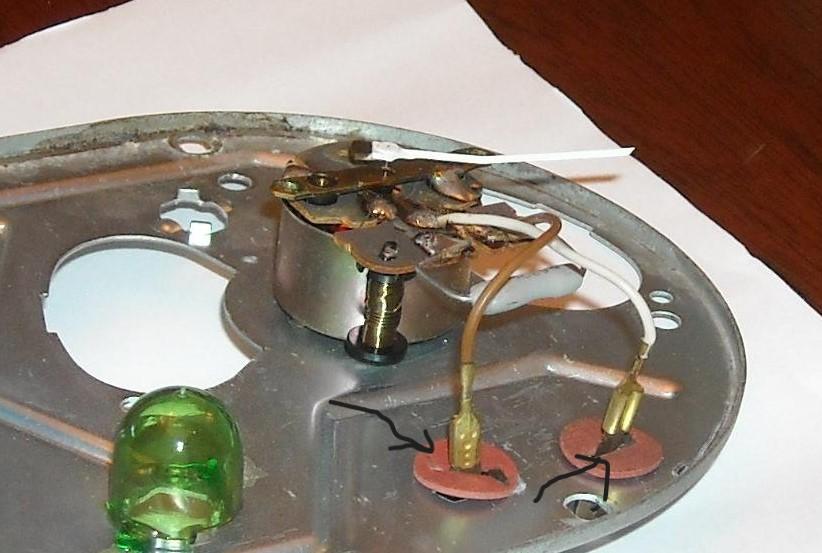

attached is a picture of the area I am talking about (not actual picture of my Bus )
where can I find these connectors to to replace my missing parts
|
|
| Back to top |
|
 |
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42934
Location: at the beach in Northern Wokistan
|
| Posted: Mon Aug 11, 2025 4:53 pm Post subject: Re: fuel gauge connectors on back of Dash |
|
|
isn't that the gauge itself, which I am pretty sure is an assembly that is replaced as a unit.
_________________
 Canned Water - the new California approved parts cleaner (except in a drought in which case rub it with sand).
George Carlin:
"Most people don't know what they're doing, and a lot of them are really good at it."
Skills@EuroCarsPlus:
"never time to do it right but always time to do it twice" |
|
| Back to top |
|
|
busdaddy
Samba Member
Joined: February 12, 2004
Posts: 53188
Location: Surrey B.C. Canada, but thinking of Ukraine
|
| Posted: Mon Aug 11, 2025 6:26 pm Post subject: Re: fuel gauge connectors on back of Dash |
|
|
Those pass through connectors are very fragile, there's some thin pointy brass tabs that were bent over to keep the insulaing sandwich in the metal, savage terminal pushing often shoves them in and usually breaks the brittle brass tabs.
Without trying to source some funny sized terminals that still don't quite do what you need your best option is to glue them back into place. 5 minute epoxy is not conductive and won't break down from exposure hidden up under the dash, RTV silicone is another potential goo.
Bottom line is they have to avoid contacting the surrounding metal and stand up to pushing on a terminal carefully.
_________________
Rust NEVER sleeps and stock never goes out of style.
Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!
Слава Україні! |
|
| Back to top |
|
|
SGKent
Samba Member
Joined: October 30, 2007
Posts: 42934
Location: at the beach in Northern Wokistan
|
| Posted: Mon Aug 11, 2025 6:34 pm Post subject: Re: fuel gauge connectors on back of Dash |
|
|
maybe this? Or ask Ken Madsen at the BusCo what parts he has to help you, and what he wants for them. I get almost anything used from him. Some things just aren't available new.
https://www.thesamba.com/vw/classifieds/detail.php?id=2755865
