Anatomy of a cooling fan

mackaymanx · Posted: Tue May 29, 2007 11:31 pm Post subject: Anatomy of a cooling fan

Here are some photos of the construction of the type3 inner cooling fan, thought I'd share them with you guys.

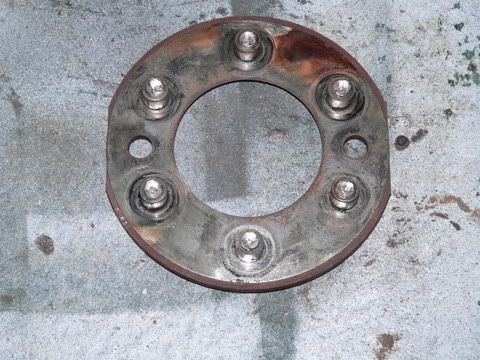

Outer support plate + hardened shim + rivet/spacers (10 mm high)

Image may have been reduced in size. Click image to view fullscreen.

Hub + rubber mounts

Inner hardened shim

Assembled hub

Fan + Hub

Inner support plate

DONGKG · Posted: Wed May 30, 2007 3:17 am Post subject:

Great!

I had a problem with my Type 3's cooling fan before. But I already had it fixed. The problem we discovered was that the shim between the cooling fun and pulley was missing. Very Happy

_________________
'67 KG Cabrio (Mickey) ;
'66 Type 3 (Sharky 2)
'72 Type 2 Homey
'67 Splitty Bus
'65 beetle;'69 Country Buggy; '44 Kubelwagen (replica) TOOB MEMBER #20

chink13 · Posted: Mon Sep 08, 2014 8:09 pm Post subject:

anyone rebuilding these?? if so info??

chink13 · Posted: Thu Sep 11, 2014 5:59 am Post subject:

nothing on rebuilding these huh?? some one knows!!

ataraxia · Posted: Thu Sep 11, 2014 6:37 am Post subject:

They are rather easy to find most of the time. Any time I've had a bad one, I just scrap it and buy another one.

If you want to rebuild it, MackayManx's brief walkthrough should do it.

chink13 · Posted: Thu Sep 11, 2014 7:10 pm Post subject:

living here in south mississippi where all there is is super beetles its kind of hard to find good parts for a type 3 ive found 2 but seeing as the one i pulled off the car is making noise i figured i might as well experiment and see what i can do so far ive drilled out the rivets/spacers to accept a bolt and made bushings out of two different size fuel lines. just finished putting it together and so far so good bushings need a lil tweaking but its solid like i imagine a new one would be!! i will be installing it tomorrow evening to test it

i will be posting my findings when all the tests are done

chink13 · Posted: Sat Sep 13, 2014 6:46 am Post subject:

well here what i cam up with an an all the info

http://www.thesamba.com/vw/forum/viewtopic.php?p=7368630#7368630
