PostPosted: Sat Mar 20, 2010 6:39 pm    Post subject: Grumpy's Metal meets Vwsunroof.com - work around the shop Reply with quote

Hello All,

I thought I would get more involved in the forum and post work that is going on down at the shop. Grumpy's Metal does a lot of panel replacement and repair we also do some custom stuff.

I have always tried to kept a high standard in all that I do. For some this is totally lost and for others it is sought after.

John-- Aka Grumpy - Grumpy's Metal Fullerton Ca.


Last edited by Grumpy's Metal on Sat Mar 20, 2010 6:46 pm; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Grumpy's Metal Premium Member
Samba Member


Joined: March 14, 2004
Posts: 145
Location: Huntington Beach California
Grumpy's Metal is offline

PostPosted: Sat Mar 20, 2010 6:39 pm    Post subject: Reply with quote

As you may or may not know, Grumpy's Metal ( my shop ) also owns VwSunroofs.com-- Well the two are coming together and what I have been doing is a lot of sunroof stuff.

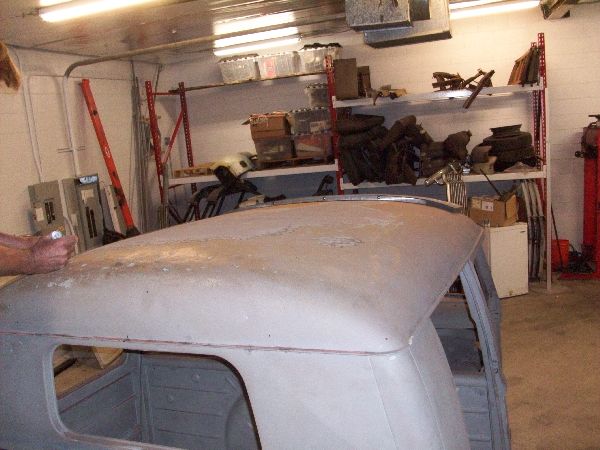

this is a split window we did last week

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

the cut line is laid out with a scribe and blue line tape to make it easy to see
Image may have been reduced in size. Click image to view fullscreen.

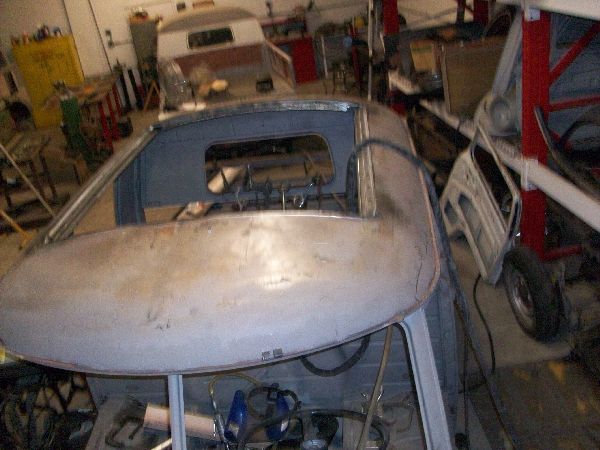

with the hole cut the inner structure is fit and then clamped in place
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

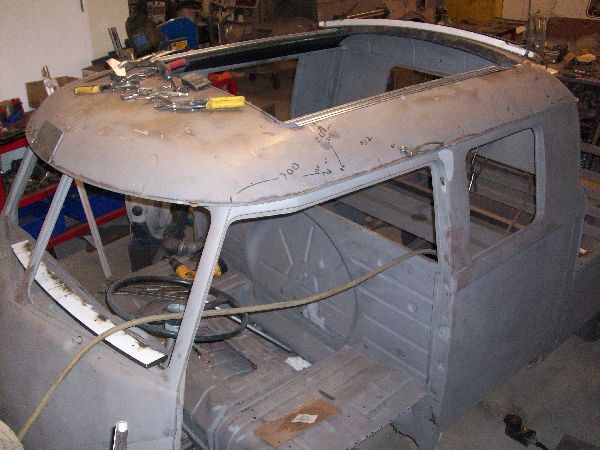

with clamps in place the sunroof inner structure is welded in

Image may have been reduced in size. Click image to view fullscreen.


the spot welder leaves a nice factor look

Thanks for looking

John
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Grumpy's Metal Premium Member
Samba Member


Joined: March 14, 2004
Posts: 145
Location: Huntington Beach California
Grumpy's Metal is offline

PostPosted: Sat Mar 20, 2010 7:20 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

all these parts are new from vwsunroofs.com

Image may have been reduced in size. Click image to view fullscreen.


Thanks for looking

John
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
jonnie5
Samba Member


Joined: June 26, 2009
Posts: 51
Location: Calgary
jonnie5 is offline

PostPosted: Sun Mar 21, 2010 5:36 am    Post subject: Reply with quote

nice work.
_________________
Jon


Red Bay Bus '73 Westfalia x2
'07 GTI
Back to top
View user's profile Send private message Classifieds Feedback
chrisvuc
Samba Member


Joined: May 04, 2006
Posts: 231
Location: henderson, nv
chrisvuc is offline

PostPosted: Sun Mar 21, 2010 9:17 am    Post subject: Reply with quote

looks good john
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Itawayoflife
Samba Member


Joined: February 20, 2006
Posts: 1181
Location: Buena Park,CA
Itawayoflife is offline

PostPosted: Sun Mar 21, 2010 9:52 am    Post subject: Reply with quote

Where in Fullerton did you move to?
_________________
The quest continues...
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
Grumpy's Metal Premium Member
Samba Member


Joined: March 14, 2004
Posts: 145
Location: Huntington Beach California
Grumpy's Metal is offline

PostPosted: Sun Mar 21, 2010 9:59 am    Post subject: Reply with quote

The shop moved to Fullerton about 5 months ago- The guy next door to the Downey shop had a fire and it made it difficult to stay at that location. We are at 720 East Walnut Ave-- (if you want to stop by- please give me a call and let me know a good time for you, I do my best to make time to see everyone but I need a little notice)

As we do more interesting repairs I will post them. Are there specific things you guys would like to see?

John 714 328 1028


Last edited by Grumpy's Metal on Sun Mar 21, 2010 10:01 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
deluxekombi67
Samba Member


Joined: July 21, 2004
Posts: 940
Location: Ft. Lauderdale, Florida
deluxekombi67 is offline

PostPosted: Sun Mar 21, 2010 10:00 am    Post subject: Reply with quote

everything is new? even the part you welded in? The metal structure of the ragtop?
_________________
67 bugs are only days away from being a Fat Chick!
_______________________________________
OG 1973 standard with factory OG PAINT Porsche phone dial rims with hand painted crests

Hell yea i LOVE the Mullholland look and im from Florida so what? Smile
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Grumpy's Metal Premium Member
Samba Member


Joined: March 14, 2004
Posts: 145
Location: Huntington Beach California
Grumpy's Metal is offline

PostPosted: Sun Mar 21, 2010 10:27 am    Post subject: Reply with quote

DulxKom..

On this split the inner structure is original. In the past I have made the sunroof inner structure from scratch.

Right now I would like to find another customer with a split or oval who wants a 3 fold cut in (everything supplied from vwsunroofs.com). We have the inner structure (new) and the 3 fold assembly (new). I can take the photos and I want the customer or another person to post there thoughts of the work, how it looks and feels compared to OG.

Dimensionally the conversion will be exactly the same as OG and all the parts are interchangeable with the German ones.

John
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Grumpy's Metal Premium Member
Samba Member


Joined: March 14, 2004
Posts: 145
Location: Huntington Beach California
Grumpy's Metal is offline

PostPosted: Sun Mar 21, 2010 10:39 am    Post subject: Reply with quote

(originally posted on thesamba.com in a different forum)

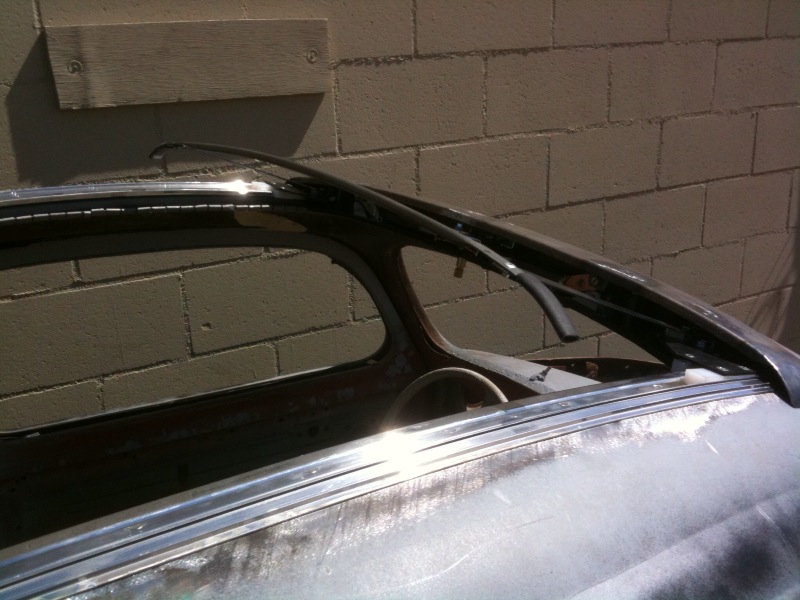

The conversion will accept the original sunroof assembly or a reproduction sunroof assembly from VwSunroofs.com ( same dimensionally as an original Only the rails are shorter on a double cab, obviously.)

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.



John
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Blauhaus
Samba Member


Joined: June 18, 2003
Posts: 140
Location: Jacksonville, FL
Blauhaus is offline

PostPosted: Mon Mar 22, 2010 9:30 am    Post subject: Reply with quote

Really Top-Notch work John!
_________________
www.blau-haus.com

QUALITY CLOTHING. PRODUKTS. FÜR THE PEOPLE.

** WANTED **
Haines VW dealership (Sacramento) license frame
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Skaper
Samba Member


Joined: August 08, 2007
Posts: 92
Location: Portland Oregon
Skaper is offline

PostPosted: Wed Mar 24, 2010 9:09 pm    Post subject: Reply with quote

Great work!

I have always been curious to know how much it would cost to put in a rag top from a professional and experienced shop. If you would prefer to private message me a quote instead of posting on here, I would really appreciate it!
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
Grumpy's Metal Premium Member
Samba Member


Joined: March 14, 2004
Posts: 145
Location: Huntington Beach California
Grumpy's Metal is offline

PostPosted: Thu Mar 25, 2010 9:41 pm    Post subject: Reply with quote

Hello Skaper

Well, I would really like to find a customer who is active on thesamba to post their feedback on a conversion. ( and offer them a discount)
I have been talking to two local guys but neither one is ready.

Discounted price on a 3 fold conversion would be $2600- this would include all labor, all the sunroof parts and rag assembly ( no upholster )

all parts are interchangeable with the original, and the opening is dimensionally the same.

If you are reading this and interested give me a call

John 714 328 1028 or email [email protected]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Itawayoflife
Samba Member


Joined: February 20, 2006
Posts: 1181
Location: Buena Park,CA
Itawayoflife is offline

PostPosted: Fri Mar 26, 2010 10:03 am    Post subject: Reply with quote

Grumpy's Metal wrote:
The shop moved to Fullerton about 5 months ago- The guy next door to the Downey shop had a fire and it made it difficult to stay at that location. We are at 720 East Walnut Ave-- (if you want to stop by- please give me a call and let me know a good time for you, I do my best to make time to see everyone but I need a little notice)

As we do more interesting repairs I will post them. Are there specific things you guys would like to see?

John 714 328 1028


I will definitely stop by one of these days. You're within a half a mile of my house.

There is one thing I would like to see you do – patch a rust hole in a bug door with MIG welder with minimal warping. You know the rust holes that some cars get when water gets trapped in the insulation. I know that a MIG would be your last choice in tools to use in this situation, but I wanted to see somebody with real experience actually do it.
_________________
The quest continues...
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
Skaper
Samba Member


Joined: August 08, 2007
Posts: 92
Location: Portland Oregon
Skaper is offline

PostPosted: Sun Mar 28, 2010 4:04 am    Post subject: Reply with quote

I will keep that in mind when I am also ready.
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
Grumpy's Metal Premium Member
Samba Member


Joined: March 14, 2004
Posts: 145
Location: Huntington Beach California
Grumpy's Metal is offline

PostPosted: Sun Mar 28, 2010 8:53 am    Post subject: Reply with quote

When you have small pin holes in a panel often the panel is rusting from the inside out (as is the case at the bottom of a bug door- water collects down between the seam).
You are seeing only the areas that have broken through, but there is substantial rust surrounding the pin holes. A MIG welder operates at extremely high temperatures and melts back the thinning panel as you attempt to weld it, making the hole bigger.

Also in the bottom of a door, there is no access to plannish your welds so the distortion can not be worked out.

In my opinion, trying to repair this area with a MIG welder is stacking the odds against yourself.

John A.

ps. why doesn't anyone ever sign their post? I never know who I am talking too?
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Itawayoflife
Samba Member


Joined: February 20, 2006
Posts: 1181
Location: Buena Park,CA
Itawayoflife is offline

PostPosted: Sun Mar 28, 2010 9:24 am    Post subject: Reply with quote

Grumpy's Metal wrote:
When you have small pin holes in a panel often the panel is rusting from the inside out (as is the case at the bottom of a bug door- water collects down between the seam).
You are seeing only the areas that have broken through, but there is substantial rust surrounding the pin holes. A MIG welder operates at extremely high temperatures and melts back the thinning panel as you attempt to weld it, making the hole bigger.

Also in the bottom of a door, there is no access to plannish your welds so the distortion can not be worked out.

In my opinion, trying to repair this area with a MIG welder is stacking the odds against yourself.

John A.

ps. why doesn't anyone ever sign their post? I never know who I am talking too?


Yes, but can you do it to show how to do it without killing the door? Many of us out there have a MIG welder and can't afford a TIG. I guess you can call it, "going with what you got".

Thanks, BRIEN
