"What wheels fit?" The ultimate wheel post.

syncrodoka · Posted: Tue Apr 20, 2010 3:14 pm Post subject:

If you can wait, get the rims that VanCafe is bringing in an a month. They are more than strong enough and are a straight bolt on deal- correct offset and good width. Audi rims usually need to have the centers machined bigger and some kind of spacers depending on 2wd or syncro. Good luck
http://www.van-cafe.com/home/van/page_1263

Christopher Schimke · Posted: Tue Apr 20, 2010 7:55 pm Post subject:

I agree, the new wheels offered by VC will be a great addition to the parts list. However, if you still need help sussing out any of the information here, just let me know. Also, if you look on the first page of this thread, there is a link to the Ultimate Wheel Post - Part Two where much of the information from this thread is condensed into a more concise list.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]

Marty Mcfly · Posted: Wed Apr 21, 2010 4:50 pm Post subject:

Test fit these today but haven't driven on them yet. They are audi 15" steels with 225/75/15 tires. The center bore was slightly too small but fit with a little cutting. I may need longer studs in the rear at least...

Image may have been reduced in size. Click image to view fullscreen.

_________________
'86 syncro van
'02 gti vr6
'84 gti 1.8t racer

kounterkultured · Posted: Sat Apr 24, 2010 2:34 pm Post subject:

Here's the result!! Smile

I'm real happy with the outcome.
BEFORE:

AFTER:

Audi 15x6 ET45 wheels, made in Germany
10mm spacers in FR - none in RR
Nokian Hakka C Van tyres in 205-65-15C
_________________
Alex
-----
1989 Vanagon GL
Audi A3

Christopher Schimke · Posted: Tue Apr 27, 2010 7:08 pm Post subject:

I just finished this Bus for a friend of mine. It has "modified" H&Rs and Konis. Wheels are '08-'09 Porsche Cayenne, 18x8 ET57. Tires are 225/45R18 (front) and 235/45R18 (rear). Adapters are 28mm thick (front) and 46mm thick (rear). Sliding door hinge will have to be extended.

_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]

BDC-1 · Samba Member Joined: October 17, 2009 Posts: 11

quick question about rear wheel ftting:

are the stock studs in the back long enough to attach 20mm adapters to, or do they require longer studs..?

Christopher Schimke · Posted: Wed Apr 28, 2010 6:59 am Post subject:

Yes, the adapters that we do will bolt to the stock rear studs, no problem. Thickness of the adapters has no bearing on the fitment to the rear studs.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]

BDC-1 · Samba Member Joined: October 17, 2009 Posts: 11

ok thanks

we actually just exchanged e-mails about the adapters, didn't pay attention to your signature until now. appreciate the help!

paolome · Samba Member Joined: July 22, 2003 Posts: 10

Hey Guys!

Any thoughts on Porsche 996 Turbos on a 90 with stock Carat springs?

http://911pcar.com/Porsche_Parts/IMG_4364.JPG

Fronts: 18x8
Rears: 18x11

Came across a set fairly affordable. Trying to get some research done.

Thanks.

jasmith83 · Posted: Sat May 01, 2010 10:11 am Post subject: Subaru wheels?

Has anyone thought about or actually gone thru with putting Subaru alloy wheels on their Vanagon? I am thinking about ripping them off of my donor vehicle and seeing what happens. Any thoughts would be helpful.

levi · Posted: Sat May 01, 2010 1:27 pm Post subject:

that's 5x100, vanagon needs 5x112
_________________
One of these days I'm gonna settle down,
but till I do I won't be hangin round.
Going down that long lonesome highway,
gonna see life my way

https://youtu.be/cSrL0BXsO40

vspecter · Posted: Fri May 07, 2010 8:05 pm Post subject:

Hi guys, I bought a set of 15'' wheel from a Vw Passat and also a set of Nokian WRC tires, I just finish to installed them on the van.

-wheel 15x7
-offset 45
-bolt pattern 5x112
-center bore 66mm
-spacers 12mm (1/2'')
-front lugs nuts 48mm
-rear stud 52mm
-tires Nokian 205/65/15

The Salt · Posted: Sat May 08, 2010 9:54 pm Post subject:

Little Hobbit Bastard · Posted: Tue May 11, 2010 7:18 pm Post subject:

I finally got around to taking pictures of my new wheels. I got these several months ago from another Samba member, so all the machine work was already done. Previous owner had drilled out the lug holes with a 37/64 bit. Thank you to Loogy for all information, advice, spacers and bolts!

- Wheels from a 2000 CLK 430 AMG
- Front 17x7.5, ET: 37, Tires: 225/45ZR17
- Rear 17x8, ET: 30, Tires: 245/45ZR17
- No spacers front of rear (had spacers but found that I had plenty of clearance without them... no rubbing issues so far)
- 50mm bolts up front
- 52mm SwayAway studs in the rear
- 70mm AVO springs w/ AVO adjustable shocks

_________________
- 1989 Vanagon GL
- 1985 Vanagon GL (R.I.P.)

insyncro · Posted: Wed May 12, 2010 7:41 am Post subject:

LHB,
Thanks for the pics and writeup.
I too have been using those wheels for a few years on Carat edition vans.
They are very easy to mount vs some of the other options out there.

Nice looking van for sure.

dylan

Little Hobbit Bastard · Posted: Wed May 12, 2010 9:51 am Post subject:

Thanks for the compliment! I oringinally was looking for 18's but I couldn't pass up the offer on these wheels. Now I just need to lower it a little more, about another inch lower... I'll post pictures when I get that done.
_________________
- 1989 Vanagon GL
- 1985 Vanagon GL (R.I.P.)

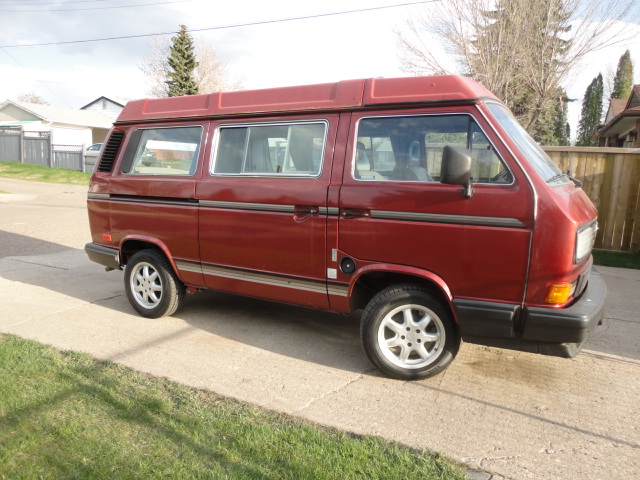

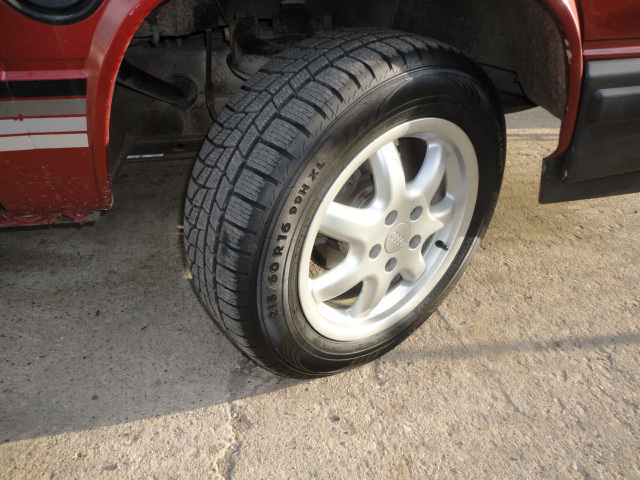

crank71 · Posted: Fri May 14, 2010 10:19 pm Post subject: Audi A4 16" 7 Spoke Rims

Thanks to Loogy for setting me up with the right spacers, lug bolts and studs. Picked these rims up off CL for $200, another $300 to Loogy, $100 for machining the bore and $800 at the tire shop. Man it adds up but its only money right?

Specs:
Audi A4 16" 7 spoke rims with machined bore
Nokian 215/60/16 99H XL Tires
15mm spacers
Extended lug bolts and studs

svenakela · Posted: Mon May 17, 2010 3:35 pm Post subject:

These are (repainted) VW Passat Speedline 16x7" ET 45 mm. I use 10 mm spacers so effective ET is now 35. The clearance is about half an inch.

Christopher Schimke · Posted: Thu May 20, 2010 7:41 am Post subject:

Snevakela, Those wheels are going to look great on there.

I'm sure that you are aware of this, but for those who are not, having the wheel clear the upright is only 1/4 of the battle. It's having enough clearance between the tire and the upper control arm that usually causes the headaches.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]

deusexmaxima · Posted: Sat May 22, 2010 12:42 am Post subject:

Here is an idea I have for some Benz rims available locally

I used MSPaint to graft the rims on to a van that looks like mine. They are 2005 E class 17" rims. Opinions?
