AAZ Turbodiesel swap into '86 Vanagon Syncro
Page: Previous  1, 2, 3, ... 17, 18, 19  Next
Jump to:
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Thu Jun 02, 2011 5:39 pm    Post subject: Reply with quote

Thanks for the comments guys!

Re the resevoir: I don't have any real-world experience with AWICs yet, and I agree, it's probably massive overkill, but I wanted to build in as much heat-soak resistance as I could.
I don't really know what sort of heat levels I'll be seeing with a performance-modified AAZ, just playing it safe for now. Razz

The tank is about 5lbs, if I'm shipping 5 gals of water in it, that's about 50lbs extra in the nose... however, I feel, on my van at least, that it handles better with a little more weight up front, it's currently quite empty, the spare's out back. It seems to respond better on the road when there's two people up front.
I should probably look into a better skid plate, though, the current setup is just the original spare tire pan holding the tank, it won't take much abuse. Laughing

The motor spun nicely when I installed it, and the trans is not hooked up anywhere, either driveshaft or axles, it's in neutral, and it spun freely as well.
I was using a cheater bar to try and spin the crank, all it was doing was overtightening the crank pulley bolt. Shocked

Houston, we've got a problem.
If it's just flash rust, a short, sharp shock should knock it loose, the problem it how to apply that force with the engine where it is.
I just hope it doesn't devolve into a full teardown... I really don't need that. Rolling Eyes

Hey Farfrumwork, have you seen my latest rarity?
'04 Passat Variant GLS 4Motion 5MT...
1 of 6 in this color.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 7479
Location: Where?
?Waldo? is offline

PostPosted: Thu Jun 02, 2011 6:03 pm    Post subject: Reply with quote

Jerry I also posted on your GTD thread.

Did you add coolant to the engine? If so, then I would be concerned that the head gasket (or a crack in block or head) leaked coolant into the engine. I would also be concerned about bending rods if the starter is used.
Back to top
View user's profile Send private message Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Thu Jun 02, 2011 6:44 pm    Post subject: Reply with quote

Andrew A. Libby wrote:
Jerry I also posted on your GTD thread.

Did you add coolant to the engine? If so, then I would be concerned that the head gasket (or a crack in block or head) leaked coolant into the engine. I would also be concerned about bending rods if the starter is used.


Negative, no coolant in the system anywhere.
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Sat Sep 17, 2011 6:24 pm    Post subject: Reply with quote

Finally got some quality time with the engine. It meant taking a few days of vacation, but whatever.

Turns out I neglected to install the spacer shim between the flywheel and crankshaft flange... the flywheel was hard up against the oil seal casting, preventing any motion. So no motor disassembly will be needed, thankfully. Razz

Unfortunately, the shim is nowhere to be found... I searched for a few hours to no avail, the last time I remember seeing it was initial teardown when I got the engine. Evil or Very Mad I have literally saved every nut & bolt that came off the van, but this one seemingly insignificant circle of metal has escaped, and the engine is useless without it. There's a few dark corners still lurking, behind some major-league heavy crap that needs to be moved... maybe it'll turn up tomorrow.

Anyone have a part number, or a spare shim floating around?
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Sun Sep 18, 2011 6:12 pm    Post subject: Reply with quote

OK, scratch that, reverse it. The shim was on the bolt side of the AAZ flywheel when it came off... Jeeze it's been a while since that day. Laughing

THe TDI flywheel has bolt recesses machined around the holes, so the shim won't work anyway.

The REAL culprit here was the ARP flywheel bolts I put in. Too long by about 2mm, and they were bottoming out on something behind the crank flange. A washer under each bolt, and one set behind the flywheel, and it rotates freely now with everything torqued to spec.
I'm a bit worried about what bumping the flywheel out will do to clearances and clutch operation... Tomorrow I may disassemble it again and try it without the washers between the flywheel and crank. THe trick here is to shorten the effective bolt length, but avoid having the bolts protrude too much, where they will contact the clutch disc.

The reason for the ARP bolts is that they're re-useable, unlike the stock VW bolts. Good thing, too... the flywheel must have come off & on about 7 or 8 times in the last few days. Rolling Eyes
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2025
Location: South central Oregon
westyventures is offline

PostPosted: Sun Sep 18, 2011 7:38 pm    Post subject: Reply with quote

I wouldn't recommend leaving any washers between the flywheel and crank (if I am reading that correctly), or under the bolt heads. It would be best to trim the bolts to the proper length. And then, razz the supplier for selling you the wrong length! Shocked

While the OE flywheel bolts are recommended 'one-use', I've re-used them twice before. It's all in knowing the proper torque spec on a fastener. Another reason they recommend it is that the new bolts have locktite already applied.
_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
Truckfridge fridges at the best prices!
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
JED THE SPREAD
Samba Member


Joined: July 14, 2009
Posts: 626
Location: South London UK
JED THE SPREAD is offline

PostPosted: Sun Sep 18, 2011 11:13 pm    Post subject: Reply with quote

AHHHHHH... nothing quite as satisfying as taking a petrol engine out of a Syncro and throwing it on a scrap heap is there Laughing

jed
_________________
Visit CAMPERVANCULTURE.COM real camping and video uploads
Subscribe to Campervan Culture by Email
Follow us on Facebook, Campervanculture.com
Back to top
View user's profile Send private message Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Wed Sep 21, 2011 3:37 am    Post subject: Reply with quote

JED THE SPREAD wrote:
AHHHHHH... nothing quite as satisfying as taking a petrol engine out of a Syncro and throwing it on a scrap heap is there Laughing

jed


Yep... but it'll be a helluva lot more satisfying if I can ever get this thing back on the road, it's closing in on 6 years as driveway art. Shocked
I have a serious spare time deficiency. Evil or Very Mad
Beach weather is past us, so I'm jumping on this hard for the next few weeks.
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MKIII and Sons
Samba Member


Joined: December 10, 2007
Posts: 271
Location: penn
MKIII and Sons is offline

PostPosted: Wed Sep 21, 2011 7:02 am    Post subject: Reply with quote

whoa 6 years?!
_________________
broke.status
Back to top
View user's profile Send private message Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Wed Sep 21, 2011 5:48 pm    Post subject: Reply with quote

MKIII iz KING wrote:
whoa 6 years?!


Exactly what I said. The last reg sticker expired 10/06. Rolling Eyes
12 hr shift (nights), 2-hr commute, doesn't leave much time for tinkering.
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Fri Sep 30, 2011 2:47 am    Post subject: Reply with quote

Did some playing around with Teleflex cables last weekend. I need an actuator for the cold-start lever, and the 17-footer seems to fit the bill nicely, engine end terminates in a thin wire that will work with the pump attach clamp.
Routed it along the middle underside, and up through the front bodywork to an existing wiring grommet behind the upper grille and into the dash. Now I just have to figure out how to secure the other end in the dash and fashion a handle/knob for it.

I have a 14-foot cable that might work as a replacement for the accelerator cable, tho a tad too long, but I can serpentine it a little to take up the slack since it's a push/pull. Grinding down the front end rod a little will allow it to mate to the stock pedal cable clamp, and the engine end terminates in a flat with a hole in it, easy to bolt to the fuel arm.
I have the correct DV stock cable, so it's not a priority, just something I'm considering.

I got the cables cheap on Ebay, originally for boating engine controls.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Got the radiator back in place behind the new front chargecooler rad. I had to put spacers behind the right side bottom radiator mount to pull it in a bit, the plastic side tank has a bulge running down the front of it that was interfering. It's tight, but everything's in. I want to slide a thin insulator between them on the drivers side, there's metal contact and I don't want the big rad sending heat to the little one.
So I squeezed a 2" thick H2O intercooler rad in the lower opening, without it protruding out the hole. Requires cutting out the two posts, and removing the AC condensor...
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=


Last edited by Syncroincity on Mon Oct 03, 2011 3:02 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
trailnewt
Samba Member


Joined: February 17, 2008
Posts: 248
Location: Northern California
trailnewt is offline

PostPosted: Fri Sep 30, 2011 8:12 am    Post subject: Reply with quote

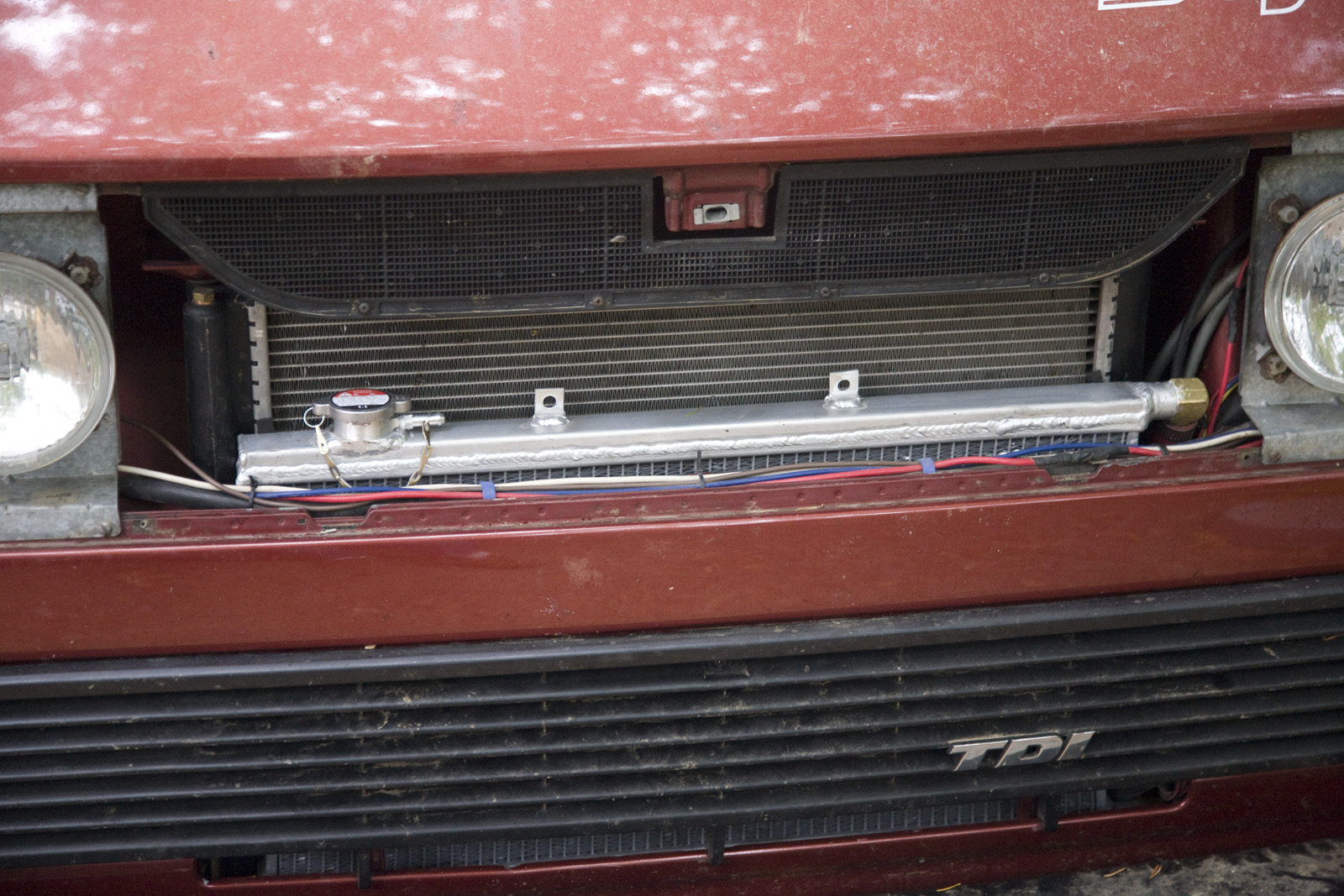

I'd appreciate pictures of your intercooler radiator install when you get the chance. I just finished installing the commonly-available 12" x 24" x 1" intercooler radiator in my van in front of the main radiator with AC condensor removed: What a royal pain! Sounds like you may be on to a better solution.
Image may have been reduced in size. Click image to view fullscreen.


It all looked so simple on paper... Turns out the dimensions given are not very accurate, especially the thickness.

I'll post a thread once I get the system up and running.
Brent
_________________
'87 Syncro Westy TDI
Too many bicycles
Maybe an old unicycle around here somewhere
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Fri Sep 30, 2011 5:05 pm    Post subject: Reply with quote

Sure, I'll grab some detail pics this weekend... Your shot of the rad shows that bulge I was talking about pretty clearly; the tube that runs down from the bleeder screw.

In the meantime, here's a re-run; it's basically this setup, with those 2 posts removed, and the bottom mount tabs secured to the lower lip of the opening and the top tabs to a hidden lip on the bottom of the center crossbeam. The cooler was supposed to rest on the stumps of the posts, but I took a little too much off. Embarassed I could just wedge a filler in there if I feel the need.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Fri Sep 30, 2011 10:39 pm    Post subject: Reply with quote

Miscellaneous Pictures Posting

Pre-disassembly rust-o-rama

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Old Audi 5K turbo 15" wheels, 235/75 BFGs

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Slip-joint driveshaft, Spicer U-joints, & adapters

Image may have been reduced in size. Click image to view fullscreen.


A/C removal leaves some bald patches;

Image may have been reduced in size. Click image to view fullscreen.


She's coming down.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Workin' on VWs is the cat's ass!

Image may have been reduced in size. Click image to view fullscreen.


Inclinometer from my old 4-Runner, repainted to have a Vanagon on it;

Image may have been reduced in size. Click image to view fullscreen.

_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Fri Sep 30, 2011 10:56 pm    Post subject: Reply with quote

New Shoes. 16" Mefros from Peter at VolksCafe fitted with 225/75-16 BFGs. Straight mount in the front, 7mm spacers on the rear for trailing arm clearance.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Sat Oct 01, 2011 11:14 am    Post subject: Reply with quote

OK, here's some detail pictures of the front radiators; CHargecooler in the lower opening, oil cooler up top, and the engine radiator behind in it's regular position. The pass. side was bumped back a little with spacers in front of the lower radiator mount.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Drivers side; just touching part of the metal engine rad.

Image may have been reduced in size. Click image to view fullscreen.


Spacers between the lower rad mount and body.

Image may have been reduced in size. Click image to view fullscreen.


Behind the bumper beam

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Upper tabs mounted to center cross beam lip. Looking at this now, I'm wondering why I didn't put the mount tabs at the front side of this lip... that would give a little more breathing room between rads; but I can't rememberwhat the deal was when I mounted this last year... I assume there wasn't room for the tabs, I'll have to look into this.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Oil cooler...

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


bolt holes... bottom just rests on the center beam.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Sat Oct 01, 2011 12:55 pm    Post subject: Reply with quote

So everything came back out, and turns out the top mount tabs were too tall... a session on the bandsaw took care of that, lopped off almost 1/4" of excess metal, now the tabs fit in front of the beam lip. I got chased inside by rain just now, so full reassembly will have to wait for tomorrow. I've been up for about 24 hrs now, think I'll take a little nap. Smile
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
trailnewt
Samba Member


Joined: February 17, 2008
Posts: 248
Location: Northern California
trailnewt is offline

PostPosted: Sat Oct 01, 2011 8:39 pm    Post subject: Reply with quote

Very nice!
The spacers in front of the lower radiator mount are such a simple solution that it's brilliant. I never even thought of it.
Brent
_________________
'87 Syncro Westy TDI
Too many bicycles
Maybe an old unicycle around here somewhere
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Mon Oct 03, 2011 11:26 am    Post subject: Reply with quote

Here's what I've been up to on the inside. E/L gauge faces from Ebay.de & a tach from an '85 Jetta diesel swapped into my cluster. Painted the needles flourescent orange, and I'm adding some UV LEDs in place of the old gauge lights. THe gauge faces light up electroluminescent, but the needles still need an outside light source.

Image may have been reduced in size. Click image to view fullscreen.


Obviously, it's a KPH face, while the mechanism remains calibrated to miles... Oh well. GPS to the rescue... the only conversion value I have memorized right now is 100kph = 62mph. Razz

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Mid '80s Volvo fog light switch

Image may have been reduced in size. Click image to view fullscreen.


...which may be made redundant by this setup, if I can get it wired up. Took a Euroswitch from a B4 Passat, trimmed it to fit in the vent frame on the dashboard. It's not finished yet, still need to scoop out some of the frame to clear the switch, but you get the idea. It'll be a nice modernization touch, VW is still using a variant of this design today.

Image may have been reduced in size. Click image to view fullscreen.


Still needs a lot of detail and finish work to clean up the edges. You can see the frame is bulging slightly, the round switch housing part of the assembly sticks out further than the rest. A little Dremel quality time will fix this.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I have the complete switch harness from the B4, need to merge it with the Vanagon wiring, and then figure out what to do with the old light switch hole.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4596
Location: El Cerrito, CA
j_dirge is offline

PostPosted: Mon Oct 03, 2011 11:57 am    Post subject: Reply with quote

Syncroincity wrote:
the only conversion value I have memorized right now is 100kph = 62mph. Razz

I owned a euro market 72 baywindow for a spell. KPH on the speedo.

The numbers are easy to remember using conversion of x0.6

kph[mph]
30[18]
40[24] 25mph = school zones.. slow city streets
50(30)
60[36] 35mph = intermediate city streets
70[42]
75[45] 45mph = multi lane city streets
80[48]
90[54] 55mph = HWY

110-120+[66-72] 65+mph = FWY

Just put a small red dot next to each of those KPH no.s.. You'll be driving to the right numbers in no time.
Becomes second nature after while.
_________________
-89 GL Westy, still humming along under the power of a used "WBXer of mystery"
-57 pan f/g buggy with a 67 pancake Type 3 "S"

"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, ... 17, 18, 19  Next
Jump to:
Page 2 of 19


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
