PostPosted: Sat Oct 01, 2011 9:27 am    Post subject: Reply with quote

Hi
Yes, the top hinge is 3 bolt and the bottom a two bolt. I modified the bottom 3-bolt hinge by cutting the tab and one hole off. The remaining holes lined up. I did have to move the driver's side lower hinge because things didn't line up nicely on the door gap.
Dave
_________________
1977 911S http://www.sandersonmotorsports.com/
1958 Karmann Ghia build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?t=571683
1965 Sunroof Notch build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5600139&highlight=#5600139
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Soul
Samba Member


Joined: May 05, 2004
Posts: 168
Location: Chicago
Soul is offline

PostPosted: Sat Oct 01, 2011 10:36 am    Post subject: Reply with quote

Porschedave wrote:
Hi
Yes, the top hinge is 3 bolt and the bottom a two bolt. I modified the bottom 3-bolt hinge by cutting the tab and one hole off. The remaining holes lined up. I did have to move the driver's side lower hinge because things didn't line up nicely on the door gap.
Dave


Thanks for the reply, I'll have to do the same for my notch. I've searched this forum for ideas for the door hinges and this seems to be the best way to save an early car.
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 18445
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Sun Oct 02, 2011 3:13 pm    Post subject: Re: Had some time for my '65 Notch today... Reply with quote

Porschedave wrote:
I have been working on the restoration of a 1965 notchback that I bought as a father-son project. The car turned out to be in much worse shape than we originally thought ...
Image may have been reduced in size. Click image to view fullscreen.


Man Dave, that's a ton of fabrication you've done. Twisted Evil Like Brian said, "not bad for a Porche guy". Wink Cool I really do like that old Bendix tach. Are you going to keep in the car? The current pics you've sent me really don't do justice, compared to the build pics. Shocked Those are the real art work. Cool
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:

"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Porschedave
Samba Member


Joined: July 01, 2004
Posts: 296
Location: Vancouver, Canada
Porschedave is offline

PostPosted: Sun Oct 02, 2011 5:56 pm    Post subject: Reply with quote

Hey Bob
Thanks for those positive comments - coming from someone who has done so much with these cars it is especially nice. I'll make the car 12 v so the old tach won't work as it is a 6-volt tach. Actually, there's no evidence that it works anyhow but I've kept it because it is kind of cool. I've got some more pics to upload so I better get on with it.
Dave
_________________
1977 911S http://www.sandersonmotorsports.com/
1958 Karmann Ghia build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?t=571683
1965 Sunroof Notch build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5600139&highlight=#5600139
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Porschedave
Samba Member


Joined: July 01, 2004
Posts: 296
Location: Vancouver, Canada
Porschedave is offline

PostPosted: Sun Oct 02, 2011 9:03 pm    Post subject: Reply with quote

Happy Sunday evening
I've got some more pics to add to this thread as we get closer to where I am today. Once I had the shell finished I needed to work on the engine area. As you saw above it was also pretty rotten. I decided that I wanted to use an IRS setup because I had a freeway flyer tranny. To do that I had to fabricate the hangers and such. I looked at Bob's setup and went from there.

First, I had to move and repair the water drain and air flow sections (yes, it was very rusty):
Image may have been reduced in size. Click image to view fullscreen.

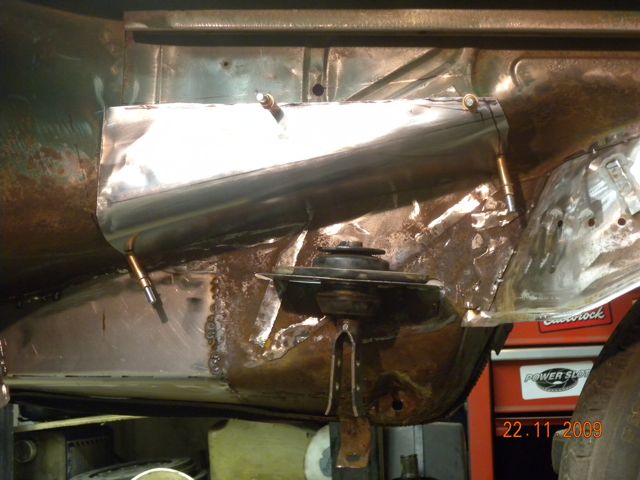

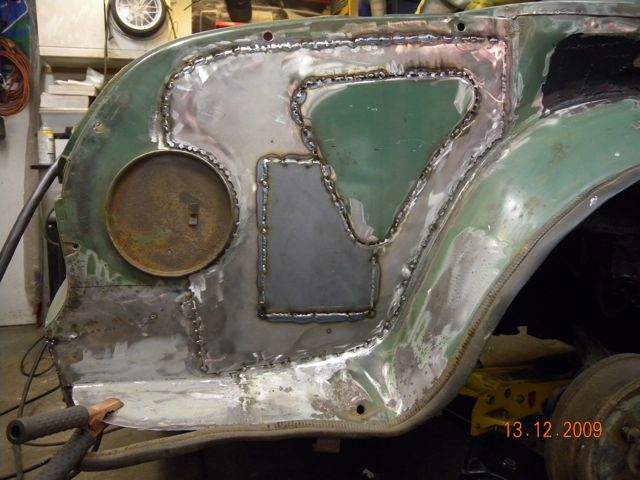

And then I reinforced the inner fender well area with 12 a guage plate
Image may have been reduced in size. Click image to view fullscreen.

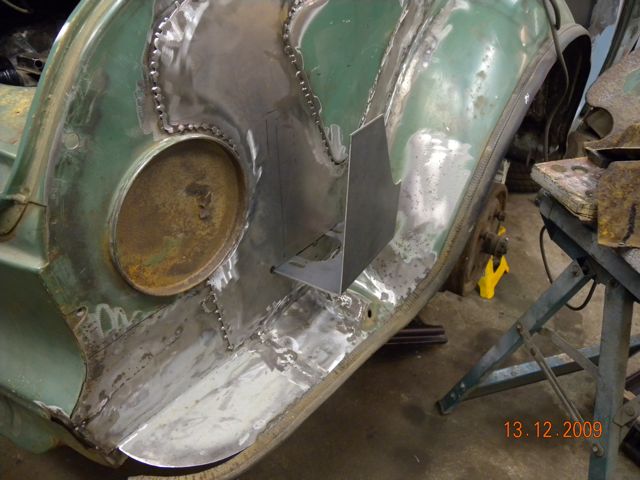

Designed and fit my new hanger. It's 12 guage and slides through a slot in the fender well area and is then welded to the reinforced section:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


and here is a shot from the inside
Image may have been reduced in size. Click image to view fullscreen.

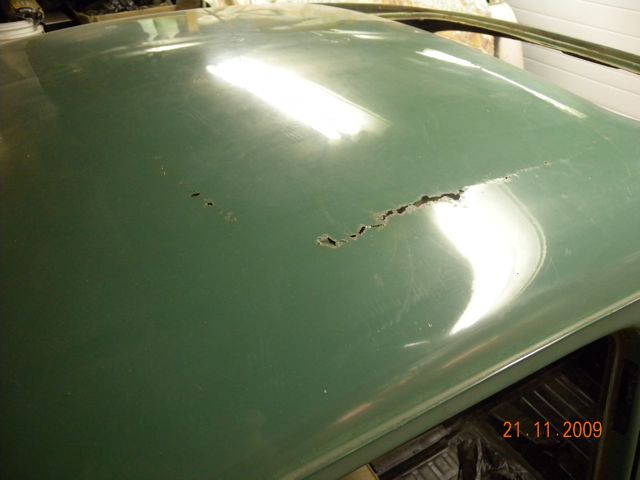

At this point I thought that I was mostly done with body work until I polished the roof, only to discover... yes, rust
Image may have been reduced in size. Click image to view fullscreen.

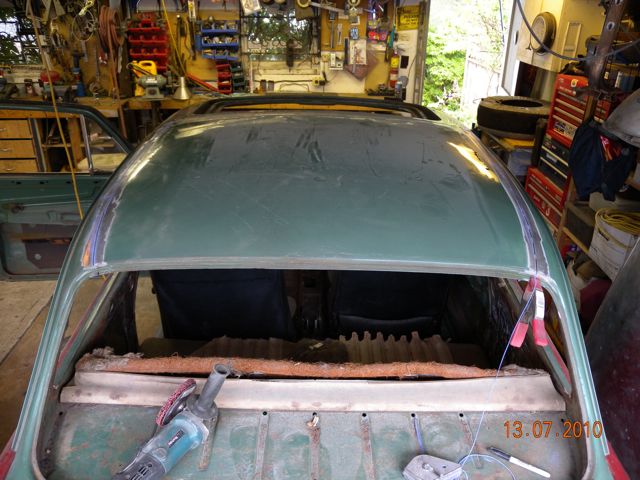

What else could I do but.. remove it
Image may have been reduced in size. Click image to view fullscreen.

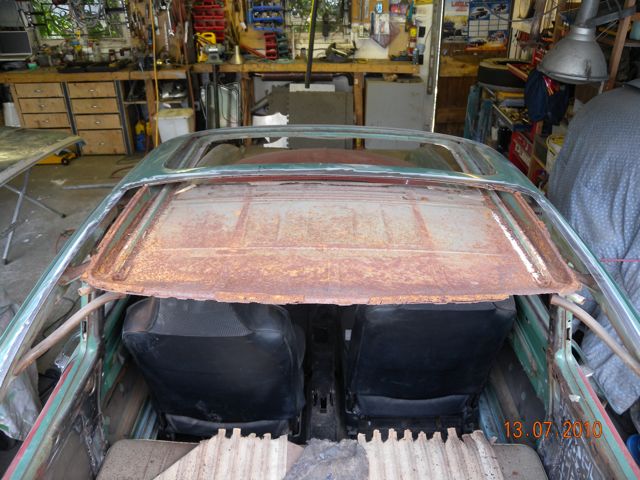

Cut the section out
Image may have been reduced in size. Click image to view fullscreen.

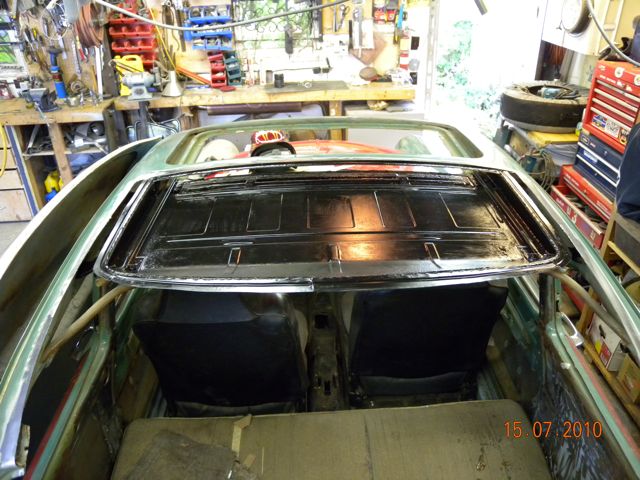

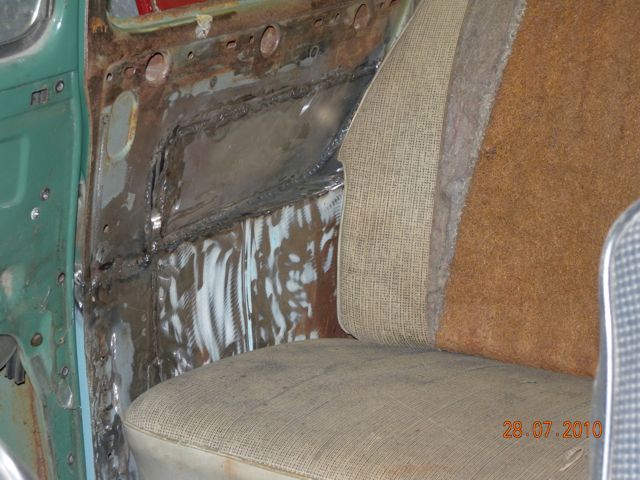

repair the inner shelf
Image may have been reduced in size. Click image to view fullscreen.

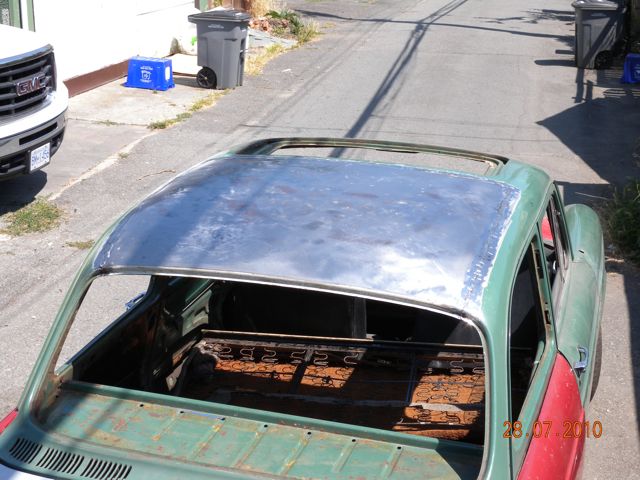

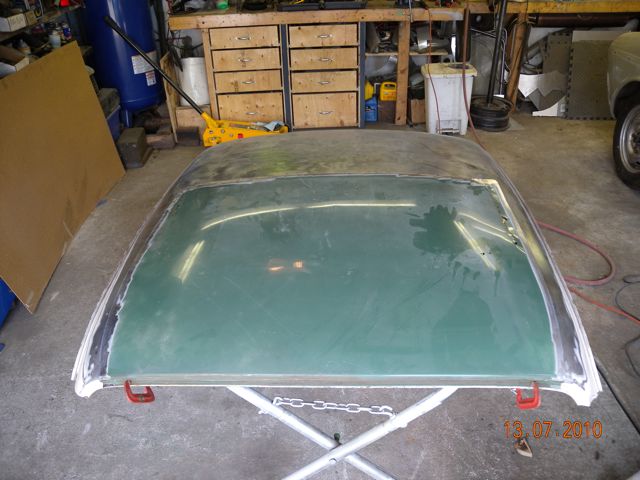

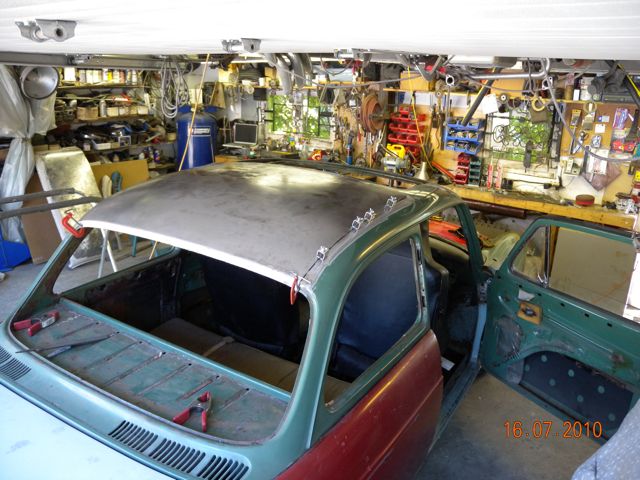

layout on another roof
Image may have been reduced in size. Click image to view fullscreen.

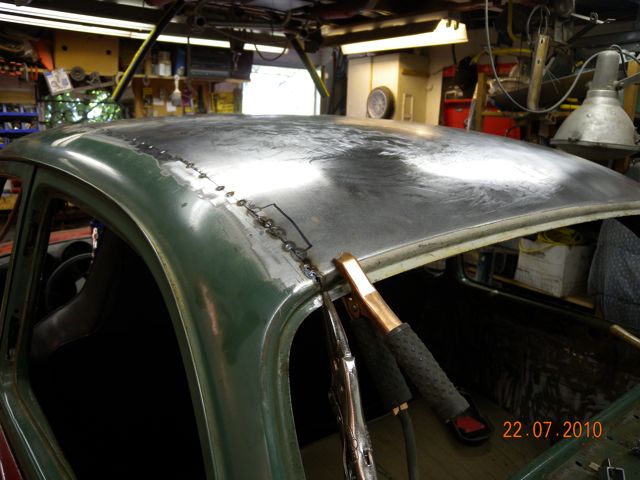

and welded another roof section in place
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

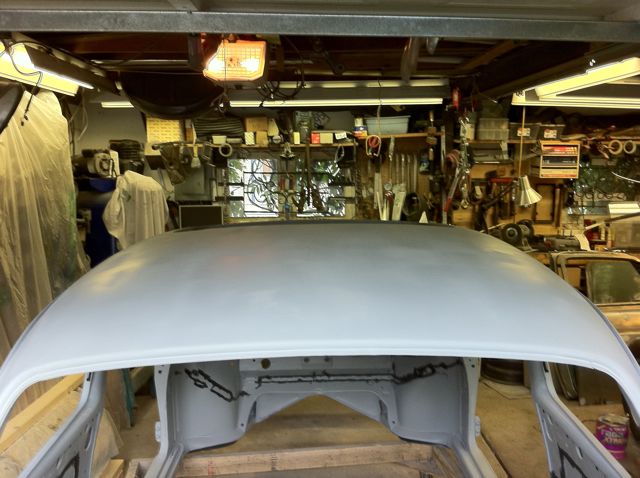

and painted it.
Image may have been reduced in size. Click image to view fullscreen.


So, the question is now -am I finished with welding? How many cars contributed to this notch? original shell, pan, bottom section of a squareback, nose from another, roof from yet another - that's 5 so far and we have not yet look at fenders, doors and hoods. This may take a bit longer yet.

I hope that you're enjoying the story so far...
_________________
1977 911S http://www.sandersonmotorsports.com/
1958 Karmann Ghia build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?t=571683
1965 Sunroof Notch build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5600139&highlight=#5600139
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
dirtsandwich
Samba Member


Joined: April 25, 2008
Posts: 622
Location: Boise, Idaho
dirtsandwich is offline

PostPosted: Sun Oct 02, 2011 9:07 pm    Post subject: Reply with quote

dude, that is nice!
_________________
71 Squareback
77 Bus
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
vwfye
Samba Member


Joined: April 15, 2000
Posts: 6722

vwfye is offline

PostPosted: Sun Oct 02, 2011 9:10 pm    Post subject: Reply with quote

very much interested... and impressed!
_________________
Just some moron that once had a good idea...

http://www.carartbyjohn.com/2020Invasion/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 18445
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Mon Oct 03, 2011 9:29 am    Post subject: Reply with quote

Porschedave wrote:

At this point I thought that I was mostly done with body work until I polished the roof, only to discover... yes, rust
Image may have been reduced in size. Click image to view fullscreen.


What else could I do but.. remove it
Image may have been reduced in size. Click image to view fullscreen.


repair the inner shelf
Image may have been reduced in size. Click image to view fullscreen.


and painted it.
Image may have been reduced in size. Click image to view fullscreen.


So, the question is now -am I finished with welding?
I hope that you're enjoying the story so far...


Probably not, but we'll see.
On my sunroof Notch, I just patched in the rust holes, as I didn't have access to another roof. I sure hope you checked the front of the sunroof opening, as mine had rust there as well.
At least your sunroof tray looked better than mine, as on mine, the corners were rotted off/out, and had to be rebuilt. Shocked

Dave, the positive comments are given, as you've done one hell of a good job here on this car. I love these kind of projects, and I admire those who are willing to take them on, and see them to the end. Not everyone can just do this without worrying about not finishing it. There's just the sense of satisfaction you get when taking on a project like this, and actually seeing it to completion. Even IF you don't end up keeping it 100% stock, you've saved one, and you built it yourself. Cool Applause I look forward to seeing it in person (hopefully next year at the Invasion Pray ). Good job, and keep up the great work.
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:

"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Porschedave
Samba Member


Joined: July 01, 2004
Posts: 296
Location: Vancouver, Canada
Porschedave is offline

PostPosted: Mon Oct 03, 2011 7:41 pm    Post subject: Reply with quote

Greetings
Well, I've uploaded the final set of pictures to bring you to where I am at today.

Another 'problem' reared its head. I had thought that I would use a set of rear sets from a squareback but that did not work out. I did manage to get a decent set of notch rear seats but then discovered that my straight panels in the back wouldn't work because VW had this goofy notch in the seat. So I had to make pockets to fit the rear seat

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


and following, once again in Bob's footsteps, I "made" a fender from two otherwise bad fenders:
Image may have been reduced in size. Click image to view fullscreen.

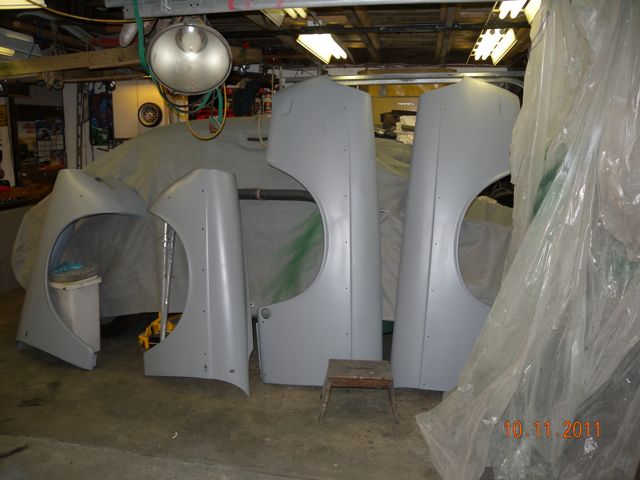

Now, I could finally do something other than welding and panel beating. I shifted gears and got ready to blow epoxy primer over the shell. As I was really concerned about the undersides, I rolled the shell over on its side:
Image may have been reduced in size. Click image to view fullscreen.

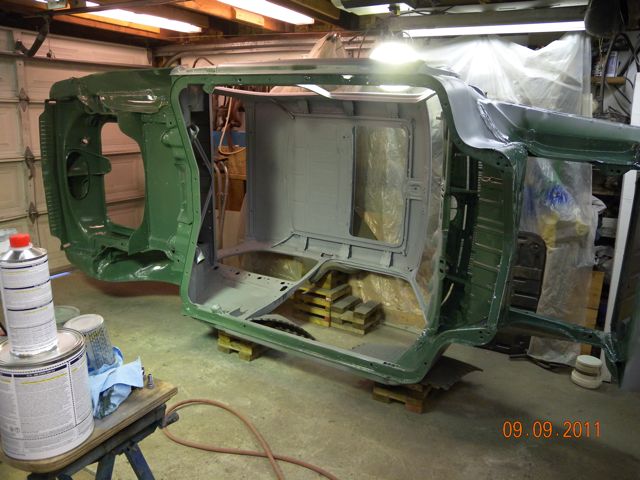

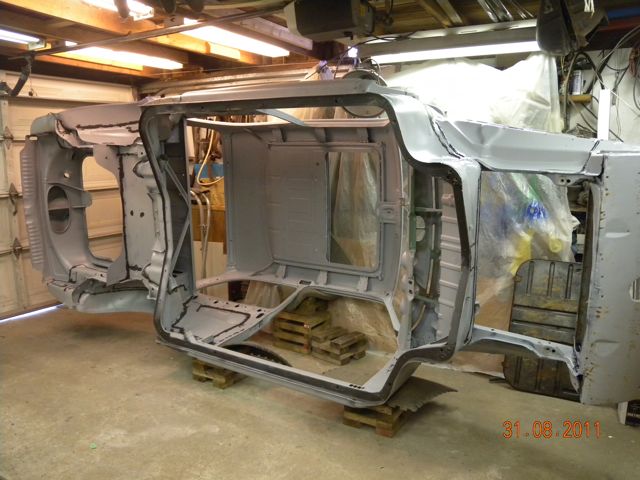

blew on epoxy primer, and then seam sealer, and then ...
Image may have been reduced in size. Click image to view fullscreen.


some single stage Velvet Green (L512) colour
Image may have been reduced in size. Click image to view fullscreen.

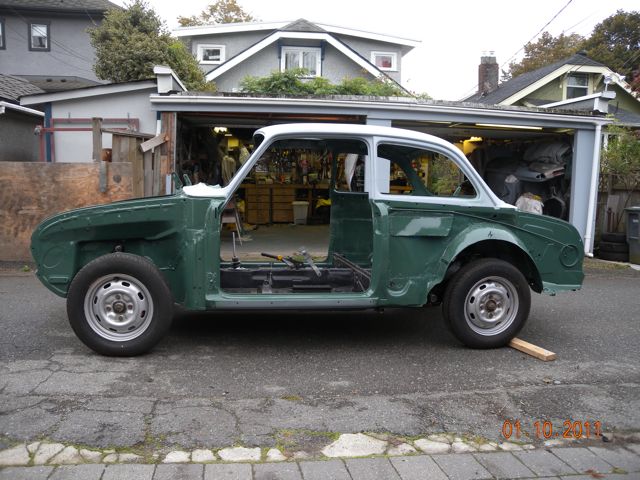

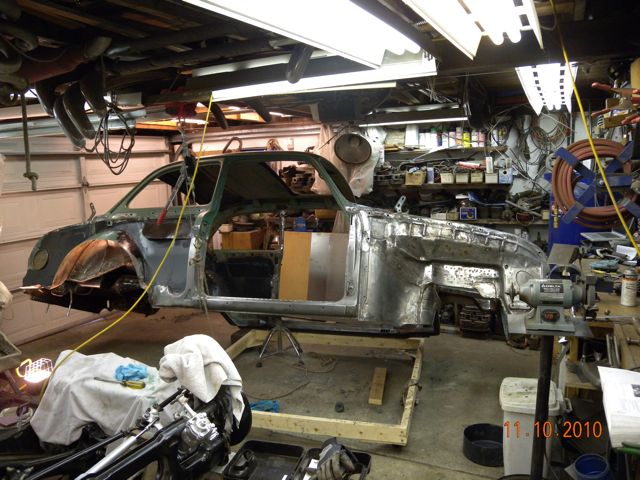

and brought the car upright
Image may have been reduced in size. Click image to view fullscreen.


and finally back on its pan.
Image may have been reduced in size. Click image to view fullscreen.


This is where I am at today, only 5 years after starting this project. I have decided to go back to the original colour. The plan going forward is to epoxy primer the fenders, doors, hoods and sunroof and mount them on the shell. I will then use high build to block the whole car and finally get it painted. Of course, there is still an engine to build (1776 I think), ride height to be adjusted, a wiring loom to make and so on. The T3 invasion is possible but only a distant possibility as I still have my day job.

Thanks for joining me. I'll update this thread as I move forward. I appreciate the positive comments you've made and I certainly enjoy the camaraderie on this site. There are many more pics of this build on my site as well as those for the green notch I built for my son Matt- the signature has the link.

Dave
_________________
1977 911S http://www.sandersonmotorsports.com/
1958 Karmann Ghia build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?t=571683
1965 Sunroof Notch build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5600139&highlight=#5600139
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
supaninja
Samba Member


Joined: July 03, 2010
Posts: 4019
Location: houston
supaninja is offline

PostPosted: Mon Oct 03, 2011 7:53 pm    Post subject: Reply with quote

Hot diggity damnnn Dave you are making some serious progress!
_________________
http://i5.photobucket.com/albums/y163/chucky1974/ninja.gif

Nick
Megasquirted Type 4 powered Notch http://www.thesamba.com/vw/forum/viewtopic.php?t=427890&postdays=0&postorder=asc&start=0
Blog of Doom http://supaninjanick.wordpress.com/
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Facebook Classifieds Feedback
VWporscheGT3
Samba Member


Joined: September 01, 2006
Posts: 1412

VWporscheGT3 is offline

PostPosted: Tue Oct 04, 2011 6:40 am    Post subject: Reply with quote

between you and bob .... it makes me want to tackle a rusty critter..... i was spoiled and fortunate to have a mostly rust free car.
_________________
Schnell, Schnell!!!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Critter1
Samba Member


Joined: August 04, 2004
Posts: 1519
Location: Sacramento
Critter1 is offline

PostPosted: Tue Oct 04, 2011 9:33 am    Post subject: Reply with quote

VWporscheGT3 wrote:
it makes me want to tackle a rusty critter....


haha Very Happy
_________________
Justin
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Porschedave
Samba Member


Joined: July 01, 2004
Posts: 296
Location: Vancouver, Canada
Porschedave is offline

PostPosted: Sat Oct 29, 2011 5:31 pm    Post subject: Reply with quote

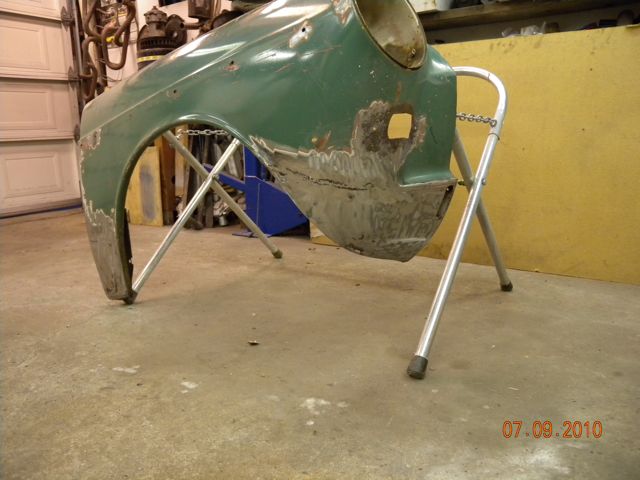

Well, after some delay I have returned to working on the notch. My focus now is to get the fenders ready to mount so that I can blow hi-build primer on the whole car. This fender, however needs some work, like repairing the section over the headlight
Image may have been reduced in size. Click image to view fullscreen.


and at the lower rear corner
Image may have been reduced in size. Click image to view fullscreen.

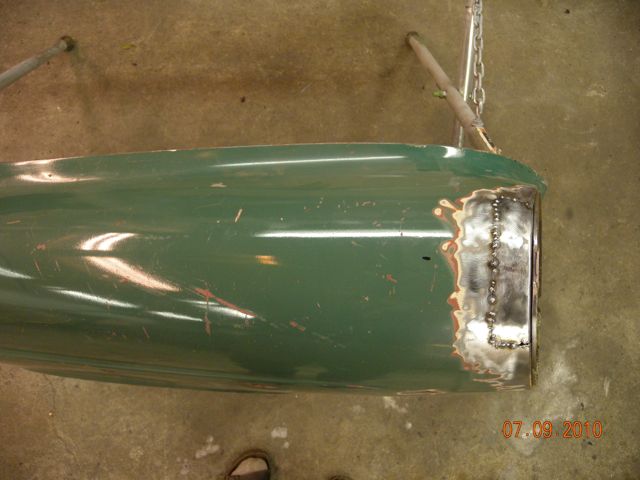

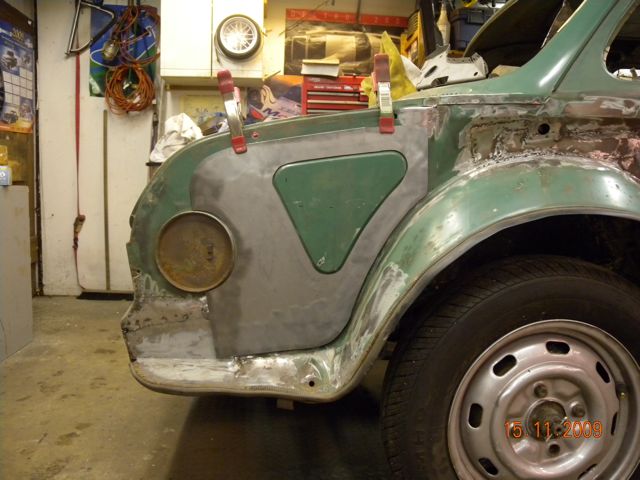

and I had to cut out the front chin section and weld in a section from another fender
Image may have been reduced in size. Click image to view fullscreen.


and now with some primer
Image may have been reduced in size. Click image to view fullscreen.
[/img]
_________________
1977 911S http://www.sandersonmotorsports.com/
1958 Karmann Ghia build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?t=571683
1965 Sunroof Notch build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5600139&highlight=#5600139
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
ALLWAGONS
Samba Member


Joined: June 03, 2000
Posts: 3360
Location: Fracc Soler, Tijuana Baja California Zona Norte
ALLWAGONS is offline

PostPosted: Sat Oct 29, 2011 6:27 pm    Post subject: Reply with quote

Wow! That's too much work!!!! But It's worth every penny! My hat's off to you sir! That show's TRUE dedication!
_________________
I'd be UNSTOPPABLE if not for Law Enforcement and PHYSICS.

I recycle old cars and parts, other than when I rot, that's as Green as I am going to get.

"Don't laugh! That's my Wisconsin ID picture!" overheard at a Local California Hipster Restaurant.

Just found out I am allergic to lead in capsules(bullets)!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 18445
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Sat Oct 29, 2011 8:33 pm    Post subject: Reply with quote

Porschedave wrote:
Well, after some delay I have returned to working on the notch. My focus now is to get the fenders ready to mount so that I can blow hi-build primer on the whole car. This fender, however needs some work, like repairing the section over the headlight
Image may have been reduced in size. Click image to view fullscreen.


and at the lower rear corner
Image may have been reduced in size. Click image to view fullscreen.


and I had to cut out the front chin section and weld in a section from another fender
Image may have been reduced in size. Click image to view fullscreen.


and now with some primer
Image may have been reduced in size. Click image to view fullscreen.
[/img]


Dave, all of that looks familiar, other than adding some new metal across the top of the fender. However, that's just part of dealing with these "old cars" that the aftermarket hasn't tooled up for. Like I said, I've done all of that before except the top of the fender part. I have however grafted the entire headlight bucket into a fender before. Makes grafting 2 half fenders seem easy doesn't it? Wink Good job though, and keep up the good work. Cool
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:

"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Porschedave
Samba Member


Joined: July 01, 2004
Posts: 296
Location: Vancouver, Canada
Porschedave is offline

PostPosted: Fri Nov 11, 2011 6:14 pm    Post subject: Reply with quote

I am now working on getting the fenders, hoods and sun-roof section done in epoxy primer. It was a lot of work to get the gunk off the inside of the fenders as the front two had some undercoat sprayed on. Lots of scraping and heat from a heat gun. In the end they turned out pretty clean and now in primer they look pretty cool, although there still needs to be a little hammer and dolly work because the paint shows up some of the rough spots.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1977 911S http://www.sandersonmotorsports.com/
1958 Karmann Ghia build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?t=571683
1965 Sunroof Notch build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5600139&highlight=#5600139
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Bobnotch
Samba Member


Joined: July 06, 2003
Posts: 18445
Location: Kimball, Mi
Bobnotch is offline

PostPosted: Fri Nov 11, 2011 6:55 pm    Post subject: Reply with quote

Porschedave wrote:
I am now working on getting the fenders, hoods and sun-roof section done in epoxy primer. It was a lot of work to get the gunk off the inside of the fenders as the front two had some undercoat sprayed on. Lots of scraping and heat from a heat gun. In the end they turned out pretty clean and now in primer they look pretty cool, although there still needs to be a little hammer and dolly work because the paint shows up some of the rough spots.

Image may have been reduced in size. Click image to view fullscreen.


Yeah, both my 64 T-34 and my 71 Notch had what looked like spray on white/clear under coating (like rock guard), that was put on before final paint. I used a propane torch and a scraper to get it off. Not fun to deal with, compared to regular undercoating, as that stuff comes off very easy. You're really gaining on it though. Won't be long until the outside gets shot. Cool Then the hard work can begin... reassembly. Wink
_________________
Bob 65 Notch S with Sunroof
71 Notch ...aka Krunchy; build pics here;
http://www.thesamba.com/vw/forum/viewtopic.php?t=249390 -been busy working
64 T-34 Ghia...aka Wolfie, under construction... http://www.thesamba.com/vw/forum/viewtopic.php?t=412120
Tram wrote:

"Friends are God's way of apologizing for relatives."
Tram wrote:
People keep confusing "restored" and "restroyed".
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Porschedave
Samba Member


Joined: July 01, 2004
Posts: 296
Location: Vancouver, Canada
Porschedave is offline

PostPosted: Sat Nov 12, 2011 5:40 pm    Post subject: Reply with quote

Hello everyone
I finished laying down some epoxy primer and figured that it was time to bolt everything back onto the shell. The goal now will be to look at alignment of the doors, fenders and hoods. Also, I am certain that I will discover things that ned to be fixed. For example, at the bottom back end of the front fender I noticed one of the tabs has broken off, so I will need to re-weld a tab on.

Overall, I think that it looks pretty good, although I will want to change the ride height.

Here is the first shot:
Image may have been reduced in size. Click image to view fullscreen.


and from behind
Image may have been reduced in size. Click image to view fullscreen.


and from the alley, in the rain ..
Image may have been reduced in size. Click image to view fullscreen.

_________________
1977 911S http://www.sandersonmotorsports.com/
1958 Karmann Ghia build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?t=571683
1965 Sunroof Notch build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5600139&highlight=#5600139
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 19431
Location: Escondido CA
notchboy is offline

PostPosted: Sat Nov 12, 2011 6:03 pm    Post subject: Reply with quote

Dave you're an animal! Love to see this progress.
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1974 Westfalia Hardtop Campmobile
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Porschedave
Samba Member


Joined: July 01, 2004
Posts: 296
Location: Vancouver, Canada
Porschedave is offline

PostPosted: Sat Nov 12, 2011 6:13 pm    Post subject: Reply with quote

Notchboy - thanks. I do feel like I am making progress but it sure is slow. And, of course, when I look at the pics I see that I have different head light buckets and I'm sure other odd bits will become obvious...
Dave
_________________
1977 911S http://www.sandersonmotorsports.com/
1958 Karmann Ghia build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?t=571683
1965 Sunroof Notch build thread here: http://www.thesamba.com/vw/forum/viewtopic.php?p=5600139&highlight=#5600139
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Type 3 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: Previous  1, 2, 3, ... 10, 11, 12  Next
Jump to:
Page 2 of 12


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
