PostPosted: Sat Dec 14, 2013 5:04 pm    Post subject: Clearancing: 92mm AA Pistons, 76mm Stroker, & 5.325" Reply with quote

I have a set of 92x69 thickwall (94 top, 90.5/92 bottom) AA Performance P/C's that I bought for my bug before finding that the case that came with the car is junk.

I figured since I had to get a new case that I would go a little larger and get a low/middle stroker crank, 74/76mm, to go with my 92mm pistons.

ACN says I can use both a 74/76 crank with their 5.325 rods without too much clearancing fuss in their budget stroker article. When I go to look at the 5.325 rods to buy them they have the note stating piston skirt clearance will most likely be an issue with 76 cranks.

My question is, would anyone who's used AA 92mm pistons with a 74/76mm crank, & 5.325" rods have any insight on this specific combination of parts? I'd like to get a 76 but my feelings wouldn't be hurt with a 74mm crank.

To be as specific as I can, here's what I'm considering
Crank
Rods
Pistons

I understand this might be a shot in the dark but I figured I would see if anyone has this combo. I searched and didn't see any AA brand clearancing posts.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
modok
Samba Member


Joined: October 30, 2009
Posts: 22774
Location: Colorado Springs
modok is offline

PostPosted: Sat Dec 14, 2013 5:11 pm    Post subject: Reply with quote

AA's "a" pistons are are dimensionally a copy of mahle
I have used 92 "A" mahle pistons with 74 and 76 AND 78 strokes several times before, and never had to clearance the skirts.

The .070 shorter rod is like having 3mm more stroke, so.....with 74 I would not even check.
With 76-78 stroke it probably will clear, but I would take a look before balancing the pistons.

Verses a stock piston, the 92 are shorter skirt, and bigger diameter, thus less tendency to hit the crank!
_________________
-defund facebook-
Back to top
View user's profile Send private message Gallery Classifieds Feedback
itHaKa
Samba Member


Joined: February 20, 2008
Posts: 253
Location: Argentina
itHaKa is offline

PostPosted: Sat Dec 14, 2013 5:18 pm    Post subject: Reply with quote

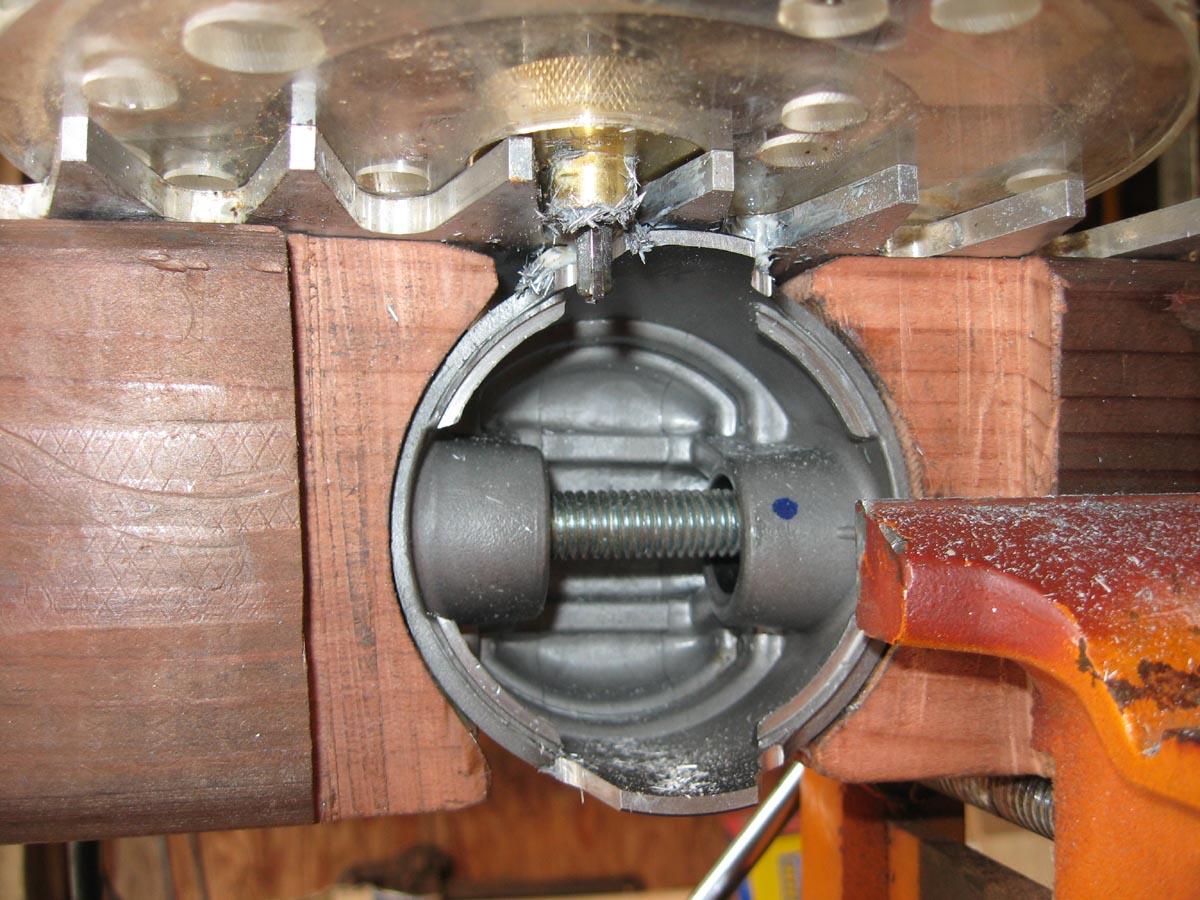

this is what my brother had to do to the skirts of his AA pistons in 88 mm
