PostPosted: Sat May 17, 2014 8:02 pm    Post subject: D.I.Y. tools Reply with quote

I'm sure that at some point most of us here have made or modified a tool of some sort. I mostly just do it for the enjoyment and satisfaction of using something homemade or repurposed. Some may be from necessity or time restraints or for whatever reason. Thought I'd share a few of mine and hopefully others will do the same.

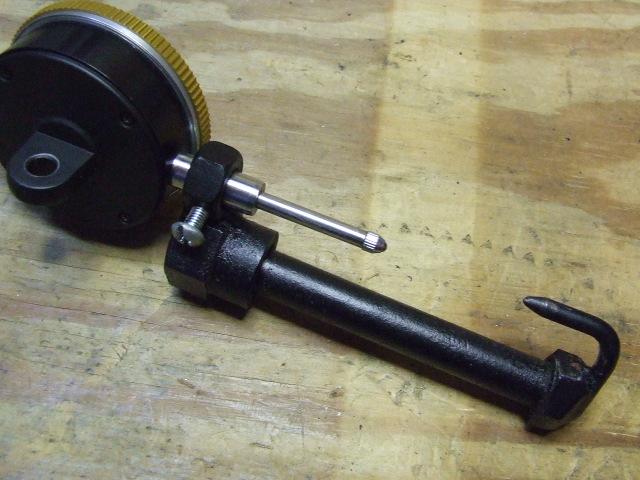

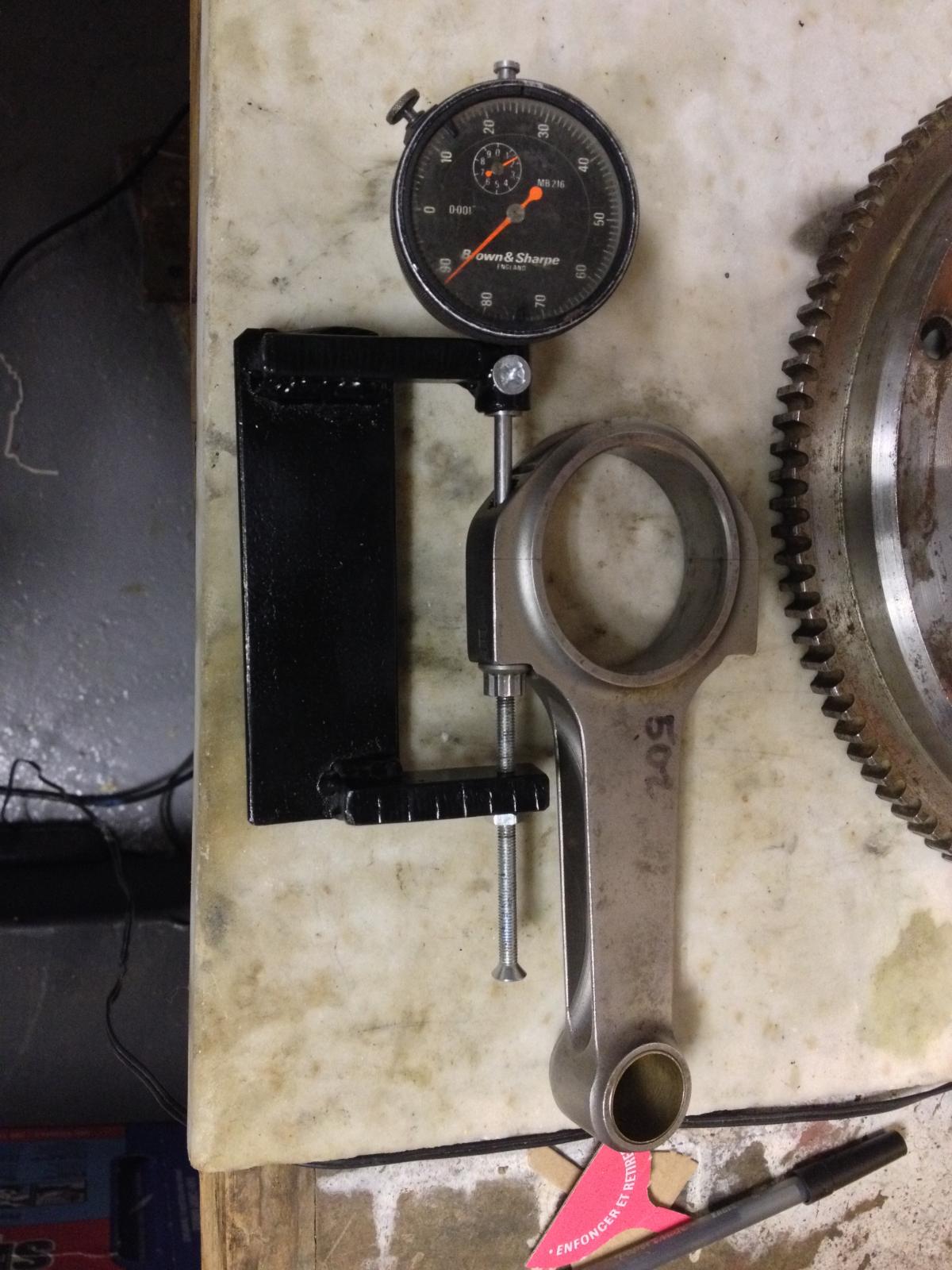

Rod bolt stretch gauge
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

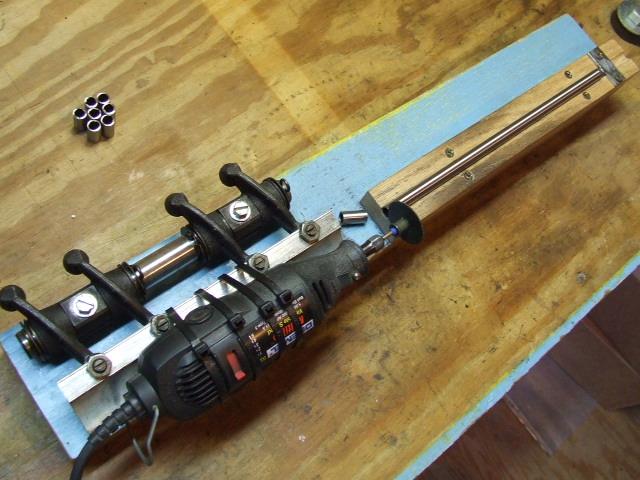

Pushrod cutter
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

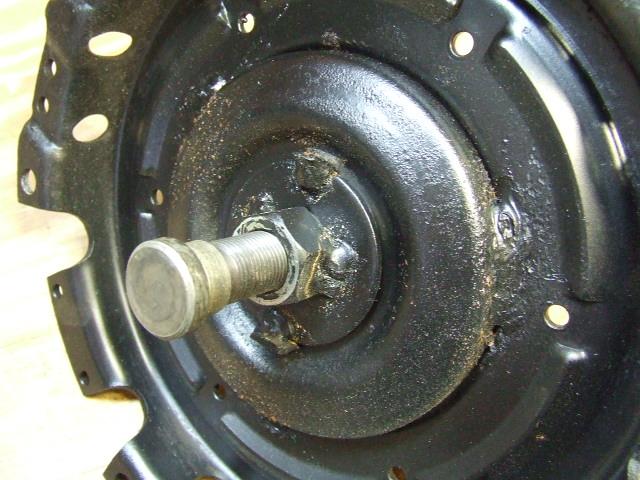

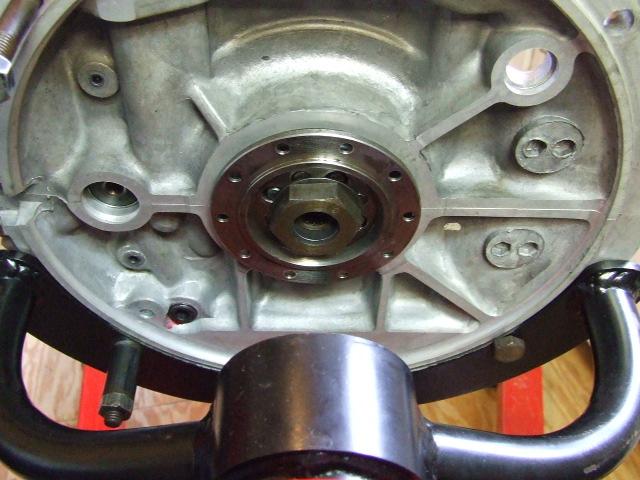

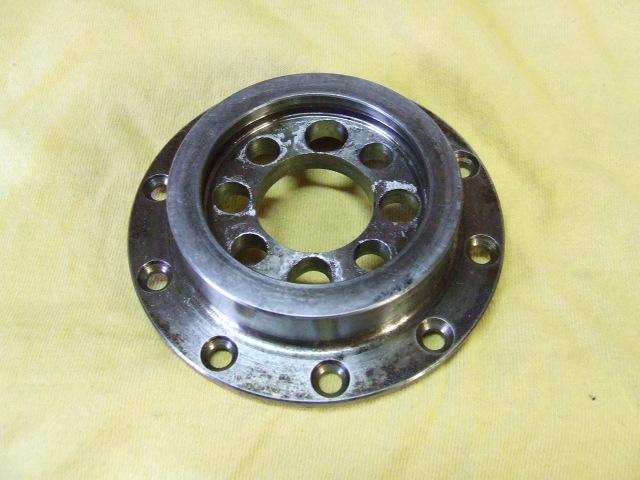

Flexplate hub for mockup
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bugguy1967
Samba Member


Joined: January 16, 2008
Posts: 3233
Location: Los Angeles, CA 90016
bugguy1967 is offline

PostPosted: Sat May 17, 2014 8:12 pm    Post subject: Reply with quote

This is going to be a good topic.

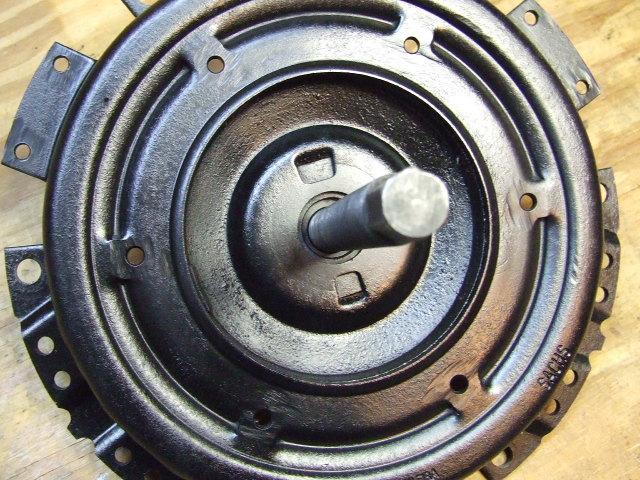

Clutch breakaway tool to see at what FT. LB. the clutch is slipping. I use it on a dial torque wrench.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 4134
Location: central rust belt
esde is offline

PostPosted: Sat May 17, 2014 8:23 pm    Post subject: Reply with quote

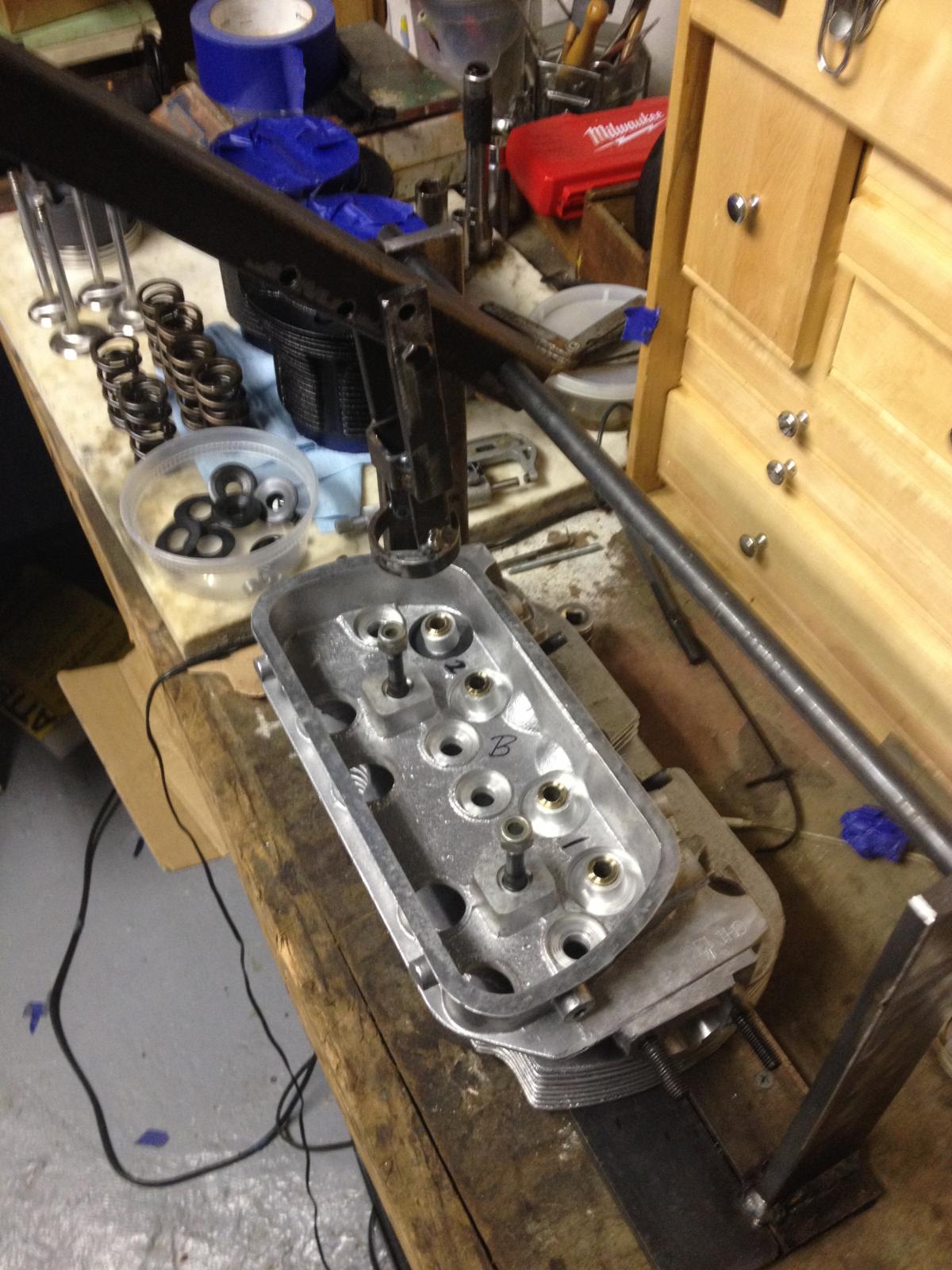

valve spring compressor
Image may have been reduced in size. Click image to view fullscreen.


stretch gauge, didn't work as well as I had hoped
Image may have been reduced in size. Click image to view fullscreen.


adapter to use a torque tool with a 1.5" gland nut
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

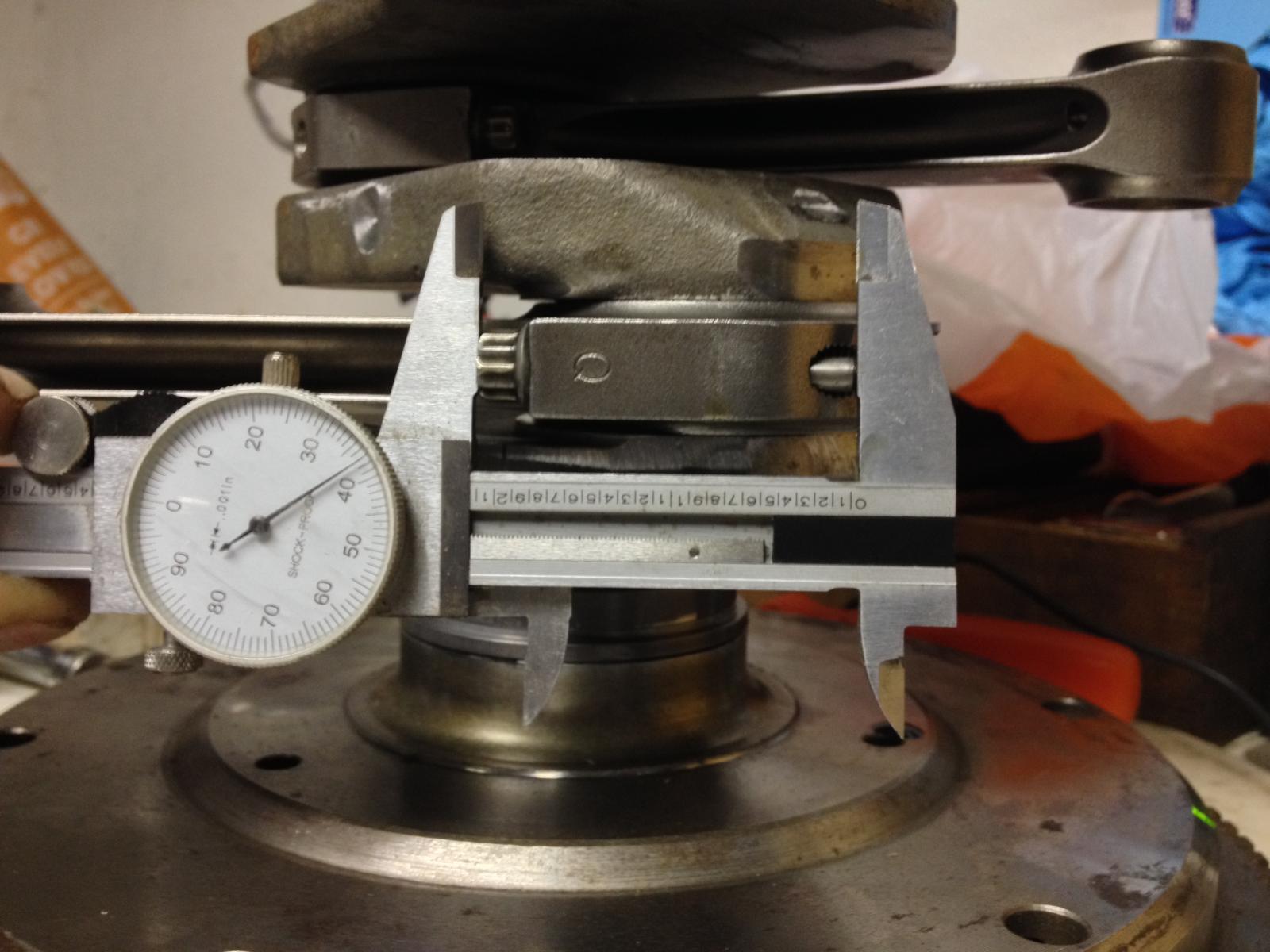

In the end I found that using a main bearing pin to space the end of the rod bolt out of the cap let me get a better measurement.
Image may have been reduced in size. Click image to view fullscreen.


I love making stuff myself
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7586

AlteWagen is offline

PostPosted: Sun May 18, 2014 11:08 am    Post subject: Reply with quote

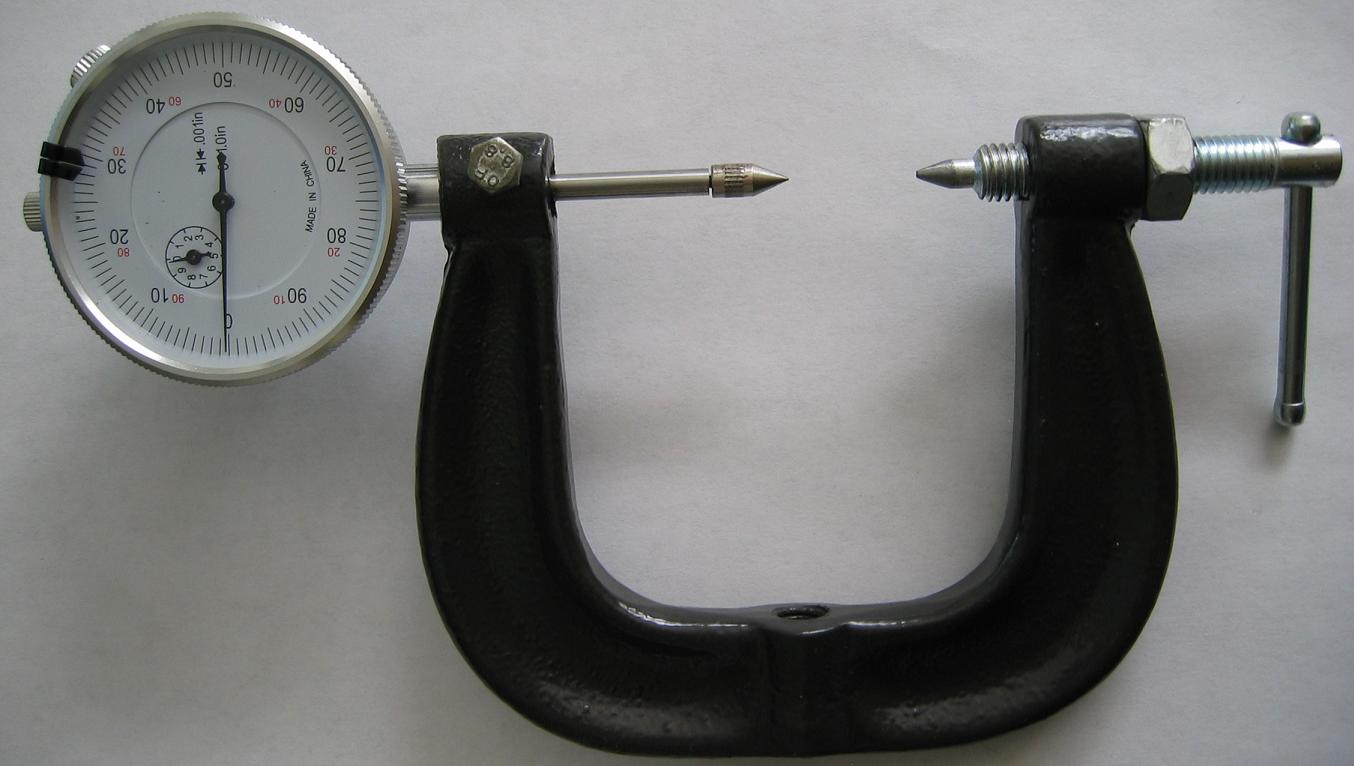

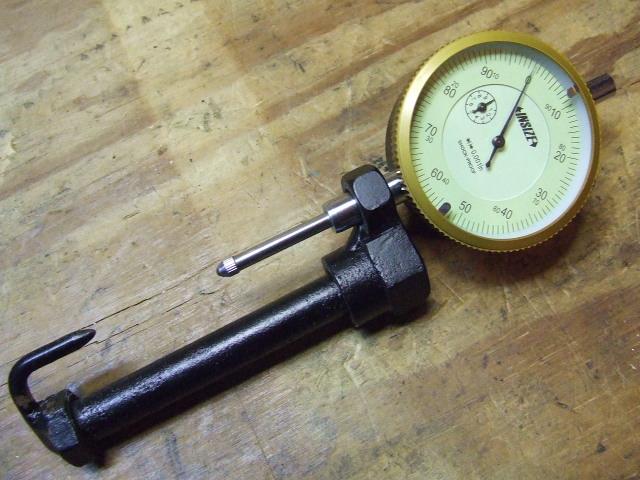

Here is my rod stretch gauge

http://www.thesamba.com/vw/forum/viewtopic.php?t=488674


Image may have been reduced in size. Click image to view fullscreen.

_________________
Grapes of Wrath $200 Engine Rebuild
Official Dual Carb Thread
Cylinder Head Quick Reference Sheet
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Glenn Premium Member
Mr. 010


Joined: December 25, 2001
Posts: 64590
Location: Long Island, New York, USA
Glenn is offline

PostPosted: Sun May 18, 2014 11:22 am    Post subject: Reply with quote

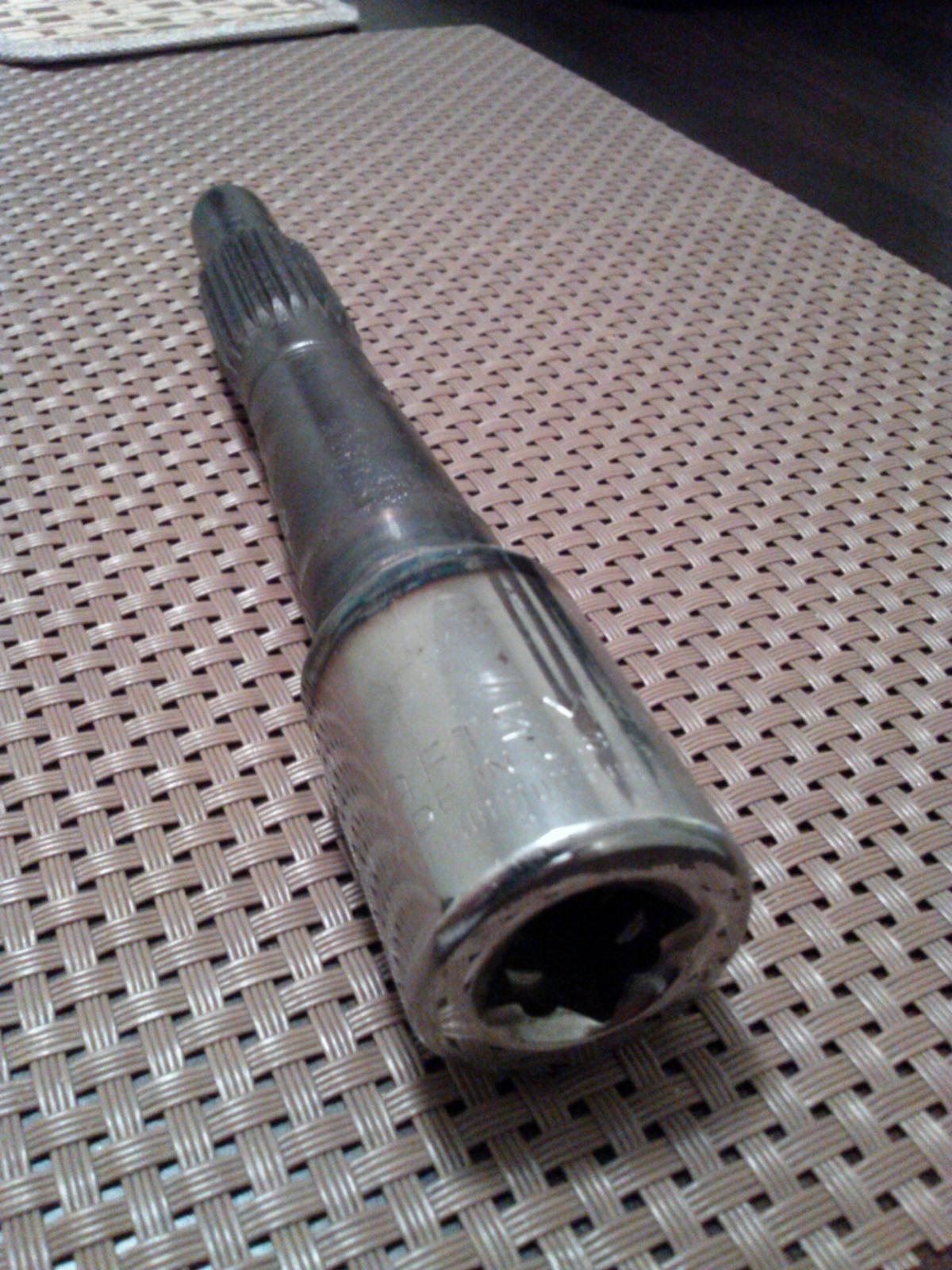

Torque multiplier

Image may have been reduced in size. Click image to view fullscreen.

_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"

iRide4Sue.org Please Donate to fight Cancer. $31,000 raised in 2018, hoping for the same in 2019
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
raul arrese
Samba Member


Joined: July 23, 2006
Posts: 1246
Location: miami florida
raul arrese is offline

PostPosted: Sun May 18, 2014 11:29 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

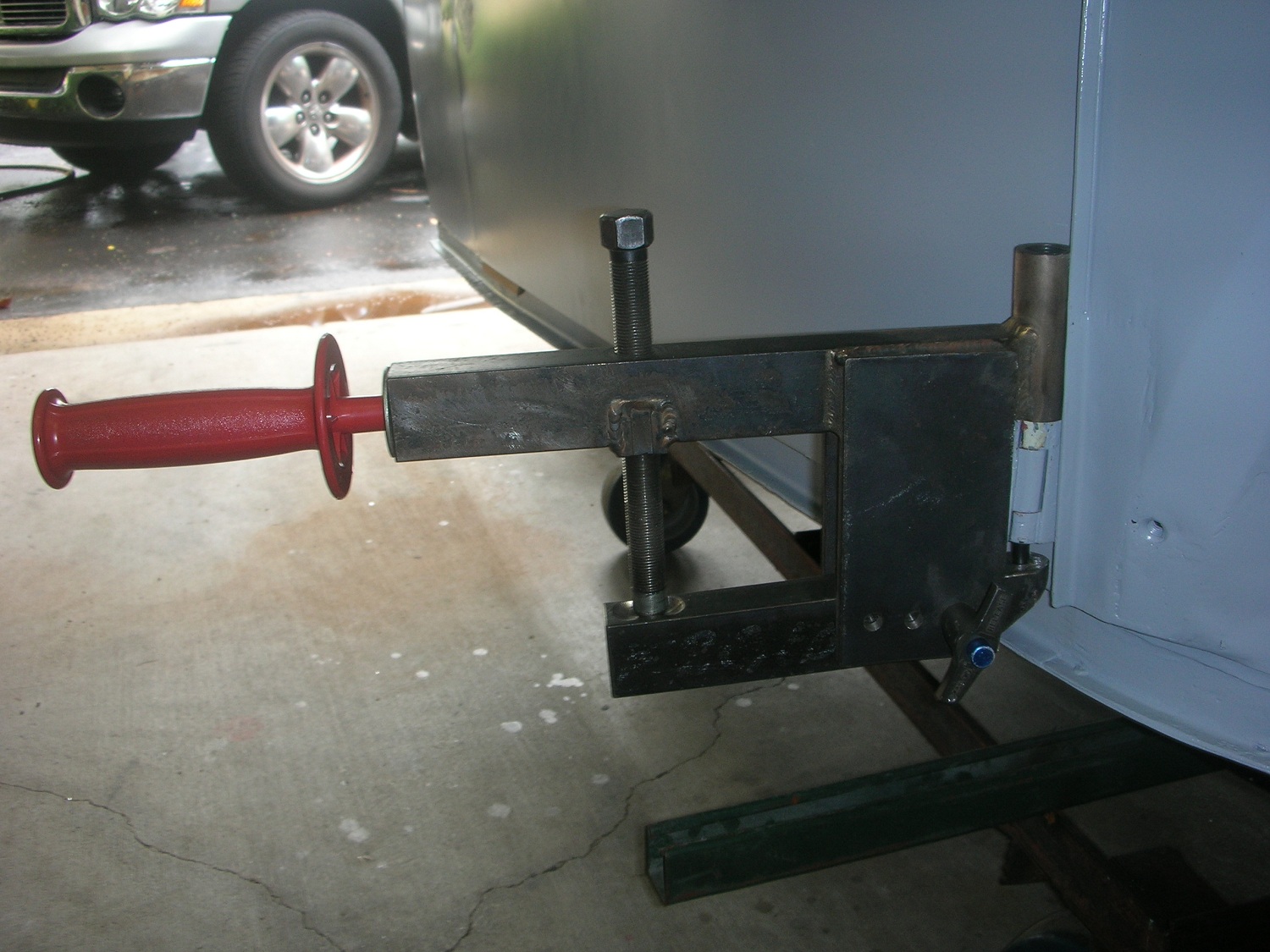

Hinge tool
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
andy198712
Samba Member


Joined: December 05, 2010
Posts: 1031
Location: Cornwall - UK
andy198712 is offline

PostPosted: Sun May 18, 2014 12:17 pm    Post subject: Reply with quote

Glenn wrote:
Torque multiplier

Image may have been reduced in size. Click image to view fullscreen.


Where did you get the spline bit from? Nice !
_________________
Alstrup wrote:
I like 5,5inchers in the rear at least.
Back to top
View user's profile Send private message Classifieds Feedback
grey60
Samba Member


Joined: May 29, 2013
Posts: 172
Location: Texas
grey60 is offline

PostPosted: Sun May 18, 2014 12:32 pm    Post subject: Reply with quote

bugguy1967 wrote:
This is going to be a good topic.

Which is what I thought when I bookmarked it over in the Bay forum:

http://www.thesamba.com/vw/forum/viewtopic.php?t=531899 Wink

Now will someone please put aside your 'Trade Secret' ideas and post dimensional drawings of the tool you use to separate kingpins on spindles that are already flipped? Rolling Eyes
_________________
1960 grey panel
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wompninja
Samba Member


Joined: July 06, 2008
Posts: 2147
Location: Salt Lake City
wompninja is offline

PostPosted: Sun May 18, 2014 2:45 pm    Post subject: Re: D.I.Y. tools Reply with quote

I love that you used a rocker shaft.
Scavenger wrote:
Pushrod cutter
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


_________________
Pics of my 1970 Satin Black Type 1 build
Back to top
View user's profile Send private message Visit poster's website Twitter Instagram Gallery Classifieds Feedback
Scavenger
Samba Member


Joined: May 02, 2010
Posts: 79
Location: North MS
Scavenger is offline

PostPosted: Sun May 18, 2014 6:11 pm    Post subject: Reply with quote

esde wrote:
stretch gauge, didn't work as well as I had hoped
Image may have been reduced in size. Click image to view fullscreen.


Don't give up on this one. You have a nice rigid frame there. Just need to do a little fine tuning. There is a small dimple on each end of the bolt that you need to seat into for it to work correctly. You might be getting some flex on the adjustable end. If not, check the tip on that side. It needs to fit and seat into the dimple. BTW I use mine with the dial end at the head of the bolt.
Hope this helps.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Scavenger
Samba Member


Joined: May 02, 2010
Posts: 79
Location: North MS
Scavenger is offline

PostPosted: Sun May 18, 2014 6:24 pm    Post subject: Reply with quote

raul arrese wrote:
Image may have been reduced in size. Click image to view fullscreen.



Hinge tool



If you have never tried to remove an old hinge pin then you can't really understand just how truly awesome this tool is. Well done!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Scavenger
Samba Member


Joined: May 02, 2010
Posts: 79
Location: North MS
Scavenger is offline

PostPosted: Sun May 18, 2014 6:28 pm    Post subject: Reply with quote

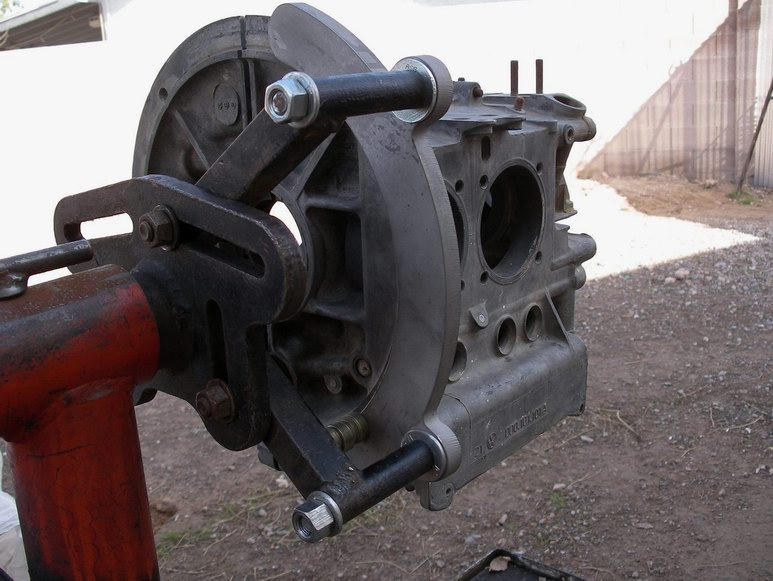

Flywheel puller

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
clonebug
Samba Member


Joined: January 29, 2005
Posts: 2832
Location: NW Washington
clonebug is offline

PostPosted: Sun May 18, 2014 8:41 pm    Post subject: Reply with quote

My home made tubing notcher.

Image may have been reduced in size. Click image to view fullscreen.


the fish eye cut it made...

Image may have been reduced in size. Click image to view fullscreen.


Fits nice without any grinding....

Image may have been reduced in size. Click image to view fullscreen.


I've made three intakes with it so far and it does the job.
_________________
vwracerdave wrote:

Take a good long look in the mirror and report back on what you see.


Dauz wrote:
Locked/limited... same diff

Paul.H wrote:
That one line on that chart is probably better info than you can get from this place in a month



My Megasquirt Fuel Injection Turbo Buggy Build
(Now with Water/Alcohol Injection)
Upgraded to MS-2 Extra direct fire wasted spark

http://www.shoptalkforums.com/viewtopic.php?f=3&t=127936
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
stealth67vw
Samba Member


Joined: January 22, 2004
Posts: 1720
Location: Grass Pants, Orygun
stealth67vw is offline

PostPosted: Sun May 18, 2014 8:43 pm    Post subject: Reply with quote

My favorite site for homebrewed tools.

http://www.homemadetools.net/
_________________
John Bates
JB Machining Services
Back to top
View user's profile Send private message MSN Messenger Gallery Classifieds Feedback
earthquake
Samba Member


Joined: January 10, 2008
Posts: 3061
Location: SANDY VALLEY, NEVADA
earthquake is offline

PostPosted: Sun May 18, 2014 10:59 pm    Post subject: Reply with quote

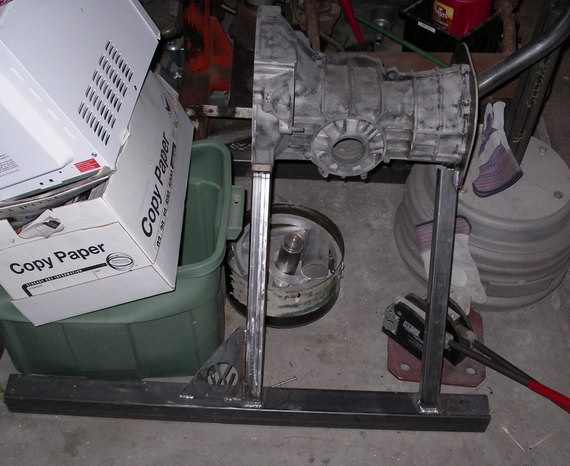

I built my own engine stand...
Image may have been reduced in size. Click image to view fullscreen.

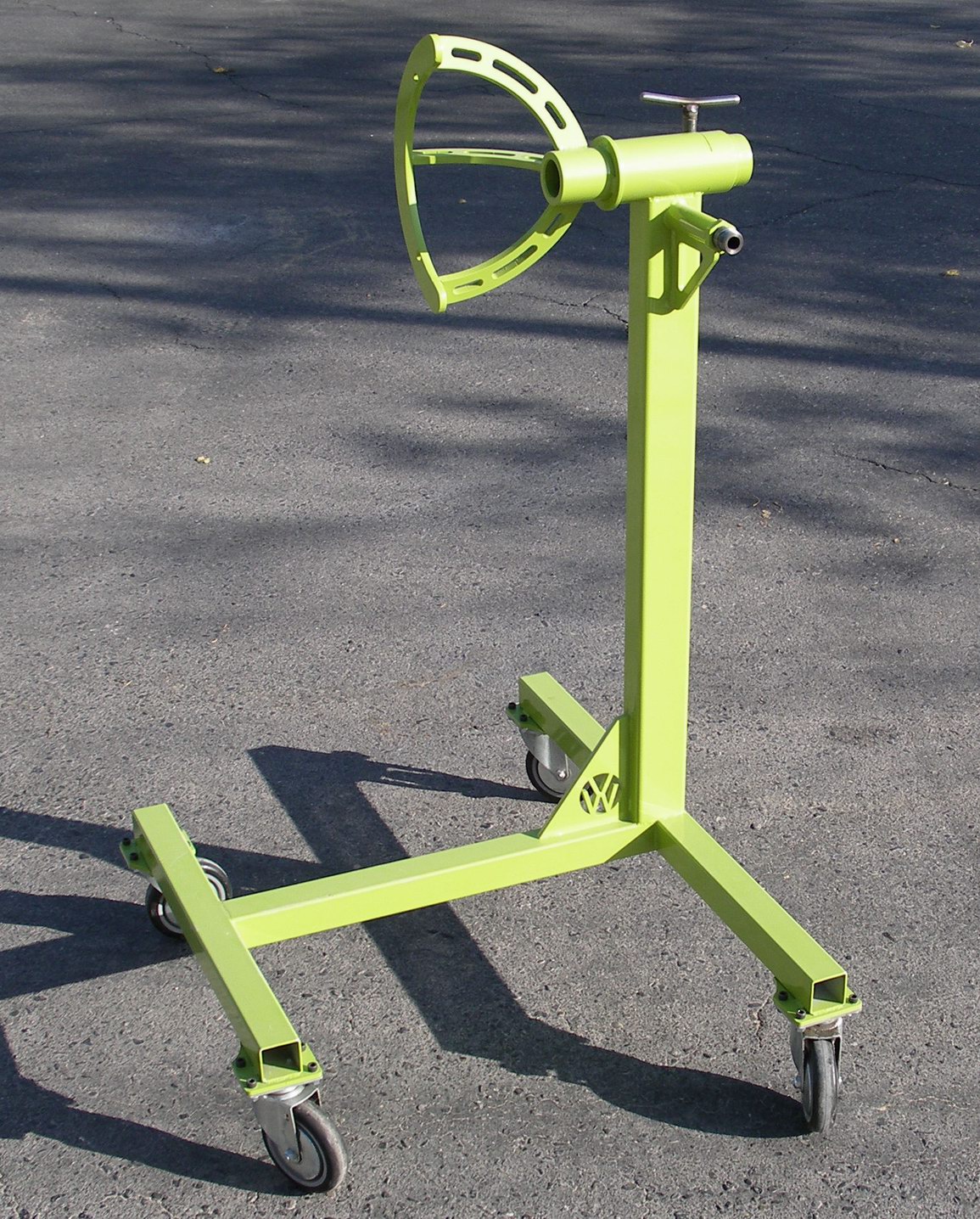

Adapter to mount VW engine on std stand...
Image may have been reduced in size. Click image to view fullscreen.

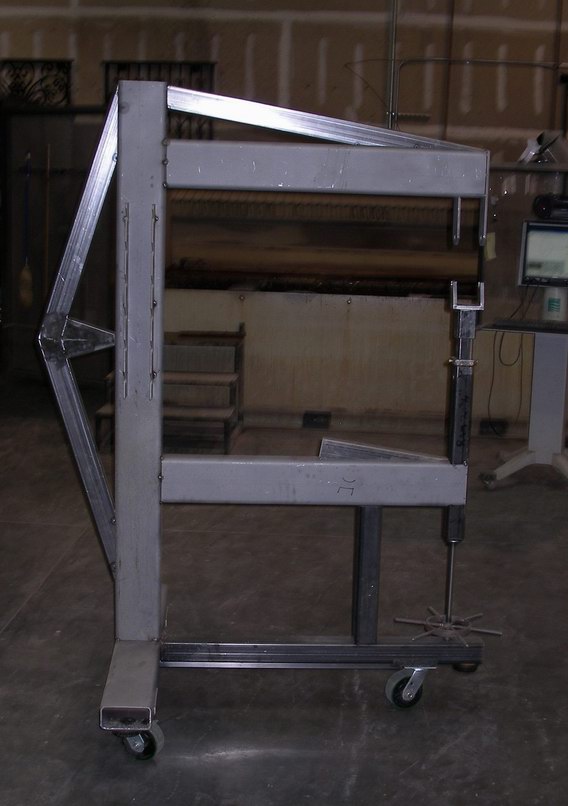

English wheel...
Image may have been reduced in size. Click image to view fullscreen.

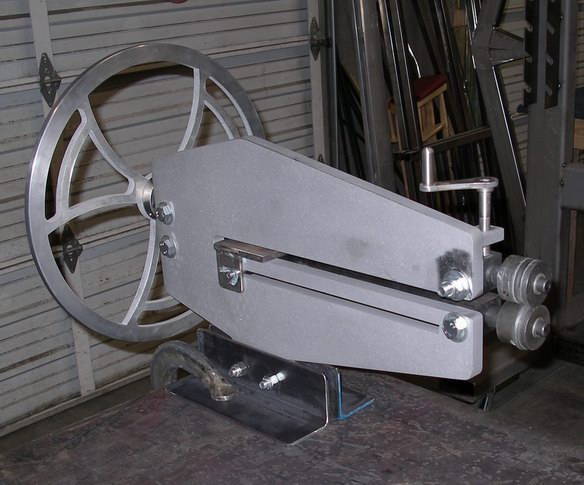

modified HF bead roller...
Image may have been reduced in size. Click image to view fullscreen.

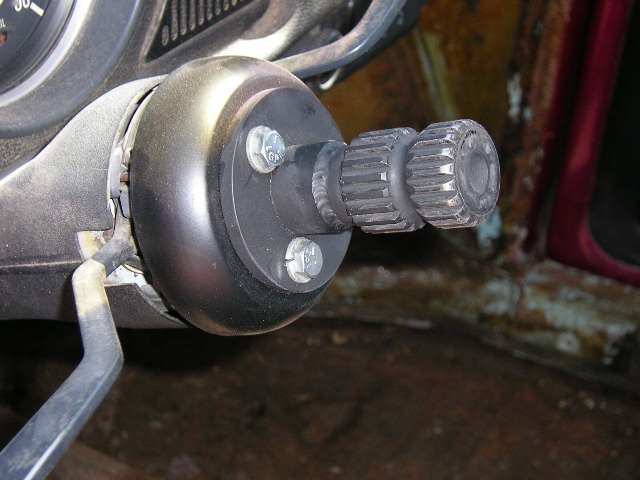

quick release steering wheel adapter [somebody borrowed my idea and is selling them now]...
Image may have been reduced in size. Click image to view fullscreen.


I have a test stand I have been working for awhile...
Image may have been reduced in size. Click image to view fullscreen.


I have some more but no pictures of them. I made most of them while I was working for a metal shop running a water jet machine but they closed the doors and I am disabled now and I can barely get out of bed in the morning.

Casey
_________________
74 CLASS 11 LOOK-A-LIKE
69 DUNE BUGGY
79 INTERNATIONAL SCOUT II
05 SCION XB SERIES RELEASE 2[#437]

Kelly J. Nolte 3/20/53 - 11/6/08
http://www.rememberingkelly.com/

DEATH TO CHINGERS!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mick
Mick-n-chips


Joined: April 12, 2003
Posts: 408
Location: RADelaide
Mick is offline

PostPosted: Mon May 19, 2014 4:30 am    Post subject: Reply with quote

Great thread, a topic close to my heart.

I'm always building tools to do different jobs. For me this is half of the fun of restoration and the thing I get the biggest kick out of. Recently I've been getting into panel work, here's a few things I've made up in the past month or so.

Simple but necessary - spot weld drills made from normal twist drills - saves a fortune

Image may have been reduced in size. Click image to view fullscreen.



A panel chisel for cutting and separating panels after drilling out the welds - just a heat treated bit of flat bar - heaps better then a big clumsy cold chisel.

Heat it up cherry

Image may have been reduced in size. Click image to view fullscreen.


Quench it in oil (yeah I know - it should be clean oil but who wants to waste good oil on stuff like this)

Image may have been reduced in size. Click image to view fullscreen.


Don't forget to hone the edge!

Image may have been reduced in size. Click image to view fullscreen.



Tucking forks for shrinking metal.

Image may have been reduced in size. Click image to view fullscreen.



Flange bending tool - an absolute necessity. I used to use an adjustable wrench but this is heaps better

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


(you also use it with a hammer to make a nice sharp edge)


Old hubs and wheels make a great tinmans stake stand - much better than mounting the stakes in a bench holder or in your vice as you can work at a nice comfortable height and easily move the panel around it.

Image may have been reduced in size. Click image to view fullscreen.


it also makes a great stand for my bead roller - I cut the bottom off of an old stake I had spare. At some point I will also get around to making up some similar stands for my sand bags.

Image may have been reduced in size. Click image to view fullscreen.


And now with an added hammer holder

Image may have been reduced in size. Click image to view fullscreen.


There's heaps of other stuff that I don't have good photos for - slapping files, anvil stands, a jacking beam setup in my pit, a 3d printer. Will post some up if I can dig them out.


By far my favourite DIY tool is my CNC plasma cutter - designed and built by me mostly from scrap I had laying about the workshop.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The great thing about this is that it is now even easier to make other tools up.
_________________
www.vdubber.com
Aircooled blogs, builds and banter
Back to top
View user's profile Send private message Visit poster's website Classifieds Feedback
mark tucker
Samba Member


Joined: April 08, 2009
Posts: 20401
Location: SHALIMAR ,FLORIDA
mark tucker is offline

PostPosted: Mon May 19, 2014 9:02 am    Post subject: Reply with quote

earthquake wrote:
I built my own engine stand...
Image may have been reduced in size. Click image to view fullscreen.


Adapter to mount VW engine on std stand...
Image may have been reduced in size. Click image to view fullscreen.


English wheel...
Image may have been reduced in size. Click image to view fullscreen.


modified HF bead roller...
Image may have been reduced in size. Click image to view fullscreen.


quick release steering wheel adapter [somebody borrowed my idea and is selling them now]...
Image may have been reduced in size. Click image to view fullscreen.


I have a test stand I have been working for awhile...
Image may have been reduced in size. Click image to view fullscreen.


I have some more but no pictures of them. I made most of them while I was working for a metal shop running a water jet machine but they closed the doors and I am disabled now and I can barely get out of bed in the morning.

Casey
I worked in a small prototype shop for a shortwhile learning to program&run cnc mills&other stuff.did mostly aerosapce&detroit car stuff,and some off the wall stuff along with tool&die.I wish I still had all that equip at my fingers.you can make just about any thing.the 3D programing was sweet.I miss realy using my brains for stuff like that.I never did get my own cnc machine hear at home like I had planed.that was the whole reason I went to work there for little over a year. shit happens.as does life....and now??? these darn lawn mowder powered cars in my way.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
esde
Samba Member


Joined: October 20, 2007
Posts: 4134
Location: central rust belt
esde is offline

PostPosted: Mon May 19, 2014 10:10 am    Post subject: Reply with quote

Mick wrote:

By far my favourite DIY tool is my CNC plasma cutter - designed and built by me mostly from scrap I had laying about the workshop.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.



you win
Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Scavenger
Samba Member


Joined: May 02, 2010
Posts: 79
Location: North MS
Scavenger is offline

PostPosted: Tue May 20, 2014 4:20 am    Post subject: Reply with quote

esde wrote:
Mick wrote:

By far my favourite DIY tool is my CNC plasma cutter - designed and built by me mostly from scrap I had laying about the workshop.


you win
Very Happy


Darnit, asked the Wife and was told that I couldn't have one. [hands in pockets, kicks rock]

Very cool! Applause
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Scavenger
Samba Member


Joined: May 02, 2010
Posts: 79
Location: North MS
Scavenger is offline

PostPosted: Tue May 20, 2014 4:39 am    Post subject: Reply with quote

andy198712 wrote:
Glenn wrote:
Torque multiplier


Where did you get the spline bit from? Nice !


Starter gear?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Performance/Engines/Transmissions All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
