PostPosted: Tue Sep 18, 2012 9:18 pm    Post subject: type3 to type 1 empi dipstick adapter fit issues? (pic) Reply with quote

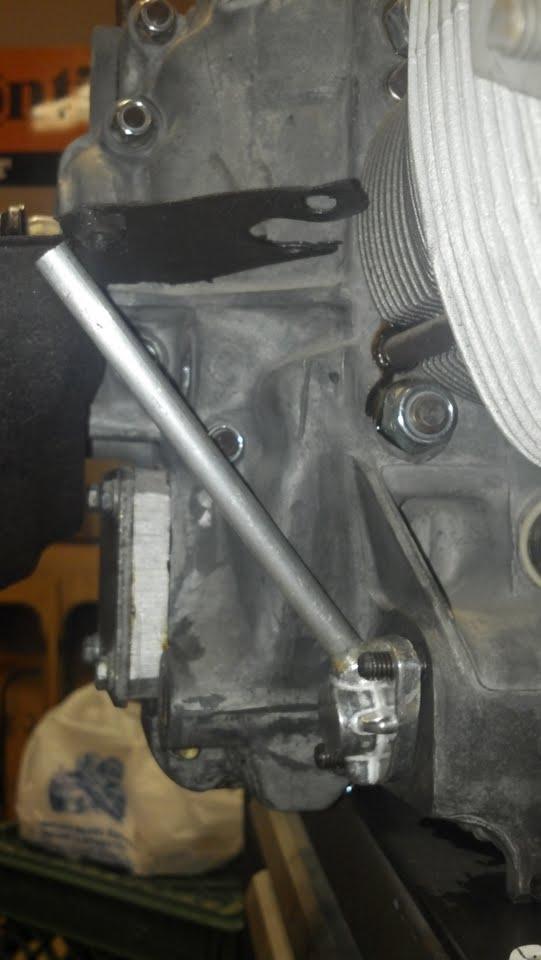

Anyone have trouble with these? Mine is at least 3 inches off of where it should come through the german tin hole next to the pulley. A friend put one on 20 years ago and I remember his had the same issue. No evidence of being bent. Should these match up to original tin? Tube angle matches the angle of the hole where it is drilled through the base plate of the part. I'm guessing bending it would cause the dipstick not to fit and the epoxy around the tube base to crack.....
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
R.C.N. Bugs
Samba Member


Joined: March 02, 2012
Posts: 230
Location: SPRING VALLEY CA
R.C.N. Bugs is offline

PostPosted: Wed Sep 19, 2012 1:58 am    Post subject: Reply with quote

in the middle of the same problem and i did crack the epoxy i dont know what to do either
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Jody '71
Samba Member


Joined: July 16, 2005
Posts: 2838
Location: Manassas VA
Jody '71 is offline

PostPosted: Wed Sep 19, 2012 3:40 am    Post subject: Reply with quote

Been some 30 years since I owned a type 3, but that doesn't look like an adapter, more like the regular tube for a type 3. If it were an adapter, shouldn't the tube go straight up and pass through the pulley tin hole? Why not ask the type 3 guys on their forum here??? Are there any more pics of this application in the Gallery???
_________________
'66 Beetle
2011 Hyundai Elantra Touring
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mxracer
Samba Member


Joined: April 09, 2011
Posts: 566
Location: NC
mxracer is offline

PostPosted: Wed Sep 19, 2012 5:56 am    Post subject: Reply with quote

I suspect that is a "nice try" at an adapter.

The Type 3 oil fill comes off the case and has about a 5 inch "bend" to the right. That wouldn't work in a Type 3 either.

Have you thought about just having the case machined for a "correct" Type 1 dipstick tube? Looks like it would be easier in the end.

That or drill a new hole in your breast plate and run it. Confused
_________________
I do line boring (TruLine) and machine work. Shoot me a PM if you need something done.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Keith
Samba Member


Joined: August 15, 2005
Posts: 3635
Location: Brodheadsville, PA
Keith is offline

PostPosted: Wed Sep 19, 2012 8:18 am    Post subject: Reply with quote

Jody '71 wrote:
Been some 30 years since I owned a type 3, but that doesn't look like an adapter, more like the regular tube for a type 3. If it were an adapter, shouldn't the tube go straight up and pass through the pulley tin hole? Why not ask the type 3 guys on their forum here??? Are there any more pics of this application in the Gallery???


Its an adapter. The type 3 tube is about an 1 1/4" i.d. and has about a 90 degree bend in it. An upright dipstick would fall right in it handle and all. A type 3 doesnt use an upright style dipstick instead it has a large twist cap like a small gas cap with the dipstick connected to it because the dipstick tube is also the oil fill tube. I made my own adapter just like this for a conversion I did.
_________________
Formerly known in the forums as "OVALTEEN"

"I firmly believe that some villagers from Botswana could probably build a better road than PennDot."- Splitty

"If you do anything to your car someone will hate on you for it. People absolutely love to complain and find fault with others. Don't let it bother you. Just live and have fun."- Lind
Back to top
View user's profile Send private message Gallery Classifieds Feedback
R.C.N. Bugs
Samba Member


Joined: March 02, 2012
Posts: 230
Location: SPRING VALLEY CA
R.C.N. Bugs is offline

PostPosted: Mon Sep 24, 2012 10:52 am    Post subject: any one Reply with quote

any one else can help with this issue
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Kommercial
Samba Moderator


Joined: December 28, 2000
Posts: 1138
Location: San Tan Valley, Arizona
Kommercial is offline

PostPosted: Wed Sep 26, 2012 1:35 pm    Post subject: Reply with quote

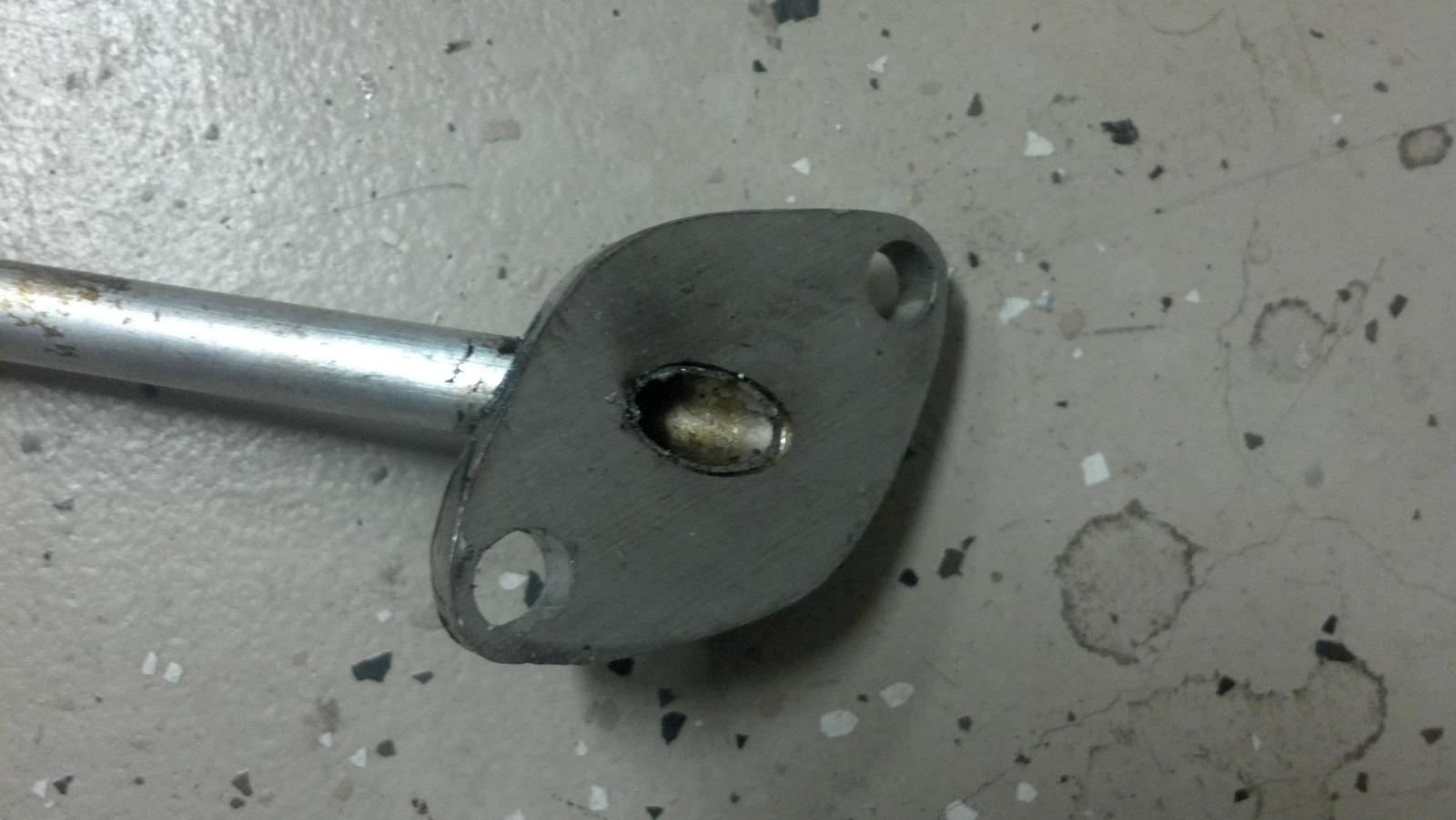

Ok so my workaround was to heat up the epoxy with my mapp gas torch and the tube pulled right out. Then I clamped the adapter base into my vice and drilled straight down into it with my drill press. Slid the tube back in and since I drilled right on the drill depth, the dip stick is still at the same height. A little epoxy around the base and I'm in business.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
R.C.N. Bugs
Samba Member


Joined: March 02, 2012
Posts: 230
Location: SPRING VALLEY CA
R.C.N. Bugs is offline

PostPosted: Wed Sep 26, 2012 6:00 pm    Post subject: Reply with quote

so all you did is change the angle it was originally drilled at??? i drilled the tin. i know i hacked it. and still jb welded the dip stick so it dosnt leak
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Kommercial
Samba Moderator


Joined: December 28, 2000
Posts: 1138
Location: San Tan Valley, Arizona
Kommercial is offline

PostPosted: Wed Sep 26, 2012 6:08 pm    Post subject: Reply with quote

Yes
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
mxracer
Samba Member


Joined: April 09, 2011
Posts: 566
Location: NC
mxracer is offline

PostPosted: Wed Sep 26, 2012 6:52 pm    Post subject: Reply with quote

That's not a workaround that's a fix. Very Happy

Nice work.
_________________
I do line boring (TruLine) and machine work. Shoot me a PM if you need something done.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
R.C.N. Bugs
Samba Member


Joined: March 02, 2012
Posts: 230
Location: SPRING VALLEY CA
R.C.N. Bugs is offline

PostPosted: Wed Sep 26, 2012 7:26 pm    Post subject: Reply with quote

good work now i know.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
houseofboyd
Samba Member


Joined: September 28, 2014
Posts: 612
Location: Flatwoods, Ky
houseofboyd is offline

PostPosted: Tue Dec 02, 2014 5:19 am    Post subject: Reply with quote

Nice job...I'm facing the same situation right now...would rather try to modify the tube/adapter than to modify the tin.....thanks for the heads up....
_________________
Our 1968 Zenith Blue Beetle: http://www.thesamba.com/vw/forum/viewtopic.php?t=619501

My '74 SB Build On The Samba: http://www.thesamba.com/vw/forum/viewtopic.php?t=609943

Our Web Site: http://www.kentuckyhotwheels.com

1968 VW Beetle
2012 Turbo VW Beetle
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
grandpa pete
Samba Member


Joined: July 06, 2008
Posts: 6426
Location: St. Petersburg, FL
grandpa pete is offline

PostPosted: Tue Dec 02, 2014 9:58 am    Post subject: Reply with quote

Another idea is leave the original tube and bend the flexible hose straight up...secured in place with tye wrap

Image may have been reduced in size. Click image to view fullscreen.

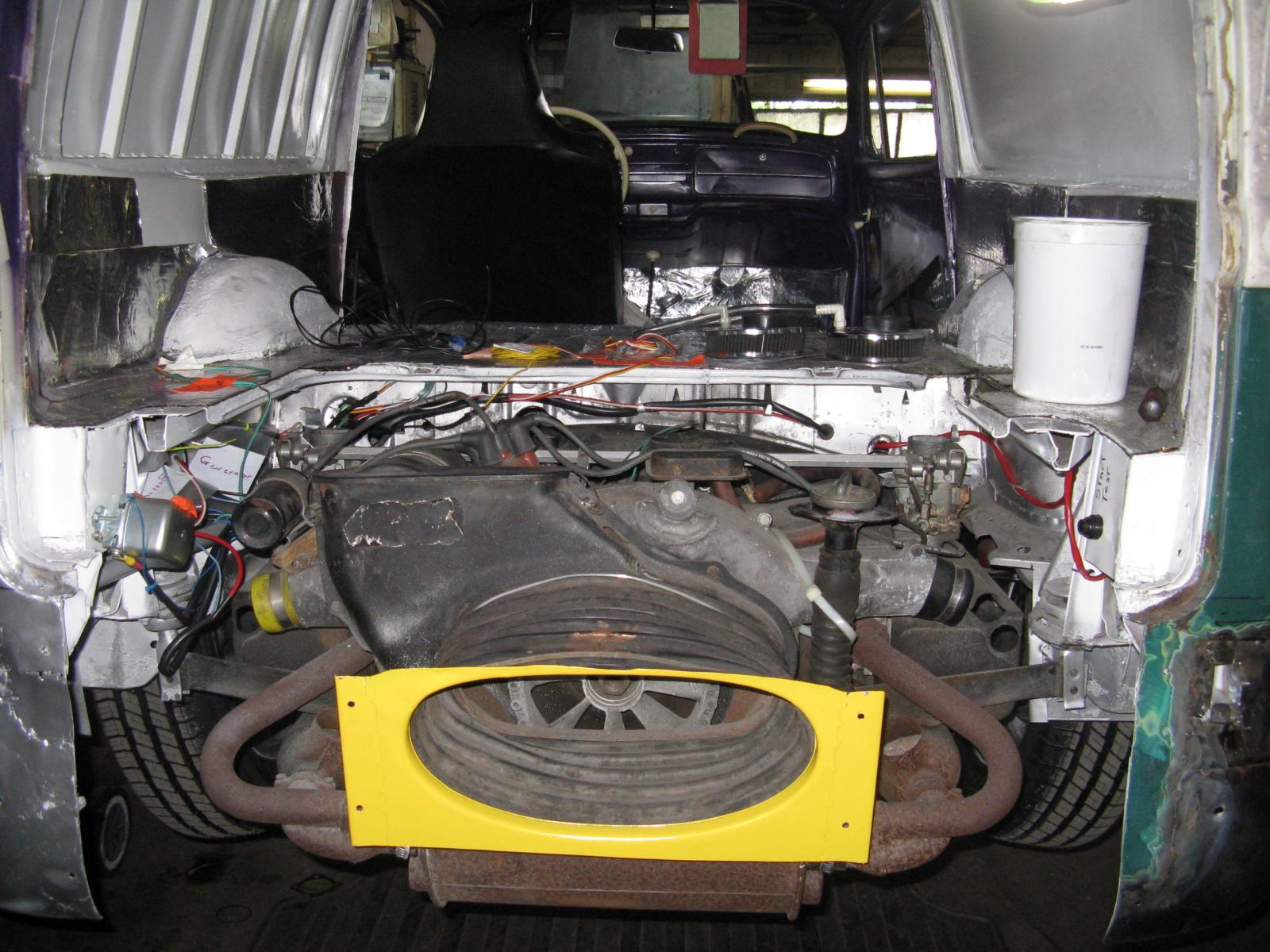

66 sedan delivery with type 3 engine
