PostPosted: Wed Feb 11, 2015 10:04 am    Post subject: M-Plate Location FAQ Reply with quote

To Link to this thread
Code:
[url=http://www.thesamba.com/vw/forum/viewtopic.php?p=7551789#7551789]M-Plate Location[/url]


M-Plate Decoders
Enter the M-Plate information in the decoder and click on decode.
http://alltheprettybuses.com/_d_decoder.asp
http://www.vw-mplate.com/mcode.php
Or see
http://www.type2.com/m-codes/

M-Plate Locations
1968-76 M-Plate is located behind the left front seat.
Image may have been reduced in size. Click image to view fullscreen.


1977-79 M-Plate is located on the fresh air vent under the dash on the left side. Dust it off and take a picture of it.
Image may have been reduced in size. Click image to view fullscreen.


Last edited by Tcash on Sun Jun 17, 2018 2:16 pm; edited 10 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
madmike
Samba Member


Joined: July 11, 2005
Posts: 5293
Location: Atlanta,Michigan
madmike is offline

PostPosted: Thu Feb 12, 2015 7:24 am    Post subject: Reply with quote

I've been looking for a year for mine Crying or Very sad
Finally found it Very Happy behind the RIGHT as in ,,,,passengers seat Rolling Eyes
_________________
'Black Ice'Drag Buggy 'Turbo'
Rail Buggy 1915 turbo
76 Drag/Street bug 2180cc 'Turbo' 11:85 @113 mph"If I go any faster I'll burn up the Hamster" ,gets 28 mpg. also 10/09/22 11.90 @115 mph
"If I'm ever on Life Support,UNPLUG Me, Then Plug me back In see if that Works"
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Globespotter
Samba Member


Joined: February 16, 2012
Posts: 1775
Location: Newmarket, ON
Globespotter is offline

PostPosted: Fri Nov 20, 2015 4:02 pm    Post subject: Re: M-Plate Location Reply with quote

So you can't get to it without pulling the instrument cluster on a 78?
_________________
1977 Westfalia - October 2015 - Current
1971 Super Beetle - May 2012 - Current
1979 Westfalia - 1986-1991
1971 Super Beetle - 1977-1980

1971 SB Survivor Story: https://globespotter.com/
Road Trip Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=511800&highlight=
My 77 Westy Thread: https://www.thesamba.com/vw/forum/viewtopic.php?t=647114&highlight=

http://vw-mplate.com/mcode.php?lang=EN&id=30990
https://vw-type2-id.xyz/mplate/72067382
Back to top
View user's profile Send private message Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 51387
Location: Surrey B.C. Canada, but thinking of Ukraine
busdaddy is offline

PostPosted: Fri Nov 20, 2015 4:21 pm    Post subject: Re: M-Plate Location Reply with quote

Only if you want to look straight down on it, reach up in there and take a pic with a phone, or use a mirror, or make a rubbing of it, or squish some playdoh on it and read the impression Wink
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BrotherB
Samba Member


Joined: April 28, 2016
Posts: 13
Location: Lewiston Idaho
BrotherB is offline

PostPosted: Fri Apr 29, 2016 11:39 am    Post subject: Re: M-Plate Location Reply with quote

I have no tag behind any of the front seats..

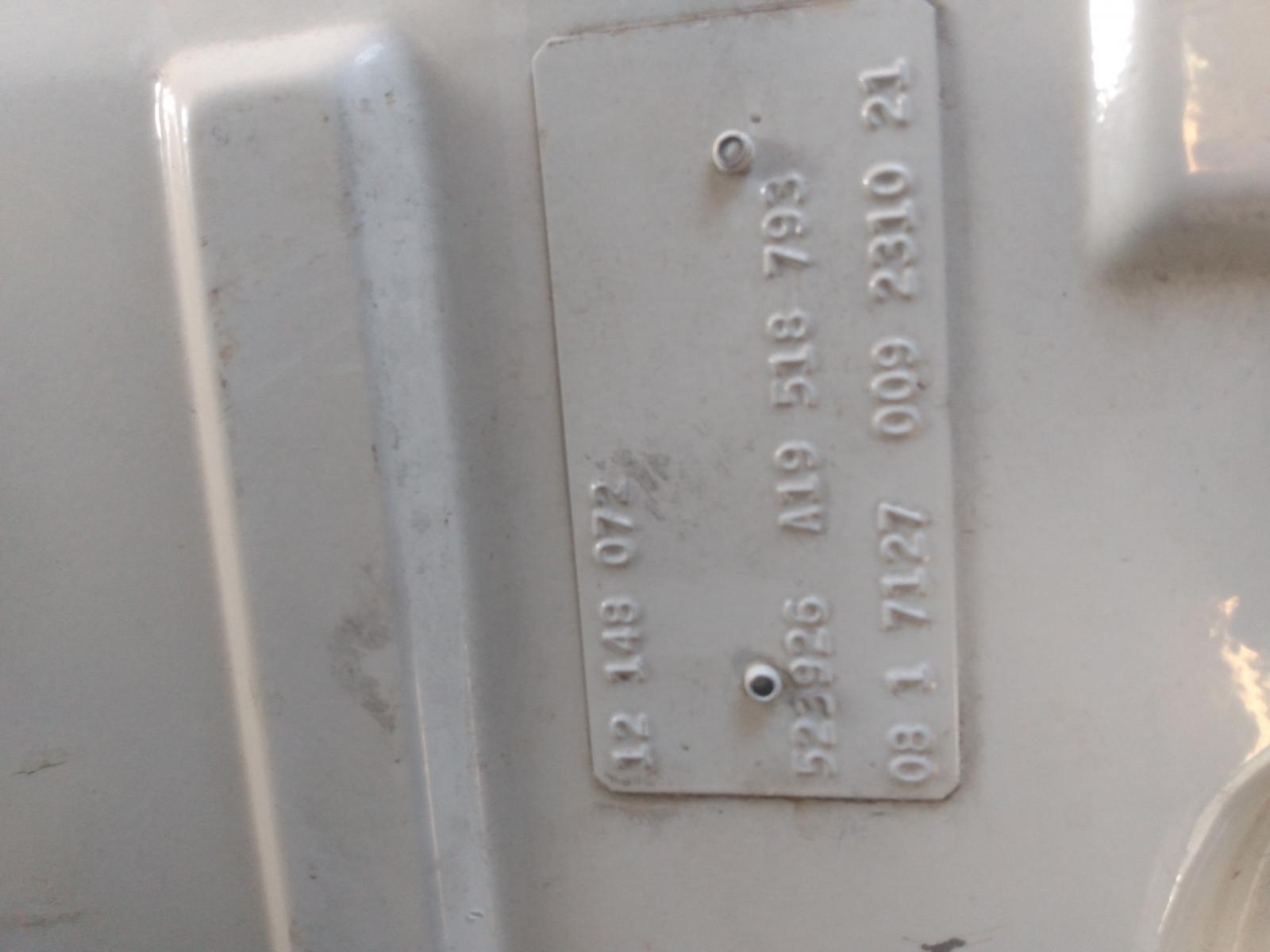

The only thing that I have found, besides the one that is under the dash is this...

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
Randy in Maine
Samba Member


Joined: August 03, 2003
Posts: 34890
Location: The Beach
Randy in Maine is offline

PostPosted: Fri Apr 29, 2016 11:44 am    Post subject: Re: M-Plate Location Reply with quote

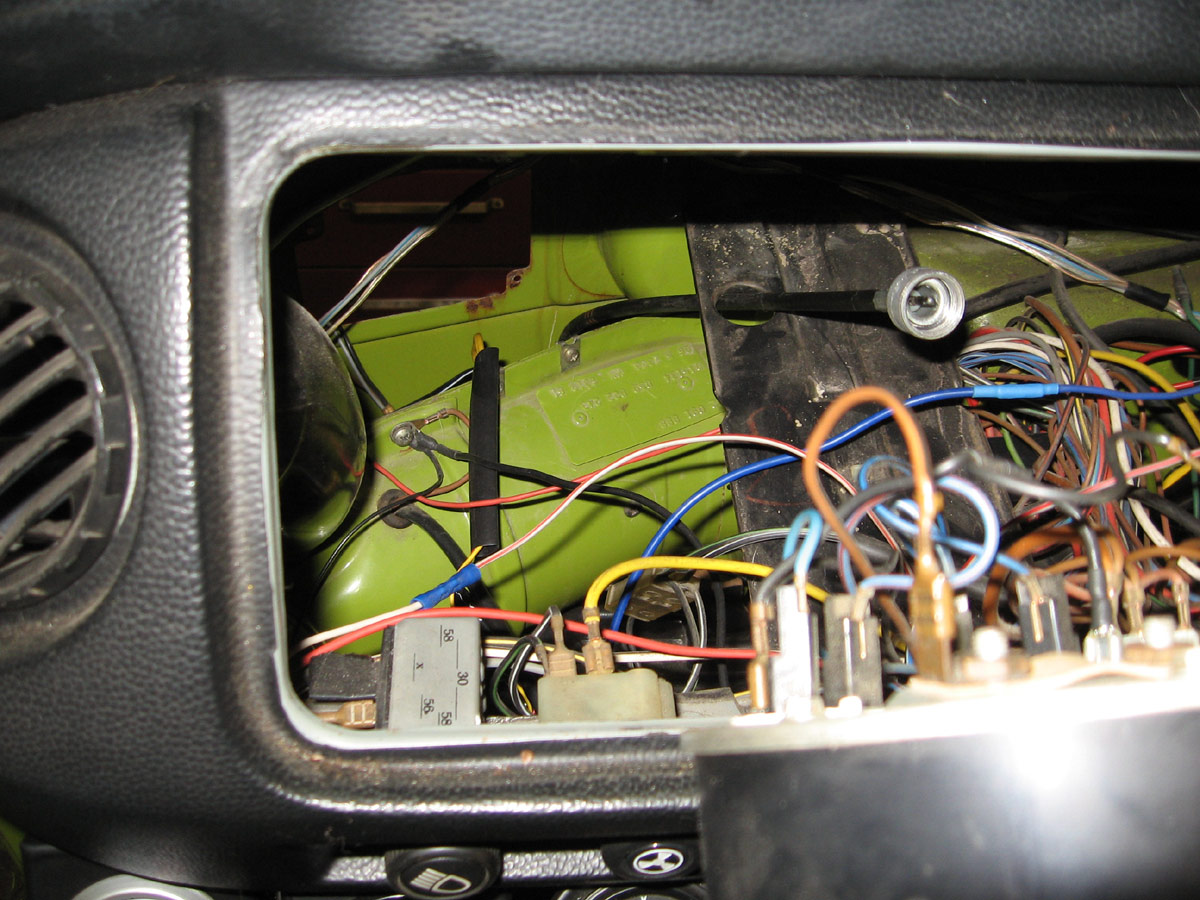

This one is where yours is......riveted to the fresh air ducting under the dash (3" above the "yellow wire and painted green to make it easy).


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
BrotherB
Samba Member


Joined: April 28, 2016
Posts: 13
Location: Lewiston Idaho
BrotherB is offline

PostPosted: Fri Apr 29, 2016 12:00 pm    Post subject: Re: M-Plate Location Reply with quote

Thanks!
I found it... trying to get numbers and letters that I can read...
Tried the phone picture thing and that was a NO GO...
So, tried the pencil and paper trick (stencil) got a few numbers, but I am trying to read what I have now...
Working on it...
Back to top
View user's profile Send private message Classifieds Feedback
Randy in Maine
Samba Member


Joined: August 03, 2003
Posts: 34890
Location: The Beach
Randy in Maine is offline

PostPosted: Fri Apr 29, 2016 12:05 pm    Post subject: Re: M-Plate Location Reply with quote

Post it when you decode it.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
BrotherB
Samba Member


Joined: April 28, 2016
Posts: 13
Location: Lewiston Idaho
BrotherB is offline

PostPosted: Fri Apr 29, 2016 12:10 pm    Post subject: Re: M-Plate Location Reply with quote

This is a big bummer...
I cant read what I've been trying to stencil... Sad
Got a few numbers, but none of it is making any sense right now...
Work in progress...
Thanks for the help..
Back to top
View user's profile Send private message Classifieds Feedback
scubasteve321
Samba Member


Joined: December 04, 2015
Posts: 247

scubasteve321 is offline

PostPosted: Sun Feb 07, 2021 12:29 pm    Post subject: Re: M-Plate Location FAQ Reply with quote

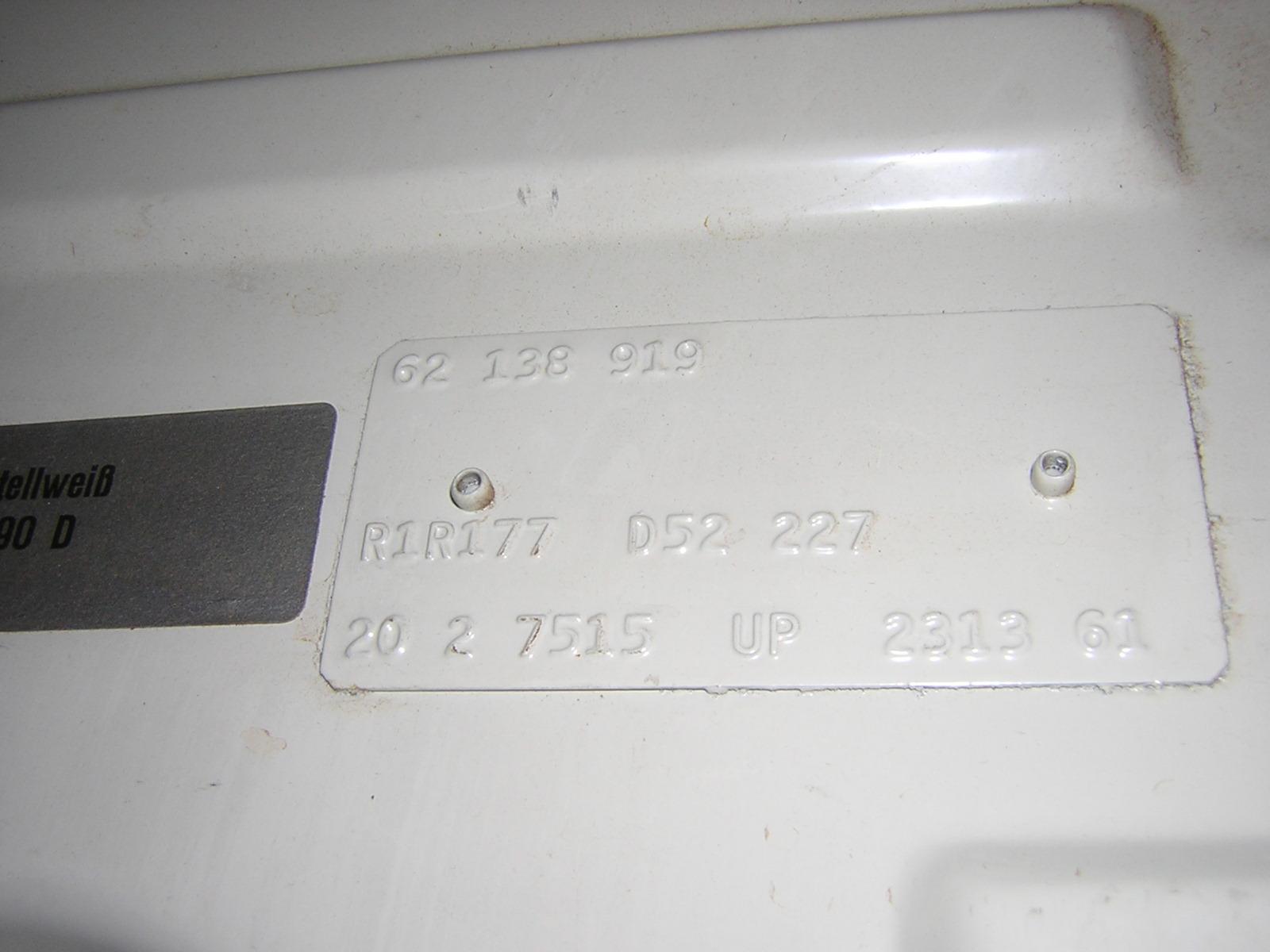

Could a kind soul helpe figure out exact date of manufacture from my m code plate?

The info Ive found on this site doesnt seem to apply to my plate

for example date of manufacture doesnt make sense; top left

or is it just simple as the 12th?


Image may have been reduced in size. Click image to view fullscreen.

_________________
1971 Campmobile Tin-Top
1971 Campmobile Pop-Top
1974 VW Bus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Angus II
Samba Member


Joined: June 01, 2016
Posts: 712
Location: Mammoth Lakes Ca. 93546
Angus II is offline

PostPosted: Sun Feb 07, 2021 1:34 pm    Post subject: Re: M-Plate Location FAQ Reply with quote

Hello, scuba steve. Happy Birthday Bus, coming up in a few days...

Date of birth: "planned production date" Monday Feb. 15th 1971 .
So, the decoder I use says for your bus. and it's pastel white L90D and your chassis number is #2312148072 on the dash tag? Correct?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
scubasteve321
Samba Member


Joined: December 04, 2015
Posts: 247

scubasteve321 is offline

PostPosted: Sun Feb 07, 2021 8:03 pm    Post subject: Re: M-Plate Location FAQ Reply with quote

Heya Angus;

Thanks so much!!

Thats exactly why I was askin haha

50th comin up soon 😁

p.s.
you are spot on with the vin
_________________
1971 Campmobile Tin-Top
1971 Campmobile Pop-Top
1974 VW Bus
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NASkeet
Samba Member


Joined: April 29, 2006
Posts: 2991
Location: South Benfleet, Essex, UK
NASkeet is offline

PostPosted: Fri Feb 12, 2021 11:13 am    Post subject: Re: M-Plate Location FAQ Reply with quote

My British specification, 1973 model-year (manufactured in late-August or early-September 1972), RHD VW 1600 Type 2 Kombi (i.e. Type 23-517) Westfalia Continental motor-caravan does NOT have any M-code plates or stickers of any description that I can find. There are certainly none behind the cab seats on either side.
_________________
Regards.

Nigel A. Skeet

Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.

Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper

Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)

http://www.vwt2oc.net
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
creative native
Samba Member


Joined: October 20, 2007
Posts: 1227
Location: WNC
creative native is offline

PostPosted: Fri May 06, 2022 8:30 am    Post subject: Re: M-Plate Location FAQ Reply with quote

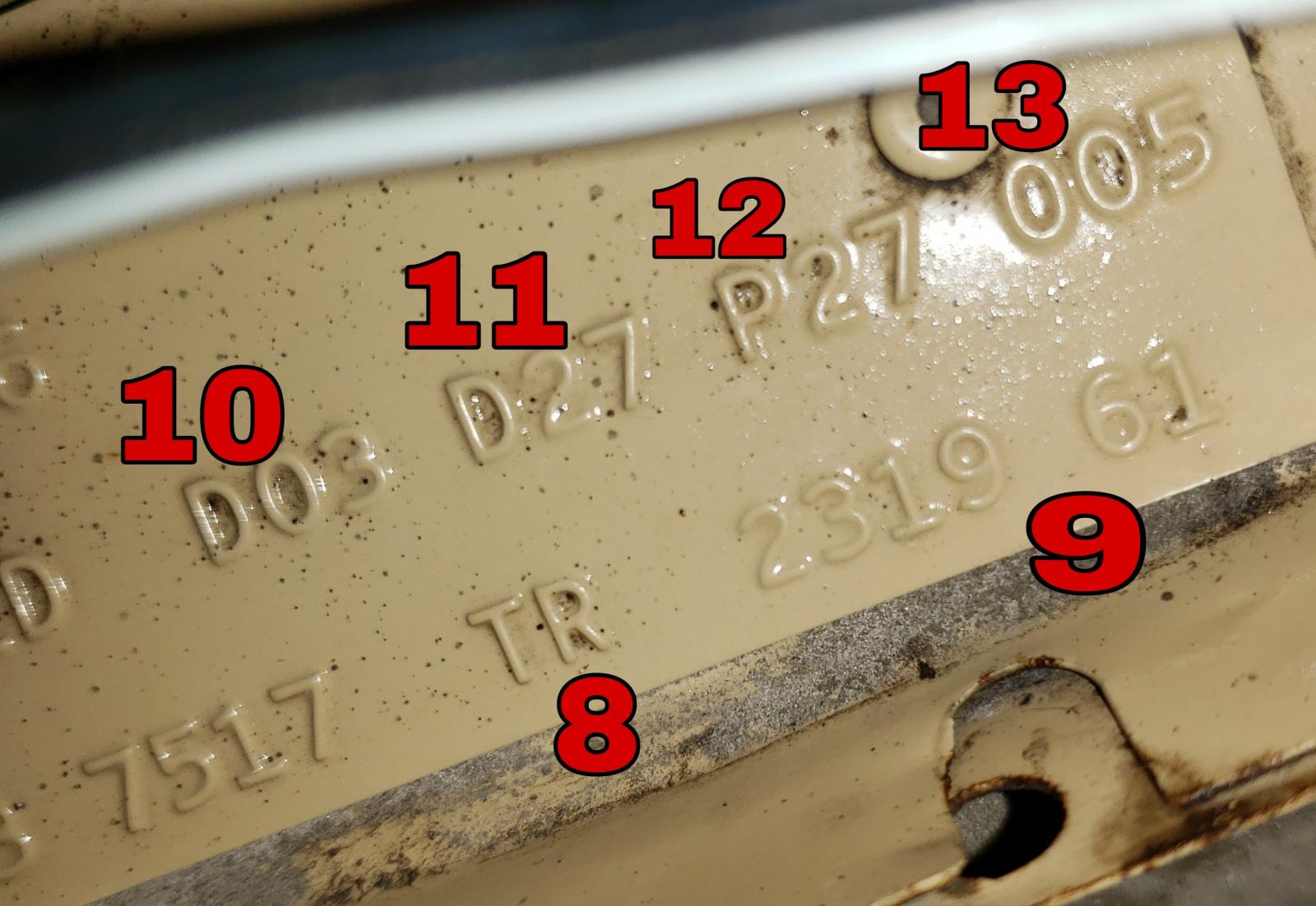

I believe I will need a little help and will be grateful for it from others who may know what I can't sort out. I expect to take a better photo of my M-code plate when I remove my dash pod, but for now, I put my phone under the dash to get these photos. I believe one must be a part time contortionist to get proper photos of the M-plate this way.

This is my interpretation of my M-plate information:

1. Serial number

2. 227 = detachable headrests

3. 246 = laminated windshield

4. paint code 9832 = Mexico Beige

5. ED = Brown Plaid upholstery

6. Production date: Wednesday, December 13, 1978 ???

7. ??? Number for production planning

8. Export destination: TR ??? I believe my Bus was originally sold in San Diego. Does anyone know if "TR" is the destination code for San Diego?

9. Body model, engine & tranny codes: Campmobile Deluxe, 70 hp, manual transmission. Specifically, right side sliding door, LHD, Campmobile, engine & tranny code: 2.0L & manual.

10. D03: I believe this is a grouped M-code designation, usually grouping sealed beam headlights, rear window defroster, MPH speedometer, etc. However, I've no information relating to this specific code.

11. D27 ??? I believe this may be for CA emissions adherence. Can anybody confirm this?

12. P27 = Westfalia interior code for Berlin Deluxe (stove, sink, refrigerator) with pop-top

13. 005 = heater duct under rear seat/bed

Again, I will appreciate any information.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
creative native
Samba Member


Joined: October 20, 2007
Posts: 1227
Location: WNC
creative native is offline

PostPosted: Fri May 06, 2022 11:51 am    Post subject: Re: M-Plate Location FAQ Reply with quote

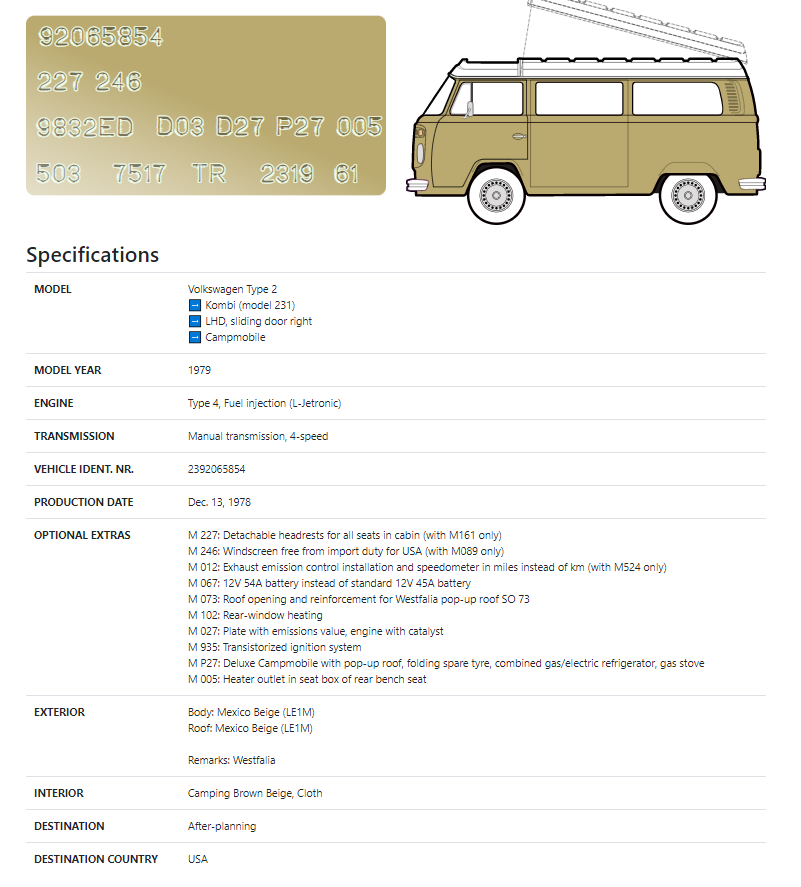

I did find this M-code decoder function and I am very grateful to whomever created this very useful site. https://vw-type2-id.xyz/mplate/decode/

However, I'm still looking for the "TR" destination code information.


Image may have been reduced in size. Click image to view fullscreen.


Last edited by creative native on Fri May 06, 2022 1:32 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ToolBox
Samba Member


Joined: January 27, 2004
Posts: 3439
Location: Detroit, where they don't jack parts off my ride in the parking lot of the 7-11
ToolBox is offline

PostPosted: Fri May 06, 2022 12:45 pm    Post subject: Re: M-Plate Location FAQ Reply with quote

creative native wrote:
I did find this M-code decoder function and I am very grateful to whomever created this very useful site.

However, I'm still looking for the "TR" destination code information.


Image may have been reduced in size. Click image to view fullscreen.


TR is listed as Transit Reserved, UF is San Francisco and UA is LA.

It was probably port allocated after production. Does it have the Cal House Car tags on the dogleg?
Back to top
View user's profile Send private message Send e-mail AIM Address Gallery Classifieds Feedback
creative native
Samba Member


Joined: October 20, 2007
Posts: 1227
Location: WNC
creative native is offline

PostPosted: Fri May 06, 2022 1:31 pm    Post subject: Re: M-Plate Location FAQ Reply with quote

ToolBox wrote:
creative native wrote:
I did find this M-code decoder function and I am very grateful to whomever created this very useful site.

However, I'm still looking for the "TR" destination code information.


TR is listed as Transit Reserved, UF is San Francisco and UA is LA.

It was probably port allocated after production. Does it have the Cal House Car tags on the dogleg?


It does not. However, the original owner had the Bus repainted and I suppose he could have removed the tags at that time?

Thanks for the "TR" information.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
creative native
Samba Member


Joined: October 20, 2007
Posts: 1227
Location: WNC
creative native is offline

PostPosted: Fri May 13, 2022 4:49 pm    Post subject: Re: M-Plate Location FAQ Reply with quote

Follow up:

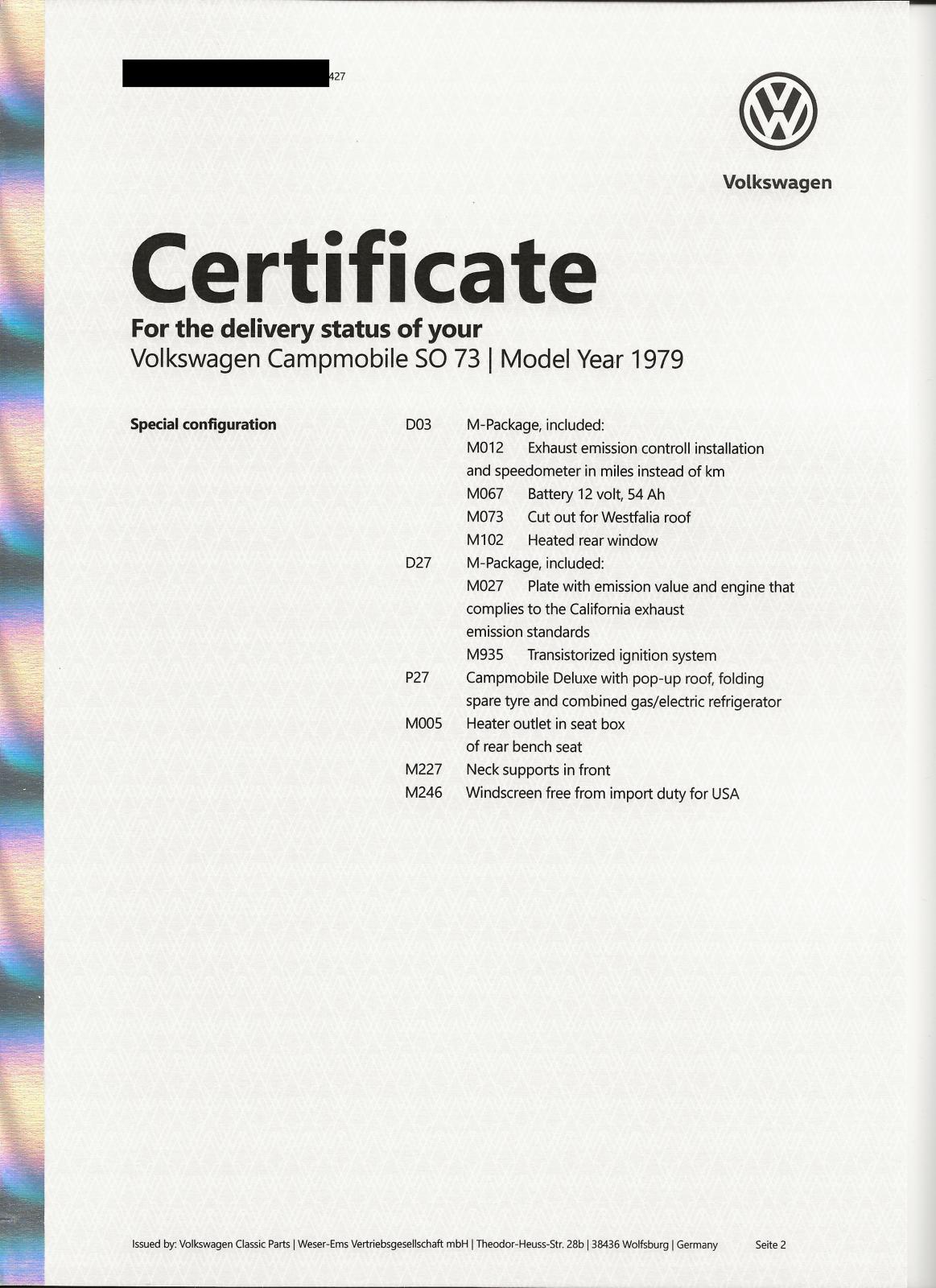

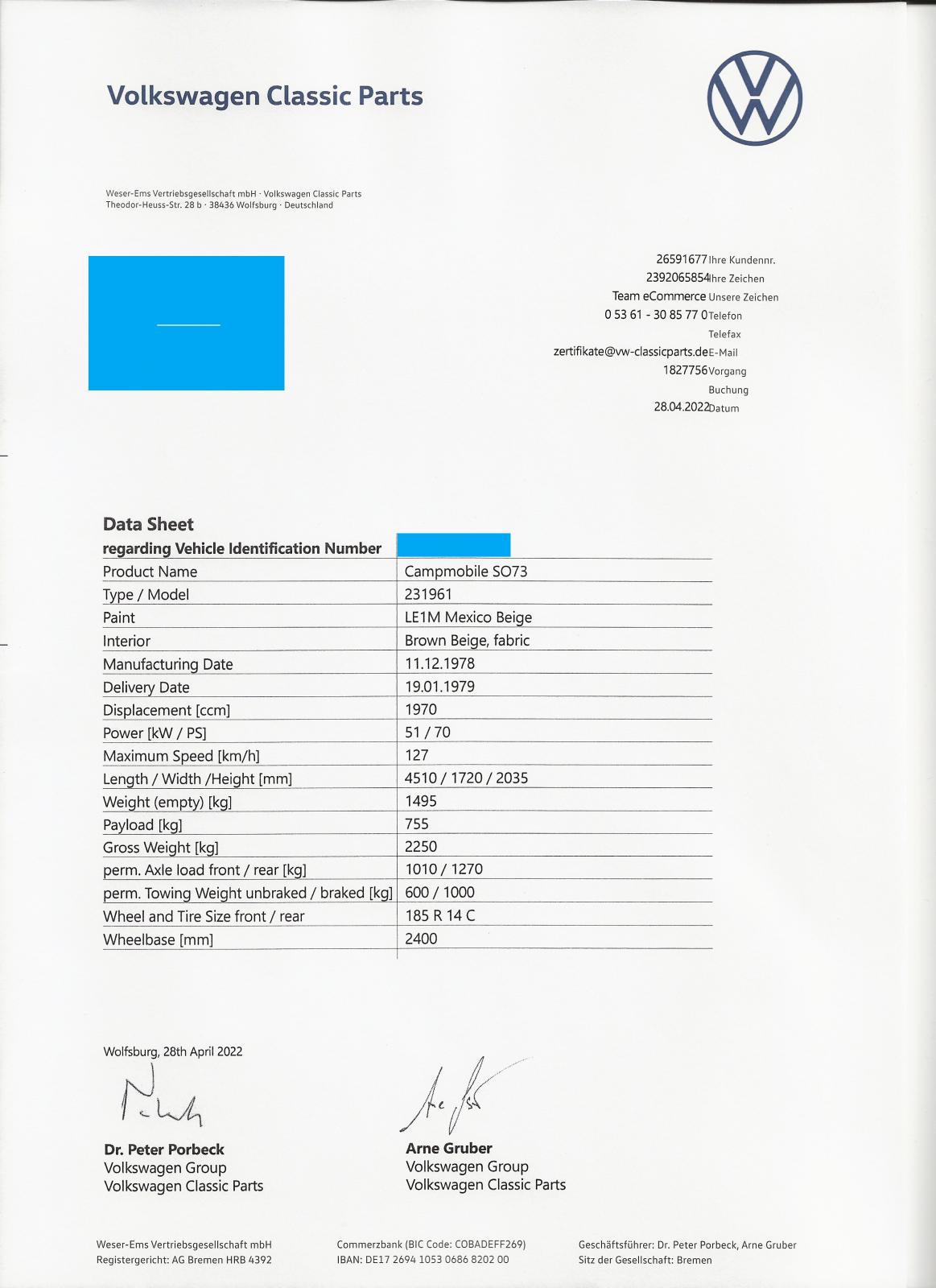

I received my Bus's birth certificate and production data sheet from Volkswagen today. I'm posting it here so that anyone in the future who may have questions about M-codes may use this as a reference from VW.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
"The holy land is everywhere." ~ Black Elk
1979 Westfalia P27, California FI emissions spec. 100% VW fleet: '79 Westfalia, 2013 Touareg Lux (Toffee Brown/Cornsilk Beige), 2005 Passat GLX.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kguarnotta
Samba Member


Joined: April 01, 2004
Posts: 1178
Location: Woodstock, NH
kguarnotta is offline

PostPosted: Tue Jun 07, 2022 6:36 am    Post subject: Re: M-Plate Location FAQ Reply with quote

Bad news, good news and a question...

I took the M-Plate and Vin Tag off my bus while it was getting painted. I thought I lost them (bad news).

Just found them yesterday. I was going to reinstall, and want to make sure I put back in the right place. The M-PLate goes behind the driver seat (left side) and the Vin tag goes behind the passenger seat (right side).

This is for a '69 single cab.

thanks.
_________________
-Kevin
Lincoln, MA

2001 Eurovan
'86 Triple Knob Syncro w/EJ22
'78 Westy
'69 Single Cab
'65 Kombi - EZ-Camper


Last edited by kguarnotta on Tue Jun 07, 2022 7:31 am; edited 1 time in total
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
alman72
Samba Member


Joined: October 09, 2014
Posts: 2574
Location: MICHIGAN
alman72 is offline

PostPosted: Tue Jun 07, 2022 6:46 am    Post subject: Re: M-Plate Location FAQ Reply with quote

kguarnotta wrote:
Bad news, good news and a question...

I took the M-Plate and Vin Tag off my bus while it was getting painted. I thought I lost them (bad news).

Just found them yesterday. I was going to reinstall, and want to make sure I put back in the right place. The M-Tag goes behind the driver seat (left side) and the Vin tag goes behind the passenger seat (right side).

This is for a '69 single cab.

thanks.


you swap terminology half way thru your post.
the M-plate goes behind left seat, drivers seat. I dont know what you mean by m-tag, prob m-plate
and a vin tag? is it long metal plate with vin only? (dash?) bigger plate like M-Plate size, but not the M-plate? a sticker?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
