1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
AKAvant
Samba Member


Joined: April 26, 2011
Posts: 84
Location: Honolulu
AKAvant is offline

PostPosted: Tue Jul 21, 2015 11:24 pm    Post subject: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

I recently swapped a 1z into my 1982 diesel Vanagon using the mTDI injector pump from a 2000 VW LT van. Almost no new wiring was needed but I do need to figure out how to adapt the old single wire setup for the coolant temp sensor to the 4-pin sensor on the 1z. Anyone have any experience with this? I still haven't found a pin-out description for the 4-pin sensor.
Here's a video of the first drive sans exhaust.
http://vid305.photobucket.com/albums/nn213/Disher0...kgvcdv.mp4
_________________
1981 Assuan Brown Westy 2.0 Weekender (Sold 9/2/13)
Back to top
View user's profile Send private message Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 7908
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Wed Jul 22, 2015 1:35 am    Post subject: Reply with quote

edited: It sounds like your coolant sensor has the temp gauge and ECU sensors built into one housing. Search 1.8T sensor pinout here? OR, google your engine block code and ECT diagrams? The 1z ECT plug will have a number at each pin that corresponds to the 1z Bentley diagram.

Determine which pair of ECT sensor pins you need, connect one to ground the other to your coolant gauge +
1982 diesel Vanagon Bentley diagram, (P97.38 ) shows a blue-yellow wire from the temp sensor to T3C (behind dash) to wire 6 at the T14 connector to cluster. This appears to be the + wire from the OEM sensor.
Double check this but this is what I see.


Neil.
_________________
1981 VanaJetta 2.0 Westy "Jaco"

Nearly "perfect" 50º ABA Swap to '88 Westy:

http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://sites.google.com/site/t2t3vaggasengineswaps/home

My Air Cooled Vanagon to 15º Jetta ABA swap pages:

http://tinyurl.com/y9n4xob8


Last edited by Vanagon Nut on Wed Jul 22, 2015 10:46 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Waldi
Samba Member


Joined: February 28, 2014
Posts: 1655
Location: Germany
Waldi is offline

PostPosted: Wed Jul 22, 2015 5:42 am    Post subject: Reply with quote

http://www.motor-talk.de/forum/aktion/Attachment.html?attachmentId=719242

You have to put on pin 1 mass than you can connect on 3 the water temp gauge.
If it works than ok, if not try this on pin 2 and 4.

The other 2 pins should work same for glowing plugs.

If you want to connect your electric water pump, you need another sensor on the zylinder head.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
svenakela
Samba Member


Joined: July 19, 2006
Posts: 776
Location: Ekerö
svenakela is offline

PostPosted: Wed Jul 22, 2015 3:43 pm    Post subject: Reply with quote

On the conversions I've made I have taken the coolant sensor from the old engine and made up a small adapter.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Vanagon mirror end caps
Back to top
View user's profile Send private message Visit poster's website MSN Messenger Gallery Classifieds Feedback
AKAvant
Samba Member


Joined: April 26, 2011
Posts: 84
Location: Honolulu
AKAvant is offline

PostPosted: Wed Jul 22, 2015 4:03 pm    Post subject: Reply with quote

Very nice, how did you do that?
_________________
1981 Assuan Brown Westy 2.0 Weekender (Sold 9/2/13)
Back to top
View user's profile Send private message Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 7239
Location: Where?
?Waldo? is offline

PostPosted: Wed Jul 22, 2015 4:16 pm    Post subject: Reply with quote

I imagine he used a lathe and tap. It's a really nice solution.

I've used the earlier I4 aluminum coolant flanges. I don't like the later plastic ones much. Some creativity is required for the aluminum ones due to the different attachment angle at the center of the head.
Back to top
View user's profile Send private message Classifieds Feedback
Zeitgeist 13
Samba Member


Joined: March 05, 2009
Posts: 8602
Location: Port Manteau
Zeitgeist 13 is offline

PostPosted: Wed Jul 22, 2015 5:15 pm    Post subject: Reply with quote

I can't remember diagnosing those old style coolant sensors, but don't they need to be grounded to the block?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 7908
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Wed Jul 22, 2015 9:35 pm    Post subject: Reply with quote

svenakela wrote:
On the conversions I've made I have taken the coolant sensor from the old engine and made up a small adapter.



nice.

could the OP use a 2.1 WBX 2 pin temp gauge sensor? It might be the same dimension as the 1z 4 pin sensor? I've read that other VW's use the same connector as 2.1 does. This would make wiring pretty easy.

Neil.
_________________
1981 VanaJetta 2.0 Westy "Jaco"

Nearly "perfect" 50º ABA Swap to '88 Westy:

http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://sites.google.com/site/t2t3vaggasengineswaps/home

My Air Cooled Vanagon to 15º Jetta ABA swap pages:

http://tinyurl.com/y9n4xob8
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rotaecho
Samba Member


Joined: October 14, 2012
Posts: 486
Location: Tujunga, California
rotaecho is offline

PostPosted: Tue Apr 26, 2016 8:03 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

I'm actually visiting this now on my AHU mTDI conversion. This is for trying to simplify the coolant wiring/sensor for the mTDI build.

The parts are ordered and I am trying to swap a 1.6na p/n 068121133M flange in place of the AHU 028121132A flange.

This would give me the simple coolant sensor setup than the bulky plastic monster the AHU has.

Also, I am trying to swap the AHU flange 028121145 (Flange With Glow Plug Mounting) with a 1.6na 068121145K one.

I'm not sure of the creativity tweak Andrew speaks of yet. I haven't mounted it on to see / visualize what he's talking about.

It just like him, I didn't like the plastic flanges of the AHU and how bulky they are.
_________________
-Will
1982 Westfalia mTDI (50deg) aka Betsy Bertha
http://www.vanagondiesel.info
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Waldi
Samba Member


Joined: February 28, 2014
Posts: 1655
Location: Germany
Waldi is offline

PostPosted: Wed Apr 27, 2016 2:35 am    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

You can use the late AAZ 4 pin sensor.
There you have temp gauge and pre glow signal.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rotaecho
Samba Member


Joined: October 14, 2012
Posts: 486
Location: Tujunga, California
rotaecho is offline

PostPosted: Sat May 07, 2016 1:47 pm    Post subject: Reply with quote

That's slick! Do you have one to sell?

svenakela wrote:
On the conversions I've made I have taken the coolant sensor from the old engine and made up a small adapter.


Image may have been reduced in size. Click image to view fullscreen.

_________________
-Will
1982 Westfalia mTDI (50deg) aka Betsy Bertha
http://www.vanagondiesel.info
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
rotaecho
Samba Member


Joined: October 14, 2012
Posts: 486
Location: Tujunga, California
rotaecho is offline

PostPosted: Sat May 07, 2016 1:52 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

So, I have the AHU (used engine) next to the long-block I'm building up.

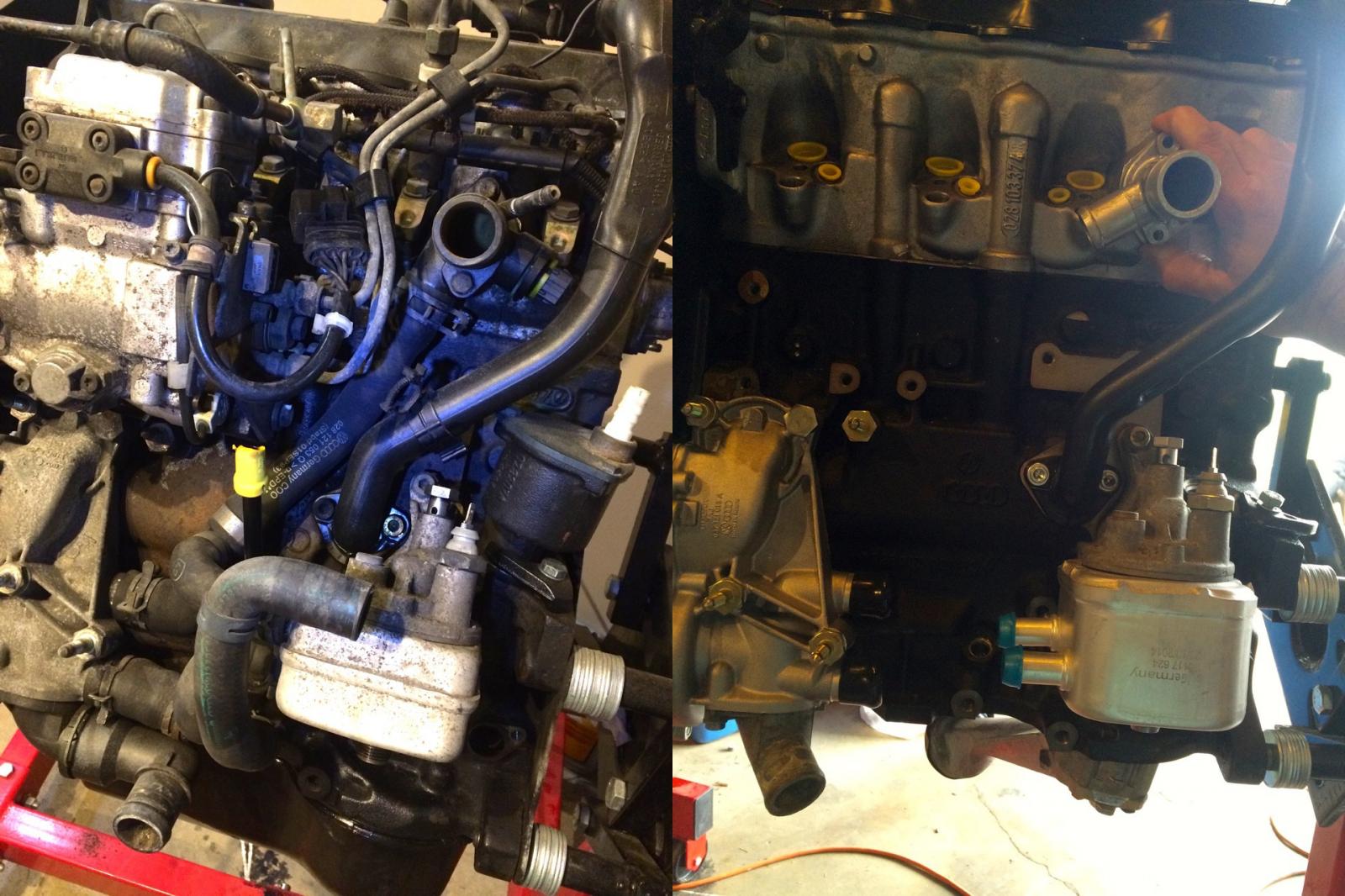

In the photo below is the 1.6na 068121133M flange against the AHU engine. It looks like it'd interferrier with the injector lines. What creativity did you use to get this to work for you Libby? Did you bend the injector lines?

Image may have been reduced in size. Click image to view fullscreen.


I really like that adaptor made for the older style with the AHU 028121132A flange (which I found an aluminum version online of).

Thanks for any insight!
_________________
-Will
1982 Westfalia mTDI (50deg) aka Betsy Bertha
http://www.vanagondiesel.info
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 7239
Location: Where?
?Waldo? is offline

PostPosted: Sat May 07, 2016 2:50 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

There isn't any interference with injection lines, but the new angle means that the bypass hose is too short. I added a coupler and an angled section of hose.
Back to top
View user's profile Send private message Classifieds Feedback
rotaecho
Samba Member


Joined: October 14, 2012
Posts: 486
Location: Tujunga, California
rotaecho is offline

PostPosted: Sat May 07, 2016 3:05 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

Thanks Andrew,

It looked like it'd interferer with the IP lines, nice to know it wouldn't.

Nice tid-bit thanks!

Andrew A. Libby wrote:
There isn't any interference with injection lines, but the new angle means that the bypass hose is too short. I added a coupler and an angled section of hose.

_________________
-Will
1982 Westfalia mTDI (50deg) aka Betsy Bertha
http://www.vanagondiesel.info
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2014
Location: South central Oregon
westyventures is offline

PostPosted: Sun May 08, 2016 8:33 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

Waldi wrote:
You can use the late AAZ 4 pin sensor.
There you have temp gauge and pre glow signal.


One of the few times I totally agree with Waldi. Wink

The AAZ sensor is accurate for the gauge + the glow plug relay. Why make it more difficult and expensive when the sensor does the job perfectly?
_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
Truckfridge fridges at the best prices!
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
rotaecho
Samba Member


Joined: October 14, 2012
Posts: 486
Location: Tujunga, California
rotaecho is offline

PostPosted: Sun May 08, 2016 9:04 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

forgive my ignorance here,

But in trying to duplicate the 1.6na glow plug setup for the mTDI AHU, I thought the glow-plug sensor was done off the end of the block with (p/n 068121145K) or similar from the 1.6na? Since the flange on the AHU (p/n 028121145) with the coolant glow-plugs aren't needed.

Would this just turn into another "additional" sensor where the late AAZ sensor in the AHU (028121132A) flange would handle both conditions (glow-plug / coolant temps) with that single sensor?

Thanks for the clarity, just trying to understand it.

westyventures wrote:
Waldi wrote:
You can use the late AAZ 4 pin sensor.
There you have temp gauge and pre glow signal.


One of the few times I totally agree with Waldi. Wink

The AAZ sensor is accurate for the gauge + the glow plug relay. Why make it more difficult and expensive when the sensor does the job perfectly?

_________________
-Will
1982 Westfalia mTDI (50deg) aka Betsy Bertha
http://www.vanagondiesel.info
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2014
Location: South central Oregon
westyventures is offline

PostPosted: Sun May 08, 2016 9:32 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

rotaecho wrote:
forgive my ignorance here,

But in trying to duplicate the 1.6na glow plug setup for the mTDI AHU, I thought the glow-plug sensor was done off the end of the block with (p/n 068121145K) or similar from the 1.6na? Since the flange on the AHU (p/n 028121145) with the coolant glow-plugs aren't needed.

Would this just turn into another "additional" sensor where the late AAZ sensor in the AHU (028121132A) flange would handle both conditions (glow-plug / coolant temps) with that single sensor?

Thanks for the clarity, just trying to understand it.



The AAZ sensor is two sensors in one - for temp gauge and for glow relay. The original AHU sensor in this spot was for temp gauge and ECU temp sensor. The AHU end of cyl. head flange can just be used as-is, no worries with leaving the coolant plugs in place.
_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
Truckfridge fridges at the best prices!
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
rotaecho
Samba Member


Joined: October 14, 2012
Posts: 486
Location: Tujunga, California
rotaecho is offline

PostPosted: Sun May 08, 2016 9:44 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

Thanks. I also reread the URL Waldi posted. I'll revisit my coolant temp sensor idea. The later AAZ temp sensor (need to dig that p/n) may be the way to go for this. I can use the cylender head alone then.
_________________
-Will
1982 Westfalia mTDI (50deg) aka Betsy Bertha
http://www.vanagondiesel.info
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
rotaecho
Samba Member


Joined: October 14, 2012
Posts: 486
Location: Tujunga, California
rotaecho is offline

PostPosted: Sun May 08, 2016 9:50 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

Would the proper AAZ later coolant sensor p/n be: 357-919-501A ?
_________________
-Will
1982 Westfalia mTDI (50deg) aka Betsy Bertha
http://www.vanagondiesel.info
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2014
Location: South central Oregon
westyventures is offline

PostPosted: Sun May 08, 2016 10:46 pm    Post subject: Re: 1pin to 4pin Coolant Temp Sensor Wiring for mTDI conversion Reply with quote

357 919 501
green ring
_________________
Karl Mullendore
Propex Heatsource importer-distributor for the USA
MoreTorque starter adaptors
Truckfridge fridges at the best prices!
www.westyventures.com
541.306.3959
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page 1 of 1


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
