| Author |
Message |
pacrat
Samba Member
Joined: April 20, 2006
Posts: 103
Location: Jennings Lodge
|
 Posted: Wed Apr 16, 2025 4:05 pm Post subject: Re: Windshield seal replacement - How to? |
 |
|
| BarryL wrote: |
| pacrat wrote: |
| BarryL wrote: |
| Do you have someone to help you? Do you have the string or fat insulated wire around the groove? Or do you mean putting the rubber on the glass? |
I do have helpers, yes. To clarify, I am having trouble putting the rubber around the glass. I get a short section on and as I move around the window, it slides off the previous. Having arthritic thumbs is not helping.  |
I put opposite corners on then get the other opposite corners on then work around the flat sides. I pinch the rubber so it opens like a duckbill working my way around on opposite sides.
Are you using sealant between the glass and the rubber? |
Thank you, BaryL! I used a combination of this and a couple of pieces of blue tape. All set and almost ready for a trip to Moab! |
|
| Back to top |
|
 |
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15192
Location: Casa de Oro, California
|
| Posted: Mon Apr 14, 2025 6:36 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| pacrat wrote: |
| BarryL wrote: |
| Do you have someone to help you? Do you have the string or fat insulated wire around the groove? Or do you mean putting the rubber on the glass? |
I do have helpers, yes. To clarify, I am having trouble putting the rubber around the glass. I get a short section on and as I move around the window, it slides off the previous. Having arthritic thumbs is not helping. |
I put opposite corners on then get the other opposite corners on then work around the flat sides. I pinch the rubber so it opens like a duckbill working my way around on opposite sides.
Are you using sealant between the glass and the rubber? |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1319
Location: P.O.
|
| Posted: Mon Apr 14, 2025 12:20 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
I used some WW seals on my baywidow, and they were a bear to get on the glass. I also ended up using yards of blue painter's and some duct tape. I had less trouble with a WCM seal, FWIW.
At least you don't have the added fun of thin metal Deluxe trim in the seal.
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
pacrat
Samba Member
Joined: April 20, 2006
Posts: 103
Location: Jennings Lodge
|
| Posted: Mon Apr 14, 2025 12:01 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| Eric&Barb wrote: |
| Some folks require using tape to keep section by section of the seal in place on the glass. Once all in place the seal should stay fairly stable on the glass, that is when to remove the tape and install the wire into the outer lip. |
This is a good idea. I'm also going to make sure the window is much cleaner. Maybe the dust and dirt is keeping the rubber from "gripping" the glass.
Thank you and BarryL for the suggestions.
Cheers,
Tony |
|
| Back to top |
|
|
pacrat
Samba Member
Joined: April 20, 2006
Posts: 103
Location: Jennings Lodge
|
| Posted: Mon Apr 14, 2025 12:00 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| BarryL wrote: |
| Do you have someone to help you? Do you have the string or fat insulated wire around the groove? Or do you mean putting the rubber on the glass? |
I do have helpers, yes. To clarify, I am having trouble putting the rubber around the glass. I get a short section on and as I move around the window, it slides off the previous. Having arthritic thumbs is not helping. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25875
Location: Olympia Wash Rinse & Repeat
|
| Posted: Sun Apr 13, 2025 7:06 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
Some folks require using tape to keep section by section of the seal in place on the glass. Once all in place the seal should stay fairly stable on the glass, that is when to remove the tape and install the wire into the outer lip.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15192
Location: Casa de Oro, California
|
| Posted: Sun Apr 13, 2025 6:38 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| Do you have someone to help you? Do you have the string or fat insulated wire around the groove? Or do you mean putting the rubber on the glass? |
|
| Back to top |
|
|
pacrat
Samba Member
Joined: April 20, 2006
Posts: 103
Location: Jennings Lodge
|
| Posted: Sun Apr 13, 2025 6:22 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
Lots of great information here. Thank you!
I have the the Wolfsburg West seals. I am having trouble getting them installed to the window. I get it started and using my thumb work the seal around the window, but they keep popping out. I replaced them maybe 25 years ago, but don't recall having this problem.
Any words of wisdom or general tips? What am I doing wrong? |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15192
Location: Casa de Oro, California
|
| Posted: Mon Feb 03, 2025 6:30 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
Had two warm days so did some final cleanup of the goo. Warm weather not a prerequisite but it is more fun.
Break flat sticks in half then split them. Use rough end to remove goo. Don't smear-swipe but more of a remove swipe. Replace stick every time.
Coleman fuel cleans leftover followed by alcohol followed by water.
For me I'm going to call this product the goto goop. |
|
| Back to top |
|
|
70bus
Samba Member
Joined: July 15, 2004
Posts: 1319
Location: P.O.
|
| Posted: Tue Jan 28, 2025 9:57 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
Now that we have rain coming, maybe I should put the 65 on the street to test my windshield efforts.
Major mitigating factor: in last January's storm a 125' fir fell and crushed a friend's Syncro singlecab with hardtop. Might wait until gentler spring for a test.
_________________
Craig K
70 Neunsitzer
65 Pritschenwagen
"If Von Dutch was alive, he'd walk in there with a pistol and shoot these people." - Robert Williams
Raul the 65 singlecab
Karl the 70 nine-seater |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15192
Location: Casa de Oro, California
|
| Posted: Tue Jan 28, 2025 6:40 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| Many squalls hit this last storm just over. Watertight. |
|
| Back to top |
|
|
Eric&Barb
Samba Member
Joined: September 19, 2004
Posts: 25875
Location: Olympia Wash Rinse & Repeat
|
| Posted: Wed Dec 11, 2024 10:27 am Post subject: Re: Windshield seal replacement - How to? |
|
|
| BarryL wrote: |
| BonTonRoulet wrote: |
| Surely you've had a chance to water test your windshield project by now. So what's the verdict? |
Totally watertight. Bulletproof. I did kinda' overkill on the goop though. |
Really needs to be over six months to be sure.
That is the longest with just new rubber without sealant without garage or canopy. Then definitely in our wet rainy weather it would begin to leak. Think that a certain amount of dirt has to get into between the seal and body to wick the water inside the interior.
_________________
In Stereo, Where Available! |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15192
Location: Casa de Oro, California
|
| Posted: Tue Dec 10, 2024 6:49 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| BonTonRoulet wrote: |
| Surely you've had a chance to water test your windshield project by now. So what's the verdict? |
Totally watertight. Bulletproof. I did kinda' overkill on the goop though. |
|
| Back to top |
|
|
BonTonRoulet
Samba Member
Joined: September 29, 2020
Posts: 462
Location: Mississippi
|
| Posted: Mon Dec 09, 2024 7:43 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
Surely you've had a chance to water test your windshield project by now. So what's the verdict?
_________________
Never argue with an Idiot. They'll only bring you down to their level and beat you with experience. |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10208
Location: idaho
|
| Posted: Sun Nov 17, 2024 2:19 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| borninabus wrote: |
| Lind wrote: |
| I sell them for $100/pair shipped. They are the absolute best ones available. |
do you have access to other window seals with seams that actually look good? |
NOS Volkswagen made seals have the diagonal seam in the top middle and formed corners.
Most aftermarket ones have a perpendicular seam are just hoops with no formed corners, so you can put the seam wherever you like. The corners will suck, and the seam won't look original.
The seals I sell have formed corners and the seam in the middle of the bottom. Maybe you could sand down the seam and make a new diagonal seam in the top middle if it is that important to you.
I only sell the best quality seals with formed corners. Lesser quality ones that still look wrong are available from parts suppliers that sell lesser quality parts for less money.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
borninabus
Samba R&D Dept.
Joined: May 18, 2006
Posts: 4718
Location: Arizona Highways
|
| Posted: Sat Nov 16, 2024 10:16 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| Lind wrote: |
| I sell them for $100/pair shipped. They are the absolute best ones available. |
do you have access to other window seals with seams that actually look good?
_________________
88 Van WBX, A/T - 13 JSW TDI 6M/T - 2012 Touareg TDI Sport |
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15192
Location: Casa de Oro, California
|
| Posted: Sat Nov 16, 2024 6:42 pm Post subject: Re: Windshield seal replacement - How to? |
|
|

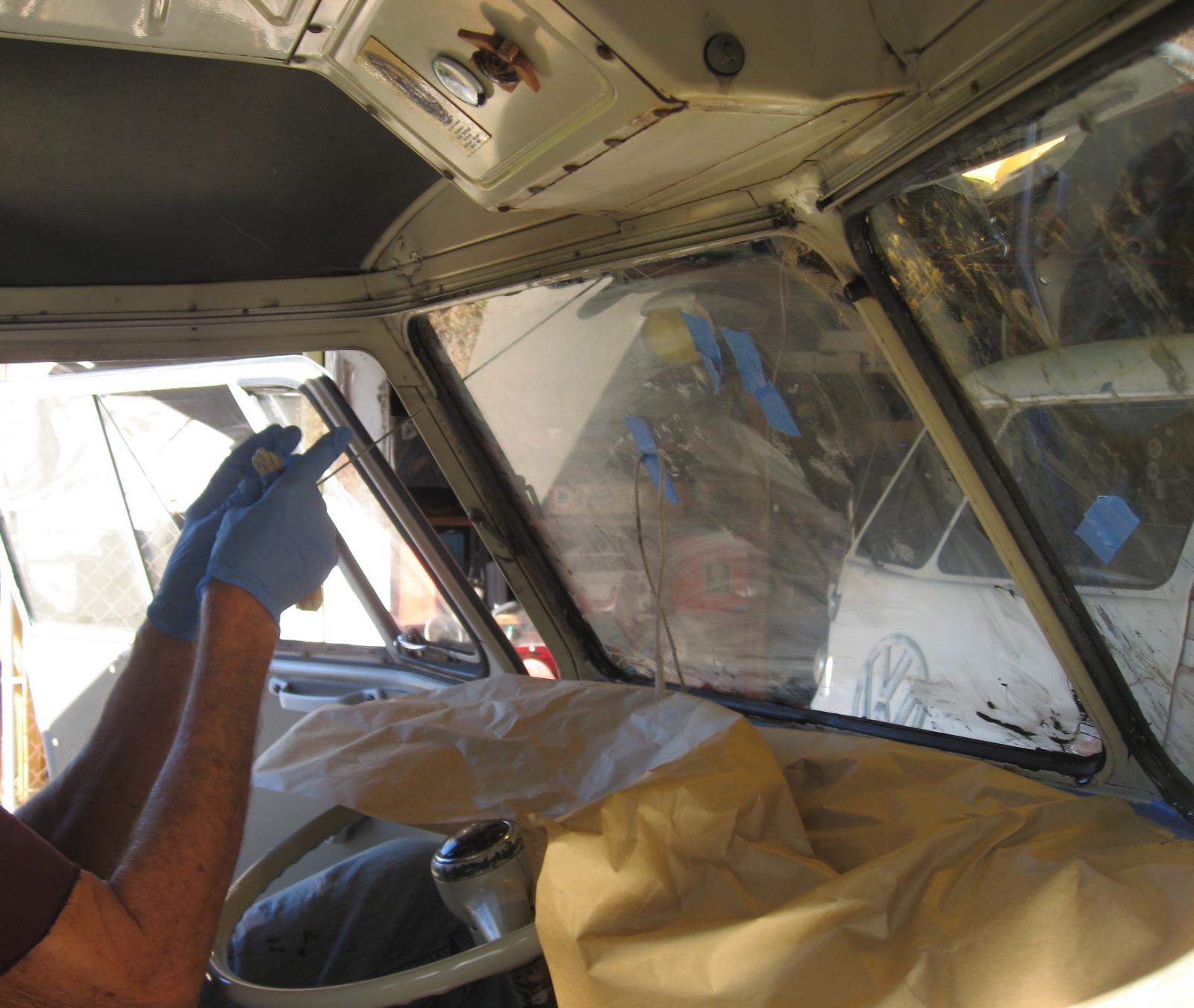

This photo has an optical illusion that the pulling cord is at the top of the window; it is not. The actual cord is about a half foot above the child-cot bracket. The rest of the string in that photo is a reflection of the real string.
|
|
| Back to top |
|
|
BarryL
Samba Member
Joined: November 01, 2004
Posts: 15192
Location: Casa de Oro, California
|
| Posted: Fri Nov 15, 2024 6:53 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| In case anyone was wondering it took 1/2 tube of the CLR7708 to goober all. |
|
| Back to top |
|
|
Lind
Samba Member
Joined: November 06, 2000
Posts: 10208
Location: idaho
|
| Posted: Fri Nov 15, 2024 6:40 pm Post subject: Re: Windshield seal replacement - How to? |
|
|
| BulliBill wrote: |
Really very nice write-up and photos on your "goop sealant process" and your review of the BBT pre-shaped cornered windshield seals acquired through Lind! Can you give us an idea of what a L/R pair those seals cost? The moment I ever need to redo any of my three Split-Buses windshields, I'll go thru Lind to get the seals!
Bill Bowman |
I sell them for $100/pair shipped. They are the absolute best ones available.
_________________
.
Wanted:
Idaho VW license plate frames or other dealership items.
VWoA literature and early dealership or distributor literature/pictures/information
. |
|
| Back to top |
|
|
BulliBill
Samba Member
Joined: July 09, 2004
Posts: 4770
Location: St Charles, MO
|
| Posted: Fri Nov 15, 2024 9:55 am Post subject: Re: Windshield seal replacement - How to? |
|
|
Really very nice write-up and photos on your "goop sealant process" and your review of the BBT pre-shaped cornered windshield seals acquired through Lind! Can you give us an idea of what a L/R pair those seals cost? The moment I ever need to redo any of my three Split-Buses windshields, I'll go thru Lind to get the seals!
Bill Bowman
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton
Thanks for any help! |
|
| Back to top |
|
|
|
