PostPosted: Sat Feb 12, 2022 8:23 am    Post subject: Re: A new split sheet metal part Reply with quote

If you ever tool up to produce the complete rear package tray they will sell quickly. I would have bought several from that cat in Poland if there was any way to get a hold of him
_________________
modok wrote:
Bent cranks are silent but gather no moss. I mean, ah, something like that.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
type4split
Samba Member


Joined: May 23, 2007
Posts: 734
Location: Hamilton, Indiana
type4split is offline

PostPosted: Sat Feb 12, 2022 7:48 am    Post subject: Re: A new split sheet metal part Reply with quote

Great news. How wide are these going to be? Will they be options for wider width
_________________
'67 deluxe bus w/the little windows
'52 beetle
'55 convertible
'50-something convertible (*need ribbed 'vert quarter panel )
'63 "milo" beetle
Part, parts and more parts
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1504
Location: Finland
virtanen is offline

PostPosted: Fri Feb 11, 2022 11:14 pm    Post subject: Re: A new split sheet metal part Reply with quote

Basically yes, I just haven't had time to "productize" them yet.
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
type4split
Samba Member


Joined: May 23, 2007
Posts: 734
Location: Hamilton, Indiana
type4split is offline

PostPosted: Fri Feb 11, 2022 8:43 pm    Post subject: Re: A new split sheet metal part Reply with quote

virtanen wrote:
The first piece made:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Hi Mika, are these available?
_________________
'67 deluxe bus w/the little windows
'52 beetle
'55 convertible
'50-something convertible (*need ribbed 'vert quarter panel )
'63 "milo" beetle
Part, parts and more parts
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Two Glove Boxes
Samba Member


Joined: March 03, 2005
Posts: 1004
Location: Texas
Two Glove Boxes is offline

PostPosted: Mon Jun 07, 2021 12:39 pm    Post subject: Re: A new split sheet metal part Reply with quote

Amazing metal as always!! My split has more then a few of your pieces Mika. Applause Applause
_________________
1950 Deluxe Sedan Build

1951 Split Standard Hoffman Build

1960 Dove Blue Double Cab Patina Build

Two Glove Boxes IG
Back to top
View user's profile Send private message Send e-mail Instagram Gallery Classifieds Feedback
djfordmanjack
Samba Member


Joined: June 15, 2009
Posts: 2383
Location: Graz, Austria, Europe
djfordmanjack is offline

PostPosted: Fri Jun 04, 2021 11:50 pm    Post subject: Re: A new split sheet metal part Reply with quote

looking great !
Will there be smaller patches available, like only the dimples and possibly the rear corner?
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
54 Oval project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior
Back to top
View user's profile Send private message Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1504
Location: Finland
virtanen is offline

PostPosted: Fri Jun 04, 2021 11:45 pm    Post subject: Re: A new split sheet metal part Reply with quote

The first piece made:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
djfordmanjack
Samba Member


Joined: June 15, 2009
Posts: 2383
Location: Graz, Austria, Europe
djfordmanjack is offline

PostPosted: Tue Apr 27, 2021 7:44 am    Post subject: Re: A new split sheet metal part Reply with quote

great news ! Will look on your parts inventory later this summer or you will most probably also post it here ?! Thx !
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
54 Oval project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior
Back to top
View user's profile Send private message Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1504
Location: Finland
virtanen is offline

PostPosted: Tue Apr 27, 2021 7:40 am    Post subject: Re: A new split sheet metal part Reply with quote

Now finishing the design for tooling. The first try to make parts in early June.
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
djfordmanjack
Samba Member


Joined: June 15, 2009
Posts: 2383
Location: Graz, Austria, Europe
djfordmanjack is offline

PostPosted: Tue Apr 27, 2021 4:46 am    Post subject: Re: A new split sheet metal part Reply with quote

that would be great ! any date for that ?
_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
54 Oval project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior
Back to top
View user's profile Send private message Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1504
Location: Finland
virtanen is offline

PostPosted: Tue Apr 27, 2021 4:38 am    Post subject: Re: A new split sheet metal part Reply with quote

Yes, the side sections with the dimples. For sure early oval still has the same.
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
djfordmanjack
Samba Member


Joined: June 15, 2009
Posts: 2383
Location: Graz, Austria, Europe
djfordmanjack is offline

PostPosted: Tue Apr 27, 2021 2:24 am    Post subject: Re: A new split sheet metal part Reply with quote

Mika, are you talking about the 3 dimples section of the luggage tray ? How long were these used ? I need a right one for an early oval.

virtanen wrote:
No Marcus I don't. My plan is to make repair sections for the sides of the luggage tray.

_________________
Hotrods, Fords, Veedubs and Triumph Twins !
52 Barndoor DLX Coachbuild project
54 Oval project
55 Wolfsburg panel project, og paint Taubenblau L31
62 Dickholmer, Seeblau L360
63 1500 Notch, og paint Rubin Rot L456
67 1500 Käfer, og paint Lotus weiß L282 w/red interior
Back to top
View user's profile Send private message Gallery Classifieds Feedback
T2_681
Samba Member


Joined: October 08, 2018
Posts: 97
Location: Czech republic
T2_681 is offline

PostPosted: Mon Apr 26, 2021 6:13 am    Post subject: Re: A new split sheet metal part Reply with quote

What you are tellimg me is that getting one will be a real challenge...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1504
Location: Finland
virtanen is offline

PostPosted: Mon Apr 26, 2021 3:10 am    Post subject: Re: A new split sheet metal part Reply with quote

No Marcus I don't. My plan is to make repair sections for the sides of the luggage tray.

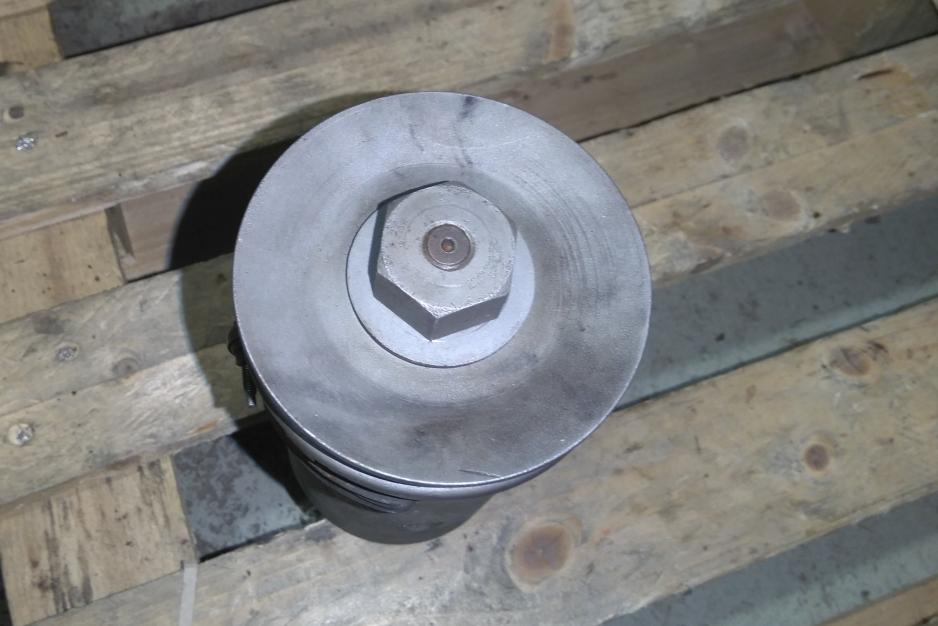

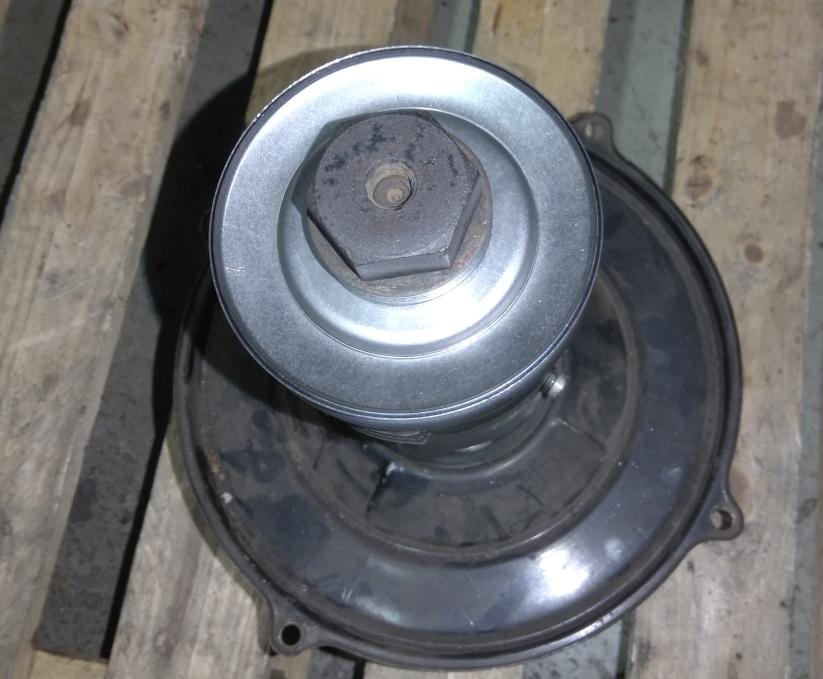

This generator is dated 12.42, so it's used for a 43. Cast iron pulley.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
beetlekey
Samba Member


Joined: June 06, 2004
Posts: 640
Location: MINDEN
beetlekey is offline

PostPosted: Sun Apr 25, 2021 11:07 am    Post subject: Re: A new split sheet metal part Reply with quote

Mika, don´t waste yor time in doubbleprojects.
Rich's 50 wrote:
Image may have been reduced in size. Click image to view fullscreen.


I got mine from Poland

_________________
Hebmüller 581
1953 oval Typ 11G metalblue
1966 1300

If you are searching for vintage keys, look here:
https://www.facebook.com/WagenmanufakturHO
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1504
Location: Finland
virtanen is offline

PostPosted: Sun Apr 25, 2021 9:37 am    Post subject: Re: A new split sheet metal part Reply with quote

I thought it had a cast iron pulley for generator too, but was there one more version between them? I will check what my collection says Smile
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
T2_681
Samba Member


Joined: October 08, 2018
Posts: 97
Location: Czech republic
T2_681 is offline

PostPosted: Sun Apr 25, 2021 7:57 am    Post subject: Re: A new split sheet metal part Reply with quote

You mean with 3 holes on engine.
How about the generator pulley? I should have made my question more specific.
Thanks.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1504
Location: Finland
virtanen is offline

PostPosted: Sun Apr 25, 2021 6:02 am    Post subject: Re: A new split sheet metal part Reply with quote

I think it still have the cast iron version.
_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
T2_681
Samba Member


Joined: October 08, 2018
Posts: 97
Location: Czech republic
T2_681 is offline

PostPosted: Sun Apr 25, 2021 3:12 am    Post subject: Re: A new split sheet metal part Reply with quote

Mika, can you tell which pulley is correct for the early 1131 ccm 1943 Kübel?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
virtanen
Samba Member


Joined: January 08, 2006
Posts: 1504
Location: Finland
virtanen is offline

PostPosted: Sun Apr 25, 2021 2:10 am    Post subject: Re: A new split sheet metal part Reply with quote

1944-50 generator pulley, this early version reguires 9 shims, when later 7 shims.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


see the difference to 1951-53 (on the right side) pulley:
Image may have been reduced in size. Click image to view fullscreen.

_________________
Mika
Split beetle restoration panels
Oval beetle restoration panels
New projects
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Split-Window/1938-53 VWs All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 13, 14, 15  Next
Jump to:
Page 1 of 15


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2025, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
