| Author |
Message |
Wildthings
Samba Member
Joined: March 13, 2005
Posts: 52636
|
 Posted: Thu Dec 15, 2016 8:54 pm Post subject: |
 |
|
| richparker wrote: |
| Looks like kinda similar to the Kats I bought. The mounting is different but overall idea is the same . I like mine, it works well. It wouldn't hurt to try it, I don't think it alone will fix your problem but it will make cold starts easier on the engine. I would use 10/30 in the winter and switch to a better grade gas. It will burn cleaner and leave less water behind to contaminate the oil, I run 91 in my bus. |
Unless your gas has less hydrogen in it than regular gas it will make the same amount of water.
For people who only need a block heater for one or two nights a year then a magnetic block heater works pretty well. Of course if you have a Type 1 and you have replaced the original steel cover over the pickup screen with an aluminium cover the magnet will not have anything much to adhere to. |
|
| Back to top |
|
 |
richparker
Samba Member
Joined: November 24, 2011
Posts: 7680
Location: Durango, CO
|
| Posted: Fri Feb 06, 2015 2:58 pm Post subject: |
|
|
Looks like kinda similar to the Kats I bought. The mounting is different but overall idea is the same . I like mine, it works well. It wouldn't hurt to try it, I don't think it alone will fix your problem but it will make cold starts easier on the engine. I would use 10/30 in the winter and switch to a better grade gas. It will burn cleaner and leave less water behind to contaminate the oil, I run 91 in my bus.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab |
|
| Back to top |
|
|
johnwan
Samba Member
Joined: February 14, 2010
Posts: 130
Location: Victoria
|
| Posted: Fri Feb 06, 2015 2:45 pm Post subject: |
|
|

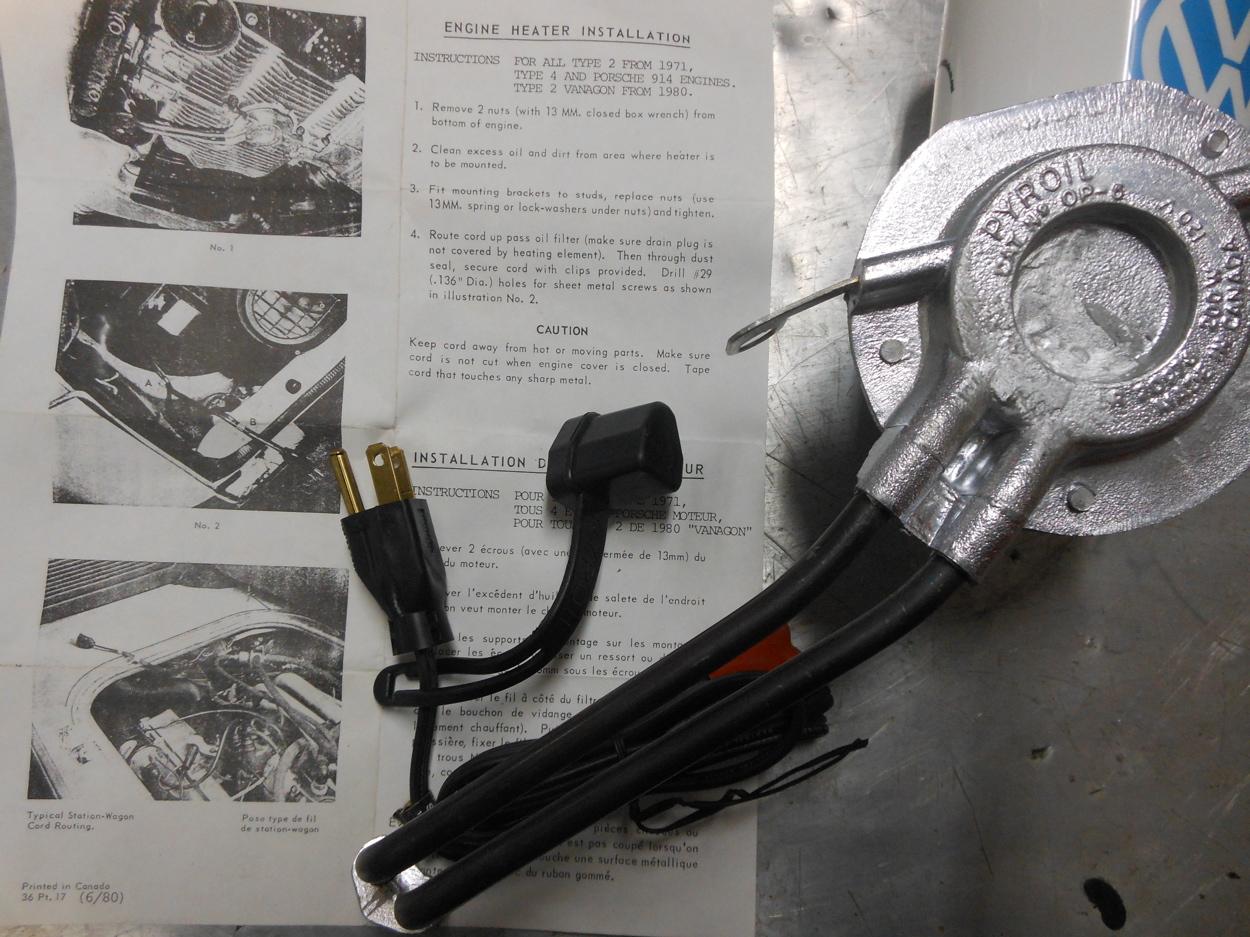

This is a 200watt VW type 4-engine oil heater made in Canada by Pryoil.
The instructions say to install on engine case studs and secure with new nuts.
_________________
1956 Canadian Standard Horizon Blue
1978 Kombi Pastel White
1978 Westfalia P31 Taigagrun. Sold, went to Europe. |
|
| Back to top |
|
|
pittwagen
Samba Member
Joined: November 08, 2005
Posts: 775
Location: North of the 49th parallel
|
| Posted: Fri Nov 28, 2014 8:20 pm Post subject: |
|
|
So I got to digging around in my parts and here's what I found. Top is a T4 heater made by Cdn Gen. Electric and bottom is a Pyroil heater made in Canada and sold through VW dealers. So if it gets really cold (unlikely here) I'm prepared.
|
|
| Back to top |
|
|
wcfvw69
Samba Purist
Joined: June 10, 2004
Posts: 13697
Location: Arizona
|
| Posted: Sun Nov 23, 2014 12:45 pm Post subject: |
|
|
| richparker wrote: |
| It wasn't that cold out this morning but I decided to try out the heater. I used the IR gun on the sump plate and sump itself, both at 29*. I turned on the heater for 1 hour and this is what I got. Heating element was 220*, sump plate 204* and the side of the sump was 59*. I turned it over with the first hit of the key, there was no starter drag and it sounded much happier as it came to life. Thanks to all who posted. I think this was a good $32.99 investment. |
Thanks for the follow up Rich. I think it was indeed a GREAT $32 dollar investment.
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc
40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.
**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours** |
|
| Back to top |
|
|
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8339
Location: Oceanside
|
|
| Back to top |
|
|
richparker
Samba Member
Joined: November 24, 2011
Posts: 7680
Location: Durango, CO
|
| Posted: Sun Nov 23, 2014 11:20 am Post subject: |
|
|
| Tom Powell wrote: |
Don't forget to remove the extension cord before you leave the house.
Aloha
tp |
I'm looping a bright green extension cord through my driver handle so I don't forget.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab |
|
| Back to top |
|
|
Tom Powell
Samba Member
Joined: December 01, 2005
Posts: 4852
Location: Kaneohe
|
| Posted: Sun Nov 23, 2014 11:11 am Post subject: |
|
|
| richparker wrote: |
| It wasn't the foldout this morning but I decided to try out the heater. I used the IR gun on the sump plate and sump itself, both at 29*. I turned on the heater for 1 hour and this is what I got. Heating element was 220*, sump plate 204* and the side of the sump was 59*. I turned it over with the first hit of the key, there was no starter drag and it sounded much happier as it came to life. Thanks to all who posted. I think this was a good $32.99 investment. |
Thanks for the definitive report.
If $32.95 makes your VW happy then you're ahead of a lot of us.
Don't forget to remove the extension cord before you leave the house.
Aloha
tp |
|
| Back to top |
|
|
richparker
Samba Member
Joined: November 24, 2011
Posts: 7680
Location: Durango, CO
|
| Posted: Sun Nov 23, 2014 10:57 am Post subject: |
|
|
It wasn't that cold out this morning but I decided to try out the heater. I used the IR gun on the sump plate and sump itself, both at 29*. I turned on the heater for 1 hour and this is what I got. Heating element was 220*, sump plate 204* and the side of the sump was 59*. I turned it over with the first hit of the key, there was no starter drag and it sounded much happier as it came to life. Thanks to all who posted. I think this was a good $32.99 investment.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab
Last edited by richparker on Sun Nov 23, 2014 11:18 am; edited 1 time in total |
|
| Back to top |
|
|
pittwagen
Samba Member
Joined: November 08, 2005
Posts: 775
Location: North of the 49th parallel
|
| Posted: Sat Nov 22, 2014 5:14 pm Post subject: |
|
|
| I used sump heaters on several vw's back in the 60's and 70's. 6 volts, straight weight oil and -40`F were not a good mix. Never had one fail or get damaged. Oh yes and the in car 110 v heater was also standard equipment. Even the B2 would take a while to blow hot at -40. Don't miss that one bit. |
|
| Back to top |
|
|
wcfvw69
Samba Purist
Joined: June 10, 2004
Posts: 13697
Location: Arizona
|
| Posted: Sat Nov 22, 2014 4:05 pm Post subject: |
|
|
| asiab3 wrote: |
| richparker wrote: |
| wcfvw69 wrote: |
| What would be cool RICHIE… |
|
I look forward to the readings.
ROBBIE |
DOH!  Ok, I fixed it.. I'm getting old!
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc
40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.
**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours** |
|
| Back to top |
|
|
airschooled
Air-Schooled
Joined: April 04, 2012
Posts: 13598
Location: West Coast, USA
|
| Posted: Sat Nov 22, 2014 3:41 pm Post subject: |
|
|
| richparker wrote: |
| wcfvw69 wrote: |
| What would be cool RICHIE… |
|
I look forward to the readings.
ROBBIE
_________________
One-on-one tech help for your vintage Volkswagen:
www.airschooled.com
Road trip reports and tech blog:
https://www.patreon.com/airschooled |
|
| Back to top |
|
|
richparker
Samba Member
Joined: November 24, 2011
Posts: 7680
Location: Durango, CO
|
| Posted: Sat Nov 22, 2014 3:25 pm Post subject: |
|
|
| wcfvw69 wrote: |
| What would be cool RICHIE is if you could shoot your sump plate area with a laser temp gauge after it's been plugged in for a while. Maybe even pull the dipstick out as well and shoot it too. It would be interesting to know that it's say 30 degrees outside and my sump and dipstick read this temp with it plugged in. |
I can do that. I'll try to do that several days to get a good trend.[/b]
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab |
|
| Back to top |
|
|
wcfvw69
Samba Purist
Joined: June 10, 2004
Posts: 13697
Location: Arizona
|
| Posted: Sat Nov 22, 2014 3:14 pm Post subject: |
|
|
What would be cool Rich is if you could shoot your sump plate area with a laser temp gauge after it's been plugged in for a while. Maybe even pull the dipstick out as well and shoot it too. It would be interesting to know that it's say 30 degrees outside and my sump and dipstick read this temp with it plugged in.
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc
40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.
**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours**
Last edited by wcfvw69 on Sat Nov 22, 2014 4:03 pm; edited 1 time in total |
|
| Back to top |
|
|
Brian
Samba Moderator
Joined: May 28, 2012
Posts: 8339
Location: Oceanside
|
|
| Back to top |
|
|
richparker
Samba Member
Joined: November 24, 2011
Posts: 7680
Location: Durango, CO
|
| Posted: Sat Nov 22, 2014 1:58 pm Post subject: |
|
|
I recieved the Kats VW-15 oil sump heater yesterday. The box was a little ratty looking but the heater was indeed NOS. It took me around a 1/2 hour to install it with many beer sippin breaks. I was able to zip tie it nicely and make it look clean. I found a plastic cover for the plug ends in the garage. I used wire conduit on the exposed cord under bus to keep it out of the elements, as much as it could be.
The cast on the element was not the best. I went ahead and filed down the rough edges so everything would fit nicely together. I guess I'll see how it works on Monday morning.
I also took the time and cleaned the air filters with the K&N air cleaner recharger.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab |
|
| Back to top |
|
|
raygreenwood
Samba Member
Joined: November 24, 2008
Posts: 23369
Location: Oklahoma City
|
| Posted: Wed Nov 19, 2014 9:58 pm Post subject: |
|
|
| busdaddy wrote: |
It seems there are steel clips that bolt under 3 of the sump plate nuts and have ears that stick out the sides and hold the heater up against your engine (which is not included  ), looks like the clips have a top hat profile. |
About 4 years ago I bought a vintage.....in a box just like that shown....Kats model VW-16. It looks like that but installs differently. It has a sheat metal sheath that runs halfway down the stem. It has an angle iron section that stands up and has two bolt holes that correspond to case nuts. So you bolt it on and it stays on and is in contact with the sump plate. 150 watts. Ray |
|
| Back to top |
|
|
richparker
Samba Member
Joined: November 24, 2011
Posts: 7680
Location: Durango, CO
|
|
| Back to top |
|
|
Tcash
Samba Member
Joined: July 20, 2011
Posts: 12843
Location: San Jose, California, USA
|
| Posted: Wed Nov 19, 2014 9:32 pm Post subject: |
|
|
|
|
| Back to top |
|
|
richparker
Samba Member
Joined: November 24, 2011
Posts: 7680
Location: Durango, CO
|
| Posted: Wed Nov 19, 2014 8:35 pm Post subject: |
|
|
I thought about those. I've seen those on a good amount of trucks. I thought that sticking something like this to the engine might hurt cooling. I understand it's winter and it's not gonna get that hot, but still.
A small one on each intake of the dual carbs would be nice.
_________________
__________
’71 Westy build
Adventure thread
’65 Deluxe Build
’71 Double Cab |
|
| Back to top |
|
|
|
