| Author |
Message |
ALIKA T3
Samba Member
Joined: July 30, 2009
Posts: 7300
Location: Honolulu,Hawaii and France
|
|
| Back to top |
|
 |
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
 Posted: Wed Jun 22, 2022 11:41 am Post subject: Re: Steve's 87 Syncro project |
 |
|
Mine had the 2 wire w connector for the actuator light switch back at the transaxle. It is tucked up near the gas tank on the right side. I'm lost up front though for the dash wiring.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Phishman068
Samba Member
Joined: February 19, 2007
Posts: 2024
Location: Pittsburgh PA (ish)
|
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Wed Jun 15, 2022 10:31 am Post subject: Re: Steve's 87 Syncro project |
|
|
My locker functions nicely. I don't know where to find the existing under dash wiring for it though. Any pics or pointers? I found a 3 pin amp/molex looking connector with colors that seem to match but it doesn't work. Any help w this is appreciated.
Also pics of modifying the heater hose plastic cover piece that the dash locker console mounts to. I need to do this still.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Fri Jun 10, 2022 2:36 pm Post subject: Re: Steve's 87 Syncro project |
|
|
Van is back up. Mike Herbert (Rancho fame) built me a bad ass gearbox. I was non locker before. He built me a box with the Peloquin diff, LOCKER, oiling plates, some new gears, TDI starter, etc. Man is it quiet and smooth compared to my old unit.
I still don't have the wiring for the locker lights figured out, but the locker does work splendidly. Mike also hooked me up with a good deal on the dash console/switch setup. This trans swap is a big ass job. Not fun.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Tue Mar 16, 2021 2:37 pm Post subject: Re: Steve's 87 Syncro project |
|
|

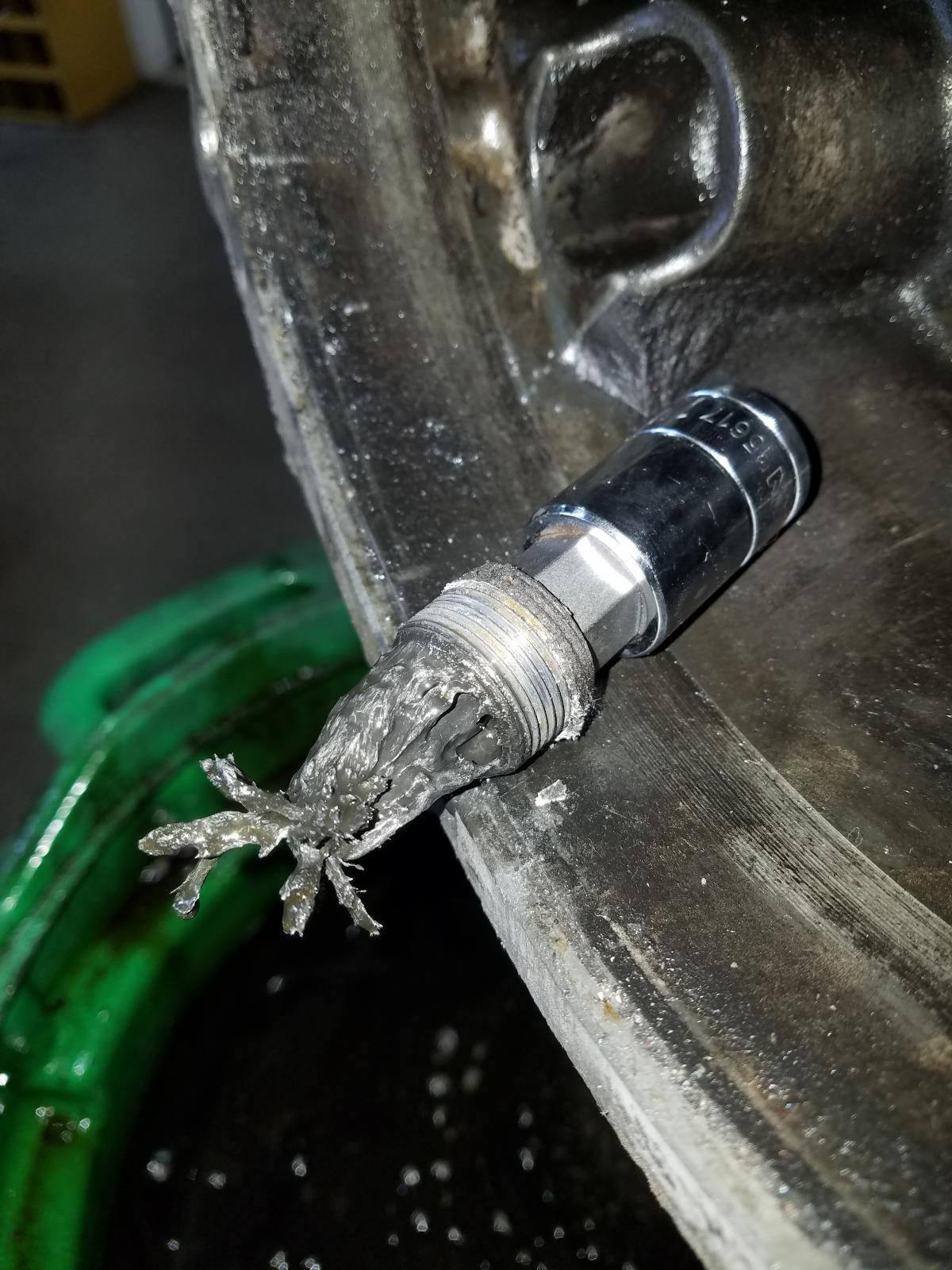

Sad gearbox. Time for a rebuild.
It made no noise or indication of trouble until it all quit, with no power transfer in one instant moment in 2nd gear. Coasted to the side and towed home. Here are the pics. I will pull the bell housing and inspect a bit further.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Weezyissuperfast
Samba Member
Joined: August 14, 2014
Posts: 106
Location: Seattle
|
| Posted: Mon Sep 30, 2019 9:12 am Post subject: Re: Steve's 87 Syncro project |
|
|
| Great! Thanks for letting me know. BTW, I like your build so far. |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Mon Sep 30, 2019 7:33 am Post subject: Re: Steve's 87 Syncro project |
|
|
| Weezyissuperfast wrote: |
| Did you ever get the GW throttle body TPS working correctly? I’m debating the new GW throttle body vs. a rebuilt stock one. |
Yes. It is working good. I adjusted it for a bit more positive switching upon return to idle. Very small adjustment. Took two tries because I didn't want to overdo it. I also shortened the long spring a little bit like the instructions say to do. The pedal is still nice and light feeling (good feel).
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Weezyissuperfast
Samba Member
Joined: August 14, 2014
Posts: 106
Location: Seattle
|
| Posted: Sun Sep 29, 2019 9:12 pm Post subject: Re: Steve's 87 Syncro project |
|
|
| Did you ever get the GW throttle body TPS working correctly? I’m debating the new GW throttle body vs. a rebuilt stock one. |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Mon Mar 25, 2019 11:35 am Post subject: Re: Steve's 87 Syncro project |
|
|
| Slimvest wrote: |
| Steve Arndt wrote: |
I also fixed my go westy new throttle body throttle switch adjustment. It wasn't triggering the switch at idle reliably. All I did was bend the metal that that holds the throttle stop away from the post to increase the travel back to idle like half a millimeter. This was easier than removing the TB to adjust the actual switch. |
Going to have to try this. |
That didn't work. I had to pull the throttle body and manually adjust the switch.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Slimvest
Samba Member
Joined: March 20, 2014
Posts: 431
Location: Portland, OR
|
| Posted: Mon Mar 25, 2019 10:12 am Post subject: Re: Steve's 87 Syncro project |
|
|
| Steve Arndt wrote: |
I also fixed my go westy new throttle body throttle switch adjustment. It wasn't triggering the switch at idle reliably. All I did was bend the metal that that holds the throttle stop away from the post to increase the travel back to idle like half a millimeter. This was easier than removing the TB to adjust the actual switch. |
Going to have to try this.
_________________
'87 GL w/ Reimo top (sold Aug '21) |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Mon Mar 25, 2019 9:43 am Post subject: Re: Steve's 87 Syncro project |
|
|
I also made an aluminum tab from the center roof a/c duct support bracket down around the plastic duct. It is all broken and was almost ready to fall on my head (again). The ducting will go away when I convert to a westy top so this is just a temporary setup.
I also fixed my slider door lock following the gowesty video. It just needed all the old greased cleaned out and replaced with graphite. I attempted to do the same to my front handle. Broke two nice pin punches trying to get the roll pin out. I'm going to send that handle off to Steve's Lockshop (Ben T Syncro gave me the info). Then I can get some steel keys cut and the handle fixed.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Mon Mar 25, 2019 9:40 am Post subject: Re: Steve's 87 Syncro project |
|
|
I considered going clear or smoked. I like how they look on a grey or blue van. On my Titian red van I stuck with the stock orange color. The new lens is a darker bolder orange than my faded 32 year old originals. They look much nicer they just don't fitup in the opening as good as stock originals.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Stuartzickefoose
Samba Post Whore
Joined: February 07, 2008
Posts: 10350
Location: SoCal for now...
|
| Posted: Mon Mar 25, 2019 9:38 am Post subject: Re: Steve's 87 Syncro project |
|
|
Thats awesome
Did you do smoke front turn signals or orange?
_________________
Stuart Zickefoose
2011 Jetta Sportwagen TDi 6 speed manual
206-841-7324
[email protected] |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Mon Mar 25, 2019 8:49 am Post subject: Re: Steve's 87 Syncro project |
|
|
I installed new front turn signal lenses. The quality and fit is poor but they are still better than my cracked and broken originals.

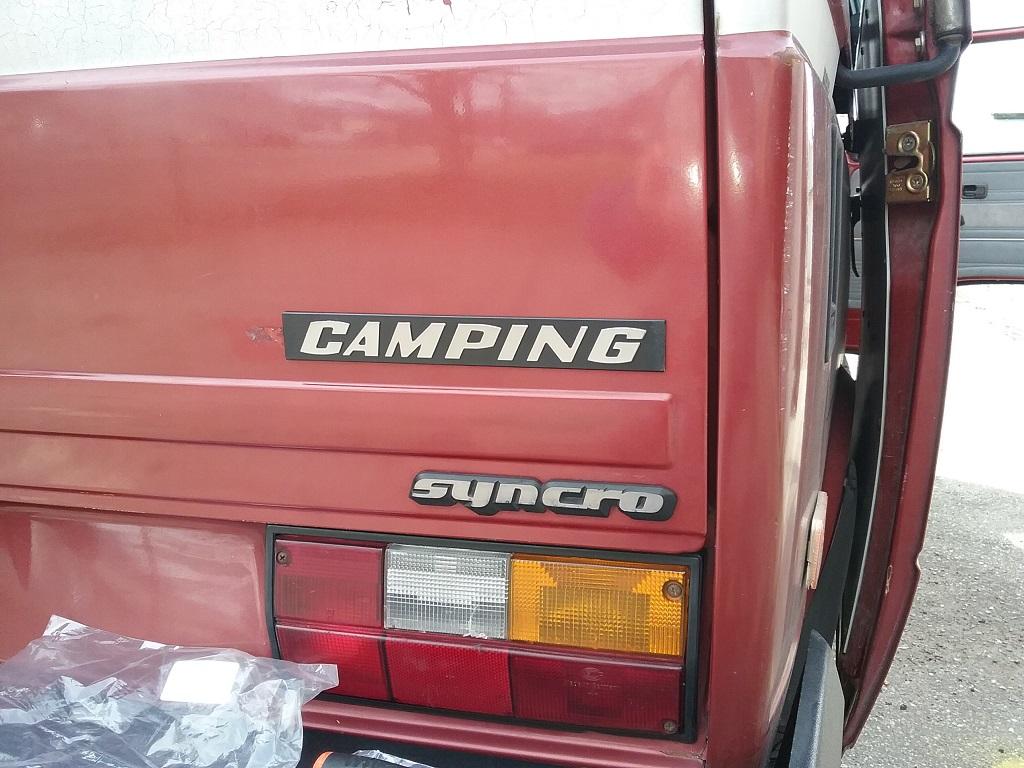

Check this out. Got it from Van Cafe long with new mounting rubber inserts that fit the holes in the hatch.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Mon Jan 28, 2019 9:19 am Post subject: Re: Steve's 87 Syncro project |
|
|
I took apart my hazard switch and cleaned DEOXit'ed it and it works like new again. Hadn't worked for .... the last 15 years lol .
I also fixed my go westy new throttle body throttle switch adjustment. It wasn't triggering the switch at idle reliably. All I did was bend the metal that that holds the throttle stop away from the post to increase the travel back to idle like half a millimeter. This was easier than removing the TB to adjust the actual switch.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Steve Arndt
Samba Member
Joined: August 01, 2005
Posts: 1798
Location: Boise, Idaho
|
| Posted: Fri Jan 04, 2019 3:47 pm Post subject: Re: Steve's 87 Syncro project |
|
|
My symptoms match both of you. You can also listen to the switch (engine off of course). Cycle the throttle and you can hear if the switch activates when the throttle closes. It is hit and miss when thing are cold.
_________________
Steve
Steve's 87 Syncro project |
|
| Back to top |
|
|
Slimvest
Samba Member
Joined: March 20, 2014
Posts: 431
Location: Portland, OR
|
| Posted: Fri Jan 04, 2019 3:22 pm Post subject: Re: Steve's 87 Syncro project |
|
|
| 90Doka_Guy wrote: |
I notice the lack of fuel cut off when decelerating mostly. Engine braking is much less effective if at all when the switch is not closing on overrun. It also causes me to shift sloppy due to the revs hanging longer than normal. Looking forward to my next fill up because I suspect my gas mileage has suffered as well. |
Okay, I have the exact same symptoms. Only happens to me in the winter. Might be worth an email to GW on this one...
Sorry for the derail. Back to Steve's project thread.
_________________
'87 GL w/ Reimo top (sold Aug '21) |
|
| Back to top |
|
|
90Doka_Guy
Samba Member
Joined: April 08, 2007
Posts: 552
Location: Cherry Hill, NJ
|
| Posted: Fri Jan 04, 2019 3:12 pm Post subject: Re: Steve's 87 Syncro project |
|
|
| Slimvest wrote: |
Glad I'm not the only one with this issue! So what are the symptoms your vans are experiencing? My idle stays high between shifts at colder temps until the van warms up some.
x3 on the PITA to adjust the switch. So much so, that I haven't tried to adjust mine again. |
I notice the lack of fuel cut off when decelerating mostly. Engine braking is much less effective if at all when the switch is not closing on overrun. It also causes me to shift sloppy due to the revs hanging longer than normal. Looking forward to my next fill up because I suspect my gas mileage has suffered as well. |
|
| Back to top |
|
|
Slimvest
Samba Member
Joined: March 20, 2014
Posts: 431
Location: Portland, OR
|
| Posted: Fri Jan 04, 2019 2:56 pm Post subject: Re: Steve's 87 Syncro project |
|
|
Glad I'm not the only one with this issue! So what are the symptoms your vans are experiencing? My idle stays high between shifts at colder temps until the van warms up some.
x3 on the PITA to adjust the switch. So much so, that I haven't tried to adjust mine again.
_________________
'87 GL w/ Reimo top (sold Aug '21) |
|
| Back to top |
|
|
|
