PostPosted: Tue Dec 26, 2023 11:33 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Yes, I checked that before I bought the pump. The stock OEM Muffler has the preheat tube on the right side, so does the NOS Leistritz which I still have as a replacement. Once I have used them up, I need to make sure to get the right type. I would probably got with some kind of stainless steel replacement.
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
srfndoc
Samba Member


Joined: August 21, 2010
Posts: 3410
Location: SoCal
srfndoc is online now

PostPosted: Tue Dec 26, 2023 11:23 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Thats a great option vs. a full flow setup as no hoses to deal with. Just have to be sure your exhaust will clear.
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Tue Dec 26, 2023 10:07 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

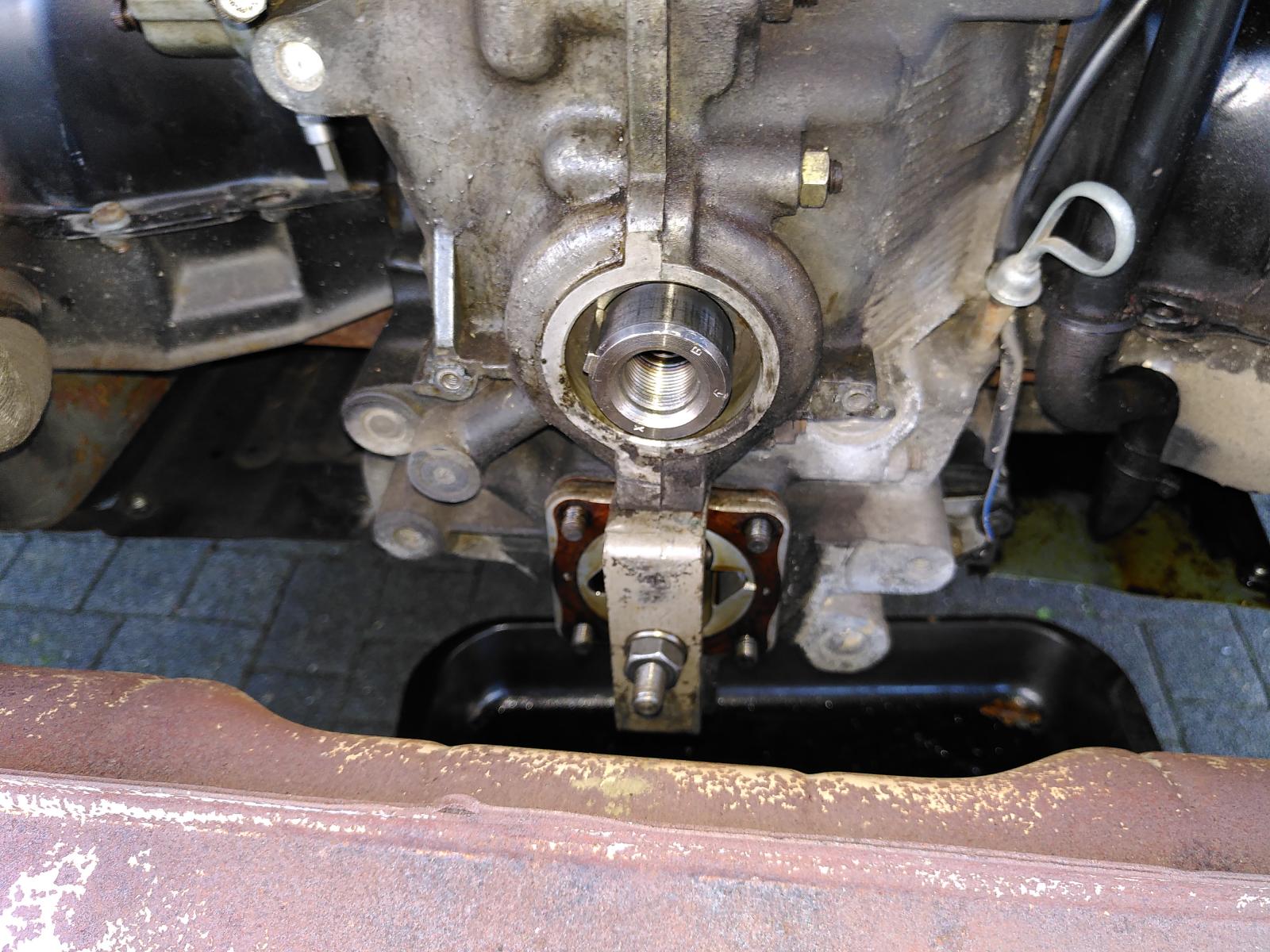

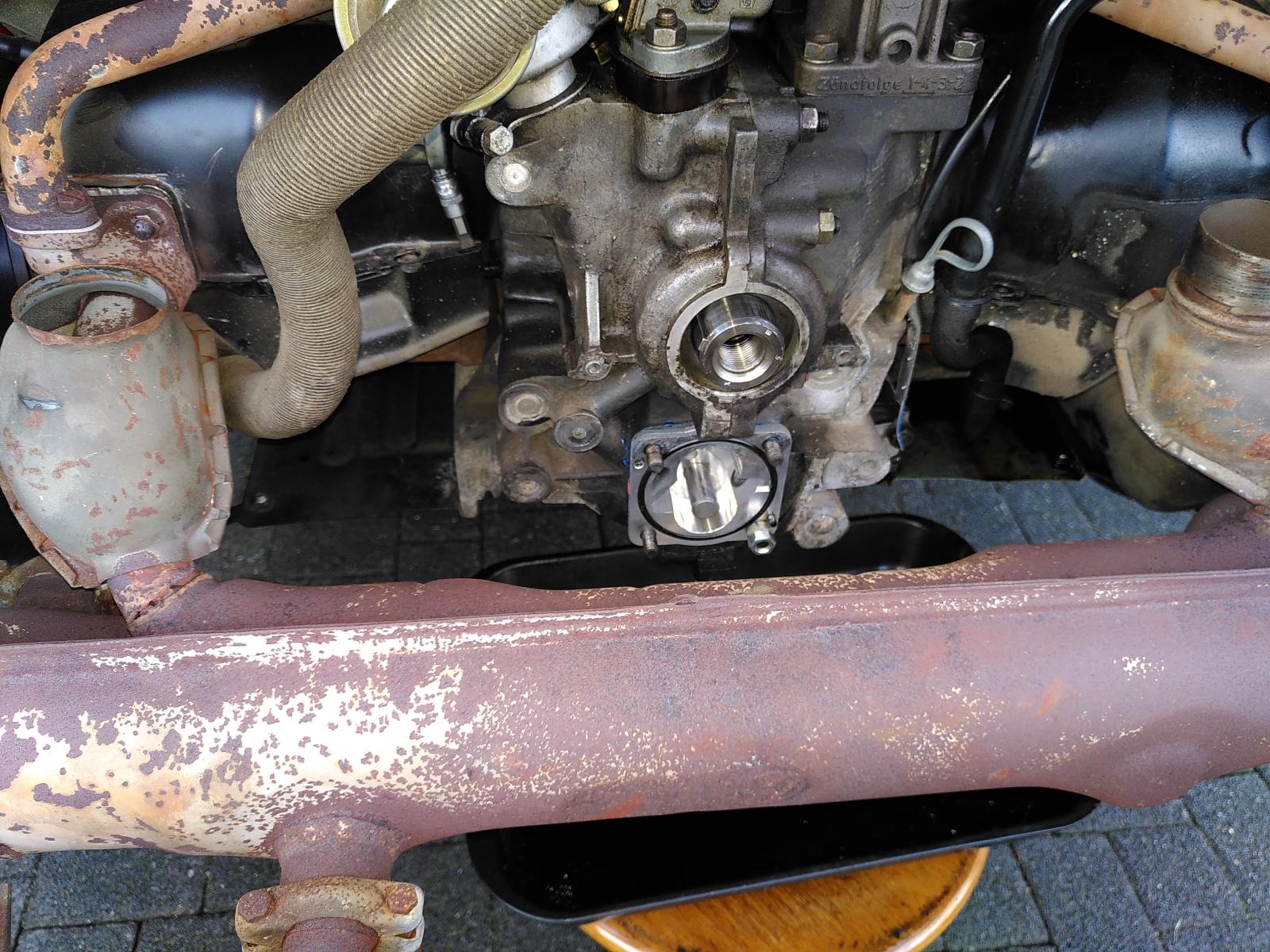

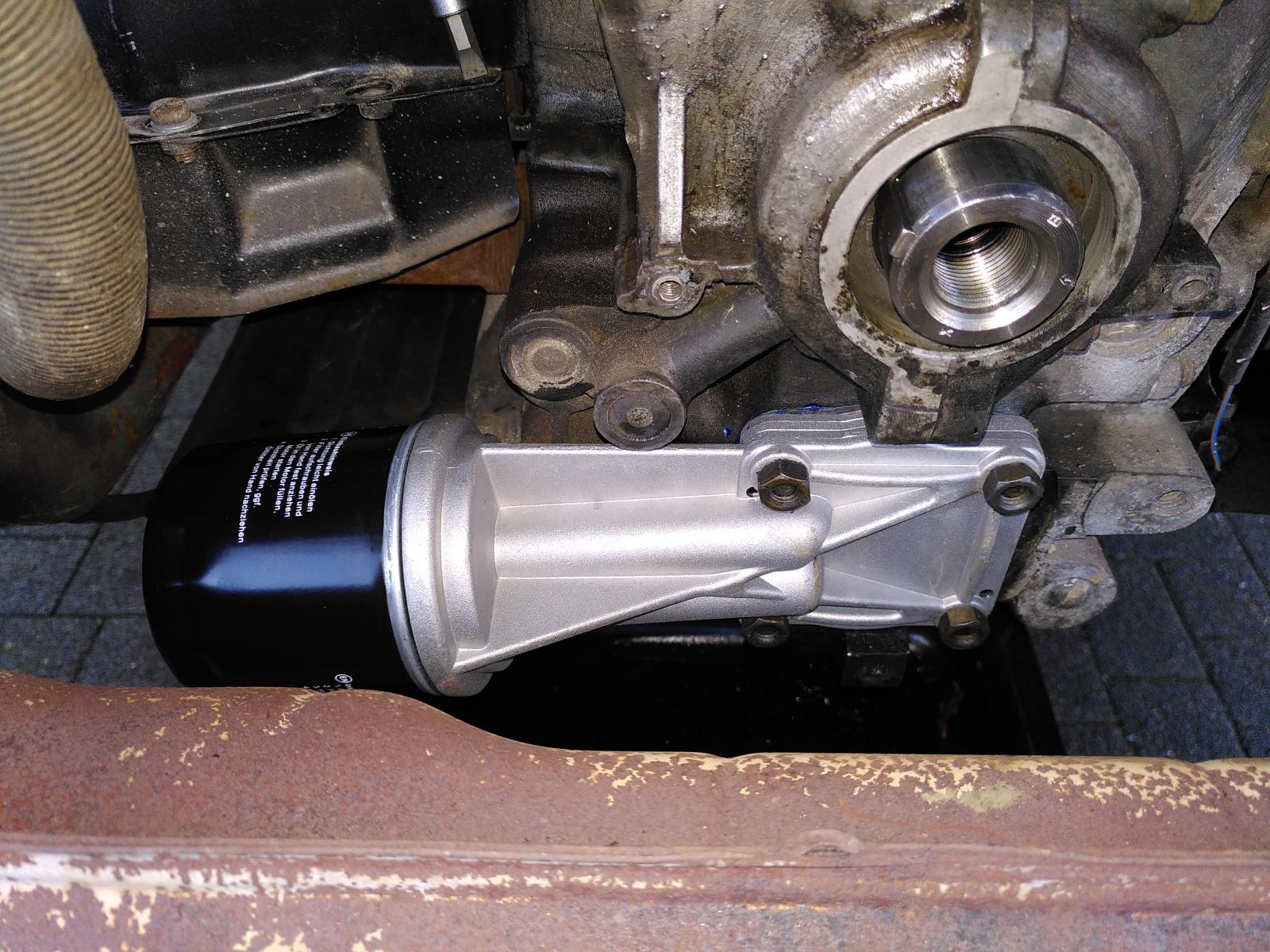

Today the weather was good for the first time in awhile. The van was due for an oil change. And I had planned to replace the oil pump with one with a filter.

Unfortunately the studs were a bit short, I ended up screwing them out a couple of mm. I think I might replace them the next time I do an oil change.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Wed Nov 29, 2023 1:04 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

TRS63 wrote:
Great update, happy to see you enjoyed the bus this year!

Bests

Antoine


Thank you Antoine. Unfortunately I couldn't use it as much as the previous years. Spent most of my vacation time in the US this year. Unfortunately couldn't take the bus with me.
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Wed Nov 29, 2023 1:01 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

notchboy wrote:
Always nice work Michael Applause Cool


Thank you Jason, had some help from two friends. Was fun to work on it together.
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TRS63
Samba Member


Joined: December 17, 2017
Posts: 1134
Location: Stuttgart - Germany
TRS63 is offline

PostPosted: Wed Nov 29, 2023 4:31 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Great update, happy to see you enjoyed the bus this year!

Bests

Antoine
_________________
Antoine
My 62 ragtop daily driver:
https://www.thesamba.com/vw/forum/viewtopic.php?t=728873
My 914 restoration&lightweight project :
https://www.thesamba.com/vw/forum/viewtopic.php?p=9698432#9698432
Resurrecting a 60 ghia : https://www.thesamba.com/vw/forum/viewtopic.php?t=713906
My 52 Standard Zwitter :
https://www.thesamba.com/vw/forum/viewtopic.php?p=10086685#10086685
Back to top
View user's profile Send private message Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 22681
Location: Escondido CA
notchboy is offline

PostPosted: Tue Nov 28, 2023 9:30 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Always nice work Michael Applause Cool
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Mon Nov 27, 2023 11:26 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

All of the measurements are in these drawings:
https://www.thesamba.com/vw/archives/manuals/local_manufacture/tools-600-649.pdf

The toolnumber is 609

I was not able to bent the tubes, that's why I chose to cut and weld.

The clamp I used is a standard industry part I bought used from eBay.
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
chrisflstf
Samba Member


Joined: February 10, 2004
Posts: 4216
Location: San Diego
chrisflstf is offline

PostPosted: Mon Nov 27, 2023 3:49 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Clever idea for the trans adaptor. Is the angle for the axle tube supports based on how the axle tubes sit installed in the bus?

Or what is the angle relative to horizontal?

Thanks!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Mon Nov 27, 2023 12:45 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Yes, I do. In fact I posted them on the first page of this thread.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

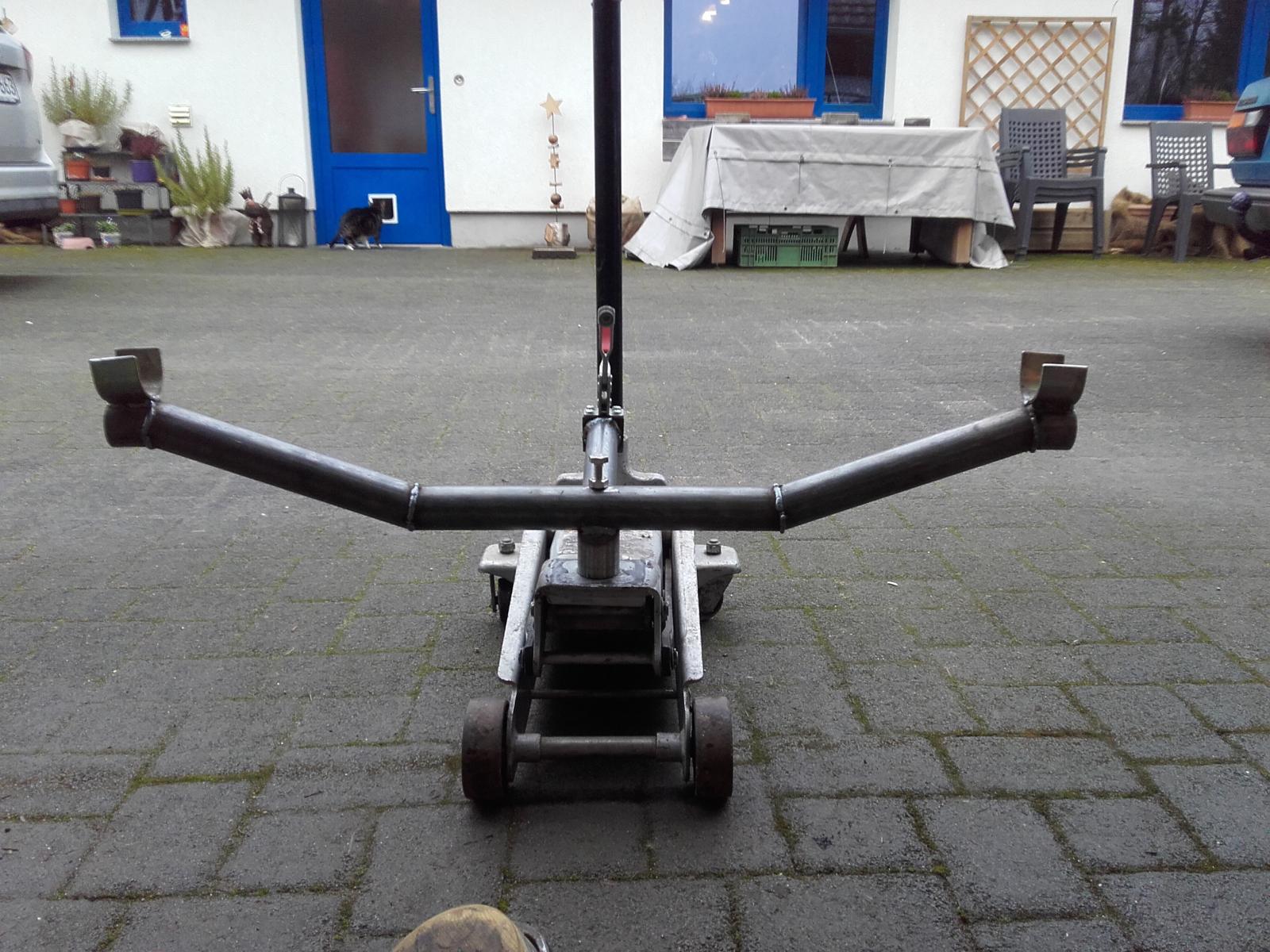

This was one of the tools I built in preparation for this build. I used the drawing from the Special Service Tools - Local Manufacture of Tools section on TheSamba. https://www.thesamba.com/vw/archives/info/local_manufacture.php

I took the freedom to adapt the design to my technical capabilities and made it fit to my floor jack.

You can see the other tools I made on page one of this build thread.
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
chrisflstf
Samba Member


Joined: February 10, 2004
Posts: 4216
Location: San Diego
chrisflstf is offline

PostPosted: Mon Nov 27, 2023 12:30 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Do you have any other pics of the jack adapter that hokds the axle tubes up?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Mon Nov 27, 2023 11:27 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

I have an update on this thread.

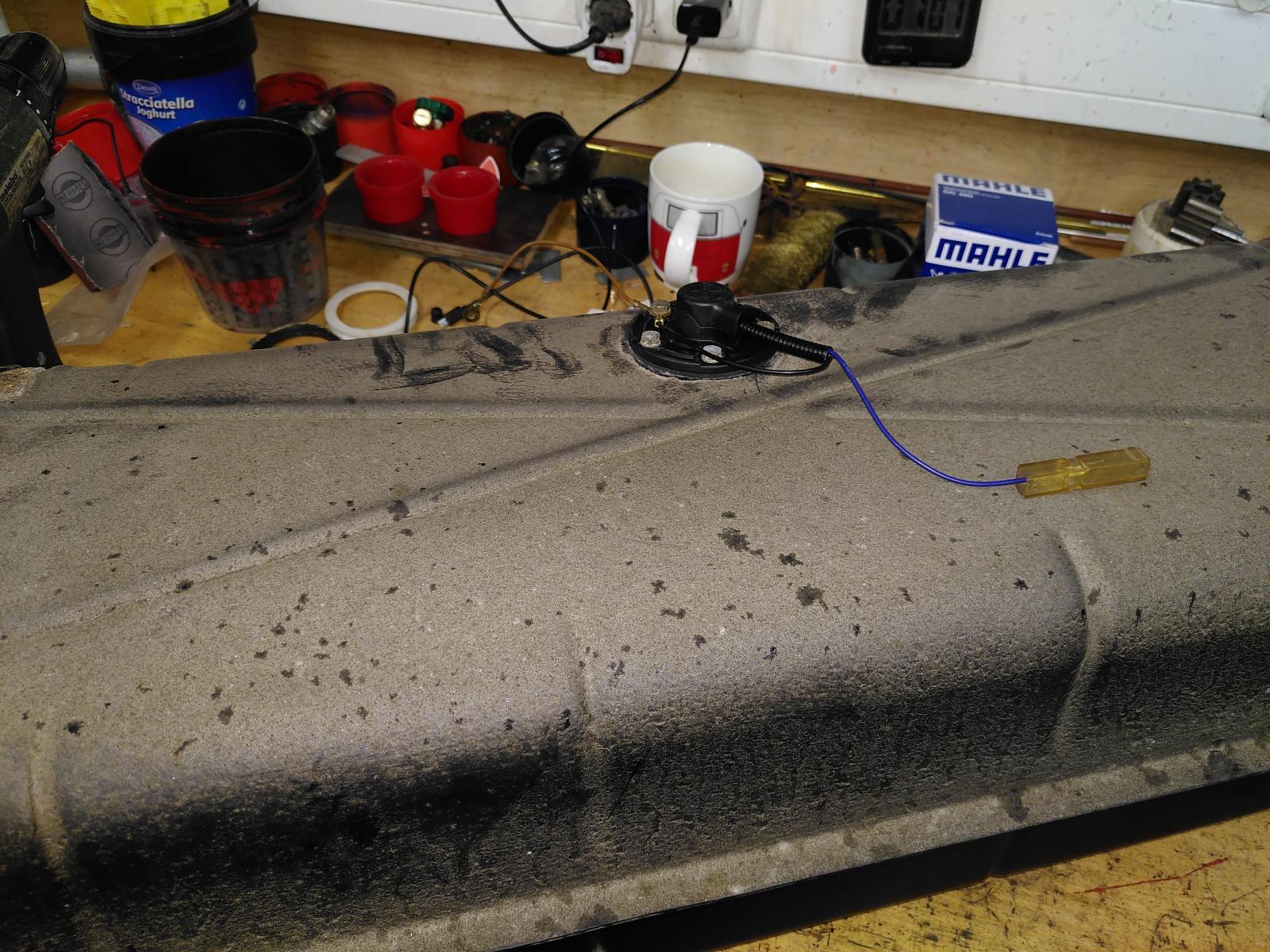

I had to reseal the transmission and replace the fuel sender. The new Brazilian VDO sender is crap and the needle of the instrument was showing only intermittently what the fuel level was.

I upgraded to this nice and shiny Kienzle-VDO unit which is meant for use in boats. It has the same mounting and a slightly different ohm range (90 - 4 ohms) and the original had something like (75 - 4 ohms). I am using a 430ohm resistor in parallel to make up for the difference.

The new sender can be found here: https://vdo-webshop.nl/nl/54mm-brandstof-buis-sens...26321.html

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

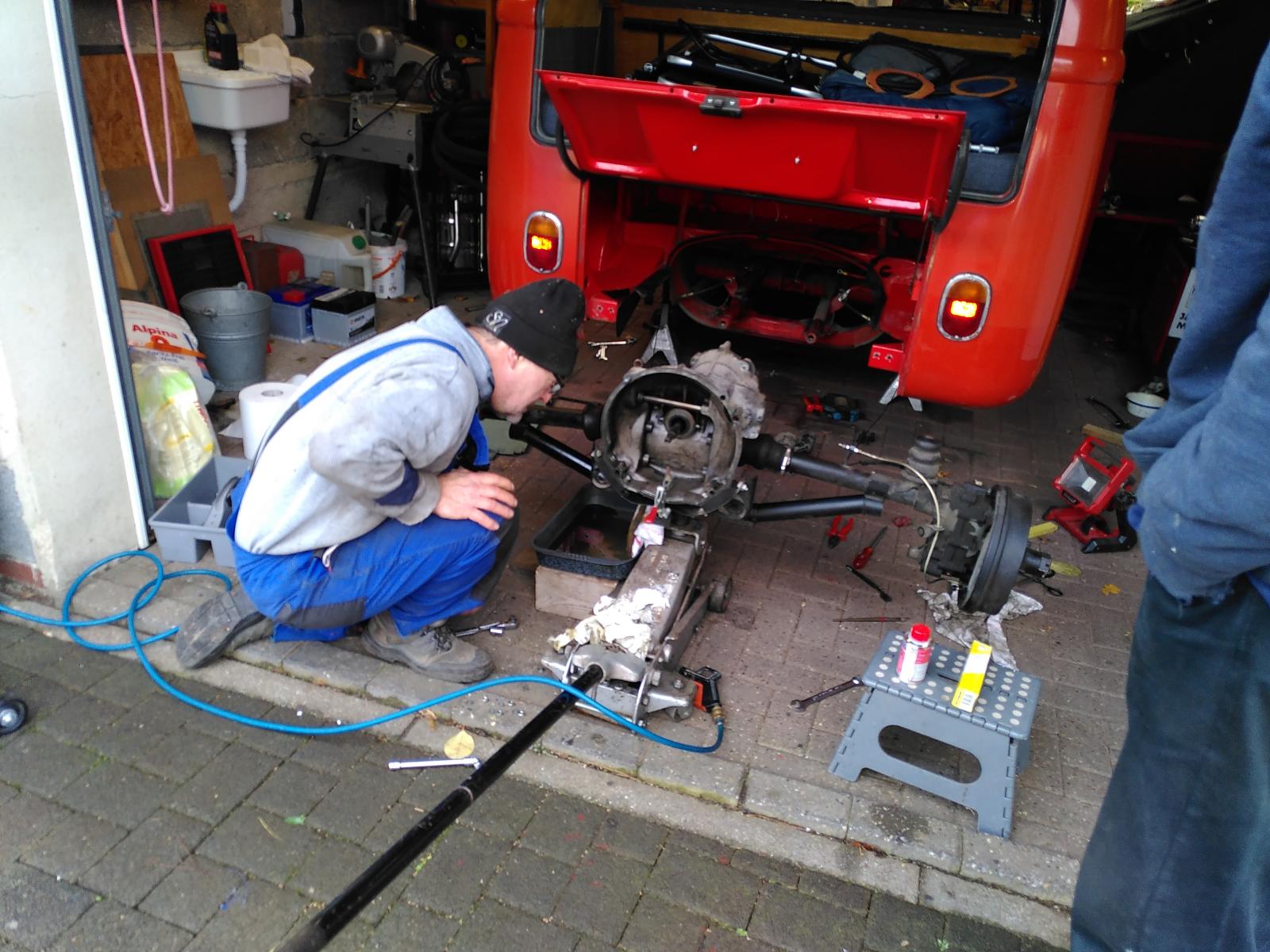

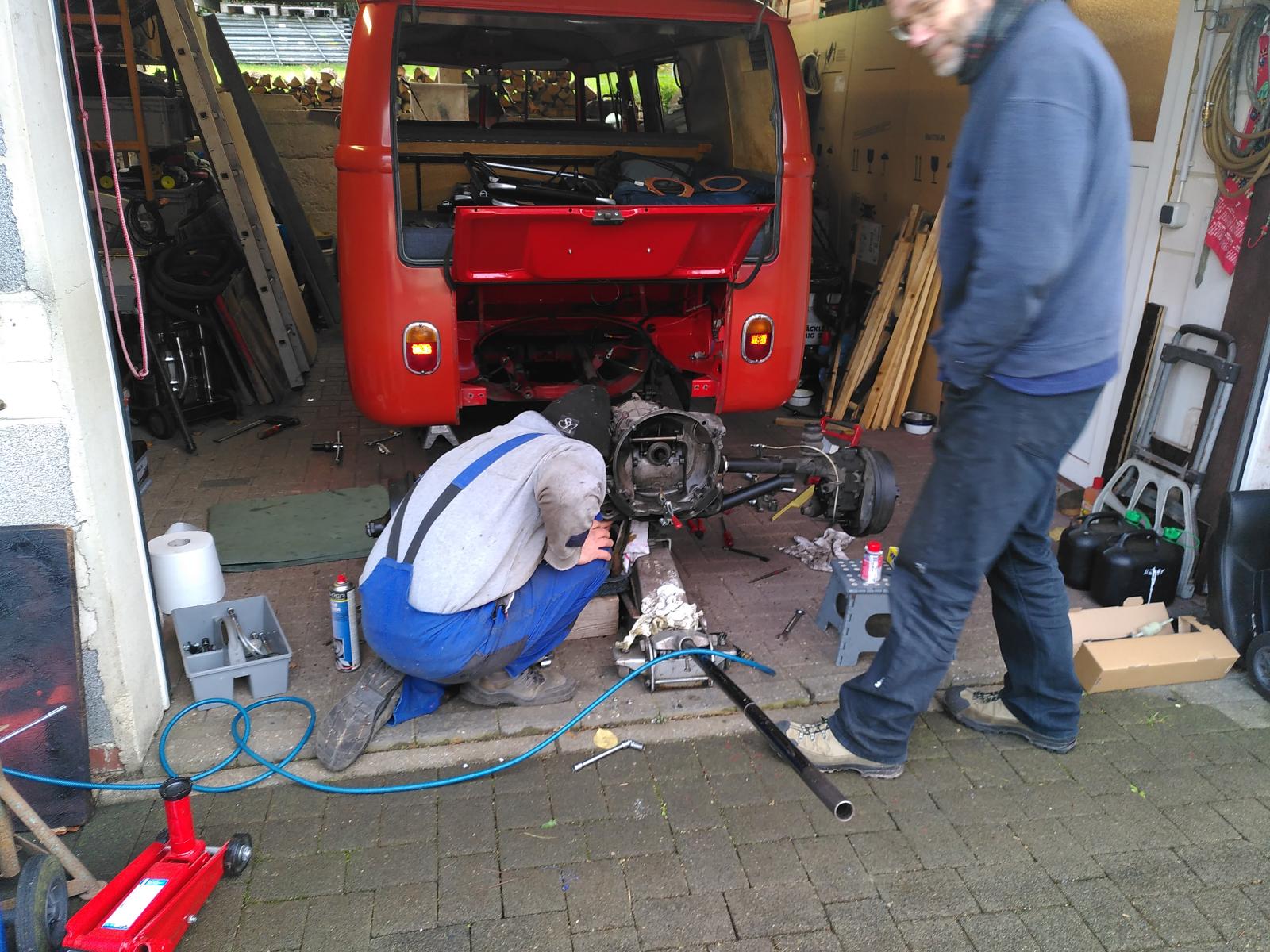

Pulling the tranny and resealing it:
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
[
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Thu Oct 19, 2023 10:12 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Hi Nick,

I think I figured most of it out, but I couldn't try it out because I had converted my bus to 12V and the black box and the horns are 6V.

I am working on restoring a 63 Type3 that will keep the 6V. Once I get a battery for that I can test the system.

But, I can see if I can find my notes and then post them here.
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KOMBI NIKO
Samba Member


Joined: February 03, 2013
Posts: 323
Location: Australia
KOMBI NIKO is offline

PostPosted: Thu Oct 19, 2023 2:21 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Just when though all the pics, amazing resto mate, did you ever get the diagram for the sirens and lights? I have the big black box for my ambulance but have no idea how to wire them up.
Nick.
_________________
https://www.instagram.com/demop_vw_garage/

https://www.facebook.com/Demopgarage/

https://www.youtube.com/@Demop_VW_garage

61 Microbus
63 Aussie single cab
52 factory ambulance
57 beetle
Back to top
View user's profile Send private message Facebook Instagram Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 22681
Location: Escondido CA
notchboy is offline

PostPosted: Wed Nov 23, 2022 5:22 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Great trip and pictures! Thanks for sharing!! Cool
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
srfndoc
Samba Member


Joined: August 21, 2010
Posts: 3410
Location: SoCal
srfndoc is online now

PostPosted: Wed Nov 23, 2022 1:57 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Great pictures, thanks for posting.
_________________
RPM=(MPH*336* (R&P*4th*1.26))/Tire Diameter in inches
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Wed Nov 23, 2022 12:59 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

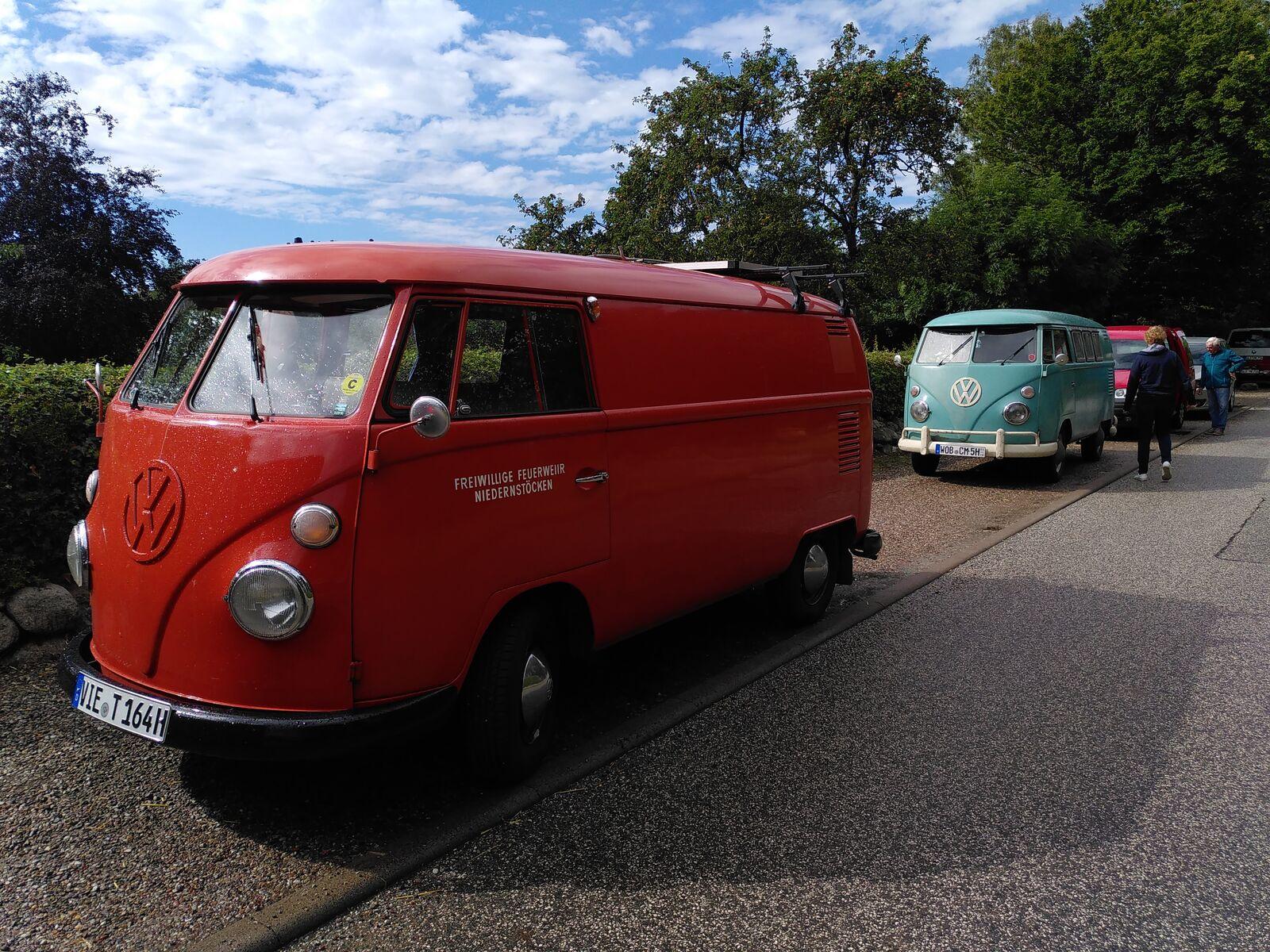

This years travels took me and my bus to Sweden and France

I spent my summer vacation n Sweden with some VW friends and met a bunch of Swedish VW enthusiasts.

I drove up through northern Germany, Denmark and the by Ferry to Sweden.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


A fire engine museum
Image may have been reduced in size. Click image to view fullscreen.


Drove hundreds of mile on dirt roads
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Beautiful camp spots
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Met other VW
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Early October I drove all the way to Lapalisse in France for this years edition of the recreation of the historic traffic jam. Up until the highway was built in the mid 60ies a gigantic traffic jam would build up when the Parisians took off on vacation towards the Mediterranean. This traffic jam is recreate every two years with historic vehicles. Lots of people get all dressed up in period clothing and drive around town with anything that moves.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
andybla
Samba Member


Joined: March 03, 2014
Posts: 635
Location: BE
andybla is offline

PostPosted: Thu Dec 16, 2021 2:35 pm    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Yes! Let’s grab a drink then Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mdege
Samba Member


Joined: January 16, 2018
Posts: 1099
Location: Niederkruechten, Germany
mdege is offline

PostPosted: Thu Dec 16, 2021 12:11 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Thank you Andy.

I hope to see your 66 Square someday, maybe in Spa?
_________________
- Michael

1965 21F: Restoration of a former '65 firetruck
1963 Typ3 Notchback project
1988 Multivan Magnum 112i
1984 Standard: My son wanted a bug for his first car
Back to top
View user's profile Send private message Gallery Classifieds Feedback
andybla
Samba Member


Joined: March 03, 2014
Posts: 635
Location: BE
andybla is offline

PostPosted: Wed Dec 15, 2021 9:38 am    Post subject: Re: Restoration of a former '65 firetruck (21F) Reply with quote

Hi Michael,

Just found this topic and read through it, very nice work you have don creating your own tools and saving the bus! Very nice to see you also using brantho Cool
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6, 7, 8, 9  Next
Page 1 of 9


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2025, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
