| Author |
Message |
patna
Samba Member
Joined: October 14, 2007
Posts: 13
Location: Los Angeles
|
 Posted: Thu Dec 20, 2007 6:28 pm Post subject: Mercedes ML320 rims |
 |
|
| Hullo , I picked up a set of 16x8 ET62 rims last night and am off to Fred Goeske tomorrow for a set of adapters . The tires are 255/65 . Anyone rolling on these ? The Mercedes # is 1634010202 . They are five spoke , kinda like Range Rover wheels . Am I way off on these ? I spent $150 on them so they can always return to Craigslist . Any input ? Thanks , Julian[/img]http://www.mercedesforum.com/upfiles/20964/2C3A9A93682645F68828CB2983660C36.jpg[img][/img] |
|
| Back to top |
|
 |
Christopher Schimke
Samba Member
Joined: August 03, 2005
Posts: 5549
Location: PNW
|
| Posted: Thu Dec 20, 2007 8:26 pm Post subject: |
|
|
Are you putting them on a 2wd or a Syncro?
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)
*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected] |
|
| Back to top |
|
|
patna
Samba Member
Joined: October 14, 2007
Posts: 13
Location: Los Angeles
|
| Posted: Thu Dec 20, 2007 8:37 pm Post subject: |
|
|
| On my 86 syncro . I hope . |
|
| Back to top |
|
|
hiram6
Samba Member
Joined: September 29, 2006
Posts: 1880
Location: Beautiful South
|
| Posted: Thu Dec 20, 2007 9:33 pm Post subject: |
|
|
Fixed it for ya.
_________________
1985 Westy, 1.9L automatic (Daisy)
1996 Mazda Miata
1998 Jeep Grand Cherokee 5.9 Limited
You can't lie around on the beach and drink rum all day.................unless you start first thing in the morning. |
|
| Back to top |
|
|
patna
Samba Member
Joined: October 14, 2007
Posts: 13
Location: Los Angeles
|
| Posted: Thu Dec 20, 2007 9:39 pm Post subject: |
|
|
| Thanks Hiram ! |
|
| Back to top |
|
|
doublez72
Samba Member
Joined: April 24, 2007
Posts: 37
Location: Bristol, VA
|
| Posted: Thu Dec 20, 2007 9:41 pm Post subject: So these will work on a Syncro also? |
|
|
thanks,
Joe
_________________
1989 Vanagon Syncro |
|
| Back to top |
|
|
goffoz
Samba Member
Joined: May 09, 2007
Posts: 1486
|
| Posted: Thu Dec 20, 2007 9:42 pm Post subject: |
|
|
A local guy here runs those on a syncro doka
the adapters are fairly large
http://primafoundry.com/cars/Doka%20SVX.htm
but they seem to work OK...I've driven it. and it feels fine
Owen |
|
| Back to top |
|
|
patna
Samba Member
Joined: October 14, 2007
Posts: 13
Location: Los Angeles
|
| Posted: Thu Dec 20, 2007 10:00 pm Post subject: |
|
|
Excellent Owen . These are the folks that I will visit tomorrow about the adapters then ...http://www.wheeladapter.com/contact_us.asp
Thanks all . |
|
| Back to top |
|
|
Christopher Schimke
Samba Member
Joined: August 03, 2005
Posts: 5549
Location: PNW
|
| Posted: Thu Dec 20, 2007 10:05 pm Post subject: |
|
|
I just installed a set of those onto a Syncro a couple of weeks ago. We used a 30mm adapter which put the effective offset at 32mm. The tires were 225/75/16 Kumho MT KL71. There was zero room between the end of the lugs on the tire and the rear control arm so we had to clearance that. The inner sidewall of the tire was very close too but not close enought to warrant clearancing anything. The sliding door just rubs on the tire but there is about 7mm clearance to the wheel when the door is fully open.
At the front, we had about 4mm between the tire and the upper control arm. The Syncro mini mudflaps had to be severly trimmed so the tires didn't rub on them while turning.
Overall, the 30mm adapters couldn't have been more perfect for this application. The stock Syncro steel wheel ball lug nuts seat perfectly into the ML lug seats.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)
*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected] |
|
| Back to top |
|
|
patna
Samba Member
Joined: October 14, 2007
Posts: 13
Location: Los Angeles
|
| Posted: Thu Dec 20, 2007 10:23 pm Post subject: |
|
|
| So Chris , where did you find the adapters ? Perhaps a 225/70 or 65 would clear the control arm ? Great the sliding door clears . I don't think my lug nuts are standard , I am running a mesh wheel like an 80's BMW right now . Thanks again , Julian . Also plus , I will be running a more street tire than a mudder . I am going to Google those Kumhos all the same . |
|
| Back to top |
|
|
patna
Samba Member
Joined: October 14, 2007
Posts: 13
Location: Los Angeles
|
| Posted: Thu Dec 27, 2007 5:50 pm Post subject: Mounted not rubbing ! |
|
|
| Kevin at the adapter shop hooked me up . We ran a few test fittings and he made up four 1.5" adapters . About 3/8" space to the suspension and the door just clears . Well the door actually touches the tire but not enough to even mark . Thanks to all for the links and especially to Loogy for his profi advice . I had to go local because i was hoping to use the 255/65/16 that the rims came with . I will post an image when the van is shined up . |
|
| Back to top |
|
|
kevtherev
Samba Member
Joined: December 23, 2007
Posts: 897
Location: the 51st state
|
| Posted: Thu Dec 27, 2007 6:06 pm Post subject: |
|
|
Fitted these to mine with 30mm spacers and longer studs
Mk 1 golf centers with Merc outers drilled out..married up with superglue
|
|
| Back to top |
|
|
patna
Samba Member
Joined: October 14, 2007
Posts: 13
Location: Los Angeles
|
| Posted: Thu Dec 27, 2007 6:40 pm Post subject: |
|
|
|
|
| Back to top |
|
|
ckissick
Samba Member
Joined: August 22, 2006
Posts: 498
Location: Bay Area
|
| Posted: Thu Dec 27, 2007 10:38 pm Post subject: |
|
|
| I like those wheels. Loogy, would those fit on my Tristar syncro from Sweden? As a Tristar, it has those plastic fender attachments, and it has Swedish front mud flaps that attach right onto the fender lip. If they fit, can you locate a set for me? |
|
| Back to top |
|
|
patna
Samba Member
Joined: October 14, 2007
Posts: 13
Location: Los Angeles
|
| Posted: Fri Dec 28, 2007 9:59 am Post subject: |
|
|

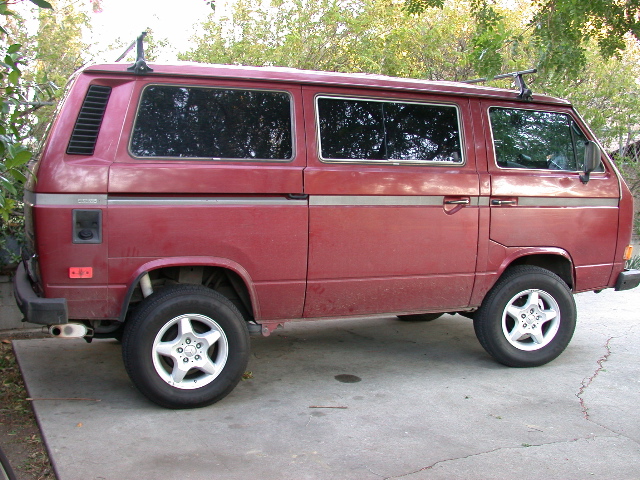

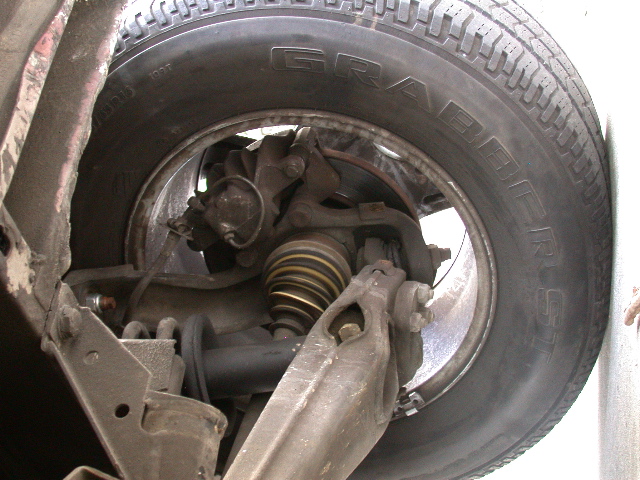

I posted a few more clearance shots in the gallery . I must add that the adapter.com guys in Canoga Park did a stellar job on this . I was dreading the purchase of new rubber in a reduced profile but Kevin , the machinist , pretty much eyeballed it straight away at 1.5" . Then he got out the calipers and started a few test fittings . I am sure that Loogy would have done the same job for me but I couldn't drive that far in an afternoon . The front wheelwells were beaten back by a previous owner , a good thing because I wouldn't do it myself . Something rubs at stuff in the rear ... I believe it is the charcoal filter , I will relocate it . It may have been relocated already when the wbx was changed out to a 3.4 v6 . |
|
| Back to top |
|
|
brooklynvanagon
Samba Member
Joined: September 05, 2007
Posts: 177
|
| Posted: Fri Dec 28, 2007 10:17 am Post subject: |
|
|
[quote="kevtherev"]
Mk 1 golf centers with Merc outers drilled out..married up with superglue
Painted black? I'd love to see some pics of this... |
|
| Back to top |
|
|
toomanyveedubs
Samba Member
Joined: November 26, 2007
Posts: 596
Location: Great White North
|
| Posted: Fri Dec 28, 2007 2:15 pm Post subject: |
|
|
i have a set of these in the attic that i got for $100 2 years ago. where can i get the spacers from? i want to put them on my 2wd doka.
is it better to use adapters rather than spacers?

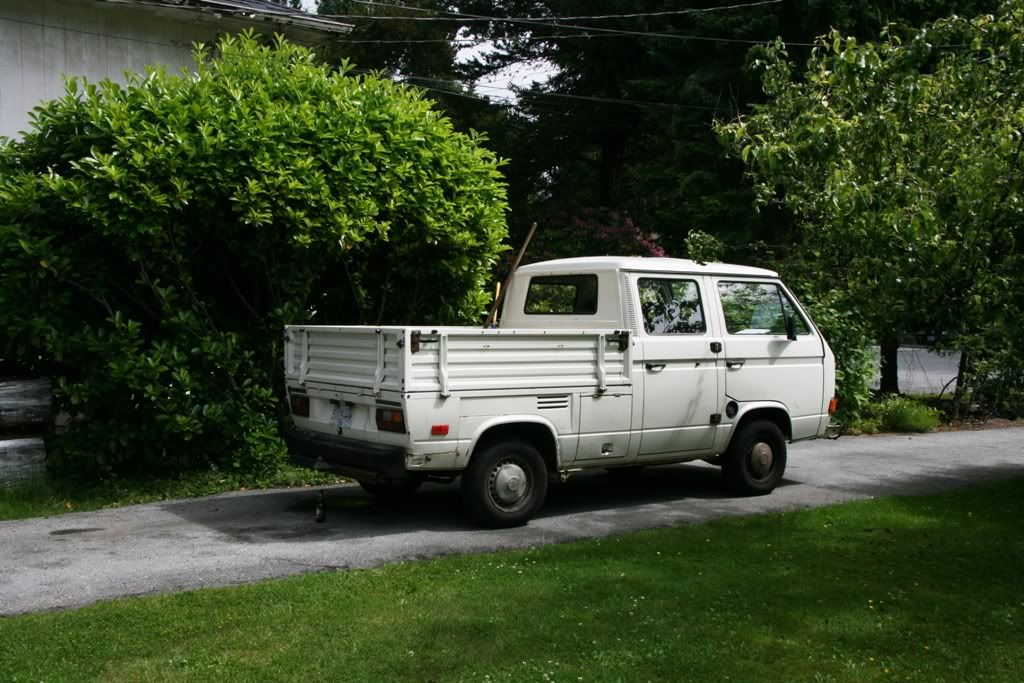

current setup
|
|
| Back to top |
|
|
Raynor Shine
Samba Member
Joined: November 07, 2005
Posts: 552
|
| Posted: Sat Dec 29, 2007 8:37 am Post subject: |
|
|
| Patna- those are sweet. Nice work |
|
| Back to top |
|
|
Christopher Schimke
Samba Member
Joined: August 03, 2005
Posts: 5549
Location: PNW
|
| Posted: Sat Dec 29, 2007 9:19 am Post subject: |
|
|
| ckissick wrote: |
| I like those wheels. Loogy, would those fit on my Tristar syncro from Sweden? As a Tristar, it has those plastic fender attachments, and it has Swedish front mud flaps that attach right onto the fender lip. If they fit, can you locate a set for me? |
I like those wheels on Syncro's too. They seem to fit the T3 achitecture very well.
Will they fit on a Tri-Star with the fender flares? Yes, the wheels will fit just fine. You will have to be a little more careful with your tire selection though. You can see in the above photo that with 255/65's, the front fender opening had to be modified to clear the tire while turning. I would venture to say that if you chose a 225/65, you wouldn't have this problem. I would also stick with the 30mm adapter instead of the 38mm adapter that Patna chose. He chose that thickness simply to be able to run that large tire size. With a narrower tire, you don't need the additional clearance to the suspension. Using the thinner adapter gives you maximum clearance to the fenders.
| toomanyveedubs wrote: |
where can i get the spacers from? i want to put them on my 2wd doka.
is it better to use adapters rather than spacers?
|
I feel that adapters are better in this case for a couple of reasons. One is that you can use the stock length rear wheel studs. The other is that a 30mm thick spacer is huge. With a spacer set-up, by the time you end up buying the spacers, longer front lug bolts and longer rear wheels studs plus the cost of having them installed, the price difference to the adapters is not that much. Plus the adapter set-up is stronger.
Now the problem you are going to have on a 2wd is that the fitment at the front is quite different from that of a Syncro. A 16x8 is not the best fitment on a 2wd because of interference between the wheel/tire and the upper front suspension components.
You would need to run at least a 40mm adapter or spacer to have any clearance at the front suspension. This makes the effective offset 22mm. combine that with a 8" wide wheel and you have a front wheel that is protruding out of the front wheel well.
All of the above is assuming that your particular set of ML wheels are in fact 8" wide. That same style of wheel also came in 16x6.5" with a different offset. The 6.5" width is not nearly as common as the 8" wide wheel. If you do happen to have the 16x6.5" version, let me know as the spacer/adapter thicknesses are quite different.
PM me for more spacer and adapter information.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)
*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected] |
|
| Back to top |
|
|
|
