 Posted: Sun Nov 25, 2012 6:31 am Post subject: Bumper parts |
 |
|
I am not completely sure with bumper bracket is for what years.

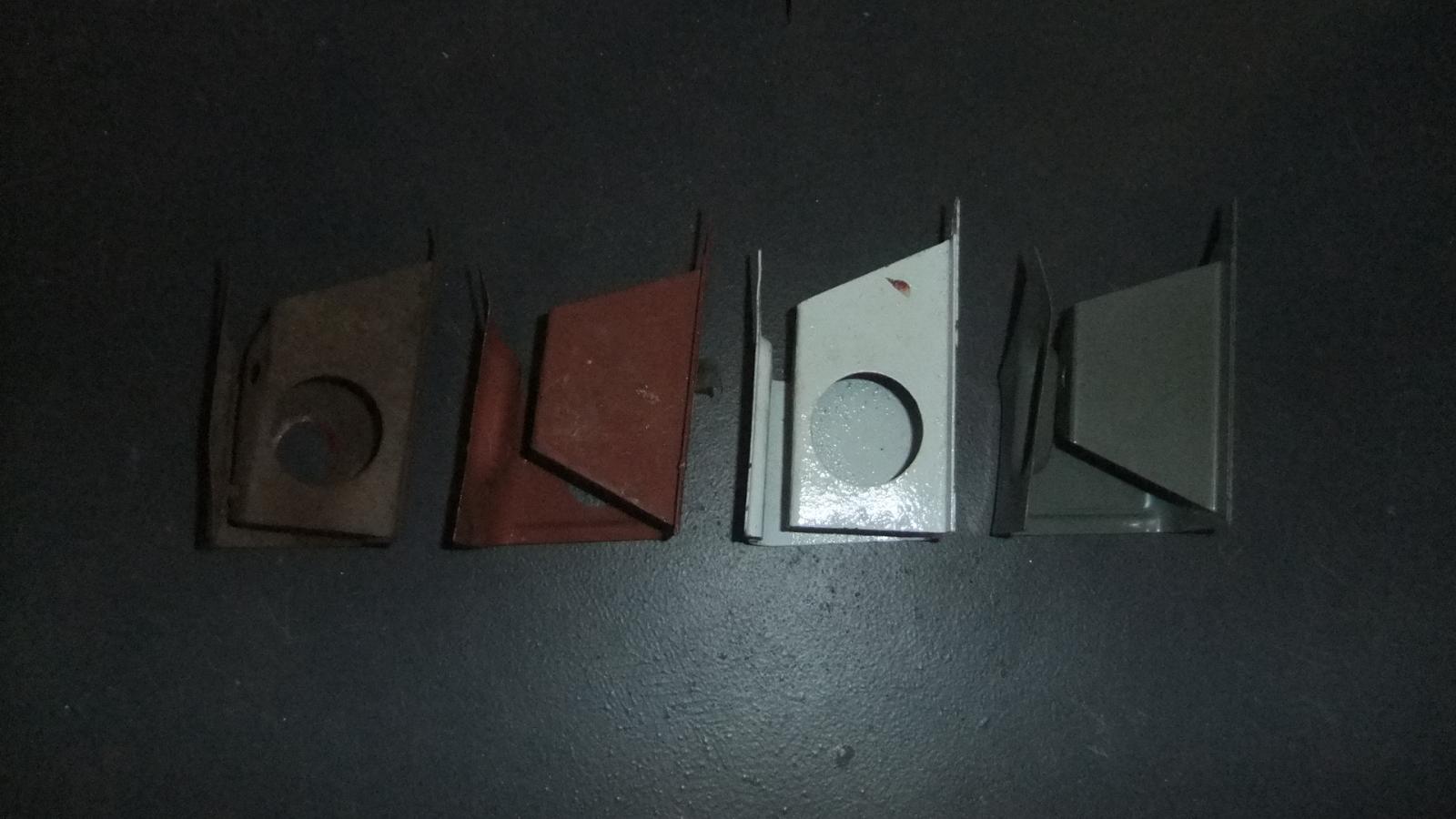

Here is a picture of the 4 different right side front bumper brackerts.
there are partsnumbers 141.707.138, 141.707.138A, 141.707.138B and 141.707.138C
From left to right: I think it is A, C, blank, B ?? (is this correct)
If so, does anyone knowns at what year the bump in the bracket appaired?

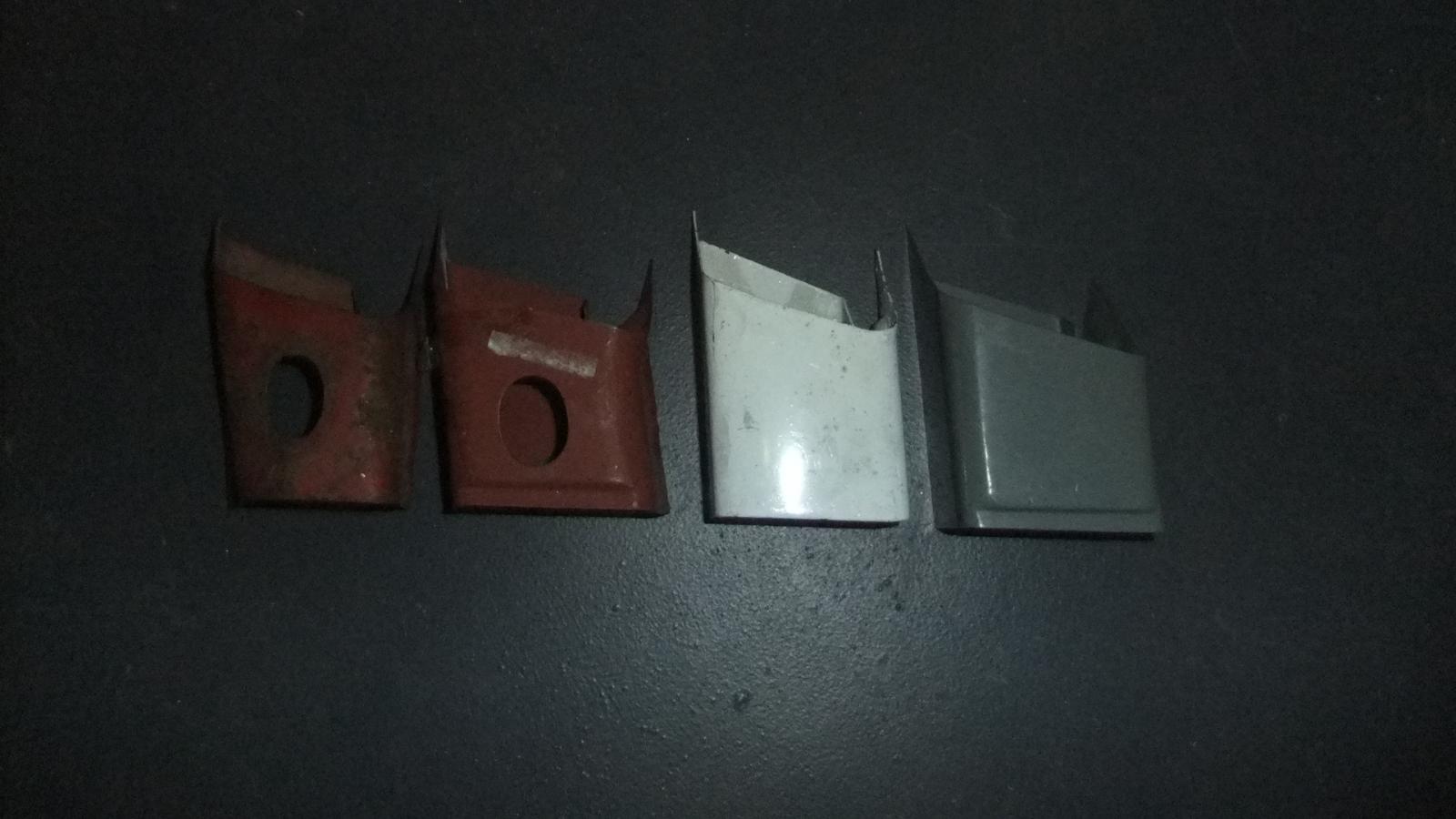

rear side:
From left to right 141.707.338 Blank and 141.707.338A?
Last question:
These are part number 141 707 121
Does anyone knows between these two (early style vs later style, fornt vs back??)
_________________
Dutch Karmann-Ghia and coachbuild lover.
1* Karmann Ghia Coupe (1966 Teak)
2* Karmann Ghia Convertible (1958, 1971)
4* Rometsch Lawrence (nr 534, 555, 558 and 561)
Karmann-Ghia Lowlight page and registry
Karmann-Ghia Collectibles database |
|
| Back to top |
|
 |
Disc
Samba Member
Joined: September 24, 2009
Posts: 638
Location: Europe
|
| Posted: Sun Nov 25, 2012 10:40 am Post subject: Re: Bumper parts |
|
|
| pbaptist wrote: |
Last question:
These are part number 141 707 121
Does anyone knows between these two (early style vs later style, fornt vs back??)
|
They are all the same, but part in right is with snapped tubular part. That happens all the time - yesterday I disassembles a rusted rear bumper for parts, and that support for bumper blades was in place with snapped tubular part, held by the bolt.
_________________
The glory never gets old, just need new paint.
-------------------------------------------------
Nick |
|
| Back to top |
|
|
Steve22
Samba Member
Joined: March 05, 2004
Posts: 1389
Location: the wild unknown
|
| Posted: Sun Nov 25, 2012 4:16 pm Post subject: Re: Bumper parts |
|
|
[quote="pbaptist"]
it appears to me that you have both front and rear covers in this picture.
the 2 on the left being front and the 2 on the right being rear.
I believe the left ones in each set are the earlier models (I had smooth ones on my '64 coupe at least).
_________________
'65 Karmann Ghia 'vert
'73 Super Beetle
'59 Beetle ragtop
'73 Sunroof Transporter |
|
| Back to top |
|
|
mfitzsimor
Samba Member
Joined: May 09, 2004
Posts: 171
Location: Portland, OR
|
| Posted: Sun Nov 25, 2012 11:20 pm Post subject: |
|
|
My 69 coupe has the smooth style covers. The bumpers and mounts appear to be original.
mark
_________________
portland, or
69 cypress green ghia coupe
82 vanagon TD
86 quantum syncro |
|
| Back to top |
|
|
ernstben
Samba Member
Joined: April 30, 2005
Posts: 622
Location: Manchester, Mi
|
|
| Back to top |
|
|
pbaptist
Samba Member
Joined: January 02, 2005
Posts: 1213
Location: Netherlands
|
| Posted: Mon Nov 26, 2012 8:10 am Post subject: |
|
|
The ones with the holes on top are for the US style bumpers with overrides. The holes are only for the front bumper brackets.
@steve22: The rear bumper brackets have a different shape. You can see those in my second picture.
The big question is at what year the smooth style bumper brackets were changed to the brackets with the bump for the bumper.
Patrick
_________________
Dutch Karmann-Ghia and coachbuild lover.
1* Karmann Ghia Coupe (1966 Teak)
2* Karmann Ghia Convertible (1958, 1971)
4* Rometsch Lawrence (nr 534, 555, 558 and 561)
