1st Tune up attempt

[Ltcjc754]

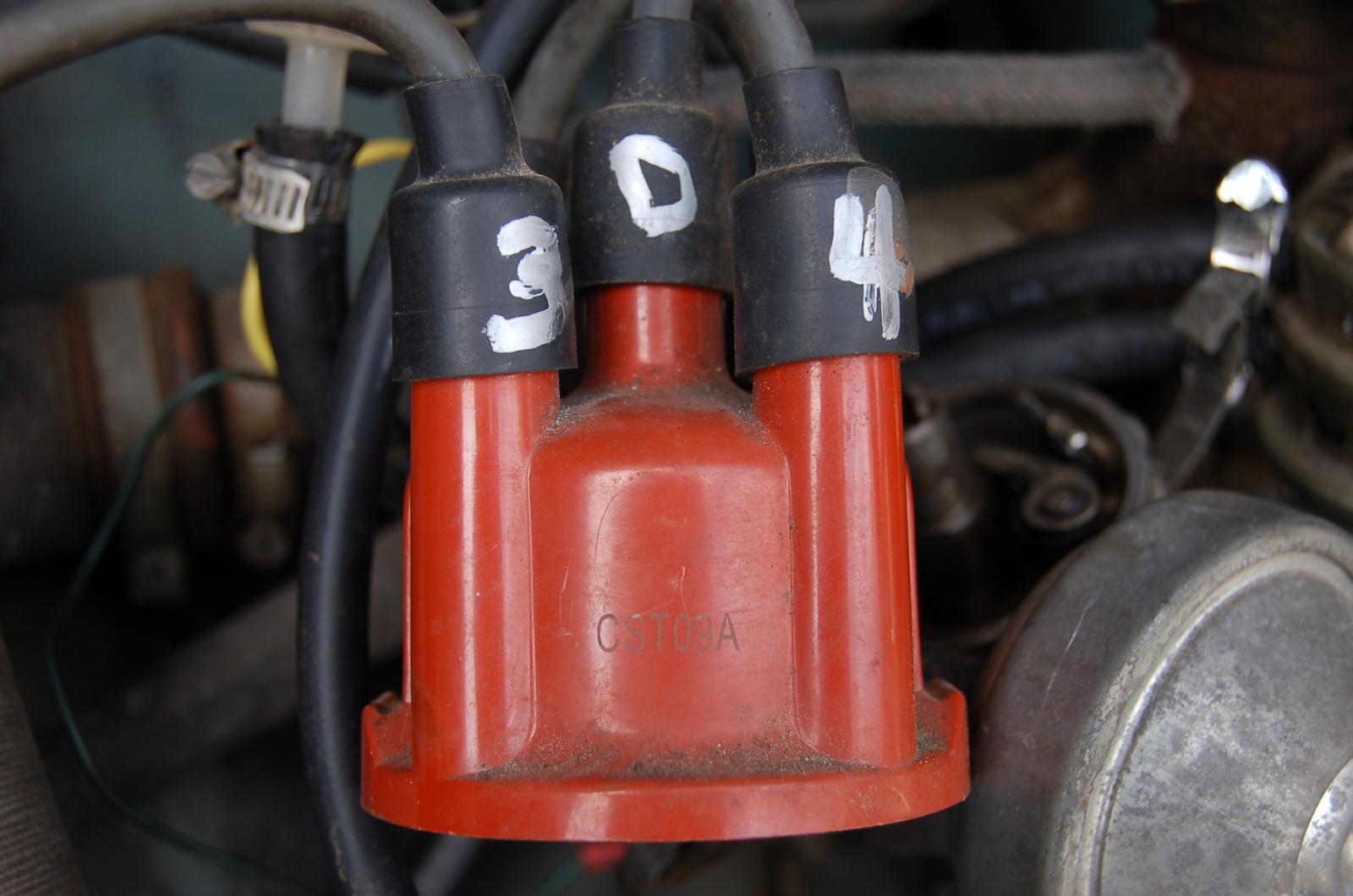

I'm attempting my 1st tune up of my '75 SB (PO swapped out FI for a 1300cc carb engine) I'm looking to ID my Distributor for points and condenser. The only ID stamped on the Dist. Cap is CST09A, it has two (2) vacuum lines going to the advance can. Any assistance is welcomed. Pics included. Thanks

[mukluk]

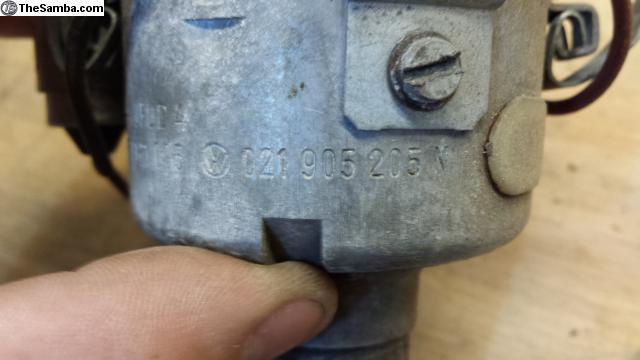

Two vacuum lines running to the vacuum can means it's a DVDA distributor. All DVDA distributors used the same points, Bosch part number 01011, and they'll use either an 02054 or 02074 condenser. The distributor model number will be stamped into the aluminum body similar to the one pictured below. The markings on the cap aren't useful to determine what specific model you have.

_________________
1960 Ragtop w/Semaphores "Inga"

[tasb]

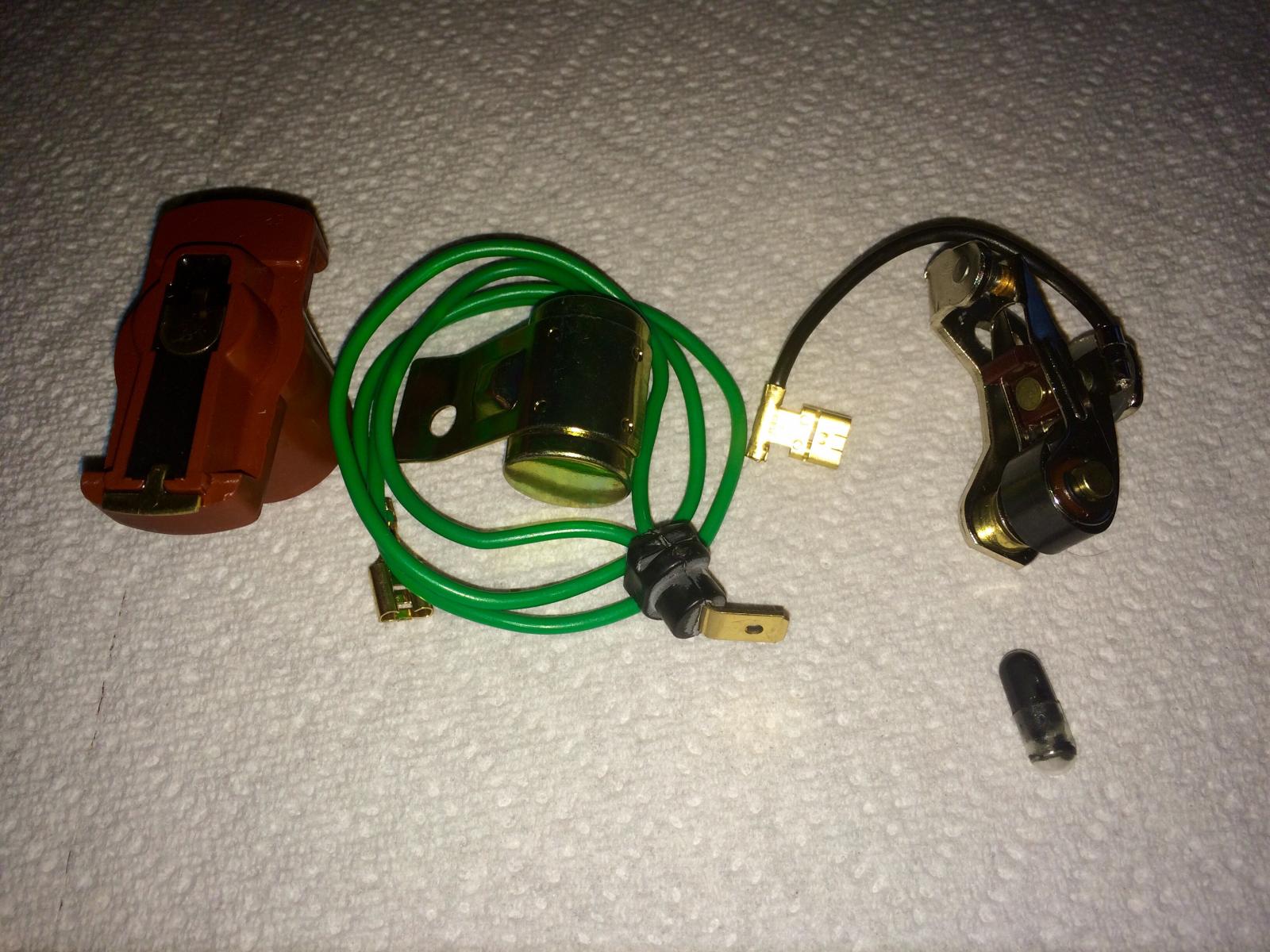

Visually the look like this:

https://www.thesamba.com/vw/gallery/pix/1279798.jpg
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018

1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc

1961 (October)Single Cab- Road Trip Workhorse

Member# 2059

[ashman40]

Once you ID your distributor model# from the stamping in the body, you can look up the Bosch part#s for consumable parts (eg. cap, rotor, points, condenser).
https://www.thesamba.com/vw/archives/manuals/Bosch_Tune_Up_Parts/Bosch_Tune_Up_Parts.pdf

You can also look up the distributor model# here where the part#s and timing specs are also given:
www.type2.com/~keen/ignition.html


Be sure to set your ignition timing based on the distributor installed and not the spec for your model year (unless still have the original parts). The model year/transmission timing spec assumes you have the original distributor and carb that the car left the factory with. Many Beetles no longer have the original parts.
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!}

[Ltcjc754]

Thanks to one and all. I'll be pulling the distributor tomorrow to find the serial #.

[jay64]

You don’t have to pull the distributor. It’s stamped on the side of it.
_________________
'76 BUG 2054cc

[67rustavenger]

That cap has a NAPA part number on it. I have a set of points on my table that starts with "CS" on the part number.
Also, don't throw away the condenser if the engine was running well. The new ones today are hit and miss on quality. Keep the old one as a spare. You never know when you might need it. In a pinch!

Good Luck
_________________
I have learned over the years.
Cheap parts are gonna disappoint you.
Buy Once, Cry Once!

There's never enough time to do it right the first time. But there's always enough time to do it thrice.
GFY's Xevin and VW_Jimbo!
2003 Astrovan? GFYS again, Xevin!
Don't let your bad ideas remain, ideas!

[Ltcjc754]

Thanks, Ashman, etal, I found the Mod# (had to use a mirror and read it backward) on the Dist. went to the listed site and have all the info needed to get a tune up kit. Thanks again to all.
