Rear Bearing Assembly?
Page: 1, 2, 3  Next
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
midnyter
Samba Member


Joined: July 02, 2004
Posts: 98
Location: Montebello, CA
midnyter is offline

PostPosted: Tue Apr 26, 2005 5:01 pm    Post subject: Rear Bearing Assembly? Reply with quote

ok ive been working on this for a couple of days, i had to replace the axle and had problems taking out the old bearing well thats all done now and im installing the new bearings and i forgot how it all goes back together i took a pic of what i have.. if im missing any of it please let me know i havent put it all together but from what i think i can remember it goes 2-3-6-4-1 from the axle tube to the drum, i dont remember pulling any rubber o-rings out when i took it apart but that came in the kit of seals and gaskets for the axle so i dont know where they go..

Image may have been reduced in size. Click image to view fullscreen.

_________________
1964 Bug "Christine"
R.I.P. 1964-2006
Whyyyyyyyyyyyyy?
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
hazetguy
Samba Member


Joined: April 06, 2001
Posts: 10308
Location: unavailable at this time
hazetguy is offline

PostPosted: Tue Apr 26, 2005 6:03 pm    Post subject: Reply with quote

#2 goes on the axle first, behind the bearing. it should have a tapered inside, and that goes up against the axle. the flat side is what hits the bearing. you'll know if this is on wrong, because the spacer will not butt up to the axle and there will be a space between it and the axle.
then #6 bearing goes on.
then #4 ring goes on the axle, against the bearing.
then #5 o-ring goes on the axle, up against #4. make sure the o-ring is not twisted.
?? there may be a paper gasket between the bearing housing and the backing plate, behind the backing plate.
(backing plate goes on, maybe here)
?? i think there should be a paper gasket installed before the #7 o-ring. don't use silicon on the gasket, use gaske sealant like gaska-sinch or permatex high-tack.
#7 goes around the bearing.
#3 spacer goes inside the bearing housing with seal (#1) with the tapered side, the side showing in the pic, facing the bearing. lightly oil the lip of the seal and the spacer before installing it in the seal. slide all that on as a unit (the bearing housing and spacer) with the drain hole (you did clean that out, right?) facing downwards, making sure the spacer does not pop out of the seal and that the spring in the seal does not pop out.
torque the 4 retaining bolts.
then put the drum on and torque it so squish the #5 o-ring BEFORE adding gear oil.

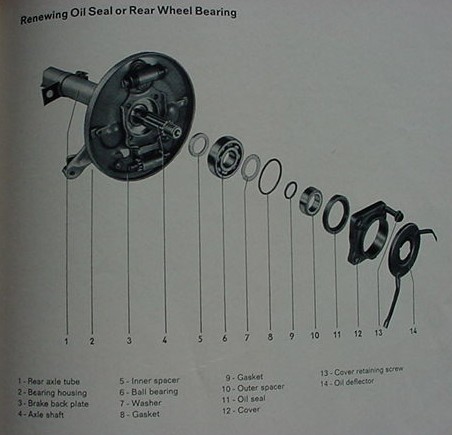

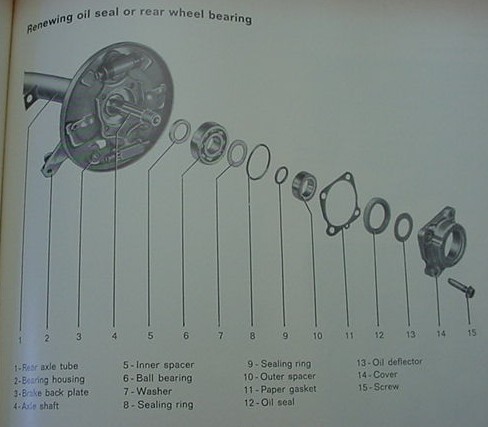

i took this pic out of a service manual, based on the type of bearing cover you have. hope it helps.
Image may have been reduced in size. Click image to view fullscreen.

_________________
Your crystal ball ain't so crystal clear

Parts and mechanical restoration services available. I restore and rebuild fuel pumps, distributors, spindles, etc.
Check my ads or send a PM.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
midnyter
Samba Member


Joined: July 02, 2004
Posts: 98
Location: Montebello, CA
midnyter is offline

PostPosted: Tue Apr 26, 2005 8:42 pm    Post subject: Reply with quote

thanks bro. i put it all together a lil while ago hoping that i did it right and from your instructions seems like i did.. the only think im missing is #14 in the diagram you have. is this something that i can still buy or NOS only??
_________________
1964 Bug "Christine"
R.I.P. 1964-2006
Whyyyyyyyyyyyyy?
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Tue Apr 26, 2005 8:52 pm    Post subject: Reply with quote

64 dont use no.14 it has a large washer instead which is not shown in his illustration.
_________________
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
hazetguy
Samba Member


Joined: April 06, 2001
Posts: 10308
Location: unavailable at this time
hazetguy is offline

PostPosted: Wed Apr 27, 2005 7:55 am    Post subject: Reply with quote

Bill. i am not much of a type 1 guy, but i posted the pic i did based on his bearing cover. here's a pic of a later style as you describe, but there are differences in the bearing cover shape/design and that oil slinger washer you metnioned, from that of what is pictured in midnyter's original picture. maybe he has an earlier rear end in there?
both pics taken fom VW publications. the first dated 1963, the other one dated 1967 (stating for 1966 and newer vehicles).


Image may have been reduced in size. Click image to view fullscreen.

_________________
Your crystal ball ain't so crystal clear

Parts and mechanical restoration services available. I restore and rebuild fuel pumps, distributors, spindles, etc.
Check my ads or send a PM.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Wed Apr 27, 2005 9:01 am    Post subject: Reply with quote

this one above this post is 67 for sure. no drain tube in brake drum like first picture.
_________________
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
midnyter
Samba Member


Joined: July 02, 2004
Posts: 98
Location: Montebello, CA
midnyter is offline

PostPosted: Wed Apr 27, 2005 9:06 am    Post subject: Reply with quote

I guess i have the later model then also my transmission has the later model throwout bearing. How can i tell what year my trans is from?
_________________
1964 Bug "Christine"
R.I.P. 1964-2006
Whyyyyyyyyyyyyy?
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Wed Apr 27, 2005 9:49 am    Post subject: Reply with quote

serial number on trans case.
_________________
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
79SuperVert Premium Member
Samba Member


Joined: May 31, 2002
Posts: 9757
Location: Elizabeth, NJ & La Isla Del Encanto
79SuperVert is offline

PostPosted: Wed Apr 27, 2005 10:01 am    Post subject: Reply with quote

My 65 doesn't have that "early" oil slinger (#14 in first diagram) and my Bentley manual for 60-65 also doesn't show it for a 65.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OvalWindowBucket
Samba Member


Joined: April 23, 2003
Posts: 694
Location: Reviving my Microbus
OvalWindowBucket is offline

PostPosted: Sat May 17, 2008 5:19 pm    Post subject: Reply with quote

Do the bearing cap retaining bolts require a washer of some sort? I torqued to 43 ft./lbs without washers because it didnt have any when I removed the cap. What type of washer should I get if so? Any M10 washer? Lock washer, wavy washer, or flat washer?


Also, using later brakes on oval axles tube, do I need the oil deflector washer if im not using the oil slinger on the drums?
_________________
Wanted OG Basalt & Silver Beige interior panels for '63 Deluxe
http://www.thesamba.com/vw/classifieds/detail.php?id=1041828
Back to top
View user's profile Send private message Gallery Classifieds Feedback
don.ville
Samba YardMan


Joined: February 07, 2008
Posts: 2560
Location: West Palm Beach, FL
don.ville is offline

PostPosted: Sun Feb 20, 2011 8:45 am    Post subject: Reply with quote

hazetguy wrote:
#2 goes on the axle first, behind the bearing. it should have a tapered inside, and that goes up against the axle. the flat side is what hits the bearing. you'll know if this is on wrong, because the spacer will not butt up to the axle and there will be a space between it and the axle.
then #6 bearing goes on.
then #4 ring goes on the axle, against the bearing.
then #5 o-ring goes on the axle, up against #4. make sure the o-ring is not twisted.
?? there may be a paper gasket between the bearing housing and the backing plate, behind the backing plate.
(backing plate goes on, maybe here)
?? i think there should be a paper gasket installed before the #7 o-ring. don't use silicon on the gasket, use gaske sealant like gaska-sinch or permatex high-tack.
#7 goes around the bearing.
#3 spacer goes inside the bearing housing with seal (#1) with the tapered side, the side showing in the pic, facing the bearing. lightly oil the lip of the seal and the spacer before installing it in the seal. slide all that on as a unit (the bearing housing and spacer) with the drain hole (you did clean that out, right?) facing downwards, making sure the spacer does not pop out of the seal and that the spring in the seal does not pop out.
torque the 4 retaining bolts.
then put the drum on and torque it so squish the #5 o-ring BEFORE adding gear oil.

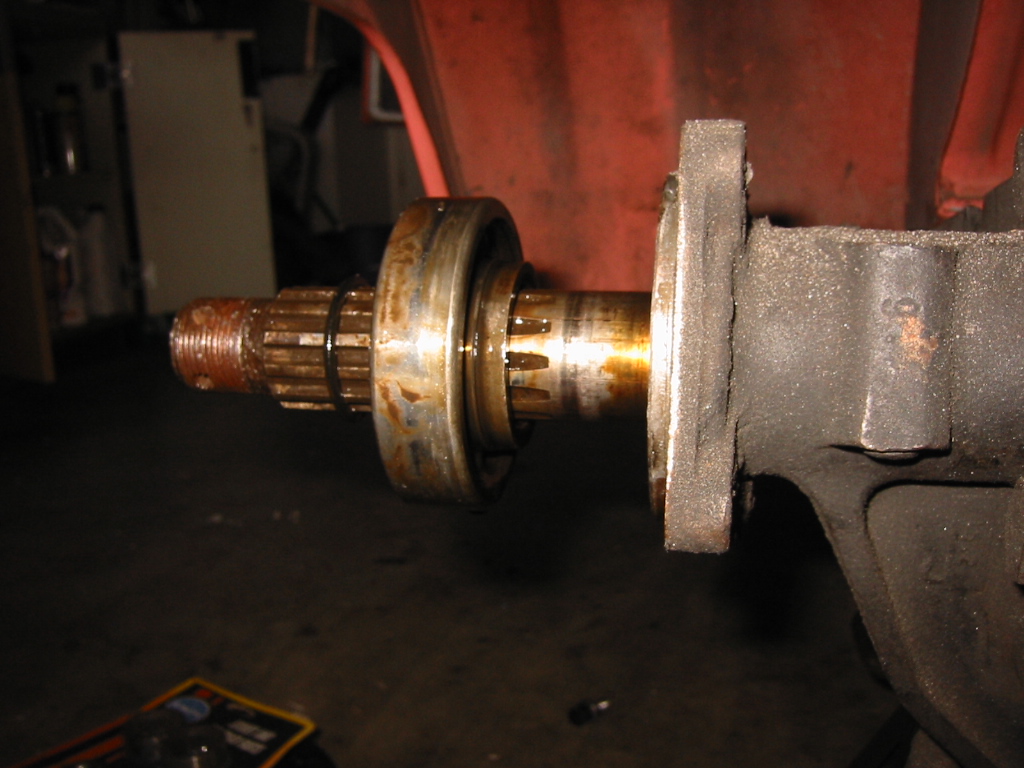

So the #2 on my axle is wrong?
Image may have been reduced in size. Click image to view fullscreen.


I do have some play...
_________________
67 Standard 11 window How I Keep My Bus Alive
04 Jetta TDI Page
01 Mexican Beetle Hello Kitty Rescue (SOLD)
Back to top
View user's profile Send private message Facebook Twitter Gallery Classifieds Feedback
Snort
Samba Member


Joined: April 02, 2005
Posts: 1887
Location: Seattle, WA
Snort is offline

PostPosted: Sun Feb 20, 2011 9:03 am    Post subject: Reply with quote

In your photo, your number 1 is the bearing cap which is the early style. See that small lip pointing up in the photo? That's a drip edge that directs any leaking oil into the #14 oil slinger.

Notice how the main seal comes all the way out to the edge of your bearing cap? Later style caps have extra material there which partially blocks the seal from view. That extra material is like a built-in #14 oil slinger, and along with a giant washer, direct the oil in the new style cap out the back side of the backing plate.

You need, or at least should have the #14 whacky looking oil slinger for your early bearing cap design.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
don.ville
Samba YardMan


Joined: February 07, 2008
Posts: 2560
Location: West Palm Beach, FL
don.ville is offline

PostPosted: Tue Feb 22, 2011 8:35 pm    Post subject: Reply with quote

hazetguy wrote:
#2 goes on the axle first, behind the bearing. it should have a tapered inside, and that goes up against the axle. the flat side is what hits the bearing. you'll know if this is on wrong, because the spacer will not butt up to the axle and there will be a space between it and the axle.
then #6 bearing goes on.
then #4 ring goes on the axle, against the bearing.
then #5 o-ring goes on the axle, up against #4. make sure the o-ring is not twisted.
?? there may be a paper gasket between the bearing housing and the backing plate, behind the backing plate.
(backing plate goes on, maybe here)
?? i think there should be a paper gasket installed before the #7 o-ring. don't use silicon on the gasket, use gaske sealant like gaska-sinch or permatex high-tack.
#7 goes around the bearing.
#3 spacer goes inside the bearing housing with seal (#1) with the ...


I just did this.
I found that the #7 large should not go "around the bearing", but maybe inside the bearing cap (part#1). There is a small groove inside the bearing cap for it.

Small cylinder type spacer
Bearing
Bearing washer in axle seal kit
Small O-ring in axle seal kit

With bearing cap on floor a part number facing down,
Assemble Bearing cap with large flat spacer that looks like a washer
main seal from axle seal kit
Longer big tapered cylinder type spacer
large o-ring

then fit bearing cap unto bearing.
_________________
67 Standard 11 window How I Keep My Bus Alive
04 Jetta TDI Page
01 Mexican Beetle Hello Kitty Rescue (SOLD)
Back to top
View user's profile Send private message Facebook Twitter Gallery Classifieds Feedback
Snort
Samba Member


Joined: April 02, 2005
Posts: 1887
Location: Seattle, WA
Snort is offline

PostPosted: Tue Feb 22, 2011 9:33 pm    Post subject: Reply with quote

I've had these photos sitting around for a while, now's as good a time as any to post them up. These are all Oval axle tube photos, yours will be nearly identical.

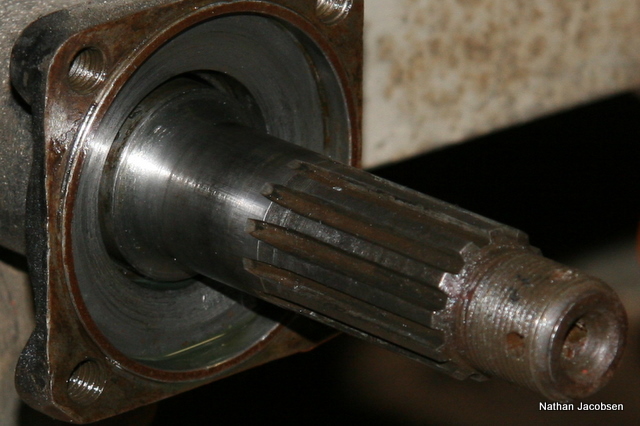

First the bare axle tube bearing recess.
Image may have been reduced in size. Click image to view fullscreen.


Next the inner spacer.
Image may have been reduced in size. Click image to view fullscreen.

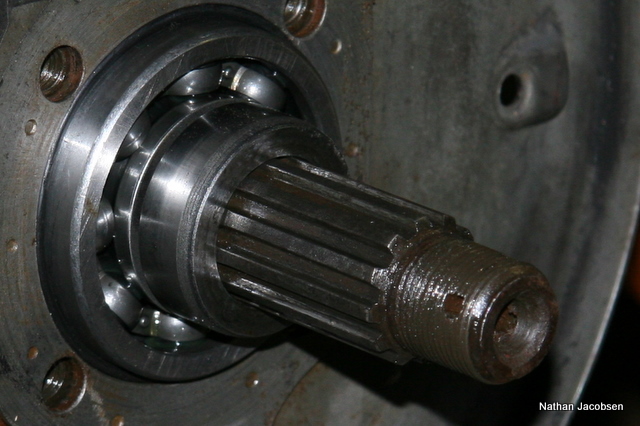

Install bearing by tapping on the inner race.
Image may have been reduced in size. Click image to view fullscreen.


Washer and small O-ring.
Image may have been reduced in size. Click image to view fullscreen.


Outer bearing spacer.
Image may have been reduced in size. Click image to view fullscreen.


Backing plate.
Image may have been reduced in size. Click image to view fullscreen.


Large O-ring, hard to see on the early ones, they sit right in the backing plate space.
Image may have been reduced in size. Click image to view fullscreen.


Paper gasket.
Image may have been reduced in size. Click image to view fullscreen.


Bearing cap with seal installed.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
don.ville
Samba YardMan


Joined: February 07, 2008
Posts: 2560
Location: West Palm Beach, FL
don.ville is offline

PostPosted: Tue Feb 22, 2011 9:45 pm    Post subject: Reply with quote

Hmmmmm....

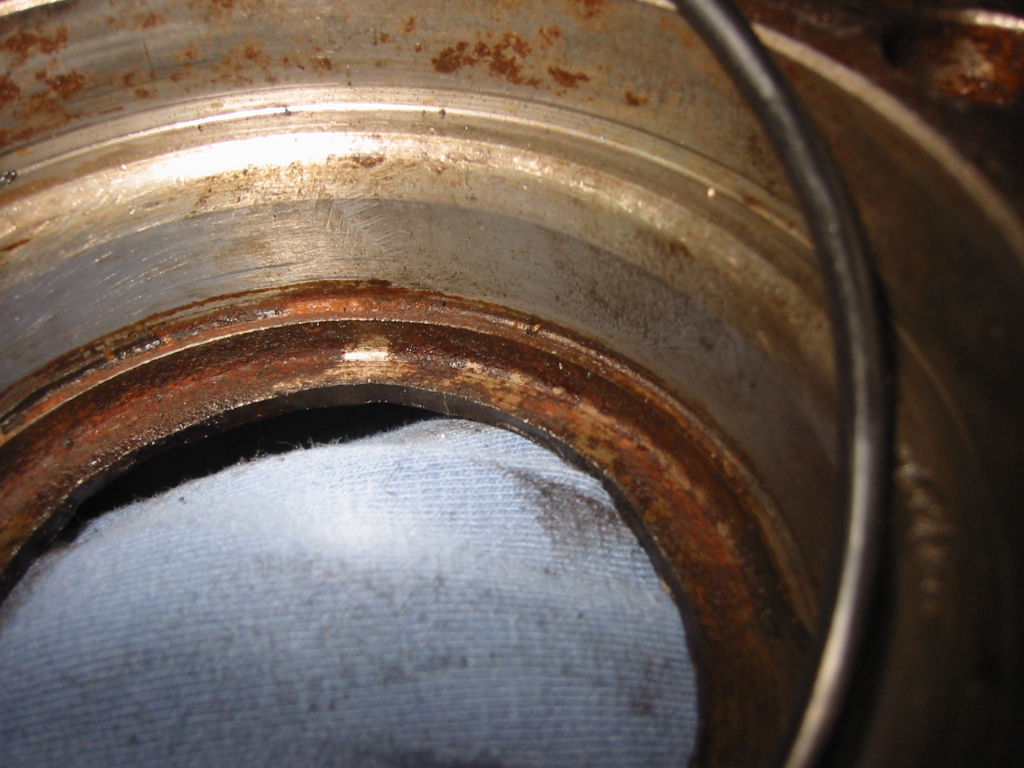

This is what I did on mine....Close up of the groove in the bearing cap that I though was to accept the large o-ring from the axle seal kit
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I put the spacer in the bearing cap before assembly to ensure a good seal without messing up the seal
A clean assembly photo of the bearing cap, seal, spacer, o-ring located in the groove, and high tack gasket sealer to try and keep it dry...
Image may have been reduced in size. Click image to view fullscreen.


Put some high tack sealer on the backing plate too.
Image may have been reduced in size. Click image to view fullscreen.

_________________
67 Standard 11 window How I Keep My Bus Alive
04 Jetta TDI Page
01 Mexican Beetle Hello Kitty Rescue (SOLD)
Back to top
View user's profile Send private message Facebook Twitter Gallery Classifieds Feedback
Snort
Samba Member


Joined: April 02, 2005
Posts: 1887
Location: Seattle, WA
Snort is offline

PostPosted: Tue Feb 22, 2011 9:58 pm    Post subject: Reply with quote

Your large O-ring is in the wrong location. In this drawing, it is number 11.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
don.ville
Samba YardMan


Joined: February 07, 2008
Posts: 2560
Location: West Palm Beach, FL
don.ville is offline

PostPosted: Tue Feb 22, 2011 10:05 pm    Post subject: Reply with quote

Snort wrote:
Your large O-ring is in the wrong location. In this drawing, it is number 11.


Thank you very much for that clarification....
_________________
67 Standard 11 window How I Keep My Bus Alive
04 Jetta TDI Page
01 Mexican Beetle Hello Kitty Rescue (SOLD)
Back to top
View user's profile Send private message Facebook Twitter Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Wed Feb 23, 2011 4:58 am    Post subject: Reply with quote

do not install the washer that comes in todays axle seal kits.
they are too soft and deform causing the small o-ring to leak. assemble without it.#7 in illustration.
_________________
1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tb03830
Samba Member


Joined: December 02, 2009
Posts: 1040
Location: Leavenworth, KS
tb03830 is offline

PostPosted: Wed Feb 23, 2011 12:49 pm    Post subject: Reply with quote

79SuperVert wrote:
My 65 doesn't have that "early" oil slinger (#14 in first diagram) and my Bentley manual for 60-65 also doesn't show it for a 65.


My 64 has the Oil Deflectors. #14
_________________
"Sic Vic Pacem, Para bellum - Pray for peace, prepare for war."

1964 Convertible Bug - 1600cc SP engine with a stock H30/31 Carb and SVDA Distributor - Swing Arm Highway Flyer Tranny, Gene Berg's Temperature Dipstick, 2.5" drop spindles, 2" narrowed adjustable front end. Chromed OEM fan tower.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
don.ville
Samba YardMan


Joined: February 07, 2008
Posts: 2560
Location: West Palm Beach, FL
don.ville is offline

PostPosted: Wed Feb 23, 2011 7:56 pm    Post subject: Reply with quote

bill may wrote:
do not install the washer that comes in todays axle seal kits.
they are too soft and deform causing the small o-ring to leak. assemble without it.#7 in illustration.


IF they deform (get thinner) wouldn't that cause the axle nut to become loose (looser)?

Couldn't I just retighten after 1000 miles or something like that?
_________________
67 Standard 11 window How I Keep My Bus Alive
04 Jetta TDI Page
01 Mexican Beetle Hello Kitty Rescue (SOLD)
Back to top
View user's profile Send private message Facebook Twitter Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
