Posted: Thu Aug 17, 2006 2:40 pm Post subject: Safaris - installing and threaded plate? |
|
|
Hi, I'm installing a original safari on my westy, and I have the following problem.
I'm following the safari window's installation instructions on this link http://66.34.72.138/howto/safari.html and it talks about a "threaded plate", I made one, but is too wide, can someone send me plate's size?
I will appreciate any sugestion about installing safaris and especially installing the "threaded plate"
another question, how big and what's the correct position of the hole I must drill to insert the threaded plate?
Greeting from Argentina
Marcos _________________ 52 Ambulance
57 SC
57 Oval
60 SO23
60 Bug
Last edited by Buba on Sat Aug 19, 2006 6:24 pm; edited 1 time in total |
|
Back to top |
|
|
2true Samba Member
Joined: December 13, 2004 Posts: 1218
|
Posted: Thu Aug 17, 2006 5:15 pm Post subject: |
|
|
A modern day step-by-step installation would be nice..... _________________ AKA Destroyer of the Rants...... |
|
Back to top |
|
|
Metalwizard Samba Member
Joined: October 21, 2003 Posts: 696 Location: Archdale, NC
|
Posted: Thu Aug 17, 2006 6:05 pm Post subject: |
|
|

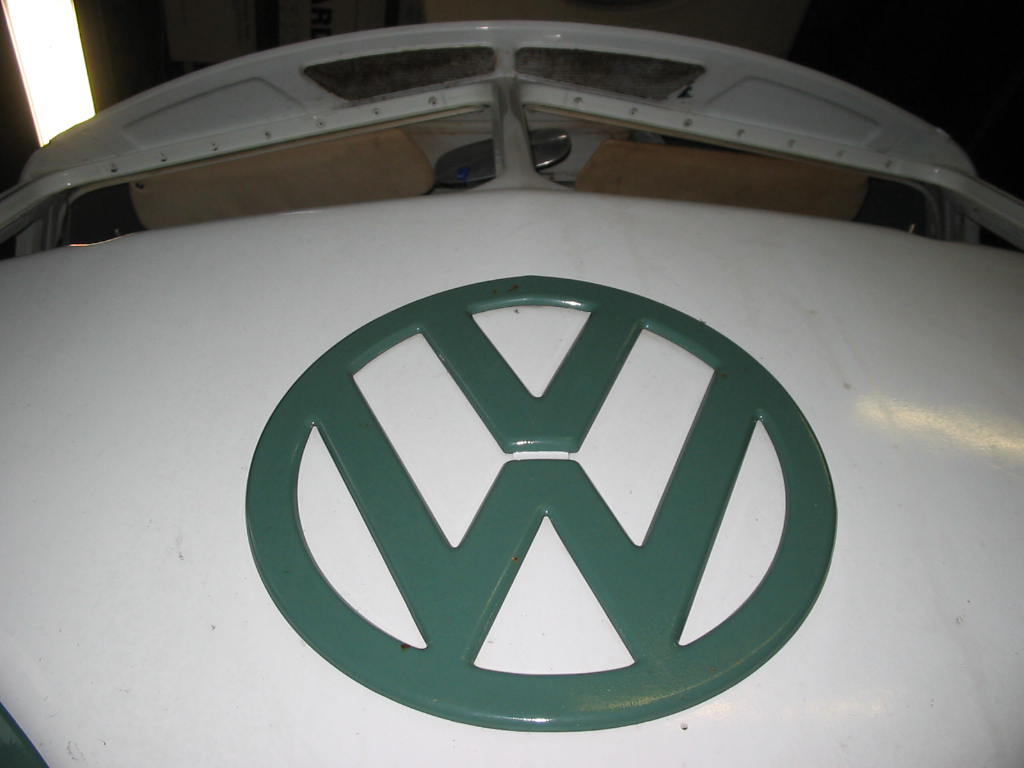

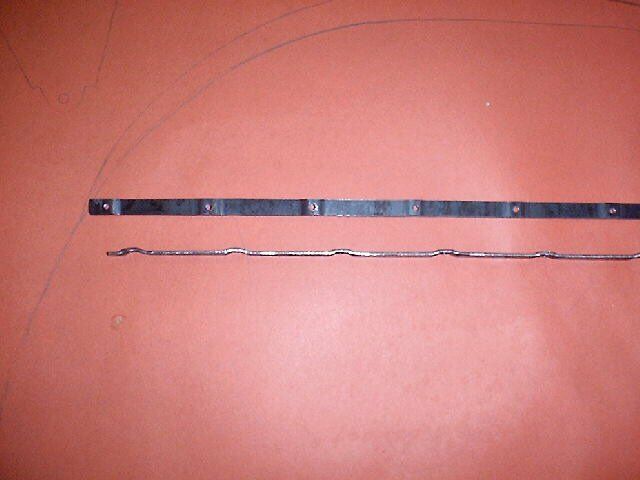

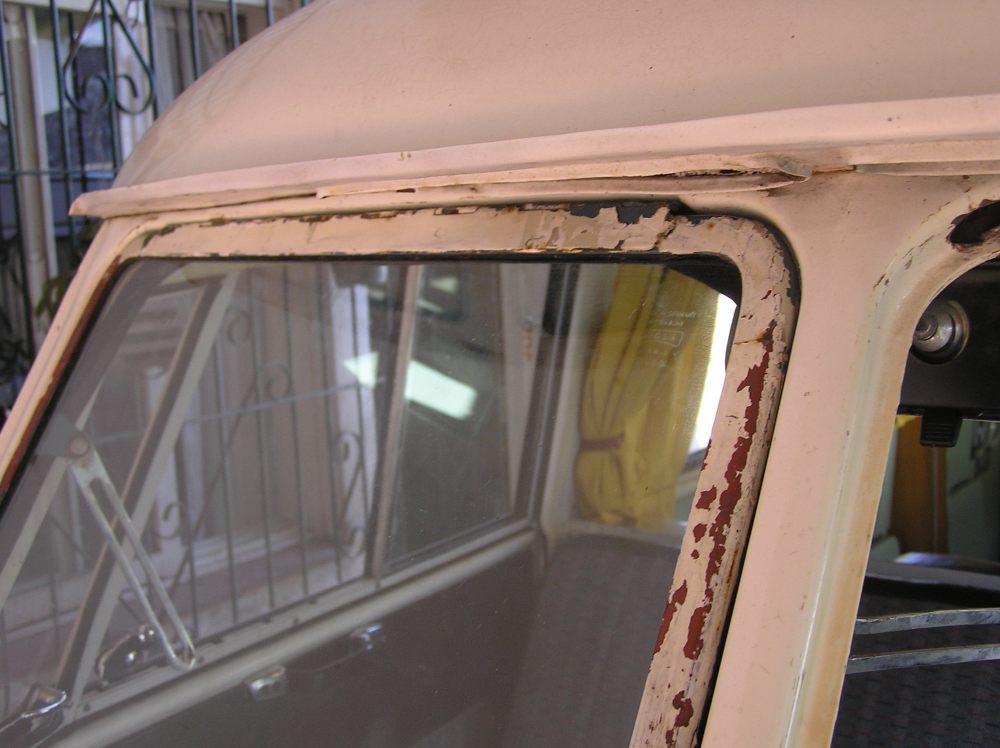

The plate is 1/2 wide and has a offset bend where every screw goes. the hole in the corner is aprox 1/2 as well, you put the right side in from the left and the left from the right. the holes in the windshield upper frame are 3/8 aprox. Here are 2 pics i just uploaded to the gallery under my name.
frig it look here http://www.thesamba.com/vw/forum/album_search.php?search_author=Metalwizard
I hope this helps later _________________ http://s461.photobucket.com/albums/qq335/Metalwizard/
Kelly aka
"Bubble & Nut Buster for wannabe BadBoy's of Restoration"
"There is no cure for Stupid"
ITMC "Drill SGT" |
|
Back to top |
|
|
Flipseat Samba Member
Joined: July 09, 2000 Posts: 1089 Location: Nursing 40 horses back to health.
|
Posted: Thu Aug 17, 2006 6:17 pm Post subject: |
|
|

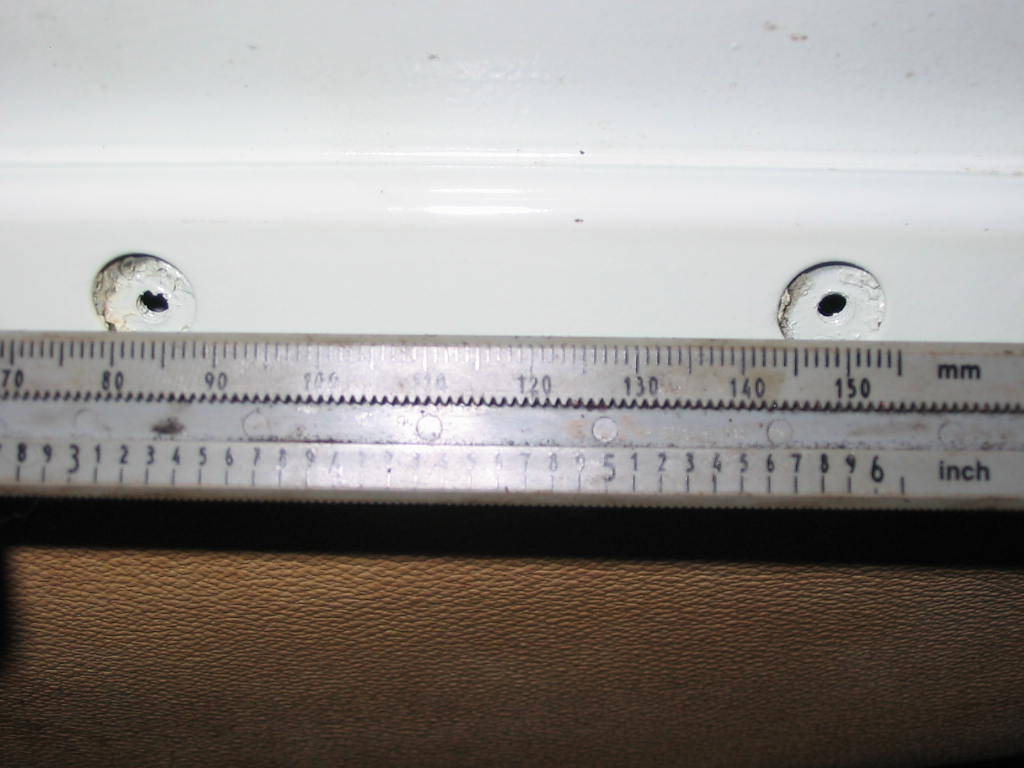

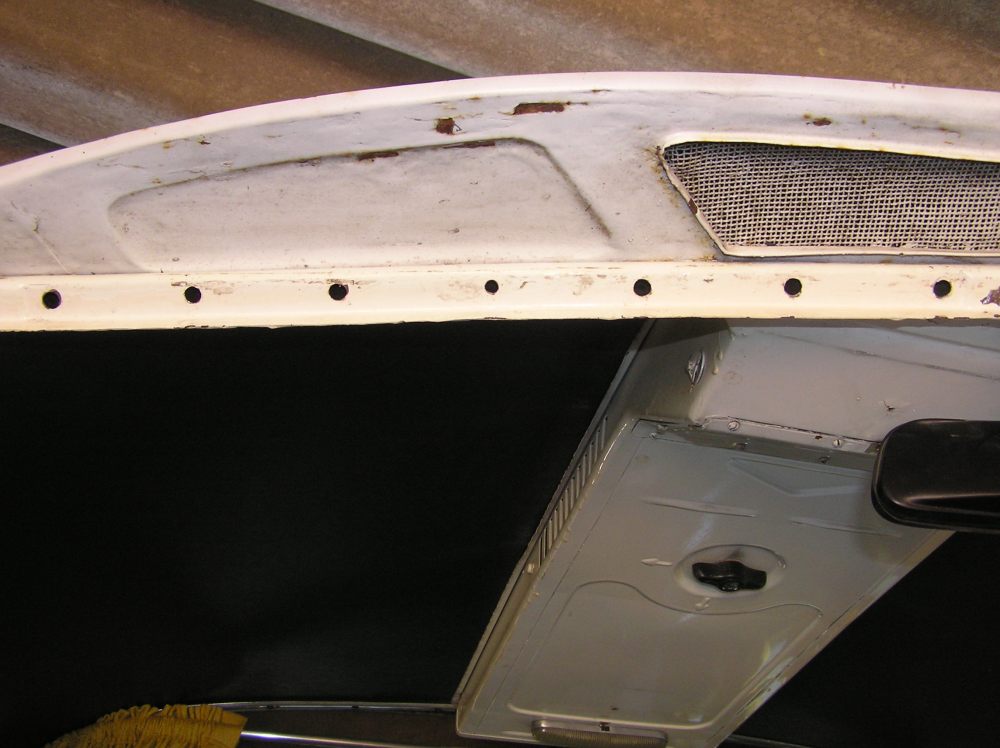

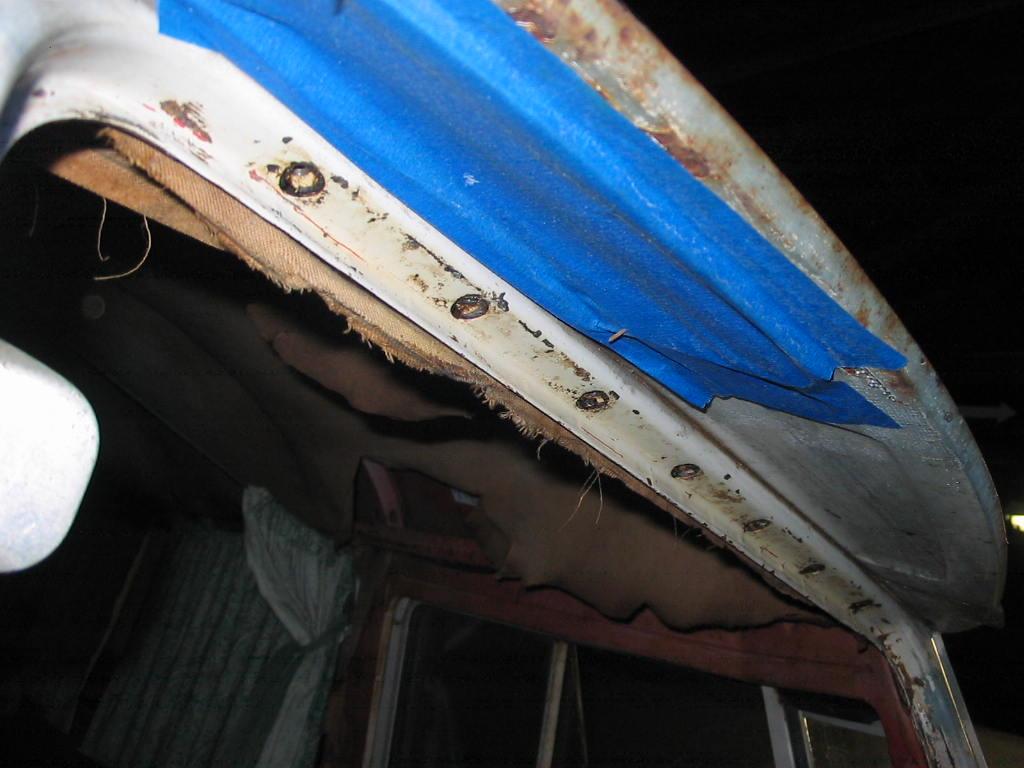

Here is a pic from when I installed my nut plates... like Kelly said, put the left in from the right, and the right in from the left. I cut notches (see pic) in my upper center windshield pillar to slip them in. Use a pick, or tack a piece of wire to the end of the nut plate so you can move it into position. Original safari buses have a tang welded to the inside of the upper windshield frame to keep the nut plates from moving all over the place. So unless you cut apart the sheet metal, good luck getting them out.
_________________ Insert random important looking club initials here. |
|
Back to top |
|
|
Metalwizard Samba Member
Joined: October 21, 2003 Posts: 696 Location: Archdale, NC
|
Posted: Fri Aug 18, 2006 6:33 pm Post subject: |
|
|
I cked today for twin, from the center post below the radiused corner, measure over 2 7/8 for the first hole, from that point the holes are 2 3/4 on center. On an original bus frame the holes area aprox 3/8 dia. Hope this helps, i'll be out of town tomorrow picking up my 15 window deluxe from Danny's in Wrightsville Beach. Sunday i'll be at Piedmont for the show. Later _________________ http://s461.photobucket.com/albums/qq335/Metalwizard/
Kelly aka
"Bubble & Nut Buster for wannabe BadBoy's of Restoration"
"There is no cure for Stupid"
ITMC "Drill SGT" |
|
Back to top |
|
|
chazwood Samba Member
Joined: February 11, 2006 Posts: 678 Location: The last word in edgewise
|
Posted: Sat Aug 19, 2006 7:00 am Post subject: |
|
|
Metalwizard? are you posting pictures now? It's a new day folks!
kind of fun isn't it |
|
Back to top |
|
|
Buba Samba Member
Joined: February 23, 2003 Posts: 383 Location: Argentina
|
Posted: Sat Aug 19, 2006 6:21 pm Post subject: |
|
|
Hi, Thanks for all your information!!!
I allready install them, just need to weld the internal suports at the body shop next week.
First I put the plate onto position from outside and using it as a guide I drill little holes with a dremel at lowest speed.
After check if they are on the correct position I drill 8 mm holes, but not on the center, later after install the threaded plate and check again that all holes are right I drill a 6 mm hole in the center
I drill the holes to insert the threaded plates wich I made with out bends
I know I have to change the internal mirror is on the way
Then I fix the threaded plate by the center screw
and install the safari window
Next week my westy is going to the body shop to paint them and to change and paint some non original parts, (tail lights, bumpers, etc).
Thanks!!!
Greetings from Argentina _________________ 52 Ambulance
57 SC
57 Oval
60 SO23
60 Bug |
|
Back to top |
|
|
twinwindows Samba Pimp
Joined: December 08, 2000 Posts: 4086 Location: So.Cal. Highland Park GFK!
|
Posted: Sat Aug 19, 2006 11:58 pm Post subject: |
|
|
Funny this came up, My body guy and I were just having this conversation on putting a set of safari windows on my bus, lucky for me I was able to find a complete set of NOS safari windows from campingbox complete with NOS rubber seals and the mounting plate that the safari windows get attached to. On my bus someone had a set of safari windows already installed in it but they just drilled into the upper part of the window frames to mount the safari frames. Met Wiz sent me some specs on where the holes go and I also had other people on samba send me pictures of the exact place to make the holes. I am going to remove the plate just above the windows from the inside of the cab so that I can mount the safari brackets and also the metal tang to hold them in place afterwards weld the plate back on. I will post pictures of the step by step soon.
_________________ CRG
My builds
BAD TEMPER 11
CHRISTINE
GFK LIFER!
myzamboni wrote: |
Yeah, everyone's now doing it GFK style . . . everythinig is covert until the finished product is revealed. |
|
|
Back to top |
|
|
vdubinit Samba Member
Joined: July 11, 2005 Posts: 1870 Location: central coast
|
Posted: Mon Apr 16, 2007 12:10 am Post subject: |
|
|
twinwindowsJHC wrote: |
Funny this came up, My body guy and I were just having this conversation on putting a set of safari windows on my bus, lucky for me I was able to find a complete set of NOS safari windows from campingbox complete with NOS rubber seals and the mounting plate that the safari windows get attached to. On my bus someone had a set of safari windows already installed in it but they just drilled into the upper part of the window frames to mount the safari frames. Met Wiz sent me some specs on where the holes go and I also had other people on samba send me pictures of the exact place to make the holes. I am going to remove the plate just above the windows from the inside of the cab so that I can mount the safari brackets and also the metal tang to hold them in place afterwards weld the plate back on. I will post pictures of the step by step soon.
|
So what's the step by step process anyone anyone _________________ **WANTED** ONE 4 1/2 EARLY FUCH |
|
Back to top |
|
|
JET-A Samba Member
Joined: October 21, 2005 Posts: 45 Location: Coastal, BC
|
Posted: Sun May 25, 2008 9:10 pm Post subject: |
|
|
Is anyone making/selling the safari nut plates? I'd like to get my hands on a pair. |
|
Back to top |
|
|
Split 1 Samba Member
Joined: May 03, 2005 Posts: 764 Location: Adelaide. South australia
|
Posted: Mon May 26, 2008 12:27 am Post subject: |
|
|
Yep, Creative Engineering in the UK make them, I have fitted a set to mine.
Made from stainless as well.
Dave |
|
Back to top |
|
|
JET-A Samba Member
Joined: October 21, 2005 Posts: 45 Location: Coastal, BC
|
Posted: Mon May 26, 2008 8:47 am Post subject: |
|
|
Thank you Dave, I'll look into it.
Can anyone help with a N. American supplier? |
|
Back to top |
|
|
Clara Samba Member
Joined: June 14, 2003 Posts: 12400
|
Posted: Mon May 26, 2008 9:20 pm Post subject: |
|
|

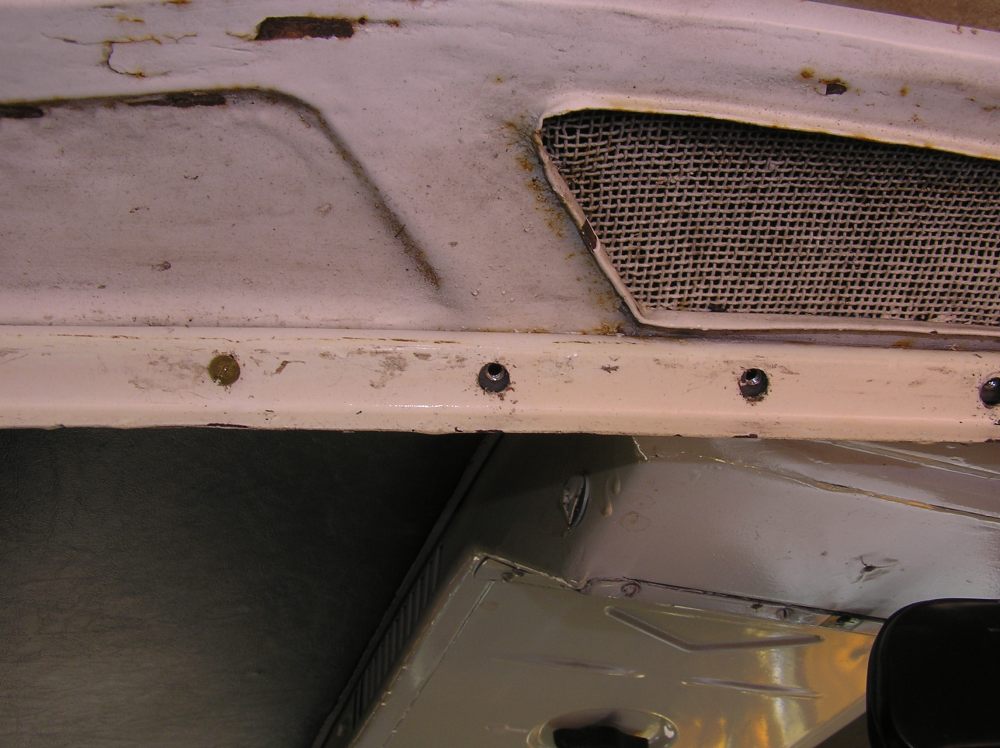

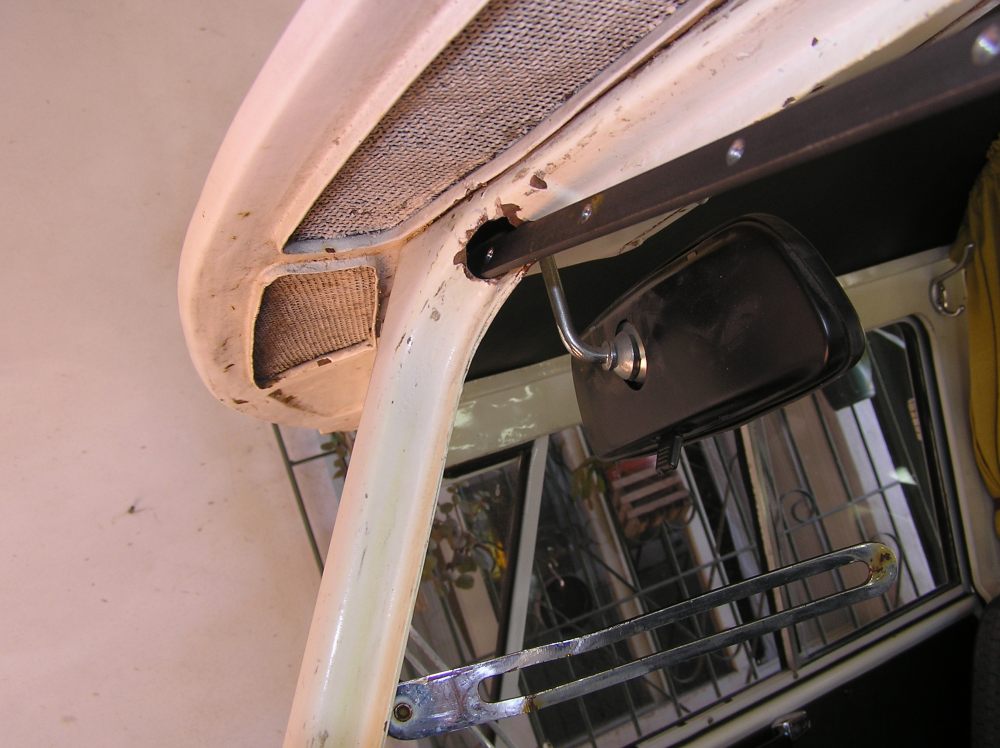

original in a '61:
original in a '65:
_________________ The Obsolete Air-Cooled Documentation Project http://oacdp.org/ |
|
Back to top |
|
|
Split Box Samba Member
Joined: June 13, 2006 Posts: 164 Location: Antioch,Ca
|
Posted: Wed Aug 27, 2008 6:41 am Post subject: |
|
|
Who has these threaded plates in N. America...or just make my own ?
I have searched several web sites/ F/S samba with no luck. |
|
Back to top |
|
|
npbusguy Samba Member
Joined: February 08, 2006 Posts: 1658 Location: Budapest, Hungary
|
Posted: Wed Aug 27, 2008 6:54 am Post subject: |
|
|
Notch Head wrote: |
Who has these threaded plates in N. America...or just make my own ?
I have searched several web sites/ F/S samba with no luck. |
PM the Wiz or contact him through www.metwiz.com, he will make a set for you. |
|
Back to top |
|
|
twinwindows Samba Pimp
Joined: December 08, 2000 Posts: 4086 Location: So.Cal. Highland Park GFK!
|
Posted: Wed Aug 27, 2008 10:33 am Post subject: |
|
|
MetWiz will just about make anything you need. Ask me how I know? _________________ CRG
My builds
BAD TEMPER 11
CHRISTINE
GFK LIFER!
myzamboni wrote: |
Yeah, everyone's now doing it GFK style . . . everythinig is covert until the finished product is revealed. |
|
|
Back to top |
|
|
DaveB Samba Member
Joined: June 03, 2002 Posts: 489 Location: Raeford, NC
|
Posted: Wed Aug 27, 2008 3:40 pm Post subject: |
|
|
What's the advantage of having the plates over using a Rivetnut? I guess with the plate (over than looking original) you have adjustablility there? _________________ Dave Brooks
USAF Retired
1966 Custom Camper |
|
Back to top |
|
|
Split Box Samba Member
Joined: June 13, 2006 Posts: 164 Location: Antioch,Ca
|
Posted: Wed Aug 27, 2008 4:02 pm Post subject: |
|
|
My thinking is durability more of a solid mount
then again this will be my first set of safaris. |
|
Back to top |
|
|
Aaron Samba Luddite
Joined: November 20, 2002 Posts: 1838 Location: WA
|
Posted: Wed Aug 27, 2008 6:22 pm Post subject: |
|
|
Adjustability= bucks, strength= extra bucks, and the ability to install, remove and re-install as you please without the screw holes getting all sloppy=mega extra buck.... knowing that you installed them the way the factory would have= priceless. |
|
Back to top |
|
|
Split Box Samba Member
Joined: June 13, 2006 Posts: 164 Location: Antioch,Ca
|
Posted: Mon Sep 29, 2008 4:49 pm Post subject: |
|
|
PM were sent off to Metwiz also an e-mail with no response
