PostPosted: Tue Mar 20, 2007 9:41 pm    Post subject: Golde handle Reply with quote

Are there different Golde ragtop handles for 2 and 3 fold cars? If so, what is the difference?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
David
Samba Member


Joined: June 29, 2004
Posts: 2038
Location: Raleigh, NC
David is offline

PostPosted: Tue Mar 20, 2007 9:52 pm    Post subject: Reply with quote

Yes.

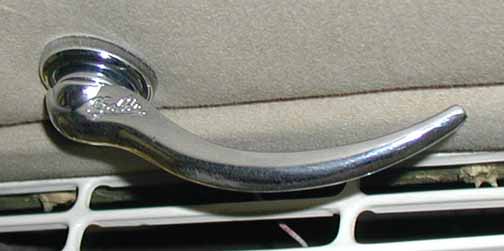

3 folds have a crease/groove down the middle like the door handle and window winder like this:

Image may have been reduced in size. Click image to view fullscreen.


3 Fold Ragtop handles are like finding hen's teeth - believe me, I need one!

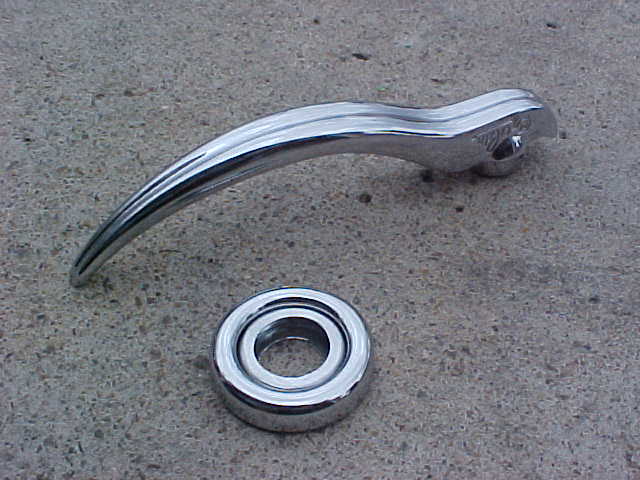

2 folds have a solid handle, like the door handle and the window winder like this:

Image may have been reduced in size. Click image to view fullscreen.

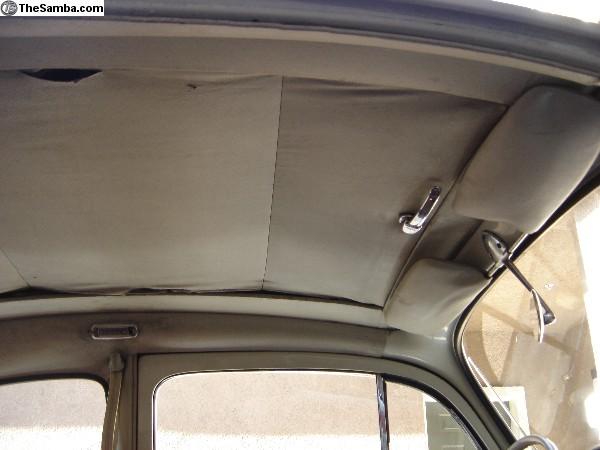

Eventually in '63, they went to a folding type handle like this for Deluxe models:

Image may have been reduced in size. Click image to view fullscreen.

_________________
Cheers,
Dave

*October '54 Ragtop


Last edited by David on Fri Apr 03, 2009 12:19 pm; edited 3 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
52HoffmanSplit
Samba Member


Joined: April 07, 2006
Posts: 1272
Location: Lamorinda CA
52HoffmanSplit is offline

PostPosted: Fri Mar 23, 2007 10:38 pm    Post subject: Reply with quote

Question... Will the later 2 fold handle.. fit on a 3 fold for the time being?? (Until I find a 3 fold handle).... I know the 3 fold had an escutcheon (sp) and a spring... does the 2 fold have the same.... Ive owned lots of ragtops.. but that was the 1980's and frankly I cant remember?????
_________________
DB

9/1950 Hoffman Standard
11/1966 Porsche 912
10/1966 Porsche 912
7/1968 Type 265 Double Cab
10/1958 Type 117
Back to top
View user's profile Send private message Gallery Classifieds Feedback
danbois
Samba Member


Joined: February 13, 2007
Posts: 22
Location: La Mesa, California
danbois is offline

PostPosted: Fri Mar 23, 2007 10:56 pm    Post subject: Reply with quote

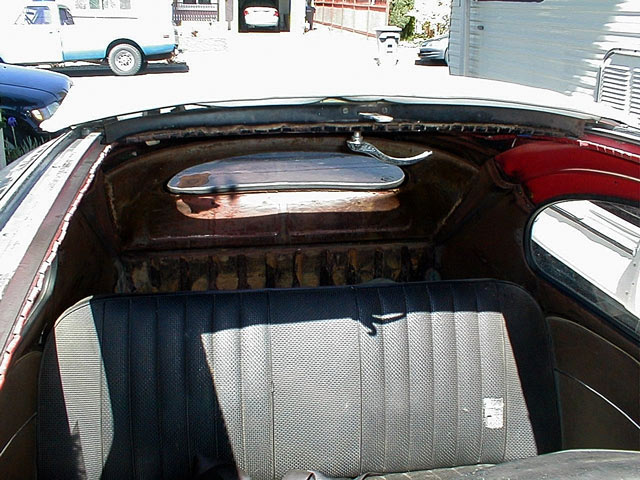

It should. I have a 2 fold handle on my 3 fold roof right now.a picture of it is herehttps://www.thesamba.com/vw/gallery/pix/336498.jpg
Dan
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
RareAir is offline

PostPosted: Sat Mar 24, 2007 7:15 am    Post subject: Reply with quote

Here you go Dan-
Image may have been reduced in size. Click image to view fullscreen.

_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
RareAir is offline

PostPosted: Sat Mar 24, 2007 7:17 am    Post subject: Reply with quote

52HoffmanSplit wrote:
Question... Will the later 2 fold handle.. fit on a 3 fold for the time being?? (Until I find a 3 fold handle)....???


Yes, all the handles used the same spline size. If need be, you can even install an inner door handle to get the sunroof to open
_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
RareAir is offline

PostPosted: Sat Mar 24, 2007 7:18 am    Post subject: Reply with quote

52HoffmanSplit wrote:
I know the 3 fold had an escutcheon (sp) and a spring... does the 2 fold have the same....?????


1950-55 used a 2pc Chromed escutheon with a spring. 1956-later used an Ivory escutheon & a spring. The escutheon used on 1956-later cars is the same piece used behind the inner door handles & window winders
_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241
Back to top
View user's profile Send private message Gallery Classifieds Feedback
52HoffmanSplit
Samba Member


Joined: April 07, 2006
Posts: 1272
Location: Lamorinda CA
52HoffmanSplit is offline

PostPosted: Sat Mar 24, 2007 9:29 am    Post subject: Reply with quote

RareAir wrote:
52HoffmanSplit wrote:
I know the 3 fold had an escutcheon (sp) and a spring... does the 2 fold have the same....?????


1950-55 used a 2pc Chromed escutheon with a spring. 1956-later used an Ivory escutheon & a spring. The escutheon used on 1956-later cars is the same piece used behind the inner door handles & window winders


Cool.. Thanks for the Info.... its all coming back to me now.. Smile
