Rag year differences
Page: 1, 2  Next
Forum Index -> Beetle - Oval-Window - 1953-57 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
bwaz
Samba Member


Joined: August 24, 2004
Posts: 1807

bwaz is offline

PostPosted: Mon Jul 16, 2007 4:08 pm    Post subject: Rag year differences Reply with quote

Are there any differences that would define a 63 rag sunroof from a 57? I know there are "three folds" but when did those changes happen?
Brian
Back to top
View user's profile Send private message Gallery Classifieds Feedback
smack
Samba Member


Joined: May 18, 2006
Posts: 26

smack is offline

PostPosted: Mon Jul 16, 2007 5:29 pm    Post subject: Reply with quote

i believe that from 57 on they were the same. 56 is still 2-fold but has square
rear corners and round fronts and 55 and earlier is 3-fold.
not exactly sure about the handles since i've only owned a 56 and 55 but 55 and earlier are ribbed and 56 on are not. not sure if there are any more changes to it after 56.

someone will chime in if i'm missing something Smile
Back to top
View user's profile Send private message Classifieds Feedback
thebucket
Samba Stockbroker


Joined: April 06, 2004
Posts: 3734
Location: Houston Texas
thebucket is offline

PostPosted: Mon Jul 16, 2007 5:33 pm    Post subject: Reply with quote

smack wrote:
i believe that from 57 on they were the same. 56 is still 2-fold but has square
rear corners and round fronts and 55 and earlier is 3-fold.
not exactly sure about the handles since i've only owned a 56 and 55 but 55 and earlier are ribbed and 56 on are not. not sure if there are any more changes to it after 56.

someone will chime in if i'm missing something Smile
You got it old boy.. I've only owned three folds my self. Mine is a Golde handle car. But I have seen a non Golde handle 55 3fold.
_________________
ITMC-El Presidente
OG 55 bullet 3 fold....
http://www.thesamba.com/vw/forum/viewtopic.php?t=150858&highlight=thebuckets++++fold
Back to top
View user's profile Send private message Gallery Classifieds Feedback
David
Samba Member


Joined: June 29, 2004
Posts: 2038
Location: Raleigh, NC
David is offline

PostPosted: Mon Jul 16, 2007 6:31 pm    Post subject: Reply with quote

smack wrote:
i believe that from 57 on they were the same. 56 is still 2-fold but has square
rear corners and round fronts and 55 and earlier is 3-fold.
not exactly sure about the handles since i've only owned a 56 and 55 but 55 and earlier are ribbed and 56 on are not. not sure if there are any more changes to it after 56.

someone will chime in if i'm missing something Smile


From this thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=221576


V0LKSWAGENSRULE wrote:
Yes.

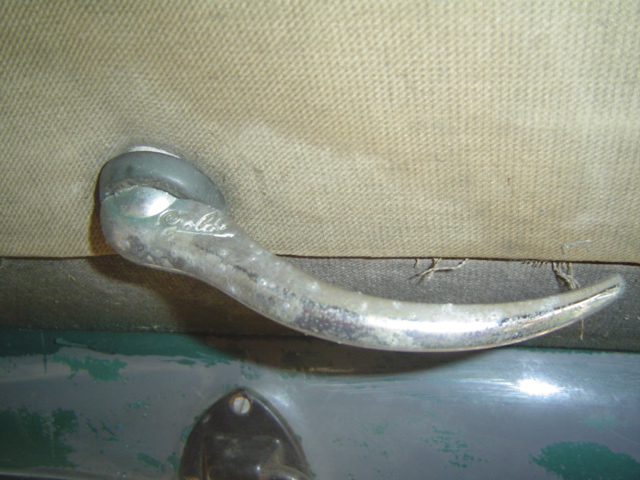

3 folds have a crease/groove down the middle like the door handle and window winder like this:

Image may have been reduced in size. Click image to view fullscreen.


3 Fold Ragtop handles are like finding hen's teeth - believe me, I need one!

2 folds have a solid handle, like the door handle and the window winder like this:

Image may have been reduced in size. Click image to view fullscreen.


Eventually, they went to a folding type handle like this:

Image may have been reduced in size. Click image to view fullscreen.


- 55/3 folds have the grooved handle.
56 - 62 have a solid handle
In 63 they went to a folding handle (deluxe only).
_________________
Cheers,
Dave

*October '54 Ragtop


Last edited by David on Fri Apr 03, 2009 12:19 pm; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
smack
Samba Member


Joined: May 18, 2006
Posts: 26

smack is offline

PostPosted: Mon Jul 16, 2007 7:14 pm    Post subject: Reply with quote

that's right, i have seen that folding handle before and completely forgot about it.

hey bucket was that non golde on a late 55' perhaps?
Back to top
View user's profile Send private message Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
RareAir is offline

PostPosted: Mon Jul 16, 2007 8:07 pm    Post subject: Reply with quote

V0LKSWAGENSRULE wrote:

Eventually, they went to a folding type handle like this:

Image may have been reduced in size. Click image to view fullscreen.


- 55/3 folds have the grooved handle.
56 - ?? have a solid handle
?? - 63? they eventually went to a folding handle.


The folding handle is a 1963-only part
Back to top
View user's profile Send private message Gallery Classifieds Feedback
thebucket
Samba Stockbroker


Joined: April 06, 2004
Posts: 3734
Location: Houston Texas
thebucket is offline

PostPosted: Mon Jul 16, 2007 8:57 pm    Post subject: Reply with quote

smack wrote:
that's right, i have seen that folding handle before and completely forgot about it.

hey bucket was that non golde on a late 55' perhaps?
No I own a late 55 with a golde. The car without the golde is an early 55. 55's are bastrds...
_________________
ITMC-El Presidente
OG 55 bullet 3 fold....
http://www.thesamba.com/vw/forum/viewtopic.php?t=150858&highlight=thebuckets++++fold
Back to top
View user's profile Send private message Gallery Classifieds Feedback
David
Samba Member


Joined: June 29, 2004
Posts: 2038
Location: Raleigh, NC
David is offline

PostPosted: Mon Jul 16, 2007 9:51 pm    Post subject: Reply with quote

RareAir wrote:
The folding handle is a 1963-only part


Thanks for filling in the missing link. Cool
_________________
Cheers,
Dave

*October '54 Ragtop
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
smack
Samba Member


Joined: May 18, 2006
Posts: 26

smack is offline

PostPosted: Tue Jul 17, 2007 12:55 am    Post subject: Reply with quote

thebucket wrote:
No I own a late 55 with a golde. The car without the golde is an early 55. 55's are bastrds...

funny i have an early u.s. 55 and it has a ribbed golde on it. and it's definitely original to the car.
Back to top
View user's profile Send private message Classifieds Feedback
MargaritaVillain
Samba Member


Joined: June 19, 2006
Posts: 825
Location: Caimanera, Cuba
MargaritaVillain is offline

PostPosted: Thu Apr 02, 2009 10:28 pm    Post subject: Reply with quote

RareAir wrote:
V0LKSWAGENSRULE wrote:

Eventually, they went to a folding type handle like this:

Image may have been reduced in size. Click image to view fullscreen.


- 55/3 folds have the grooved handle.
56 - ?? have a solid handle
?? - 63? they eventually went to a folding handle.


The folding handle is a 1963-only part


Can u put a non folding golde handle on a '63? Like if you had a '63 clip and wanted to put in an earlier car could you change out the handle and have a correct looking rag?
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
bill may
Samba Member


Joined: August 27, 2003
Posts: 14160
Location: san diego,ca
bill may is offline

PostPosted: Fri Apr 03, 2009 7:48 am    Post subject: Reply with quote

RareAir wrote:
V0LKSWAGENSRULE wrote:

Eventually, they went to a folding type handle like this:

Image may have been reduced in size. Click image to view fullscreen.


- 55/3 folds have the grooved handle.
56 - ?? have a solid handle
?? - 63? they eventually went to a folding handle.


The folding handle is a 1963-only part


you mean deluxe of course?
_________________
Admin note: Bill Passed away - July, 2017

1965 panel bus-Kermit
"Camping is cheaper than therapy"
www.sv2s.com
www.steeringboxscrapers.net
SBS #100
http://www.thesamba.com/vw/forum/viewtopic.php?t=453617
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MargaritaVillain
Samba Member


Joined: June 19, 2006
Posts: 825
Location: Caimanera, Cuba
MargaritaVillain is offline

PostPosted: Fri Apr 03, 2009 11:13 am    Post subject: Reply with quote

bill may wrote:
RareAir wrote:
V0LKSWAGENSRULE wrote:

Eventually, they went to a folding type handle like this:

Image may have been reduced in size. Click image to view fullscreen.


- 55/3 folds have the grooved handle.
56 - ?? have a solid handle
?? - 63? they eventually went to a folding handle.


The folding handle is a 1963-only part


you mean deluxe of course?


yup!
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
David
Samba Member


Joined: June 29, 2004
Posts: 2038
Location: Raleigh, NC
David is offline

PostPosted: Fri Apr 03, 2009 12:35 pm    Post subject: Reply with quote

MargaritaVillain wrote:
Can u put a non folding golde handle on a '63? Like if you had a '63 clip and wanted to put in an earlier car could you change out the handle and have a correct looking rag?


I don't see why not, the folding bit doesn't really serve a function for opening/closing the roof IIRC.
_________________
Cheers,
Dave

*October '54 Ragtop
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
MargaritaVillain
Samba Member


Joined: June 19, 2006
Posts: 825
Location: Caimanera, Cuba
MargaritaVillain is offline

PostPosted: Fri Apr 03, 2009 1:07 pm    Post subject: Reply with quote

David wrote:
MargaritaVillain wrote:
Can u put a non folding golde handle on a '63? Like if you had a '63 clip and wanted to put in an earlier car could you change out the handle and have a correct looking rag?


I don't see why not, the folding bit doesn't really serve a function for opening/closing the roof IIRC.


so could I graft this http://www.thesamba.com/vw/classifieds/detail.php?id=765279

on to an oval sedan?
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
56bomb
Samba Member


Joined: November 22, 2009
Posts: 9
Location: El Monte CA
56bomb is offline

PostPosted: Sun Nov 22, 2009 9:20 pm    Post subject: rag top Reply with quote

would it look correct if i put the slide rag from my crashed 1960 on to my 1956 oval. if not whats the difference
Back to top
View user's profile Send private message Classifieds Feedback
MargaritaVillain
Samba Member


Joined: June 19, 2006
Posts: 825
Location: Caimanera, Cuba
MargaritaVillain is offline

PostPosted: Sun Nov 22, 2009 11:04 pm    Post subject: Re: rag top Reply with quote

56bomb wrote:
would it look correct if i put the slide rag from my crashed 1960 on to my 1956 oval. if not whats the difference


Read this, Brother...http://www.thesamba.com/vw/forum/viewtopic.php?t=280914&highlight=rag+differences
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
downsbs
Samba Member


Joined: July 17, 2009
Posts: 540
Location: Avondale, AZ
downsbs is offline

PostPosted: Thu Nov 26, 2009 1:35 pm    Post subject: Reply with quote

My 56 handle doesn't have the golde script on it. Does that mean it is aftermarket?
_________________
1956 Rag W/ Semaphores
Back to top
View user's profile Send private message Classifieds Feedback
alanandi
Samba Member


Joined: July 23, 2003
Posts: 58
Location: bayreuth - germany
alanandi is offline

PostPosted: Sat Nov 28, 2009 8:36 am    Post subject: Reply with quote

my 56 has the golde script. so i think your handle could be aftermarket.

i got a question too.

theres a black plate (i donĀ“t know how it is told correct) above the handle. mine is a original ragtop-standard 56. is this right for a standard or did golde use the chromed plate at standards as well?

Image may have been reduced in size. Click image to view fullscreen.

_________________
64 Splitwindow Westi
62 Ragtop deluxe beetle
56 ragtop standard oval
74 baywindow bus
70 dormobile camper

Make a visit to my blog - AIRCOOLED-LIFE.BLOGSPOT.COM
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
BulliBill
Samba Member


Joined: July 09, 2004
Posts: 4694
Location: St Charles, MO
BulliBill is offline

PostPosted: Mon Feb 10, 2014 10:48 am    Post subject: Reply with quote

thebucket wrote:
smack wrote:
that's right, i have seen that folding handle before and completely forgot about it.

hey bucket was that non golde on a late 55' perhaps?
No I own a late 55 with a golde. The car without the golde is an early 55. 55's are bastrds...


I also own a late 1955 (June of '55) Deluxe Sunroof that has never been restored and it has the grooved "Golde" handle on it's 3-fold sunroof mechanism.

Bill Bowman
_________________
I'm looking for these license plate frames for my fleet:
Coeur D'Alene - Lake Shore Volkswagen
Mission VW - San Fernando
Thornton VW - Stockton

Thanks for any help!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Kjell Roar
Samba Member


Joined: December 08, 2008
Posts: 1330
Location: Norway
Kjell Roar is offline

PostPosted: Mon Feb 10, 2014 11:32 am    Post subject: Reply with quote

Non Golde 3-fold ragtop:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Sitting in a 54 oval, known history since 57, then the ragtop was there.

Its a Webasto.
_________________
I got a historic car, every scratch got a history...

My car, Aug. 4th, 1955 / an early 56: http://www.thesamba.com/vw/forum/album_page.php?pic_id=610438
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Oval-Window - 1953-57 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
