Author Message
Frankie Pintado
Samba Member


Joined: April 02, 2008
Posts: 371
Location: Lake of the Woods, VA
Frankie Pintado is offline

PostPosted: Wed Sep 09, 2009 9:16 am    Post subject: Reply with quote

Here's my contribution. I just made this.

Old Samsonite suitcase, free
Used crappy stereo I saw lying in a friends trunk, $20
Two 6x9 8-way speakers ordered off of Ebay directly from Hong Kong, $37. Each is rated for 1000W.

I have a cigarette lighter plug for the power, and an auxiliary input for mp3 players or whatever. I'm missing the trim ring that goes around the reciever, so you can see my cuts aren't perfect, but I will add trim of some sort eventually. The suitcase is made of 1/8" thick aluminum. I cut it with a rotary tool and a couple reinforced cutting wheels.
The original feet were busted off, so I used a piece of 1.5"x1.5" lumber on the front, and a small piece of an old tire for a foot on the back. It sits with the face angled upwards about 25-30 degrees, and is extremely stable and vibration resistant.

It sound pretty good, louder than most stock stereos for sure.
The latches rattle at near-maximum volume, not too bad though.

Image may have been reduced in size. Click image to view fullscreen.

_________________
1972 Karmann Ghia, 1985 Vanagon GL, 1989 Cabriolet
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Bret Young
Samba Member


Joined: August 26, 2006
Posts: 741
Location: Turlock, CA
Bret Young is offline

PostPosted: Mon Nov 02, 2009 12:08 am    Post subject: Reply with quote

I hear ya on the vibration of the handle. I get that with mine often. What I did was drill two very small holes vertically on the backside....enough to run a zip tie to sinch that handle down for long trips. just snip it when your plannin on taking it out. works well.
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
LuckyMonkeyGarage
Samba Member


Joined: September 11, 2001
Posts: 937
Location: Arizona up north, near a mountain with a big "J" on top of it
LuckyMonkeyGarage is offline

PostPosted: Wed Nov 18, 2009 8:52 am    Post subject: Reply with quote

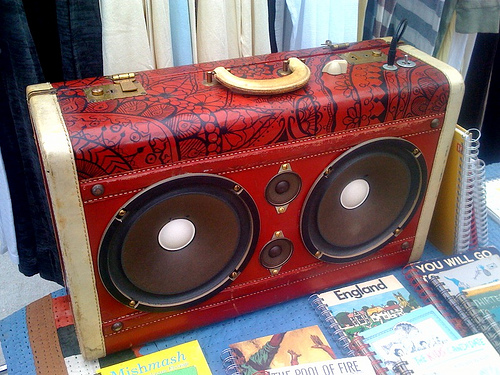

Found this on Flickr
Image may have been reduced in size. Click image to view fullscreen.

_________________
http://ghostwagens.blogspot.com/

http://vintageswampcooler.blogspot.com/



..........._I====I_ ......................................
......__//_i_||___\\...........i---------------------i
.-==--|''''''''~|''''''''-=-........i---------------------iD
/( O )\\____|__/( O )\\==...........( o )..........
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bret Young
Samba Member


Joined: August 26, 2006
Posts: 741
Location: Turlock, CA
Bret Young is offline

PostPosted: Fri Nov 20, 2009 11:00 am    Post subject: Reply with quote

Damn that bad boy looks awesome. Looks like some old school speakers for sure. Wonder how it sounds...
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
bigways
Samba Member


Joined: July 25, 2006
Posts: 486
Location: New Mexico
bigways is offline

PostPosted: Fri Nov 20, 2009 5:58 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
KingfastT
Samba Member


Joined: January 10, 2009
Posts: 8
Location: Skeg Vegas UK
KingfastT is offline

PostPosted: Sat Mar 13, 2010 2:50 am    Post subject: Reply with quote

This is our suitcase unit in the 66 Square. all cables are push fit so it can be easy removed to fit a full load.
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
LuckyMonkeyGarage
Samba Member


Joined: September 11, 2001
Posts: 937
Location: Arizona up north, near a mountain with a big "J" on top of it
LuckyMonkeyGarage is offline

PostPosted: Sun Nov 07, 2010 5:17 pm    Post subject: Reply with quote

Found this website

http://theboomcase.com/
_________________
http://ghostwagens.blogspot.com/

http://vintageswampcooler.blogspot.com/



..........._I====I_ ......................................
......__//_i_||___\\...........i---------------------i
.-==--|''''''''~|''''''''-=-........i---------------------iD
/( O )\\____|__/( O )\\==...........( o )..........
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Dangermouse
Samba Member


Joined: November 23, 2005
Posts: 1136
Location: Beautiful New Zealand
Dangermouse is offline

PostPosted: Sun Nov 07, 2010 5:20 pm    Post subject: Reply with quote

Nice. Very nice indeed. Me like.
_________________
Do not follow me, for I may not lead. Do not lead me, for I may not follow. Do not walk beside me either; actually just bugger off and stand over there will you.
Back to top
View user's profile Send private message AIM Address Classifieds Feedback
zabo
Samba Member


Joined: May 24, 2005
Posts: 1146
Location: ATL
zabo is offline

PostPosted: Sun Nov 07, 2010 6:12 pm    Post subject: Reply with quote

Wonder what type of battery set up they use in those boomcases. Wish there was a pic of the internals
_________________
1960 6 volt sedan- 1978 adventurewagen
–wanted bill spreen atlanta dealer tag frame
Back to top
View user's profile Send private message Visit poster's website AIM Address Gallery Classifieds Feedback
jingram
Samba Member


Joined: March 22, 2006
Posts: 151
Location: where the streets have no name
jingram is offline

PostPosted: Sun Jan 23, 2011 9:34 pm    Post subject: Reply with quote

I put a 12" sub in a large vintage(like 27 x 21 or so) samsonite case. I hot-glued everything tight, handle, buckles, even hot-glued the whole thing together. It looks great and gets alot compliments. Sounds okay, but it still rattles Sad
Back to top
View user's profile Send private message Gallery Classifieds Feedback
my65rhd
Samba Member


Joined: March 11, 2003
Posts: 1212

my65rhd is offline

PostPosted: Mon Jan 24, 2011 5:51 pm    Post subject: Reply with quote

LuckyMonkeyGarage wrote:
Found this website

http://theboomcase.com/


Very cool link..Nice stuff...Kyle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Windmill Hill
Samba Member


Joined: August 09, 2009
Posts: 21
Location: Central Indiana
Windmill Hill is offline

PostPosted: Thu Feb 03, 2011 5:04 pm    Post subject: Reply with quote

Here's my setup

Before:
Image may have been reduced in size. Click image to view fullscreen.


After:
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Simple setup with Detachable face, remote, hidden antenna and 12v plug on the back. I may add some RCA ports on the side to add a sub in the future.

The VW emblem is from a newer Jetta, it's about 1 1/2" deep and open so it lets out some of the bass so there is less vibration. Sounds Great!

Hope you enjoy Very Happy
_________________
☮'65 Euro Sunroof Beetle
☮'69 Westfalia "Wittle Westy"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
p.e.i.vw
Samba Member


Joined: February 18, 2005
Posts: 141
Location: Edmonton Alberta
p.e.i.vw is offline

PostPosted: Fri Apr 08, 2011 8:48 am    Post subject: Reply with quote

Would anyone be able to share some pictures of there internal wiring, details how they wired it up.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ballsie
Samba Member


Joined: April 09, 2006
Posts: 134
Location: Austin, TX
ballsie is offline

PostPosted: Fri Apr 08, 2011 11:24 am    Post subject: Reply with quote

Here is my suitcase stereo thread:
http://www.thesamba.com/vw/forum/viewtopic.php?t=416985&highlight=suitcase+stereo

Red wire with inline fuse from amp to battery.
Black (ground) wire from amp to the back seat mounting bolt.
Blue (amp remote) wire goes to a switched fuse under the dash. This is so the amp turns off when the car is not running.
1/8 mini stereo (fits into iPhone headphone port) to RCA ( the red/white plugs) cable to go from the amp to my iPhone/iPod.
Speakers are wired directly to the amp inside the suitcase.
Viola,

Sounds great.
_________________
bagged 64
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger Classifieds Feedback
hemifalcon
Samba Member


Joined: June 15, 2005
Posts: 1477
Location: Union Grove, WI
hemifalcon is offline

PostPosted: Fri Apr 08, 2011 1:25 pm    Post subject: Reply with quote

here's my thread.. I think it's lost in the depths of the forum somewhere..

http://www.thesamba.com/vw/forum/viewtopic.php?t=421312&highlight=stereo+suitcase
_________________
'62 VW Bug Sedan (Ruby Red)
Resto pics> http://smg.photobucket.com/albums/v697/hemifalcon/Bug%20resto/?start=all&paginator=top
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Bret Young
Samba Member


Joined: August 26, 2006
Posts: 741
Location: Turlock, CA
Bret Young is offline

PostPosted: Sat Apr 09, 2011 12:06 pm    Post subject: Reply with quote

Hemifalcon. Good write up. Pretty sweet. Holy moley, $700?!

Its cool to watch how this thread has taken off. I never posted up photos of my personal one, but I did of one that I built for a porsche guy in town in my gallery if you guys are interested.

I build mine without a headunit. Cuts down on the weight and the cost. Since you arent listening to the radio through it (no antenna) and CD's are a thing of the past, I wired mine so that the iPod controls the entire unit.

I wired mine with a 12V plug right from the battery. Not only does it provide power, but it also grounds to the body under the seat. 12V lighter plug that is fused straight to the amp so it turns on right when it recieves power. Amp is 2 channel powering 4 6x9's. I have the dual input plugs to a headphone jack adapter that I got at a local radioshack for about 4 bucks that you plug your into your iPod and your iPod acts as the headunit, also used for the master volume, so you dont ever have to turn around to adjust stuff.

So it eliminates the cost of the headunit, cuts down on weight, and also allows your battery to run longer as your only running the amp instead of an amp AND a headunit. I can leave my car off and run that stereo at full tilt for up to 3 hours before I need to turn the car back on to top off the charge. Its awesome. And at full blast (which sounds great suprisingly) it can be heard up to 1/4 mile away.

I build a box in mine where everthing is enclosed with a decorative design drilled in the top (see gallery) so that nothing is visible. People dont expect it.
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
hemifalcon
Samba Member


Joined: June 15, 2005
Posts: 1477
Location: Union Grove, WI
hemifalcon is offline

PostPosted: Sat Apr 09, 2011 12:47 pm    Post subject: Reply with quote

Yeah.. i know.. I had the money at the time burning a hole in my pocket, and I really wanted some tunes in my car.. And, aside from the idea of doing the hidden stereo under the seat, and speakers in a small padded enclosure that I would have liked to build to hang on the rear seat back facing forward--this worked nice.. And, I got some preetty nice equipment in the Alpine line up so that if I changed my mind on the design, i have some good stuff to work with.. But, this setup works very nice, and is very loud. The head unit overpowers the speakers pretty good, but can be heard a block away vvvvery nicely. It fills the car with tunes really nice too with the ITouch, or a portable HDD hooked up to it. Overall, it's very convenient.
_________________
'62 VW Bug Sedan (Ruby Red)
Resto pics> http://smg.photobucket.com/albums/v697/hemifalcon/Bug%20resto/?start=all&paginator=top
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Doodoob
Samba Member


Joined: April 22, 2009
Posts: 181
Location: Spokane, WA
Doodoob is offline

PostPosted: Sun Apr 10, 2011 9:01 am    Post subject: Reply with quote

Here is the link to mine
http://www.thesamba.com/vw/forum/viewtopic.php?t=433430
My car is stripped down and getting painted at the moment so I got to work out s plug or quick disconnect for the power, ground, and remote on.
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
