I'm doing the rebuild of the westy rack. Here is stage 1
Image may have been reduced in size. Click image to view fullscreen.

lotsa rubber rings and 3 seals. I am going to try to source the parts locally. $90 for a kit kinda takes the smarts out of doing it your self when a rebuilt is only $150 more.
More to come.............
_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?


Last edited by Captain Pike on Thu Oct 25, 2007 3:02 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
deprivation
Samba Member


Joined: September 14, 2006
Posts: 1220
Location: Austin, Texas
deprivation is offline

PostPosted: Tue Oct 16, 2007 4:42 pm    Post subject: Reply with quote

Bill: At some point I'm going to have to do this as well. I've already got a torn boot.

Loosk good. Please post lotsa pictures because I have no idea what I'm doing! Wink
_________________
1986 Westy 2WD auto a.k.a. "The Old Girl"
www.kittenfart.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 2921
Location: The Topless Bar On Mustafar
Captain Pike is offline

PostPosted: Tue Oct 16, 2007 5:14 pm    Post subject: Reply with quote

this is my 3rd time over 10 years on this. Perhaps it will make the Stickeys.
_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
buspor63
Samba Member


Joined: February 17, 2005
Posts: 1099
Location: Knoxville,TN Where America stops for gas
buspor63 is offline

PostPosted: Sun Oct 21, 2007 9:29 pm    Post subject: Reply with quote

Bill,

How's this project coming along? Who do you get the kit from? Kida lazy here, is there a good break down procedure in the Bentley, or do you just figure it out? Any special tools needed, or just the usuall extensive home VW set? how are the other one you rebuilt holding up?

Sorry for all the questions, but $90 is still cheaper than $250......and I've got two leaky racks.
_________________
Imagine that, theres not an "h" in either Westfalia or Syncro?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 2921
Location: The Topless Bar On Mustafar
Captain Pike is offline

PostPosted: Mon Oct 22, 2007 4:23 am    Post subject: Reply with quote

sourced the parts locally, thanks Willy at ECI, $75 and last one left. Bentley doesn't cover it, I just took apart.
You need to make a tool to take it apart. Reassembly is easy, I took photos but the focus was off. I'll write it up when I get the time. Reassembly takes about 1.5 hours.
_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 2921
Location: The Topless Bar On Mustafar
Captain Pike is offline

PostPosted: Thu Oct 25, 2007 3:50 pm    Post subject: Reply with quote

Here we go:
Image may have been reduced in size. Click image to view fullscreen.

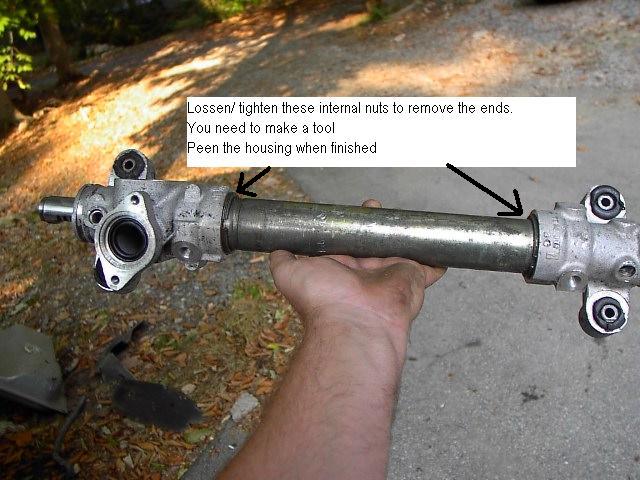

loosen the internal nuts to remove the seal housings.
Image may have been reduced in size. Click image to view fullscreen.

Clean every thing and lay out the parts in order of removal.
If the center shaft is rusted, pitted or scored STOP, it's toast buy a new one.
Image may have been reduced in size. Click image to view fullscreen.

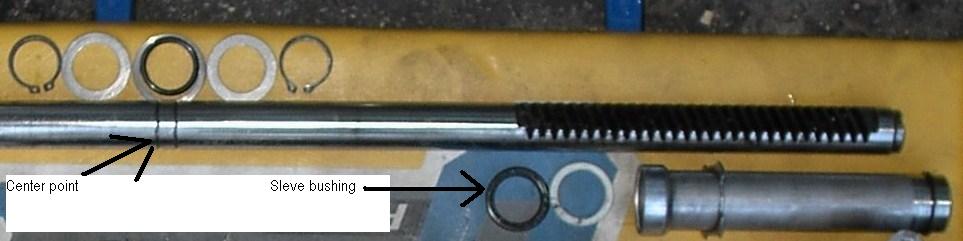

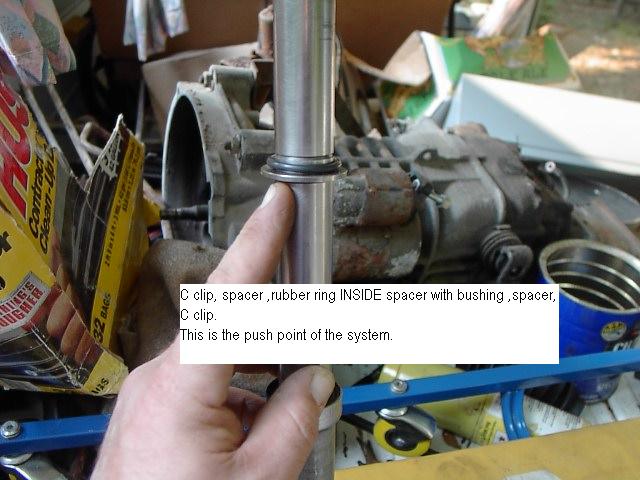

this is the center point: C clip,spacer,spacer with bushing and rubber ring inserted inside,spacer then C clip.
The sleeve:
Image may have been reduced in size. Click image to view fullscreen.

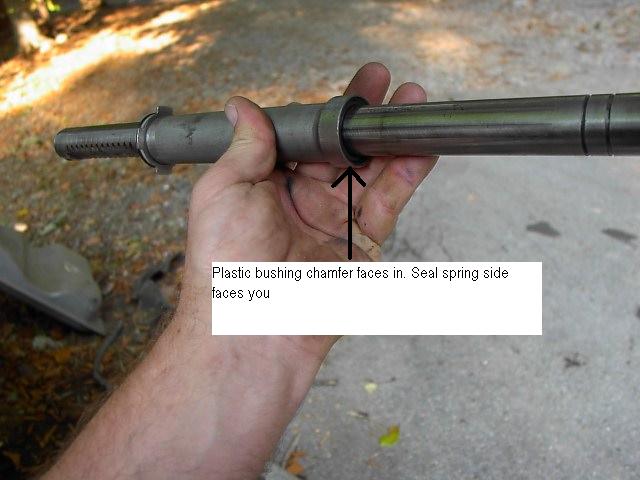

Bushing chamfer faces inside the sleeve then the seal, spring side facing you.
Sleeve to the shaft
Image may have been reduced in size. Click image to view fullscreen.

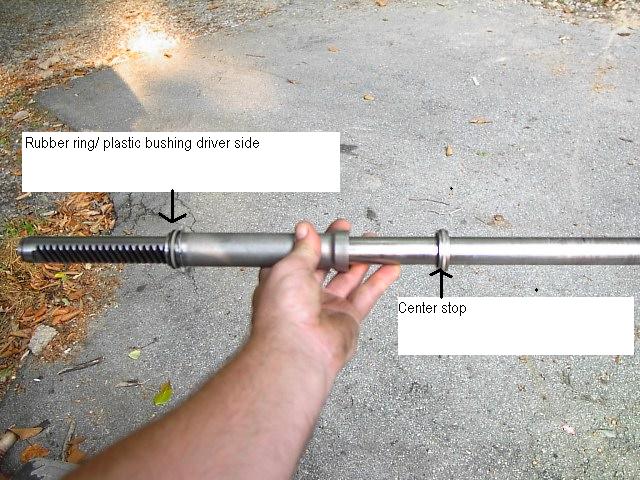

install the plastic bushing then the rubber ring. leave the 4 point shim on when cleaning, no need to remove it.
Sleeve and shaft to the driver housing
Image may have been reduced in size. Click image to view fullscreen.

Passenger side housing
Image may have been reduced in size. Click image to view fullscreen.

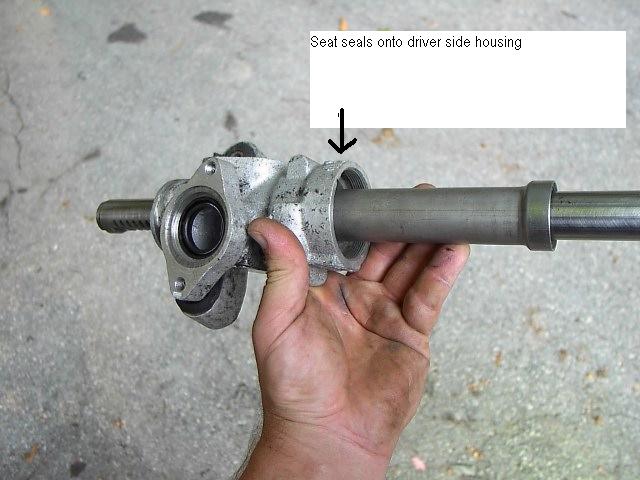

Seal, spring side facing you, plastic bushing, metal spacer with chamfer facing you , plastic bushing.

Replace the 2 rubber rings on the outer housing, slide the outer housing onto the shaft assembly. Install the other 4 point shim, slide the pass side seal assembly onto the shaft and tighten the internal nuts
Image may have been reduced in size. Click image to view fullscreen.

Done, attach the arms,boots and rods. plug and play.
That was fun Very Happy
_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
deprivation
Samba Member


Joined: September 14, 2006
Posts: 1220
Location: Austin, Texas
deprivation is offline

PostPosted: Thu Oct 25, 2007 4:58 pm    Post subject: Reply with quote

Holy sh*t, bill - this is amazing. Fantastic! Thanks!!!!!
_________________
1986 Westy 2WD auto a.k.a. "The Old Girl"
www.kittenfart.com
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
bucko
Samba Member


Joined: December 09, 2004
Posts: 2617
Location: Coppell, Texas
bucko is offline

PostPosted: Thu Oct 25, 2007 5:03 pm    Post subject: Reply with quote

For the love of the Samba gods, please make this a sticky!

One question Bill, can you post a pic of the "tool" you have/made to remove the "internal nuts"?
_________________
Current VW drives: 1984 Westfalia

Past VW drives: 1967 Beetle, 1973 Beetle, 1977 Bus, 1971 Military Type 181
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9658
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Thu Oct 25, 2007 6:46 pm    Post subject: Reply with quote

Stickilicious.
_________________
Check out my Vanagon accessories at the Vanistan shop at https://intrepidoverland.com/vanistan/

and be sure to visit my blog at https://intrepidoverland.com/news

"Official" IntrepidOverland thread for news and discussion:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

I will not see your Samba PM. Please use the contact link at www.intrepidoverland.com
Product inquiries only please!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jeremysmithatshawdotca
Samba Member


Joined: February 11, 2002
Posts: 2529
Location: Edmonton, AB
jeremysmithatshawdotca is offline

PostPosted: Wed Feb 18, 2009 7:16 pm    Post subject: Reply with quote

Mighty Art how about a sticky for this one?
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
dbo550
Samba Member


Joined: August 28, 2008
Posts: 365
Location: Kentucky
dbo550 is offline

PostPosted: Thu Feb 19, 2009 8:21 pm    Post subject: Re: Disassembled / Reassembled the power rack Reply with quote

Bill W wrote:
I'm doing the rebuild of the westy rack. Here is stage 1
Image may have been reduced in size. Click image to view fullscreen.

lotsa rubber rings and 3 seals. I am going to try to source the parts locally. $90 for a kit kinda takes the smarts out of doing it your self when a rebuilt is only $150 more.
More to come.............


Where could I find a rebuilt for $150? Or something close to that.
_________________
1985 Westy
2001 Audi Allroad
1999 Volvo v70 xc
1995 Volvo T5-R, Yellow
1998 Jetta GLX
Back to top
View user's profile Send private message Classifieds Feedback
dbo550
Samba Member


Joined: August 28, 2008
Posts: 365
Location: Kentucky
dbo550 is offline

PostPosted: Thu Feb 19, 2009 10:31 pm    Post subject: Reply with quote

I will keep bumpin' til I get an answer. Don't make me get all poo on ya'. Surely somebody has replaced their rack on one of these things.
_________________
1985 Westy
2001 Audi Allroad
1999 Volvo v70 xc
1995 Volvo T5-R, Yellow
1998 Jetta GLX
Back to top
View user's profile Send private message Classifieds Feedback
eeebee Premium Member
Samba Member


Joined: July 17, 2009
Posts: 405
Location: Tujunga
eeebee is offline

PostPosted: Thu Aug 27, 2009 5:22 pm    Post subject: Reply with quote

bump
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 2921
Location: The Topless Bar On Mustafar
Captain Pike is offline

PostPosted: Thu Aug 27, 2009 5:55 pm    Post subject: Reply with quote

No $150 rack exists.Unless you build it. Stop bumping.
_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
shorepig
Samba Member


Joined: November 30, 2005
Posts: 468
Location: Vancouver, B.C.
shorepig is offline

PostPosted: Thu Aug 27, 2009 9:04 pm    Post subject: Reply with quote

So, did u feel any difference in your steering after the rebuild? I'm trying to determine whether I need to rebuild mine.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
?Waldo?
Samba Member


Joined: February 22, 2006
Posts: 7829
Location: Where?
?Waldo? is offline

PostPosted: Thu Aug 27, 2009 11:04 pm    Post subject: Re: Disassembled / Reassembled the power rack Reply with quote

dbo550 wrote:
Bill W wrote:
$90 for a kit kinda takes the smarts out of doing it your self when a rebuilt is only $150 more.


Where could I find a rebuilt for $150? Or something close to that.


What Bill says is the parts are $90 but you can get a rebuilt unit for $150 MORE for a total of $240. RockAuto has a wholesale closeout for $211.
Back to top
View user's profile Send private message Classifieds Feedback
mrlimbo
Samba Member


Joined: April 28, 2004
Posts: 289
Location: Adams, MA
mrlimbo is offline

PostPosted: Mon Jun 28, 2010 10:51 am    Post subject: Reply with quote

90 Dollars for a seal kit? Do you have a part number or a source for these? Mine's leaking.

I have a manual rack I'm thinking of installing, but I have to find the intermediate shaft for a manual rack.
_________________
-Jim DiGennaro, Samba lurker, Disc Jockey and LiMBO freak www.LiMBObus.org
'67 Kombi- April, its not original and I don't care.
'87 Vanagon GL (daily driver)
'01 Jetta Honey's car
Looking for a Vanagon weekender or Escorial green camper.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
ALIKA T3
Samba Member


Joined: July 30, 2009
Posts: 3667
Location: Honolulu,Hawaii and France
ALIKA T3 is offline

PostPosted: Sat Jul 03, 2010 1:38 am    Post subject: Reply with quote

I'm selling the seal kit here: http://www.thesamba.com/vw/classifieds/detail.php?id=989323 Wink

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
MayorMcCheese
Samba Member


Joined: October 07, 2009
Posts: 474
Location: Lancaster PA
MayorMcCheese is offline

PostPosted: Tue Jun 19, 2012 5:35 pm    Post subject: Reply with quote

Anyone have experience with the $30 Gates seal kit? GATES Part #348522
Back to top
View user's profile Send private message Gallery Classifieds Feedback
rogertj
Samba Member


Joined: October 07, 2008
Posts: 117
Location: Tijuana, B.C. Mexico
rogertj is offline

PostPosted: Mon Apr 08, 2013 8:24 am    Post subject: Reply with quote

Hello Bill!

Hey Thanks for the rack and pinion post. I need your help I encountered a problem with the aluminum housing pasenger side, when I tighten the internal nut slaming the thing with a small shisell (Well actually hiting it gently... Laughing ) and a hamer it does not tighten enough... the aluminum housing it is in its place but even when I have tighten it it keeps turning...

edit: Oh and by the way the internal nut is all the way inserted in to the aluminum housing !!!

thanks in advance for your speedy reply.
_________________
Roger
1985 Vanagon ABA 2.0 Jetta conversion with 1.8 heads and 32/36 carburetor
Back to top
View user's profile Send private message MSN Messenger Twitter Gallery Classifieds Feedback
