PostPosted: Thu Nov 22, 2007 12:19 am    Post subject: Compatible Ignition switch Reply with quote

I need to replace the ignition switch on my '56 oval. Does anyone make a switch that will work without doing any cutting to the dash. I have given up on a true NOS switch as they just do not sem to exist. Otherwise I am going to update the entire electrical system. Thanks, VW don
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
vicky
Samba Member


Joined: January 09, 2006
Posts: 22

vicky is offline

PostPosted: Thu Nov 22, 2007 7:48 am    Post subject: Re: Compatible Ignition switch Reply with quote

vw donvieira wrote:
I need to replace the ignition switch on my '56 oval. Does anyone make a switch that will work without doing any cutting to the dash. I have given up on a true NOS switch as they just do not sem to exist. Otherwise I am going to update the entire electrical system. Thanks, VW don


I have seen them for sale here before. You can also check on E-Bay of course. Shouldn't be all that difficult to find at least a used one that's still in good condition
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 17496
Location: Left coast, Canada
Bruce is offline

PostPosted: Fri Nov 23, 2007 1:50 am    Post subject: Reply with quote

There's no repro switch that fits an oval dash. Don't believe the high volume vendors that say their switch fits cars from 54-67 because the different dash shape of an oval requires a switch that is different. You are relegated to good used switches or the uber rare NOS ones that show up every couple of years. Last one I saw on eBay went for around $250.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Alan Willis
Banned


Joined: November 22, 2004
Posts: 4181
Location: booted from the SEWR and stalked in here
Alan Willis is offline

PostPosted: Fri Nov 23, 2007 10:17 am    Post subject: Reply with quote

Gabrielle rebuilds stock switches...
_________________
die schwarzen Schafe #666
Back to top
View user's profile Send private message Classifieds Feedback
65Westy
Samba Member


Joined: February 15, 2005
Posts: 219
Location: Central Ohio
65Westy is offline

PostPosted: Fri Nov 23, 2007 5:30 pm    Post subject: Reply with quote

I found one for my 56 on ebay within the last 6 months. It came with
the cutout VW key and was less than $80.
_________________
Craig

63 Beetle
72 Schnepp XL13 Vintage Formula Vee
72 Caldwell D13 Vintage Formula Vee
71 Super Beetle convertible
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
nivag
Samba Member


Joined: January 28, 2004
Posts: 243
Location: Vancouver, BC
nivag is offline

PostPosted: Fri Nov 23, 2007 8:25 pm    Post subject: Reply with quote

VW Donviere - I have a really good used ignition w/ key for a 56 that I am about to list for sale. I sent you a PM.
Gavin
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Panhandle_dubs
Samba Member


Joined: June 03, 2007
Posts: 138
Location: Panhandle
Panhandle_dubs is offline

PostPosted: Fri Nov 23, 2007 10:27 pm    Post subject: Reply with quote

dude check out BFY obsolete
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 17496
Location: Left coast, Canada
Bruce is offline

PostPosted: Sat Nov 24, 2007 1:16 am    Post subject: Reply with quote

BFY does not sell an oval ignition switch.

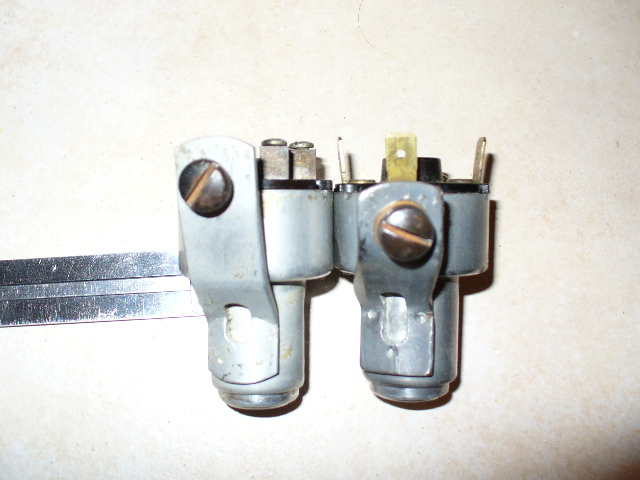

Here's the difference between an oval switch (left) and a later one. The oval requires a longer mounting tab.

Image may have been reduced in size. Click image to view fullscreen.

_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
GDOG57
Samba Member


Joined: March 19, 2006
Posts: 1066
Location: Gilbert,Arizona
GDOG57 is offline

PostPosted: Sat Nov 24, 2007 5:48 pm    Post subject: Reply with quote

Bruce wrote:
BFY does not sell an oval ignition switch.

Here's the difference between an oval switch (left) and a later one. The oval requires a longer mounting tab.

Image may have been reduced in size. Click image to view fullscreen.
So cut and weld if you have too!(the bracket i mean).
_________________
'57 oval window deluxe,Agave green(L240) 2276cc w/51.5 IDA's
'57 type 2 panel ( L31 dove blue) project daily driver,Singleport 1955cc
'69 Squareback (L30A Royal Red)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 17496
Location: Left coast, Canada
Bruce is offline

PostPosted: Sun Nov 25, 2007 1:19 am    Post subject: Reply with quote

GDOG57 wrote:
...So cut and weld if you have too!(the bracket i mean).

Not so simple. The oval's switch's bracket is directly inline with the centerline of the switch. A 58 and later's bracket is offset to the side.
But if you must attempt this, start with a 58-59 only switch so you still use a SG key to match with your door handle and deck lid handle.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
GDOG57
Samba Member


Joined: March 19, 2006
Posts: 1066
Location: Gilbert,Arizona
GDOG57 is offline

PostPosted: Sun Nov 25, 2007 10:42 pm    Post subject: Reply with quote

Your right,i see it's a little off,it was a thought!
_________________
'57 oval window deluxe,Agave green(L240) 2276cc w/51.5 IDA's
'57 type 2 panel ( L31 dove blue) project daily driver,Singleport 1955cc
'69 Squareback (L30A Royal Red)
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32968
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Mon Nov 26, 2007 9:56 am    Post subject: Reply with quote

HI,

Just curious, what is wrong with your switch that you need a new one??

There are ways to fix these things.

Let me know

Dave
