Rebuild syncro driveshaft for $45
Page: 1, 2, 3, 4, 5, 6  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
funagon
Samba Member


Joined: March 09, 2006
Posts: 1305
Location: SLC, UT
funagon is offline

PostPosted: Thu Jan 17, 2008 4:46 pm    Post subject: Rebuild syncro driveshaft for $45 Reply with quote

last summer I bought a $200 syncro with the driveshaft laying in the back seat. Van looked like hell. Owner said the trans was broken and engine might not work. Turned out to only have a broken CV joint. Good trans, good engine, good locking diff, good VC. YEE-HAW! I gave it to my buddy instead of paying him rent (living at his place) and he's really happy with the van. Here's what it looked like on the day we discovered it sitting in an empty lot:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


With the onset of winter we decided to rebuild the driveshaft ourselves. There are more expensive alternatives but we chose to first do a $45 experiment, rebuilding with u-joint NAPA part #2500070. (supercedes NAPA part #813.) 2 joints required, about $20 each. The results have been quite satisfactory. If you want to try here's what I did. Not too complicated, but maybe my description will help you decide what to do with your worn-out syncro driveshaft.

Removing the old u-joints: Remove c-clips. Drive out the old bearings by placing a small (17mm?) socket on top, and a much larger socket on the bottom for the lower bearing to exit. Your socket may be damaged when you beat on it, but a new driveshaft from VW costs $1000 so you decide if you like this method. The bearings don't come all the way out but they do come far enough that you can remove the u-joint. Then pound the bearing the rest of the way out from the inside.
Image may have been reduced in size. Click image to view fullscreen.

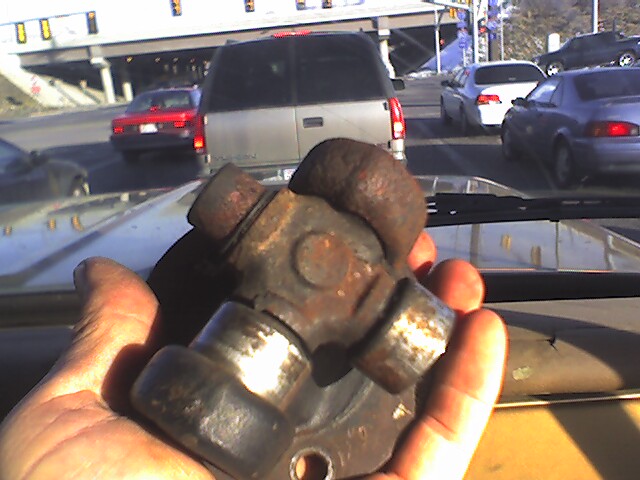

The old syncro u-joint with two bearings still stuck in place.
Image may have been reduced in size. Click image to view fullscreen.


New NAPA joint, including bearings, two kinds of c-clips, and grease fittings that won't fit the space in the Syncro driveshaft. (The hole in the middle is for the grease fitting.)

Image may have been reduced in size. Click image to view fullscreen.


Clean the rust and crud out of the joint where the new bearings will go. Grease everything. I filled the new u-joint with grease, then greased the bearings inside and out. They have needle bearings inside that can fall out so work carefully. The new bearing housing has a tapered end so you can pound it in from the outside of the hole (in the same direction the silver socket is going in, three photos above).

Put the bearing in place, then place the 4-way joint inside the bearing (where it will be when you are done) and hold it in place while pounding the bearing in. This is to prevent the needle bearings from falling out while you hammer on the bearing cap.

When the bearing cap is flush with the hole you'll need to use the socket to pound it down past the c-clip groove. Then install c-clip. Then install a bearing on opposing side and pound it in. Shift the 4-way joint (which is between the bearings now) so that it is inside the bearing that you are driving in, to ensure that the needle bearings don't fall out.

These are a tight fit and at first I thought they would not go in far enough to get the c-clip in. Never fear, you need to hit them hard. Put a block of wood underneath.

Image may have been reduced in size. Click image to view fullscreen.


Here’s the installation halfway done. When I got to this stage I injected grease into the body, cleaned the hole, then filled in the hole with silicone engine sealant (that's the blob of grey in the center of the joint). I made it a “sealed unit” since the grease fitting doesn't fit in the driveshaft joint. Should be good for a long time with quality grease in there. This photo shows bearings installed on two sides, but no bearings on the "open" ends of the joint.

Pound in the other bearings the same way. After the joint is assembled it is really stiff. So stiff that I worried they might be the wrong size joints/bearings from NAPA. My fear was unfounded. I tapped on the bearings to work them in a little, worked the joint back and forth, and they loosened up just enough to satisfy me. If you do this job remember that a 4WD driveline shop uses a strong hydraulic press to remove and install these. And after installation they’re not supposed to be “loosey-goosey,” they have to transmit the torque from the engine up to the front wheels.

Image may have been reduced in size. Click image to view fullscreen.


Ready to install. And here's a close up shot:

Image may have been reduced in size. Click image to view fullscreen.


I installed the driveshaft and discovered that the viscous coupling in this van works great. No binding in turns, not agressive at all. But if the back wheels are in snow and start to slip the front wheels pull the van confidently. Van has 130k miles so I wonder if a previous owner replaced the VC with a new unit?

There is a very slight, barely perceptible vibration from the shaft around 35-40 mph. I've been warned and read about the dreaded syncro driveshaft vibration. But the slight vibration felt in this van makes no noise, and can hardly be felt unless paying close attention. I'll keep monitoring it to see if it gets worse -- but it's really not an issue. (I wouldn't have noticed any vibration if I hadn't been warned, and scared, and vigiliantly expecting it.)

Image may have been reduced in size. Click image to view fullscreen.


This thing is so fun. Driving up to the ski resorts there's no worry about when to switch to 4WD. The front wheels engage automatically when needed to pull the vehicle forward before it loses traction. A huge difference from my 2wd vanagon and a great winter snow vehicle. Even if I rev it up and dump the clutch the back end won't swing around wildly like in a 2wd van. Instead the front wheels pick up and pull the van forward. (And I can peel out with all four wheels spinning and spitting up snow. But I don't drive it like that . . . Honest!)

Would I recommend this fix? I've heard of people who tried this only to have excess vibration in the drivetrain. Lucas at Gowesty thinks the excessive vibration is caused not by worn u-joints, but instead by a non-serviceable, worn bearing and shaft that's under the rubber donut. Other folks have proposed that vibration is caused by an imbalanced shaft, or by misalignment of the front and rear diffs. But for $40 and a few hours work I thought this was worth a try and it worked out really well. Not too hard other than kneeling on the pavement and hitting things with a hammer. If you're willing to risk $40 and a few hours labor it seems worthwhile to me.


Last edited by funagon on Thu Jan 17, 2008 8:43 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 40966

Wildthings is offline

PostPosted: Thu Jan 17, 2008 5:37 pm    Post subject: Reply with quote

Just have to love the claim in the Bentley that the joints can't be replaced using normal shop tools. It is this kind of bull that has caused VW to lose tens of thousands of repeat sales.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Tristar Eric
Samba Member


Joined: July 25, 2004
Posts: 1215
Location: Portland, Or
Tristar Eric is offline

PostPosted: Thu Jan 17, 2008 11:20 pm    Post subject: Reply with quote

Score! I like it!
_________________
Vanagon/Transporter flares here: www.terrawagen.com
Facebook:https://www.facebook.com/terra.wagen/
[email protected]

Syncrofest 2017 5-4 to 5-7-17 Yeah, it's happening...
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Lanval
Samba Member


Joined: June 09, 2007
Posts: 905

Lanval is offline

PostPosted: Fri Jan 18, 2008 1:10 pm    Post subject: Reply with quote

Rat Van, Baby! I love it!! Home brew is the best... nice work. Very nice work indeed.


Best,

Lanval
Back to top
View user's profile Send private message Gallery Classifieds Feedback
getset
Samba Member


Joined: March 07, 2005
Posts: 426
Location: PNW | OLY
getset is offline

PostPosted: Mon Mar 10, 2008 3:23 pm    Post subject: Reply with quote

Hello funagon,

I was hoping to get an update on the driveshaft repair you posted last March. I started having the most violent vibrations in my van, and when I returned home I removed my driveshaft to find the u-joint in shards. how has your repair held up over the past year? did those u-joints suffice. Thanks

J---
Back to top
View user's profile Send private message Gallery Classifieds Feedback
funagon
Samba Member


Joined: March 09, 2006
Posts: 1305
Location: SLC, UT
funagon is offline

PostPosted: Mon Mar 10, 2008 4:58 pm    Post subject: Reply with quote

The driveshaft is holding up just fine! It still has the same very slight vibration that I described, but it hasn't gotten any worse since the day I put it in. The van has been driven almost every day.

The repair isn't a year old yet. I did this in the Fall of '07, before it snowed in SLC, so it's been about seven months.

When we got the van the driveshaft was in the back seat so I don't know whether it vibrated, or how much it vibrated, before the repair. This was an experiment with a sample size of 1. In other words, it worked for me but I can't guarantee it would work on your driveshaft. The NAPA joints I listed are the correct part, though. I'm not the first person to use them, I got the info from the "other" vanagon mailing list.

After this repair I tried to balance the driveshaft by putting a big hoseclamp on one end of the shaft, near the original weight. The idea was to leave the hose clamp just loose enough to rotate to a point of balance while spinning, but just snug enough that it would stay put where it comes to rest. After a few tries at getting the clamp "tight enough" but "not too tight," I went for a drive with no vibration whatsoever. I thought I was a genius. But then after tightening the clamp down in this supposedly good position, the vibration immediately returned (I suspect the clamp slid out of place before I tightened it). This homebrew method of balancing might work, but the vibration in this van is so slight that I said "so what" and stopped worrying about it.

I just re-read my original wordy post describing the job. You probably don't need my confusing instructions. I could have wrote one sentence: "beat the old bearings out, clean it up, beat the new ones in."
_________________
1990 GL 7-passenger
2.2 liter WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
msinabottle
Samba Member


Joined: September 20, 2005
Posts: 3477
Location: Denver Area, Colorado
msinabottle is offline

PostPosted: Mon Mar 10, 2008 9:59 pm    Post subject: Funagon's Hymn... Reply with quote

Halleluja, Praise the Lord!
Another van is saved!
Halleluja, Praise the Lord!
Another van is saved!
And this one is Syncro!
It don't care if the road's paved!
Another van in from the cold
Back to utility!
Halleluja, Praise the Lord!
And ingenuity!

Shocked

Oh no. I've let that Poet Laureate thing go to my head.

Best!
_________________
'Winston,' '84 1.9 WBX Westy
Vanagon Poet Laureate: "I have suffered in
many ways, but never, never, never in silence."
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
getset
Samba Member


Joined: March 07, 2005
Posts: 426
Location: PNW | OLY
getset is offline

PostPosted: Tue Mar 11, 2008 2:10 pm    Post subject: Reply with quote

Thanks!

I have done ujoints before, so I should be able to handle this without any problems. Hopefully It won't need much balancing.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
foulplay
Samba Member


Joined: March 17, 2007
Posts: 9
Location: Farmington, NM
foulplay is offline

PostPosted: Wed Sep 24, 2008 5:28 am    Post subject: Reply with quote

If you try this repair you might want to take the old u-joint with you so they can measure it and get you the right one. I didnt do that and when I got the parts the new u-joint was narrower than the old one. The guy at the d-line shop told me someone had already done some work on that driveline, so I am not sure if my d-line is stock. To replace the u-joints at the shop is only going to cost me about $60! Not including the parts, so I figured why not pay the pros to do it right and not risk damaging the new parts. The shop will also spin the shaft after the repair to make sure it is balanced. I will update you after I get the shaft back and install it.
Back to top
View user's profile Send private message Classifieds Feedback
funagon
Samba Member


Joined: March 09, 2006
Posts: 1305
Location: SLC, UT
funagon is offline

PostPosted: Wed Sep 24, 2008 7:24 am    Post subject: Reply with quote

I would also let a shop do it for $60. The shop here said they can't do it because the driveshaft won't fit on their equipment, so they can't spin/balance. Hence the homebrew method.

Update: while doing a Bostig conversion on this van an inspection of the driveshaft showed one joint sticking and moving poorly. I beat in another u-joint and now there's no vibration. Hallelujah.
_________________
1990 GL 7-passenger
2.2 liter WBX
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9660
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Wed Sep 24, 2008 8:23 am    Post subject: Reply with quote

I have a Syncro driveshaft that has already had the U-joints replaced by someone. I bought it this way and haven't driven it yet, but I was told it has that same characteristic 45mph vibration. Going to have to wait 'til I have a new engine in it and so on before I know. But my machinist knows about a Chevy driveshaft that is a direct fit for the Syncro shaft, brand new at only $450, vs. $700 for rebuilts and $1100 for new VW shafts. The Chevy shaft doesn't have a Guibo disc, just a splined sliding joint in the middle. So, we'll see how this one does, and whether the reported vibe is the shaft or something else, but if it is a problem I may just spring for the new shaft, which is of a more "normal" construction and easier to rebuild and service.

I've replaced more U-joint spiders than I could ever count. It's pretty straightforward, much easier if you have either a press or a large enough vise to squeeze everything together with. One warning about doing it with hammers and sockets: you do need to be careful about the bearing cups. They are usually a brittle cast metal, and it's pretty easy to crack one if you strike it the wrong way. Make sure whatever socket or pipe you use as a drift is pressed flat against the backside of the cup when you strike it. Hitting in the center of the back face is the surest way to crack it there, so use a socket or piece of pipe that is close to the OD so the force is borne by the wall of it.
_________________
Check out my Vanagon accessories at the Vanistan shop at https://intrepidoverland.com/vanistan/

and be sure to visit my blog at https://intrepidoverland.com/news

"Official" IntrepidOverland thread for news and discussion:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

I will not see your Samba PM. Please use the contact link at www.intrepidoverland.com
Product inquiries only please!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Zero419
Samba Member


Joined: January 11, 2008
Posts: 2098
Location: PA
Zero419 is offline

PostPosted: Wed Sep 24, 2008 9:13 am    Post subject: Reply with quote

This is the way my dad taught me to do it 15 years ago, except to use a vice to put it back together. To take it apart I put one half of the shaft in a vice and bang on the other one with a big hammer until the cups pop out. I never broke anything yet doing it this way, of course I've only done 10 or so.
_________________
1987 Westy Auto Bostig 2.0 Ztec
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sodo
Samba Member


Joined: July 06, 2007
Posts: 5182
Location: Western WA
Sodo is offline

PostPosted: Thu Sep 25, 2008 9:08 am    Post subject: Reply with quote

This is an excellent post, thank you all!
_________________


EJ25, Peloquin diff, locker, transaxle oil cooler/filtration system
....KTMs, GasGas, and a Stumpjumper
One apple every 8 hours will keep 3 doctors away - B Kliban
Back to top
View user's profile Send private message Gallery Classifieds Feedback
TopBud
Samba Member


Joined: February 28, 2004
Posts: 913
Location: Flagstaff AZ
TopBud is offline

PostPosted: Tue Dec 28, 2010 11:36 pm    Post subject: Reply with quote

I just did this today and it went really smooth. I drove it around and no vibrations like the old U joints. Two things worth updating. The price of the U joints from NAPA went up. $35 a piece, $70ish for the two. The supplied czirks wouldn't fit (as noted) so I ended up using a set screw http://www.google.com/imgres?imgurl=http://www.air...CC8Q9QEwAw

Thanks for this post. It works well.
_________________
86 SYNCRO
71 bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11176
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Tue Dec 28, 2010 11:42 pm    Post subject: Reply with quote

...still a super cheap driveshaft rebuild price. Dancing
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Syncroincity
Samba Member


Joined: April 15, 2007
Posts: 1557
Location: New York City
Syncroincity is offline

PostPosted: Wed Dec 29, 2010 1:18 am    Post subject: Reply with quote

Replace the rubber donut too, if you need to, it's a BMW part...

BMW manual transmission disk from 1970 to 1980 will also work Part Number 26111106113 (~$40)

Nice write-up. I did this when I first got my van back in '01 but the vibes never went away, I think my inner axle was shot. Ended up getting a slip-joint shaft made locally. The shaft was cheap, the machined adaptors are what costs $300. Big, burly, greaseable U-joints now!
_________________
'86 Syncro CHC Top AAZ Turbodiesel
'04 Passat Variant 4Mo 5MT

Vanagon Build: http://www.thesamba.com/vw/forum/viewtopic.php?t=466866&highlight=
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9660
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Wed Dec 29, 2010 8:13 am    Post subject: Reply with quote

Wel to follow up on my own story, I finally got the Syncro on the road a few months ago, and the driveshaft had some mild vibrations from the start, at about 50-55mph. I borrowed a laser alignment tool and centered up the casings relative to each other, that cut the vibes down in intensity. Then I took out the shaft and I could see that the spider at the Giubo end had one cup not equidistant from the centerline, which would bind a little when I swiveled it. It's tough to take a spider apart without damaging it but with care I got the cups out, added more lube (they didn't have nearly enough) and put it back together with more careful alignment.

I also took apart the slip-joint and measured the play there; it seemed pretty moderate, not perfect but not too bad, so I just added a lot more lube there because it also seemed too dry.

Put it back in and it runs pretty smooth now.

By the way, I didn't need to use them but if you need shims to put under the circlips to get a spider centered or adjust its preload, VW rocker shims are a pretty good fit. They come in assortments of several thicknesses: .015, .030, .060", from lots of VW aftermarket vendors, and you can find .010" ones too, the only place I know of that has those is Dan's Performance Parts:

http://www.dansperformanceparts.com/buggy/epc/buggyep%206%20rockers.htm
_________________
Check out my Vanagon accessories at the Vanistan shop at https://intrepidoverland.com/vanistan/

and be sure to visit my blog at https://intrepidoverland.com/news

"Official" IntrepidOverland thread for news and discussion:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

I will not see your Samba PM. Please use the contact link at www.intrepidoverland.com
Product inquiries only please!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
candyman
Samba Trout Slayer


Joined: December 20, 2003
Posts: 2435
Location: Missoula MT
candyman is offline

PostPosted: Wed Dec 29, 2010 7:05 pm    Post subject: Reply with quote

Wow. Simply wow. Chris (10c) I think I speak for all of here in samby land, YOU are our internet hero. I sleep better at night knowing you are here. I gave up on my shaft I had rebuilt and just bought a new one from vanacafe. I kept the old one though with the new ujoints installed and now may try 10c fix on it, it was a just a very slight vibration but it drove me nuts. Chris, thanks for being here!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
TopBud
Samba Member


Joined: February 28, 2004
Posts: 913
Location: Flagstaff AZ
TopBud is offline

PostPosted: Wed Dec 29, 2010 7:42 pm    Post subject: Reply with quote

I didn't replace the rubber disk. It looked fine. Drove all over today, no vibrations at all.
_________________
86 SYNCRO
71 bug
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9660
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Thu Dec 30, 2010 10:17 am    Post subject: Reply with quote

candyman wrote:
Wow. Simply wow. Chris (10c) I think I speak for all of here in samby land, YOU are our internet hero. I sleep better at night knowing you are here. I gave up on my shaft I had rebuilt and just bought a new one from vanacafe. I kept the old one though with the new ujoints installed and now may try 10c fix on it, it was a just a very slight vibration but it drove me nuts. Chris, thanks for being here!


Thanks, but don't you mean to be praising Mr. funagon? He's the one who provided the great pictorial how-to, I think he did a great job.

Anyway, the thing is, rebuilding U-joints is not hard at all, takes a little patience and forethought but it's mosty just putting a little puzzle together. Balancing is a specialist job, but if your DS was balanced before and the trouble is just loose or binding spiders, and you index the main pieces before disassembly, most times you can replace the spiders and get back a smooth runner.
_________________
Check out my Vanagon accessories at the Vanistan shop at https://intrepidoverland.com/vanistan/

and be sure to visit my blog at https://intrepidoverland.com/news

"Official" IntrepidOverland thread for news and discussion:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

I will not see your Samba PM. Please use the contact link at www.intrepidoverland.com
Product inquiries only please!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5, 6  Next
Page 1 of 6


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
