56 ragtop rear corners supposed to be rounded or square?
Page: 1, 2, 3  Next
Forum Index -> Beetle - Oval-Window - 1953-57 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
eth727
Samba Member


Joined: February 21, 2007
Posts: 542
Location: san diego
eth727 is offline

PostPosted: Sat Jan 19, 2008 5:49 pm    Post subject: 56 ragtop rear corners supposed to be rounded or square? Reply with quote

When I replaced my sunroof cover a while back someone told me that the rear corners where supposed to be square instead of being rounded like a 57+. I recently looked at some 56 ragtops and they were all rounded in the back. Does anyone know for sure which is correct?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Dave
Samba Elder


Joined: July 11, 2002
Posts: 2709
Location: The Forest Moon of Endor, in the Redwoods
Dave is offline

PostPosted: Sat Jan 19, 2008 5:54 pm    Post subject: Reply with quote

Model year '56 had the one-year-only square corners in the rear.
_________________
2003 Samba Chummie Winner- Best Story

"Those that matter, don't mind,
and those that mind, don't matter"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Alan Willis
Banned


Joined: November 22, 2004
Posts: 4181
Location: booted from the SEWR and stalked in here
Alan Willis is offline

PostPosted: Sat Jan 19, 2008 6:14 pm    Post subject: Reply with quote

Early '56 had the square corners. It was changed mid year,like the taillights on '55 beetles Wink
_________________
die schwarzen Schafe #666
Back to top
View user's profile Send private message Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32966
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sat Jan 19, 2008 8:16 pm    Post subject: Reply with quote

Hi,

In 1956 there were 3 sunroof styles.

In August 1955 at chassis # 1 0929 746 the 3 fold 4 square cornered sunroof was replaced with a newer two fold roof.
The front corners were rounded and the rear corners were square.

In November 1955 at chassis # 1 024 647 The mechanism changed but the rounded front and square rears were also on this version. This new mechanism did not retrofit into the earlier roof.

In May 1956 at chassis # 1 181 041 the sunroof had multiple changes made to it, the most visible was 4 rounded corners. This continued to the end of the 1963 USA version and much longer on European versions.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ian c
Samba Member


Joined: December 09, 2007
Posts: 270

ian c is offline

PostPosted: Sat Jan 19, 2008 9:50 pm    Post subject: Reply with quote

dave ,
which change coincided with plastic runners ??
_________________
ian c wrote:
only losers have quotes in their sig .
Back to top
View user's profile Send private message Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32966
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun Jan 20, 2008 5:29 am    Post subject: Reply with quote

ian c wrote:
dave ,
which change coincided with plastic runners ??


Hi,

The first change in August 55 put nylon rollers on the sliding segment. Previously it was pieces of leather.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
ian c
Samba Member


Joined: December 09, 2007
Posts: 270

ian c is offline

PostPosted: Sun Jan 20, 2008 9:30 am    Post subject: Reply with quote

what changed to mech in november ?
_________________
ian c wrote:
only losers have quotes in their sig .
Back to top
View user's profile Send private message Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 32966
Location: Reading Pennsylvania
djkeev is offline

PostPosted: Sun Jan 20, 2008 4:14 pm    Post subject: Reply with quote

ian c wrote:
what changed to mech in november ?


They made some changes in the design of the track and the head piece.

Keep in mind they only made 94,900 of these bugs world wide. Only a small percentage of these bugs had a sunroof, Figure 80% (a complete guess here) or better are crushed, crashed, rusted or some other way destroyed that leaves probably less than 20,000 left world wide, a small percentage of these have sunroofs. I really haven't any idea how many are left, just guessing it is precious few. Most of us will probably never see one of these August 55 tops in our lifetime.

Because of the changes in the November mechanism the sunroof cover needed to be a little bit longer than the earlier version put on in August.

Also the cover for the August roof was still made of canvas.
That was changed in November to the Vinyl type of cover for the Deluxe.

The big changes for the four rounded corners were on how you adjusted the tension of the cover with slots in the roof enabling you to move it forward or back.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
vwclap
Samba Member


Joined: April 21, 2004
Posts: 519
Location: Qc, Canada
vwclap is offline

PostPosted: Mon Sep 01, 2008 4:47 pm    Post subject: Reply with quote

djkeev wrote:
Hi,

In 1956 there were 3 sunroof styles.

In August 1955 at chassis # 1 0929 746 the 3 fold 4 square cornered sunroof was replaced with a newer two fold roof.
The front corners were rounded and the rear corners were square.

In November 1955 at chassis # 1 024 647 The mechanism changed but the rounded front and square rears were also on this version. This new mechanism did not retrofit into the earlier roof.

In May 1956 at chassis # 1 181 041 the sunroof had multiple changes made to it, the most visible was 4 rounded corners. This continued to the end of the 1963 USA version and much longer on European versions.

Dave

My sunroof is (ser # 1 102 38XX) so I presume that the roof that goes into it is a 3 fold type ragtop? How can I be sure it is for a 3 fold ragtop. Any measurement? How can I determine that it is not a grafted ragtop...
Claude
_________________
Claude

cox 1956, 1962 et 1975
Split panel 1963
Samba 21 fenetres 1966
Ghia 1968
Sport Ghia 73
West 1970
Jetta 1992
Jetta TDI 2015
West Multivan 2002
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
vwclap
Samba Member


Joined: April 21, 2004
Posts: 519
Location: Qc, Canada
vwclap is offline

PostPosted: Mon Sep 01, 2008 5:03 pm    Post subject: Reply with quote

vwclap wrote:
djkeev wrote:
Hi,

In 1956 there were 3 sunroof styles.

In August 1955 at chassis # 1 0929 746 the 3 fold 4 square cornered sunroof was replaced with a newer two fold roof.
The front corners were rounded and the rear corners were square.

In November 1955 at chassis # 1 024 647 The mechanism changed but the rounded front and square rears were also on this version. This new mechanism did not retrofit into the earlier roof.

In May 1956 at chassis # 1 181 041 the sunroof had multiple changes made to it, the most visible was 4 rounded corners. This continued to the end of the 1963 USA version and much longer on European versions.

Dave

My sunroof is (ser # 1 102 38XX) so I presume that the roof that goes into it is a 3 fold type ragtop? How can I be sure it is for a 3 fold ragtop. Any measurement? How can I determine that it is not a grafted ragtop...
Claude

Is there 7 or 8 digits in the serial number in 56? The achive section tell 7?
Claude
_________________
Claude

cox 1956, 1962 et 1975
Split panel 1963
Samba 21 fenetres 1966
Ghia 1968
Sport Ghia 73
West 1970
Jetta 1992
Jetta TDI 2015
West Multivan 2002
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14577
Location: 18 miles North of the border
RareAir is offline

PostPosted: Mon Sep 01, 2008 10:41 pm    Post subject: Reply with quote

vwclap wrote:
My sunroof is (ser # 1 102 38XX) so I presume that the roof that goes into it is a 3 fold type ragtop? How can I be sure it is for a 3 fold ragtop. Any measurement? How can I determine that it is not a grafted ragtop...
Claude


Look at the Aluminum rails that are attached to the roof. How many screws are used to hold down that Aluminum rail? If it only uses 5 screws, you have a 2-fold sunroof.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Denz
Samba Member


Joined: February 11, 2005
Posts: 112

Denz is offline

PostPosted: Fri Nov 07, 2008 8:49 am    Post subject: Reply with quote

djkeev wrote:

Keep in mind they only made 94,900 of these bugs world wide. Only a small percentage of these bugs had a sunroof, Figure 80% (a complete guess here) or better are crushed, crashed, rusted or some other way destroyed that leaves probably less than 20,000 left world wide, a small percentage of these have sunroofs. I really haven't any idea how many are left, just guessing it is precious few. Most of us will probably never see one of these August 55 tops in our lifetime.
Dave


I have one! Wink
Back to top
View user's profile Send private message Classifieds Feedback
ian c
Samba Member


Joined: December 09, 2007
Posts: 270

ian c is offline

PostPosted: Tue Feb 03, 2009 11:00 pm    Post subject: Reply with quote

thanks for the answers dave .

i think mine is one of the august 55 roofs ,
i can take a measure of the aperture to tell ?
i can take pics and post them on here if you can help ??

its time to order a new roof outer cover for it Rolling Eyes

i'm looking on wolfsburg west site , and they have 2 different kinds of material available in black , round front/square back .
any advice on this guys ??

http://www.wolfsburgwest.com/cart/ShowCart.cfm?1053118685

thanks
ian

.
_________________
ian c wrote:
only losers have quotes in their sig .
Back to top
View user's profile Send private message Classifieds Feedback
Denz
Samba Member


Joined: February 11, 2005
Posts: 112

Denz is offline

PostPosted: Wed Feb 04, 2009 1:28 am    Post subject: Reply with quote

I'm in the process of moving house guys but once settled I'll get some pics of my August '55 ragtop roof section and post them on here. Wink
Back to top
View user's profile Send private message Classifieds Feedback
ian c
Samba Member


Joined: December 09, 2007
Posts: 270

ian c is offline

PostPosted: Wed Mar 04, 2009 12:01 am    Post subject: Reply with quote

heres the latest .
after going to look at my car ,
i found it has rounded corners front and rear .
and it has the earlier "ribbed" handle .
_________________
ian c wrote:
only losers have quotes in their sig .
Back to top
View user's profile Send private message Classifieds Feedback
carnut63
Samba Member


Joined: May 14, 2009
Posts: 336
Location: Murrieta, CA & Everett, WA
carnut63 is offline

PostPosted: Thu Jun 04, 2009 8:46 pm    Post subject: Reply with quote

Maybe this thread is played out. or not, either way here is a pic of my Aug 55 2 fold ragtop. vin 1-0949815
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Tyson

---> Mar 2 1955 Strato Silver Oval <---
---> July 1957 ragtop project <---
---> May 5 1966 Ghia <---
---> 1962 Ruby Red Deluxe (sold)
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Gallery Classifieds Feedback
newwaver
Samba Member


Joined: April 18, 2007
Posts: 78
Location: Surrey, England
newwaver is offline

PostPosted: Sat Jun 06, 2009 1:58 am    Post subject: Reply with quote

carnut63 wrote:
Maybe this thread is played out. or not, either way here is a pic of my Aug 55 2 fold ragtop. vin 1-0949815
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Is that what the original iron slat(tension plate) looks like on a 56? I thought it was the same as the 3 fold one. Does anyone have dimensions of this slat so i can make one.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
David
Samba Member


Joined: June 29, 2004
Posts: 2038
Location: Raleigh, NC
David is offline

PostPosted: Sun Jun 07, 2009 1:05 pm    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

newwaver wrote:
Is that what the original iron slat(tension plate) looks like on a 56? I thought it was the same as the 3 fold one. Does anyone have dimensions of this slat so i can make one.

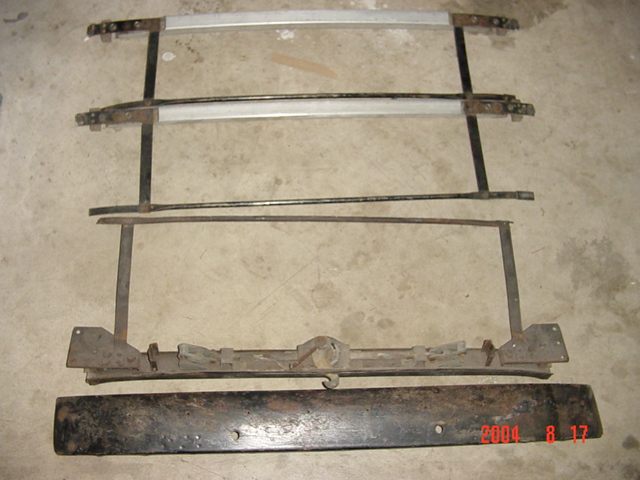

That appears to be a later 56 -> front header bow. Three fold bows are square at the front like this:
Image may have been reduced in size. Click image to view fullscreen.


If you need a front bow, just cruise the classifieds:
http://www.thesamba.com/vw/classifieds/search.php?...ton=Search
_________________
Cheers,
Dave

*October '54 Ragtop
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
newwaver
Samba Member


Joined: April 18, 2007
Posts: 78
Location: Surrey, England
newwaver is offline

PostPosted: Mon Jun 08, 2009 11:02 am    Post subject: Reply with quote

No sorry i was talking about the rear slat iron that bolts through the roof into capsulated nuts, my ragtop came with a later studed round corner slat and someone butchered the capsulated nuts to fit it!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
carnut63
Samba Member


Joined: May 14, 2009
Posts: 336
Location: Murrieta, CA & Everett, WA
carnut63 is offline

PostPosted: Mon Jun 08, 2009 6:37 pm    Post subject: Reply with quote

Sorry, I would take some measurements but I left the military decided to deploy me so i wont be back for a long...long....time...
_________________
Tyson

---> Mar 2 1955 Strato Silver Oval <---
---> July 1957 ragtop project <---
---> May 5 1966 Ghia <---
---> 1962 Ruby Red Deluxe (sold)
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Oval-Window - 1953-57 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2024, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
