Continental upper bed
Page: 1, 2, 3 ... 15, 16, 17  Next
Jump to:
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
stevem49090
Samba Member


Joined: June 09, 2004
Posts: 203

stevem49090 is offline

PostPosted: Tue Jan 22, 2008 8:17 pm    Post subject: Continental upper bed Reply with quote

I have finished researching and finding sources for building the upper bed for a 68-73 Westy and I now plan on making them for sale. I have not got a set price on them yet as it will be a few weeks befor I get the first one done. The most expensive part of it is the 9 ply Baltic Birch 11/16" plywood at $75 a sheet. Mustard colored vinyl is $40 a yard too. I'm thinking somewhere near the $600.00 range.
_________________
Good health is merely the slowest possible rate at which one can die.

99 New Beetle
72 Ghia convert.
73 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vintage Auto Werks1
Samba Member


Joined: October 20, 2002
Posts: 452

Vintage Auto Werks1 is offline

PostPosted: Tue Jan 22, 2008 8:44 pm    Post subject: Reply with quote

What opening you making them for? I have one from a 73 and the opening was bigger on the 73 for where the bed would sit. I will work on fitting it in my 71 when I get around to it. Are you going to be including the brackets or you just making the bed?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
stevem49090
Samba Member


Joined: June 09, 2004
Posts: 203

stevem49090 is offline

PostPosted: Wed Jan 23, 2008 6:13 am    Post subject: Reply with quote

I'm starting with a 73. I'll have to check measurments for the 71 opening. I plan on making a complete bolt in kit.
_________________
Good health is merely the slowest possible rate at which one can die.

99 New Beetle
72 Ghia convert.
73 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stevem49090
Samba Member


Joined: June 09, 2004
Posts: 203

stevem49090 is offline

PostPosted: Wed Jan 23, 2008 6:21 am    Post subject: Reply with quote

Could you check the measurements with you 73 bed with the dimensions on this picture. I'm trying to find out the differences between the 71 and 73. http://www.pottsfamily.ca/westfakia/roofbed2.jpg
_________________
Good health is merely the slowest possible rate at which one can die.

99 New Beetle
72 Ghia convert.
73 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Vintage Auto Werks1
Samba Member


Joined: October 20, 2002
Posts: 452

Vintage Auto Werks1 is offline

PostPosted: Wed Jan 23, 2008 6:42 am    Post subject: Reply with quote

Yes once it warms up here I can go measure it. Thinking this weekend I should be able to do that for you. I do not think the difference in sizes is really in the bedding if anything it is in the body opening. The brackets will need to be modifyed to allow them to sit correctly. The 73 Roof was no longer a sunroof body roof and the opening was bigger. Also do you have the small cushion that goes in the very front? I can take pictures for you if needed.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
stevem49090
Samba Member


Joined: June 09, 2004
Posts: 203

stevem49090 is offline

PostPosted: Wed Jan 23, 2008 8:10 pm    Post subject: Reply with quote

That would be great. I don't have the measurments for the small flip up portion. I could also use a detailed picture of the front hinges too.
_________________
Good health is merely the slowest possible rate at which one can die.

99 New Beetle
72 Ghia convert.
73 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vdubbie
Samba Member


Joined: August 19, 2006
Posts: 23
Location: wimauma fl
vdubbie is offline

PostPosted: Wed Jan 23, 2008 9:20 pm    Post subject: WESTY Reply with quote

ARE YOU TALKING ABOUT WESTY OR RIVERIA my 73 has a little fold out cot
Back to top
View user's profile Send private message Classifieds Feedback
Vintage Auto Werks1
Samba Member


Joined: October 20, 2002
Posts: 452

Vintage Auto Werks1 is offline

PostPosted: Wed Jan 23, 2008 9:24 pm    Post subject: Reply with quote

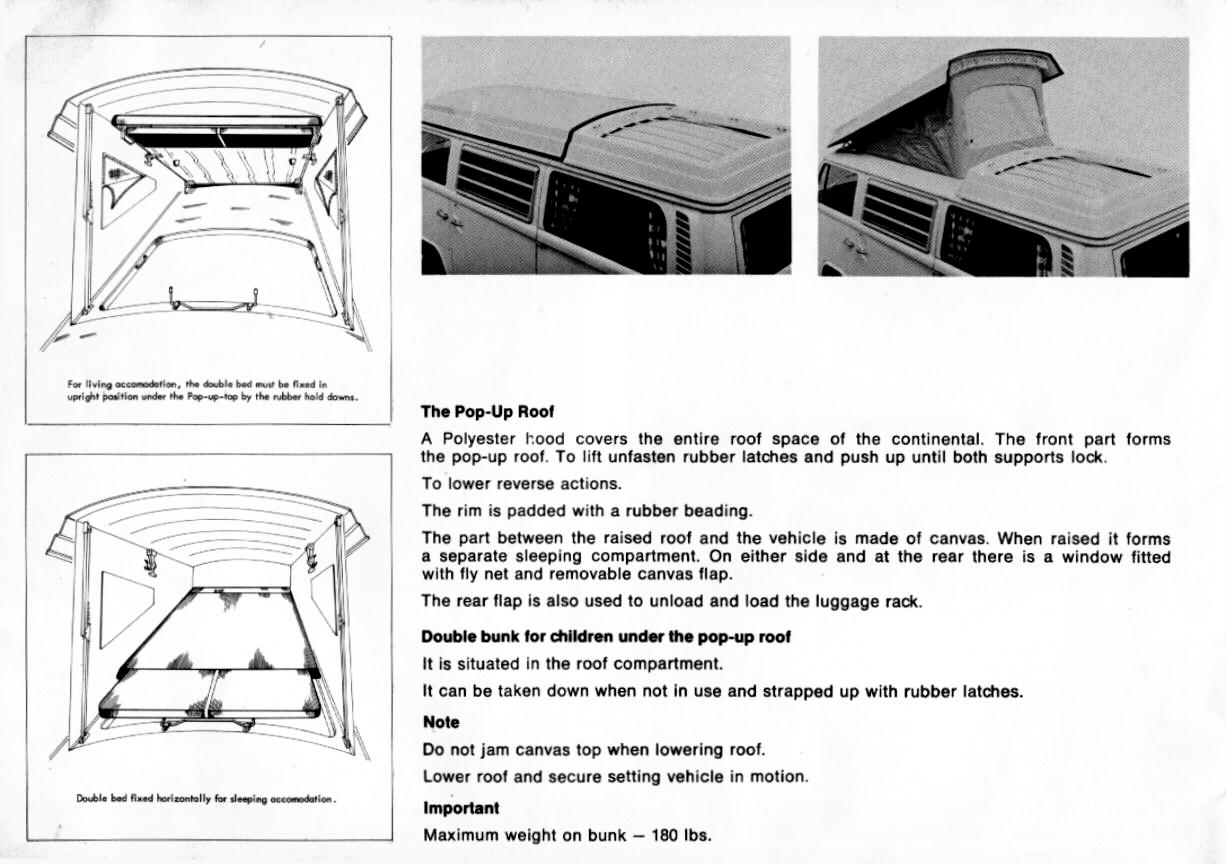

We are talking Westy. Here is a good picture I found on here. Thanks to NASkeet!!!

Image may have been reduced in size. Click image to view fullscreen.



Image found at http://www.thesamba.com/vw/forum/album_page.php?pic_id=361183


Last edited by Vintage Auto Werks1 on Thu Jan 24, 2008 9:11 am; edited 2 times in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Vintage Auto Werks1
Samba Member


Joined: October 20, 2002
Posts: 452

Vintage Auto Werks1 is offline

PostPosted: Wed Jan 23, 2008 9:28 pm    Post subject: Reply with quote

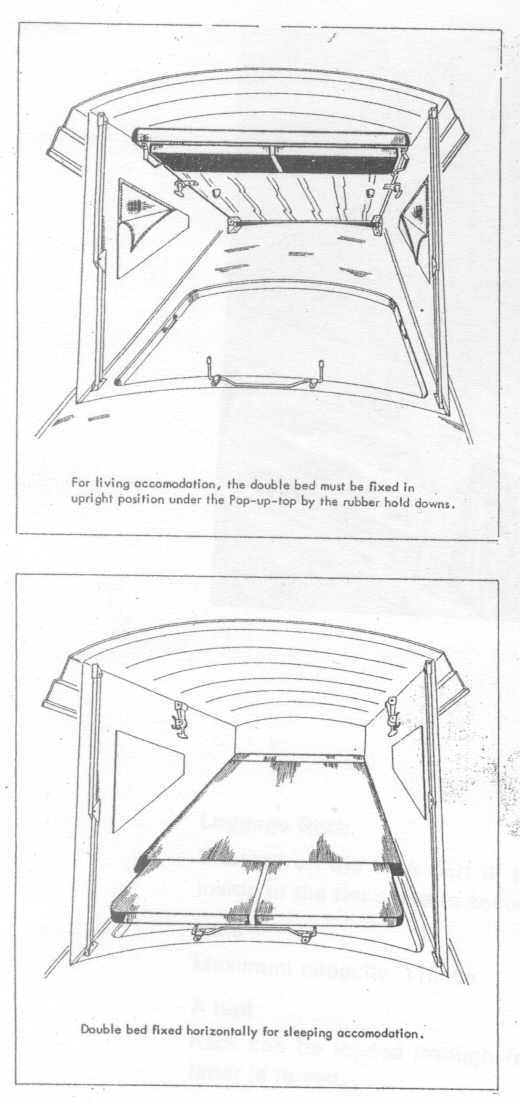

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
vdubbie
Samba Member


Joined: August 19, 2006
Posts: 23
Location: wimauma fl
vdubbie is offline

PostPosted: Wed Jan 23, 2008 9:36 pm    Post subject: wow Reply with quote

did not know they made that kind of bed for westy
Back to top
View user's profile Send private message Classifieds Feedback
Vintage Auto Werks1
Samba Member


Joined: October 20, 2002
Posts: 452

Vintage Auto Werks1 is offline

PostPosted: Wed Jan 23, 2008 9:45 pm    Post subject: Reply with quote

Its not very common in the states. The bus I got mine from was a bus used on tours in Europe before being shipped to the states.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
NASkeet
Samba Member


Joined: April 29, 2006
Posts: 2854
Location: South Benfleet, Essex, UK
NASkeet is offline

PostPosted: Thu Jan 24, 2008 7:31 am    Post subject: Westfalia Continental, elevating-roof bed Reply with quote

This looks remarkably like the picture, that I posted in The Samba Gallery, just a few months ago!

Vintage Auto Werks1 wrote:
We are talking Westy. Here is a good picture I found on here.

Image may have been reduced in size. Click image to view fullscreen.


vdubbie wrote:
did not know they made that kind of bed for westy


This is the stock, factory-fitted elevating-roof bed (maximum rated load of 80ákg or 180 pounds), for the British specification, 1972~73 VW 16/1700 Type 2 Westfalia Continental campervan.

Vintage Auto Werks1 wrote:
Its not very common in the States. The bus I got mine from was a bus used on tours in Europe before being shipped to the states.


Was the vehicle from which you salvaged, your elevating-roof bed, a left-hand drive or right-hand drive?

As far as I can determine, the Continental conversion was exclusively marketed in Great Britain, although some vehicles have probably migrated to overseas territories, such as Australia, New Zealand, South Africa, Japan and many other countries where they still use right-hand drive and drive on the left.

A French specification, left-hand drive, 1973 VW 1600 Type 2 Westfalia I examined a few years ago, had a campervan conversion which was virtually a mirror image of mine, but instead it had an elevating-roof folding-cot, like those of North American specification, which I had seen in the Robert Bentley manual.

Here is a picture, showing a folding canvas cot (maximum rated load of 150 pounds), as were fitted to USA specification, 1973 VW Type 2 Westfalia campervans.

Image may have been reduced in size. Click image to view fullscreen.



stevem49090 wrote:
I have finished researching and finding sources for building the upper bed for a 68-73 Westy and I now plan on making them for sale. I have not got a set price on them yet as it will be a few weeks befor I get the first one done. The most expensive part of it is the 9 ply Baltic Birch 11/16" plywood at $75 a sheet. Mustard colored vinyl is $40 a yard too. I'm thinking somewhere near the $600.00 range.


Plywood of 11/16 inch (i.e. 17Ż mm) thickness, is somewhat thicker than the 15~16 mm plywood, used for the factory-fitted Westfalia Continental, elevating-roof bed.

stevem49090 wrote:
That would be great. I don't have the measurments for the small flip up portion. I could also use a detailed picture of the front hinges too.


Following a request last November, from Henrik Larsen, in Denmark, who owns a 1973 VW 16/1700 VW Type 2, Westfalia (Helsinki, I suspect) campervan, I have recently been taking measurements of the roof aperture, elevating-roof bed and their relative positions, together with the fixtures & fittings, in my British specification, 1973 VW "1600" Type 2, Westfalia Continental campervan.

I have recently summarised this information, as an annoted, multi-coloured line drawing, on a sheet of A4 format (i.e. 297 mm X 210 mm) paper, which is too large to post in The Samba Gallery. If anyone wants a copy of what I have managed to document so far, provide me with an e-mail address and I shall append a high-resolution JPEG format scan.

The dimensions I wrote on the line-drawing, of my 1973 VW Type 2, Westfalia Continental campervan's, front-hinged, elevating-roof bed (as seen from below), are for the factory-standard elevating-roof bed, as originally manufactured by the Westfalia Werke, in Wiedenbruck, Germany.

The elevating-roof bed's main baseboard is 1300ámm long x 970ámm wide x 15~16ámm thick

The elevating-roof bed's pillow-section baseboard is 280ámm long x 890ámm wide x 15~16ámm thick

It might be possible to lengthen the elevating-roof bed's main baseboard, at the front end (i.e. where sleeping occupants place their feet), but for my factory-fitted elevating-roof bed, there is a separate, specially shaped, cloth-covered, foam cushion, which extends the effective length of the bed, by about 75ámm, as far as the elevating-roof's vertical tent cloth. I suspect, it would be best to retain the factory-standard bed length, with the hinges at the front end, so that when one raises the bed during the daytime, to increase headroom for cooking & dining, the bed's plywood baseboard is almost parallel with the raised elevating roof.

It might be practical, to increase the width of both the elevating-roof bed's plywood baseboards, so that the main baseboard, has a total width of less than 1020ámm, whilst the pillow-section has a total width of less than 1000ámm, but there are a few measurements which you would need to check, to ensure the baseboards do not interfere with the elevating-roof's GRP top, elevating-roof's hinged support struts, elevating-roof's hold-down rubber toggles or any other fixtures & fittings. Consider also, how much space is needed, to fold-in the elevating roof's cloth tent material, when the elevating roof is lowered for travelling.

You will also need to take measurements, to find out the largest size of elevating-roof bed's main baseboard (< 1020ámm wide x 1300ámm long), which can be put inside the elavating roof, given that the elevating roof is already fitted to the campervan's steel roof.

Note, that at the Westfalia factory, in 1972/73, the elevating-roof bed, might have been fitted first, before the elevating roof was fitted to the campervan's steel roof!

The elevating-roof bed, with a 15~16mm thick multi-ply, plywood baseboard and 30ámm thick upholstery (cloth-covered, high-density foam polymer), has a maximum rated load capacity of 80 kilograms.

As an adult, of 1Ľ79 metres tall, I have commonly slept alone, on this elevating-roof bed, but I weigh much less than 80 kilograms! It might be practical to increase the thickness of the plywood baseboard, to make a bed of greater maximum load capacity, but one might be limited, by the maximum load capacity of the campervan's steel roof, which supports the elevating-roof bed.

It might also be practical, to slightly increase the thickness of the cloth & foam upholstery (normally 30mm thick), but you will need to check how much clearance would be available, between the upper, flat surface of the elevating-roof bed's main baseboard and the underside, of the right-hand & left-hand limits, of the curved elevating roof, when the elevating roof is fastened down with the rubber toggles.

The front hinges, which support the front of the elevating-roof bed and attach it to the campervan's steel roof, are of a special type, but I think it should be possible to create a slightly different hinge system, using two or more conventional hinges and shaped wooden blocks. I shall draw a sketch, of how I think this might be done. At some stage, you will need to temporarily remove the steel roof's, 3mm thick plywood headlining, to gain access to the underside of the steel roof, to fix in place, the elevating-roof bed's front hinges.

I have never slept in a folding cot of the type fitted to non-British specification, pre-1974/75 VW type 2 Westfalia campervans, but if it is anything like the cab bunk, akin to an old-style casualty stretcher, with canvas and two longitudinal poles, then I imagine it would be most uncomfortable; having 'slept' in a similar stretcher bunk, in a Commer "Highwayman", coachbuilt motorcaravan, borrowed by my father, back in the late-1960s or early-1970s.

As a consequence of impacting against the hard metal poles, during the night, the experience resulted in bruised knees, if not elbows as well, if I recall correctly! If my supposition is correct, then I can appreciate why many owners of non-British specification, pre-1974/75 VW Type 2, Westfalia campervans, with front-hinged elevating roofs, would wish to replace the single-berth folding cot, with a two-berth, upholstered plywood, elevating-roof bed, as factory-fitted to my 1973 VW Type 2, Westfalia Continental campervan.

My 1973 VW Type 2, Westfalia Continental campervan is presently stored in my grandparent's garage. The low garage-roof, prevents me from raising the campervan's elevating roof, beyond half-height, so it is not possible to measure everything or see all parts of the elevating-roof interior and parts of the elevating-roof bed; especially the front hinges, which support the front of the elevating-roof bed and attach it to the campervan's steel roof.

The campervan has no engine installed and the sloping driveway leading to the garage, will not allow me to push the campervan outside (to fully raise the elevating roof, to inspect things, take photographs and complete measurements!) and then push it back in the garage. I am slowly doing modification and refurbishment work on the campervan, so it will be many months before I install the DIY built replacement engine; which is a 1911cc, WO-series, VW 17/1800 Type4 style hybrid engine, instead of the original 1584cc, AD-series, VW 1600 Type 1 style engine.
_________________
Regards.

Nigel A. Skeet

Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.

Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper

Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)

http://www.vwt2oc.net


Last edited by NASkeet on Thu Oct 16, 2008 5:34 am; edited 5 times in total
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
i_am_cool_fred
Samba Member


Joined: June 26, 2004
Posts: 1743
Location: Benton, AR
i_am_cool_fred is offline

PostPosted: Thu Jan 24, 2008 7:34 am    Post subject: Reply with quote

how do you get up there with the bed down? how do you fold the bed down while you are up there? i would love to be able to sleep in the loft but my stock fold out cot won't hold my fat a$$$
_________________
proud owner of a defunct 1979 sunroof kombi


Brian Denning, as seen on Gearz TV
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
NASkeet
Samba Member


Joined: April 29, 2006
Posts: 2854
Location: South Benfleet, Essex, UK
NASkeet is offline

PostPosted: Thu Jan 24, 2008 7:59 am    Post subject: Westfalia Continental, elevating-roof bed Reply with quote

i_am_cool_fred wrote:
how do you get up there with the bed down? how do you fold the bed down while you are up there? i would love to be able to sleep in the loft but my stock fold out cot won't hold my fat a$$$


Once the elevating-roof bed is in the horizontal position, the pillow section folds down, to gain access to the bed and elevating-roof space. However, if you measure more than 285ámm between your dorsal & ventral surfaces (i.e. front to rear), then you're too fat to climb through the aperture!

If the bed is not in use, when the elevating roof is raised, the bed can also be raised and supported by the rubber fastening toggles, providing additional headroom.

If you look carefully, you will see both features illustrated in the diagram.
_________________
Regards.

Nigel A. Skeet

Independent tutor (semi-retired) of mathematics, physics, technology & engineering for secondary, tertiary, further & higher education.

Much modified, RHD 1973 VW "1600" Type 2 Westfalia Continental campervan, with the World's only decent, cross-over-arm, SWF pantograph rear-window wiper

Onetime member, plus former Technical Editor & Editor of Transporter Talk magazine
Volkswagen Type 2 Owners' Club (Great Britain)

http://www.vwt2oc.net
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
Redd73
Samba Member


Joined: March 05, 2007
Posts: 836

Redd73 is offline

PostPosted: Thu Jan 24, 2008 8:19 am    Post subject: Reply with quote

well as far as these beds you plan to make.

will they hold more than 180 pounds as is suggested in the original brochures posted here?


my only issue with this kind of bed is that its too short up there for me. there isnt enough area for me to fit up there even if i dropped the 20 pounds to meet the 180 mark. ive thought of putting a 74 or later pop top on mine and building a custom bed myself to fit that would be on a frame to account for the non flat roof in the 73.

good luck with the project though and definetly keep us posted. it looks cool.
_________________
"...theres nowhere to go but everywhere." - Kerouac

------
73 Westy 2000cc w/dual solex (engine code GE) + aftermarket AC
Back to top
View user's profile Send private message Classifieds Feedback
Vintage Auto Werks1
Samba Member


Joined: October 20, 2002
Posts: 452

Vintage Auto Werks1 is offline

PostPosted: Thu Jan 24, 2008 9:07 am    Post subject: Reply with quote

Quote:
This looks remarkably like the picture, that I posted in The Samba Gallery, just a few months ago!


It looks just like your picture you posted because it was the picture you posted!!! Will give you credit for the picture.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
rjonas
Samba Member


Joined: July 24, 2004
Posts: 644
Location: Chandler, AZ
rjonas is offline

PostPosted: Thu Jan 24, 2008 1:51 pm    Post subject: Re: Westfalia Continental, elevating-roof bed Reply with quote

NASkeet wrote:
i_am_cool_fred wrote:
how do you get up there with the bed down? how do you fold the bed down while you are up there? i would love to be able to sleep in the loft but my stock fold out cot won't hold my fat a$$$


Once the elevating-roof bed is in the horizontal position, the pillow section folds down, to gain access to the bed and elevating-roof space. However, if you measure more than 285ámm between your dorsal & ventral surfaces (i.e. front to rear), then you're too fat to climb through the aperture!


Damn. You know your stuff. Now if you just speak inches instead of mm.
1.79 meters x 100 /25.4 /12 = @ 5' 10" tall. I could almost fit there.
285mm/ 25.4 = 11.22" I'm in.
179lbs and I would have space for a chilidog before bed.

I like the double bed idea as the little fold out cot is too small for anyone in my family.

Is this called a "Continental" or is there some other term to search for pictures with? I would like to build this. Thanks for all your detailed measurements I just hope something vital is not lost in translation.
_________________
1979 Type-2 Westfalia ôSandyö
1973 Type-181 Thing "Velma"
1956 Type-1 Beetle Patina Project ôRosieö

www.azbusclub.org
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
palemoon
Samba Member


Joined: December 13, 2006
Posts: 152

palemoon is offline

PostPosted: Thu Jan 24, 2008 3:05 pm    Post subject: Reply with quote

Hi STEVEM49090 Smile
I have a 73 westy, automatic, very nice camper. I like to have upstairs bedroom also, except that I do not know how to build anything Embarassed
bad shoulder and weak arm does not allow me to lift anything at all. When you finish this project, maybe you can install it in my camper if by any chance you travel to northern california to visit the redwoods. You'll be welcome to stay in our farm and eat home cooked meals and go to the river and the ocean Very Happy
I 'll be happy to pay what you want.
Cheers Laughing
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
barefootwestie
Samba Member


Joined: September 19, 2005
Posts: 1551
Location: Johns Island, SC
barefootwestie is offline

PostPosted: Thu Jan 24, 2008 6:16 pm    Post subject: Reply with quote

Thanks for posting this information. The top bunk is my 7 year olds planned bed for our first camping trip, but I have been concerned with him rolling out of the cot during the night. This suggestion would cure that problem. In fact, If I lose about 10 lbs (which my goal is 15 lbs) and @ 5'10", I should be able to fit. This is great! I probably will not make anything too permanent, but will certainly take the general idea.
_________________
My Bus Restoration Blog
http://myvwbus.tangerinemoons.com/

1973 Westfalia
"Getting better....one repair at a time."

Other VW's owned through the years, in no particular order:
'67 Beetle,
'67 Ghia Hardtop,
'72 Ghia Convertible,
'72 Westfalia
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
busdaddy
Samba Member


Joined: February 12, 2004
Posts: 50375
Location: Surrey B.C. Canada, but thinking of Ukraine
busdaddy is offline

PostPosted: Thu Jan 24, 2008 9:34 pm    Post subject: Re: Westfalia Continental, elevating-roof bed Reply with quote

rjonas wrote:
I would have space for a chilidog before bed.


If you're eating chili dogs before bed you'll end up having the whole camper to yourself in no time Shocked .
_________________
Rust NEVER sleeps and stock never goes out of style.

Please don't PM technical questions, ask your problem in public so everyone can play along. If you think it's too stupid post it here
Stop dead photo links! Post your photos to The Samba Gallery!

Слава Україні!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3 ... 15, 16, 17  Next
Jump to:
Page 1 of 17


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
