Hello all,
This is meant to be a step-by-step tutorial for removing your Late Bay Westy interior.

**Make sure to bag and label things as you remove them**

Hope it helps!

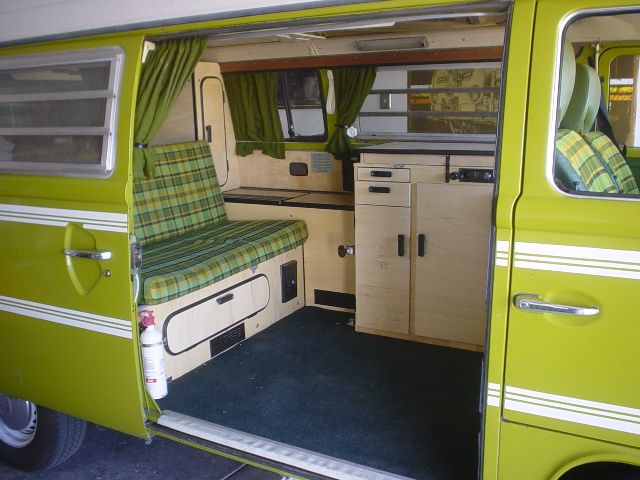

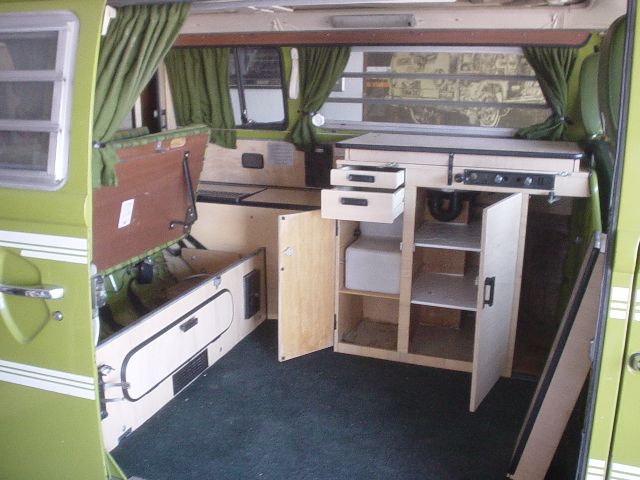

The starting point:

Image may have been reduced in size. Click image to view fullscreen.


Step one...empty the cabinets! Duh!

Image may have been reduced in size. Click image to view fullscreen.


I start with the sink/stove cabinet. Remove the doors; they just slide up off the hinges.

Image may have been reduced in size. Click image to view fullscreen.


Take out the two shelves. Angle them upwards until they have enough clearance. I also take out the p-trap from the pipes; it allows for more shelf clearance. The p-trap unscrews by hand.

Image may have been reduced in size. Click image to view fullscreen.

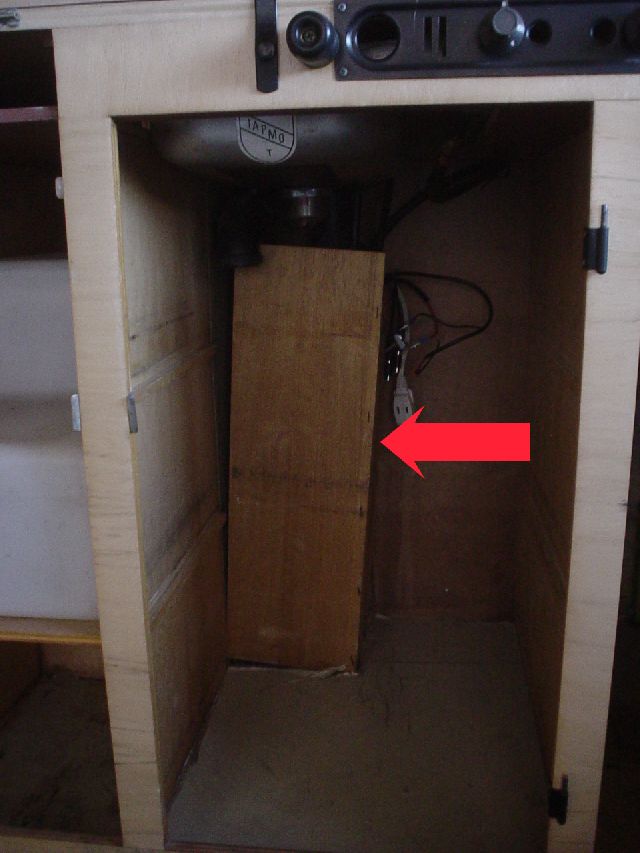

Now remove the "plumbing cover". It just pulls away.

Image may have been reduced in size. Click image to view fullscreen.

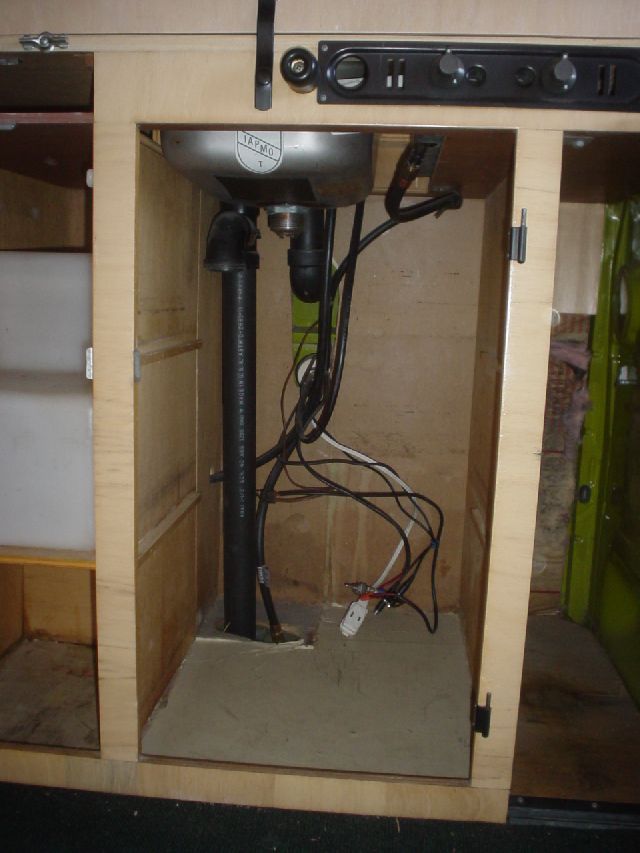

It should now look something like this. (I have a lot of extra cables running through here)

Image may have been reduced in size. Click image to view fullscreen.

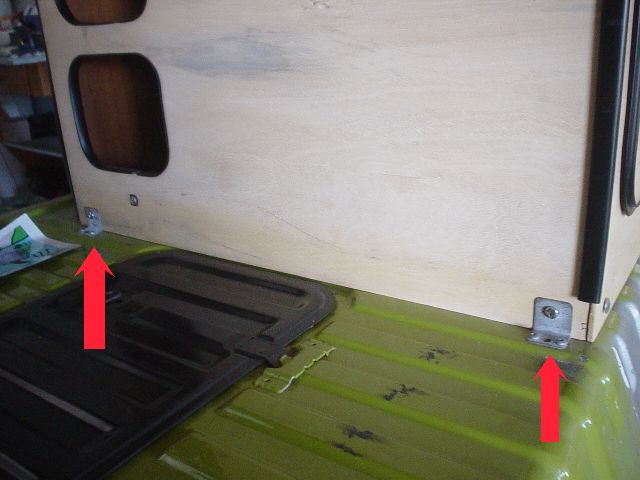

Now remove these two bolts (in the lower left of the cabinet), and remove the cover from the sink pump area.

Image may have been reduced in size. Click image to view fullscreen.

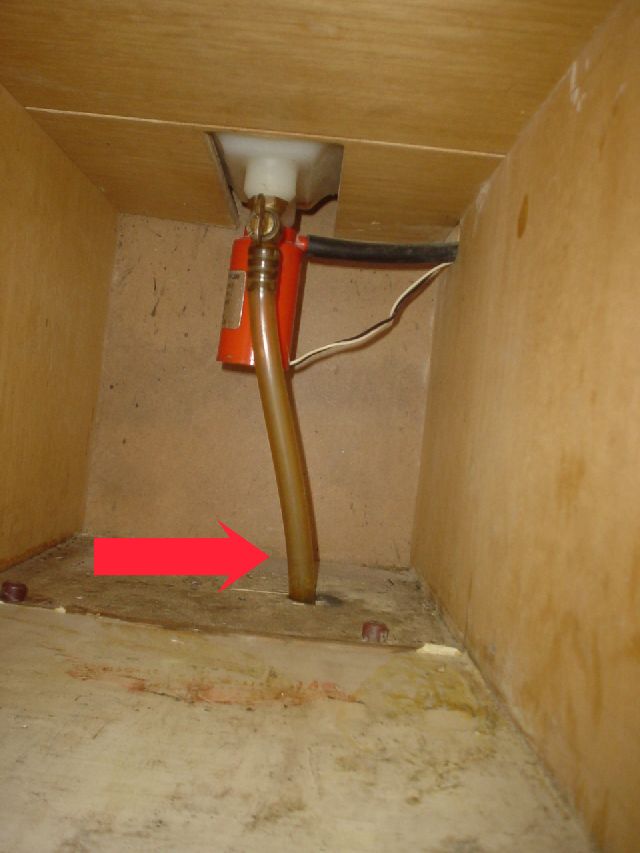

Pull the water tank drain pipe up into the cabinet.

Image may have been reduced in size. Click image to view fullscreen.

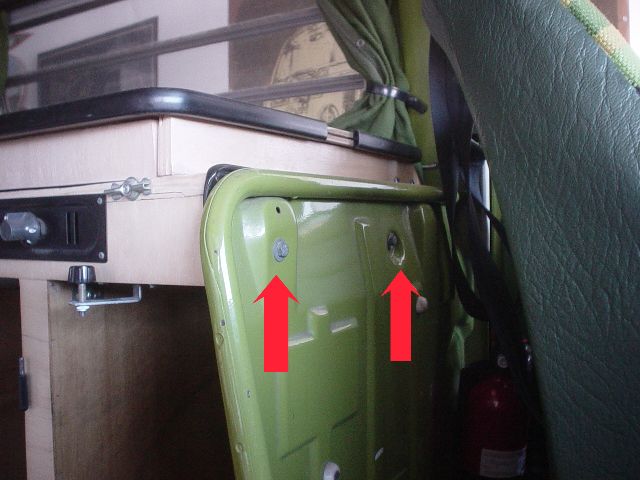

Slide your driver's seat forward and remove these two bolts:

Image may have been reduced in size. Click image to view fullscreen.


Note that one is longer then the other - label them.

Image may have been reduced in size. Click image to view fullscreen.


Time to get a little dirty! Crawl under the bus and find the end of the sink drain pipe. There should be a cap screwed onto the end (I don't have one). Unscrew the pipe retaining ring, and remove the two screws to the left to remove the metal plate.

Image may have been reduced in size. Click image to view fullscreen.


Remove the second plate by removing the 3 screws.

Image may have been reduced in size. Click image to view fullscreen.


Back inside, remove the metal catch from the spare tire cabinet. This step is really optional, but I like to take it off so I dont break anything.

Image may have been reduced in size. Click image to view fullscreen.


Disconnect the water line from the water inlet, and the propane line from the coupling in the floor.

Image may have been reduced in size. Click image to view fullscreen.

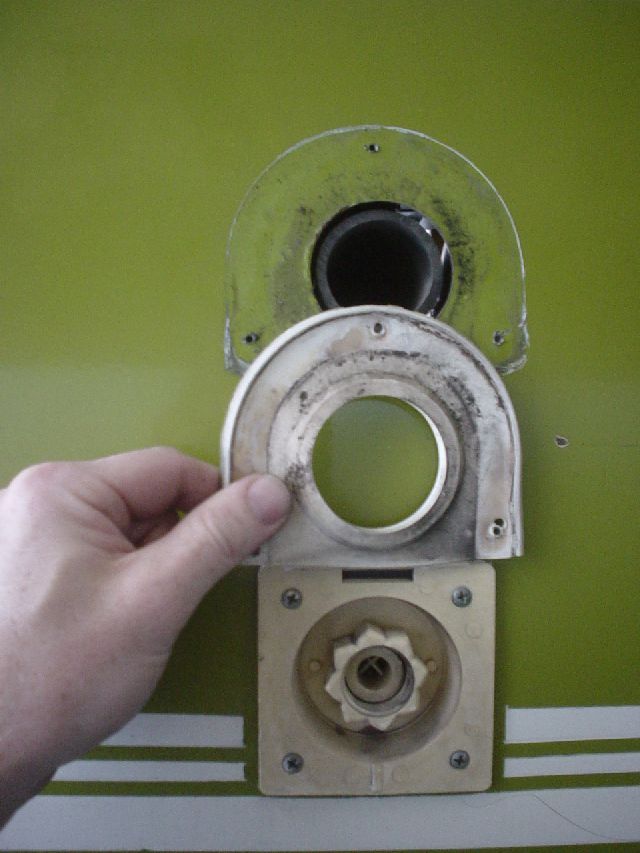

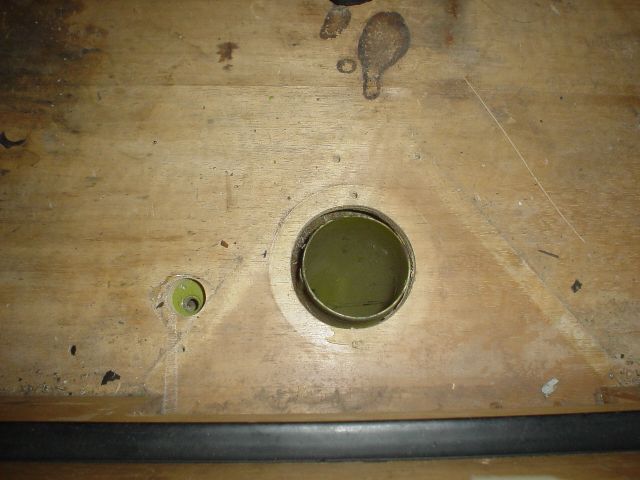

Back outside, remove the sink vent cover:

Image may have been reduced in size. Click image to view fullscreen.


...and the rubber gasket:

Image may have been reduced in size. Click image to view fullscreen.

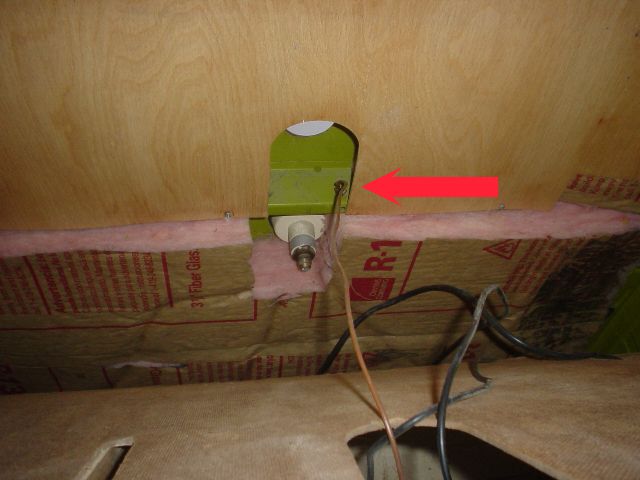

Inside, lean the cabinet forward and disconnect the sink pump ground wire:

Image may have been reduced in size. Click image to view fullscreen.

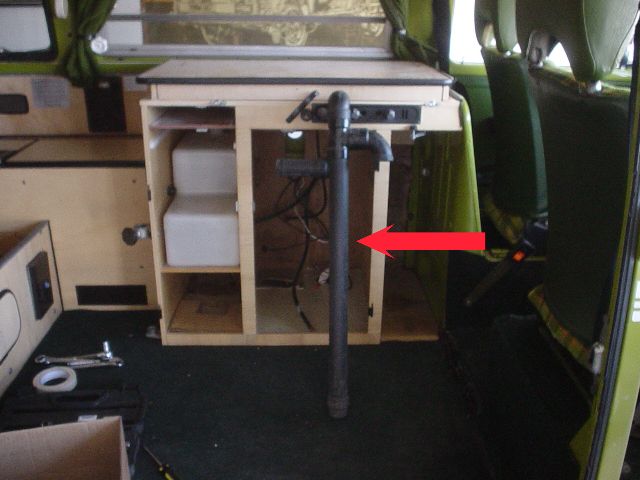

Now, still with the cabinet leaning forward a bit, remove the plumbing. It takes a lot of wiggling around, but it will come out.

Image may have been reduced in size. Click image to view fullscreen.

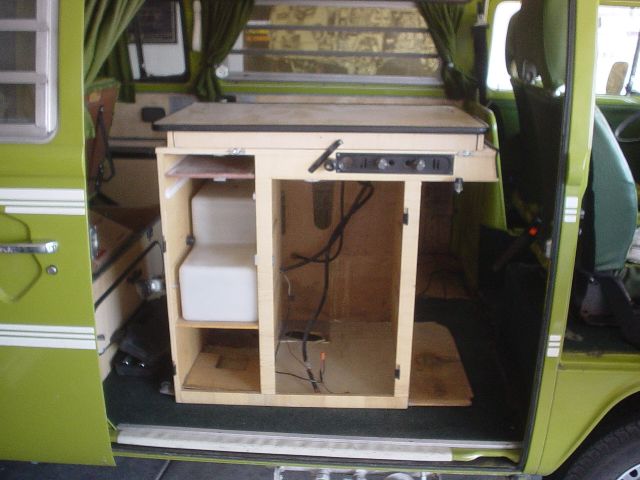

Thats it for this cabinet. Just take it out!

Image may have been reduced in size. Click image to view fullscreen.

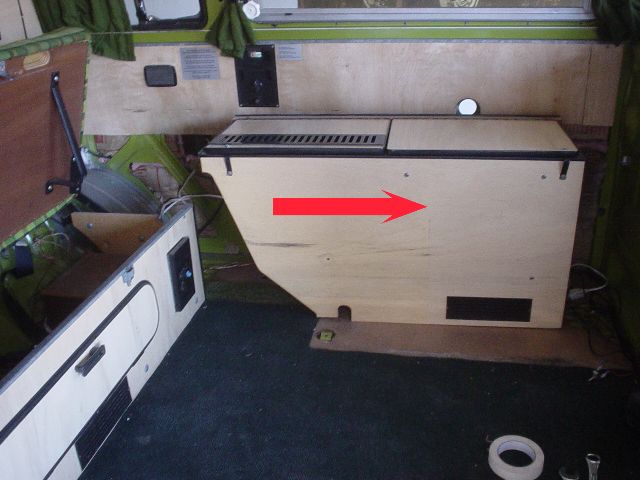

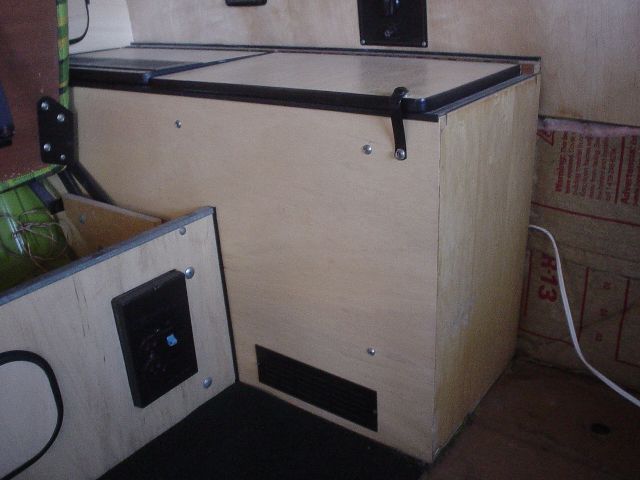

Next is the side cabinet next to the back seat.

Image may have been reduced in size. Click image to view fullscreen.


Lift up your Westy bed and remove this bolt on the right side:

Image may have been reduced in size. Click image to view fullscreen.

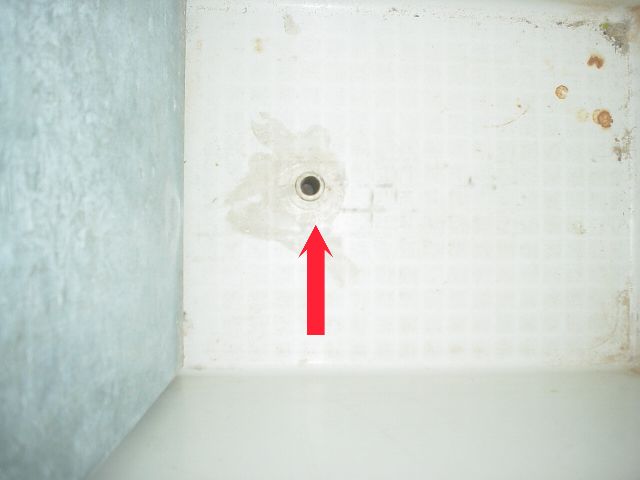

This is the drain pipe for the icebox (fridge if you have one). Go under the bus and push it up into the icebox/fridge. I tap it gently with a rubber mallet.

Image may have been reduced in size. Click image to view fullscreen.

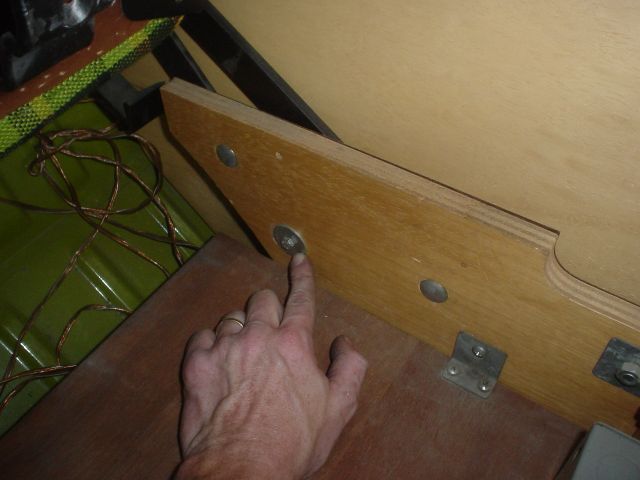

Slide the cabinet forward a bit, and reach into the rear section and make sure the wiring stays behind.

Image may have been reduced in size. Click image to view fullscreen.


Now just slide the cabinet forward and remove it!

Image may have been reduced in size. Click image to view fullscreen.


Time to take out the rear seat!

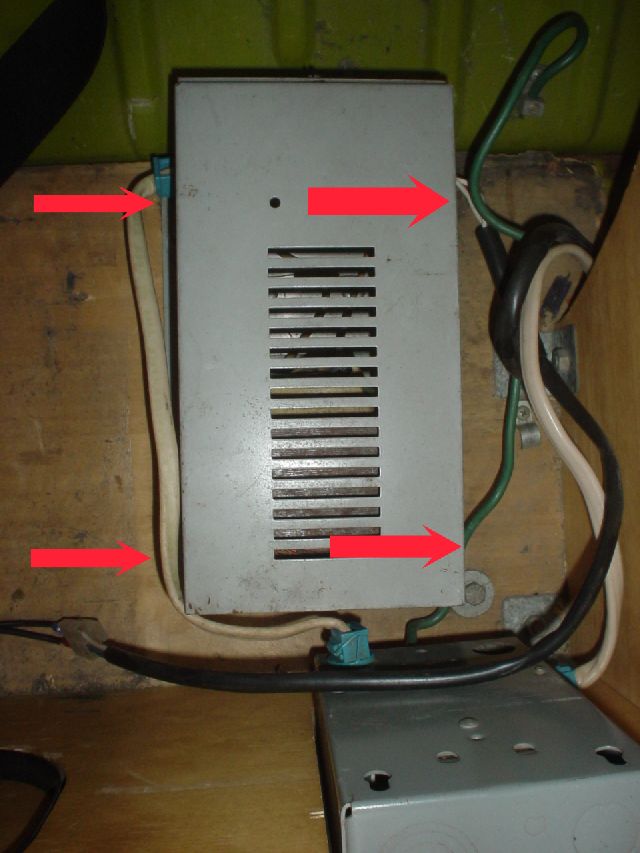

Remove the cover from the electric box by removing these screws:

Image may have been reduced in size. Click image to view fullscreen.


Disconnect the box by removing the bolts/nuts from the base:

Image may have been reduced in size. Click image to view fullscreen.


Now remove the main seat bolts:

Image may have been reduced in size. Click image to view fullscreen.

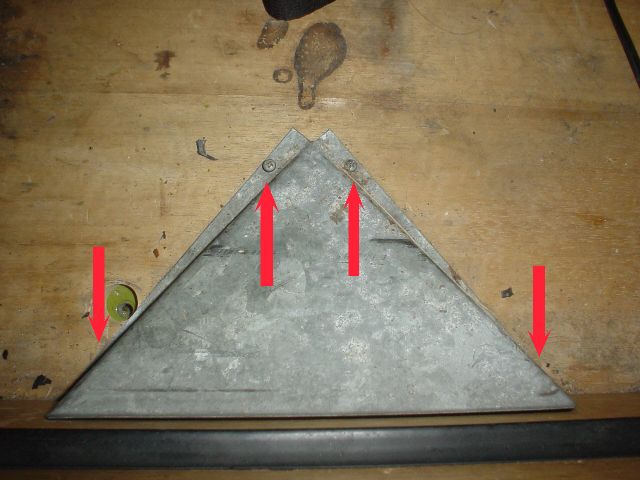

Remove the heat directing plate:

Image may have been reduced in size. Click image to view fullscreen.


Remove the ring (probably optional)

Image may have been reduced in size. Click image to view fullscreen.


This is what you have left:

Image may have been reduced in size. Click image to view fullscreen.


On the left hand side of the seat, you see this near the top. Remove these 2 small nuts:

Image may have been reduced in size. Click image to view fullscreen.

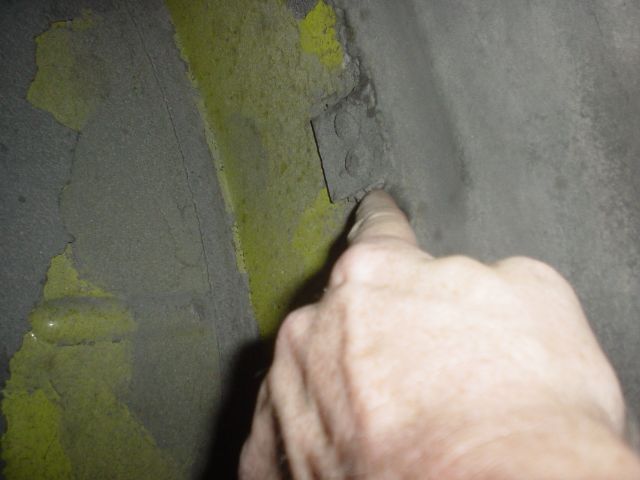

This is what is on the back side, in the rear passenger side wheel well:

Image may have been reduced in size. Click image to view fullscreen.

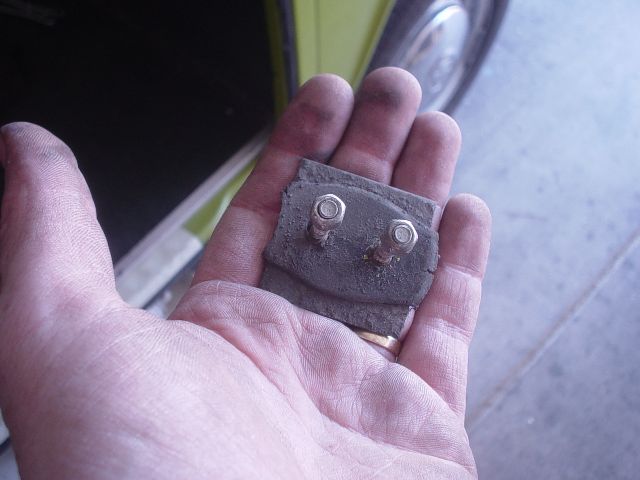

Here it is removed:

Image may have been reduced in size. Click image to view fullscreen.

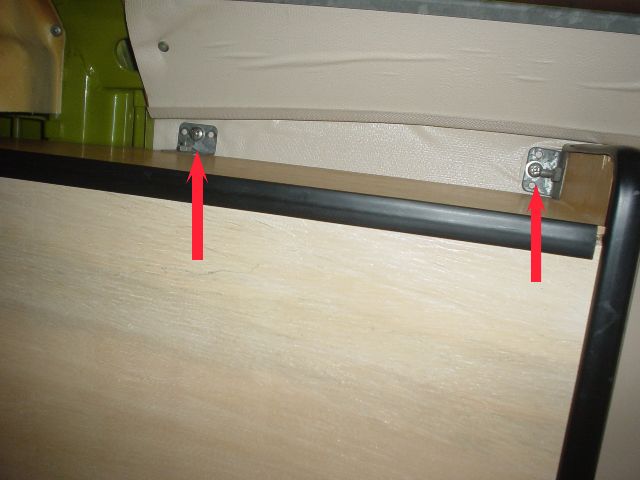

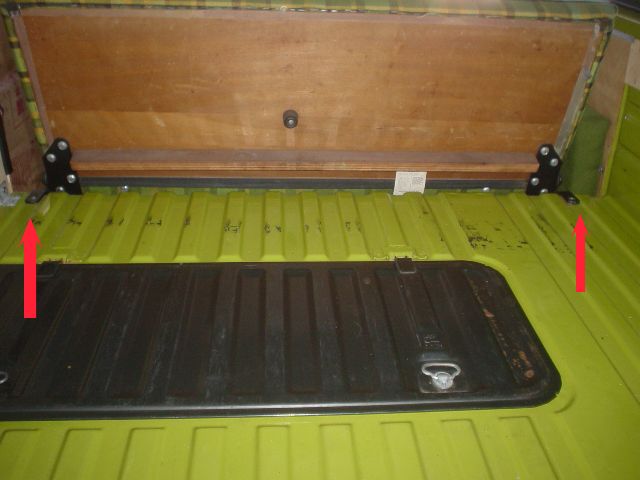

Open your rear hatch, take out the pad and remove these two screws:

Image may have been reduced in size. Click image to view fullscreen.


Close-up

Image may have been reduced in size. Click image to view fullscreen.


Now lift up the seat so it clears the floor vent and remove. Note the electric box (or whatever it is actaully called) is still in the bus.

Image may have been reduced in size. Click image to view fullscreen.

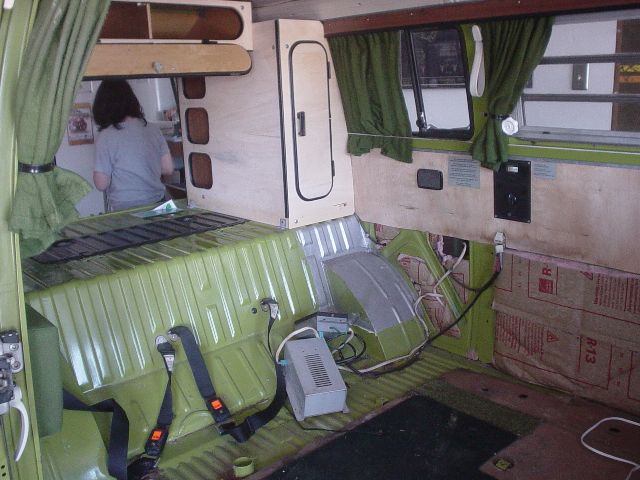

Time to take out the 'head-knocker' upper cabinet.
This pic was taken laying down, looking up on the passenger side. Remove these 2 screws. NOTE: have a friend around so this cabinet doesnt fall on you!

Image may have been reduced in size. Click image to view fullscreen.

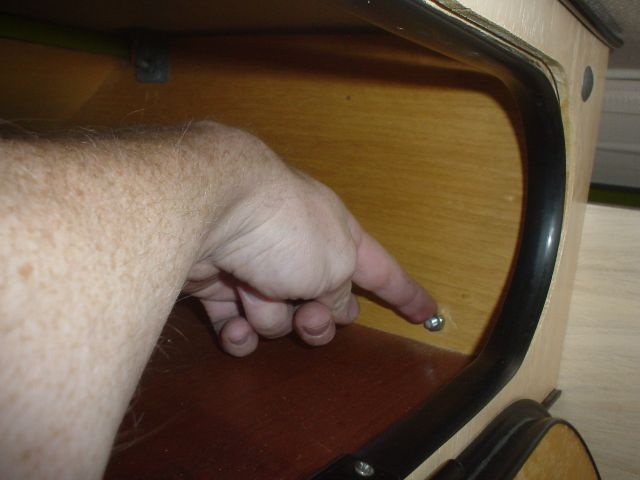

Open the cabinet and remove this nut:
NOTE: There is one more nut to remove just to the rear of this one on the ceiling which needs to be removed, I just forgot to photograph it I guess. Sorry.

Image may have been reduced in size. Click image to view fullscreen.


Thats it for that cabinet. Hope it didnt fall on you!

Now the side cabinet (You're almost done!)

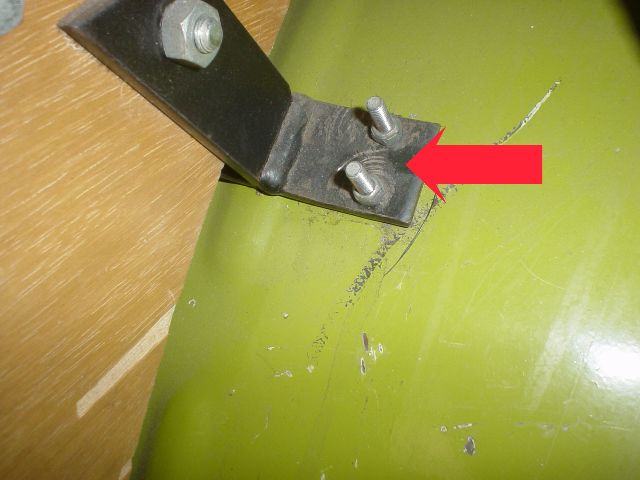

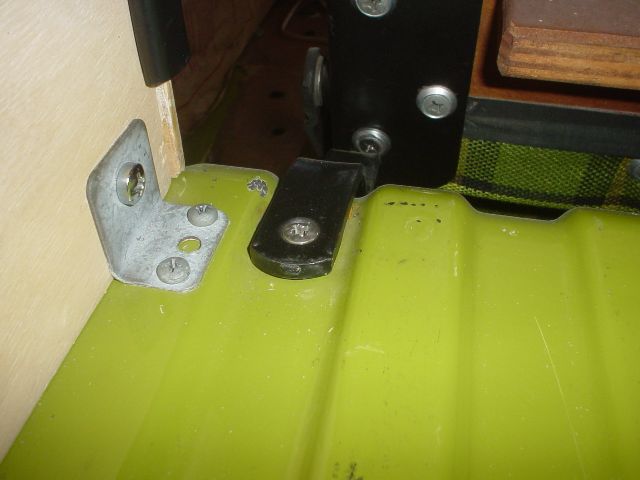

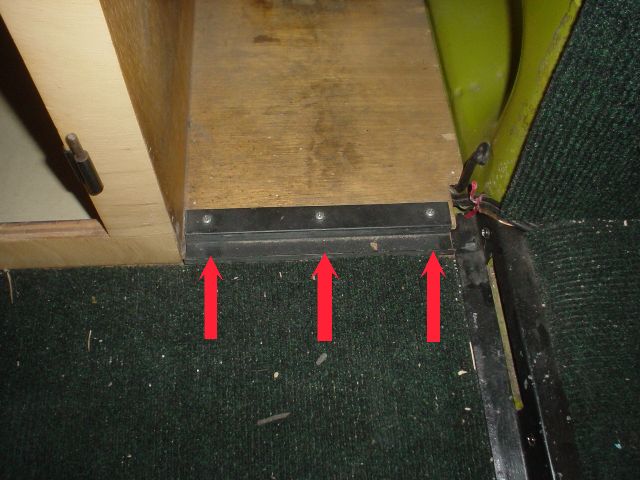

Remove these brackets:

Image may have been reduced in size. Click image to view fullscreen.


Standing outside the bus, looking in the rear hatch; remove these screws:

Image may have been reduced in size. Click image to view fullscreen.


Thats pretty much it. Angle it to the center of the bus and slide it out.

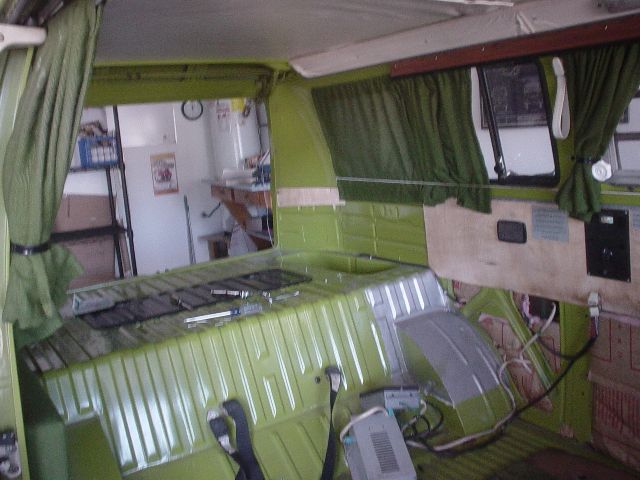

Hey look! You're done!!

Image may have been reduced in size. Click image to view fullscreen.


Here are the only tools you need to do the job:

Image may have been reduced in size. Click image to view fullscreen.


Sockets: 8mm, 10mm, 13mm, 17mm
Ratchet with various extensions
Screwdrivers: #1,2,3 Phillips, #2 slotted
Open/Box Wrenches: 10mm, 19mm
Rubber Mallet

Thats all you need.

I hope this thread helps anyone who is looking to remove their Westy interior!
_________________
Eric
77 Westy / 74 Super Beetle
My Photography Page. Photo Prints Now Available!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
elstrom
Samba Member


Joined: February 02, 2006
Posts: 395
Location: Seattle
elstrom is offline

PostPosted: Sat Apr 19, 2008 10:27 pm    Post subject: Reply with quote

That's awesome! Thanks for the preemptive assistance.
_________________
'78 Landmark Conversion/Westy "Buster"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Mark
Samba Member


Joined: January 20, 2003
Posts: 1516
Location: Sooke, BC Canada
Mark is offline

PostPosted: Sat Apr 19, 2008 10:38 pm    Post subject: Reply with quote

Nice work, thanks for documenting this job!
_________________
www.zwerks.ca
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
calebmelvin Premium Member
Samba Member


Joined: July 19, 2006
Posts: 2739
Location: Seattle
calebmelvin is offline

PostPosted: Sat Apr 19, 2008 11:02 pm    Post subject: Reply with quote

This should be a sticky!
_________________
Caleb
'66 Manx Build | Old VW Builds: '69 '71 '71
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
79westy
Samba Member


Joined: May 28, 2004
Posts: 41
Location: Sacramento, CA
79westy is offline

PostPosted: Sat Apr 19, 2008 11:06 pm    Post subject: Reply with quote

Awesome tutorial and awesome looking interior. Why did you take it out?
_________________
"The bus came by and I got on, that's when it all began."
Back to top
View user's profile Send private message Classifieds Feedback
grigley
Samba Member


Joined: January 26, 2005
Posts: 111

grigley is offline

PostPosted: Sat Apr 19, 2008 11:08 pm    Post subject: Reply with quote

nice work, but I have to ask... why are you doing it? Looked really nice asis.
_________________
78 westy
76 transporter
89 Tristar Doka
Back to top
View user's profile Send private message Gallery Classifieds Feedback
calebmelvin Premium Member
Samba Member


Joined: July 19, 2006
Posts: 2739
Location: Seattle
calebmelvin is offline

PostPosted: Sat Apr 19, 2008 11:19 pm    Post subject: Reply with quote

79westy wrote:
Awesome tutorial and awesome looking interior. Why did you take it out?


grigley wrote:
nice work, but I have to ask... why are you doing it? Looked really nice asis.


See here:

http://www.thesamba.com/vw/forum/viewtopic.php?t=282597
_________________
Caleb
'66 Manx Build | Old VW Builds: '69 '71 '71
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
VDubTech
Samba Member


Joined: December 29, 2002
Posts: 9126
Location: Syracuse, NY
VDubTech is offline

PostPosted: Sun Apr 20, 2008 5:12 am    Post subject: Reply with quote

Good post, but I Work in a different order. I always remove the bed first,then the frisge cabinet slides right out, then the sink/stove and finally the two in the back. Either way, nice documentation.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jmstu76
Samba Member


Joined: March 01, 2004
Posts: 1084
Location: Edmond Oklahoma
jmstu76 is offline

PostPosted: Sun Apr 20, 2008 6:48 am    Post subject: Reply with quote

How much time would this normally take, if you weren't documenting?
_________________
James

'76 Deluxe Sage Green Westy 2.0L Fuel Injected with '78 ECU and AFM, ACN SVDA Distributor, Hydraulic Lifters (boo hiss), 27in General Grabber AT2 All Terrains, Berg Shifter, stock '76 exhaust HPC Ceramic Coated.

'73 Type 181 1776cc Scat crank, rods, cam. Solex 34 Pict 3 rebuilt/bushed by Voksbitz

First VW engine I've ever built and it's still running strong. 80,000 plus miles and counting. Built in 2004.

[email protected]
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger MSN Messenger Instagram Gallery Classifieds Feedback
EZ Gruv
King of Plaid


Joined: December 10, 2002
Posts: 8314
Location: Las Vegas
EZ Gruv is offline

PostPosted: Sun Apr 20, 2008 8:47 am    Post subject: Reply with quote

jmstu76 wrote:
How much time would this normally take, if you weren't documenting?


If I wasnt documenting the procedure, it would take at most 1 1/2 hours. Of course, I've done it a couple times.
_________________
Eric
77 Westy / 74 Super Beetle
My Photography Page. Photo Prints Now Available!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
'79jw
Samba Member


Joined: February 02, 2006
Posts: 181
Location: SLO County Cal.
'79jw is offline

PostPosted: Sun Apr 20, 2008 12:09 pm    Post subject: Reply with quote

Applause
_________________
'79 westy
'74 trans
Back to top
View user's profile Send private message Gallery Classifieds Feedback
gmag69
Type2 Nutcase


Joined: January 13, 2006
Posts: 1941
Location: northwest PA
gmag69 is offline

PostPosted: Sun Apr 20, 2008 12:42 pm    Post subject: Reply with quote

Thanks Eric now I know what to do when I put in my interior. Very Happy
_________________
Check out my Westy resto. thread.
http://www.thesamba.com/vw/forum/viewtopic.php?t=230285
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Rocknrod
Samba Member


Joined: November 02, 2004
Posts: 2157
Location: North Carolina
Rocknrod is offline

PostPosted: Sun Apr 20, 2008 7:12 pm    Post subject: Reply with quote

Good stuff!

Thanks... and I don't even have a late westy. Laughing
_________________
1971 Westfalia with a high top.
http://71vwbus.blogspot.com/ - Pictures and words... Oh My!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jmstu76
Samba Member


Joined: March 01, 2004
Posts: 1084
Location: Edmond Oklahoma
jmstu76 is offline

PostPosted: Sun Apr 20, 2008 7:17 pm    Post subject: Reply with quote

I really appreciate this thread. I have been insulating my bus and it is time to insulate behind the westy interior. I removed my sink and fridge today. It was so easy. Another mystery that turned out to be simple. Again, thanks for the pics.
_________________
James

'76 Deluxe Sage Green Westy 2.0L Fuel Injected with '78 ECU and AFM, ACN SVDA Distributor, Hydraulic Lifters (boo hiss), 27in General Grabber AT2 All Terrains, Berg Shifter, stock '76 exhaust HPC Ceramic Coated.

'73 Type 181 1776cc Scat crank, rods, cam. Solex 34 Pict 3 rebuilt/bushed by Voksbitz

First VW engine I've ever built and it's still running strong. 80,000 plus miles and counting. Built in 2004.

[email protected]
Back to top
View user's profile Send private message Send e-mail Yahoo Messenger MSN Messenger Instagram Gallery Classifieds Feedback
EZ Gruv
King of Plaid


Joined: December 10, 2002
Posts: 8314
Location: Las Vegas
EZ Gruv is offline

PostPosted: Sun Apr 20, 2008 7:49 pm    Post subject: Reply with quote

Glad I could help!
_________________
Eric
77 Westy / 74 Super Beetle
My Photography Page. Photo Prints Now Available!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
MOX
Samba Member


Joined: December 12, 2006
Posts: 879
Location: OTTAWA
MOX is offline

PostPosted: Mon Apr 21, 2008 10:12 am    Post subject: Reply with quote

can you throw up a pic of the bus with only the sink section removed? if you have one.
i have been thinking of making a bench the same height and width of the cooler that would run right up to the back of the drivers seat because i never use my sink. it would give me lots of storage space too, like a giant toy box!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Randy in Maine
Samba Member


Joined: August 03, 2003
Posts: 34718
Location: The Beach
Randy in Maine is offline

PostPosted: Mon Apr 21, 2008 11:22 am    Post subject: Reply with quote

Very helpful Eric!

I will be doing that shortly for the in and out painting.

How about the dash?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EZ Gruv
King of Plaid


Joined: December 10, 2002
Posts: 8314
Location: Las Vegas
EZ Gruv is offline

PostPosted: Mon Apr 21, 2008 11:26 am    Post subject: Reply with quote

MOX wrote:
can you throw up a pic of the bus with only the sink section removed? if you have one.
i have been thinking of making a bench the same height and width of the cooler that would run right up to the back of the drivers seat because i never use my sink. it would give me lots of storage space too, like a giant toy box!


I have this pic from a few years ago, if it helps...

Image may have been reduced in size. Click image to view fullscreen.

_________________
Eric
77 Westy / 74 Super Beetle
My Photography Page. Photo Prints Now Available!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Twitter Instagram Gallery Classifieds Feedback
MOX
Samba Member


Joined: December 12, 2006
Posts: 879
Location: OTTAWA
MOX is offline

PostPosted: Mon Apr 21, 2008 11:31 am    Post subject: Reply with quote

OHHHH, i like the looks of all that space!!!!!!!!!!! thanks !!
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1979VWWestyCamper
Samba Member


Joined: May 01, 2008
Posts: 1

1979VWWestyCamper is offline

PostPosted: Thu May 01, 2008 12:20 pm    Post subject: Nice, now where do you get the wheel covers? Reply with quote

That's what I just did... just got done sound deadening and painting the inside. Will be helpful for when I go to put things together...

Question: What material (or better, where do you get it) goes under the seats in front, or what covers those wheel wells (on the interior)? My bus didn't come with any thing and I can't seem to find where to get it.
Back to top
View user's profile Send private message Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
