How to verify you have correct Oval front wings?
Page: 1, 2  Next
Forum Index -> Beetle - Oval-Window - 1953-57 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Clarky
Samba Member


Joined: July 14, 2006
Posts: 31
Location: UK
Clarky is offline

PostPosted: Thu May 08, 2008 11:55 am    Post subject: How to verify you have correct Oval front wings? Reply with quote

Hi,

I have a pair of wings that came with my old '54 Oval but I stashed them in the loft of my garage until last week.

On closer inspection I think one may be an original wing, the other I think not.

How do I confirm for sure that they are/are not oval wings?

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
www.vwoval.co.uk
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14482
Location: 18 miles North of the border
RareAir is offline

PostPosted: Thu May 08, 2008 2:35 pm    Post subject: Reply with quote

Does it have the metal wire conduit for the headlight wires?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Clarky
Samba Member


Joined: July 14, 2006
Posts: 31
Location: UK
Clarky is offline

PostPosted: Thu May 08, 2008 2:37 pm    Post subject: Reply with quote

They were still attached to the body rather than the wings hence it adds to my confusion.
_________________
www.vwoval.co.uk
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
cyberdyne systems 101
Sambanator


Joined: September 03, 2004
Posts: 324
Location: in my own little world
cyberdyne systems 101 is offline

PostPosted: Fri May 09, 2008 2:24 am    Post subject: Reply with quote

look at the mounting area of the wings, it should have pressings between the bolt holes - that will confirm its genuine VW, but not correct age.

Next look at where the running board attaches, does it have a contoured area to match the shape of the running board, or does the wing just smoothly carry on down as normal?

Where the tube for the lights wiring joins the wing, you should see evidence that its been removed (these pieces should remain attached to the wing, being unbolted from the inner wing).

CS 101
_________________
When I think of something to say - I'll be the first to know

56' Oval
71' Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
johnshenry Premium Member
Samba Member


Joined: September 21, 2001
Posts: 9147
Location: Dunstable, MA USA
johnshenry is offline

PostPosted: Fri May 09, 2008 5:16 am    Post subject: Reply with quote

cyberdyne systems 101 wrote:
look at the mounting area of the wings, it should have pressings between the bolt holes - that will confirm its genuine VW, but not correct age.

Next look at where the running board attaches, does it have a contoured area to match the shape of the running board, or does the wing just smoothly carry on down as normal?

Where the tube for the lights wiring joins the wing, you should see evidence that its been removed (these pieces should remain attached to the wing, being unbolted from the inner wing).

CS 101


Only the rear fenders had the ribbing between the bolt holes IIRC. From his pics, I think he is talking about fronts. Were used up through '59.
_________________
John Henry

'57 Deluxe
'56 Single Cab
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Sunroof53
Samba Member


Joined: October 22, 2007
Posts: 300
Location: UK
Sunroof53 is offline

PostPosted: Fri May 09, 2008 9:23 am    Post subject: Reply with quote

The grey wing is a repro ,The brown wing is origianal us spec.Grey one is a good shape but does not curve over the wheel as much.
Image may have been reduced in size. Click image to view fullscreen.


Headlamp bowl
repros have a distict crease in the shape and no conduit.

Image may have been reduced in size. Click image to view fullscreen.


Very distinct curve here
Image may have been reduced in size. Click image to view fullscreen.

This shows a right hand wing and the curve from the mounting face up to the headlamp bowl.Repros tend not to have this or curve is the other way.

Image may have been reduced in size. Click image to view fullscreen.


Flange showing some press marks.Rears have a distict indent

Image may have been reduced in size. Click image to view fullscreen.


curve over the wheel.

Image may have been reduced in size. Click image to view fullscreen.


From the top.look how far the headlamp appears forward of the wing

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
53 0val
Samba Professor


Joined: July 03, 2003
Posts: 11394
Location: Irvine, CA
53 0val is offline

PostPosted: Fri May 09, 2008 1:33 pm    Post subject: Re: How to verify you have correct Oval front wings? Reply with quote

Clarky wrote:
Hi,

I have a pair of wings that came with my old '54 Oval but I stashed them in the loft of my garage until last week.

On closer inspection I think one may be an original wing, the other I think not.

How do I confirm for sure that they are/are not oval wings?

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Take a measurement across the widest part of the fender................if there is a difference...........one of them has been replaced. None of the reproduction fenders are an exact match for the OG one. A tape measure will point out the difference very easily.
_________________
"What a fool believes he sees, no wise man has the power to reason away." Dobee, Dobee, Do
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Clarky
Samba Member


Joined: July 14, 2006
Posts: 31
Location: UK
Clarky is offline

PostPosted: Fri May 09, 2008 2:07 pm    Post subject: Reply with quote

Cheers guys,

Will measure tomorrow to get a better idea, I am thinking the lhs is an oval the rhs a repro.
_________________
www.vwoval.co.uk
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Andrew oval
Samba Member


Joined: February 06, 2008
Posts: 62
Location: Oxford, UK
Andrew oval is offline

PostPosted: Fri May 09, 2008 3:48 pm    Post subject: Reply with quote

Sinbad wrote:
Headlamp bowl
repros have a distict crease in the shape and no conduit.

Image may have been reduced in size. Click image to view fullscreen.

I hope it's okay to jump in and ask a semi-related question...

Should the wiring tubes for the headlights butt against the headlamp bowls or should they go into the headlamp bowls?
_________________
1954 Deluxe oval 'Gertie' - barn stored for 20yrs, work in progress.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Sunroof53
Samba Member


Joined: October 22, 2007
Posts: 300
Location: UK
Sunroof53 is offline

PostPosted: Sat May 10, 2008 4:42 am    Post subject: Reply with quote

Personally i think there was a short piece tube welded to the bowl and the conduit is over the top of that .hard to say if it was welded or has just rusted in place.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14482
Location: 18 miles North of the border
RareAir is offline

PostPosted: Sat May 10, 2008 6:54 am    Post subject: Reply with quote

Sinbad wrote:
Image may have been reduced in size. Click image to view fullscreen.



That looks original
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwmadeinireland
Samba Member


Joined: October 31, 2003
Posts: 44
Location: Cork, Ireland
vwmadeinireland is offline

PostPosted: Mon Jun 02, 2008 3:53 am    Post subject: Reply with quote

Don't want to hyjack the topic, but as many others I am in the same situation. I've been offered this set of front fenders, but am unsure whether they are correct for oval or not. Note that they are not US spec. As they are not cheap, I rather know in advance. Any help is very much appreciated.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 16692
Location: Left coast, Canada
Bruce is offline

PostPosted: Mon Jun 02, 2008 10:35 pm    Post subject: Reply with quote

The pics of the yellow wings do not show the details of an original oval wing. Pics showing the rear end where it meets the running boards, the flange by the headlight bucket, and the flange at the front bottom by the bumper mount will tell the story.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
66 dormi
Samba Member


Joined: September 06, 2006
Posts: 501
Location: Ontario Canada
66 dormi is offline

PostPosted: Fri Jan 09, 2009 9:39 pm    Post subject: Reply with quote

Also weight an original fender is a lot heavier
_________________
1992 westfalia

07 Saab aero sport wagon
02 Mercedes-Benz e 320 wagon
93 Volvo 850 5speed
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
fitz57
Samba Member


Joined: January 05, 2009
Posts: 22
Location: Houston Tx
fitz57 is offline

PostPosted: Mon Jan 12, 2009 5:39 pm    Post subject: Reply with quote

an oval front fender has a place that sticks up where the running board meets the fender...i tried to find a pic hope you can tell by this
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Classifieds Feedback
jooles
Samba Member


Joined: August 29, 2008
Posts: 235
Location: Bulgaria / France
jooles is offline

PostPosted: Tue Jan 13, 2009 8:19 am    Post subject: Reply with quote

Subject covered here (well, that's for splits, but early ovals have the same fenders) : http://www.thesamba.com/vw/forum/viewtopic.php?t=262571&highlight=wing+fender

Julien
Back to top
View user's profile Send private message Classifieds Feedback
Kjell Roar
Samba Member


Joined: December 08, 2008
Posts: 1253
Location: Norway
Kjell Roar is offline

PostPosted: Mon Aug 03, 2009 2:31 am    Post subject: Reply with quote

jooles wrote:
Subject covered here (well, that's for splits, but early ovals have the same fenders) : http://www.thesamba.com/vw/forum/viewtopic.php?t=262571&highlight=wing+fender

Julien


As far as I can see in these threads, my 56 oval have the same front fenders as until 11. august 59 ( 2 539 142).
And that make sense, since one of my fenders is from a 58, the other one is probably original. And they messure the same (34 cm, ref. the link above). The fenders fit the wheels perfectly.

Many people refer to oval fenders, but we have to be aware that it is early and late oval fenders (which includes late 50').
Or do some have other information?

Edit:
This link shows the difference :
http://forums.pre67vw.com/Default.aspx?g=posts&t=16493

Luckily my car have two correct oval fenders, even though one of them was taken from a 58. It is a different pressing betveen oval and big windows in the light bucket.
_________________
I got a historic car, every scratch got a history...

My car, Aug. 4th, 1955 / an early 56: http://www.thesamba.com/vw/forum/album_page.php?pic_id=610438


Last edited by Kjell Roar on Mon Aug 03, 2009 12:48 pm; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
valentinesr
Samba Member


Joined: June 30, 2008
Posts: 740
Location: Ontario, California
valentinesr is offline

PostPosted: Mon Aug 03, 2009 3:19 am    Post subject: Reply with quote

I had asked the same information and started a thread on fenders, cause I to wanted to know more about them.. Heres the link of that information that might help..
http://www.thesamba.com/vw/forum/viewtopic.php?t=307483&highlight=front+fender

Heres some pics to help some of the comments from above...

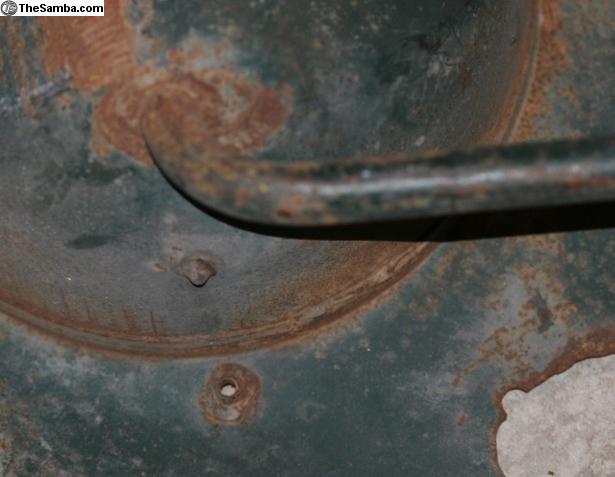

Drivers Side Front (some were saying to look at the pressed nut on the back, here are two different styles.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The flare where it meets the running board...All four fenders I have..
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I do have an extra set off a 1953 I picked up last year..but I get home in December..and the drivers side has to get an OG sheet metal donor repair in the headlight bucket area..then off to the body shop for final TLC, then back on TheSamba for a fellow in need of a pair of OG front fenders..
_________________
Valentine, Ray J Sr.
Ontario, California
thebucket wrote:
I gave my oval a nasty look. Money hungry bitch....

(Delilah) http://www.thesamba.com/vw/forum/viewtopic.php?t=319235


1954 Parts Book (CD PDF) PM TO INQUIRE
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
GLHTurbo
Samba Member


Joined: March 30, 2009
Posts: 1367
Location: New Jersey
GLHTurbo is offline

PostPosted: Fri Nov 06, 2009 9:08 pm    Post subject: Reply with quote

Are 58 and 59 fenders the same as a 56/57 Fender up front with the exception of lack of bullet indicators? I found a set I think might be worth getting, and can add in the bullets and shave the top mount signals.

Are the rears the same?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
AlteWagen
Troll


Joined: February 23, 2007
Posts: 7658

AlteWagen is offline

PostPosted: Fri Nov 06, 2009 10:56 pm    Post subject: Reply with quote

rears are the same from 56-60. Identified by pressings between bolt holes.
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - Oval-Window - 1953-57 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
