mukluk
Samba Member
Joined: October 18, 2012
Posts: 7322
Location: Clyde, TX
|
 Posted: Tue Oct 29, 2019 3:30 pm Post subject: Re: Vacuum Can Discussion Thread |
 |
|

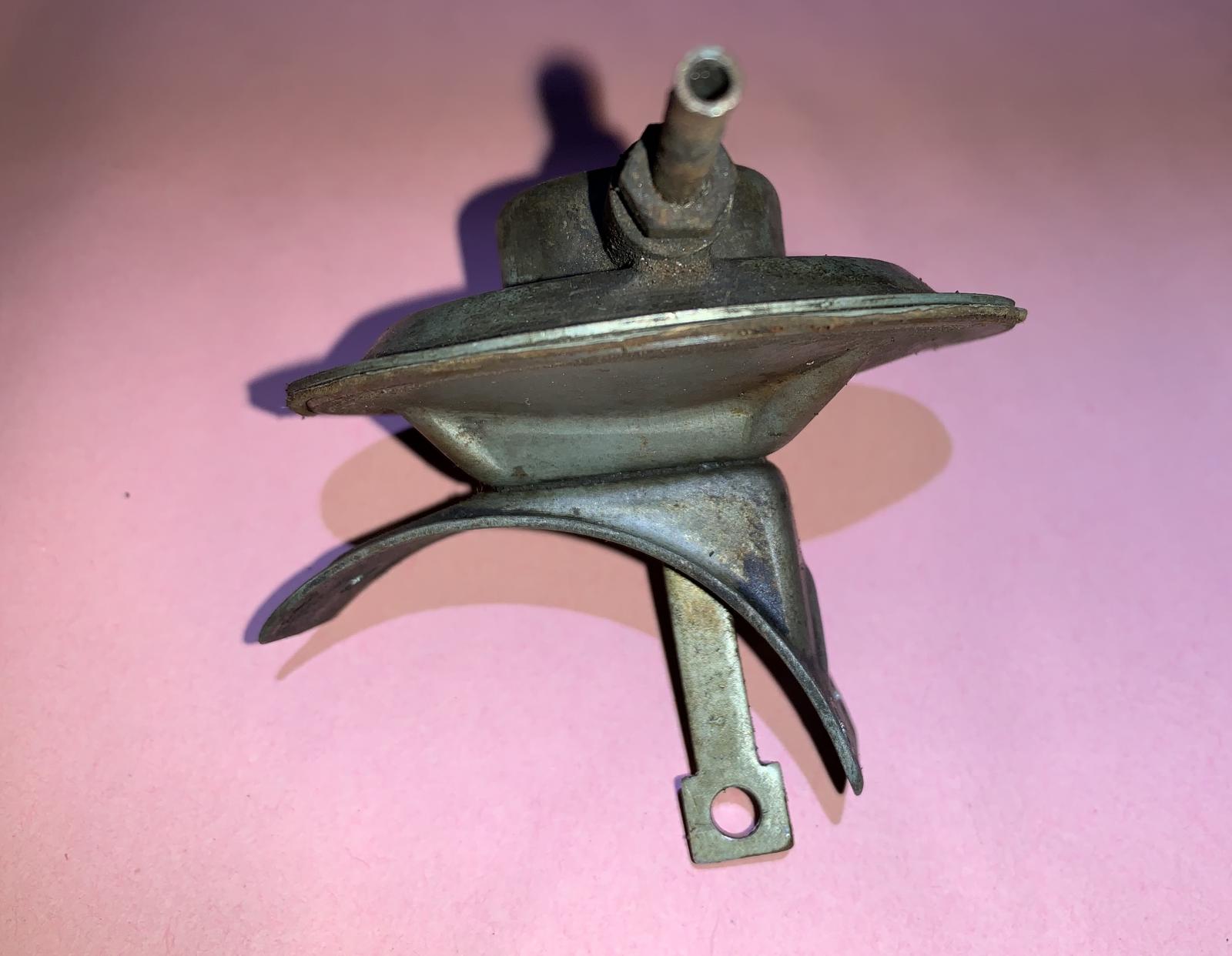

Looks to be a rather inventive home repair. Makes me wonder if it gives the correct advance using that scrap of interior vinyl for a diaphragm.
_________________
1960 Ragtop w/Semaphores "Inga" |
|
| Back to top |
|
 |
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 78872
Location: Sneaking up behind you
|
| Posted: Tue Oct 29, 2019 3:27 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
Looks like a Mad Max vacuum canister.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
hazetguy
Samba Member
Joined: April 06, 2001
Posts: 10782
Location: iT StiNgeD iTseLf tO dEAd
|
| Posted: Tue Oct 29, 2019 3:22 pm Post subject: |
|
|
| cab57 wrote: |
I add another version of this can with screws around to maintain the caps together:
|
|
|
| Back to top |
|
|
cab57
Samba Member
Joined: May 22, 2016
Posts: 66
Location: FRANCE
|
| Posted: Tue Oct 29, 2019 3:03 pm Post subject: |
|
|
| tasb wrote: |

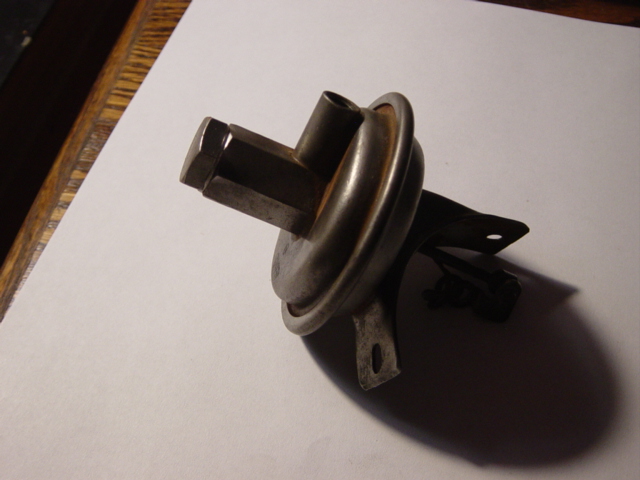

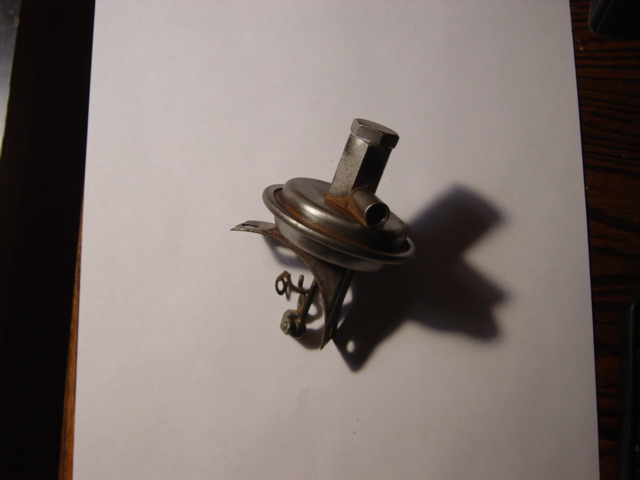

Here are a couple of oddball vacuum canisters that need to be included in this thread. The first is used with the 1959 Ghia only from August 1959 until January 1960.
|
I add another version of this can with screws around to maintain the caps together:
_________________
Beetle convertible built 06/66
Beetle ragtop built 28/04/59 |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6568
Location: Pentwater, Michigan
|
| Posted: Wed Mar 08, 2017 9:25 am Post subject: Re: Vacuum Can Discussion Thread |
|
|
There are plenty of fittings out there with partial lines on them. I think WW sellls a repop line for $25?
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
Lingwendil
Samba Member
Joined: February 25, 2009
Posts: 3999
Location: Antioch, California, a block from the hood
|
| Posted: Tue Mar 07, 2017 4:09 pm Post subject: |
|
|
| tasb wrote: |
My Robert Bosch catalog from 1976 lists more than 30 different vacuum cans for VW. most of the cans do not have a readily identifiable part number. When I first started rebuilding distributors about 175 ago, I used whatever can came with the distributor. I did not realize how easily and how frequently the cans were changed out (sorry  ). This is surprising because most vacuum cans are still good. the moving parts like the advance plate dry out and freeze up more often than the can fails.
The first vacuum can that I will cover is the common one used on 36 horse power engines. It has a unique shape compared to later VW cans. It has a threaded vacuum port and a large nut which is really a cover. The cover hides and adjustment screw that is set at the factory but made accessable for adjustment later. I have not played with this adjustment much. Part # 113
There is a date stamp on the mounting base that gives you a clue to its manufacture. It is the tyypical number and letter stamping used by Bosch. The code can be interpreted using data available elsewhere on this site. Many of these vac cans have dried out after so many years. |
What is the thread of the vacuum port on these cans? I picked one of these distributors up and wanted to make up a fitting for it without having to mangle an original metal line...
_________________
73 super beetle thread http://www.thesamba.com/vw/forum/viewtopic.php?t=649622 Back on the Road!
Modify your Kadrons for SVDA http://www.thesamba.com/vw/forum/viewtopic.php?p=8115884#8115884
Cast iron VJU4BR8 SVDA reference thread- https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0
Need replacement filters for original Kadron aircleaners? WIX #42087 is a perfect fit, as is Napa Gold #2087! |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6568
Location: Pentwater, Michigan
|
| Posted: Mon May 09, 2016 11:32 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
Nobody attempted an answer: the pull rod on the vacuum canister was installed upside down at the Bosch facotry. Odd that it passed inspection but it works just fine the way it is.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6568
Location: Pentwater, Michigan
|
| Posted: Thu Apr 28, 2016 2:21 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
here's an oddball vacuum canister. It's a Big Cap 40 hp canister. I've got about 100 of them. besides the nipple for the vacuum hose being located at 9:30 on this one can you spot the inconsistency?
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6568
Location: Pentwater, Michigan
|
| Posted: Wed Apr 06, 2016 4:25 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
Here is a batch of NOS vacuum lines for the vacuum only distributors. The part number is 211 129 497. They are steel with a coating of copper.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6568
Location: Pentwater, Michigan
|
| Posted: Thu Dec 31, 2015 7:44 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
yep sorry, two year only.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26458
Location: Douglas, WY
|
| Posted: Thu Dec 31, 2015 7:36 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
| One year only? That was used in 1966 and 1967. |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6568
Location: Pentwater, Michigan
|
| Posted: Thu Dec 31, 2015 7:17 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
I too am having a hard time finding vacuum canisters for the 113 905 205 K. Not because the canisters have gone bad as much as the canisters are dented or just plain hard to come by being one year only albeit there were a lot of 1966 beetles and buses running around once upon a time.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
Warren
Samba Member
Joined: January 28, 2004
Posts: 121
Location: Pine Valley, CA
|
| Posted: Wed Dec 30, 2015 11:30 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
| Glenn wrote: |
| Just because it was never used you can't be sure they will work. I have a number of NOS vacuum canisters that leak. |
I have 7 that are useless... 2 were brand new.. LOL
They either leak or they are too stiff and notchy.
I give up on looking and have spent $100 buying cans that people "tell" me are working fine.
So, it's the 68-70 can for me and static TDC timing. Seems to run great.
I'm out!
_________________
Warren in San Diego
1967 Beetle Sunroof Sedan |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 78872
Location: Sneaking up behind you
|
| Posted: Mon Dec 28, 2015 8:49 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
Just because it was never used you can't be sure they will work. I have a number of NOS vacuum canisters that leak.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
Warren
Samba Member
Joined: January 28, 2004
Posts: 121
Location: Pine Valley, CA
|
| Posted: Mon Dec 28, 2015 8:44 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
Well out of the 5 I received today only one is close to being okay to use...
They are all stiff and sticky.
6-7 bad out of 8.
_________________
Warren in San Diego
1967 Beetle Sunroof Sedan |
|
| Back to top |
|
|
wcfvw69
Samba Purist
Joined: June 10, 2004
Posts: 13640
Location: Arizona
|
| Posted: Mon Dec 28, 2015 8:19 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
| glutamodo wrote: |
| I've seen them come up for sale before... I bought the one I showed earlier in this thread (which I've not yet needed to use) off of eBay several years ago. |
Wow.. You're lucky to have found that 7.5BTDC NOS vacuum can! I guess I need to look a bit harder. TASB says the vast majority of these vacuum cans on these vacuum only distributors are still good on the distributors he has rebuilt. The "star" 67 vacuum can on my 67 bug is original and has no issues. I bought several used 205 "T" vacuum cans with some core distributors. All of these used "T" vacuum cans failed to hold vacuum! So, I have no spare "T" cans right now.
I did get lucky and bought several used distributors a guy was selling for $4 bucks each at the last VW swap meet I went to. I found a 205M distributor with the "star" vacuum can. It looked filthy on the outside. When I took it apart, I was shocked how clean it was inside and it showed very little wear. The fiber washers were perfect as well. I cleaned and lubed the internals. It cleaned up beautifully and the can was dent free and holds vacuum. By far, my best swap meet find I've scored. It's now my back up distributor for my 67 bug.
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc
40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.
**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours** |
|
| Back to top |
|
|
tasb
The Distributor Distributor
Joined: April 27, 2002
Posts: 6568
Location: Pentwater, Michigan
|
| Posted: Mon Dec 28, 2015 8:09 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
And to muddy the waters, the star pattern also appears on the 40 hp vacuum canisters. You can instantly tell them from the later 113 K vacuum canisters because the 40 hp big cap canisters have three mounting locations where the later have only two.
The correct canisters were still available back in the day at the dealership (as above without the star pattern). The customer or the service technician needed to know the difference though and often they did not.
I would say 1 out of 20 distributor cores that I receive have the incorrect vacuum canister installed.
_________________
Roads Scholar
1957 Kombi low mileage 36 hp governor equipped M 178 Slow Drag Winner 2014, 2015, 2018
1965 hardtop Deluxe Microbus owned since 1990 M 620 factory 12 v 1500cc
1961 (October)Single Cab- Road Trip Workhorse
Member# 2059 |
|
| Back to top |
|
|
glutamodo
The Android
Joined: July 13, 2004
Posts: 26458
Location: Douglas, WY
|
| Posted: Mon Dec 28, 2015 4:10 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
| I've seen them come up for sale before... I bought the one I showed earlier in this thread (which I've not yet needed to use) off of eBay several years ago. Replacement ones like the one I got don't have the star stamping on it though. |
|
| Back to top |
|
|
wcfvw69
Samba Purist
Joined: June 10, 2004
Posts: 13640
Location: Arizona
|
| Posted: Mon Dec 28, 2015 1:03 pm Post subject: Re: Vacuum Can Discussion Thread |
|
|
| Warren wrote: |
Just had to mention - Drove the little bugger to work today - She sure runs well on the 68-70 cannister set at TDC static.
Good response, idle, acceleration and no pinging.
I wonder if it matters much between the 66/67 and 68/70 can on the 205 K if you time it properly?
I am still going to get mine correct but what do you all think? |
It's perfectly fine. Back in the day, when the original "star" 7.5 BTDC can blew out, you'd of replaced it with that 0 timing can you have now. The most important thing is to time it to the vacuum can, not the distributor. In many years on this site, I've never seen an NOS 67 distributor "star" vacuum can for sale. You can still find the 205T distributor vacuum cans NOS though they are getting pricy.
I wonder how many VW's out there are not running as well as they should due to someone reading the distributor number and setting the timing to it vs. the vacuum can that is mounted on it.
You can also measure the travel of the vacuum can arm to verify which can it is if it doesn't have the "star" pattern on the vacuum can. I did to compare the "star" 67 distributor can vs. the 1969 205 T vacuum can set at 0. There was a difference that this thread highlights.
_________________
Contact me at [email protected]
Follow me on instagram @sparxwerksllc
40+ years of VW repair, and VW parts and vehicle restoration experience.
The Samba member since 2004.
**Now rebuilding throttle bodies for VW's and Porsche's**
**Restored German Bosch distributors for sale or I can restore yours**
**Restored German Pierburg fuel pumps for sale or I can restore yours**
**Restored Porsche fuel pumps or I can restore yours**
**Restored Porsche distributors or I can restore yours** |
|
| Back to top |
|
|
Warren
Samba Member
Joined: January 28, 2004
Posts: 121
Location: Pine Valley, CA
|
| Posted: Mon Dec 28, 2015 11:24 am Post subject: Re: Vacuum Can Discussion Thread |
|
|
Just had to mention - Drove the little bugger to work today - She sure runs well on the 68-70 cannister set at TDC static.
Good response, idle, acceleration and no pinging.
I wonder if it matters much between the 66/67 and 68/70 can on the 205 K if you time it properly?
I am still going to get mine correct but what do you all think?
_________________
Warren in San Diego
1967 Beetle Sunroof Sedan |
|
| Back to top |
|
|
|
