Fuse questions on re-wiring a 1965 beatle
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
ccie6872
Samba Member


Joined: July 27, 2008
Posts: 2

ccie6872 is offline

PostPosted: Sun Jul 27, 2008 7:47 am    Post subject: Fuse questions on re-wiring a 1965 beatle Reply with quote

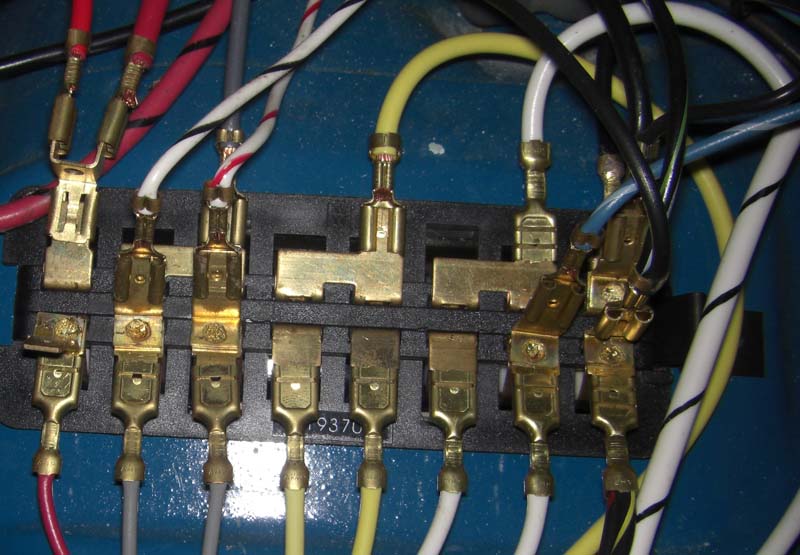

We have been completing rewiring a 1965 bug and all seams to be functioning but we are randomly blowing fuses. I don't think we have the right fuse setup. The only thing that has been added was a Sony CD player/radio. What is the recommended AMP fuses for the following fuse panel:

[img]http://farm4.static.flickr.com/3107/2706915920_920119bf72.jpg?v=0[/img]
Back to top
View user's profile Send private message Classifieds Feedback
codeMechanic
Samba Member


Joined: April 13, 2007
Posts: 876
Location: Bellevue , NE
codeMechanic is offline

PostPosted: Sun Jul 27, 2008 8:29 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.


16 amp for wipers, brake light, flasher relay, and horn all others 8 amp.
_________________
65 standard micro bus, Velvet green
65 sedan, Bahama blue
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ccie6872
Samba Member


Joined: July 27, 2008
Posts: 2

ccie6872 is offline

PostPosted: Sun Jul 27, 2008 8:33 am    Post subject: Reply with quote

Thank you!
Back to top
View user's profile Send private message Classifieds Feedback
BigBlueVW.blogspot.com
Samba Member


Joined: October 04, 2007
Posts: 317
Location: Petaluma, CA
BigBlueVW.blogspot.com is offline

PostPosted: Tue Sep 30, 2008 12:44 pm    Post subject: Reply with quote

Sorry to change course on this thread, but I did a search and this post came close, so I'm keeping it together.

This weekend I was trying to figure out why my radio in my '63 bug (a Saphire 1, I believe) isn't working, when I found this wire cut:

Image may have been reduced in size. Click image to view fullscreen.


So I understand that this has an in-line fuse, and that this should connect to the bottom, left of the fuse box (when looking at it in the trunk), but how? That connection already has a fuse attached (I'm assuming to my interior light, which the diagram shows). How do I connect both?

-Brett
_________________
'56 Bug - no name yet
'63 Bug "Little Blue"
'68 Bus "Big Blue"

Find bus camping friends at http://VWCamperFamily.com/

A west coast VW bus camping adventure at: http://bigbluevw.com/

Interested in VW buses and have a Facebook account? Check out Big Blue's Fan page: http://www.facebook.com/bigbluevw
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
fluxcap
Samba Member


Joined: February 07, 2006
Posts: 1966
Location: Newnan GA
fluxcap is offline

PostPosted: Tue Sep 30, 2008 1:28 pm    Post subject: Reply with quote

You should already have two "output" prongs on that fuse. If you don't, go to your local autoparts store and look in the electrical section. You'll find some special connectors that turn one prong into two prongs. See the top of the left fuse in this pic
Image may have been reduced in size. Click image to view fullscreen.

_________________
Eric - 1966 camper bus

"It's like, how much more black could this be, and the answer is none.......none more black."
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
BigBlueVW.blogspot.com
Samba Member


Joined: October 04, 2007
Posts: 317
Location: Petaluma, CA
BigBlueVW.blogspot.com is offline

PostPosted: Tue Sep 30, 2008 2:24 pm    Post subject: Reply with quote

Ah, got it. Thanks for the pic. Helps a ton.

-Brett
_________________
'56 Bug - no name yet
'63 Bug "Little Blue"
'68 Bus "Big Blue"

Find bus camping friends at http://VWCamperFamily.com/

A west coast VW bus camping adventure at: http://bigbluevw.com/

Interested in VW buses and have a Facebook account? Check out Big Blue's Fan page: http://www.facebook.com/bigbluevw
