 Posted: Fri Aug 01, 2008 7:55 pm Post subject: Autostick starter in a manual tranny? |
 |
|
So i keep reading people saying "Just put a autostick starter in it!" but they never say if you have to change anything else...
I have a 1600 cc engine, original starter just died on me and i'm having a big PITA with my starter bushing coming out..I've already bought my new starter from autozone but its for an manual tranny because thats what I have..Does a autostick starter work the same? Can i just leave the bushing in if I install the autostick starter?
_________________
73 Thing
80 Vanagon Westy |
|
| Back to top |
|
 |
bugninva
Samba Member
Joined: December 14, 2004
Posts: 8858
Location: sound it out.
|
| Posted: Fri Aug 01, 2008 9:06 pm Post subject: |
|
|
yeah, the autostick starter is "self-supporting" meaning it's housing extends to the other end of the starter shaft... there is no need for the bushing....
_________________
| [email protected] wrote: |
| With a show of hands, who has built over 1000 engines in the last 25 years? Anyone? |
GEX has. Just sayin |
|
| Back to top |
|
|
texasbuggy's
Samba Member
Joined: November 23, 2002
Posts: 97
|
| Posted: Fri Aug 01, 2008 9:07 pm Post subject: |
|
|
| If ya use one, just knock out the old bushing. |
|
| Back to top |
|
|
DrDarby
Samba Member
Joined: May 12, 2004
Posts: 6541
Location: Northern Illinois
|
| Posted: Fri Aug 01, 2008 9:37 pm Post subject: |
|
|
You don't need to touch the bushing the auto stick starter has nothing to do with it.
_________________
Midwest Autosavers, Inc. Crystal Lake, IL |
|
| Back to top |
|
|
74superTN
Samba Member
Joined: April 01, 2007
Posts: 675
Location: Port Saint Lucie, FL
|
| Posted: Sat Aug 02, 2008 6:11 am Post subject: |
|
|
so the autostick starter will fit right in with the bushing still installed?
_________________
73 Thing
80 Vanagon Westy |
|
| Back to top |
|
|
DrDarby
Samba Member
Joined: May 12, 2004
Posts: 6541
Location: Northern Illinois
|
| Posted: Sat Aug 02, 2008 7:14 am Post subject: |
|
|
Absolutely. I routenely install an A/S starter whenever replacing a starter and use them exclusively on conversions
_________________
Midwest Autosavers, Inc. Crystal Lake, IL |
|
| Back to top |
|
|
keifernet
Samba Search & Rescue
Joined: May 11, 2002
Posts: 19395
Location: Samba Center for Behavioral Science
|
| Posted: Sat Aug 02, 2008 7:46 am Post subject: |
|
|
| bugninva wrote: |
| yeah, the autostick starter is "self-supporting" meaning it's housing extends to the other end of the starter shaft... there is no need for the bushing.... |

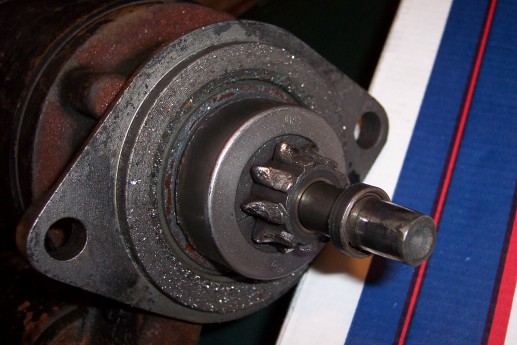

Here is what one looks like...

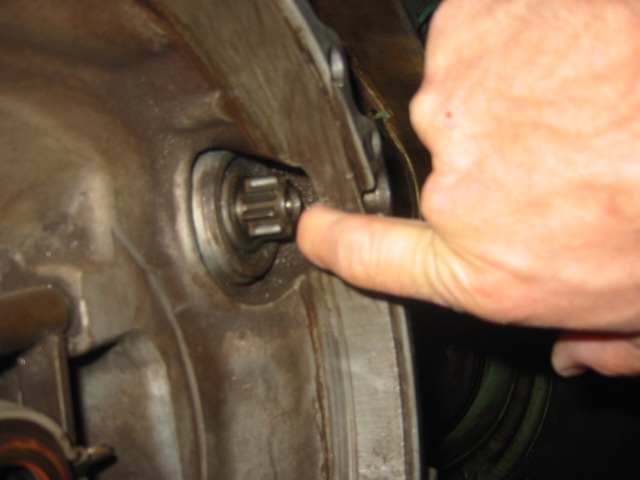

And here is the stock style that needs the bushing... don't mind the chewed up gear LOL
| DrDarby wrote: |
| You don't need to touch the bushing the auto stick starter has nothing to do with it. |
Yessirie.... the autostick starter never comes in contact with where the bushing is...
|
|
| Back to top |
|
|
74superTN
Samba Member
Joined: April 01, 2007
Posts: 675
Location: Port Saint Lucie, FL
|
| Posted: Sat Aug 02, 2008 3:02 pm Post subject: |
|
|
ok so i replaced it...was your autostick starter way louder than the manual starter? mine's freakin loud!
Also...think a battery could die in about 5 months if all I've been doing is trying to start my bug with no progress made..meaning, she doesnt run for longer than a few seconds
_________________
73 Thing
80 Vanagon Westy |
|
| Back to top |
|
|
Bashr52
Samba Member
Joined: July 16, 2006
Posts: 5669
Location: On an island in VA
|
| Posted: Sat Aug 02, 2008 3:05 pm Post subject: |
|
|
| The autostick starter also has slightly more torque than a manual starter. It is a good cenversion for the bigger engines with more compression than stock, and cheaper than a high torque starter. |
|
| Back to top |
|
|
Glenn
Mr. 010
Joined: December 25, 2001
Posts: 79424
Location: Sneaking up behind you
|
| Posted: Sat Aug 02, 2008 3:07 pm Post subject: |
|
|
| Bashr52 wrote: |
| The autostick starter also has slightly more torque than a manual starter. It is a good cenversion for the bigger engines with more compression than stock, and cheaper than a high torque starter. |
Not that much cheaper these days. And the IMI has double the torque and a lot less weight.
_________________
Glenn
74 Beetle Specs | 74 Beetle Restoration | 2180cc Engine
"You may not get what you pay for, but you always pay for what you get"
Member #1009
#BlueSquare
עַם יִשְׂרָאֵל חַי |
|
| Back to top |
|
|
wvmedic
Samba Member
Joined: July 30, 2008
Posts: 102
Location: Bluefield. VA
|
| Posted: Sun Sep 21, 2008 3:21 pm Post subject: |
|
|
| I too am reading about autostick starters. I have a '67, manual. Do I simple buy a autostick starter for lets say...a '68 auto. and it will bolt right in and work without any problems? |
|
| Back to top |
|
|
Jeckler
Samba Member
Joined: September 27, 2005
Posts: 2718
Location: Mesa, AZ
|
| Posted: Sun Sep 21, 2008 4:16 pm Post subject: |
|
|
Yes, it really is THAT simple.
_________________
Andy
'63 Bug rebuild here.
Did you know that sellers can't charge a fee to accept PayPal?
| bill may wrote: |
| I am the crabby old guy. |
Knowledge is knowing that a tomato is a fruit.
Wisdom is knowing not to put it in fruit salad. |
|
| Back to top |
|
|
bon2198
Samba Member
Joined: August 04, 2008
Posts: 1969
Location: Nashville, GA
|
| Posted: Sun Sep 21, 2008 4:55 pm Post subject: |
|
|
yeah, now that i think about it when i went to buy a new starter for my 70 the guy at Advanced never asked about what tranny i have. but the new starter came with a new bushing so i'm assuming the starter i have is for a manual. but reading this post the starter i have in there now is a whole lot louder and more torque than the original i had. but than again the original died. but my bug starts better than ever before!!!!
_________________
1970 VW Beetle 1776cc MOFOCO w/hydraulic lifters, 042 heads and dual dellorto's
"It's better to be hated for what you are than loved for what you are not"
At the end of the day it's YOUR car so do what YOU want to it. |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16549
Location: North Florida, USA
|
| Posted: Sun Sep 21, 2008 5:27 pm Post subject: |
|
|
| 74superTN wrote: |
| ... Also...think a battery could die in about 5 months if all I've been doing is trying to start my bug with no progress made..meaning, she doesnt run for longer than a few seconds |
If you can't get the charging system going for more than a few seconds at a time your battery will eventually die.
The primary function of the battery is to hold a charge so you can crank the engine. Once the engine is running the charging system takes over and provides most of the electricity for the car and "replenishes" the lost charge used to crank the starter. The starter load is the biggest power drain on the battery, well ahead of the wiper motor, horn and headlight on most cars.
You must have a pretty good battery to go 5 months w/o a charge before she died.
Note: "running down" the battery and recharging it will eventually "wear out" most batteries, reducing their ability to hold a charge.
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road  }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
| Back to top |
|
|
wvmedic
Samba Member
Joined: July 30, 2008
Posts: 102
Location: Bluefield. VA
|
| Posted: Sun Sep 21, 2008 7:10 pm Post subject: |
|
|
| What is up with the autostick starter being "louder" than the starter for a manual? Is this a problem? Of course you only hear it when starting the vehicle...right? |
|
| Back to top |
|
|
wanta60sbug
Samba Member
Joined: October 12, 2010
Posts: 29
|
| Posted: Thu May 03, 2012 4:55 pm Post subject: autostick starter |
|
|
| OK, I have a 64 bus, So do I ask for a 68 bug autostick Bosch starter at Advance auto parts |
|
| Back to top |
|
|
ashman40
Samba Member
Joined: February 16, 2007
Posts: 16549
Location: North Florida, USA
|
| Posted: Thu May 03, 2012 7:04 pm Post subject: |
|
|
The '68 starter was meant to mate with a 200mm flywheel/flexplate. Does your '64 bus have a 180mm or 200mm flywheel (sorry I don't know which year the type 2 switched to 200mm)? The teeth are different between the two flywheels.
_________________
AshMan40
---------------------------
'67 Beetle #1 {project car that never made it to the road }
'75 Beetle 1200LS (RHD Japan model) {junked due to frame rot}
'67 Beetle #2 {2019 project car - Wish me luck!} |
|
| Back to top |
|
|
supermanbidder
Samba Member
Joined: December 30, 2011
Posts: 303
Location: ct
|
| Posted: Sun May 19, 2013 10:33 pm Post subject: What year for 74 bellhousing |
|
|
What year autostick starters fit my type 1 74 bellhousing .?
Thanks tom |
|
| Back to top |
|
|
drs1023
Samba Member
Joined: October 20, 2011
Posts: 1682
Location: Georgia, USA
|
| Posted: Mon May 20, 2013 11:46 am Post subject: |
|
|
| Autostick starters from '68 and up is what you need. |
|
| Back to top |
|
|
supermanbidder
Samba Member
Joined: December 30, 2011
Posts: 303
Location: ct
|
| Posted: Mon May 20, 2013 11:54 am Post subject: |
|
|
| Yup just bought a bosch thanks |
|
