PostPosted: Wed Aug 13, 2008 8:18 am    Post subject: Atwood Furnace Reply with quote

I see one memeber installed an atwood furnace. I was wondering if anyone else has done this??

At $280 it looks like a nice alternative to a propex. Big by comparison but the one install looks nice.
Back to top
View user's profile Send private message Classifieds Feedback
woggs1
Samba Member


Joined: February 22, 2007
Posts: 531
Location: South Pacifica California
woggs1 is offline

PostPosted: Wed Aug 13, 2008 8:27 am    Post subject: Re: Atwood Furnace Reply with quote

STEPHENLAY wrote:
I see one memeber installed an atwood furnace. I was wondering if anyone else has done this??

At $280 it looks like a nice alternative to a propex. Big by comparison but the one install looks nice.



Do you have a link?
_________________
4 speed 88 Westy
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Westy-Life
Samba Member


Joined: June 24, 2008
Posts: 178
Location: The Road or Calgary AB
Westy-Life is offline

PostPosted: Wed Aug 13, 2008 9:04 am    Post subject: Reply with quote

http://www.flickr.com/photos/wchapman/2066387856/
http://www.thesamba.com/vw/forum/viewtopic.php?t=194221&highlight=atwood

Cheers!
Dave
_________________
86 Westfalia with 03' TDI Auto trans
Back to top
View user's profile Send private message Gallery Classifieds Feedback
STEPHENLAY
Samba Member


Joined: July 01, 2008
Posts: 94
Location: Spokane, WA
STEPHENLAY is offline

PostPosted: Wed Aug 13, 2008 12:18 pm    Post subject: Reply with quote

Yes that link. I would LOVE to see a more detailed write up on this.
Back to top
View user's profile Send private message Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Wed Aug 13, 2008 12:26 pm    Post subject: Reply with quote

http://www.thesamba.com/vw/classifieds/detail.php?id=634695
Back to top
View user's profile Send private message Gallery Classifieds Feedback
winkshog
Samba Member


Joined: August 16, 2006
Posts: 294
Location: Mich-Wallhalla
winkshog is offline

PostPosted: Wed Aug 13, 2008 12:58 pm    Post subject: Reply with quote

Where are you seeing it at 280 i have found it for 450.00

found it....ebay storehttp://item.express.ebay.com/Vehicle-Parts-Accesso...xpressItem
_________________
85 Westy
85 7 pass w/AC 2.2_Subaru
Facebook for Operation Injured Soldiers For those how gave when they servered
Loghome for sale For those that want to get away from it all....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
STEPHENLAY
Samba Member


Joined: July 01, 2008
Posts: 94
Location: Spokane, WA
STEPHENLAY is offline

PostPosted: Wed Aug 13, 2008 2:12 pm    Post subject: Reply with quote

I want to see some installed pics. I woder if you have to vent out the side or maybe bottom like the propex?
Back to top
View user's profile Send private message Classifieds Feedback
CREGAN
Samba Member


Joined: April 26, 2008
Posts: 230
Location: Leduc, Alberta - CANADA
CREGAN is offline

PostPosted: Wed Aug 13, 2008 3:38 pm    Post subject: Reply with quote

I have a Hydroflame and it has its own special side vent. I WILL be happy with it when I get it to fire up so right now it just looks neat.
Back to top
View user's profile Send private message Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2305
Location: Oregon Outback
westyventures is offline

PostPosted: Wed Aug 13, 2008 6:08 pm    Post subject: Reply with quote

If the dollar continues to gain value again, the pricing of the Propex will come back down. I have to pay for these units in UK pounds.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
STEPHENLAY
Samba Member


Joined: July 01, 2008
Posts: 94
Location: Spokane, WA
STEPHENLAY is offline

PostPosted: Wed Aug 13, 2008 8:15 pm    Post subject: Reply with quote

That would be nice. At $750 I think I will have to be cold. The 280 for the atwood is really a much better buy but not as slick as the propex. You do get much more heat with the atwood as well. I think that it will require a vent on the side of the van and I am not really interested in that.
Back to top
View user's profile Send private message Classifieds Feedback
westyventures
Samba Member


Joined: December 29, 2004
Posts: 2305
Location: Oregon Outback
westyventures is offline

PostPosted: Wed Aug 13, 2008 10:18 pm    Post subject: Reply with quote

STEPHENLAY wrote:
That would be nice. At $750 I think I will have to be cold. The 280 for the atwood is really a much better buy but not as slick as the propex. You do get much more heat with the Atwood as well. I think that it will require a vent on the side of the van and I am not really interested in that.


$725 currently. Smile The HS2000 Propex will probably never get down to the original $495 like it was when I started selling them, the dollar was in much better shape then. But possibly well into the 600's if the current gains hold into winter. More heat energy=more BTU's. Remember however that to produce more BTU's, more energy (propane) must be burned. Efficiency of the Propex is around 95, not sure how the Atwood compares.
Back to top
View user's profile Send private message Send e-mail Visit poster's website Instagram Gallery Classifieds Feedback
STEPHENLAY
Samba Member


Joined: July 01, 2008
Posts: 94
Location: Spokane, WA
STEPHENLAY is offline

PostPosted: Wed Aug 13, 2008 10:25 pm    Post subject: Reply with quote

No doubt the propex is nice. I think the atwood is less efficient. I will keep tabs on the dollar!!!!!
Back to top
View user's profile Send private message Classifieds Feedback
MarkWard
Samba Member


Joined: February 09, 2005
Posts: 16972
Location: Retired South Florida
MarkWard is offline

PostPosted: Thu Aug 14, 2008 1:24 pm    Post subject: Reply with quote

I can't find any specs on the Attwood to compare against any others. I think they may be more suited to RV's with banks of batteries and shore power where amps and gas useage are not as big a concern. Looks nice and compact.
_________________
☮️
Back to top
View user's profile Send private message Gallery Classifieds Feedback
STEPHENLAY
Samba Member


Joined: July 01, 2008
Posts: 94
Location: Spokane, WA
STEPHENLAY is offline

PostPosted: Thu Aug 14, 2008 1:31 pm    Post subject: Reply with quote

Actually the 8012 model draws l.8 amps vs 1.2 for the propex. Not as good but not horrible either.

The extra BTU does consume more but then gives more heat too!
Back to top
View user's profile Send private message Classifieds Feedback
brettsvw
Samba Member


Joined: November 22, 2007
Posts: 2145
Location: Florida
brettsvw is offline

PostPosted: Thu Aug 14, 2008 7:21 pm    Post subject: Reply with quote

I have Atwood listed on TS I also have the installed pics, It was a option in the vanagon camper convertion I parted out. One of the safest way to heat and sleep without worry.
http://www.thesamba.com/vw/classifieds/detail.php?id=634695
_________________
.







My 59 kombi build.
http://www.thesamba.com/vw/forum/viewtopic.php?t=635003&highlight=

My buggy build.
http://www.thesamba.com/vw/forum/viewtopic.php?t=558601&highlight=

http://www.thesamba.com/vw/forum/viewtopic.php?t=289807
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
hurst_dave
Samba Member


Joined: December 09, 2007
Posts: 371
Location: Oregon
hurst_dave is offline

PostPosted: Tue Dec 09, 2008 3:34 pm    Post subject: Reply with quote

Does anyone with an Atwood (or Propex) furnace know if you can use it while driving? Thanks.
_________________
1978 Deluxe Campmobile Westy, 2.0L w/ FI.
Don't believe everything you think.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Tue Dec 09, 2008 3:47 pm    Post subject: Reply with quote

hurst_dave wrote:
Does anyone with an Atwood (or Propex) furnace know if you can use it while driving? Thanks.

Yes, both.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hurst_dave
Samba Member


Joined: December 09, 2007
Posts: 371
Location: Oregon
hurst_dave is offline

PostPosted: Tue Dec 09, 2008 6:26 pm    Post subject: Reply with quote

Excellent--thanks.
_________________
1978 Deluxe Campmobile Westy, 2.0L w/ FI.
Don't believe everything you think.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
GreenMachineVW
Samba Member


Joined: August 08, 2008
Posts: 645

GreenMachineVW is offline

PostPosted: Wed Mar 18, 2009 4:55 pm    Post subject: Reply with quote

I have seen this picture:
Image may have been reduced in size. Click image to view fullscreen.


Does anyone have any other information or pictures relating to the installation. I wonder how the outside vent looks, and how much clearence is in the cabinet. Any other Atwood experiences?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
vwsyncroguy
Samba Member


Joined: July 27, 2004
Posts: 242

vwsyncroguy is offline

PostPosted: Thu Mar 19, 2009 12:57 am    Post subject: Reply with quote

Still a deal for 12000BTU at 1.8 amps .....$289.00 on ebay.

http://cgi.ebay.com/ebaymotors/Atwood-Hydro-Flame-...5006r34058

An earlier model of these furnaces were standard equipment on all Adventurewagons.

Here's some more pics of the install. Nice work...not mine...photos sent to me by the installer, (Troy) I can't answer any specific questions but the pictures are pretty self explanatory.

----------------------------------------------------

The Atwood furnace is a bit longer than the depth of the Westy cabinet so a piece of formica was used as a "frame" to increase the depth....looks pretty good I think.

Here's what Troy sent me with the pics.

I went down to Ace Hardware and picked up a piece of Formica that's fairly close match to the stock. I bought the edging from a place called T-molding on line. .

Here's the hole where the small storage cabinet used to be...to the left of the fridge.....the outlet and breaker are restored to their original positions. (I've never used shore power in my van, so not sure I'd bother putting these back in....rather have the space.)

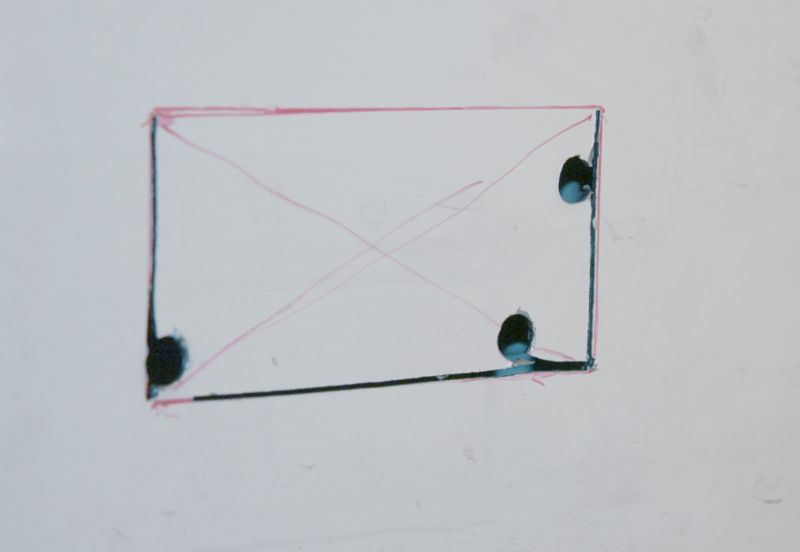

Note the rectangular hole through the side of the van sheet metal for the vent.

Image may have been reduced in size. Click image to view fullscreen.


The furnace must vent straight through the side of the van...as the photos show...no options for curving pipes through the floor.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Here's the finished vent viewed from the outside of the van. Next time you see an Adventurewagon check it out.

Image may have been reduced in size. Click image to view fullscreen.


A bit of sheet metal had to be trimmed from the back of the heater box to make it conform to the shape of the side of the van...as per the markings.

Troy......The blue lines are the actual shape of the side of the Westy wall. I scribed a piece of cardboard and then transferred it to the furnace. Problem is the squirrel cage fan. If one was to actually cut out the exact shape, you would cut into the squirrel cage fan. The most critical part I found was a horizontal reinforcement of the Westy wall, and I had to file out a portion of the furnace to mate. If you look closely at the picture you will see its hollowed out a little bit more in the center. One really only needs to cut about a half-inch off the bottom of the furnace. It's fairly light weight sheet-metal so, maybe five minutes worth of work. You can get to within 1/4" of the stock cabinet wall face.

Image may have been reduced in size. Click image to view fullscreen.


Looking down from the top into the (former) storage space. Looks like an inverter was installed on the wall beside the heater.

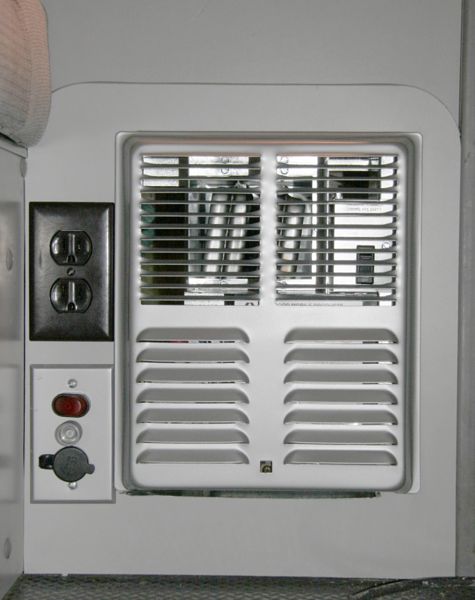

Troy..... In my case, I have a switch, that in turn runs through an inverter
that is connected to power the lower half of the electrical outlet. I also
have a 12 V cigarette lighter installed in that lower outlet box. I did not
want to give up shore power completely either, even though I rarely find
campsites with 110 available.


Image may have been reduced in size. Click image to view fullscreen.


The finished install without the vent cover.

Image may have been reduced in size. Click image to view fullscreen.


The vent cover comes in a brown color...which would look OK in a earlier model tan interior...but would be ugly in a grey interior.....so.....

Image may have been reduced in size. Click image to view fullscreen.


...not sure if this vent was stripped to bare metal ....or repainted silver....but it goes much better with the late model grey Westy interior

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


The thermostat control.

Image may have been reduced in size. Click image to view fullscreen.


These photos satisfied me that this is a viable furnace option for Vanagons....at least from an installation point of view. A bit bigger than the popular Propex 2000 but not that much bigger than Propex 2800.

Comparing the Atwood to the Propex HS2800 ....which is closest of the Propex heaters in btu output at 9,550btu....the Atwood draws a 1.8 vs 1.9 amps for the Propex. Output is 12,000btu vs 9,556btu (but btu ratings don't mean much without comparing efficiency....i.e what amount of propane is consumed to get the rated output....the Propex is very efficient...not sure about the Atwood)

It's not a "cool" as the Propex for sure..and the Propex is a "cleaner" install...and has more location options...and Karl is respected, trustworthy vendor....

But at $290 vs $830 it's pretty hard not to give the Atwood some serious consideration. The $540 that would still in your bank account would be pretty "cool" too.

I have an older model salvaged from an Adventurewagon but I've never gotten around to installing it....so I cannot report anything on usage... .that will have to come from Troy, if he wants to chime in...or from Adventurewagon owners who have them. But note that this model is a recent upgrade that uses less amperage than the older models in Adventurewagons.

Hope some actual users will report.

Warren C.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
