PostPosted: Fri Nov 07, 2008 5:12 pm    Post subject: 64-67 rear hatch hinge-replacement Reply with quote

picked up this 13 deluxe and in need of a rear hatch hinge replacement
wondering if anybody has any details instructions to remove,replace

thanks
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail AIM Address MSN Messenger Gallery Classifieds Feedback
mintonman
Samba Member


Joined: October 20, 2003
Posts: 4213
Location: between Trenton NJ. & Philly Pa.
mintonman is offline

PostPosted: Fri Nov 07, 2008 5:29 pm    Post subject: Reply with quote

Check these threads out, you may want to PM one of the people that posted in it for more info.
http://www.thesamba.com/vw/forum/viewtopic.php?t=232214&highlight=rear+hatch+spring
http://www.thesamba.com/vw/forum/viewtopic.php?t=240449&highlight=rear+hatch+spring
_________________
Hoockd on fonicks werkt for mee?
under the influance "DUH"
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bushaus
Samba Member


Joined: November 18, 2007
Posts: 809
Location: Long Beach, Calif
bushaus is offline

PostPosted: Fri Nov 07, 2008 5:55 pm    Post subject: Reply with quote

This was one of my first repairs, can be kinda dangerous. Also check this thread http://www.thesamba.com/vw/forum/viewtopic.php?t=296278
for more info.
HELPFUL HINTS- 1)post a classified ad, you should be able to find the parts from someone on here (remember to specify which side), 2)take pics of the hinge and pin location before disassembly, 3)wear gloves and be wary of high tension!
_________________
1967 13 window walkthru bus
1965 Karmann Kabriolett beetle



hitest wrote:
Even if completed, the abarth's gonna belch spluey all over your Eriba.

Major Woody wrote:

My young life is full of shit like that. By the grace of God I am still around to talk about it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NOS PARTS
Samba Member


Joined: June 24, 2001
Posts: 377
Location: behind the wheel, safari's open
NOS PARTS is offline

PostPosted: Fri Nov 07, 2008 6:29 pm    Post subject: Reply with quote

thanks for the info

I was able to find these VW service manual instructions;
http://home.clara.net/hallvw/technical/tailgate.htm

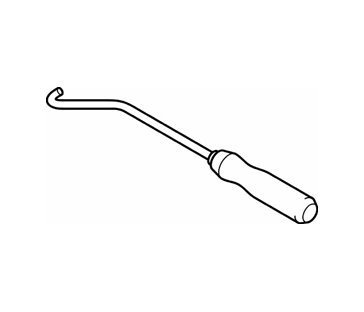

here the needed tool (VW tool 709);
https://erwin.volkswagen.de/workshop/englisch/index.htm?/workshop/englisch/docs_spezial/h631.htm

here the tool;
Image may have been reduced in size. Click image to view fullscreen.


I already have a donor bus with the parts I need
will make a tool and make time to get it done next week
will remove the parts from donor bus 1st...

thanks
Back to top
View user's profile Send private message Send e-mail AIM Address MSN Messenger Gallery Classifieds Feedback
dstefun
Samba Member


Joined: February 20, 2002
Posts: 3338
Location: Sacratomato
dstefun is offline

PostPosted: Fri Nov 07, 2008 6:49 pm    Post subject: Reply with quote

The 709 tool is in the Local Manufacture manual
http://oacdp.freeweb7.com/tools/vw709-3.png
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bushaus
Samba Member


Joined: November 18, 2007
Posts: 809
Location: Long Beach, Calif
bushaus is offline

PostPosted: Fri Nov 07, 2008 7:00 pm    Post subject: Reply with quote

NOS PARTS wrote:
thanks for the info

I was able to find these VW service manual instructions;
http://home.clara.net/hallvw/technical/tailgate.htm



wish I would have found those easy instructions before I did mine! Wink
_________________
1967 13 window walkthru bus
1965 Karmann Kabriolett beetle



hitest wrote:
Even if completed, the abarth's gonna belch spluey all over your Eriba.

Major Woody wrote:

My young life is full of shit like that. By the grace of God I am still around to talk about it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
NOS PARTS
Samba Member


Joined: June 24, 2001
Posts: 377
Location: behind the wheel, safari's open
NOS PARTS is offline

PostPosted: Sat Nov 08, 2008 11:00 am    Post subject: Reply with quote

bushaus wrote:
NOS PARTS wrote:
thanks for the info

I was able to find these VW service manual instructions;
http://home.clara.net/hallvw/technical/tailgate.htm



wish I would have found those easy instructions before I did mine! Wink


well with the easy instructions and the tool drawings, its easier than the previous info I got before.... "get a BIG screw driver, wear gloves, be careful..."
Back to top
View user's profile Send private message Send e-mail AIM Address MSN Messenger Gallery Classifieds Feedback
islandveedub Premium Member
Samba Member


Joined: March 10, 2003
Posts: 153
Location: Honolulu, Hawaii
islandveedub is offline

PostPosted: Sun Jan 17, 2010 7:49 pm    Post subject: Reply with quote

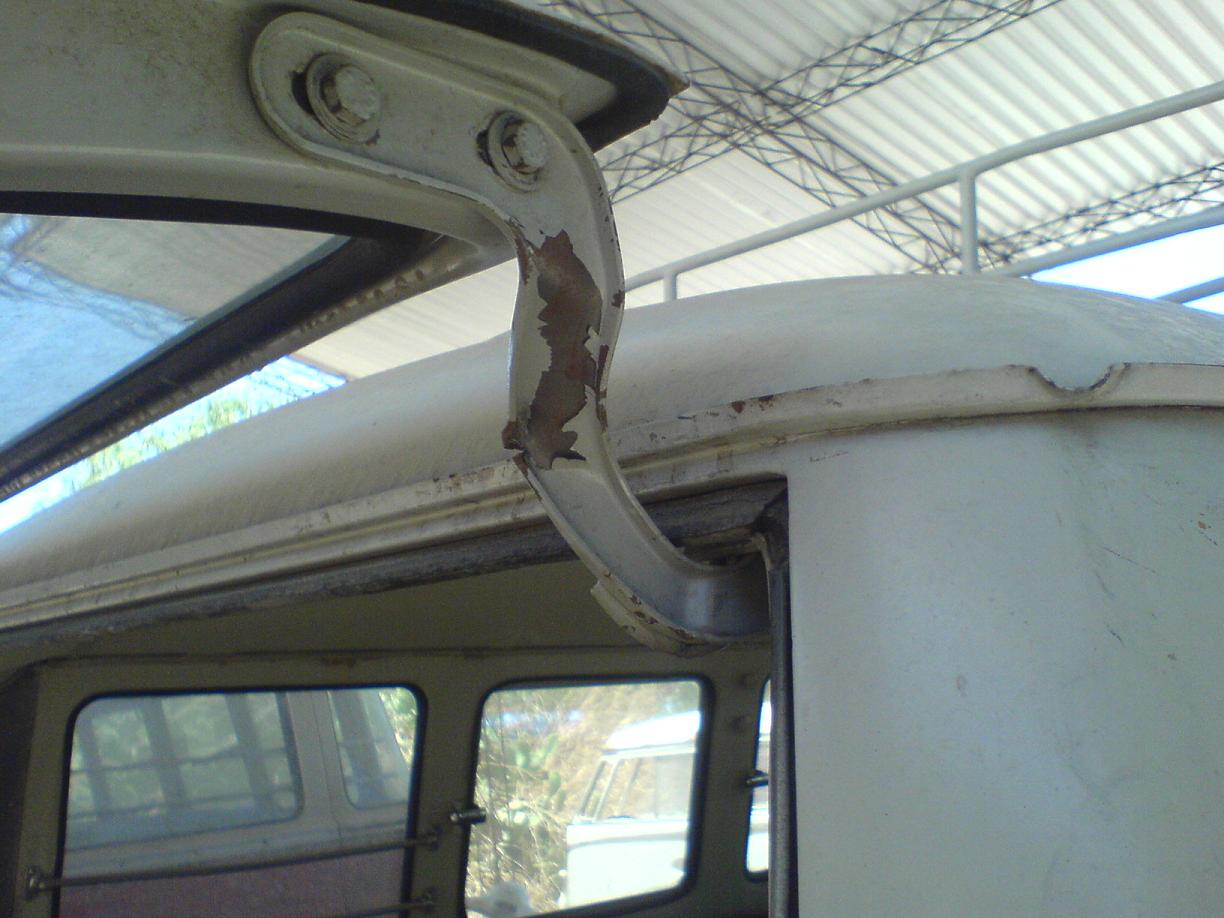

Glad I ran across this thread. I did this once before without the instructions and even though we were successful, it was the scariest thing I've ever done. I saw the tool, so I figured out how to make one of my own out of a factory jack handle.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


The tool worked like a champ. However, that's still a lot of freakin' tension. With the tool and instructions, this job is now the second scariest thing I've ever done. Very Happy
_________________
Alex

60 Doublecab
62 23 Window Walkthrough Bus
65 21 Window Bus
67 Bug
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
tubdub
Samba Member


Joined: March 29, 2004
Posts: 2274

tubdub is offline

PostPosted: Sun Jul 11, 2010 1:38 pm    Post subject: Reply with quote

picked up the homemade tool from islandveedub and it took about 1/2 hour to pull the assembly from a parts bus roof and install it on my bus. if anyone in the sacramento area needs to use it let me know.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
tubdub
Samba Member


Joined: March 29, 2004
Posts: 2274

tubdub is offline

PostPosted: Sat Nov 20, 2010 7:18 pm    Post subject: Reply with quote

bumping this so chris roop will find the instructions Cool
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
chris roop
Samba Member


Joined: July 25, 2010
Posts: 320

chris roop is offline

PostPosted: Sat Nov 20, 2010 7:38 pm    Post subject: Reply with quote

Most excellent! After 25 years of commercial fishing I still have all my fingers and would like to keep it that way.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
SocalRico
Samba Member


Joined: February 09, 2010
Posts: 1
Location: West Covina
SocalRico is offline

PostPosted: Tue Dec 12, 2017 3:24 pm    Post subject: Re: 64-67 rear hatch hinge-replacement Reply with quote

Here is a video how to install the hinge. I know it's in Spanish but it's pretty straight forward. One thing to note, the guy in the video says never try to do this alone, you need 2 people.


Link
[/youtube]
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Classifieds Feedback
sgellis
Samba Member


Joined: July 06, 2016
Posts: 1597
Location: SW Nova Scotia, Canada
sgellis is offline

PostPosted: Mon Apr 02, 2018 9:34 am    Post subject: Re: 64-67 rear hatch hinge-replacement Reply with quote

Just installed my hatch hinges and thought I would add a little here as the instructions I found were not that clear. I was dreading the job but it turned out to be quite easy once I figured out how the rods went in.

First I installed the hinges and used some tape to keep them out of the way. Don't forget the clips. Easier to put them in now without the arms in the way.
Image may have been reduced in size. Click image to view fullscreen.

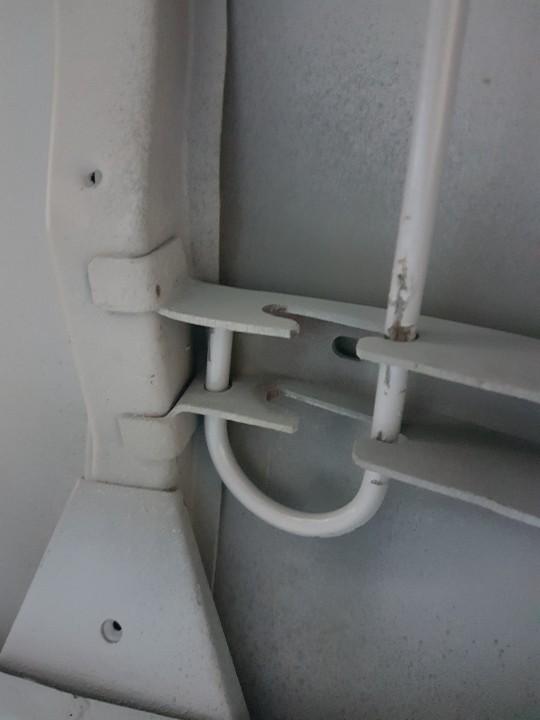

The rods are different. The end that hooks into the roof support is leaned over a bit. This is the rod for the right side hinge.
Image may have been reduced in size. Click image to view fullscreen.


The rod can be hooked into the support slot and then the end allined with the hole. Move it around and wiggle it and it should slide in.
Image may have been reduced in size. Click image to view fullscreen.


On the other end of the rod slide on the arm.
Image may have been reduced in size. Click image to view fullscreen.


I built a simple tool to wind the bar. I didn't need as much hook on the end. You will definitely need something like this to install the rod safely.
Image may have been reduced in size. Click image to view fullscreen.


Hook the tool in the rod. Keep some space between the tool and the arm. You will likely need the try it a few time to get the arm lined up with the support.
Image may have been reduced in size. Click image to view fullscreen.


While standing at rear hold the rod about 6" from the arm with one hand and push down and forward on the tool to rotate the rod. You can guide the rod up into the forward slot in the support. Notice support is between the arm and the tool.
Image may have been reduced in size. Click image to view fullscreen.


Once in place wind the rod a bit more to insert the arm pin. Insure the pin is all the way in before removing the tool.
Image may have been reduced in size. Click image to view fullscreen.


Pull down on the hinge to release the tool. Install the clip on the pin so it doesn't work out
Image may have been reduced in size. Click image to view fullscreen.


After the second rod can be hooked into the support by pulling down on the left hinge a little. You could hook both rods in at the start but I thought it might be easier if it wasn't in the way.
