PostPosted: Sun Feb 08, 2009 5:29 am    Post subject: Vanagon M-code List Reply with quote

I've been searching the forums and can not find where you can locate on the van a code plate like the vin plate on the inside of the drivers door to list what the van came with from the factory. My van has power mirrors but lack the Power part of the mirror. Probably those blasted wires at the door jam. I have been wondering what else my van came equiped with from the factory that also is not working and or from the PO is now missing. Anybody have any ideas?
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee


Last edited by Timwhy on Sun Feb 08, 2009 7:55 am; edited 1 time in total
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
kevtherev
Samba Member


Joined: December 23, 2007
Posts: 896
Location: the 51st state
kevtherev is offline

PostPosted: Sun Feb 08, 2009 6:12 am    Post subject: Reply with quote

taken from Brickyard...
http://www.brickwerks.co.uk/index.php/t3-m-codes/ (this link is no longer valid; use other sources listed below)

Moderator edit:
Other sources:
http://vwt3.com/t3-tech/t3-data/vw-t3-m-codes-options-list/
http://vw-mplate.com/mcode.php?lang=EN&id=6157 (build sheet decoder)
http://www.t3-infos.de/t3-infos_j.html (in German)

Factory options (M Numbers)

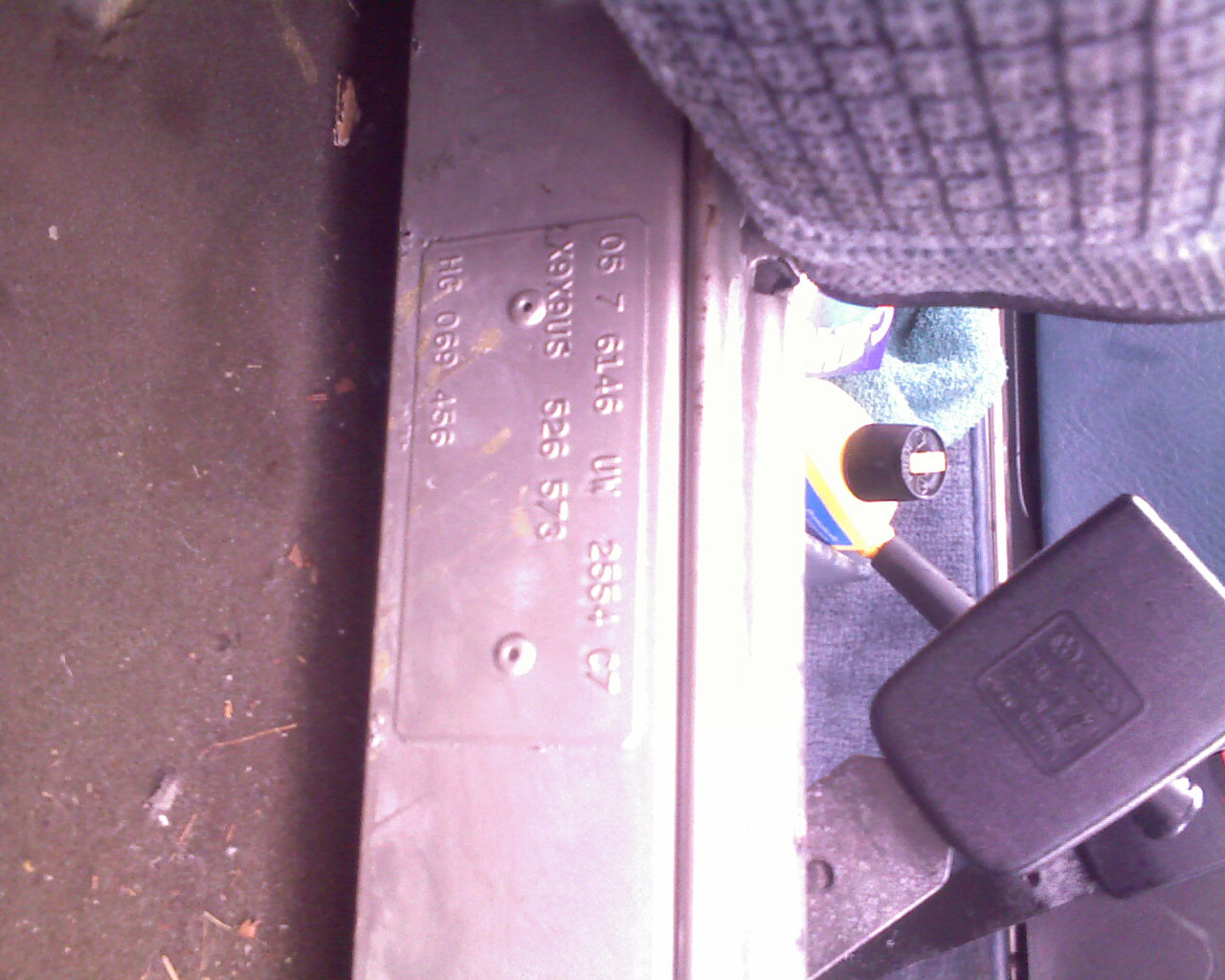

These are the numbers that can be found on your extras plate normally under the passenger seat,on the sticker by the drivers pedals or on the sticker in the front page of the service book. They are known as "M-numbers" and are factory fitted options. Aditionally you'll see some "S" coded ones, these are for Special editions generally.

M001 - Mechanical wheel activation (decoupler?)
M002 - 5-speed manual transmission
M003 - 4 Cylinder Carburettor Engine (1.9 Ltr 44Kw Code Letter DF)
M010 - Preparation of the rear bench seat for pivoting backrest
M012 - Exhaust Emission Control (245-256)
M013 - Passenger Seat 2 Persons (247-256)
M014 - Stone deflector for belt
M015 - Bench Seat with Folding Back Rest in Passenger Compartment (Front 3 Persons - 253-256)
M016 - Bench Seat in Passenger Compartment (Rear 3 Persons - 253-256)
M017 - Bench Seat in Passenger Compartment (Rear 2 Persons - 253-256)
M018 - Padded Steering Wheel
M020 - Speedometer in Miles (245-256)
M025 - Instrument Housing for Speedometer with Trip Recorder Km and Clock. Instrument Housing for Speedometer with Trip Recorder Miles and Clock (245-256)
M026 - Activated carbon filter to trap the fuel vapors
M027 - Compliance with California emission standards (catalyst and fuel filler; 255)
M028 - Without stretchers (for KTW II)
M032 - Filler Cap Lockable for Fuel Tank (245-256)
M034 - Remote control light blue Italy, FG 24 B 079 862 ->
M038 - Elimination of the seats in the cab on the Joker
M050 - Dual Circuit and Handbrake Warning Light (245-256)
M051 - Prepared for Installation of a Refrigerator Compressor
M053 - Corduroy upholstery (from year 1987) (253-256)
M053 - Color stripe tweed fabric seat covers
M054 - Glove Box, Lockable (LHD 247-256)
M055 - Modified Installation Position of Refrigerant Compressor (Sanden 510) on Vehicles with Additional Units (Diesels: CS,KY. T-Diesels: JX)
M055 - Refrigerant compressor petrol engine, Sanden 510
M057 - Without floor rails (Pritsche/Sinka, Doka)
M058 - Bumper & Spoiler as in Carat Model
M060 - Auxiliary Heater (Eberspacher BA6/DA6, 245-256)
M061 - Speedometer with MPH Reading and Temperature Gauge in Fahrenheit English version Dim-Dip Driving Lights (GB)
M062 - Exterior Mirror (Convex) 3 Point Seatbelt, Lapbelts in Passenger Compartment (S)(245-256)
M064 - Without sides (245-248)
M065 - Text information for axle and total weight
M066 - Rubber flooring in the cargo area (van) or in the passenger compartment (Kombi)
M067 - 54Ah battery
M068 - Second Towing Eye Rear
M070 - Tilt for Pickup (245-248)
M071 - Second Flap Inside Panel (245-246)
M073 - Roof with Opening for Campmobile (253-254)
M074 - Mudflaps (Rear 245-256)
M080 - Sliding door with window or door with high windows
M081 - Wall bars behind driver's seat
M085 - Increase of standard designated fuel-filling
M089 - Windshield Glass Laminated (245-256)
M092 - Ratio for Mountainous Districts (245-256)
M093 - Sliding Window in the Side Panel Rear Opposite the Sliding Door (253-256)
M094 - Lid, Rear Lockable (245-248)
M099 - M+S steel radial tire 185R/14C
M099 - M+S steel radial tire "Fulda Kristall" 185R/14C
M102 - Rear Window Glass, Heated (245-256)
M103 - Heavy Duty Shock Absorbers Front and Rear (245-256)
M106 - Cloth Upholstery Instead of Leatherette (245-256)
M113 - Canada version
M115 - 4 Cylinder Diesel Engines 1.7Ltr 42KW Code Letter: KY
M121 - Heating and ventilation with fan motor (245-256)
M121 - Electrical ventilation on the roof
M122 - Up to model year 1986: 1.6 liter 4 cylinder diesel engine 37 kW 24 079 862 B ->
M122 - From model year 1987: Preparation of the rear bench seat for hinged backrest. Central Bench is placed and installed in the rearward direction (installation via KDW Hannover). Preparation for installation of Utila stretchers device (about KDW Hannover).
M123 - 4 Cylinder Fuel Injection Engine Digifant 2.1Ltr 70/64/68KW Code Letter: MV, SR, SS
M124 - Headlamp Bulbs, Yellow Light (F) (245-256)
M127 - Rear Panel Lid without Window (251-156)
M130 - Ambulance
M133 - ?
M135 - Ambulance (253-254)
M136 - Ambulance with Equipment
M137 - Preparation for Camper
M140 - Fire Truck
M141 - Roof air intake for combustion air
M142 - Roof air intake for combustion air left and right
M143 - Ambulance with Equipment and Additional Items. Din 75 080
M144 - Lap belts for M580
M144 - Electric rear seats for Carat, with M558
M145 - Safety Lock for Sliding Door and Rear Panel Lid
M146 - Armrest (247-256)
M148 - Two electrically adjustable individual seats in the passenger compartment
M149 - Painted Instead of Chrome Parts (245-256)
M150 - Ambulance with Additional Equipment Din 75 080 (253-254)
M151 - Compliance with USA exhaust emissions standards (253, 254)
M153 - Cyclone Air Cleaner and Carburetor Preheating for 1.6Ltr 37KW Carburetor Engine (245-256)
M156 - Cyclone air filter for dust-rich countries in diesel engine JX
M157 - Fitted With CV code engine or DH (1.9l 60kw 82bhp) engine code depending on year; 2.0 liter 4 cylinder engine Jetronic for Sweden -> FG A 300000; 60 kW 1.9 liter 4 cylinder engine Jetronic Digi FG 24 051 580 D ->
M158 - Tropical cooler with reinforced radiator fan
M159 - Staple for Padlock
M160 - Rotating Warning Light High Volume Horn - Blue (245-256)
M162 - Rubbing Strip for Bumper (245-256)
M164 - Steel radial tire 195R/16C 8PR
M165 - Inspection Cover Lockable (251-256)
M168 - Calibrated Compensating Gear for Odometer (245-255)
M171 - Steel radial tire 185R/14C
M172 - Visible location of brake fluid reservoir (Benelux countries)
M173 - 6x14 wheels with 205/70R 14-97 reinforced tires, only in combination M173 + M401
M176 - Runners Opposite Sliding Door and On Partitions (247-253)
M177 - 12 Seater (251-253)
M178 - Runners on Floor (247-253)
M179 - 3-point automatic safety belts in passenger compartment -> FG 24 A 300000
M181 - Chrome Instead of Painted Parts (245-254 251-254)
M183 - Lap Belts in Passenger Compartment (247-256)
M184 - Three Point Seat Belt for Seat - Front (245-256)
M186 - 2 Three Point Automatic Seat Belt in Passenger Compartment (253-256)
M187 - Headlamps Left Hand Traffic (245-256 253-256)
M188 - For Vehicles Use in Warm Countries (245-256)
M189 - With Two Alternators
M193 - Compliance with Exhaust Emission Standards and Electrical Equipment (J)
M194 - Exterior Mirror Convex (left/Right(245-256))
M198 - Rotating Warning Light - Red (245-256)
M201 - Pickup with Enlarged Wooden Platform (245-246)
M206 - Rear View Mirror Inner Anti-Dazzle (245-256)
M207 - Gear ratio 34:7 for Syncro
M208 - Trailer Towing (245-256)
M210 - Front Axle With Diff Lock.
M214 - Omission of the tailgate stop buffer (Pritsche/Sinka, Doka)
M217 - Tilt for Double Cab Pickup Level with Cab (247-248)
M218 - Type label without West-Germany
M219 - Side Windows, Rear with Vent Trim (L/R)(253-256)
M220 - Limited Slip Differential; Differential lock, rear (245-256)
M221 - Vent Wings (245-256)
M222 - Fitted with 1.6 Diesel engine (CS code)
M226 - Retaining Cables for Tailboard (245-248)
M227 - Headrests Detachable (245-256)
M229 - Headrests Detachable in Passenger Compartment (253-256)
M231 - Bench Seat in Passenger Compartment with Hinges for Bed Conversion - Rear (253-256)
M238 - Day Driving Headlights (S)(N)(245-256)
M240 - Fitted with CZ engine 1.6l 34kw 46bhp.
M249 - Three Speed Automatic Gearbox (245-256)
M251 - Four Cylinder Carburetor Engine 1.9 Ltr 57-54KW Code Letter: DG, SP or 2.0l CU engine, depending on year; 2.0 Liter 51 kW carburetor engine -> 24 C 200000; 24 F 000001 = S799; -> 24 D 040 000 1.9 Litre 57 kW carburetor engine 24 D 000001 ->
M254 - Curtains in Passenger Compartment (253-256)
M259 - Antenna cable to the radio antenna of cab roof center for radio equipment holder to the left of the passenger seat. Zipper in the headlining.
M262 - Folding Cover for Boot (253-256)
M263 - Payload 1.2T (245-256)
M277 - Modified Exhaust Muffler (CH) (245-256)
M288 - Headlamp Washers (245-256)
M298 - Vehicle use with unleaded fuel (251,253,255)
M299 - 4 Wheel Drive (Syncro package)
M302 - Without rear VW emblem (251-256)
M308 - Rear Flap Opening Angle Variable (251-256)
M314 - Special Sales "Type 2 Tristar" with Model "Carat" Bumper: Protection Trim for Door, Front: Wheel Trim: Moulding for Bumper, Rear: Cab Doors, Rear with Sliding Window: Twin Headlamps: 2. Heat Exchangers: Trays for Doors: Padded Strip for Dashboard: Front Seats with Armrests and Backrests an Rear Pocket: Holder for Cup: Grab Handle with Reading Light: Interior Trim Light Grey (Basic Model 247..) (245-J-081001>, Double Cab)
M315 - Doka approved for combination
M318 - Modified acoustic TD Syncro for Austria
M325 - Payload 1.2T Front (245-256)
M327 - Radio: Gamma
M333 - Uniroyal 16" tires
M335 - Four Cylinder Carburetor Engine 1.6Ltr 37KW (A) (Wan) (245-256)
M336 - Rear protective
M340 - Drivers Seat and Backrest Heated (245-256)
M341 - Central Locking System (251-256)
M343 - Spare wheel under floor pedal (Syncro)
M345 - Larger Exterior Mirror Convex
M346 - Hydraulic Pump
M347 - PTO for manual (Finland)
M348 - Steel wheel: ET30 6Jx14H2
M349 - Preparation for the installation of a hydraulic pump ZF
M351 - Holding device for an oxygen cylinder 10.7 liter (Ambulance)
M352 - Cruise control
M355 - Four Cylinder Turbo Diesel Engine 1.6Ltr 50KW Code Letter: JX
M356 - Prepared for Installation of Second Generator
M358 - Gear ratio 38:7 (Syncro)
M364 - Window in sliding door and opposite (251)
M366 - Full Height Partition Between Cab and Load Compartment (251-254)
M370 - Rotating Warning Light - Yellow (245-256)
M375 - Final drive ratio 5.86:1
M380 - Partition in High Roof (251-254)
M384 - Permissible Rear Axle Load 1.4T (245-256)
M386 - Lining for Wheel Housing Front with Velour Carpet (253-256)
M390 - Stowage of cargo securing
M391 - Roof box on cab
M398 - Exterior Mirror (Flat) Heated and Electrically Operated
M401 - Wheel Disc "Aluminium" (6 J x 14 H2 1830)
M402 - Luxury Version - Multivan (253)
M404 - Stabilizer at front and rear axle (2WD)
M407 - Folding Seat in Passenger Compartment (251-256)
M424 - Elimination of forced combination with M502 interior trim (only in combination with Turbo Diesel)
M425 - Rear window wash/wiper
M430 - Wind Shield Glass - Laminated - Green (251-256)
M432 - Anti-Locking Braking System - ABS
M433 - With M462 Radio preparation with 4 stereo speakers
M440 - 2 stereo speakers
M456 - Lowered Running Gear - 30mm -
M462 - Rod antenna
M467 - Exterior Mirror (Convex) Heated and Electrically Operated
M469 - Off-road package with reinforced spare-wheel pan (spare tire under rear seat)
M475 - Spare wheel bracket pivotally mounted on rear hatch
M478 - Spare wheel under floor pedal (only Wheels & Tires 205R/14 = 5 Transmission Index)
M488 - Pivoting Seat in Passenger Compartment (253)
M496 - For Vehicles with Folding Stretcher without Padding (steel)
M498 - Illuminated roof sign (cross bar) for DRC
M500 - Full Width Partition Between Cab and Load Compartment (247-248) (251-256)
M502 - Side Panel Lining of Hardboard, Rubber Luggage Boot Lining (251-254)
M503 - Roof covering the cargo space with hardboard (251)
M504 - Fresh Air Duct in Load and Passenger Compartment (247-254)
M505 - Heater Vent in Luggage Compartment (251-252)
M506 - Brake Servo and Dual Circuit Brake Warning Light (245-256)
M508 - Sliding Window in Sliding Door and in the Opposite Side Panel (253-256) Sliding Window in the Double Cab Door and in the Opposite Side Panel (247-248)
M510 - Partition Left and Right Between Cab and Load Compartment (251-254)
M511 - Dashboard Padded (245-256)
M511 - Narrow fabric strip on the circuit board (CL series and to Caravelle Mod 89 GL); Panel padded cover with reading light (as Carat and Caravelle GL series from MY '90)
M513 - High Roof (Plastic) Dehler (253-254)
M514 - High Roof with Opening for High Sliding Door Dehler (253-254)
M515 - High Roof with Opening for High Sliding Door (251)
M516 - High Roof (Plastic) (251-254)
M519 - Elimination of window glazing in the passenger compartment
M520 - Sliding Door Left and Right (251-256)
M521 - Luxury Version - Caravelle (255) - Carat -
M522 - Net Partition Between the Cab and Load Compartment (251-256)
M526 - Luxury Version - Caravelle (255-256)
M528 - Exterior Mirror - Convex - (Passenger Side) (245-256)
M529 - Full Width Partition, Upper with Sliding Window (for Vehicles with M500 Only) (253-256)
M530 - Automatic Step (251-256)
M534 - Sliding Door Lock with Childproof Catch
M535 - Tachograph (LHD)(245-247)
M537 - Load Compartment Light (251)
M539 - Compact floor in the cargo area (= wooden floor)
M541 - Five Speed Manual Gear Box
M542 - Special Equipment for German Armed Forces (247-253)
M544 - Full Width Partition, Upper with Fixed Window
M545 - Roof Lining in Passenger Compartment (253-254)
M546 - Turn Signals at the Rear on the Roof (251-256)
M550 - Sliding Window with Fly Screen in Sliding Door (253-256)
M551 - Headlamps with Halogen Lamps (H4) (245-256)
M552 - Additional Heater in Passenger Compartment (251-256)
M553 - Sealed beam headlights; turn signals and side lights; buzzer for ignition starter switch; side marker lights and reflectors; dual circuit brake warning light; without headlamp flasher and parking lights (USA 255)
M556 - Four Cylinder Fuel Injection Engine Digifant 2.1Ltr 82KW Code Letter: DJ
M558 - Secondary battery with isolating relay capacity equal to vehicle battery
M560 - Steel Sliding Roof, Manual Control (253-256)
M561 - Vent Wings (245-256)
M568 - Tinted Side Windows, Green Tinted (Windshield in Laminated Glass) (253-256)
M569 - Air filter for dust-rich countries for two carburetor engine
M571 - Rear Fog Lamp (245-256)
M572 - Double Horn
M573 - Air Conditioner (245-256)
M580 - Folding Seat in Passenger Compartment (251-256)
M586 - Glass Tilting Roof in passenger compartment
M588 - Floating caliper brake (Germany Federal Post Office) for vehicles with 4 cylinder 2.1L engine Digijetronic, 82 kW for vehicles with load capacity 1,2 tons
M594 - Mark 2 Caliper for Vehicles with Four Cylinder Fuel Injection - Digifant 2.1Ltr 82KW - for Vehicles with Payload 1.2T (D) Post
M595 - Tachograph (245-255)
M597 - Battery 12V, 63Ah
M603 - Luxury Version (255-256)
M608 - Australia Version for Vehicles with Water Cooled Engine (RHD)
M609 - VW Camper (253-254)
M616 - Backup Lamps in Tailgate (245-256)
M617 - Alternator - 45A
M619 - Alternator - 65A (245-256)
M621 - Alternator - 90A (245-256)
M622 - Cigarette Lighter (251-256)
M623 - Electrical System, Fully Suppressed (251-256)
M625 - Heavy Duty Running Gear (Syncro 16" Package.)
M626 - Clutch Operation, Hydraulic (251-256)
M628 - Folding Table in Passenger Compartment for Police and Fire Brigade (253)
M629 - Bracket for walkie-talkie left passenger seat and speakers in dashboard
M632 - Electrical System with Extended Suppression (245-256)
M640 - PVC undercoating
M642 - Freeze protection to -35 degrees for cold countries
M643 - Trays for Doors, Front (245-256)
M645 - Preparation for Camper
M649 - Three Point Seatbelt with Automatic For Folding Seat, Ambulance (253)
M651 - Windows Lifter, Electrically Operated
M652 - Wash Wipe Intermittent Relay (245-256)
M657 - Servo/power steering
M658 - Van without sliding door, but with door opening
M659 - Halogen Fog Lamps (245-256)
M666 - Without preservative paint (Dehler)
M669 - Transparent PVC strip curtain between the driver-passenger vertical partition
M673 - Plumbed speedometer
M674 - 66 kW 1.9-liter 4-cylinder engine Digijetronic
M675 - Revolution Counter
M682 - Tire Brand Goodyear all-season tires on request
M685 - Bench Seat with Folding Backrest in Passenger Compartment - Front, 2 Persons (253-256)
M687 - Tachograph recording of blue light and double horn
M690 - Drivers Seat Swiveling Type (253-256)
M691 - Auxiliary Heater - Eberspacher D2L (251-254)
M692 - Opening for Westfalia heater
M693 - Drivers Seat as Swiveling Seat (253-256)
M697 - Tire brand Continental RS 771
M699 - ?
S700 - Tire brand Continental RS 321 6PR
S701 - For Australia with aircooled engine RHD.
S704 - Special sales campaign "Type2" for UK: Graphite painted side panels, wooden floor with carpet, pivoting seats to rear, interior trim :mauritus, base model Caravelle Carat, for GB. 25K 045 022 >> 25K 175 000.
S705 - Elimination of the left stretcher including guide rails
S707 - with M730 Factory preparation for chassis cab (basis for Karmann Gipsy); M520 Factory preparation for the installation of a complete Karmann Gipsy equipment
S709 - Fourth door for Doka (Tristar)
S718 - Window glass clear - Dehler Profi
S719 - Tax number for preparation Oettinger WBX 6/3, 7
S724 - Preparation for sale of caravan
S725 - Payload 800Kg's (251, 253 Carb & Diesel); Payload 785 Kg's (251, 253 Turbo Diesel)
S725 - At Westfalia, comfort seats; elimination of the standard seats in the cab
S726 - Side panels analogous of Caravelle C
S731 - Elimination of forced combination - with interior lining - M 502
S732 - Elimination of forced combination - vents - M 219
S733 - Automatic tachograph
S735 - Special sales campaign "Bluestar", Body coloured mirrors, black sliding window frames, drinks holders, folding table, Rear seat/bed, Interior trim:Platinum, Basic model Caravelle GL 25K090 001 >>
S736 - Name plate for standard equipment according to DIN 14 507 "basic model combination as command vehicles (ELW 1)" for the fire dept.
S737 - Ambulance without carrying chair, but with the guide rails in the floor
S739 - Without right stretcher (for KTW II)
S740 - Nameplate with 2,500 kg GVW
S741 - Special sales campaign "Mulitvan Magnum", Big bumpers, Body kit, Light grey interior, wheel trims, rock and roll bed, Basic model Multivan 253 S.. 25H 093001 >> 25J 175 000.
S743 - Factory preparation and vehicle registration letter for colored PVC tarpaulins (blue or orange)
S744 - VANAGON instead of TRANSPORTER lettering, faux leather cuff for gear, Carat-panel top, chrome window surrounds around instead of black
S746 - Special sales campaign "Caravelle C Coach", Big bumpers, Spoiler, Body kit, Wheel trims, Light grey interior. Basic model Caravelle C 255 4../255 5...25H 093 001 >> 25J 175 000
S751 - Ambulance: 2 pillows, switch for rotating beacon as for fire, bag with lubrication schedule, name plate according to DIN 13025
S755 - Elimination of forced combination - additional heat exchanger - M 552 (only Doka)
S758 - Special control number for program purposes of internal control of special vehicles
S764 - Kit for conversion from California to Europe version (253)
S768 - Ambulance with lights with maltese cross.
S773 - Special sales campaign "Caravelle" (255)
S775 - Bumpers and protective trim in cloud grey metallic, Basic model - Caravelle Carat.
S789 - Gearshift inicator light for vehicles with Diesel engine.
S790 - Catalyst with lambda probe and accessory kit
S795 - Sliding left instead of the standard right
S796 - Air-conditioning for Westfalia Camper (USA)
S799 - 4 cylinder fuel injection 1.6l - 2.0l (245 - 256) Carb 1.6l 24D 000 001 >> 24D 051 580.
M855 - 205R16 "Semperit" tyres for 16" Syncro
M904 - Without Transistor Ignition and DIS System (WAN) (245-256)
M906 - Halogen interior light for cargo space
M912 - Control code for the elimination of the nameplate (special vehicles such as utility vehicles, etc.)
M920 - Partition without Window Aperture (251-252)
M921 - Printing Odometer (S) (251-256)
M936 - Fire Red R 300, car RAL 3000
M939 - Floor Carpet in Cab and Passenger Compartment (253-256)
M941 - Preparation work for the D'Ieteren WEEKENDER device
M945 - Corduroy fabric upholstery material
M946 - Upholstery Material "Cloth" (Fine Cord)
M949 - Tire Brand Goodyear G 800 + S
M950 - Wheel Trims (253-256)
M953 - Handle on passenger door
M954 - Michelin XTX 185R14C 8PR / XC / XZ
M956 - Wider Double passenger seat (Norway)
M958 - Folding Stretcher for Ambulance
M959 - Loading Plate for Stretcher (Binz)
M961 - Reflector Strips (Ambulance)
M962 - Socket, interior and exterior. Thermofuse for 220V (Ambulance)
M964 - Fitted with EY code engine 1.9l 44kw 60bhp.
M966 - High Roof in body color
M971 - In-pricing of Syncro Special Vehicles
M974 - Fitted with GW code engine 1.9l
M975 - Webasto water heater
M976 - Electronic tachograph
M982 - 54 kW 1.9 L 4-cylinder petrol engine ZA (245-256)
M984 - Rectangular Headlamps
M987 - Sliding Window with Fly Screen Opposite Sliding Door or in Sliding Door (253-256)
M990 - Seats in Cab - Velour (251-256)
M991 - M + S tire 205 R 14 C (only in connection with transmission index 5 - see price panel type)
M995 - Grid on the rear window
M998 - Exterior Mirror (Convex), Heated and Electrically Operated (Passenger Side) Exterior Mirror (Flat), Heated and Electrically Operated (Drivers Side)
M999 - Sunvisor with Illuminated Mirror

M??? - Headlight range control
M??? - Automatic lap belts in the middle seats in the back (Fire Equipment)
M??? - Front mud flaps

P22 - Basic camper w/ pop-top (L-shaped rear seating, 2 swivel tables, small kitchen: sink, water tank, no stove, small drawer, icebox)
P23 - Pop-up roof in body color
P24 - Wardrobe and overhead storage box with integrated radio speakers (from Westfalia), required as a base for air conditioning in Westfalia vehicles
P26 - Independent motor fuel heater with electric fan and thermostatic control (Westfalia / Eberspacher)
P27 - Full-camper w/ pop-top (stove, sink, water tank, fridge, larger drawer, 2 swivel tables)
P74 - Overhead cabinets and wardrobe with Multivan with pop-top

WA9 - Joker Carat
WB4 - Joker Carat
WB1 - Club Joker 3
WG2 - Joker 1 Syncro
WG3 - Joker 3 Syncro
WG4 - Club Joker 1 Syncro
WG5 - Club Joker 3 Syncro
WZ1 - 519, 675, 778, 787, 928, 984, 998, 999
WZ2 - 519, 657, 675, 690, 292, 778, 787, 928, 984, 998, 999
WH4 - ATLANTIC Syncro with pop-top with: 478, 050, 058, 219, 386, 430, 433, 462, 534, 561, 568, 657, 692
WZ8 - ATLANTIC Syncro with high roof: 478, 050, 058, 137, 219, 386, 430, 433, 462, 534, 561, 568, 621
W07 - base model with Doka seat assembly 2-0
W08 - base model with Doka seat assembly 2-3
W12 - equipment package for Joker 3
W14 - Club Joker 3
W37 - for CALIFORNIA pop-top with: 050, 054, 058, 102, 206, 219, 308, 386, 425, 430, 433, 462
W38 - for CALIFORNIA pop-top with: 528, 534, 550, 552, 561, 568, 652, 657, 675, 692, 693, 950, 984, 987, 999
W39 - CALIFORNIA W for high roof consists of: 050, 054, 058, 102, 137, 206, 219, 308, 386, 425, 430, 433, 462
W40 - for CALIFORNIA with high roof consists of: 528, 534, 550, 552, 561, 568, 621, 652, 657, 675, 692, 693, 950, 984, 987, 999
W41 - as W40 but without M621 (90A) generator
W45 - Carat bumpers and side cladding
W56 - ATLANTIC pop-top with: 050, 058, 219, 386, 430, 433, 462, 534, 561, 568, 657, 692
W58 - ATLANTIC high roof with: 050, 058, 137, 219, 386, 430, 433, 462, 534, 561, 568, 621
W60 - as W58 but without M621 (90A) generator
W62 - equipment package for Joker 1
W63 - Joker 3
W64 - Club Joker
W65 - Club Joker 3
W75 - Carat bumpers and side cladding in Cloud Gray; round and square headlights

Z01 - Bad weather package: rear fog lamp, wiper switch with intermittent wipers, halogen fog lights
Z02 - Package features: tachometer, Digitalzeituhr, daily odometer, rubber strips on bumpers, ventilation windows in cab doors
Z04 - GL package
Z05 - M package: Daily odometer and clock, rubber strips on bumpers, ventilation windows in cab doors, reversing lights
Z20 - Base model combined Caravelle CL
Z53 - Taxi package

RAA - Radio Alpha (ab ´90)
RAC - Radio Alpha (ab´90) with window antenna
RBD - Radio Beta (ab´90) with window antenna
RCB - Radio Gamma (ab ´90)
RCE - Radio Gamma (ab´90) with window antenna
RFK - Premium Heidelberg stereo-cassette radio
RFM - Aktiv System with premium Heidelberg stereo-cassette radio
R01 - Radio Alpha Mono
R10 - AM/FM push-button radio
R11 - Radio Beta (ab ´90)
R20 - AM/FM push-button radio w/ 2 speakers
R22 - Radio stereo with cassette
R30 - AM/FM stereo cassette I (w/ auto reverse & 4 speakers)
R35 - AM/FM stereo cassette II (w/ 4 speakers)
R39 - Radio Brunswick II; Blaupunkt radio (USA)
R44 - Radio Emden II
R60 - Radio Ingolstadt II
R75 - Heidelberg V AM/FM stereo-cassette radio w/ anti-theft
R82 - Heidelberg III AM/FM stereo-cassette radio
R92 - Heidelberg IV AM/FM stereo-cassette Beta radio
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Wildthings
Samba Member


Joined: March 13, 2005
Posts: 40976

Wildthings is offline

PostPosted: Sun Feb 08, 2009 7:44 am    Post subject: Reply with quote

Why don't you go back and retitle yopr thread as "M-code List" or "M-number List" so someone can find it easier while searching.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3546
Location: Maine
Timwhy is offline

PostPosted: Sun Feb 08, 2009 7:57 am    Post subject: Reply with quote

Thanks kevtherev! That is some impressive list!!
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
tencentlife
Samba Member


Joined: May 02, 2006
Posts: 9661
Location: Abiquiu, NM, USA
tencentlife is offline

PostPosted: Sun Feb 08, 2009 9:22 am    Post subject: Reply with quote

Definitely stickilicious.
_________________
Check out my Vanagon accessories at the Vanistan shop at https://intrepidoverland.com/vanistan/

and be sure to visit my blog at https://intrepidoverland.com/news

"Official" IntrepidOverland thread for news and discussion:
https://www.thesamba.com/vw/forum/viewtopic.php?t=...mp;start=0

I will not see your Samba PM. Please use the contact link at www.intrepidoverland.com
Product inquiries only please!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
carterzest
Samba Member


Joined: January 22, 2008
Posts: 3842
Location: Eagle, ID/Sun Valley, ID
carterzest is offline

PostPosted: Sun Feb 08, 2009 7:32 pm    Post subject: Reply with quote

tencentlife wrote:
Definitely stickilicious.


Beat me to it tencent.....I was going to nominate it for a sticky. And with only 15 posts.....! Jealous
! Laughing
_________________
Happiness=Portland, Oregon in the rearview mirror!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6179
Location: Portland, Oregon
mightyart is offline

PostPosted: Sun Feb 08, 2009 7:41 pm    Post subject: Reply with quote

Where is the M-code plate on the US Spec. models?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevtherev
Samba Member


Joined: December 23, 2007
Posts: 896
Location: the 51st state
kevtherev is offline

PostPosted: Mon Feb 09, 2009 3:16 pm    Post subject: Reply with quote

Good point mightyart

I had a look for mine under the passenger seat and there it was.

along with the paint code.

But my passenger side is opposite to yours, guessing it's under the drivers seat.
I have had a sticker on the drivers side just above the Accelerator pedal, but it's been pealed off at some point

the service book had all the codes in, gearbox, engine, paint, chassis etc.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6179
Location: Portland, Oregon
mightyart is offline

PostPosted: Mon Feb 09, 2009 4:16 pm    Post subject: Reply with quote

Thanks kev,
I can't find one in the places you're suppost to look. Crying or Very sad
Could have been removed of course, I also have nothing in the red service booklet.
Has anybody in the US looked for yours and found it? and where was it?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3546
Location: Maine
Timwhy is offline

PostPosted: Mon Feb 09, 2009 4:38 pm    Post subject: Reply with quote

Had both of my front seats out at the time of the post and there was nothing under either of them and as the other places, nada?! Maybe they were not on US models?
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Timwhy
Samba Member


Joined: January 01, 2009
Posts: 3546
Location: Maine
Timwhy is offline

PostPosted: Wed Feb 11, 2009 3:06 am    Post subject: Reply with quote

Still haven't found my plate and sticker yet! (and I have looked) Anyway this guy describes his plate and sticker in detail and it may give people an idea what they are looking for, if they find it.

http://www.type2.com/molenari/t3.html
_________________
'15 Audi A3 Quattro
'09 VW Tiguan (dead)
'87 VW Westy
'91 Tin Top
'90 Cabby
What the Westy wants the Westy GETS


http://www.thesamba.com/vw/forum/album_search.php?search_author=Timwhy&show_results=summary

http://www.youtube.com/user/TIMWHY2?feature=mhee
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6179
Location: Portland, Oregon
mightyart is offline

PostPosted: Wed Feb 11, 2009 8:42 am    Post subject: Reply with quote

I've a feeling the US spec Vanagons don't have them.

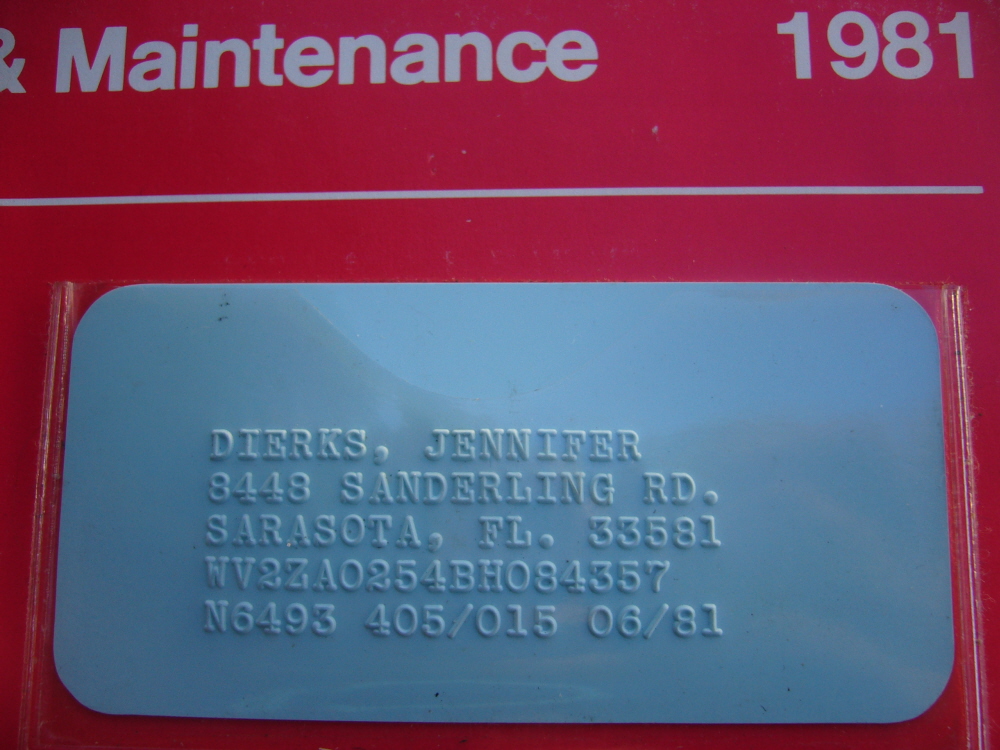

This is the plate that came on the 81 Vanagons service manual:
Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 8073
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Wed Feb 11, 2009 9:29 am    Post subject: Reply with quote

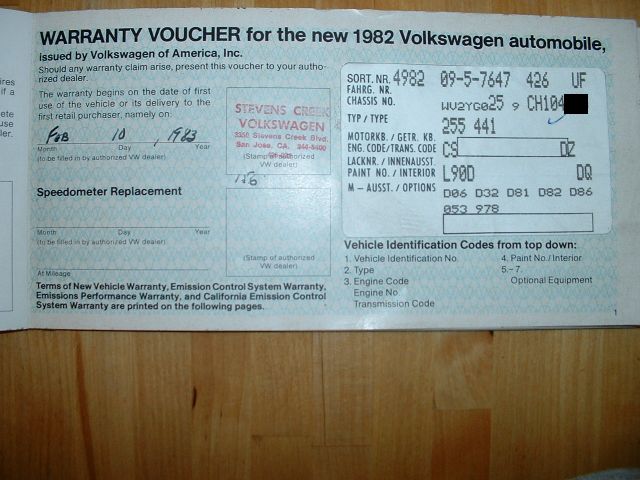

Oh, they have them. I am holding the original warranty book for one of my 1982 vans in my lap. Page numbered 1 has a sticker on the right half with everything, including the M codes. Paint code, engine code, tranny code, VIN, etc. The other half of the page also has the VW dealer info where it was purchased, in Calif.

The metal ID plates are riveted in place under the drivers side seat. The last 8 digits of the VIN are there as well as M codes for some features. My 82, 86, 87, and 90 all have the plate.

My 84 Westy with the swivel seats doesn't have the ID plate, just 2 empty rivet holes where the plate would be. The swivel plate would block the ID plate if it was there. The Westy has a sticker below the fuse box. The sticker faces down so that I have to be on the ground looking up to see it.

Mark



mightyart wrote:
I've a feeling the US spec Vanagons don't have them.
This is the plate that came on the 81 Vanagons service manual:
Back to top
View user's profile Send private message Gallery Classifieds Feedback
candyman
Samba Trout Slayer


Joined: December 20, 2003
Posts: 2435
Location: Missoula MT
candyman is offline

PostPosted: Wed Feb 11, 2009 11:14 am    Post subject: Reply with quote

i looked under my seat and nothing not even rivet holes, can someone post a pic. mine is a us spec 87 syncro westy
Back to top
View user's profile Send private message Send e-mail Visit poster's website Gallery Classifieds Feedback
cannedveggiessuck
Samba Member


Joined: April 11, 2004
Posts: 233
Location: Ohio
cannedveggiessuck is offline

PostPosted: Wed Feb 11, 2009 11:50 am    Post subject: Reply with quote

The plate is under the drivers seat mounted to the side wall toward the passenger side . You have to push the seat all the way forward open the 2nd battery hatch and look again its there .

Sorry there sideways.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
Time Travel Enthusiast..
Back to top
View user's profile Send private message Yahoo Messenger Gallery Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 8073
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Wed Feb 11, 2009 12:01 pm    Post subject: Reply with quote

Ok, here are photos of the ID plates and stickers. The riveted metal plates would be hidden by the welded in swivel seat base plate and so may not be present on factory swivel seat models. My 84 Westy has no plate there under the seat, but does have a sticker under the fuse box as shown in photo. The 82 warranty book page 1 shows a sticker that was put there at time of sale from a document package that came with the vehicle. Looks like the sticker on the 84 Westy, so maybe the 84 sticker was placed by the dealer?

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Mark






candyman wrote:
i looked under my seat and nothing not even rivet holes, can someone post a pic. mine is a us spec 87 syncro westy
[/img]
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevtherev
Samba Member


Joined: December 23, 2007
Posts: 896
Location: the 51st state
kevtherev is offline

PostPosted: Thu Feb 12, 2009 12:42 pm    Post subject: Reply with quote

You can tell a lot from a plate

Image may have been reduced in size. Click image to view fullscreen.



L90D = your bus was painted pastel white and laquered
C. chassis built in Germany between 1st Aug to '81 to July '82
H. from the Hanover factory
255. It started life as a caravelle (Bus)
CS 1,6l 4-cyl. Upright Diesel from '81 to '87 37kw / 50bhp Shocked
DZ gearbox
produced in July '82

ratios

1st gear = 3,78

2nd = 2,06

3rd = 1,23

reverse = 3,67

Final drive = 5,86

Very Happy Very Happy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
emu88
Samba Member


Joined: May 20, 2009
Posts: 1856
Location: UK
emu88 is offline

PostPosted: Fri Feb 03, 2012 1:08 pm    Post subject: Reply with quote

Does this apply to Type 1's as well? I have an unidentified M number on my certificate, M401, which is on this list.
_________________
03/1971, 1302 Super Beetle 1600 dual port
Solex 34-pict 3
SVDA Bosch distributor
Long reach heads
Back to top
View user's profile Send private message Gallery Classifieds Feedback
djkeev
Samba Moderator


Joined: September 30, 2007
Posts: 23633
Location: North West New Jersey
djkeev is offline

PostPosted: Mon Oct 15, 2012 3:13 pm    Post subject: Reply with quote

Well, let's see if this information helps or confuses the "weekender" confusion.

I recently purchased a 1986 Vanagon.
Partial production date of 5/86 and a production date of 7/86.

Serial number is WV2XB0252GH112***

Westfalia "Pop Top"
3 person rear seat, becomes a bed
Rear cushion over engine cover
1 rear facing jump seat behind the driver
No swiveling front seats
Storage cabinet in left rear 1/4 panel
110 volt outlet with exterior connection plug.
Odd plug by passenger seat, I presume for the removable refrigerator?
Fluorescent light over table
3 wall mounted cup holders
2 Wolfsburg Emblems one on each side in front of each front door

It came with the original books from the dealer. It was sold new by a Massachusetts dealer to a Connecticut resident. Owner 1

It ended up at a VW dealer in Cape May NJ and was purchased in February 1991........ Owner 2. They sold it to me yesterday.

I am owner 3

One of the books was this one.. "Camper Wolfsburg Edition"
Image may have been reduced in size. Click image to view fullscreen.


Sorry about the poor orientation but the introduction page...
Image may have been reduced in size. Click image to view fullscreen.


A few select pages showing this version has the fold away table, rear facing jump seat and does NOT have a kitchen....
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


I will be scanning all of the manuals in their entirety for Everett to include in the various reference sections here.

Dave
_________________
Stop Dead Photo Links how to post photos

Ghia
http://www.thesamba.com/vw/forum/viewtopic.php?t=392473

Vanagon
http://www.thesamba.com/vw/forum/viewtopic.php?p=6315537#6315537

Beetle
https://www.thesamba.com/vw/forum/viewtopic.php?t=482968&highlight=74+super+vert
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
vanagonjr
Samba Member


Joined: October 07, 2010
Posts: 2557
Location: Dartmouth, Mass.
vanagonjr is offline

PostPosted: Mon Oct 15, 2012 5:47 pm    Post subject: Reply with quote

That exterior 110 was almost certainly added by a PO. Not a bad idea though. I was thinking the same, but I camp with electricity perhaps once a year.
_________________
John - 86 Wolfsburg Westfalia "Weekender"
Flint reversed 1.8T W/Passat 5-Speed
LiMBO (late model bus club) www.limbobus.org
LiMBO is on Facebook too! https://www.facebook.com/groups/
FAQ thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=525798
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4  Next
Page 1 of 4


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
