PostPosted: Sat Mar 07, 2009 6:34 am    Post subject: HDTV in my Westy Reply with quote

OK, so I got too much time on my hands...

Long story short, I found an excellent buy on a 23" HDTV / Monitor over at www.newegg.com. Kind of an off-brand name, but I took a chance and turned out to be a great deal for $200. Good picture, tons of connections from coaxial all the way to HDMI and a nice size.
Most of the time itís going to reside in my bedroom on a shorty wall mount arm. Even found a nice little 'compact DVD player' with HDMI output that I'm make a custom mount to hang off the bottom of set.
Got to thinking about it and thought... "Might be nice to be able to watch a movie after dinner at the campground without huddling around my laptop"

Looked around and found a nice 15" articulating arm wall mount from Peerless that's fairly inexpensive if you do a little searching with google
www.peerlessmounts.com/dyn/Products/BrowseProduct.aspx/tn/39/u/t/categoryID/195
Decided to mount on the B-pillar behind the passenger seat. Had nice access thru the 'fuzzy vent' and even thought it looked like it had some stout metal behind it for the seatbelt mount, I decided to back it up with a piece of plate steel

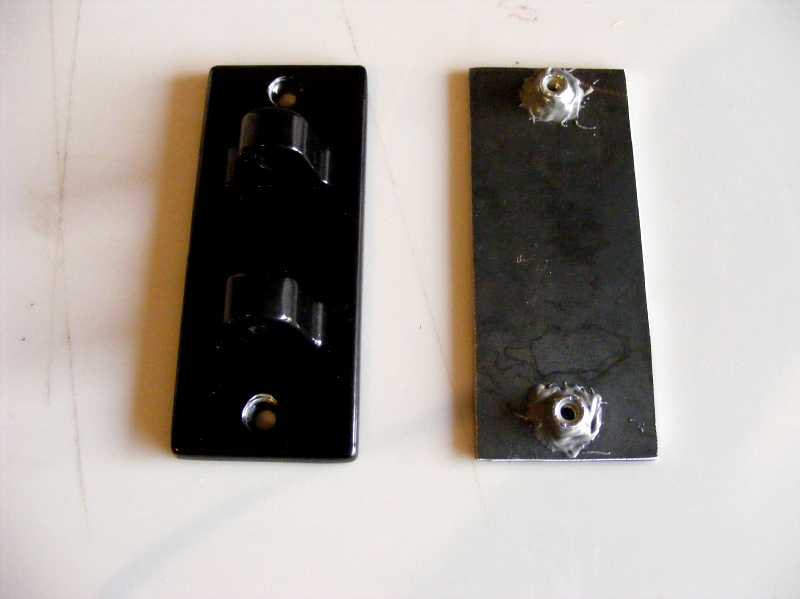

So here's the mounting plate and the backer plate with the nylon locking nuts JB welded in place (didn't want to have to maneuver a wrench inside the B-pillar)
Image may have been reduced in size. Click image to view fullscreen.

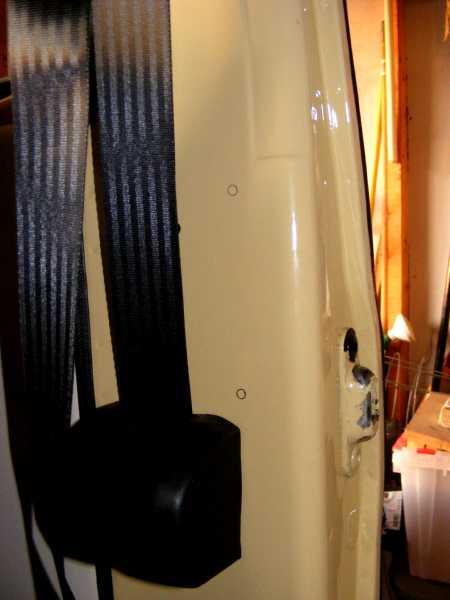

Here are the markings for the holes I had to drill in the B-pillar and a look inside from the fuzzy vent
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


Decided to put some JB weld on the backer plate to it would stay put if I ever had to remove the outer mounting plate
Image may have been reduced in size. Click image to view fullscreen.

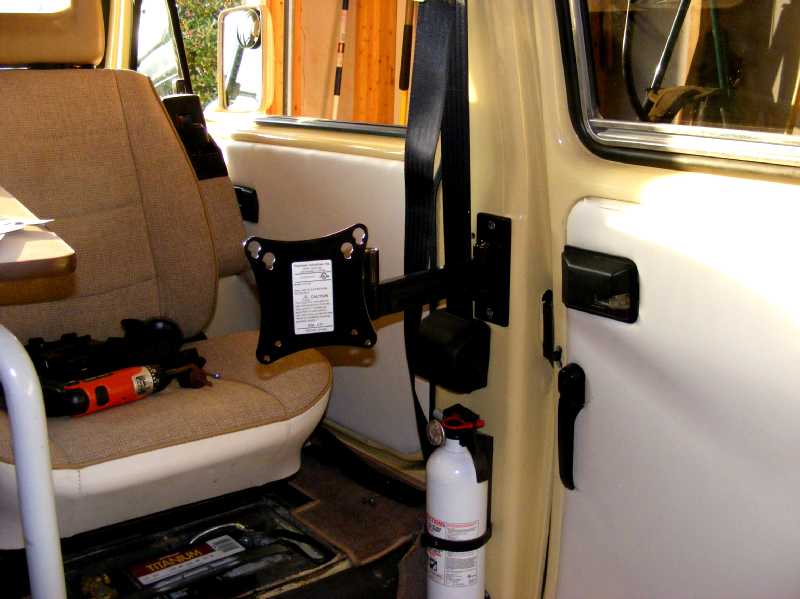

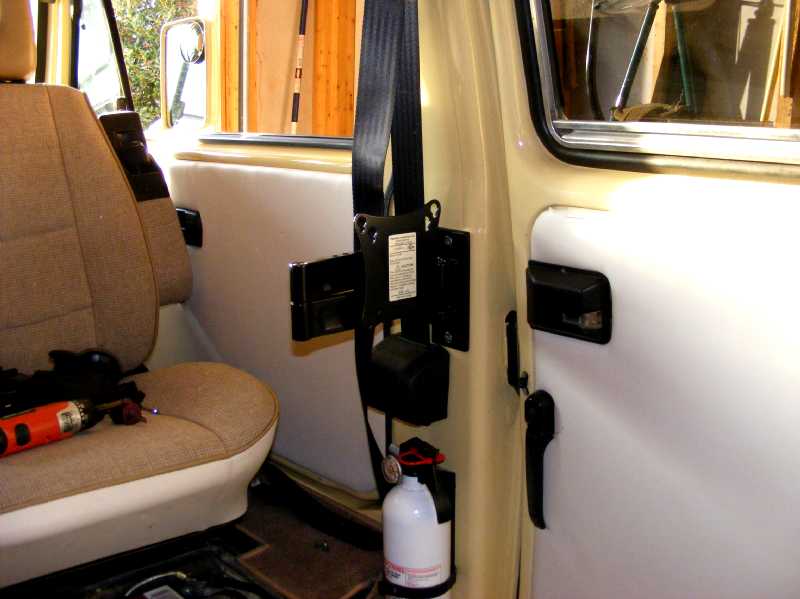

Hereís the plate mount and the arm mounted on it
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

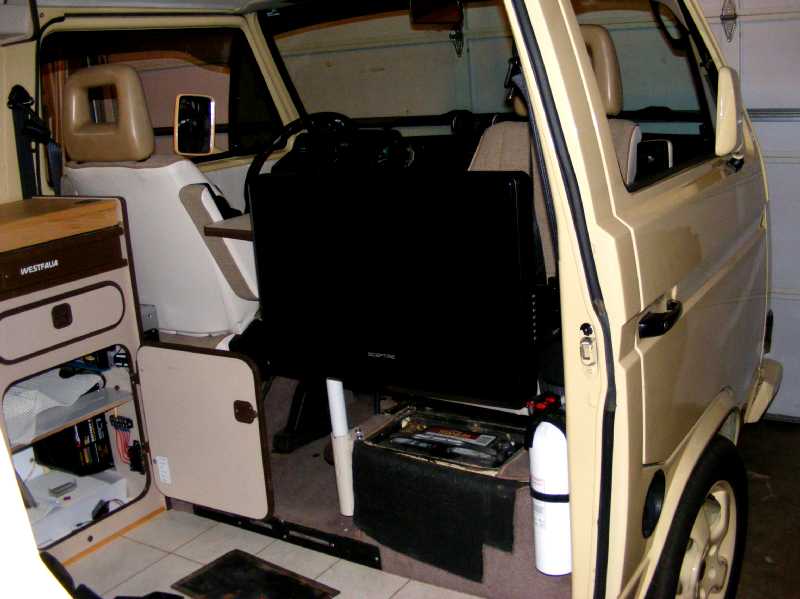

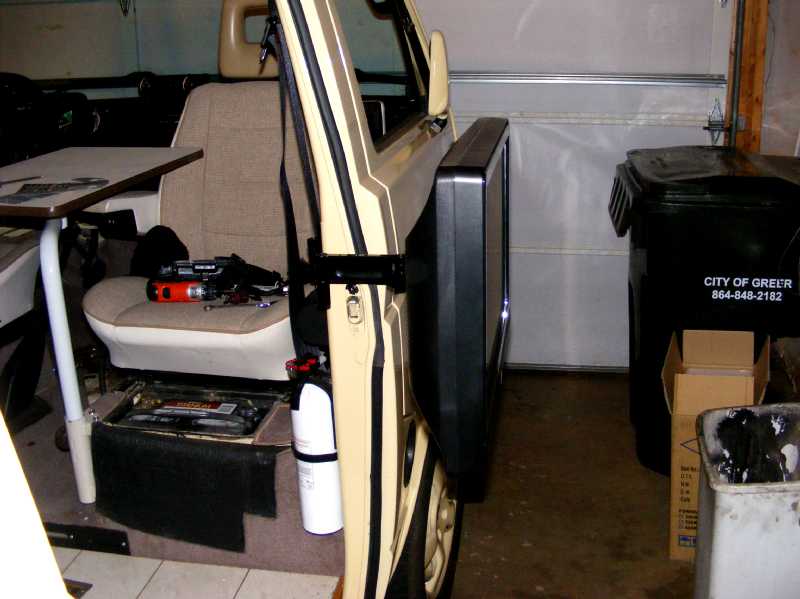

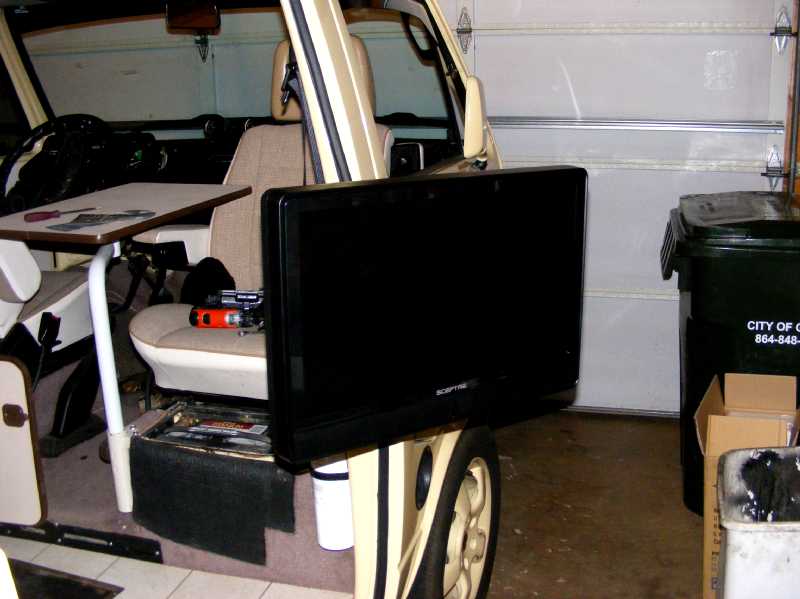

And this is with the TV mounted in place
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I also found a nice little mast mounted HD antenna that Iím going to fab a pole mount for.
http://reviews.cnet.com/a-v-antennas/philips-mant940-hdtv-antenna/4505-6509_7-32023898.html
Something simple that will sit on the ground and use one of the jack points and something to grab the rain gutter
_________________
"The floggings will continue until morale improves"
"I never did give anybody hell. I just told the truth and they thought it was hell" - Harry S. Truman
82 Westfalia - w/ a Raby 'Camper Special' engine


Last edited by 82WestyMan on Sat Mar 07, 2009 6:36 am; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
carterzest
Samba Member


Joined: January 22, 2008
Posts: 3842
Location: Eagle, ID/Sun Valley, ID
carterzest is offline

PostPosted: Sat Mar 07, 2009 6:35 am    Post subject: Re: HDTV in my Westy Reply with quote

Modified so as not to be redundant per request of OP. Wink

Me first...


BUMP!

P.S. Bump means I like it. Need I explain in more depth. Think about it!
_________________
Happiness=Portland, Oregon in the rearview mirror!


Last edited by carterzest on Mon Mar 09, 2009 12:17 pm; edited 1 time in total
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Wellington
Samba Member


Joined: September 21, 2004
Posts: 1799
Location: Montreal
Wellington is offline

PostPosted: Sat Mar 07, 2009 6:39 am    Post subject: Reply with quote

I came across a flat screen with built in dvd and it had a transformer on the power cord, the unit actually ran off 12volts!!!
I decided against it as I didn't want my kid glued to the T.V. when we are out.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
westylife
Samba Member


Joined: October 28, 2007
Posts: 409
Location: Anchorage, Alaska
westylife is offline

PostPosted: Sat Mar 07, 2009 8:22 am    Post subject: Reply with quote

I usually don't like TV's installed in cars but I really like this setup I really like how it swings outside like that.

Great Work!!
_________________
1983.5 Westfalia Bostig RG1
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
RCB
Samba Member


Joined: September 05, 2005
Posts: 4143
Location: San Francisco-Bay Area
RCB is offline

PostPosted: Sat Mar 07, 2009 8:59 am    Post subject: Reply with quote

Great work as well as a great write up.
I really like the way you set up the passengers side table!!!
From what it looks, its just the same sort of bracket thats behind the drivers side seat well.
Is this correct.
I gots to keep an eye out for an extra bracket.
You didnt run into any issues when drilling the screw holes did you ??

Once again ....real nice.

P.S. Thankx again for the information on where to get the rubber boots and connections for the auxillary air valve. The wires are looking kinda tired and the boots were shot.
A few dollars well spent.

Whoops.one more P.S....is that a Hallon fire extinguisher in the bracket??
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Sat Mar 07, 2009 9:24 am    Post subject: Reply with quote

I've got one of these:
http://www.directv.com/DTVAPP/global/contentPage.jsp?assetId=P4110014
Laughing
Back to top
View user's profile Send private message Gallery Classifieds Feedback
krimpoo
Banned


Joined: December 06, 2008
Posts: 355
Location: gabriola island
krimpoo is offline

PostPosted: Sat Mar 07, 2009 11:30 am    Post subject: Reply with quote

Love that ad....buncha' people sitting in lawn chairs watching a t.v...and ignoring the mountains and beautiful day right in front of them...which i assume was the reason they left the city and their apartments in the first place?


"Hey Bob...why dont we pack up the westys and the kids and go watch t.v. in the woods this weekend?"



People are so strange....im not saying...im just saying.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tds3pete
Samba Member


Joined: April 04, 2004
Posts: 914
Location: Seattle, WA
tds3pete is offline

PostPosted: Sat Mar 07, 2009 12:11 pm    Post subject: Reply with quote

Seems like you kinda cheaped out with the 23"

Why not go for a 52" with added rollers top and bottom and you could have replaced the sliding door with it................
_________________
'58 Westy camper-come and gone
'73 Westy-bought new in Holland,now gone
'86 Syncro weekender-come and gone
'79 Westy...Oscar
'95 Eurovan Camper/5 spd...Marsha Mellow
Back to top
View user's profile Send private message Gallery Classifieds Feedback
mightyart
Samba Member


Joined: March 24, 2004
Posts: 6188
Location: Portland, Oregon
mightyart is offline

PostPosted: Sat Mar 07, 2009 12:16 pm    Post subject: Reply with quote

Outside in the fresh air is the best place to watch TV.
I guess the only way to watch a movie is in a theather, with your way thinking drive-ins are stupid.
You need to stop being so closed minded.

People are so strange....im not saying...im just saying.

There I'm done krimpoo, your trolling isn't going to screw 82Westymans post up by starting an argument about watching TV while camping.
A good imflamitory subject, that is a personal choice, and will have no winner.
I'll edit this if I have to.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
82WestyMan
Samba Member


Joined: December 28, 2006
Posts: 1097
Location: South Carolina
82WestyMan is offline

PostPosted: Sat Mar 07, 2009 12:38 pm    Post subject: Reply with quote

Thanx for chiming in, Mightyart

To me, it's just a matter of having options and choices
... and being tolerate of, and appreciating, the differences in everyones tastes and choices in life and how they decide to live it
_________________
"The floggings will continue until morale improves"
"I never did give anybody hell. I just told the truth and they thought it was hell" - Harry S. Truman
82 Westfalia - w/ a Raby 'Camper Special' engine
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
kevtherev
Samba Member


Joined: December 23, 2007
Posts: 897
Location: the 51st state
kevtherev is offline

PostPosted: Sat Mar 07, 2009 12:48 pm    Post subject: Reply with quote

krimpoo wrote:
.and ignoring the mountains and beautiful day right in front of them....


So when it's as dark as the inside of your backside and you can't see any thing without military technology... let's watch a movie.

Fantastic idea..fantastic post.. I'm on it as I type.

this is going in my camper as sure as Wink ...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
woggs1
Samba Member


Joined: February 22, 2007
Posts: 531
Location: South Pacifica California
woggs1 is offline

PostPosted: Sat Mar 07, 2009 1:08 pm    Post subject: Reply with quote

That looks like a sweet setup! I like to watch movies in bed, so when I go out in my Westy, I always bring a portable dvd player. Also, I sometimes camp where campfires are prohibited, so when the sun goes down, what else is there to do?
_________________
4 speed 88 Westy
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
82WestyMan
Samba Member


Joined: December 28, 2006
Posts: 1097
Location: South Carolina
82WestyMan is offline

PostPosted: Sat Mar 07, 2009 1:12 pm    Post subject: Reply with quote

tds3pete wrote:
Seems like you kinda cheaped out with the 23"

Why not go for a 52" with added rollers top and bottom and you could have replaced the sliding door with it................


Don't think it didn't cross my mind...
just didn't like the idea of all those wires hangin' on the outside
... and damn hard to spin around so you could use it inside or out
LOL

But seriously, this is "Use-B" for the set, not its primary home
(..."most of the time itís going to reside in my bedroom"...)

Camping in the great outdoors isn't the only thing I do with my Westy... tailgate parties, car shows, etc ...
just seemed like an easy and nice mod
Not sure how well the deep cycle battery and inverter will like it
but that's why I'm always keep an eye out for the nearest outlet
and carry a 12 gauge / 100' extension cord
_________________
"The floggings will continue until morale improves"
"I never did give anybody hell. I just told the truth and they thought it was hell" - Harry S. Truman
82 Westfalia - w/ a Raby 'Camper Special' engine
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Hal87
Samba Member


Joined: June 09, 2005
Posts: 55
Location: Albuquerque, NM
Hal87 is offline

PostPosted: Sat Mar 07, 2009 9:57 pm    Post subject: Reply with quote

Tell the truth, you did this just to cheese off your next door neighbor with a 9" flip down in their Suburban.... Twisted Evil
Back to top
View user's profile Send private message Gallery Classifieds Feedback
koolmoe
Samba Member


Joined: November 15, 2008
Posts: 382
Location: Annapolis, MD
koolmoe is offline

PostPosted: Sat Mar 07, 2009 10:42 pm    Post subject: Reply with quote

Sweet.
First, I have to figure out the auxiliary battery setup and inverter (I've read many posts but still not clear - gotta actually sketch it out or something).

Once that's done, I've got an arm/pole for up to a 17" flat panel. I have a heavy 15" touchscreen monitor. I plan, someday, to merge the pole with the front table bracket somehow (since I don't have that table anyway) and connect up a laptop and/or Mac Mini I've got lying around.

So not only for movies, maybe TV (with proper tuner add-on), but also for a computer as well.

I'm a little worried it'll be a bit too visible and attractive to thieves but figure I can make some sorta cover/dropcloth for it.

Won't be as big as yours but same idea, plus a touchscreen to make up that missing cool factor? (plus, I'm a geek, so HAS to be a computer)
KM
_________________
--
Current: 1990 Westy GL (Savannah. Good to be back!)
from '95 til 2008: 1995 Pathfinder (frame rusted out, charitable parts donation)
from '91-'95: 1982 Westy Diesel (Smokey. Traded in for far too little!)
from '87-'91: 1980 VW Rabbit (my econoPorsche - passed on)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bheck
Samba Member


Joined: July 31, 2005
Posts: 101
Location: Wisconsin
bheck is offline

PostPosted: Sun Mar 08, 2009 3:16 am    Post subject: Reply with quote

That set up looks great!!! I was looking for a reason to buy another HDTV. Watching tv is great when it is rainy. The kids would love it. I've got to show my wife.
Back to top
View user's profile Send private message Classifieds Feedback
Williamtaylor33
Samba Member


Joined: September 07, 2007
Posts: 1545
Location: Arkansas
Williamtaylor33 is offline

PostPosted: Sun Mar 08, 2009 5:34 am    Post subject: Reply with quote

Very Cool idea. I'm always a fan of your posts 82westyman. Since my westy is my camper i'm thinking that might get in my way everynow and then. I can see some troll slaming the door shut not thinking that i have the tv outside.
Dang...a troll just bit my leg!
_________________
89 Bostig powered syncro westy
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Volksbulli
Samba Member


Joined: January 30, 2006
Posts: 364

Volksbulli is offline

PostPosted: Sun Mar 08, 2009 7:08 am    Post subject: Reply with quote

82 WESTY MAN: Hey that brand of TV you got, SCEPTER, is a decently good TV. A friend of mine has had a 32 inch version now for over 2 yrs now with absolutely no problems.

I had considered putting a 12volt TV in my Westy, but decided that my main excuse for camping is to get away from technology, so I opted out of having the bus full of techy doo dads.

But I must say, that is an Awesomely clean install. Nice how the TV Swings outside the door.

Can your Pass Seat be facing forward with the TV mounted there, or do you have to remove it?
_________________
It's a Volkswagen Thing, Even I Don't Understand!(o\|/o)
-------------------------------------------------------
82' A/C Westfalia
67' Typ 1
96' Golf GL
Back to top
View user's profile Send private message AIM Address Classifieds Feedback
dobryan Premium Member
Samba Member


Joined: March 24, 2006
Posts: 15309
Location: Brookeville, MD
dobryan is offline

PostPosted: Sun Mar 08, 2009 7:20 am    Post subject: Reply with quote

Good job on that install. Very Happy

I've got a 27 inch HDTV (my Xmas present that resides in the garage) that I'm going to install so it can hang off of the Westy A/C cabinet and be viewed out the back while we tailgate at football games. I'll be interested to see how much time I can get out of an auxiliary battery.

Please post your results when you have your battery/inverter system hooked up.

Thanks!
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe (euroBus)
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371

The Western Syncro build
https://www.thesamba.com/vw/forum/viewtopic.php?t=746794
Back to top
View user's profile Send private message Gallery Classifieds Feedback
presslab
Samba Member


Joined: September 29, 2008
Posts: 1730
Location: Sonoma County
presslab is offline

PostPosted: Sun Mar 08, 2009 7:50 am    Post subject: Reply with quote

That's a great spot for it, really cool you can flip it to point outside. Now all you need is a vanputer. Very Happy

BTW I'm typing this from my van in a campground, wifi antenna on the roof, about 500 yds from the ocean. Just waiting for my buddy to get up.
_________________
1986 Vanagon Westfalia EJ25
1988 Subaru GL-10 EJ20G --- 2000 Honda XR650L
2010 Titus El Guapo --- 2011 On-One 456 Ti
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
