Rebuilt the cargo door locking mechanism
Page: 1, 2, 3  Next
Forum Index -> Split Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
sconord
Samba Member


Joined: February 22, 2005
Posts: 704
Location: Dallas Texas
sconord is offline

PostPosted: Thu Aug 20, 2009 5:28 pm    Post subject: Rebuilt the cargo door locking mechanism Reply with quote

I rebuiilt a broken cargo door mechism from a 59 panel today. Have pics of the inside and how to do it. It was easy BUT you only need to drill or dremel out the four rivets on the rear. Use a screw driver to gently pry it open and see how it works.

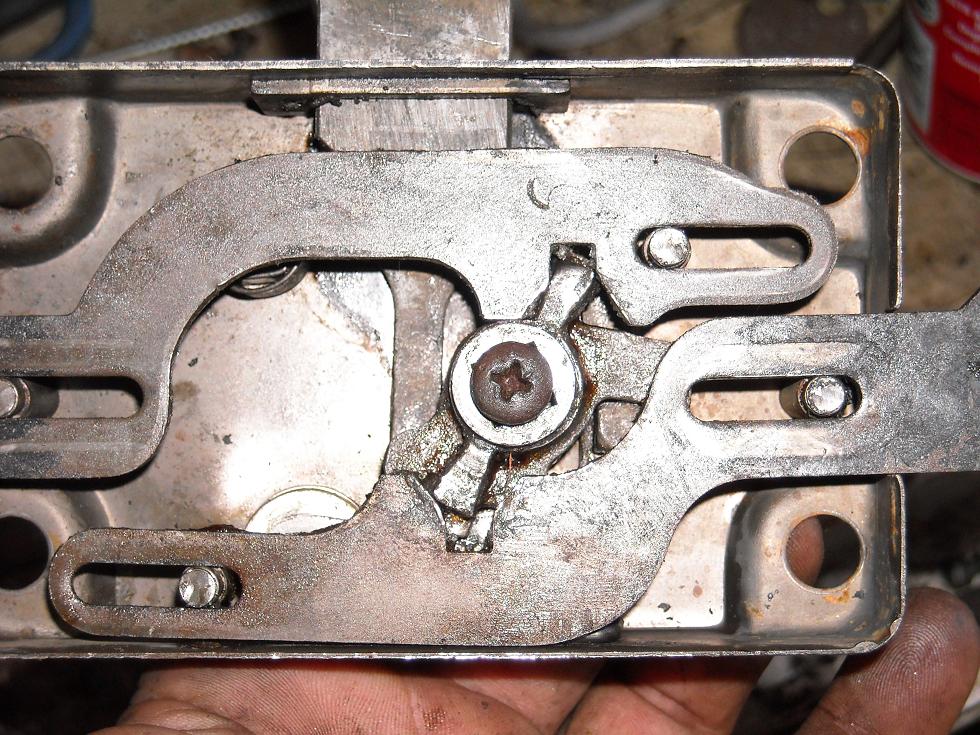

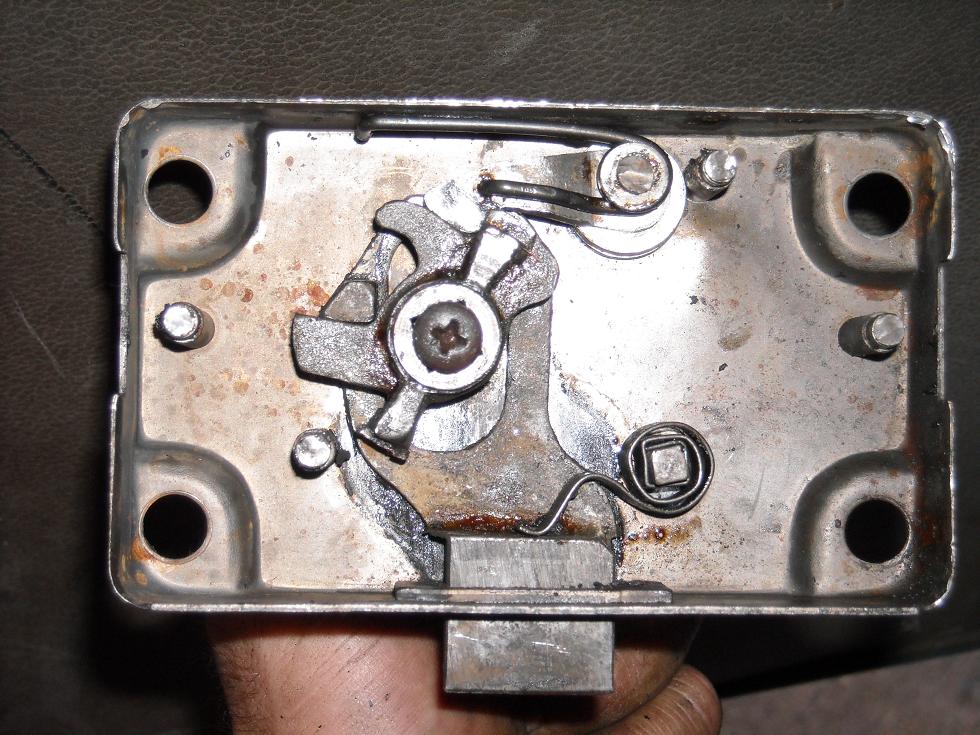

This is what the inside looks like

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


I didn't see any other post where this was shown.

Hope it helps.
_________________
beatleeater wrote:
you're a freaking genius
Back to top
View user's profile Send private message Gallery Classifieds Feedback
npbusguy
Samba Member


Joined: February 08, 2006
Posts: 1658
Location: Budapest, Hungary
npbusguy is offline

PostPosted: Thu Aug 20, 2009 6:17 pm    Post subject: Reply with quote

Nice information, thanks for posting.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Tue Mar 02, 2010 12:13 am    Post subject: Reply with quote

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.


took my lock apart the main action in the center looks like pot metal so I decide to try and braze it with silver/copper solder only to find out pot metal has a lower melting point Crying or Very sad so I took a barely working door mechanism and made it parts. I can assume that this is the part that wears out in everyone's so finding a good one will be in a door mechanism that doesn't need repair. hey at least I tried
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Stocknazi
Samba Member


Joined: June 18, 2004
Posts: 5146

Stocknazi is offline

PostPosted: Tue Mar 02, 2010 9:56 am    Post subject: Reply with quote

interesting post. in the future i can see someone repopping those to fix worn/broken latches
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).

"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"Resistance to tyrants is obedience to God."

Thomas Jefferson
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Tue Mar 02, 2010 2:40 pm    Post subject: Reply with quote

I am considering having a batch made of the piece I melted. but I am guessing the demand would not be too great as a good used mechanism goes for $25 here on the samba
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
bushaus
Samba Member


Joined: November 18, 2007
Posts: 809
Location: Long Beach, Calif
bushaus is offline

PostPosted: Tue Mar 02, 2010 2:55 pm    Post subject: Reply with quote

Amazing how much better that piece could be made today...better steel, Delrin or Teflon bushings....but I guess that holds true for pretty much of the rest of the bus as well! Laughing Laughing
_________________
1967 13 window walkthru bus
1965 Karmann Kabriolett beetle



hitest wrote:
Even if completed, the abarth's gonna belch spluey all over your Eriba.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
bushaus
Samba Member


Joined: November 18, 2007
Posts: 809
Location: Long Beach, Calif
bushaus is offline

PostPosted: Tue Mar 02, 2010 2:57 pm    Post subject: Reply with quote

Oh, and I would like to open mine up to clean/lubricate/ inspect the maddening squeak in there...what size rivets would I need to put it back together, or is there a way I could use nuts and bolts to close it back up?
_________________
1967 13 window walkthru bus
1965 Karmann Kabriolett beetle



hitest wrote:
Even if completed, the abarth's gonna belch spluey all over your Eriba.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hugheseum
Samba Member


Joined: February 11, 2004
Posts: 2690
Location: oregon
hugheseum is offline

PostPosted: Tue Mar 02, 2010 2:58 pm    Post subject: Reply with quote

nice post,so is the earlier style also potmetal or?????????
_________________
Have a great day!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Stocknazi
Samba Member


Joined: June 18, 2004
Posts: 5146

Stocknazi is offline

PostPosted: Mon Mar 08, 2010 8:42 am    Post subject: Reply with quote

sventinker wrote:
I am considering having a batch made of the piece I melted. but I am guessing the demand would not be too great as a good used mechanism goes for $25 here on the samba
yes, but how many of those latches are worn?
_________________
WANTED:
58 Westfalia cabinet knobs (3 needed), roof rack, and (7) privy tent poles (silver painted).

"When the people are afraid of the government, that's tyranny. But when the government is afraid of the people, that's liberty."
"Resistance to tyrants is obedience to God."

Thomas Jefferson
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Mon Mar 08, 2010 2:05 pm    Post subject: Reply with quote

bushaus wrote:
Oh, and I would like to open mine up to clean/lubricate/ inspect the maddening squeak in there...what size rivets would I need to put it back together, or is there a way I could use nuts and bolts to close it back up?


I was going to tack weld mine back together. The rivets are are the guide pins these parts slide on so they may be able to locate. By welding them no one would see them as they are hidden between the door. Eric and Barb comented once on drilling and tapping the rivets I think. But the rivets are very small.


--------------------------------------------------------------------------------
Quote:

sventinker wrote:
I am considering having a batch made of the piece I melted. but I am guessing the demand would not be too great as a good used mechanism goes for $25 here on the samba
yes, but how many of those latches are worn?


very true I have contacted a machine shop that will 3-d map one for me but I will need a perfect example to start with... Question
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
arthurnugen
Samba Member


Joined: January 11, 2005
Posts: 3081
Location: The PNW, where "going green" means rolling with moss.
arthurnugen is offline

PostPosted: Mon Mar 08, 2010 7:25 pm    Post subject: Reply with quote

bushaus wrote:
Oh, and I would like to open mine up to clean/lubricate/ inspect the maddening squeak in there...what size rivets would I need to put it back together, or is there a way I could use nuts and bolts to close it back up?


I just drilled a small hole in the back of the unit (using grease so the filings would not go into the assembly) and then used my grease gun and squirted grease in there until it started to squirt out by the latch. It works great and is super quiet now! I can't take the credit for the idea, though. I think Greg or Clara mentioned it on here somewhere awhile ago.

Arthur
_________________
cdennisg wrote:
Lawyers don't deserve buses.

zozo wrote:
Don't worry too much. You can always trust a lawyer.


ALWAYS WEAR STEEL-TOE BOOTS IN THE GARAGE!
1965 Bus (Riviera camper)
1972 Bug 'vert
1967 Bug sunroof
1961 Ghia 'vert
1957 DKW 3=6: 3 cylinder 2 stroke!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
bushaus
Samba Member


Joined: November 18, 2007
Posts: 809
Location: Long Beach, Calif
bushaus is offline

PostPosted: Tue Mar 09, 2010 8:34 am    Post subject: Reply with quote

arthurnugen wrote:
bushaus wrote:
Oh, and I would like to open mine up to clean/lubricate/ inspect the maddening squeak in there...what size rivets would I need to put it back together, or is there a way I could use nuts and bolts to close it back up?


I just drilled a small hole in the back of the unit (using grease so the filings would not go into the assembly) and then used my grease gun and squirted grease in there until it started to squirt out by the latch. It works great and is super quiet now! I can't take the credit for the idea, though. I think Greg or Clara mentioned it on here somewhere awhile ago.

Arthur


I like that idea! Thanks!
_________________
1967 13 window walkthru bus
1965 Karmann Kabriolett beetle



hitest wrote:
Even if completed, the abarth's gonna belch spluey all over your Eriba.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Tue Mar 09, 2010 8:47 am    Post subject: Reply with quote

I thought about that too but once you open one up you will want to clean it up. I found broken washers, sand, and metal shavings. Plus I think squeezing in a ton of grease there is a chance on a hot day the grease or oil from the grease would seep out and down your door.
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
arthurnugen
Samba Member


Joined: January 11, 2005
Posts: 3081
Location: The PNW, where "going green" means rolling with moss.
arthurnugen is offline

PostPosted: Tue Mar 09, 2010 10:52 am    Post subject: Reply with quote

sventinker wrote:
I thought about that too but once you open one up you will want to clean it up. I found broken washers, sand, and metal shavings. Plus I think squeezing in a ton of grease there is a chance on a hot day the grease or oil from the grease would seep out and down your door.


Good points about the internals. However, I did the grease trick a couple of years ago and there was a little seepage initially but it was not runny at all. It didn't go down the door, even when exposed to heat and sunlight all day.

Arthur
_________________
cdennisg wrote:
Lawyers don't deserve buses.

zozo wrote:
Don't worry too much. You can always trust a lawyer.


ALWAYS WEAR STEEL-TOE BOOTS IN THE GARAGE!
1965 Bus (Riviera camper)
1972 Bug 'vert
1967 Bug sunroof
1961 Ghia 'vert
1957 DKW 3=6: 3 cylinder 2 stroke!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Tue Mar 09, 2010 11:41 am    Post subject: Reply with quote

arthurnugen wrote:
sventinker wrote:
I thought about that too but once you open one up you will want to clean it up. I found broken washers, sand, and metal shavings. Plus I think squeezing in a ton of grease there is a chance on a hot day the grease or oil from the grease would seep out and down your door.


Good points about the internals. However, I did the grease trick a couple of years ago and there was a little seepage initially but it was not runny at all. It didn't go down the door, even when exposed to heat and sunlight all day.

Arthur


I always am of the mindset of home where we hit 120 degrees every summer. would any one want to buy a new replacement center action piece (locking style)?
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Fri Mar 26, 2010 11:26 pm    Post subject: Reply with quote

I gathered up a couple more Cargo door mechanism and dissected them. So out of my three two are the same and one is not. But the odd man out seemed to be in the best shape. First thing to do is drill out the rivets on the back side and remove cover. This mechanism is stamped BuM 211 841 605d. the method of cleaning was to wire brush each part with brake parts cleaner, scrape hard gunk with flat screw driver, and finish on a brass wire wheel. The housing was sand blasted and sprayed with primer because original plating was failing. The center rotating "pot metal" piece like the one before was worn the same way but not as bad so I whipped up some JB weld and applied to the inside of a tape mold I made. Today now set I ground it down to better specs and function. Here are the pictures of re-assembly.
Image may have been reduced in size. Click image to view fullscreen.

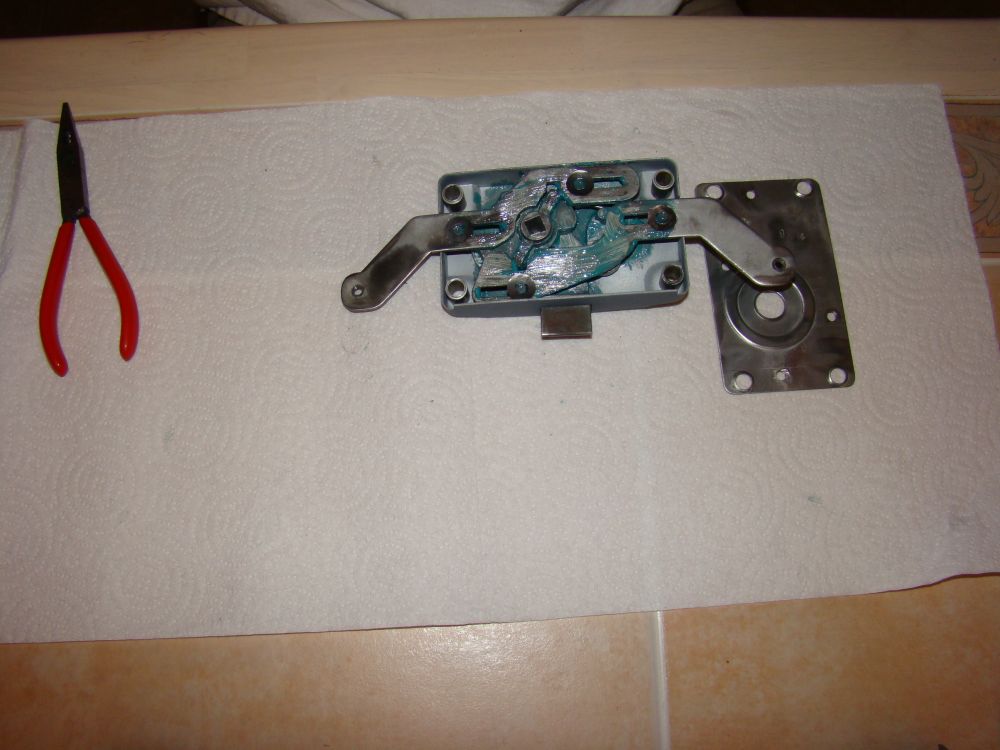

I greased the inside where any moving part would touch.
Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

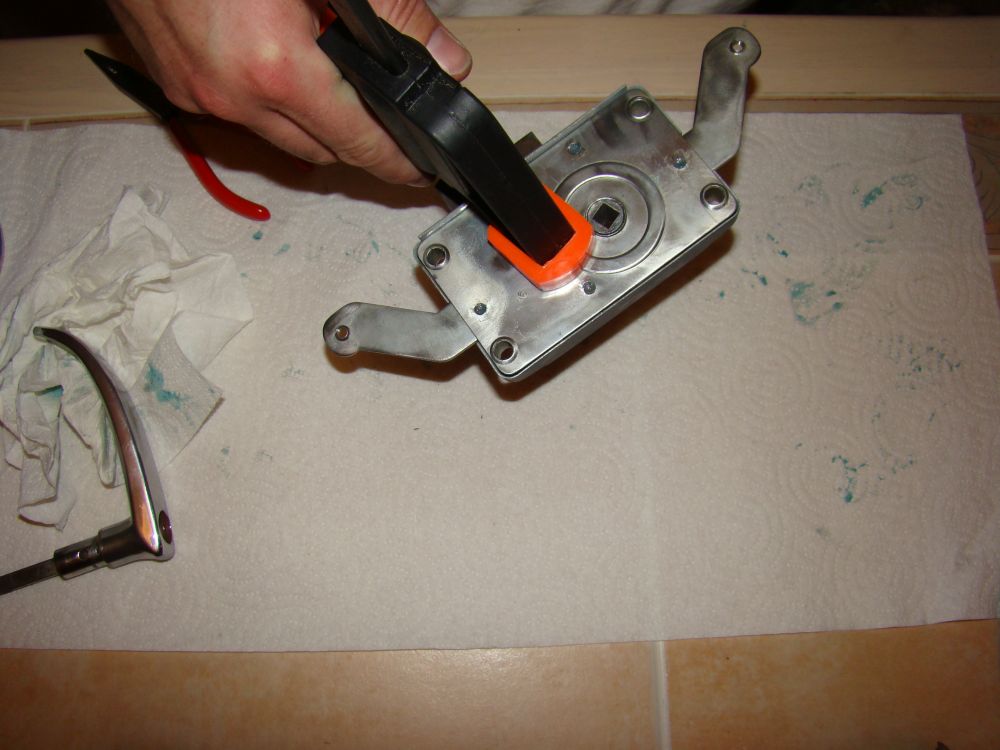

the clamp was necessary to hold the back on tight the drilled rivet nearest mt thumb has to be secured tight as the arm on this shaft for the lock is spring loaded and will cock sideways thus binding on the piece that rotates when you lock the mechanism
Image may have been reduced in size. Click image to view fullscreen.

I then welded the rivets and ground down the welds almost flush.
Image may have been reduced in size. Click image to view fullscreen.

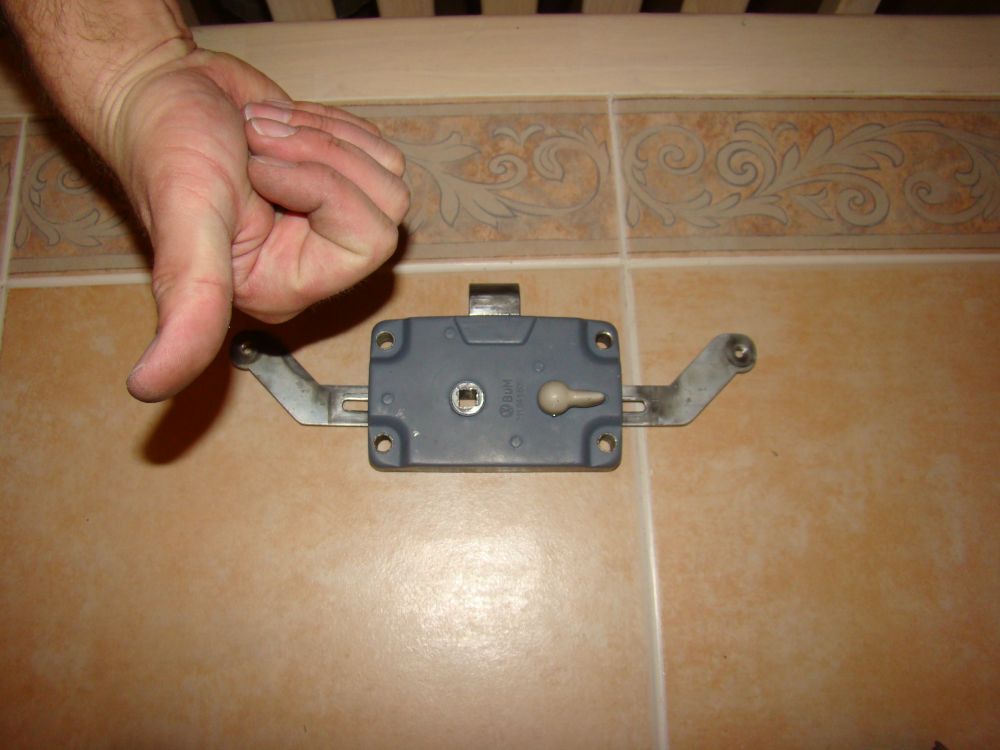

The lock now works so phenomenally bitchen that I am so stoked and excited to put it on. but first it goes under my pillow so we can bond. A special thanks to Kombisutra for renewing my faith in JB weld. oh and if your going to ask what kind of grease I used it is the wrong kind for this application no need to point it out. (wheel bearing grease) goodnight I'm going to bed with mechanism in hand.
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
stephenmullens Premium Member
Samba Member


Joined: January 13, 2005
Posts: 1927
Location: New Mexico
stephenmullens is offline

PostPosted: Sat Mar 27, 2010 12:01 am    Post subject: Reply with quote

Laughing Great!
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
BarryL Premium Member
Samba Member


Joined: November 01, 2004
Posts: 14216
Location: Casa de Oro, California
BarryL is offline

PostPosted: Sat Mar 27, 2010 7:48 am    Post subject: Reply with quote

Excellent job and attention to detail. My own opinion of the JB is that it will get soft from the grease and friction and crumble into your beautiful work.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
sventinker
Samba Member


Joined: June 10, 2009
Posts: 1481
Location: the sandbox
sventinker is offline

PostPosted: Sat Mar 27, 2010 9:47 am    Post subject: Reply with quote

I hope to have another rebuilt by having the worn piece re-made thus eliminating the use of the JB. I thought for sure the JB would break off as I only re did the tips that move those heavy arms and door rods. But the jb really adhered to the "pot metal". I only got discouraged when I found how easy it was to sand down. If I had the re machined part this would have been a great rebuild. And unfortunately the innards are different to the others I have so my Idea of making a batch of this armature would be fruitless if there were so many variations they would not match. Volkswagen obviously had these made by different manufactures based on the different stampings.
_________________
April 3rd 62 standard mgr/pw
374 North American equipment
Includes 6 popouts
025 Safety belts
195 Adjustable bench seat/backrest (until 1963)
dawerks wrote:
Perfection only comes with delusion.

http://www.oacdp.org/
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Z
Samba Member


Joined: June 15, 2003
Posts: 2517
Location: galveston, tx
Z is offline

PostPosted: Sat Mar 27, 2010 10:19 pm    Post subject: Reply with quote

Thank you for the reminder to use a paper towel before rebuilding parts on the new kitchen counter tile... Wink

Great pics and how-to. Thanks for taking the time to do it.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Split Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3  Next
Page 1 of 3


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
