PostPosted: Sun Oct 04, 2009 12:59 pm    Post subject: Engine case production date Reply with quote

Moderator notes from EverettB:
The original photos below are dead so here is another example of the engine case stampings:
Right side case half, on left side of generator stand:
Image may have been reduced in size. Click image to view fullscreen.

This stamping is:
3 5 16
indicating
3rd day of 5th month (May), production shift (1), year (6)
so this case half was production during the 1st shift, May 3rd, 1956

Left side case half, to the left of the oil pump:
Image may have been reduced in size. Click image to view fullscreen.

This stamping is:
3 5 36
indicating
3rd day of 5th month (May), production shift (3), year (6)
so this case half was production during the 3rd shift, May 3rd, 1956

Overall location of left-side stamp:
Image may have been reduced in size. Click image to view fullscreen.


Original post is below
==============================
Hello. Can anyone tell me what year this case would be?

Image may have been reduced in size. Click image to view fullscreen.


The case number is 1-0268989 Be a 25hp. January of 51 correct?
?....
Back to top
View user's profile Send private message Gallery Classifieds Feedback
billmetric
Samba Member


Joined: March 16, 2006
Posts: 1038
Location: Columbus City USA
billmetric is offline

PostPosted: Sun Oct 04, 2009 2:43 pm    Post subject: Reply with quote

looks like 19 Dec. '52 to me, perhaps a restamped replacement case?
need more pics of the serial number stamping area etc.
_________________
There is an idea of a Billmetric; some kind of abstraction. But there is no real me: only an entity, something illusory. And though I can hide my cold gaze, and you can shake my hand and feel flesh gripping yours and maybe you can even sense our lifestyles are probably comparable... I simply am not there...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OvalTeenAZ
Samba Member


Joined: May 12, 2007
Posts: 659
Location: Arizona
OvalTeenAZ is offline

PostPosted: Sun Oct 04, 2009 6:12 pm    Post subject: Reply with quote

19th What, Day? week?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
ProjectX
Accessory Nut


Joined: May 01, 2006
Posts: 1013

ProjectX is offline

PostPosted: Sun Oct 04, 2009 6:16 pm    Post subject: Reply with quote

56vwrag wrote:
19th What, Day? week?


He asked for the serial number, if you give us that we'll narrow it down for you..... Wink
_________________
Even my nuts are plated.....

195? Project "X"
1954 Oval Convertible
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nlorntson Premium Member
Crazy VW Lady


Joined: March 13, 2004
Posts: 3098
Location: Twin Cities, MN
nlorntson is offline

PostPosted: Sun Oct 04, 2009 6:40 pm    Post subject: Reply with quote

As I understand it, it is in the form of day month (shift)year.

19 = day

12 = month

22 = year (2nd shift) 1952

0 = 1950, 1 = 1951, 2 = 1952, 3 = 1953, 4 = 1954, 5 = 1955, etc
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
OvalTeenAZ
Samba Member


Joined: May 12, 2007
Posts: 659
Location: Arizona
OvalTeenAZ is offline

PostPosted: Sun Oct 04, 2009 7:14 pm    Post subject: Reply with quote

56OvalRHD wrote:
56vwrag wrote:
19th What, Day? week?


He asked for the serial number, if you give us that we'll narrow it down for you..... Wink



I dont have the case at my house....
But the case number is. 1-0268989
Back to top
View user's profile Send private message Gallery Classifieds Feedback
OvalTeenAZ
Samba Member


Joined: May 12, 2007
Posts: 659
Location: Arizona
OvalTeenAZ is offline

PostPosted: Sun Oct 04, 2009 7:25 pm    Post subject: Reply with quote

The reason Im confused is because of this ad. It says May of 1951.
IE: (28 05 11) 28th day 5th month 11th production year.


Ad: http://www.thesamba.com/vw/classifieds/detail.php?id=743924




Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kdf38
Samba Member


Joined: March 07, 2002
Posts: 839

kdf38 is offline

PostPosted: Sun Oct 04, 2009 7:55 pm    Post subject: Reply with quote

Yes, 1-0268989 IS a jan '51 engine number

The 11 in (28 5 11) is not the 11th production year.

Send pics of the Engine number stamping area on the case when you
can.

Mike


56vwrag wrote:
The reason Im confused is because of this ad. It says May of 1951.
IE: (28 05 11) 28th day 5th month 11th production year.


Ad: http://www.thesamba.com/vw/classifieds/detail.php?id=743924




Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
OvalTeenAZ
Samba Member


Joined: May 12, 2007
Posts: 659
Location: Arizona
OvalTeenAZ is offline

PostPosted: Sun Oct 04, 2009 11:29 pm    Post subject: Reply with quote

These arent much but its all I can get.
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jeromeaircooled
Samba Member


Joined: August 13, 2006
Posts: 387
Location: post divorce
jeromeaircooled is offline

PostPosted: Sun Oct 04, 2009 11:52 pm    Post subject: Reply with quote

This is my block that I have for sale. I thought it was a 36 hp. What are the differences visually between a 36 hp long block and a 25 hp. The reason I ask is that the numbers stamped on the case identify it as 25 hp but there is also a stamp underneath the numbers that say it has been rebuilt. Just want to make sure I am listing it correctly.

Damn I am ignorant on these older smaller motors. Embarassed
_________________
Getting back in the game
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jeromeaircooled
Samba Member


Joined: August 13, 2006
Posts: 387
Location: post divorce
jeromeaircooled is offline

PostPosted: Mon Oct 05, 2009 12:22 am    Post subject: Reply with quote

Here are some pictures I just snapped. The first is the engine number. You can see below it that there is a very faint stamping. I believe that is says factory rebuilt, but the letters between the f and y are really faint. I can't seem to get a non-blurry pic with my POS camera.

Image may have been reduced in size. Click image to view fullscreen.

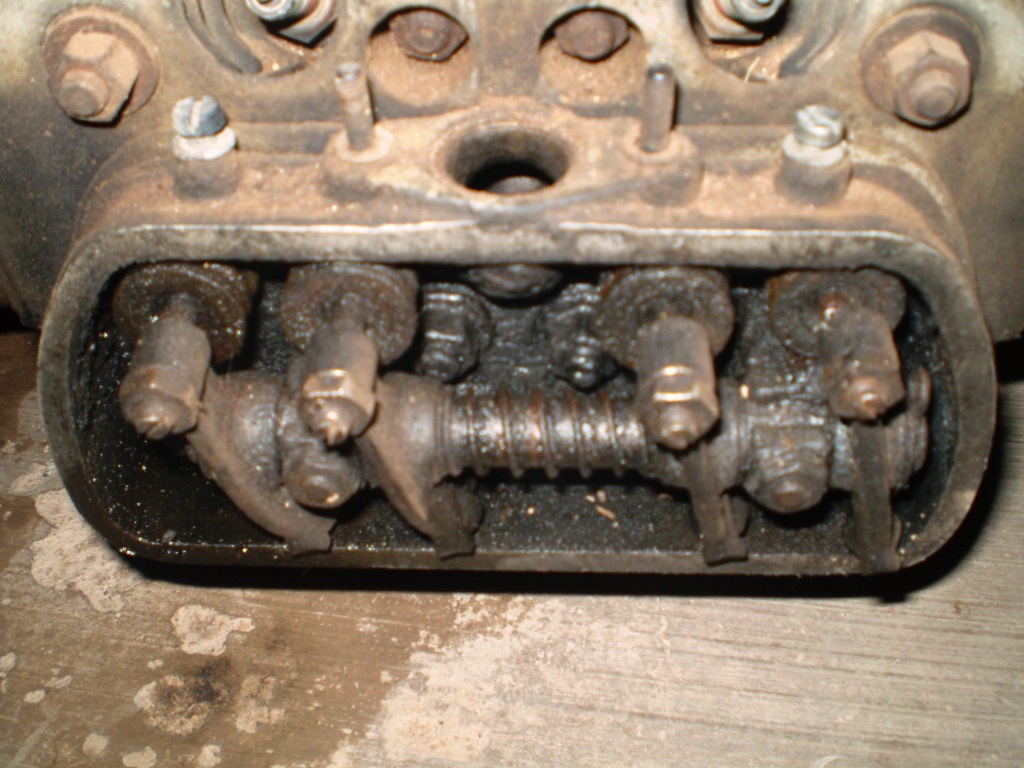

The other pics are to help everyone identify whether it is a 25 or 36 hp block.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

_________________
Getting back in the game
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nlorntson Premium Member
Crazy VW Lady


Joined: March 13, 2004
Posts: 3098
Location: Twin Cities, MN
nlorntson is offline

PostPosted: Mon Oct 05, 2009 6:19 am    Post subject: Reply with quote

That block has Jan 1951 serial number but it has 36hp heads and the bottom appears to be 36hp as well. The block could still be 25hp with the cylinders bored out for 36hp pistons and heads.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 58316
Location: Phoenix, AZ
EverettB is offline

PostPosted: Mon Oct 05, 2009 10:27 am    Post subject: Reply with quote

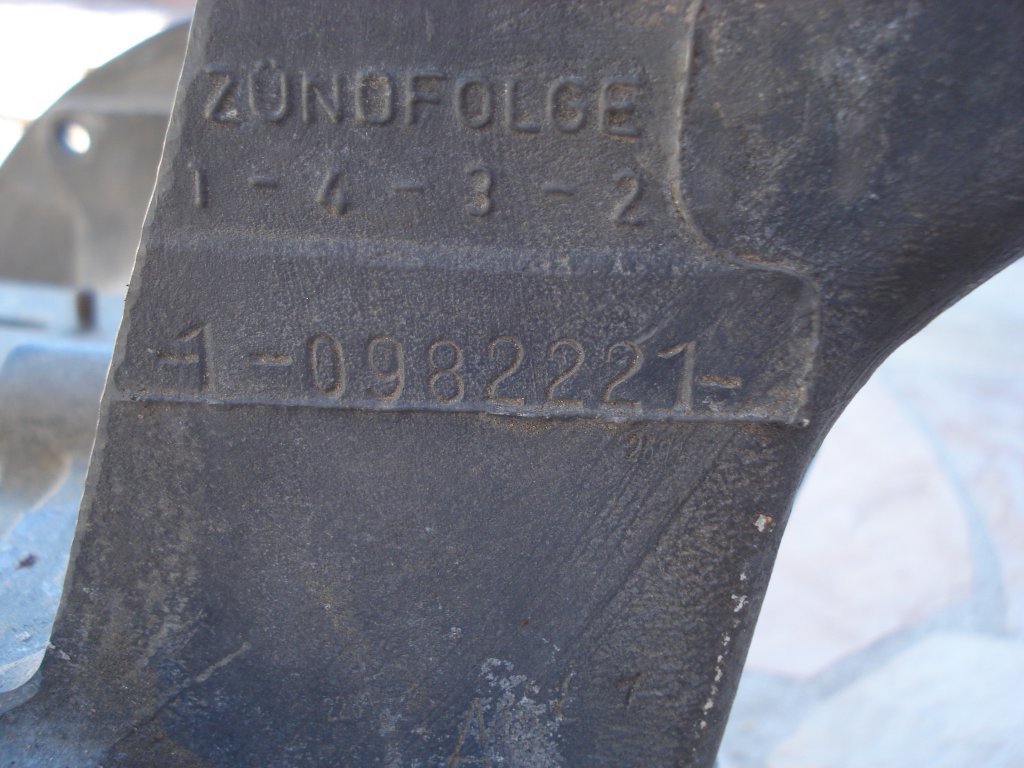

I would guess that is a dealer replacement case. Weird serial # stamping, later head studs, drain plug in sump plate instead of case, and so forth.

Original Beetle 1- engine numbers have more dashes.
Example
Image may have been reduced in size. Click image to view fullscreen.


Since it's a replacement case, how do you tell that is not a 1962 date stamping?
_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
kdf38
Samba Member


Joined: March 07, 2002
Posts: 839

kdf38 is offline

PostPosted: Mon Oct 05, 2009 5:12 pm    Post subject: Reply with quote

It looks like there is a filled-in spot for a drain plug in the case.

EverettB wrote:
I would guess that is a dealer replacement case. Weird serial # stamping, later head studs, drain plug in sump plate instead of case, and so forth.

Original Beetle 1- engine numbers have more dashes.
Example

Since it's a replacement case, how do you tell that is not a 1962 date stamping?
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
OvalTeenAZ
Samba Member


Joined: May 12, 2007
Posts: 659
Location: Arizona
OvalTeenAZ is offline

PostPosted: Mon Oct 05, 2009 5:25 pm    Post subject: Reply with quote

So Seeing this case has been cut in multiple areas, And its locked up. The jug holes are opened up. cranks been cut. ect. The possibility of it being useable is very slim.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nlorntson Premium Member
Crazy VW Lady


Joined: March 13, 2004
Posts: 3098
Location: Twin Cities, MN
nlorntson is offline

PostPosted: Mon Oct 05, 2009 9:06 pm    Post subject: Reply with quote

What is the casting date on the other half of the case? Should be the same date or within a day.
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
jeromeaircooled
Samba Member


Joined: August 13, 2006
Posts: 387
Location: post divorce
jeromeaircooled is offline

PostPosted: Tue Oct 06, 2009 11:50 pm    Post subject: Reply with quote

Where do I find that?
_________________
Getting back in the game
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EverettB Premium Member
Administrator


Joined: April 11, 2000
Posts: 58316
Location: Phoenix, AZ
EverettB is offline

PostPosted: Tue Oct 06, 2009 11:53 pm    Post subject: Reply with quote

The other stamp is down low on the left side, closer to the pressure relief valve.
Image may have been reduced in size. Click image to view fullscreen.

_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
janerick3
Samba Member


Joined: June 04, 2006
Posts: 1391
Location: Colorado
janerick3 is offline

PostPosted: Wed Oct 07, 2009 5:36 am    Post subject: Reply with quote

I think we're looking at a 1962 crankcase, not 1952. It has the larger, 40hp sump plate and the spacing of the "1-4-3-2" is much closer than earlier blocks, but the lettering does not appear as large as the mid-'60s cases.
_________________
Thanks,
Jan K.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
nlorntson Premium Member
Crazy VW Lady


Joined: March 13, 2004
Posts: 3098
Location: Twin Cities, MN
nlorntson is offline

PostPosted: Wed Oct 07, 2009 6:52 am    Post subject: Reply with quote

62 would have the bolt on generator stand I think. It's possible it is a replacement engine that was made much later in the production.
