How To: Metal fuel line replacement w/pics
Page: 1, 2, 3, 4, 5  Next
Forum Index -> Beetle - 1958-1967 Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Hugo Stiglitz
Samba Member


Joined: August 07, 2009
Posts: 782
Location: Southern California
Hugo Stiglitz is offline

PostPosted: Tue Oct 06, 2009 1:51 pm    Post subject: How To: Metal fuel line replacement w/pics Reply with quote

DISCLAIMER: You perform this at your own risk! You assume sole responsibility of execution and outcome. I will not be held responsible if something goes wrong. AKA If you just so happen to burn your shit to the ground, itís all on you.

Ok, so I have seen a lot of semi-how-to articles on replacing the fuel line that runs in the tunnel of cars. I've also seen a lot of questions as far as how it is done. Im in the middle of doing a pan off resto on my '63 and needed to replace the OEM copper-plated line (if it was in anywhere near the same shape as the rest of the car, it definitely needed replacing) so I took some pictures along the way.

Sorry for you guys who are trying to do this with the body ON the pan, but hoepfully it will give you some insight for what needs to happen for you to accomplish this task. I was able to do this by myself in about 30 minutes with my pan in this state.

Summary:

1.Cut and pull out old fuel line
2.Run new line from back to front
3.Secure fuel line in tunnel

So here we go...

1. First we have to get rid of the original fuel line. There are three tabs that secure the fuel line in the tunnel.

Starting from the back of the car there is one that secures the fuel line to the driver side heater control tube right under the rear access panel:

I had to use a dremel to cut the tack weld that was holding this one in place. The picture shown here is with the tab already removed, but atleast you get an idea of location...

Image may have been reduced in size. Click image to view fullscreen.

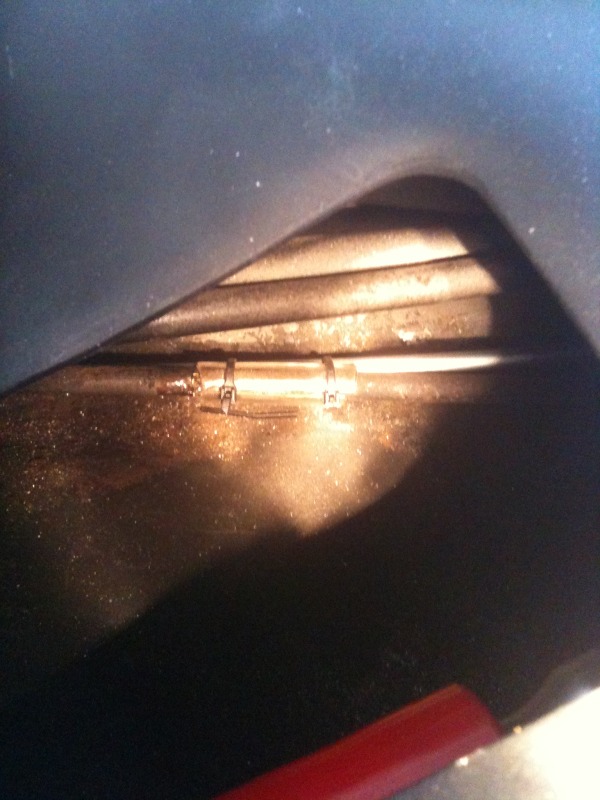

The next tab is in the middle of the tunnel, somewhere between the e-brake hole and the shifter hole. This is the most difficult tab to get to. I have an access hole that was cut into the tunnel by a previous owner right under the shifter:

Image may have been reduced in size. Click image to view fullscreen.


Even with this hole there, I still could not get to the middle tab. Here's a pic of the middle tab just for reference of it's location:

Image may have been reduced in size. Click image to view fullscreen.


It was also the hardest to get a good picture of.

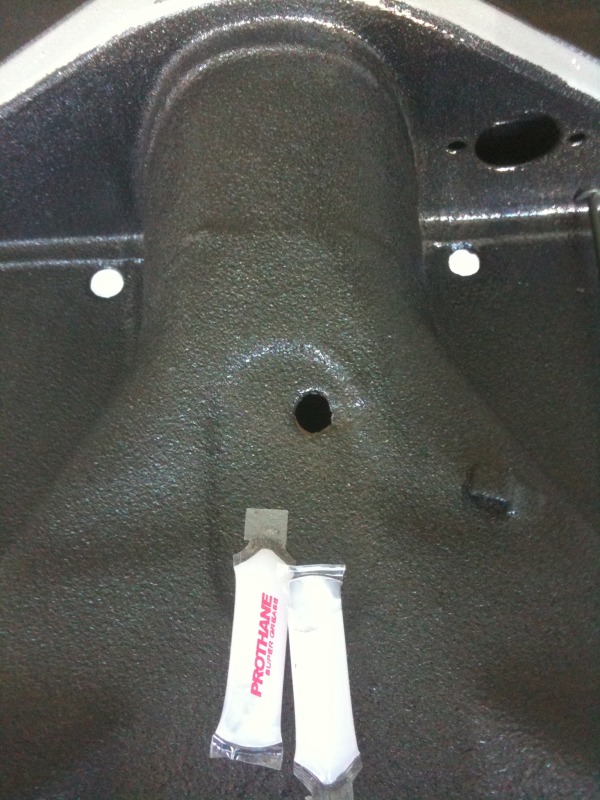

The last tab is towards the front of the car (around where your pedals are located). I had to start pulling the fuel line out to get this picture, but you can see the last tab that holds the line:

Image may have been reduced in size. Click image to view fullscreen.


I used a dremel at the access hole I have in the middle of the car to cut the fuel line as clost to the middle tab as I could.

DISCLAIMER: MY CAR HAS BEEN SITTING FOR I DO NOT KNOW HOW LONG. THERE WAS ABSOLUTELY NO GAS IN THE LINE WHAT SO EVER. THE CAR DID NOT EVEN COME WITH A GAS TANK. DO NOT USE A DREMEL ON YOUR FUEL LINE IF YOU HAVE ANY REMNENCE OF GAS IN THE LINE OR TUNNEL. YOU WILL CATCH ON FIRE!

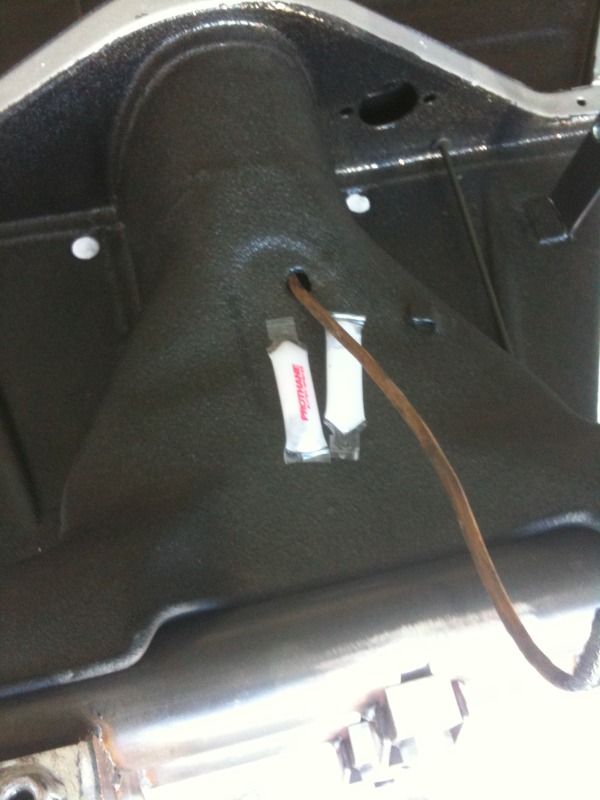

After I cut it at that point I was able to pull the front part of the line out with a little effort.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


This is the copper line after it was out of the car:

Image may have been reduced in size. Click image to view fullscreen.

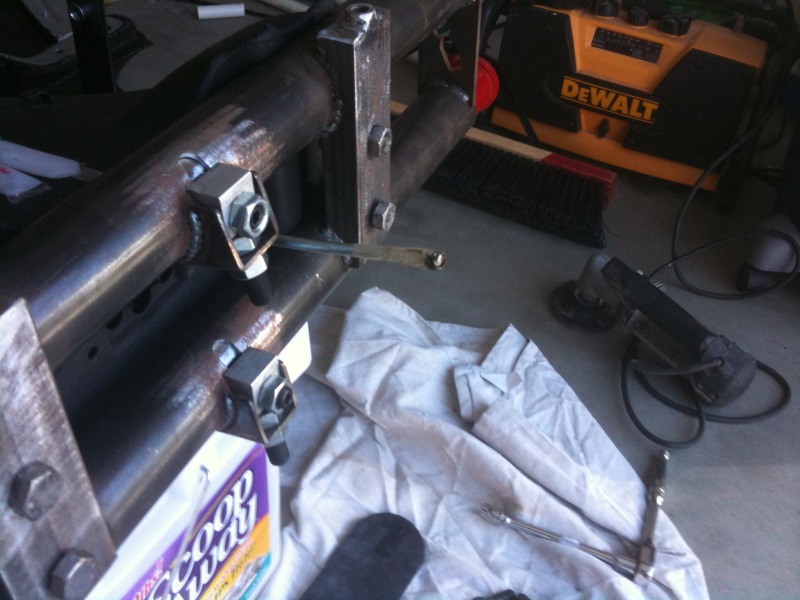

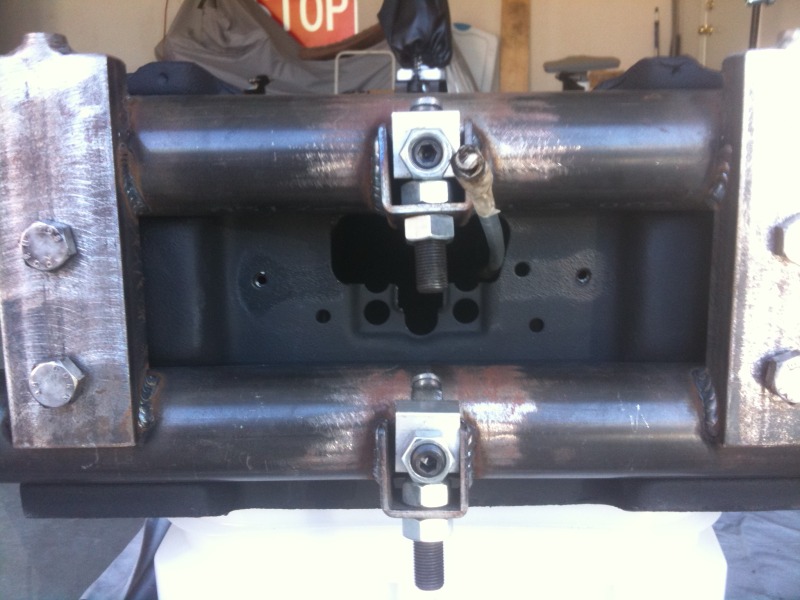

I then took my dremel (remember the DISCLAIMER) to the back access panel and cut the line as far toward the front of the car as I could reach. Then I pulled the line out of where it comes through the frame horn. I had to kind of curl it as it was coming out:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


That takes care of the removal of the fuel line.

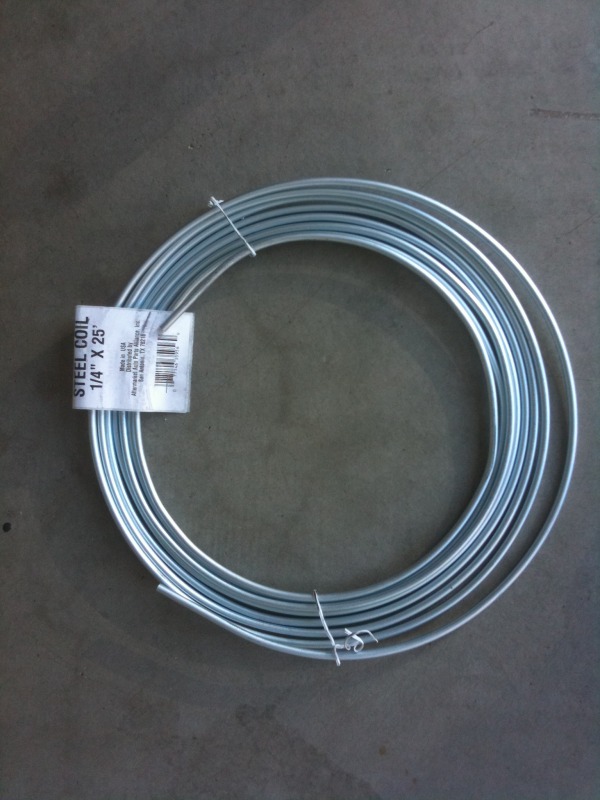

2.Now we run the new fuel line. I bought a 25' roll of 1/4" steel line from the local auto shop in town for $25. It looks like this:

Image may have been reduced in size. Click image to view fullscreen.


You wont need 25' feet, you'll only need about 12-13' but it was cheaper to buy the whole roll then it was to buy 13' by the foot. I might also be running a second line for a fuel injection kit somewhere in the near future.

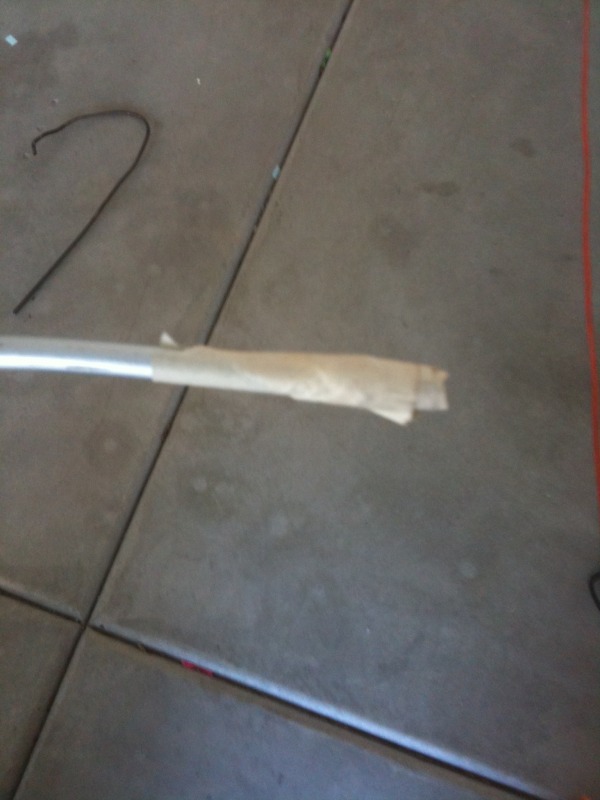

I ran the line from the back to the front. You need to make sure and tape the leading end of the fuel line before you start feeding it through the tunnel.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


After you tape the end, you can start feeding it through:

Image may have been reduced in size. Click image to view fullscreen.


This part takes a little finesse. You need to straighten the line a little as you are feeding it down the tunnel. I was able to feed if all the way up to the shifter area without any snags. Remember I said to tape the end of the line before you start feeding it? This is why:

Image may have been reduced in size. Click image to view fullscreen.


From here I repositioned the line, kind of bent it flat, so I could run it under where the front tab was for the original fuel line. Then I went to the back of the car and fed it some more. You need to feed the line all the way through the front access panel:

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.

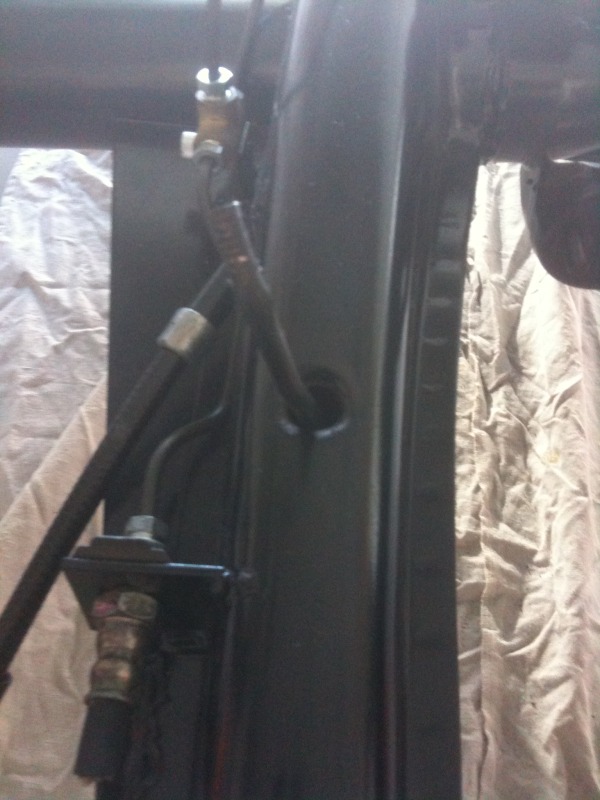

Once you are through the front access panel you need to put a bend in the end of the line so you can feed it up through the hole under the gas tank. It should look a little like this when you are done:

Image may have been reduced in size. Click image to view fullscreen.


Then you will want to feed the line back towards the rear of the car slowly. You need to use finesse here as well so you can get the line to meet the hole where it comes through the tunnel:

Image may have been reduced in size. Click image to view fullscreen.


Then I grabbed the line with some needle nose pliers and pulled it up through the hole.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


3. Now comes securing the line in the tunnel so it doesn't rattle around. This part is very important. If you don't secure the line sufficiently you run the risk of the line vibrating and possibly wearing a hole into the line or breaking all together and then leaking gas and then FIRE!!

I secured the line in three places just like they did at the factory. One in the rear, one towards the middle, and then got the line to fit into the original front tab.

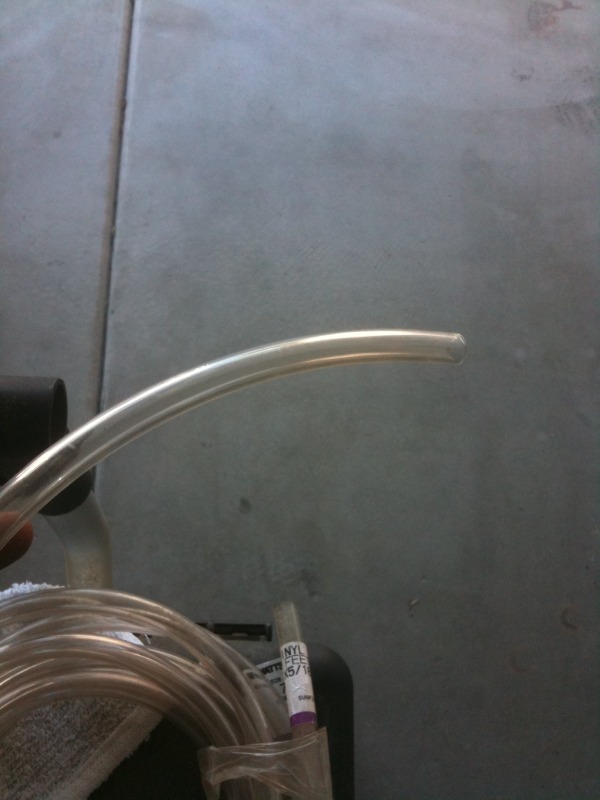

For securing I had some vinyl tubing lying around the garage. I cut a couple inch long pieces or so then cut a slit down the side.

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Then I used the tubing and a couple zip ties to secure the line to the same spot in the rear:

Image may have been reduced in size. Click image to view fullscreen.


I did the same thing in the middle of the tunnel and attached the fuel line to the clutch cable tube. I didn't take a picture of that one, but I tried to get is as close to the same position as the stock fuel line mount there in the middle. Then for securing the line up front I was able to bend open the front tab slightly and manuever the line into it:

Image may have been reduced in size. Click image to view fullscreen.


Then I bent the tab back shut to hold the line good and tight.

From here you can cut the line at the rear (make sure and leave a little extra just in case) and install new rubber grommets around the fuel line when it comes through the tunnel. I know Wolfsburg West sells them, you will need two.

TADAAAHHHH! You're done. New hard fuel line installed. No bloody knuckles or sweaty brows.

I hope this helps. Post up any questions you might have and I will try to answer them as best as I can.


Last edited by Hugo Stiglitz on Wed Oct 07, 2009 10:40 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
hpw
Samba Member


Joined: July 17, 2006
Posts: 3008
Location: memphis
hpw is offline

PostPosted: Tue Oct 06, 2009 3:27 pm    Post subject: Reply with quote

thinking out loud here,

Is it even necessary to remove the old fuel line except for the last few inches

on each end to allow the new one to use the existing holes? Then you could use

your clear hose idea and attach the new fuel line to the old line.
_________________
http://www.youtube.com/watch?v=3SLIzSCt_cg&list=FLIX26sGa8__1F1loczLPTtg&index=2
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
glutamodo Premium Member
The Android


Joined: July 13, 2004
Posts: 25838
Location: Douglas, WY
glutamodo is offline

PostPosted: Tue Oct 06, 2009 3:41 pm    Post subject: Reply with quote

Well, the old one is held in there at that clip by the clutch pedal pretty well, When I went to try to yank my old line out, I popped that clip off entirely. Not that it mattered, in my case I found it was going easier to route my new line over the pedals. But before I yanked it out, I did take this photo of it:

Image may have been reduced in size. Click image to view fullscreen.



Another note I wanted to make, the original line was not copper. It was copper plated, but a steel line under the plating. I have this picture comparing the stainless line I used to the original:

Image may have been reduced in size. Click image to view fullscreen.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Hugo Stiglitz
Samba Member


Joined: August 07, 2009
Posts: 782
Location: Southern California
Hugo Stiglitz is offline

PostPosted: Tue Oct 06, 2009 3:45 pm    Post subject: Reply with quote

copper, copper plated. Its still a tube that needs to be replaced for some.

And it's your preference as far as cutting it out, yanking it out, or just cutting back a couple of inches at each end. I didn't want to have extra line rattling around somewhere down the road. I was already there, I figured I would just get rid of it.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
glutamodo Premium Member
The Android


Joined: July 13, 2004
Posts: 25838
Location: Douglas, WY
glutamodo is offline

PostPosted: Tue Oct 06, 2009 4:52 pm    Post subject: Reply with quote

Just mentioned it becuase solid-copper line for replacement is not a preferred option. Steel or stainless is the way to go.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
EMPIImp69
Samba Member


Joined: April 17, 2006
Posts: 3350
Location: Dirty Jersey
EMPIImp69 is offline

PostPosted: Tue Oct 06, 2009 5:29 pm    Post subject: Reply with quote

Awesome job Xskull
_________________
1969 Empi Imp #1325
1963 Ragtop Bug

Use this to balance your wide 5 steelies -->
http://www.thesamba.com/vw/classifieds/detail.php?id=1830990
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Culito
11010101


Joined: December 07, 2006
Posts: 5829
Location: Columbia Missourah
Culito is offline

PostPosted: Tue Oct 06, 2009 6:12 pm    Post subject: Reply with quote

Nice writeup. I just did this on mine. (You can see the fuel line coiled up at the back frame horn.)

Image may have been reduced in size. Click image to view fullscreen.


I just removed the bits that got in the way and used the old line to tie to - to keep the new line from rattling around. I didn't have that handy access hole, either!
_________________
Copyright CJ Industries, Inc.
'64 standard w/2.0L type 4
'62 bug
johnnypan wrote:
...dont pay no attention to Culito,he's a cornhole..
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
Hotrodvw
Samba Member


Joined: July 06, 2004
Posts: 6327
Location: Orygun
Hotrodvw is offline

PostPosted: Tue Oct 06, 2009 11:02 pm    Post subject: Reply with quote

glutamodo wrote:
Just mentioned it becuase solid-copper line for replacement is not a preferred option. Steel or stainless is the way to go.



You are correct sir. Copper plated, or copper annealed tubign is for corosion reisistence. Actual Copper tubing has an oil oxidizer in it, and will cause a sludge to form on the ID when exposed to petroleum products.
_________________
'67 Sunroof
Eric

78x94 with IDA's....oober fun

Horsepower is an addiction........Addictions cost
lots of money!

Hose & Fittings
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
tspot100
Samba Member


Joined: March 26, 2006
Posts: 462

tspot100 is offline

PostPosted: Wed Oct 07, 2009 4:15 am    Post subject: line Reply with quote

very nice. i did mine a few years ago and found it much easier to feed the line from the front to the back. took me 20 minutes... thanks to bill may.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Shadd
Samba Member


Joined: January 18, 2007
Posts: 883
Location: Lancaster, Ohio
Shadd is offline

PostPosted: Wed Oct 07, 2009 7:54 am    Post subject: Reply with quote

Hotrodvw wrote:
glutamodo wrote:
Just mentioned it becuase solid-copper line for replacement is not a preferred option. Steel or stainless is the way to go.



You are correct sir. Copper plated, or copper annealed tubign is for corosion reisistence. Actual Copper tubing has an oil oxidizer in it, and will cause a sludge to form on the ID when exposed to petroleum products.

Really....I've never heard of this... I used copper line for an oil pressure gauge a few years back. For some reason it never worked quite right.... Embarassed
_________________
Ohio Autohaus
Service - Repair - Parts
Specializing in VW/Audi/Porsche/BMW/Mercedes
4242 Coonpath rd. Carroll, OH. 43112
(740) 901-1745
Back to top
View user's profile Send private message Gallery Classifieds Feedback
spectre6000
Samba Member


Joined: April 19, 2009
Posts: 2014
Location: Broomfield, CO
spectre6000 is offline

PostPosted: Sat Oct 17, 2009 11:10 am    Post subject: Reply with quote

This is excellent! I'm about to have to do this on my Ghia. Thanks for the step by step.
_________________
Jason Hopper

-'58 German Market Deluxe Beetle (in progress)
-'84 M1009 CUCV
-'81 K10
"Buy the best, cry once." -Gene Berg
"A cheap man will always buy the cheapest thing available, and then buys another one hoping for a better result, and then spends the rest of his life in misery complaining about it. A thrifty man will buy a good part once and never think about it again." -RockCrusher
"Don't feed the Shitty Parts Monster!" -Me
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Faustuss
Samba Member


Joined: September 23, 2008
Posts: 206
Location: California
Faustuss is offline

PostPosted: Sat Oct 17, 2009 11:27 am    Post subject: Reply with quote

My only thought is to use something a bit sturdier than those tiny zip ties. They sure seem sturdy at first, but they degrade much faster than anything else in your tunnel will and might be a problem down the road.
_________________
What was done to me created me. It is a basic principle of the universe.

1967 type 1
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Detroit73super
Samba Member


Joined: October 03, 2009
Posts: 611
Location: Detroit
Detroit73super is offline

PostPosted: Sat Dec 05, 2009 6:31 pm    Post subject: Reply with quote

tryin to remove / replace fuel line on 73 Super, and fuel line takes a 90degree turn and exits the tunnel on passenger side right in front of framehead.....How do you accomplish this ?????
Back to top
View user's profile Send private message Classifieds Feedback
mooks73
Samba Member


Joined: June 08, 2006
Posts: 423
Location: fontana ca
mooks73 is offline

PostPosted: Sun Dec 06, 2009 11:04 am    Post subject: Reply with quote

nice thread.i was about to do that to my 62 vert,but i bought a c.b fuel injection set up and am going to route the new feed and return lines like they say to do.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 16869
Location: Left coast, Canada
Bruce is offline

PostPosted: Sun Dec 06, 2009 6:37 pm    Post subject: Re: line Reply with quote

tspot100 wrote:
..... found it much easier to feed the line from the front to the back. took me 20 minutes...

I also put a line in from the front. Took me only 10 min, with the body on.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Rowroy
Samba Member


Joined: November 07, 2006
Posts: 1012
Location: The ass of nowhere
Rowroy is offline

PostPosted: Mon Dec 07, 2009 6:19 am    Post subject: Reply with quote

Culito wrote:
Nice writeup. I just did this on mine. (You can see the fuel line coiled up at the back frame horn.)

Image may have been reduced in size. Click image to view fullscreen.


I just removed the bits that got in the way and used the old line to tie to - to keep the new line from rattling around. I didn't have that handy access hole, either!


So you're using a cave as a garage, eh? Laughing Laughing
_________________
Suicide is man's way of telling God, "You can't fire me; I quit!" - Bill Maher
Back to top
View user's profile Send private message Classifieds Feedback
Hotrodvw
Samba Member


Joined: July 06, 2004
Posts: 6327
Location: Orygun
Hotrodvw is offline

PostPosted: Mon Dec 07, 2009 8:12 am    Post subject: Reply with quote

No that's the Dungeon.....That's where the wife sends him when he screws up. Not always a bad thing.... Laughing
_________________
'67 Sunroof
Eric

78x94 with IDA's....oober fun

Horsepower is an addiction........Addictions cost
lots of money!

Hose & Fittings
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
tspot100
Samba Member


Joined: March 26, 2006
Posts: 462

tspot100 is offline

PostPosted: Mon Dec 07, 2009 9:03 am    Post subject: fuel line Reply with quote

for the 73. install the line from front to back...go past point, bend the 90 degree you need and push it out the front pass. side. VERY simple..again...thanks to bill may.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
CrashedAgain
Samba Member


Joined: June 06, 2007
Posts: 328
Location: Saskatchewan Canada
CrashedAgain is offline

PostPosted: Wed Dec 09, 2009 2:18 pm    Post subject: Reply with quote

Shadd wrote:
Hotrodvw wrote:
glutamodo wrote:
Just mentioned it becuase solid-copper line for replacement is not a preferred option. Steel or stainless is the way to go.



You are correct sir. Copper plated, or copper annealed tubign is for corosion reisistence. Actual Copper tubing has an oil oxidizer in it, and will cause a sludge to form on the ID when exposed to petroleum products.

Really....I've never heard of this... I used copper line for an oil pressure gauge a few years back. For some reason it never worked quite right.... Embarassed


It is only gasoline that is affected by copper, oil should be OK.

More information in this thread: http://www.thesamba.com/vw/forum/viewtopic.php?t=388599&sid=04bb8feaf8dd2c63b4f3195cd67bebf1
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Hotrodvw
Samba Member


Joined: July 06, 2004
Posts: 6327
Location: Orygun
Hotrodvw is offline

PostPosted: Wed Dec 09, 2009 2:23 pm    Post subject: Reply with quote

Why copper at all????? I wouldn't use it for fuel OR oil.....period.
_________________
'67 Sunroof
Eric

78x94 with IDA's....oober fun

Horsepower is an addiction........Addictions cost
lots of money!

Hose & Fittings
Back to top
View user's profile Send private message AIM Address Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Beetle - 1958-1967 All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5  Next
Page 1 of 5


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2020, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
