I searched the archives and maybe I missed ...but I couldn't find it

for months my front blower motor would only blow on one speed which was high

now it doesn't blow at all.

I was was wondering where the resistor pack is located.

I would like to change it out first if its easy to get to, to see if that fixes it first.

Does anyone have the part number also?

Thank you in advance.

Mark
_________________
1984 Westy 2.0 Jetta ABA Motor/1.8 head converted to auto tranny, with 180,000 on body, 55K on engine and transmission

B.5.5 Passat Wagen with 30v V6-67000 Miles

DAS AUTO

CHANGE YOUR FUEL LINES!

A post without pictures is useless

http://www.kayakwesty.com

http://www.waldensridgewhitewater.com/
Back to top
View user's profile Send private message Classifieds Feedback
Zero419
Samba Member


Joined: January 11, 2008
Posts: 2098
Location: PA
Zero419 is offline

PostPosted: Mon Nov 23, 2009 6:27 am    Post subject: Reply with quote

If you are talking about the rad fan. The resistor is begind the drivers side head light.
_________________
1987 Westy Auto Bostig 2.0 Ztec
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kayakwesty
Samba Member


Joined: February 15, 2007
Posts: 687
Location: East Tennessee
kayakwesty is offline

PostPosted: Mon Nov 23, 2009 6:42 am    Post subject: Reply with quote

No worse...I'm talking the front heater blower motor...the one that keeps you warm in the van
_________________
1984 Westy 2.0 Jetta ABA Motor/1.8 head converted to auto tranny, with 180,000 on body, 55K on engine and transmission

B.5.5 Passat Wagen with 30v V6-67000 Miles

DAS AUTO

CHANGE YOUR FUEL LINES!

A post without pictures is useless

http://www.kayakwesty.com

http://www.waldensridgewhitewater.com/
Back to top
View user's profile Send private message Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 2921
Location: The Topless Bar On Mustafar
Captain Pike is offline

PostPosted: Mon Nov 23, 2009 6:58 am    Post subject: Reply with quote

It's in the fan housing, deep in the dash. The top speed is direct wire to fan so the pack has nothing to do with that. Check the switch(they do go bad)and the fuse.
_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kayakwesty
Samba Member


Joined: February 15, 2007
Posts: 687
Location: East Tennessee
kayakwesty is offline

PostPosted: Mon Nov 23, 2009 7:40 am    Post subject: Reply with quote

thanks I will swap and the rear blower switch out and see if I get it going

I think I'm going to have to pull the freakin dash

so if I do

should

I replace the heater core

blower motor

resistor pack

what else?
_________________
1984 Westy 2.0 Jetta ABA Motor/1.8 head converted to auto tranny, with 180,000 on body, 55K on engine and transmission

B.5.5 Passat Wagen with 30v V6-67000 Miles

DAS AUTO

CHANGE YOUR FUEL LINES!

A post without pictures is useless

http://www.kayakwesty.com

http://www.waldensridgewhitewater.com/
Back to top
View user's profile Send private message Classifieds Feedback
McVanagon
Samba Member


Joined: February 19, 2007
Posts: 1679
Location: Northern part of the Virginia
McVanagon is offline

PostPosted: Mon Nov 23, 2009 7:59 am    Post subject: Reply with quote

Discussion on what to replace, and some photos of dash removal

http://www.thesamba.com/vw/forum/viewtopic.php?t=265457
_________________
'69 Mike
'85 GL
'87 Wolfsburg Hardtop
Back to top
View user's profile Send private message Twitter Instagram Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Mon Nov 23, 2009 12:11 pm    Post subject: Reply with quote

The bummer here is that that 3 speed motor resistor is no longer available new--
You'll have to go through all that work and drop a used one back into the front heater box.

I sold the last new one available in north america last week--

Another Vanagon part gone NLA.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 8216
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Mon Nov 23, 2009 12:38 pm    Post subject: Reply with quote

kayakwesty wrote:
thanks I will swap and the rear blower switch out and see if I get it going

I think I'm going to have to pull the freakin dash

so if I do

should

I replace the heater core

blower motor

resistor pack

what else?


Pulling dash is not as hard as you think, but hopefully it's just the switch as KS points out.

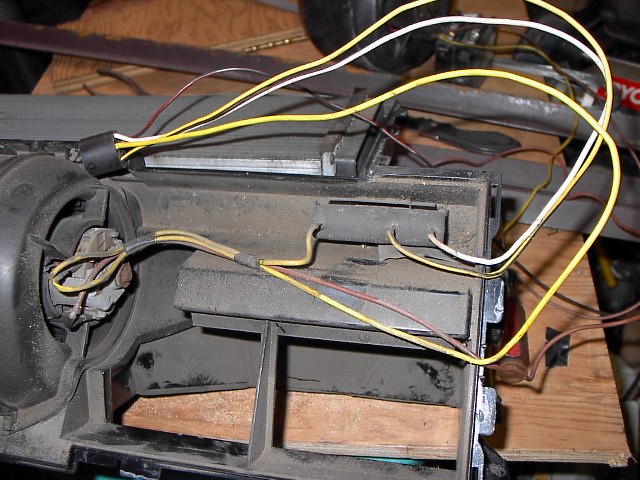

FWIW, I moved my fan resistor pack outside the box up front. (I figured it was original, so it would go before the heater core or fan would. I really should cover those wires.... another thing to do!)

The heater core is also NLA. Thread about possible less expensive substitutes:

http://www.thesamba.com/vw/forum/viewtopic.php?t=385553&highlight=heater

Image may have been reduced in size. Click image to view fullscreen.

_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Mon Nov 23, 2009 12:43 pm    Post subject: Reply with quote

I was wondering how you got to the wire loom inside of the heater box without removing it or opening it up?


Heater cores are available from several different sources---

Check out the samba.com Vanagon parts section--to name one place of availability.
Van Cafe also has them to name another source.
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 8216
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Mon Nov 23, 2009 12:55 pm    Post subject: Reply with quote

Terry Kay wrote:
I was wondering how you got to the wire loom inside of the heater box without removing it or opening it up?

The 3 speed blower motor wires are not exposed externally.




This was done at time of heater box rebuild and mods (for switch to water cooled).

Not my idea. Read of it over on Vanagon.com.

I should check and make sure nothings corroding or what-not with it. It's been out there for about 2 years now.
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Terry Kay
Banned


Joined: June 22, 2003
Posts: 13331

Terry Kay is offline

PostPosted: Mon Nov 23, 2009 1:13 pm    Post subject: Reply with quote

I'd think of greasing up the connections at the resistor might be a good idea to keep them from corroding out in the open as they are --
_________________
T.K.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 2921
Location: The Topless Bar On Mustafar
Captain Pike is offline

PostPosted: Mon Nov 23, 2009 1:42 pm    Post subject: Reply with quote

Say hello to my little friend
Image may have been reduced in size. Click image to view fullscreen.


Here is a quick way to test the fan/resistor pack. These photos show the test with the fan out but you can do this with the fan/dash installed. All you need to do is unplug the connector from the switch.
To test the windings for the fan.
Get an OHM meter connect one wire to a ground source and probe the Yellow wire
Image may have been reduced in size. Click image to view fullscreen.

You want to see some ### here. This proves the fan isn't shorted.

Next test the low speed resistor winding. This time connect one line to the Yellow wire__the other to the White wire.
Image may have been reduced in size. Click image to view fullscreen.


Again you want to see ###. No ## = fried resistor.
Medium speed: Yellow and yellow/black.
Image may have been reduced in size. Click image to view fullscreen.

See how the resistance decreases as the speed increases.
Class dismissed Very Happy

_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kayakwesty
Samba Member


Joined: February 15, 2007
Posts: 687
Location: East Tennessee
kayakwesty is offline

PostPosted: Mon Nov 23, 2009 1:43 pm    Post subject: Reply with quote

dealer wants $115 for the resistor pack

I think not...

I will make my own...

and thank you for posting that!
_________________
1984 Westy 2.0 Jetta ABA Motor/1.8 head converted to auto tranny, with 180,000 on body, 55K on engine and transmission

B.5.5 Passat Wagen with 30v V6-67000 Miles

DAS AUTO

CHANGE YOUR FUEL LINES!

A post without pictures is useless

http://www.kayakwesty.com

http://www.waldensridgewhitewater.com/


Last edited by kayakwesty on Mon Nov 23, 2009 1:52 pm; edited 1 time in total
Back to top
View user's profile Send private message Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 8216
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Mon Nov 23, 2009 1:49 pm    Post subject: Reply with quote

Terry Kay wrote:
I'd think of greasing up the connections at the resistor might be a good idea to keep them from corroding out in the open as they are --


Yup. Thanks. I'll break out the dielectric stuff.

KW

there was a thread recently about resistor pack substitutes. Smile
_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Captain Pike
Samba Member


Joined: December 30, 2003
Posts: 2921
Location: The Topless Bar On Mustafar
Captain Pike is offline

PostPosted: Mon Nov 23, 2009 1:51 pm    Post subject: Reply with quote

kayakwesty wrote:

I will make my own...


That's what I have been doing all day, playing with resistors.
_________________
Parrots,parrots everywhere but none ever stopped to think.
GET A FRAKIN BENTLEY__ Don't post without one.
In the time it takes to post___learning your BENT and trying a solution???WTF?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kayakwesty
Samba Member


Joined: February 15, 2007
Posts: 687
Location: East Tennessee
kayakwesty is offline

PostPosted: Mon Nov 23, 2009 1:55 pm    Post subject: Reply with quote

Quote:
there was a thread recently about resistor pack substitutes. Smile


anybody got a link I found nothing in the search ( i think its broke)
_________________
1984 Westy 2.0 Jetta ABA Motor/1.8 head converted to auto tranny, with 180,000 on body, 55K on engine and transmission

B.5.5 Passat Wagen with 30v V6-67000 Miles

DAS AUTO

CHANGE YOUR FUEL LINES!

A post without pictures is useless

http://www.kayakwesty.com

http://www.waldensridgewhitewater.com/
Back to top
View user's profile Send private message Classifieds Feedback
crazyvwvanman
Samba Member


Joined: January 28, 2008
Posts: 8075
Location: Orbiting San Diego
crazyvwvanman is offline

PostPosted: Mon Nov 23, 2009 2:06 pm    Post subject: Reply with quote

You can use the resistor out of the rear A/C. It uses the same fan motor, x2, plus 2 resistors, one per motor. These are 3 speed resistors not 2 speed like the heater fan resistor, so only use 2 or go ahead and let high speed be a little slower and use all 3. You can use the A/C fan motor as well, slight connection difference.


heater fan- low, med done by resistor, high speed bypasses resistor, 3 speeds total
A/C fan- low, med, med hi, by resistor, high speed bypasses resistor, 4 speeds total

Mark


kayakwesty wrote:
Quote:
there was a thread recently about resistor pack substitutes. Smile


anybody got a link I found nothing in the search ( i think its broke)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kayakwesty
Samba Member


Joined: February 15, 2007
Posts: 687
Location: East Tennessee
kayakwesty is offline

PostPosted: Mon Nov 23, 2009 2:17 pm    Post subject: Reply with quote

http://cgi.ebay.com/ebaymotors/Voltage-Drop-Reduce...35a4fa1c15

It might work good enough!
_________________
1984 Westy 2.0 Jetta ABA Motor/1.8 head converted to auto tranny, with 180,000 on body, 55K on engine and transmission

B.5.5 Passat Wagen with 30v V6-67000 Miles

DAS AUTO

CHANGE YOUR FUEL LINES!

A post without pictures is useless

http://www.kayakwesty.com

http://www.waldensridgewhitewater.com/
Back to top
View user's profile Send private message Classifieds Feedback
Vanagon Nut
Samba Member


Joined: February 08, 2008
Posts: 8216
Location: Sunshine Coast B.C.
Vanagon Nut is offline

PostPosted: Mon Nov 23, 2009 5:32 pm    Post subject: Reply with quote

kayakwesty wrote:
Quote:
there was a thread recently about resistor pack substitutes. Smile


anybody got a link I found nothing in the search ( i think its broke)


This is the one I was referring to:

http://www.thesamba.com/vw/forum/viewtopic.php?t=386613&highlight=resistor

Doesn't have as much, if any, relevant info as I thought. My bad.

If you can't find used, (or follow Marks suggestion) maybe one from a Jetta? Seems a Mk2 might do. (pic below)

It shows a similar looking product though you would need to find a way to connect it.

I would imagine the Jetta blower is similar electrically (draw). If it were me, I'd prefer that "pack" type over a coil type. (pic below. late 90's Mazda) Either one gets hot, but depending on where/how it's mounted, the coils look to be a fire hazard to me. But, they seem cheaper. i.e. one for a Jeep is less than $20 and has cage to protect coils.


Neil.

Image may have been reduced in size. Click image to view fullscreen.



Image may have been reduced in size. Click image to view fullscreen.

_________________
1981 Westy air cooled to 15 ABA swap: http://tinyurl.com/y9n4xob8

50 ABA Swap in to '88 Westy: http://tinyurl.com/yap5hpwt

Vanagon VAG GAS engine swap Google Group:
https://tinyurl.com/2f24rmh

VE7TBN
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kayakwesty
Samba Member


Joined: February 15, 2007
Posts: 687
Location: East Tennessee
kayakwesty is offline

PostPosted: Mon Nov 23, 2009 5:58 pm    Post subject: Reply with quote

exactly I thinking MKII there are alot at my pull-a-part. I can mount the pack in a remote box too, so the next time its easier to get to

It's starting to pi$$ me off on all the NLA parts hitting us...my van has plenty of life left in it
_________________
1984 Westy 2.0 Jetta ABA Motor/1.8 head converted to auto tranny, with 180,000 on body, 55K on engine and transmission

B.5.5 Passat Wagen with 30v V6-67000 Miles

DAS AUTO

CHANGE YOUR FUEL LINES!

A post without pictures is useless

http://www.kayakwesty.com

http://www.waldensridgewhitewater.com/
