PostPosted: Sun Feb 14, 2010 4:06 pm    Post subject: 36 hp crank pulleys? Reply with quote

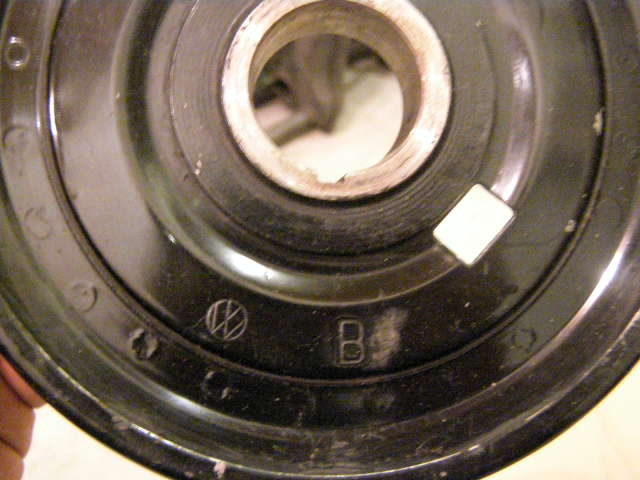

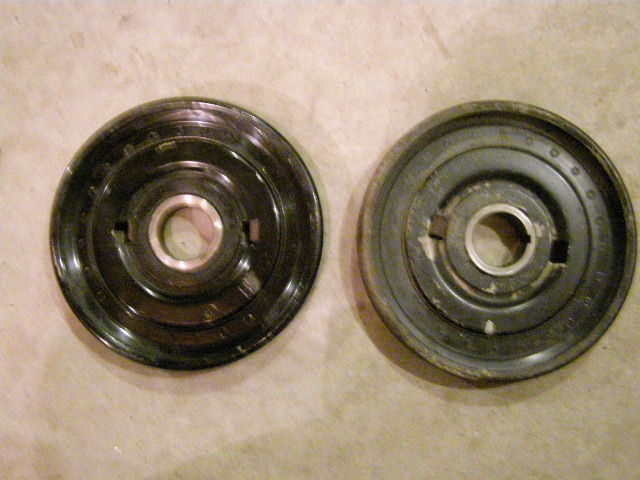

As I'm trying to piece together an engine....I have two crank pulleys that I thought came off 36hp engines. Once I started cleaning them up, I noticed one is a bit larger in diameter that the other.....I believe the smaller was from my 60 and the larger from an earlier 36. Are both from a 36? The only marking are on the front of the smaller one. Any info on the different sizes?
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

_________________
58 Beetle (now just a pile of parts in the corner)
60 Beetle (2221 turbo under construction)
70 Beetle Baja project
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
kmichael
Samba Member


Joined: August 11, 2007
Posts: 89
Location: Marin
kmichael is offline

PostPosted: Sun Feb 14, 2010 8:54 pm    Post subject: Reply with quote

Measured a couple of crank pulleys '62 40 hp approx. 6 5/8" 1955 36hp approx. 7 1/4 " long stored motors assume original, hope this helps
_________________
"The star of the beetle is still shining with undiminished brightness and you see for yourselves every day what vitality there is hidden in this car..."HeinzNordhoff
Back to top
View user's profile Send private message Gallery Classifieds Feedback
58Dub
Samba Member


Joined: June 02, 2004
Posts: 1713
Location: Davison, MI
58Dub is offline

PostPosted: Mon Feb 15, 2010 3:50 am    Post subject: Reply with quote

Thanks for the info kmichael. Interesting....of the two I have, the large one matches up with what you said on the 36hp and came off an engine #2932113, the small one is just a hair under 7 inches and came off my 60 with engine # 3366793. Anyone else have any info ? Question
_________________
58 Beetle (now just a pile of parts in the corner)
60 Beetle (2221 turbo under construction)
70 Beetle Baja project
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
kmichael
Samba Member


Joined: August 11, 2007
Posts: 89
Location: Marin
kmichael is offline

PostPosted: Mon Feb 15, 2010 11:45 am    Post subject: Reply with quote

I'll dig around a little more for you later today I might have another earlier 40hp. I'll check. kim
_________________
"The star of the beetle is still shining with undiminished brightness and you see for yourselves every day what vitality there is hidden in this car..."HeinzNordhoff
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kmichael
Samba Member


Joined: August 11, 2007
Posts: 89
Location: Marin
kmichael is offline

PostPosted: Mon Feb 15, 2010 2:38 pm    Post subject: Reply with quote

I just checked my late 66/early 67 1500 (I know not original motor - it for sure has been apart) engine # H0421... and the crank pulley has similar markings to yours (the little circles all the way around on the face) but no letter "B" as far as I could see. The diameter is like yours - just a hair under 7 inches.
Regards, Kim
_________________
"The star of the beetle is still shining with undiminished brightness and you see for yourselves every day what vitality there is hidden in this car..."HeinzNordhoff
Back to top
View user's profile Send private message Gallery Classifieds Feedback
58Dub
Samba Member


Joined: June 02, 2004
Posts: 1713
Location: Davison, MI
58Dub is offline

PostPosted: Mon Feb 15, 2010 4:06 pm    Post subject: Reply with quote

thats odd. the pulley is from what appears to be the original engine out of a 1960 that has never been apart until now. I suppose I should go with the larger pulley.
_________________
58 Beetle (now just a pile of parts in the corner)
60 Beetle (2221 turbo under construction)
70 Beetle Baja project
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
60ragtop
Bonneville Belt Bitch


Joined: March 13, 2006
Posts: 7800
Location: Big Wonderful WYO 82401
60ragtop is offline

PostPosted: Mon Feb 15, 2010 4:39 pm    Post subject: Reply with quote

I measured the one of my 60 and it is just under 7" and looks like the one on the right has vw logo but no letters.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
58Dub
Samba Member


Joined: June 02, 2004
Posts: 1713
Location: Davison, MI
58Dub is offline

PostPosted: Mon Feb 15, 2010 4:50 pm    Post subject: Reply with quote

so '60 may have a slightly smaller pulley?
_________________
58 Beetle (now just a pile of parts in the corner)
60 Beetle (2221 turbo under construction)
70 Beetle Baja project
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
kmichael
Samba Member


Joined: August 11, 2007
Posts: 89
Location: Marin
kmichael is offline

PostPosted: Mon Feb 15, 2010 6:45 pm    Post subject: Reply with quote

I checked WW and they sell one fan belt for generators listed as app. for 36hp-1600 (?). Don't we remove shims as the belt wears which effectively changes the pulley size. Would the size difference in your two pulleys really make any difference in performance ... Unless of course, you're just trying to get things as correct as possible Wink.
_________________
"The star of the beetle is still shining with undiminished brightness and you see for yourselves every day what vitality there is hidden in this car..."HeinzNordhoff
Back to top
View user's profile Send private message Gallery Classifieds Feedback
58Dub
Samba Member


Joined: June 02, 2004
Posts: 1713
Location: Davison, MI
58Dub is offline

PostPosted: Mon Feb 15, 2010 7:12 pm    Post subject: Reply with quote

more curiosity that function....I'm sure I can make either one work. I just wanted to put the correct one on and the diffenence in size made me question
_________________
58 Beetle (now just a pile of parts in the corner)
60 Beetle (2221 turbo under construction)
70 Beetle Baja project
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Snort
Samba Member


Joined: April 02, 2005
Posts: 1957
Location: Seattle, WA
Snort is offline

PostPosted: Mon Feb 15, 2010 7:29 pm    Post subject: Reply with quote

I have two 36hp motors, one was a factory rebuilt motor and the other is a 59 of unknown origin, and both pulleys are approximately 6 15/16 inches.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
58Dub
Samba Member


Joined: June 02, 2004
Posts: 1713
Location: Davison, MI
58Dub is offline

PostPosted: Mon Feb 15, 2010 7:34 pm    Post subject: Reply with quote

Thanks Snort....
_________________
58 Beetle (now just a pile of parts in the corner)
60 Beetle (2221 turbo under construction)
70 Beetle Baja project
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Flat in the back
Samba Member


Joined: December 02, 2006
Posts: 50
Location: smell A
Flat in the back is offline

PostPosted: Mon Mar 29, 2010 11:40 pm    Post subject: Reply with quote

i'm in the same situation here.. Shocked and i have those two exact pulleys as well! i was going to start a thread about it, but i guess i'm not the only one..

*can't seem to figure out how to post pics on here.. if someone could give me some tips on how to post pics, i could show you pics of my pulleys, thanks.
_________________
2005 Saab 92x Aero: Flat in the front (for sale)
1970 Porsche 914-6: Flat in the middle
1958 Volkswagen Panel Bus: Flat in the back
1989 Volkswagen Vanagon Bluestar: Flat in the back
Back to top
View user's profile Send private message Classifieds Feedback
58Dub
Samba Member


Joined: June 02, 2004
Posts: 1713
Location: Davison, MI
58Dub is offline

PostPosted: Tue Mar 30, 2010 12:03 am    Post subject: Reply with quote

Flat in the back wrote:
i'm in the same situation here.. Shocked and i have those two exact pulleys as well! i was going to start a thread about it, but i guess i'm not the only one..

*can't seem to figure out how to post pics on here.. if someone could give me some tips on how to post pics, i could show you pics of my pulleys, thanks.

between the feedback form 60ragtop and the fact that WW lists a different pulley for 54 - 55, I'm going with the smaller of the two.
_________________
58 Beetle (now just a pile of parts in the corner)
60 Beetle (2221 turbo under construction)
70 Beetle Baja project
Back to top
View user's profile Send private message Send e-mail Facebook Gallery Classifieds Feedback
Flat in the back
Samba Member


Joined: December 02, 2006
Posts: 50
Location: smell A
Flat in the back is offline

PostPosted: Tue Mar 30, 2010 12:25 am    Post subject: Reply with quote

58Dub wrote:
Flat in the back wrote:
i'm in the same situation here.. Shocked and i have those two exact pulleys as well! i was going to start a thread about it, but i guess i'm not the only one..

*can't seem to figure out how to post pics on here.. if someone could give me some tips on how to post pics, i could show you pics of my pulleys, thanks.

between the feedback form 60ragtop and the fact that WW lists a different pulley for 54 - 55, I'm going with the smaller of the two.


ya i was kinda thinking the same.. the flatter looking pulley looks very vintage. looks to me that pulley was made before they figured out how to roll that lip on the edge for more structural..?
_________________
2005 Saab 92x Aero: Flat in the front (for sale)
1970 Porsche 914-6: Flat in the middle
1958 Volkswagen Panel Bus: Flat in the back
1989 Volkswagen Vanagon Bluestar: Flat in the back
Back to top
View user's profile Send private message Classifieds Feedback
Snort
Samba Member


Joined: April 02, 2005
Posts: 1957
Location: Seattle, WA
Snort is offline

PostPosted: Tue Mar 30, 2010 8:03 am    Post subject: Reply with quote

I think VW made some pulley changes that were related to Bus vs. Bug, and some of them were associated with fan and fan shroud changes in the 40hp days. And even though WW only sells one belt, I believe there were other belts made for these pulley changes, but NLA. So we are stuck with a one size fits all belt and must make it work.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
igtoth
Samba Member


Joined: May 09, 2006
Posts: 385
Location: Ribeirão Preto, SP, Brazil
igtoth is offline

PostPosted: Fri Jun 10, 2016 6:04 am    Post subject: Re: 36 hp crank pulleys? Reply with quote

B stands for Brazil, all parts with VW logo and B is VW Brazil.
_________________
1957 Typ 113 - Polarsilver
1959 Typ 113 - Flint Grey
1975 Typ 221 - Last yr Brazilian Split Window

Ighor Toth
Back to top
View user's profile Send private message Gallery Classifieds Feedback
EVfun
Samba Member


Joined: April 01, 2012
Posts: 5446
Location: Seattle
EVfun is offline

PostPosted: Sat Jun 11, 2016 9:45 am    Post subject: Re: 36 hp crank pulleys? Reply with quote

If a later pulley was installed would that mess up the fan belt alignment on a 36 horse engine? It could be a quick way to check if one of the pulleys is from a 40 horse or later.
_________________
Wildthings wrote:
As a general rule, cheap parts are the most expensive parts you can buy.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
h~moto
Samba Member


Joined: November 19, 2008
Posts: 316
Location: Northern Virginia
h~moto is offline

PostPosted: Sat Jun 11, 2016 9:33 pm    Post subject: Re: 36 hp crank pulleys? Reply with quote

From Progressive Refinements: 29 Oct. 58 Crankshaft pulley
Now: oil return thread, triple thread with 6 mm pitch.
Formerly: single trapezoidal thread.
What kind of threads do they have?
Back to top
View user's profile Send private message Gallery Classifieds Feedback
3foldfolly
Samba Member


Joined: March 08, 2009
Posts: 894
Location: Edwardsville, Il
3foldfolly is offline

PostPosted: Sat Jun 11, 2016 9:53 pm    Post subject: Re: 36 hp crank pulleys? Reply with quote

All 36 hp pulleys had an offset of 7/32nds" from the nose of the hub to the back lip of the pulley. Diameter was 7-3/16" from the beginning of 54 through the 59 model year. The diameter was reduced at the beginning of the 1960 model year to 6-63/64". The offset was changed with the introduction of the 40 hp to 23/64". So three 36hp pulleys: 54-55 with larger diameter and non-rolled edge, 56-59 with larger diameter and rolled edge and 1960 smaller diameter with rolled edge.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
