PostPosted: Mon Feb 15, 2010 11:04 am    Post subject: Bosch SR0408X/409X vs HiTorqueIMI-101 gear reduction starter Reply with quote

So looks like my Bosch starter solenoid is on the way out after only 5 years
So when i bought this a back then I found out that http://www.hitorque.com
built a gear reduction starter for amout us$185
and I also see a few co doing rebuild imi-101
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=320466104212

any feeds back from any one who bought either of these starter motors ?

particularly the rebuild units ??
_________________
89 Westy with TDI AHU 1.9 manual lots of mods
85 GL 1.9, auto (for sold)


Last edited by tclark on Thu Feb 18, 2010 12:26 pm; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
presslab
Samba Member


Joined: September 29, 2008
Posts: 1730
Location: Sonoma County
presslab is offline

PostPosted: Mon Feb 15, 2010 11:45 am    Post subject: Re: hitorque.com IMI-101 gear reduction starter Reply with quote

tclark wrote:
So looks like my Bosch starter solenoid is on the way out after only 5 years
So when i bought this a back then I found out that http://www.hitorque.com
built a gear reduction starter for amout us$185
and I also see a few co doing rebuild imi-101
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=320466104212

any feeds back from any one who bought either of these starter motors ?

particularly the rebuild units ??


I tried one when I did the Subaru conversion. It spun the engine too slow. I don't know how it will work on a stock engine but I've never heard much good about these starters.

I have a good Bosch rebuild and it works great. The hot setup these days seems to be the Westyventures TDI starter adapter.

http://www.westyventures.com/parts.html
_________________
1986 Vanagon Westfalia EJ25
1988 Subaru GL-10 EJ20G --- 2000 Honda XR650L
2010 Titus El Guapo --- 2011 On-One 456 Ti
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tclark
Samba Member


Joined: November 21, 2005
Posts: 926

tclark is offline

PostPosted: Mon Feb 15, 2010 2:08 pm    Post subject: Reply with quote

wow is this too good to be true
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=300277150519

NEW Gear reduction for $72 US ???
I wonder if this is this WPS
http://www.thesamba.com/vw/forum/viewtopic.php?p=3470399&highlight=wps#3470399

OK let hear the horror stories
on these guys CALIFORNIA ALTERNATOR AND STARTER
100% Positive feedback hmmm ???
man in the very least its the cost of bosch core that I dont have haha Smile
_________________
89 Westy with TDI AHU 1.9 manual lots of mods
85 GL 1.9, auto (for sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
fatboypaul
Samba Member


Joined: August 24, 2004
Posts: 432
Location: Emeryville, Ca, SF Bay.
fatboypaul is offline

PostPosted: Mon Feb 15, 2010 6:51 pm    Post subject: Reply with quote

Westyventures setup is the way to go, I tried Bosch rebuilts, too many of them, then tried one of Kennedy's HiTorque... it died way too early.
Now the Bosch TDI starter has the power needed to start my Suby.... everytime. Made me trust my Westy again.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rubber Tramp
Samba Member


Joined: October 07, 2008
Posts: 385
Location: DFW, Texas
Rubber Tramp is offline

PostPosted: Mon Feb 15, 2010 9:50 pm    Post subject: Reply with quote

I have TDI starter as well... haven't had the chance to try it out yet though
_________________
1985 SVX powered Westy - soon to be converted to syncro


http://www.thesamba.com/vw/forum/viewtopic.php?t=382910
^^^Rocky Mountain Westy SVX rebuild and conversion^^^
Back to top
View user's profile Send private message Classifieds Feedback
allsierra123
Samba Member


Joined: August 19, 2006
Posts: 1462
Location: Tecate, Baja California MX
allsierra123 is offline

PostPosted: Mon Feb 15, 2010 9:57 pm    Post subject: Reply with quote

I have the ebay gear reduction on my TD and have yet to have any trouble with it. Works very nicely
_________________
95 GMC Yukon 6.5 TD 2 Door Tow pig/ Daily driver.
91 Vanagon GL. 1.9TD Conversion Sold
81 Vw rabbit 1.6 Diesel. Sold
Back to top
View user's profile Send private message Classifieds Feedback
BlackDogVan
Samba Member


Joined: December 21, 2007
Posts: 855
Location: Vancouver Island
BlackDogVan is offline

PostPosted: Mon Feb 15, 2010 10:49 pm    Post subject: Reply with quote

allsierra123 wrote:
I have the ebay gear reduction on my TD and have yet to have any trouble with it. Works very nicely


Do you need some glow on a warm start?? Mine did until the WV tdi starter setup, definitely the way to go IMHO. Gear red justy didn't have the poop...
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tclark
Samba Member


Joined: November 21, 2005
Posts: 926

tclark is offline

PostPosted: Tue Feb 16, 2010 7:12 am    Post subject: Reply with quote

BlackDogVan wrote:

Do you need some glow on a warm start?? Mine did until the VW tdi starter setup, definitely the way to go IMHO. Gear red just didn't have the poop...

BD - are you saying this about the ebay made in china SR0408X
or about the crap bosch reman starters for the the wbx'ers ?
_________________
89 Westy with TDI AHU 1.9 manual lots of mods
85 GL 1.9, auto (for sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tclark
Samba Member


Joined: November 21, 2005
Posts: 926

tclark is offline

PostPosted: Wed Feb 17, 2010 1:04 pm    Post subject: Reply with quote

Just to close this out yes this ebay starter motor
http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=300277150519

is a WPS(WAIglobal and Transpo Electronics) Unit
they are sourced from http://www.wai-wetherill.com/
looks like they also have an online partplace http://www.wpsparts.com/
and its part 2-1974-BO aka the SR0409X
http://search.waiglobal.com/partsearch/partnum.aspx?part=2-1974-BO

interesting is that 2-1890-BO spec is 1.8KW aka the SR0408X
http://search.waiglobal.com/partsearch/partnum.aspx?part=2-1890-BO
_________________
89 Westy with TDI AHU 1.9 manual lots of mods
85 GL 1.9, auto (for sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wcdennis
Samba Member


Joined: July 20, 2004
Posts: 954
Location: Winston-Salem NC
wcdennis is offline

PostPosted: Wed Feb 17, 2010 6:48 pm    Post subject: Reply with quote

I just bought one of those eBay starters and the Westy Ventures adapter for my 2.2L Subaru powered '84. I have the hot start problem, but never to the point that the engine won't start--although sometimes it just barely makes it. This can be exciting when you accidentally stall it at a crowded intersection. I will report back after I install it.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
kenwilfy
Samba Member


Joined: February 14, 2004
Posts: 107
Location: Millville, NJ
kenwilfy is offline

PostPosted: Wed Feb 17, 2010 6:56 pm    Post subject: Hi Torque starter Reply with quote

Because they are gear reduction starters they actually turn the engine over exactly half as fast as the stock starters (I forget how I figured this out). They sacrifice spinning speed for torque. I had a customer come in with one of these he bought from a vendor before he came to me. I installed it and then he came back about a year later. Wow this thing turned into a rusted pile of poop in that one year. The warranty was over and so was the starter. I put a Bosch rebuilt unit back on and it is still going strong. What do I put on my Vanagons? Bosch rebuilt starters. They are the best. They are expensive but they usually go the distance versus any other rebuilt starter out there. I tried a few Advance Auto starters when I was first starting out. Can you say "Spray Paint" rebuild? They didn't even a full week out of them before they were acting worse than the old one I took off. Yes they have a lifetime warranty but who wants to spend their lifetime changing them? Not me.
_________________
Thanks,
Ken Wilford
John 3:16
www.vanagain.com
856-327-4936
Back to top
View user's profile Send private message Send e-mail Visit poster's website Classifieds Feedback
Tristar Eric
Samba Member


Joined: July 25, 2004
Posts: 1241
Location: Portland, Or
Tristar Eric is offline

PostPosted: Wed Feb 17, 2010 6:59 pm    Post subject: Reply with quote

I just installed my TDI starter on my Syncro Doka. I have the trans out, so it's way easier. Here's the thing, don't expect this thing to be changed easily when it's in. The diff lock bracket is notched to allow the starter to sit right on it. Then the diff lock switch is so close that it was not easily tightened.
I'm crossing my fingers that I won't be back in there for a while, but it might just be easier to drop the trans in the future to access the starter.

TDI Power coming soon!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
tclark
Samba Member


Joined: November 21, 2005
Posts: 926

tclark is offline

PostPosted: Thu Feb 18, 2010 1:57 am    Post subject: Reply with quote

wcdennis wrote:
I just bought one of those eBay starters and the Westy Ventures adapter I will report back after I install it.

Any chance you might want to take the starter case apart b4 you install
and confirm the 'design flaw' that buffbuh claims in this thread
(Also he did not get the 2KW model he claims to of got 2-1890-BO 1.8KW)?
http://www.thesamba.com/vw/forum/viewtopic.php?p=4395099#4395099

and take pics so the collective sambanistas sp ? can weight in in this on this China junk theory ?
_________________
89 Westy with TDI AHU 1.9 manual lots of mods
85 GL 1.9, auto (for sold)


Last edited by tclark on Thu Feb 18, 2010 11:11 am; edited 1 time in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Thu Feb 18, 2010 9:43 am    Post subject: Reply with quote

Dang, it seems there almost is NO perfect starter!

So what do I use?

TDI?

or

Porsche?

Anybody have some part numbers so I can find a Porsche one to use with my automatic and Suby?????

At least that bolts in and we know several local Porsche shops as trade partners.
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BlackDogVan
Samba Member


Joined: December 21, 2007
Posts: 855
Location: Vancouver Island
BlackDogVan is offline

PostPosted: Thu Feb 18, 2010 9:47 am    Post subject: Reply with quote

tclark wrote:
BlackDogVan wrote:

Do you need some glow on a warm start?? Mine did until the VW tdi starter setup, definitely the way to go IMHO. Gear red just didn't have the poop...

BD - are you saying this about the ebay made in china SR0408X
or about the crap bosch reman starters for the the wbx'ers ?


I meant my OEM TDI Bosch starter on my AAZ makes me feel the same as when I'd climb the rope in gym class...

The gear reduction unit didn't have the poop to spin the engine over fast enough to start a warm engine without a wee bit of glow plug. Now all go, no glow.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tclark
Samba Member


Joined: November 21, 2005
Posts: 926

tclark is offline

PostPosted: Thu Feb 18, 2010 9:53 am    Post subject: Reply with quote

r39o wrote:
Dang, it seems there almost is NO perfect starter!

r39o the above post is only in reference to the wps clones of the
SR0408X/SR0409X, you can get brand new life time warranty
for 350-400 Bosch units + the $70 adapter
_________________
89 Westy with TDI AHU 1.9 manual lots of mods
85 GL 1.9, auto (for sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Gauche1968
Samba Member


Joined: April 13, 2006
Posts: 1518

Gauche1968 is offline

PostPosted: Thu Feb 18, 2010 8:39 pm    Post subject: Reply with quote

This issue of the gear reduction starters is intriguing me, because I bought one of the Hi Torque starters in Spring 2007, just before GoWesty stopped carrying them due to declining quality standards from the manufacturer. I haven't had a problem with it since, so I am wondering if I got lucky and got one of the good ones or if I am sitting on a time bomb? Question
_________________
1984 Vanagon GL
1984 Vanagon Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
wcdennis
Samba Member


Joined: July 20, 2004
Posts: 954
Location: Winston-Salem NC
wcdennis is offline

PostPosted: Fri Feb 19, 2010 4:49 pm    Post subject: Reply with quote

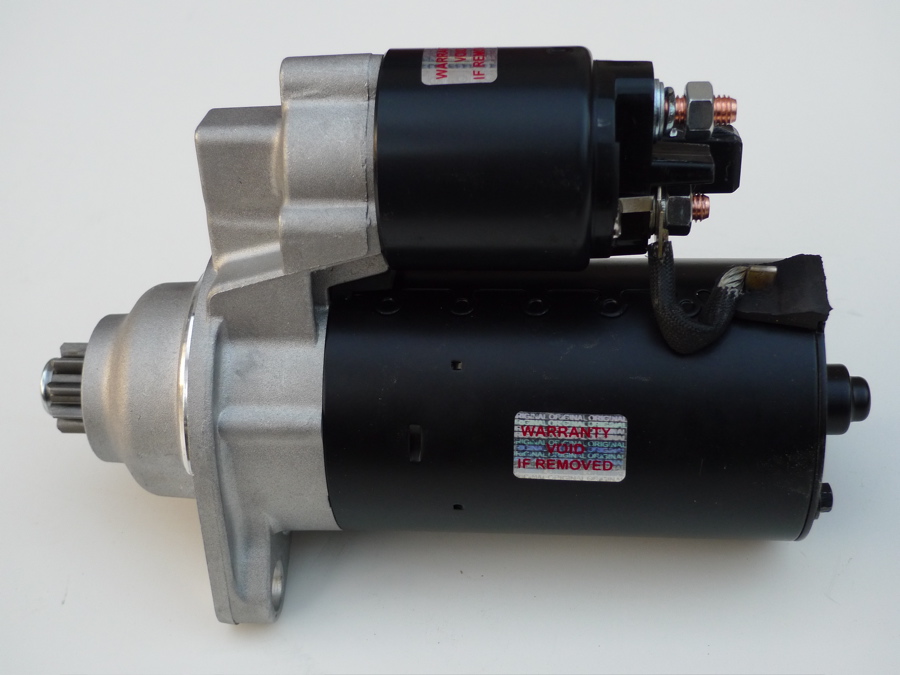

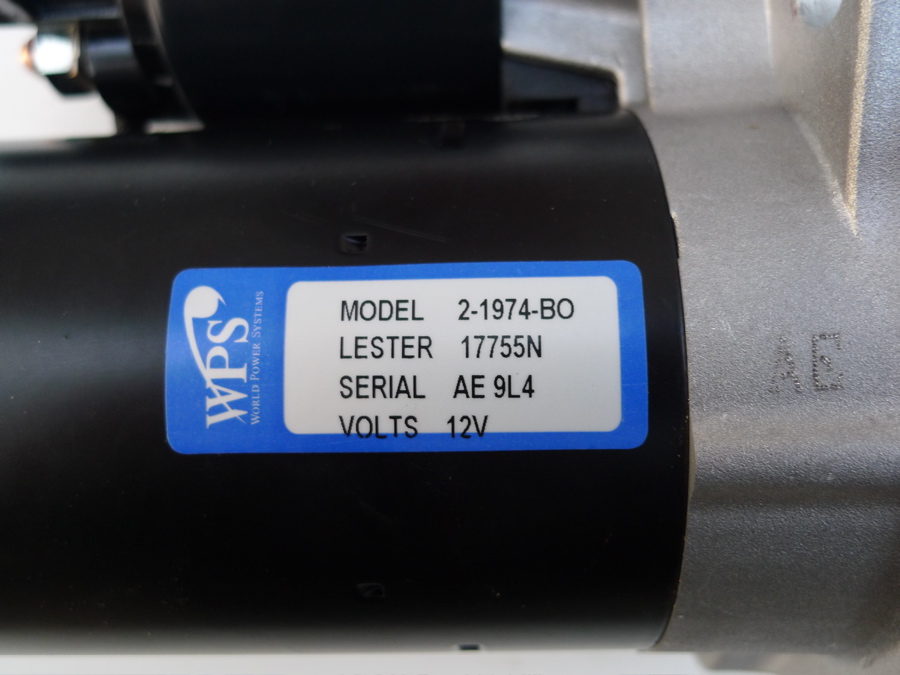

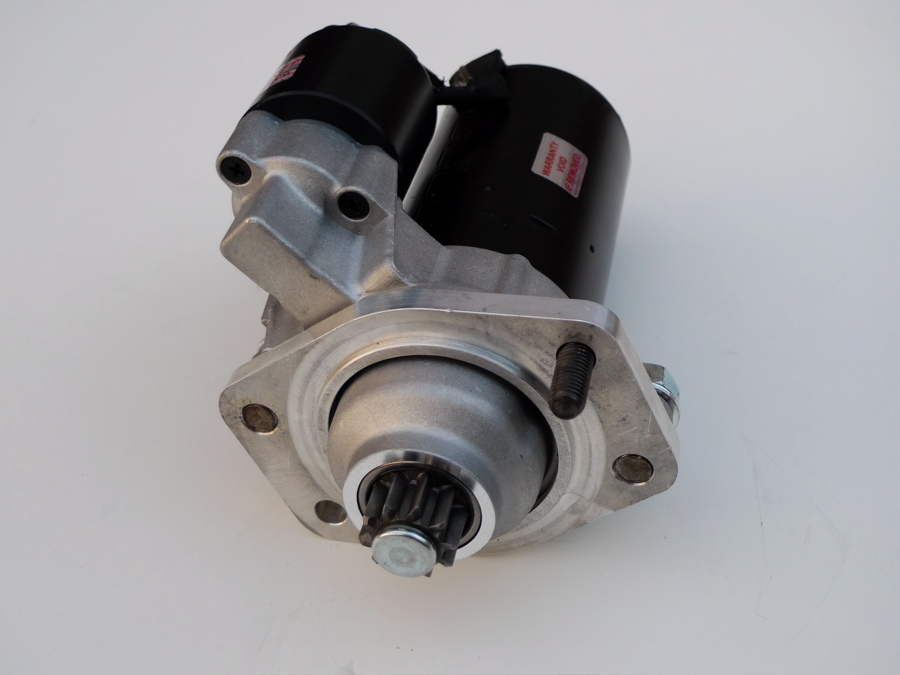

Here are some photos of the eBay WPS SR0408X starter and WestyVentures adapter:

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

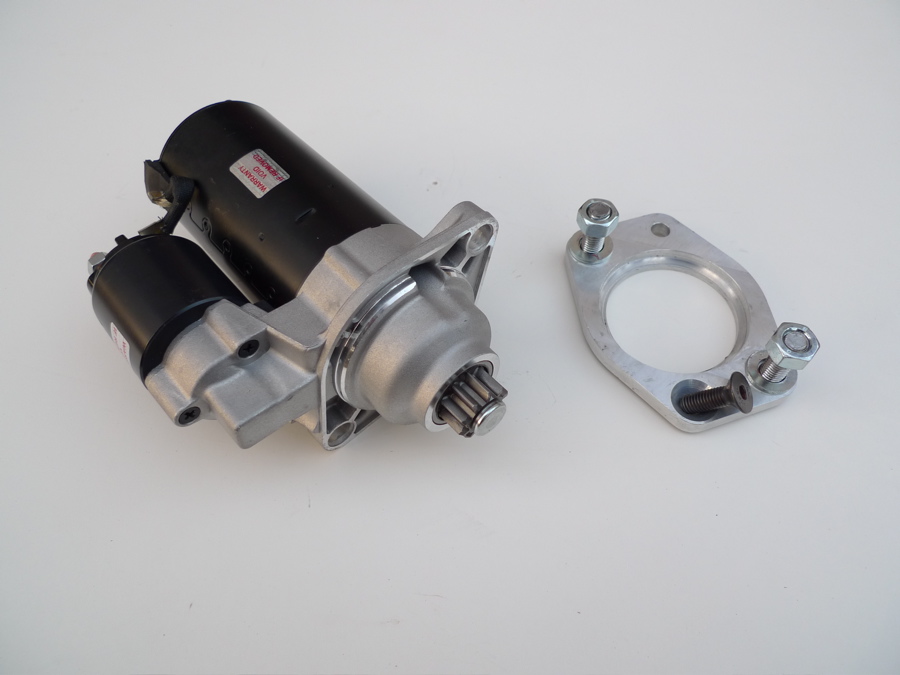

Here it is with the adapter plate:

Image may have been reduced in size. Click image to view fullscreen.


Here is the adapter mounted on the starter:
Image may have been reduced in size. Click image to view fullscreen.


Here is the testing video:

Link


All I can say now, is that it works. I haven't decided if I will try to take it apart before I install it and see what the internals look like.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Fri Feb 19, 2010 5:59 pm    Post subject: Reply with quote

BlackDogVan wrote:
tclark wrote:
BlackDogVan wrote:

Do you need some glow on a warm start?? Mine did until the VW tdi starter setup, definitely the way to go IMHO. Gear red just didn't have the poop...

BD - are you saying this about the ebay made in china SR0408X
or about the crap bosch reman starters for the the wbx'ers ?


I meant my OEM TDI Bosch starter on my AAZ makes me feel the same as when I'd climb the rope in gym class...

The gear reduction unit didn't have the poop to spin the engine over fast enough to start a warm engine without a wee bit of glow plug. Now all go, no glow.


What I meant was the relationship between the high power slow turn and adapter verses the Porsche starter. This automatic centric, though.

I don't know if I want a TDI starter or a 911 starter. Both will basically be free excepting if I get one that needs the adapter. But, my total cost will be very low. I just do not want to have to fix it again, if possible.
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
tclark
Samba Member


Joined: November 21, 2005
Posts: 926

tclark is offline

PostPosted: Wed Feb 24, 2010 11:34 pm    Post subject: Reply with quote

wcdennis wrote:
Here are some photos of the eBay WPS SR0408X starter and WestyVentures adapter:

Just FYI that is not a SR0408X
http://search.waiglobal.com/partsearch/partsearch.aspx?part=SR0408X&Submit=Go
its a SR0409X 2Kw
http://search.waiglobal.com/partsearch/partnum.aspx?part=2-1974-BO
the SR0408X is this one 1.8Kw
http://search.waiglobal.com/partsearch/partnum.aspx?part=2-1890-BO
and FYI again buffbuh bought the 2-1890-BO
might not make a diff in build quality but he did not buy the exact same unit
_________________
89 Westy with TDI AHU 1.9 manual lots of mods
85 GL 1.9, auto (for sold)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
