Early Bay - replace your cot with a bed - How To + pics! FAQ
Page: 1, 2  Next
Forum Index -> Bay Window Bus Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
jrehm
Samba Member


Joined: March 13, 2008
Posts: 53
Location: on the road permanently
jrehm is offline

PostPosted: Sun Mar 07, 2010 6:56 pm    Post subject: Early Bay - replace your cot with a bed - How To + pics! FAQ Reply with quote

I just couldn't imagine comfortably sleeping on the cot that was originally installed in the pop top of my 1971 Westfalia. I'm sure I did it as a kid with no complaints, but letís just say that my sleeping requirements have evolved over the years.

I decided to take out the cot and replace it with a custom padded sleeping platform. The goal was something that would give me the full pop top area for sleeping, but not take up any additional room in the bus. It would re-purpose the old sunroof area for storage of the platform.

Click the photos to link to bigger versions (and click those)

bigger

Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.




It wasn't too hard, but there were a few minor details that couldn't be overlooked. First, the profile of the old sunroof area is arched, which meant that I wouldn't be able to just buy something and slide it in - I'd have to fabricate it myself. So, I made a glue-lam.

It's got about 2" of dense padding, so it's actually pretty comfortable. It could be better, but... at least it's not a cot. It's upholstered in vinyl and just tacked along the edges with staples. I trimmed the outer edge (facing forward) with some nylon and attached it with screws and finish washers. This hides the staples, and more importantly, gives me a handle to grab when sliding it out.

Finally, I decided I needed a hatch. No need to slide the thing back and forth every time we wanted to go up and down. Just pop up and down through the hatch. Aluminum bar stock provides the support and trims the hole pretty well.

Is it sturdy? You can jump up and down on it. It's solid as a rock.

The best part is that my son can crawl up top, close the hatch, and we all have our privacy.

Unfortunately, I didn't take photos of the assembly process, so a description will hopefully suffice. It's not hard, but takes some time - and can be kicked out as a moderate weekend project.

bigger


Image may have been reduced in size. Click image to view fullscreen.


Image may have been reduced in size. Click image to view fullscreen.




1. Get the stuff. you'll need:
-1/8" or 3 mm plywood. I used cheapy Luaun from a big-box hardware store. 3 4'x8' sheets.
-2"x4"x8' - two of them. these are used for the form.
-Wood glue. One gallon jug. When else are you going to buy this much glue?
-wood screws - 2" - maybe 40 of them.
-2" aluminum bar stock. 2 of them, 4' sections. you don't need this if you don't want a hatch.
- jigsaw, and/or circular saw. Drill.
-trim, staples, and upholstery stuff. you decide what you want.


2. Cut the sheets for the platform layers - I made 6 layers. I think I cut them to 39" x 48". Leave some slop and you will trim it to fit later. Alternate the grain pattern for each sheet so your glue lam will be stronger.

3. Make the forms. Cut your 2"x4"s to about 40" length (slop okay.) You'll need 4 of them. Draw an arc with 1" of curvature across the length of the 2x4. Cut it using a jigsaw or circular saw. I used a circular saw and it turned out fine - a little slop is okay here too (the plywood can only bend so much) - you're going to screw the plywood into these to make the arched platform shape while it's drying.

4. Lay out your forms so you can put your plywood on top and bend it over the arch. Pretend you're making an airplane wing. Get your glue and a paintbrush and start evenly covering the plywood and stack them up. It's messy. Maybe put down some plastic or Saran over your forms so you don't glue the plywood to the forms.

5. Once everything is stacked up, start screwing the plywood down into the forms. The screws will hold the entire thing in place and force it around the arch while it's drying. Sure, you'll have some holes in your platform, but they're small and easily covered with wood putty. I can't see mine. The top section that you're probably standing on will be covered in padding and upholstery.

6. Clean up as much glue as possible - you've made a huge gooey mess on your garage floor. Don't worry about a little slipping and sliding between each plywood layer - you cut them with some slop and will trim to fit later.

7. Let it dry overnight. Come back the next day and take out all the screws. and remove from the forms. Admire your work. Jump up and down on it and convince yourself it's as strong as hell.

8. Now, go to your bus and measure your sunroof *exactly* before trimming to the final size. mine is 39"x48", but don't take my word for it. Use a jigsaw to trim and then sand the edges smooth. Test fit and make sure it slides all the way in and comes out just right. Trim again if needed. You might have to shape the ends a bit to get around the pop-top tie-down brackets in the front.

9. Add the hatch if you want it. Cut how you like. I made mine 18"x18" and it's just over the sink for climbing in and out easily. See the photos for how the aluminum bar stock supports the hatch - it's not adding strength to the platform.

10. Upholstery and padding is up to you. Adding the hatch will make the upholstery job a little more difficult. Otherwise, it's just cover and staple. Sanding and staining or painting the bottom side beforehand is up to you.

11. I highly recommend some sort of handle to make pulling it out a easy. I used a nylon strap.

12. I made another padded section (1" foam, covered in vinyl) for the rest of the roof. It's basically a large thin pillow and is easy to sew.

13. Install. Lay down and enjoy! Roomy, isn't it?


We're currently using this thing every single day on our epic road trip to South America. See it in use here: www.BodesWell.com


There are a few things I may have done differently, so consider this:

1. It's too strong. It's also a little heavy - not bad - but it could be lighter. I would probably make it only 4 layers next time, since my son is the primary user. I might also consider making it only 2 layers and reinforcing with fiberglass for the lightest possible sturdy platform. Obviously more work, but might be worth the effort.

2. I wanted to put some sort of hinge on the hatch. I couldn't think of anything I liked, so just left it free floating and it rests on the aluminum bars for support. This works really well, but there might be a more elegant solution.

Cheers and enjoy.

Jason
_________________
Driving around the Americas in a '71 Westy. Eight years and twenty-two countries so far.

follow our misadventures: www.bodeswell.com
-------------------------------------------------------


Last edited by jrehm on Sun Mar 07, 2010 7:19 pm; edited 1 time in total
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
calebmelvin Premium Member
Samba Member


Joined: July 19, 2006
Posts: 2739
Location: Seattle
calebmelvin is offline

PostPosted: Sun Mar 07, 2010 7:04 pm    Post subject: Reply with quote

Nice idea! Now its like his own little fort Very Happy
_________________
Caleb
'66 Manx Build | Old VW Builds: '69 '71 '71
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
skid
Samba Member


Joined: January 16, 2009
Posts: 1329
Location: Vancouver, BC
skid is offline

PostPosted: Sun Mar 07, 2010 7:53 pm    Post subject: Reply with quote

Pretty rad!
_________________
'71 Westfalia
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
JT's Westy
Samba Member


Joined: February 25, 2010
Posts: 65
Location: San Francisco
JT's Westy is offline

PostPosted: Mon Mar 08, 2010 8:50 pm    Post subject: Thanks Reply with quote

I was thinking about something like this when I was remodeling the interior of my '71 Westy last summer. I'm going to do this.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jrehm
Samba Member


Joined: March 13, 2008
Posts: 53
Location: on the road permanently
jrehm is offline

PostPosted: Wed Mar 10, 2010 2:43 pm    Post subject: Reply with quote

the link to the bigger photos was broken - now fixed!
_________________
Driving around the Americas in a '71 Westy. Eight years and twenty-two countries so far.

follow our misadventures: www.bodeswell.com
-------------------------------------------------------
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
notchboy
Samba Member


Joined: April 27, 2002
Posts: 17884
Location: Escondido CA
notchboy is offline

PostPosted: Wed Mar 10, 2010 5:54 pm    Post subject: Reply with quote

Did you see the continental thread?

http://www.thesamba.com/vw/forum/viewtopic.php?t=275900&highlight=continental

Yours is good to, gives me more than one idea-thanks for sharing.
_________________
t3kg wrote:

OK, this thread is over. You win.

Jason "notchboy" Weigel
1964 1500 S
1964 T34 S Convertible
1974 Westfalia Hardtop Campmobile
1977 Westfalia Camper pop-top
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
dirigible
Samba Member


Joined: September 28, 2009
Posts: 184
Location: Sudbury, ON Canada
dirigible is offline

PostPosted: Tue Jul 27, 2010 11:26 am    Post subject: Reply with quote

Thread alive! <whoooosh!>

It's hard to tell in your photos--is the cushion on the slide-out section that covers the hole flush with the part of the cushion that stays permanently on the roof? If so, how did you do this? Does the part that covers the hole rest on the lip around the hole, or do you raise it to rest on the roof after pulling it out?

Thanks!
_________________
'71 Campmobile.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jrehm
Samba Member


Joined: March 13, 2008
Posts: 53
Location: on the road permanently
jrehm is offline

PostPosted: Thu Jul 29, 2010 8:45 am    Post subject: Reply with quote

It's flush.

The cushion that covers the roof is thin - about 1" foam padding. It's really all you can put there anyway, since the top always has to close down on it.

The padding on the sliding part is closer to 2" - this is the most I could add and still have it fit in the slot. I slide it out and rest it on the sunroof lip - not the roof itself - and the cushions align perfectly.
_________________
Driving around the Americas in a '71 Westy. Eight years and twenty-two countries so far.

follow our misadventures: www.bodeswell.com
-------------------------------------------------------
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
TheLoren
Samba Member


Joined: February 21, 2010
Posts: 100
Location: Rancho Cordova
TheLoren is offline

PostPosted: Thu Jul 29, 2010 9:23 am    Post subject: Reply with quote

I"m curious to see what it looks like all put away and the pop top down. could you post a picture of that?

And do you find that you end up on the sides of the bed due to the arch?
_________________
1970 westy
Back to top
View user's profile Send private message Classifieds Feedback
aliennetwork
Samba Member


Joined: May 27, 2009
Posts: 458
Location: Aiken, SC
aliennetwork is offline

PostPosted: Thu Jul 29, 2010 10:03 am    Post subject: Reply with quote

Good work, man!

Makes me think of this one

http://www.thesamba.com/vw/forum/viewtopic.php?t=354101
_________________
M-Plate

Desertbusman wrote:
So if you carry a spare starter it will be some other part you don't carry that will fail. Just tow a spare bus.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jrehm
Samba Member


Joined: March 13, 2008
Posts: 53
Location: on the road permanently
jrehm is offline

PostPosted: Sat Feb 12, 2011 8:02 am    Post subject: Reply with quote

TheLoren wrote:
I"m curious to see what it looks like all put away and the pop top down. could you post a picture of that?

And do you find that you end up on the sides of the bed due to the arch?


Sorry for the long delay... but here is a pic of the top down. Not much to see. In the front, I just drop the top down on the cushion. the blue thing in the photo is my son's sleeping bag, so there is actually a little bit more room for towels, etc (storage everywhere!). In the back, it's just like the second photo in the first post, but with the top down - it slides in the slot and it out of the way.

As far as the slight arch goes, I slept on it last night and have no complaints Wink

Image may have been reduced in size. Click image to view fullscreen.

bigger photo
_________________
Driving around the Americas in a '71 Westy. Eight years and twenty-two countries so far.

follow our misadventures: www.bodeswell.com
-------------------------------------------------------
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
RocketSurgeon
Samba Member


Joined: May 26, 2005
Posts: 429
Location: Roseville, CA
RocketSurgeon is offline

PostPosted: Sat Nov 10, 2012 11:13 pm    Post subject: Reply with quote

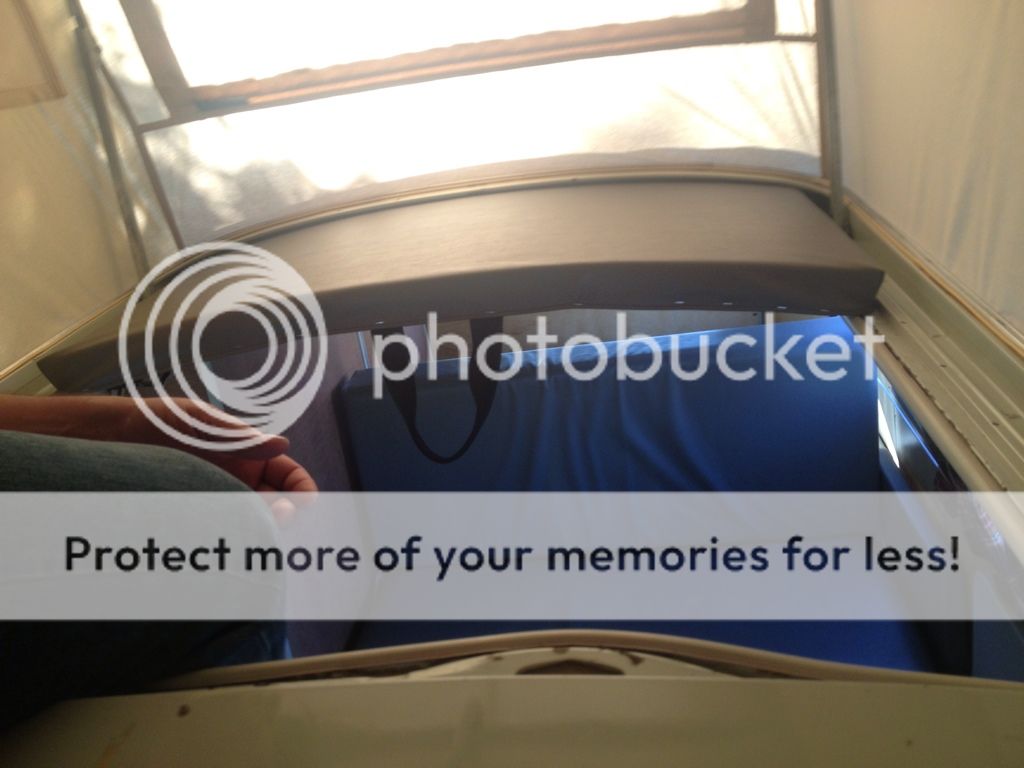

I have admired this idea since I first saw it. I knew I had to make one for myself. So far I have only finished the main platform, but the other cushion will be easy to make. I think I went a little different with the amount of arch and I'm not planning on adding a hatch ( it's only going to be used a few times a year). Also I only went 4 ply. I'm a fat guy (230) plus my kid (30) and even with both of us up there this thing does not budge! It's rock solid! Can't wait to get some use out of it in the spring. I Took plenty of build pics if any one is interested. Thanks again for the inspiration Jason!
Image may have been reduced in size. Click image to view fullscreen.

Image may have been reduced in size. Click image to view fullscreen.

Any one else tackle this project?
_________________
69 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Squarebob
Samba Member


Joined: January 23, 2005
Posts: 34
Location: Edmonton Alberta Canada
Squarebob is offline

PostPosted: Fri Nov 16, 2012 2:40 pm    Post subject: Reply with quote

Awesome idea, thanks Jason for sharing it. -- it's definitely on my project list for this winter. With some mustard-vinyl it could even look like original equipment. Cool

Thanks also RocketSurgeon for posting yours and bumping this thread back to the top where I spotted it. I'm interested in your build pics, I'll PM my email address.
_________________
'56 Beetle
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RocketSurgeon
Samba Member


Joined: May 26, 2005
Posts: 429
Location: Roseville, CA
RocketSurgeon is offline

PostPosted: Fri Nov 16, 2012 9:04 pm    Post subject: Reply with quote

Message sent
_________________
69 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RocketSurgeon
Samba Member


Joined: May 26, 2005
Posts: 429
Location: Roseville, CA
RocketSurgeon is offline

PostPosted: Sun Nov 18, 2012 6:29 pm    Post subject: Reply with quote

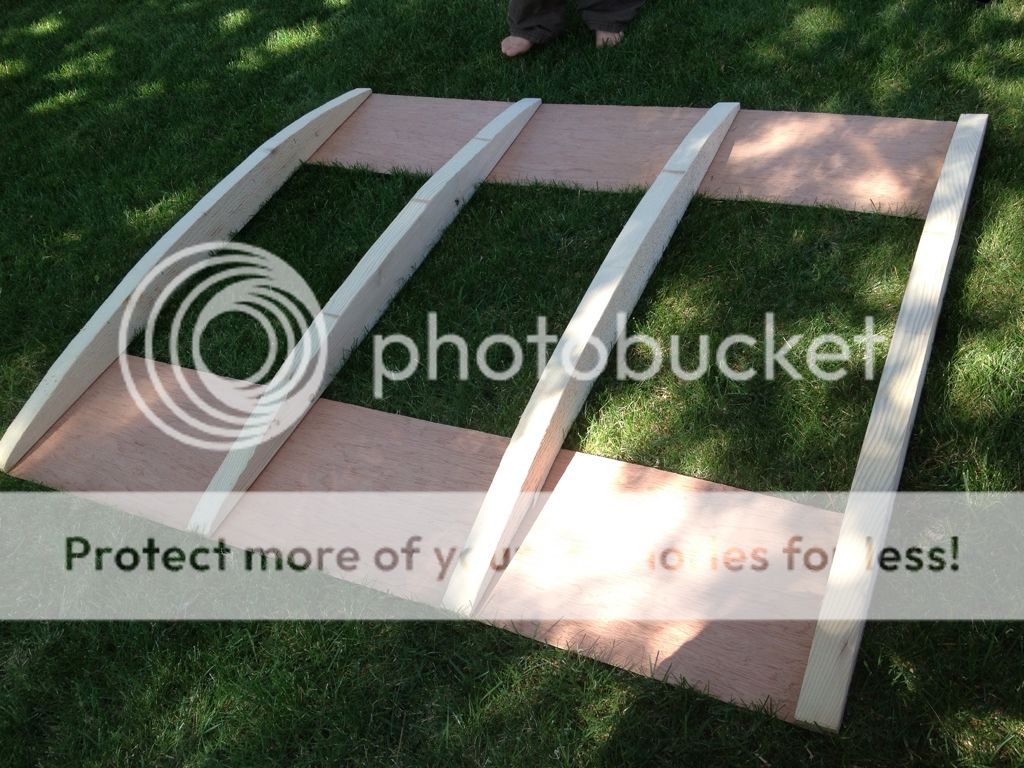

Anyone local(Sacramento-San Francisco) want the frame I used to make the glue-lam?
Image may have been reduced in size. Click image to view fullscreen.

I feel bad just tossing it.
_________________
69 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Klaussinator
Samba Member


Joined: June 17, 2008
Posts: 1111
Location: Virginia
Klaussinator is offline

PostPosted: Sun Nov 18, 2012 6:59 pm    Post subject: Reply with quote

Looks to me like you're all ready to go into production . . . taken any orders yet?!? Cool

-Klauss
_________________
I have taken a vow of poverty. To annoy me, send money!
____________________________________________
the Klaussinator - `73 hardtop Bay custom-built camper
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
RocketSurgeon
Samba Member


Joined: May 26, 2005
Posts: 429
Location: Roseville, CA
RocketSurgeon is offline

PostPosted: Sun Nov 18, 2012 10:19 pm    Post subject: Reply with quote

Klaussinator wrote:
Looks to me like you're all ready to go into production . . . taken any orders yet?!? Cool

-Klauss

Haha!
Coming spring 2013!!! Very Happy
_________________
69 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jrehm
Samba Member


Joined: March 13, 2008
Posts: 53
Location: on the road permanently
jrehm is offline

PostPosted: Mon Nov 19, 2012 8:40 am    Post subject: Reply with quote

RocketSurgeon wrote:
Can't wait to get some use out of it in the spring.?


Nice work! Glad to hear it worked out so well! Next time, I'm going 3 layers!
_________________
Driving around the Americas in a '71 Westy. Eight years and twenty-two countries so far.

follow our misadventures: www.bodeswell.com
-------------------------------------------------------
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
pioneer1
Samba Member


Joined: February 11, 2008
Posts: 1757
Location: Ontario Canada
pioneer1 is offline

PostPosted: Tue Nov 20, 2012 9:20 am    Post subject: Reply with quote

[quote="jrehm I slide it out and rest it on the sunroof lip - not the roof itself - and the cushions align perfectly.[/quote]
I've been looking at these pictures trying to figure out where this "sunroof lip" is on my Canadian '73 Westy-alas no lip! back to the continental kit plan I guess.
_________________
"Always waiting for tomorrow ruined everything"

'85 Porsche 911 Targa

'76 Westfalia project
79 Westfalia
Back to top
View user's profile Send private message Gallery Classifieds Feedback
jrehm
Samba Member


Joined: March 13, 2008
Posts: 53
Location: on the road permanently
jrehm is offline

PostPosted: Tue Nov 20, 2012 9:28 am    Post subject: Reply with quote

If memory serves me correctly, '72 was the last year that Westfalia conversions were based on the sunroof model kombi. Starting in '73, they used a normal bus and cut off the top and installed a full bed as standard. So, you shouldn't need to do this conversion - you should already have a double bed up there!
_________________
Driving around the Americas in a '71 Westy. Eight years and twenty-two countries so far.

follow our misadventures: www.bodeswell.com
-------------------------------------------------------
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Bay Window Bus All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
