Shocks for lift springs
Page: 1, 2  Next
Forum Index -> Vanagon Share: Facebook Twitter
Reply to topic
Print View
Quick sort: Show newest posts on top | Show oldest posts on top View previous topic :: View next topic
Author Message
Zero419
Samba Member


Joined: January 11, 2008
Posts: 2160
Location: PA
Zero419 is offline

PostPosted: Tue Apr 06, 2010 4:57 pm    Post subject: Shocks for lift springs Reply with quote

I ordered the 2wd GW lift springs from Van Cafe today (along with 1,500 bucks worth of stuff)
I want the Koni's, but due to the recent reports explaining topping out, I am not going to take the chance.
What is the second best shock out there that will meet my needs?

Thanks.
_________________
1987 Westy Auto Bostig 2.0 Ztec
Back to top
View user's profile Send private message Gallery Classifieds Feedback
RCB
Samba Member


Joined: September 05, 2005
Posts: 4143
Location: San Francisco-Bay Area
RCB is offline

PostPosted: Tue Apr 06, 2010 5:41 pm    Post subject: Reply with quote

See nothing wrong with the Bilsteins.
Back to top
View user's profile Send private message Send e-mail Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Tue Apr 06, 2010 6:17 pm    Post subject: Reply with quote

Recent posts also state that VC says the Konis are fine with the GW springs.....

I *AM* confused.

See post by pighamling in http://www.thesamba.com/vw/forum/viewtopic.php?t=406870&highlight=koni
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
1621
Samba Member


Joined: May 15, 2006
Posts: 2174

1621 is offline

PostPosted: Tue Apr 06, 2010 8:00 pm    Post subject: Reply with quote

Bilstiens are nice, and you can have them "tuned" to your specifications should you desire a firmer ride.
_________________
'85 Westy
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5374
Location: PNW
Christopher Schimke is offline

PostPosted: Tue Apr 06, 2010 10:27 pm    Post subject: Reply with quote

r39o wrote:
Recent posts also state that VC says the Konis are fine with the GW springs.....

I *AM* confused.

See post by pighamling in http://www.thesamba.com/vw/forum/viewtopic.php?t=406870&highlight=koni



According to 1621's measurements, the Konis are 6.5mm shorter at full extension over the Bilsteins. That equates to roughly 12mm less downward travel at the centerline of the wheel (30mm offset). While that is not a huge amount, it is enough to prove that there will be less downward travel with the Konis, which means that "topping out" will occur sooner compared to the Bilsteins. Whether or not that difference is detrimental to the function of the suspension during normal use, I don't know.

I know a guy with Bilsteins combined with the GW springs and he hates that combo. He feels that the van is too wallowy feeling...not enough control over the spring. I'm really happy with my cheap NAPA shocks/stock GL springs, but I have no idea how they would behave with the GW springs.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
SSWesty
Samba Member


Joined: August 20, 2008
Posts: 732
Location: Bellevue
SSWesty is offline

PostPosted: Tue Apr 06, 2010 10:58 pm    Post subject: Reply with quote

I have about 10k miles on gowesty lift springs and heavy duty bilsteins. The combo was a big improvement of over stock and I don't notice any negative traits that concern me. They seem to perform well empty, loaded and towing. I am a pretty mellow driver so my experience may be a bit sheltered.

Steve
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ryan Alfonso
Samba Member


Joined: March 23, 2007
Posts: 101
Location: Half Moon Bay, CA
Ryan Alfonso is offline

PostPosted: Tue Apr 06, 2010 11:34 pm    Post subject: Reply with quote

quite pleased with my bilstien GW/H&R spring combo. no topping out/bottoming out the shocks. going on about a year or so with this set up. other than the parking garage hassles associated with having a 7 foot tall vehicle, there's no downside I can see.
Back to top
View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger Gallery Classifieds Feedback
Zero419
Samba Member


Joined: January 11, 2008
Posts: 2160
Location: PA
Zero419 is offline

PostPosted: Wed Apr 07, 2010 5:20 am    Post subject: Reply with quote

Response from Koni Rep.

Mike, sorry we don't have anything like that.

-----Original Message-----

From: (hero419)
Address:
Phone:
Fax:
Comments: I have a 1987 VW Vanagon that I plan on adding lift springs to. Do you have a shock that will accommodate 2" higher than stock?
Thanks
Mike
_________________
1987 Westy Auto Bostig 2.0 Ztec
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5374
Location: PNW
Christopher Schimke is offline

PostPosted: Wed Apr 07, 2010 7:29 am    Post subject: Reply with quote

loogy wrote:

I know a guy with Bilsteins combined with the GW springs and he hates that combo. He feels that the van is too wallowy feeling...not enough control over the spring. I'm really happy with my cheap NAPA shocks/stock GL springs, but I have no idea how they would behave with the GW springs.



SSWesty wrote:
I have about 10k miles on gowesty lift springs and heavy duty bilsteins. The combo was a big improvement of over stock and I don't notice any negative traits that concern me. They seem to perform well empty, loaded and towing. I am a pretty mellow driver so my experience may be a bit sheltered.

Steve



Ryan Alfonso wrote:
quite pleased with my bilstien GW/H&R spring combo. no topping out/bottoming out the shocks. going on about a year or so with this set up. other than the parking garage hassles associated with having a 7 foot tall vehicle, there's no downside I can see.



And herein lies part of the problem when discussing shocks. Topping or bottoming out are things that I think we can all agree upon as being something that needs to be avoided, but the way that a particular shock makes a vehicle feel is totally personal and subjective to other factors including tires and tire pressures.

I agree that it always good to gather information based on other people's experiences, but at the end of the day it all comes down to personal preference and without first had experience with a particular shock, there is no way to know for sure that it will be to your liking.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Wed Apr 07, 2010 8:41 am    Post subject: Reply with quote

loogy wrote:

I know a guy with Bilsteins combined with the GW springs and he hates that combo. He feels that the van is too wallowy feeling...not enough control over the spring. I'm really happy with my cheap NAPA shocks/stock GL springs, but I have no idea how they would behave with the GW springs.

Hi Chris.

When I dismantled my front end the first time a couple months ago, it sure did seem that the shocks act to stop travel in the stock setup.

When I removed my OEM shocks (van on jacked on frame) the lower control arm could move only another 1/2" or so down (with force). At that point the sway bar and radius contol arm binds up the lower control arm from moving much more.

Then I installed the VC (syncro.org) springs.. the van rests about 7/8" higher.. This leads me to believe that the limiting factor on travel beyond the shock is the radius control arm and sway bar acting in tandem.

When I dismantled my radius control arms.. the bushing sleeves (oringinals, no doubt) showed some deformation.

Seems maybe we would WANT the shock to top out first... rather than having the sway bar and radius control arm taking all that force.

In the rear, aren't the shocks the limiting factor on travel?.. acting almost as limiting straps?

Your thoughts?
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Christopher Schimke
Samba Member


Joined: August 03, 2005
Posts: 5374
Location: PNW
Christopher Schimke is offline

PostPosted: Wed Apr 07, 2010 9:06 am    Post subject: Reply with quote

I do agree that the shocks on a Vanagon are acting as a downward travel limiting device. Most common shocks do not have much in the way of protection for the valve to prevent damage when at full extension. While jacking the vehicle off of the ground causes the valve in the shock to come in contact with the upper portion of the shock body, it's a pretty gentle contact. When the suspension tops out during a driving situation, that valve-to-body contact can be very harsh which commonly causes damage to the valve and/or seal.

A shock should never be relied upon to act as a suspension limiting device in a driving situation. It's a quick way to ruin a perfectly good shock absorber. If your shocks are too short to prevent topping out on a regular basis, you really need longer shocks. Installing some form of external travel limiting device (like a limiting strap) will protect the shorter shocks from damage, but if the downward travel is too limited, it could easily have a negative affect on the handling of the vehicle.
_________________
"Sometimes you have to build a box to think outside of." - Bruce (not Springsteen)

*Custom wheel hardware for Audi/VW, Porsche and Mercedes wheels - Urethane Suspension Bushings*
T3Technique.com or contact me at [email protected]
Back to top
View user's profile Send private message Facebook Gallery Classifieds Feedback
Zero419
Samba Member


Joined: January 11, 2008
Posts: 2160
Location: PA
Zero419 is offline

PostPosted: Wed Apr 07, 2010 9:10 am    Post subject: Reply with quote

I am 99% on Bilsteins HD.
Thanks for your comments.

I don't think I would have the time to correctly dial in the Koni's anyway.
_________________
1987 Westy Auto Bostig 2.0 Ztec
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Zero419
Samba Member


Joined: January 11, 2008
Posts: 2160
Location: PA
Zero419 is offline

PostPosted: Wed Apr 07, 2010 9:18 am    Post subject: Reply with quote

OK 100%
I just placed an order with Shox.com
_________________
1987 Westy Auto Bostig 2.0 Ztec
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Wed Apr 07, 2010 9:53 am    Post subject: Reply with quote

hero419 wrote:
OK 100%
I just placed an order with Shox.com

I am using Bilstiens and am very happy with them.
But if you find the front end too mushy (I did) once you've had the chance to drive it a bit, look into the Addco sway bar.. I am not sure how it will work on the added lift of GW springs, though,
On my more modest lift it has worked out great.. argubaly one of the best handling improvement mods I've made.. Especially in terms of bang for buck.

Anyone use the bigger swaybars in tandem with the H&R/GW springs?
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
JeffRobenolt
Samba Member


Joined: February 25, 2007
Posts: 1513
Location: Wisconsin
JeffRobenolt is offline

PostPosted: Wed Apr 07, 2010 3:54 pm    Post subject: Reply with quote

My Blistien's topped out and were WAY too soft with big brakes.

I went with monroe coil overs for a 76-80 Ford Bronco up front and some Chevy Astro van rear shocks for the rear.
_________________
--------------------------------------------------------
jfats808 wrote:
Most, some, few is not all. You can always learn something from everyone , even the fool.
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
r39o
Samba Polizei


Joined: May 18, 2005
Posts: 9800
Location: San Diego
r39o is offline

PostPosted: Wed Apr 07, 2010 6:18 pm    Post subject: Reply with quote

jrobewesty wrote:
My Blistien's topped out and were WAY too soft with big brakes.

I went with monroe coil overs for a 76-80 Ford Bronco up front and some Chevy Astro van rear shocks for the rear.

Details please!

What springs are you using? Do you have part numbers for the shocks?

Do you have to do or make anything to make them fit?

PICTURES?

Don't be a tease!
_________________
"Use the SEARCH, Luke" But first visit the Vanagon FAQ!

1990 Multivan EJ 22, Rancho trans 0.82 4th, Small Car front AC, CLKs w/ 215/65-16, homemade big brakes 303mm, Konis, Recaros, etc....

Click to see my ads for Cup holders, Subaru clutch fix and CLK wheels (no wheels currently)
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4641
Location: Twain Harte, CA
j_dirge is offline

PostPosted: Wed Apr 07, 2010 6:23 pm    Post subject: Reply with quote

r39o wrote:
jrobewesty wrote:
My Blistien's topped out and were WAY too soft with big brakes.

I went with monroe coil overs for a 76-80 Ford Bronco up front and some Chevy Astro van rear shocks for the rear.

Details please!

What springs are you using? Do you have part numbers for the shocks?

Do you have to do or make anything to make them fit?

PICTURES?

Don't be a tease!


http://www.thesamba.com/vw/forum/viewtopic.php?t=351169&start=60
last page.. post by "snoop"

also here:
http://www.thesamba.com/vw/forum/viewtopic.php?t=361395&highlight=shocks
_________________
-89 GL Westy, SVX.. finally.

-57 pan f/g buggy with a 67 pancake Type 3 "S"
"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
JeffRobenolt
Samba Member


Joined: February 25, 2007
Posts: 1513
Location: Wisconsin
JeffRobenolt is offline

PostPosted: Wed Apr 07, 2010 6:42 pm    Post subject: Reply with quote

Here is the post on the rear.

http://www.thesamba.com/vw/forum/viewtopic.php?t=346855&highlight=
_________________
--------------------------------------------------------
jfats808 wrote:
Most, some, few is not all. You can always learn something from everyone , even the fool.
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
JeffRobenolt
Samba Member


Joined: February 25, 2007
Posts: 1513
Location: Wisconsin
JeffRobenolt is offline

PostPosted: Wed Apr 07, 2010 6:49 pm    Post subject: Reply with quote

This is from a different post,



I looked on rockauto website under Syncro shocks and it showed that they were the same as Astro vans. So I looked under the Astro vans an there were a lot more options. I went with the middle of road Monroe's, they were the longest.

Went I got them they were a little wide to slide in the shock mounts. I'm not sure if the mounts are smaller from me tightening in the last shocks I had. They seemed smaller so when I tightened them it sandwiched the mount til it hit the shock.

I took a angle grinder to the metal sleeve that goes through the rubber bushing on the shock and made it a little narrower.

Like I said this might be because of the last shocks I had on.

Jeff
_________________
--------------------------------------------------------
jfats808 wrote:
Most, some, few is not all. You can always learn something from everyone , even the fool.
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
snoop
Samba Member


Joined: June 22, 2007
Posts: 350
Location: SW Oregon
snoop is offline

PostPosted: Thu Apr 08, 2010 8:11 pm    Post subject: Reply with quote

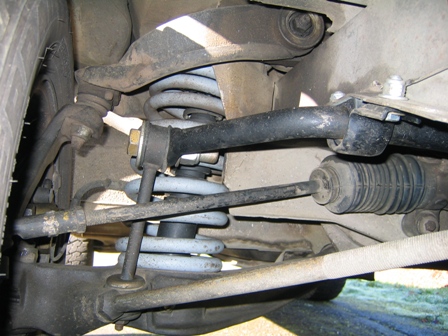

j_dirge wrote:

Anyone use the bigger swaybars in tandem with the H&R/GW springs?

Yep.
Image may have been reduced in size. Click image to view fullscreen.

_________________
87 Westy Camper
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2  Next
Page 1 of 2


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2023, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
Links to eBay or other vendor sites may be affiliate links where the site receives compensation.
