PostPosted: Thu Apr 15, 2010 8:24 am    Post subject: Oval-Window Glass Reply with quote

If you have any Oval-Window glass information, please add it to this thread, which is now in the FAQ.

Information posted by FRK in the past:

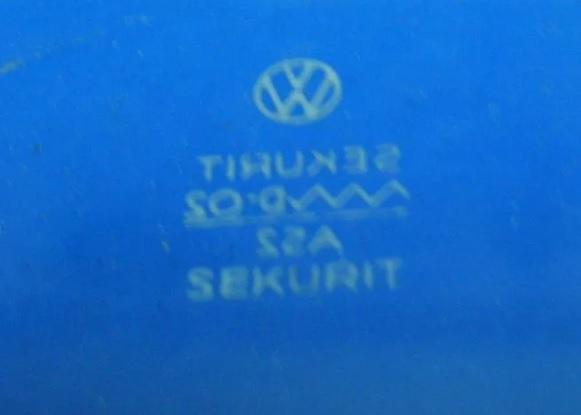

'56-'57 oval two small logos with ~D-02/AS2 in between (Lower logo backwards under the first logo)
Image may have been reduced in size. Click image to view fullscreen.

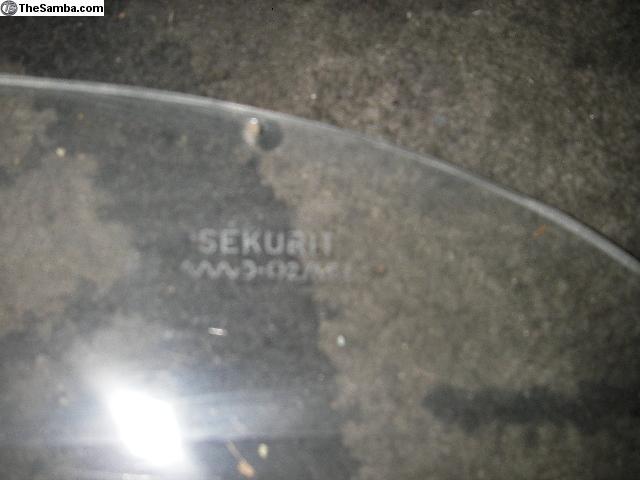

Late '53 to end of July '55 big logo with ~D-02/AS2 under SEKURIT.
Image may have been reduced in size. Click image to view fullscreen.


July '53 and older logo has a large SEKURIT and nothing else.
Image may have been reduced in size. Click image to view fullscreen.

_________________
How to Post Photos
Everett Barnes - [email protected] | My wanted ads
"Water is the only drink for a wise man" | "Communication prevents complaints"
Stop dead photo links! Post your photos to The Samba Gallery!
Back to top
View user's profile Send private message Send e-mail Visit poster's website Facebook Instagram Gallery Classifieds Feedback
Kjell Roar
Samba Member


Joined: December 08, 2008
Posts: 1236
Location: Norway
Kjell Roar is offline

PostPosted: Wed Jun 27, 2012 9:53 pm    Post subject: Reply with quote

Some useful links:

http://www.thesamba.com/vw/forum/viewtopic.php?t=371121&highlight=sekurit

http://www.thesamba.com/vw/forum/viewtopic.php?t=338873&highlight=duroglas

About tempered windscreen:

http://www.thesamba.com/vw/forum/viewtopic.php?t=342785&highlight=duroglas

Smile
_________________
I got a historic car, every scratch got a history...

My car, Aug. 4th, 1955 / an early 56: http://www.thesamba.com/vw/forum/album_page.php?pic_id=610438
Back to top
View user's profile Send private message Gallery Classifieds Feedback
BulliBill
Samba Member


Joined: July 09, 2004
Posts: 3299
Location: St Charles, MO
BulliBill is offline

PostPosted: Wed Jan 29, 2014 4:19 pm    Post subject: Reply with quote

I just checked out the manufacturers "logo" on an original used Oval sedan windshield that I have stored for back-up use on my Sunroof if ever needed. Here is a shot of the logo:

Image may have been reduced in size. Click image to view fullscreen.


Does anyone have any idea what type of glass and era (years) it is from?
Thanks!

Bill
_________________
I'm looking for these license plate frames for my fleet:
Bob Bowman, Santa Cruz (it's my last name!)
Mission VW, San Fernando
Thornton VW, Stockton
Thanks for any help!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
BulliBill
Samba Member


Joined: July 09, 2004
Posts: 3299
Location: St Charles, MO
BulliBill is offline

PostPosted: Wed Jan 29, 2014 4:26 pm    Post subject: Reply with quote

Speaking of Oval windshield logos, here is another one. This logo is on an original windshield glass that I have put away for an Oval Kabriolett. What the hell do I have here? Era? Type of glass? Do you think this has that tempered circle in front of the drivers field of vision?

Image may have been reduced in size. Click image to view fullscreen.


The actual windshield is all padded and boxed in storage, but that photo above of the post-it note shows a line-by-line illustration of what the logo looks like on the glass.

Thanks!

Bill
_________________
I'm looking for these license plate frames for my fleet:
Bob Bowman, Santa Cruz (it's my last name!)
Mission VW, San Fernando
Thornton VW, Stockton
Thanks for any help!
Back to top
View user's profile Send private message Visit poster's website Gallery Classifieds Feedback
*Darren
Samba Member


Joined: July 29, 2013
Posts: 822
Location: MD
*Darren is offline

PostPosted: Wed Jan 29, 2014 4:32 pm    Post subject: Reply with quote

Bill,

From this thread http://www.thesamba.com/vw/forum/posting.php?mode=quote&p=6572827 this response laminated glass - I believe a good B/C would have it as a M-code

templeofspeed wrote:
I'm doing a 10/56 beetle, it has a Delog as well. Never been replaced. You will not find an early car with the M089 AS1 laminated windshield that matches all the other tempered glass. My car has all Duro Glas everywhere else.

Sigla and Delog made the laminated windshields for type 1. Transporters are a different story, and we are dealing with a beetle here... I have never seen a Duro or Sekurit laminated windshield.

I restored a Standard Zwitter that had a Sekurit windshield as well as all the other glass, but it was not laminated, typical for a standard model.

I think you are safe in assuming you have the OG part.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Bruce
Samba Member


Joined: May 16, 2003
Posts: 16595
Location: Left coast, Canada
Bruce is offline

PostPosted: Wed Jan 29, 2014 7:45 pm    Post subject: Reply with quote

AS-1 means laminated.
AS-2 is tempered.
_________________
overheard at the portland Swap Meet... wrote:
..... a steering wheel made from a mastadon tusk.....
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
easy e Premium Member
Samba Member


Joined: May 28, 2008
Posts: 3269
Location: Five Cities, CA
easy e is offline

PostPosted: Wed Jan 27, 2016 7:55 pm    Post subject: Re: Oval-Window Glass Reply with quote

I have a piece of rear glass & don't know if it's sedan or vert & have been unsuccessful looking through the other glass threads.

Single large SEKURIT with the squiggle / D-02 AS2 underneath... so I believe that's 54-July '55.

Width: 26.5" (~675mm)
Height: 10.75" (~275mm)
Convex high point (when laying flat): 1.5" (~40mm)

Thx,
e
_________________
Searchable, click-navigable 1958 Bus Parts List
"They are about as worthless as the tits on the boars that live in the woods behind their junk yard." -Weatherly
Back to top
View user's profile Send private message Instagram Gallery Classifieds Feedback
RareAir
Samba Member


Joined: May 11, 2002
Posts: 14475
Location: 18 miles North of the border
RareAir is offline

PostPosted: Wed Jan 27, 2016 9:48 pm    Post subject: Re: Oval-Window Glass Reply with quote

easy e wrote:
I have a piece of rear glass & don't know if it's sedan or vert & have been unsuccessful looking through the other glass threads.

Width: 26.5" (~675mm)
Height: 10.75" (~275mm)
Convex high point (when laying flat): 1.5" (~40mm)


1953-57 vert rear glass measures approximately 26.5" wide x 7" tall
_________________
1947 Typ 11a
1954 Typ 117
1956 Typ 151
1959 Typ 117
1959 Typ 265
1961 356B
1966 Typ 151
1966 Typ 241
Back to top
View user's profile Send private message Gallery Classifieds Feedback
igtoth
Samba Member


Joined: May 09, 2006
Posts: 377
Location: Ribeirão Preto, SP, Brazil
igtoth is offline

PostPosted: Thu Mar 30, 2017 10:51 am    Post subject: Re: Oval-Window Glass Reply with quote

Is this for 56/57?

Image may have been reduced in size. Click image to view fullscreen.

_________________
1957 Typ 113 - Polarsilver
1960 Typ 113 - Golf Blue
1975 Typ 221 - Last yr Brazilian Split Window

Ighor Toth
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Ted2
Samba Member


Joined: April 07, 2004
Posts: 71

Ted2 is offline

PostPosted: Fri Mar 31, 2017 2:36 pm    Post subject: Re: Oval-Window Glass Reply with quote

I have a Delog windshield in my November '55 sedan.
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
René R. Premium Member
Samba Member


Joined: July 06, 2015
Posts: 763
Location: No. Calif.
René R. is offline

PostPosted: Fri Mar 31, 2017 3:38 pm    Post subject: Re: Oval-Window Glass Reply with quote

And I have one in my June '54. It's original to the car (as is all the other glass).
