PostPosted: Sat May 08, 2010 12:09 pm    Post subject: 2-way windshield washer nozzles that fits - edited Reply with quote

I have tested the 2-way washer jets from a 76-85 Porsche 911 and they fit without mod. The jets of water can be adjusted to hit the middle of the windshield at the extreme position of the adjustment. You should really adjust it so they hit the top of the windshield at stationary and then the water jets will hit the middle of the wind shield when you are driving at speed.
Cost is $8.25 not cheap but worth it. I have tested only the ones from Pelican parts so nozzles from other vendors may be different. Part number is 914-628-203-11-M78

http://www.pelicanparts.com/cgi-bin/smart/more_inf...1976-85%29

Edit:

The Porsche nozzle stands 6mm above the body panel and the OE nozzle stands 18mm above. So the jets are shooting at the glass at a much lower angle than the OE jets. That make it difficult to adjust the jets as a little angle change will results a big movement of where the water land on the windshield. The van I put the Porsche jets on has the chrome plastic insert and it stick out above the rubber. The water jets just barely clear that molding. You need lots and lots of patience to adjust the jets but you only need to do it once.

Also, the Porsche jets has a smaller base than the OE jet, so it will not cover up the old markings made by the old jets. The ends that goes into the body is exactly the same as the OE jets.
_________________
Steve

87 Westfalia full camper 4 speed


Last edited by stevey88 on Mon May 10, 2010 1:48 pm; edited 2 times in total
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4607
Location: El Cerrito, CA
j_dirge is offline

PostPosted: Sat May 08, 2010 6:30 pm    Post subject: Reply with quote

Oh NO!

Impulse buy!

Am now $23 poorer.

Hope they work... Laughing
_________________
-89 GL Westy, still humming along under the power of a used "WBXer of mystery"
-57 pan f/g buggy with a 67 pancake Type 3 "S"

"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rhinoculips
Samba Member


Joined: August 08, 2005
Posts: 918
Location: Keystone, Colorado
Rhinoculips is offline

PostPosted: Sat May 08, 2010 7:55 pm    Post subject: Reply with quote

How about some pics of them installed and in use? Thanks for the post. It's to late for me as I got the 3 jet washers from the UK. $$$$$, but really nice.
_________________
“May your trails be crooked, winding, lonesome, dangerous, leading to the most amazing view. May your mountains rise into and above the clouds.” - Edward Abbey

Click to view image
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
tripod808
Samba Member


Joined: March 06, 2010
Posts: 65
Location: Hilo
tripod808 is offline

PostPosted: Sat May 08, 2010 9:55 pm    Post subject: Reply with quote

I was close to biting the bullet for the smart nozzles, I'm glad someone found a cheaper alternative.

Pictures please!
Back to top
View user's profile Send private message Classifieds Feedback
dobryan
Samba Member


Joined: March 24, 2006
Posts: 10973
Location: Brookeville, MD
dobryan is offline

PostPosted: Sun May 09, 2010 7:01 am    Post subject: Reply with quote

Thanks. Just ordered two! Very Happy
_________________
Dave O
'87 Westy w/ 2002 Subaru EJ25 and Peloquin TBD

"To travel hopefully is a better thing than to arrive." Robert Louis Stevenson

Join the Vanagon Rescue Squad on the VanAlert app.
http://vanalert.com/

MD>Canada>AK>WA>OR>CA>AZ>UT>WY>SD
https://www.thesamba.com/vw/forum/viewtopic.php?t=620646

Building a bus for travel in Europe
https://www.thesamba.com/vw/forum/viewtopic.php?t=695371
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Sun May 09, 2010 4:26 pm    Post subject: Reply with quote

Good lookin' out.
The whole Smart Car noozle deal seamed like a waste to me.
All that money for something that doesn't fit.
Thanks Porsche.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
goffoz
Samba Member


Joined: May 09, 2007
Posts: 1486

goffoz is offline

PostPosted: Sun May 09, 2010 7:56 pm    Post subject: Reply with quote

just FYI the nozzles from a 1999 and earlier, mercury villagers work well.they stand 2" tall and have adjustable dual sqirters.
(2000 and later have smaller units)
The fit is different but an easy mod.
I snagged both nozzles, all the plumbing with check valves, for $7 from a P&P
Back to top
View user's profile Send private message Gallery Classifieds Feedback
insyncro
Banned


Joined: March 07, 2002
Posts: 15087
Location: New York
insyncro is offline

PostPosted: Mon May 10, 2010 5:22 am    Post subject: Reply with quote

goffoz wrote:
just FYI the nozzles from a 1999 and earlier, mercury villagers work well.they stand 2" tall and have adjustable dual sqirters.
(2000 and later have smaller units)
The fit is different but an easy mod.
I snagged both nozzles, all the plumbing with check valves, for $7 from a P&P


pictures please.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 737
Location: Salt Lake City
Classicvibe is offline

PostPosted: Mon May 10, 2010 8:09 am    Post subject: Reply with quote

Pictures people! Get out your cameras and snap some pics. "Fit" is a very relative term, as there are many interpretations on just what constitutes a good "fit." The are complicated little buggers...
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2019...you goin?

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
kevinm
Samba Member


Joined: September 08, 2008
Posts: 74
Location: Minneapolis, MN
kevinm is offline

PostPosted: Mon May 10, 2010 6:51 pm    Post subject: Reply with quote

How does one remove the existing nozzles without scratching the paint? Do you just slip a thin piece of plastic under them to push in the tabs?

- Kevin
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Rhinoculips
Samba Member


Joined: August 08, 2005
Posts: 918
Location: Keystone, Colorado
Rhinoculips is offline

PostPosted: Mon May 10, 2010 9:22 pm    Post subject: Reply with quote

kevinm wrote:
How does one remove the existing nozzles without scratching the paint? Do you just slip a thin piece of plastic under them to push in the tabs?

- Kevin


Clamp onto them with a pair of Vise-grips and twist a quarter of a turn. This will destroy the tabs on the nozzles, so make sure you have a replacement before removing the old ones.
_________________
“May your trails be crooked, winding, lonesome, dangerous, leading to the most amazing view. May your mountains rise into and above the clouds.” - Edward Abbey

Click to view image
Back to top
View user's profile Send private message Visit poster's website Facebook Gallery Classifieds Feedback
syncrodoka
Samba Member


Joined: December 27, 2005
Posts: 11168
Location: Santa Cruz, CA
syncrodoka is offline

PostPosted: Mon May 10, 2010 9:29 pm    Post subject: Reply with quote

Quote:
The Porsche nozzle stands 6mm above the body panel and the OE nozzle stands 18mm above. So the jets are shooting at the glass at a much lower angle than the OE jets.
The van I put the Porsche jets on has the chrome plastic insert and it stick out above the rubber. The water jets just barely clear that molding.

Have you driven the van at freeway speeds and verified that it still works? This is the reason why the cheap 2nd gen SMART car nozzles aren't a good solution.
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4607
Location: El Cerrito, CA
j_dirge is offline

PostPosted: Tue Sep 28, 2010 9:46 am    Post subject: Reply with quote

syncrodoka wrote:
Quote:
The Porsche nozzle stands 6mm above the body panel and the OE nozzle stands 18mm above. So the jets are shooting at the glass at a much lower angle than the OE jets.
The van I put the Porsche jets on has the chrome plastic insert and it stick out above the rubber. The water jets just barely clear that molding.

Have you driven the van at freeway speeds and verified that it still works? This is the reason why the cheap 2nd gen SMART car nozzles aren't a good solution.

Bump.
Yes.
I installed one on the driver's side. If anything these squirters spray too high and they have to be adjusted down almost to the limit.

Works nicely, though. 6 months or so now.
_________________
-89 GL Westy, still humming along under the power of a used "WBXer of mystery"
-57 pan f/g buggy with a 67 pancake Type 3 "S"

"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
foodeater
Samba Member


Joined: July 13, 2007
Posts: 1293
Location: Newburgh, NY
foodeater is offline

PostPosted: Tue Sep 28, 2010 1:46 pm    Post subject: Reply with quote

but still no pictures.
_________________
89 Bluestar-2.5 Subaru Powered

'84 Westy Tiico-daily driver-sold
'82 Caddy diesel-sold
'87 Vanagon Syncro-RIP
'81 diesel rabbit-sold
'82 Vanagon auto-RIP
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4607
Location: El Cerrito, CA
j_dirge is offline

PostPosted: Tue Sep 28, 2010 2:19 pm    Post subject: Reply with quote

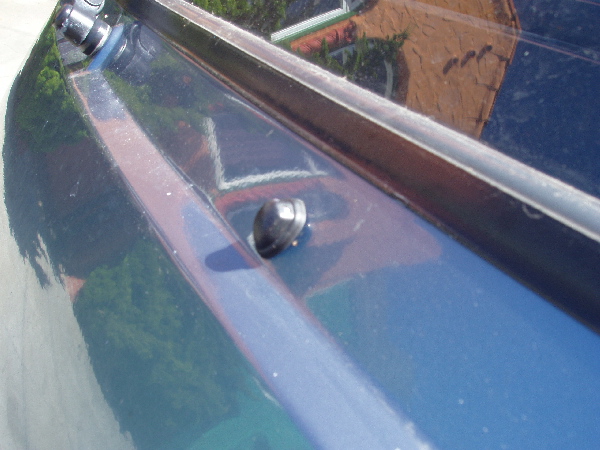

Image may have been reduced in size. Click image to view fullscreen.



Sorry..
The van is kind dirty.
_________________
-89 GL Westy, still humming along under the power of a used "WBXer of mystery"
-57 pan f/g buggy with a 67 pancake Type 3 "S"

"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Classicvibe
Samba Member


Joined: August 03, 2009
Posts: 737
Location: Salt Lake City
Classicvibe is offline

PostPosted: Tue Sep 28, 2010 2:24 pm    Post subject: Reply with quote

So, it looks like a narrow window to clear the molding and still hit the windshield? Easy adjustment? The $60 ones sold by another Sambanista rise like 3/4" to clear that molding hurdle. Comments? Also, how do we find that squirter? Thanks for the update!
_________________
On a mission, the destination is just an excuse.

Syncro Solstice 2019...you goin?

1986.5 Wolfsburg Syncro Westfalia Poptop Weekender
Back to top
View user's profile Send private message Gallery Classifieds Feedback
foodeater
Samba Member


Joined: July 13, 2007
Posts: 1293
Location: Newburgh, NY
foodeater is offline

PostPosted: Tue Sep 28, 2010 2:24 pm    Post subject: Reply with quote

Thanks.
_________________
89 Bluestar-2.5 Subaru Powered

'84 Westy Tiico-daily driver-sold
'82 Caddy diesel-sold
'87 Vanagon Syncro-RIP
'81 diesel rabbit-sold
'82 Vanagon auto-RIP
Back to top
View user's profile Send private message Send e-mail Gallery Classifieds Feedback
jerrydog411
Samba Member


Joined: September 28, 2009
Posts: 385
Location: North Vancouver, BC
jerrydog411 is offline

PostPosted: Tue Sep 28, 2010 2:54 pm    Post subject: Reply with quote

Thanks a bunch ... I ordered a couple of pairs for my & my buddy's van.

Cheers,

John
Back to top
View user's profile Send private message Gallery Classifieds Feedback
j_dirge
Samba Member


Joined: August 08, 2007
Posts: 4607
Location: El Cerrito, CA
j_dirge is offline

PostPosted: Tue Sep 28, 2010 4:33 pm    Post subject: Reply with quote

Classicvibe wrote:
So, it looks like a narrow window to clear the molding and still hit the windshield? Easy adjustment? The $60 ones sold by another Sambanista rise like 3/4" to clear that molding hurdle. Comments? Also, how do we find that squirter? Thanks for the update!

Exactly.
Yeah.. it takes a couple trial and error adjustments.. but you'll find the zone.
The particular part and the supplier is linked up in the first post. (Thanks Steve88!)
_________________
-89 GL Westy, still humming along under the power of a used "WBXer of mystery"
-57 pan f/g buggy with a 67 pancake Type 3 "S"

"Jimi Hendrix owned one. Richard Nixon did not"
-Grand Tour, Season 1, episodes 4 and 5

danfromsyr wrote:
those are straight line runs with light weight race cars for only 1/4mile at a time..
not pushing a loaded brick up a mountain pass with a family of 4+ inside expecting to have an event free vacation..
Back to top
View user's profile Send private message Gallery Classifieds Feedback
stevey88
Samba Member


Joined: January 16, 2008
Posts: 1312
Location: Fremont, SF Bay Area
stevey88 is offline

PostPosted: Tue Sep 28, 2010 6:06 pm    Post subject: Reply with quote

j dirge,

With only one dual jet installed, how can you stand it with one side of the windshield can be washed cleaner than the other side ?

BTW, what is ' Outer Sunset " ? I go to 30th X Ortega all the time.
_________________
Steve

87 Westfalia full camper 4 speed
Back to top
View user's profile Send private message Gallery Classifieds Feedback
Display posts from previous:
Reply to topic    Forum Index -> Vanagon All times are Mountain Standard Time/Pacific Daylight Savings Time
Page: 1, 2, 3, 4, 5  Next
Page 1 of 5


Jump to:
You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum

About | Help! | Advertise | Donate | Premium Membership | Privacy/Terms of Use | Contact Us | Site Map
Copyright © 1996-2018, Everett Barnes. All Rights Reserved.
Not affiliated with or sponsored by Volkswagen of America | Forum powered by phpBB
